HEATER ONLY SYSTEM
(IF EQUIPPED)
1.Fan speed adjustment:Controls
the volume of air circulated in the
vehicle.
2.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
3.Air flow selections:Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control.
:Distributes outside air through the instrument panel vents.
OFF:Outside air is shut out and the fan will not operate.
:Distributes outside air through the instrument panel vents and the
floor vents.
:Distributes outside air through the floor vents.
:Distributes outside air through the windshield defroster vents and
floor vents.
:Distributes outside air through the windshield defroster vents.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle during cold or warm
weather, do not drive with the air flow selector in the OFF position.
•Under normal weather conditions, do not leave the air flow selector in
OFF when the vehicle is parked. This allows the vehicle to “breathe”
using the outside air inlet vents.
•Do not put objects under the front seats that will interfere with the air
flow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
2008 F-650/750(f67)
Supplement
USA(fus)
Climate Controls
44

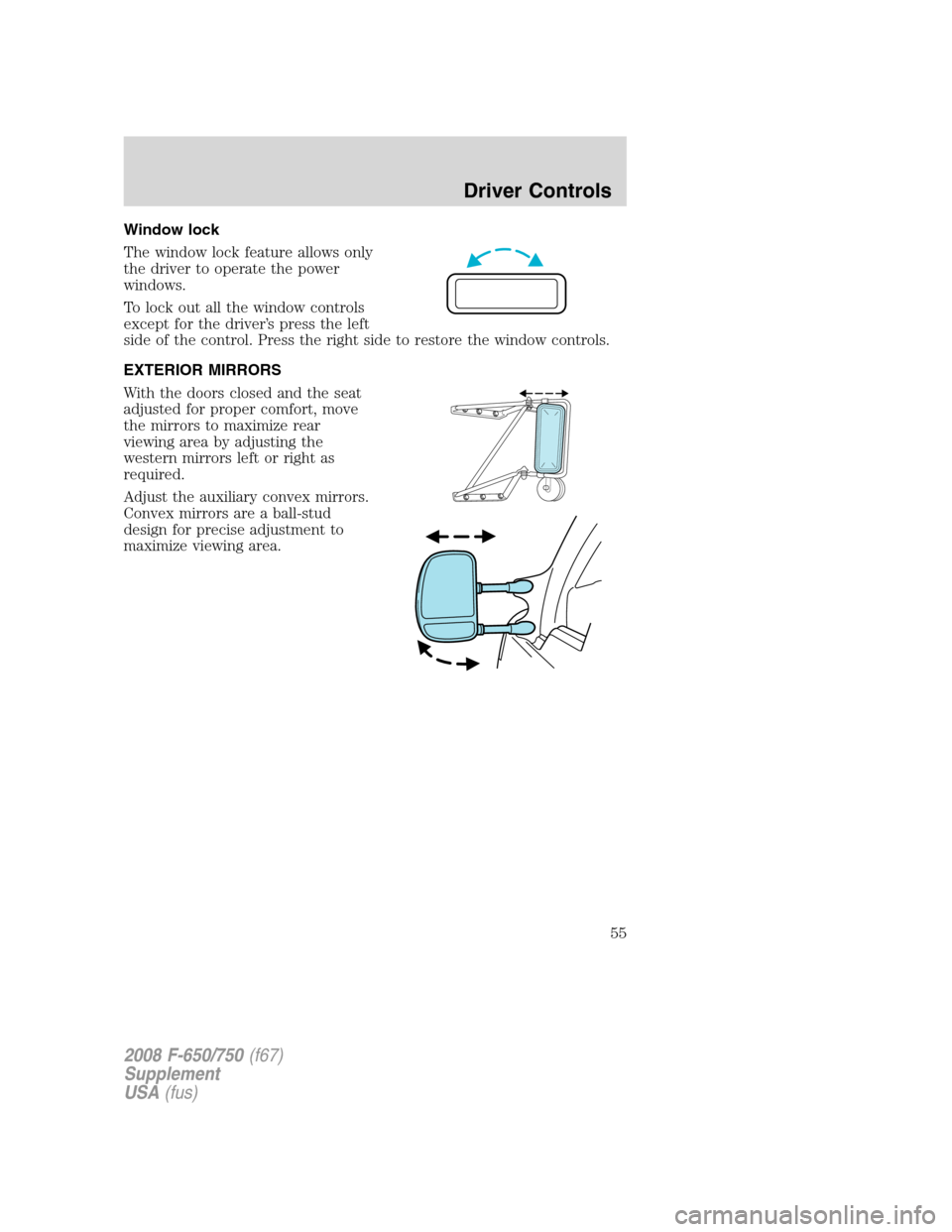

Window lock
The window lock feature allows only
the driver to operate the power
windows.
To lock out all the window controls
except for the driver’s press the left
side of the control. Press the right side to restore the window controls.
EXTERIOR MIRRORS
With the doors closed and the seat
adjusted for proper comfort, move
the mirrors to maximize rear
viewing area by adjusting the
western mirrors left or right as
required.
Adjust the auxiliary convex mirrors.
Convex mirrors are a ball-stud
design for precise adjustment to
maximize viewing area.
2008 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
55

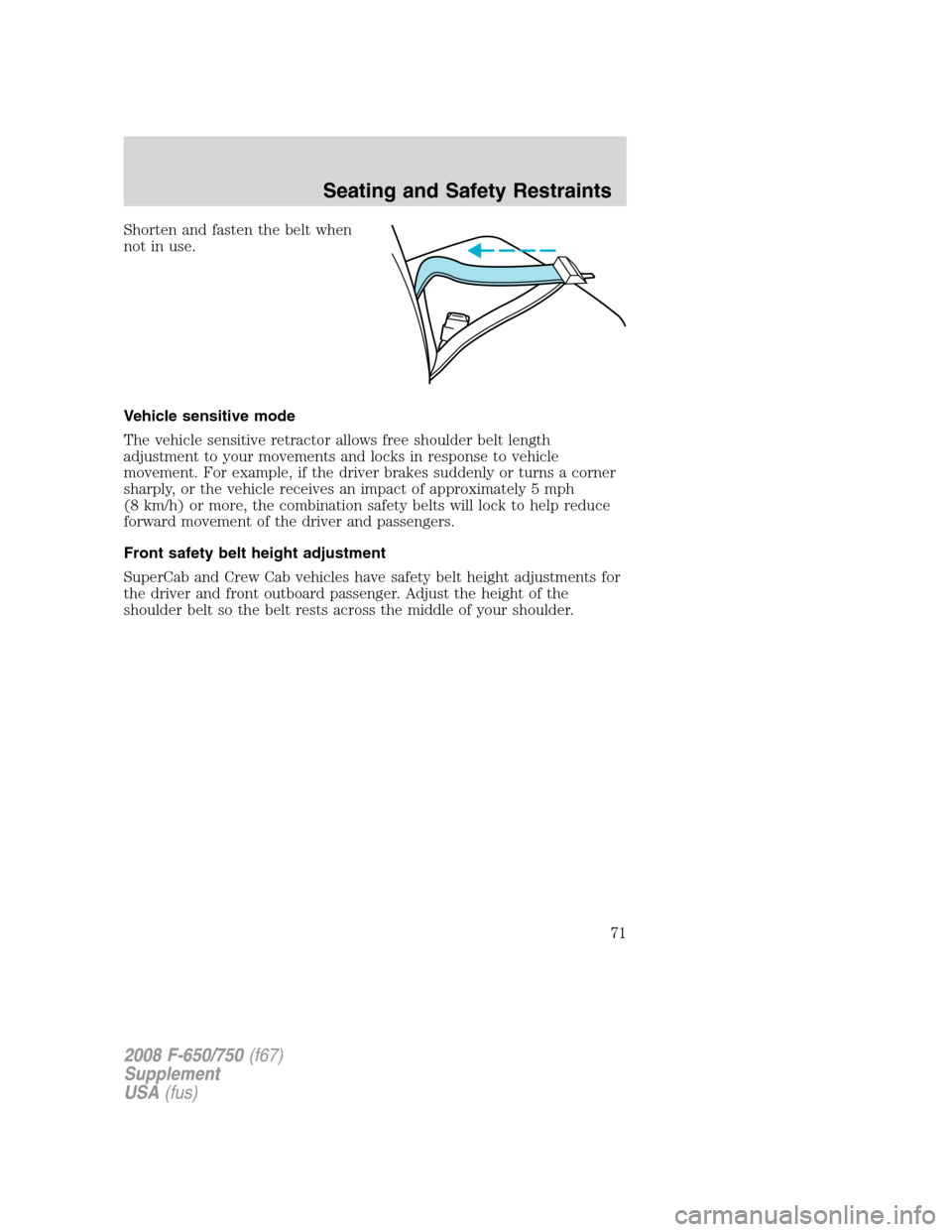

Shorten and fasten the belt when
not in use.
Vehicle sensitive mode
The vehicle sensitive retractor allows free shoulder belt length
adjustment to your movements and locks in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph
(8 km/h) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
Front safety belt height adjustment
SuperCab and Crew Cab vehicles have safety belt height adjustments for
the driver and front outboard passenger. Adjust the height of the
shoulder belt so the belt rests across the middle of your shoulder.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
71

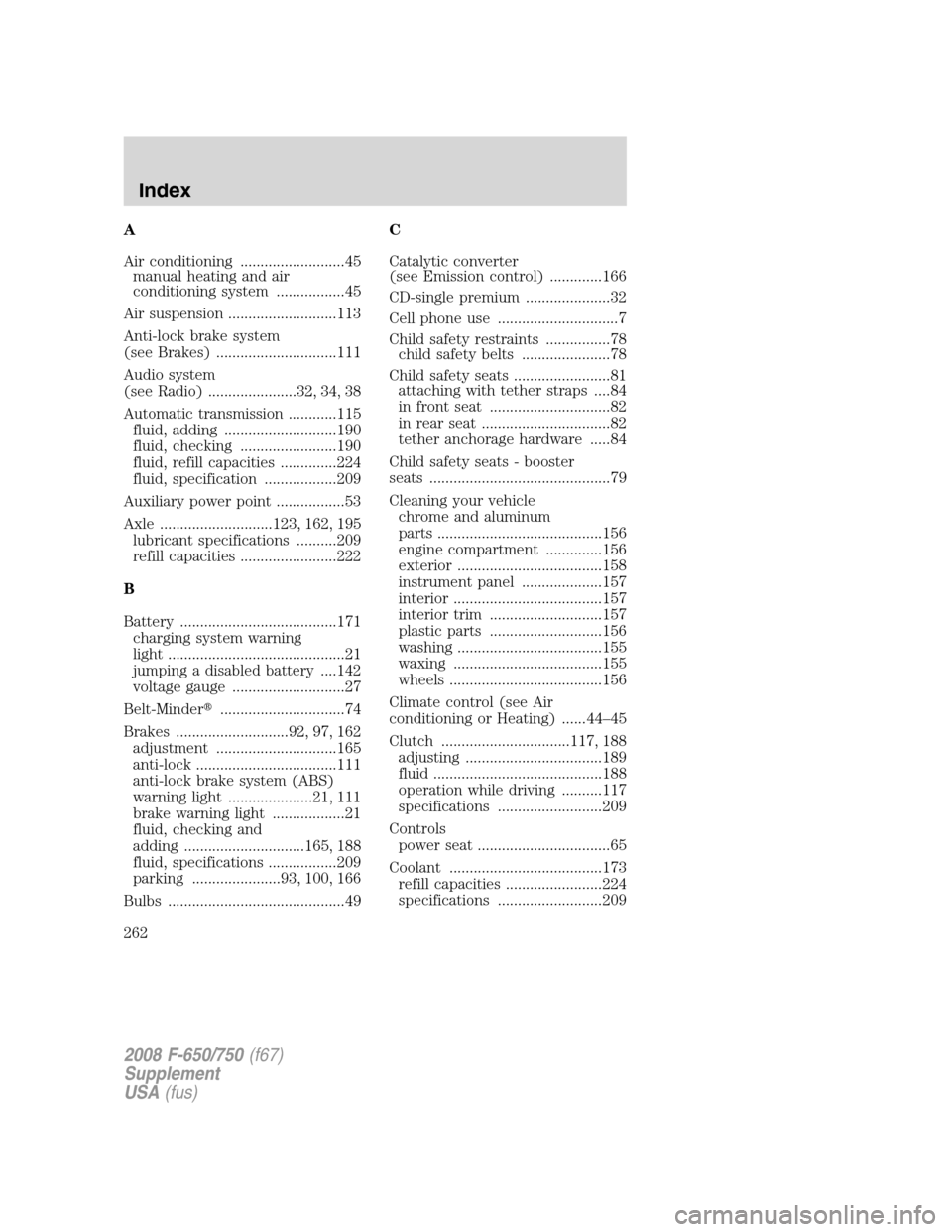

A
Air conditioning ..........................45
manual heating and air
conditioning system .................45
Air suspension ...........................113
Anti-lock brake system
(see Brakes) ..............................111
Audio system
(see Radio) ......................32, 34, 38
Automatic transmission ............115
fluid, adding ............................190
fluid, checking ........................190
fluid, refill capacities ..............224
fluid, specification ..................209
Auxiliary power point .................53
Axle ............................123, 162, 195
lubricant specifications ..........209
refill capacities ........................222
B
Battery .......................................171
charging system warning
light ............................................21
jumping a disabled battery ....142
voltage gauge ............................27
Belt-Minder...............................74
Brakes ............................92, 97, 162
adjustment ..............................165
anti-lock ...................................111
anti-lock brake system (ABS)
warning light .....................21, 111
brake warning light ..................21
fluid, checking and
adding ..............................165, 188
fluid, specifications .................209
parking ......................93, 100, 166
Bulbs ............................................49C
Catalytic converter
(see Emission control) .............166
CD-single premium .....................32
Cell phone use ..............................7
Child safety restraints ................78
child safety belts ......................78
Child safety seats ........................81
attaching with tether straps ....84
in front seat ..............................82
in rear seat ................................82
tether anchorage hardware .....84
Child safety seats - booster
seats .............................................79
Cleaning your vehicle
chrome and aluminum
parts .........................................156
engine compartment ..............156
exterior ....................................158
instrument panel ....................157
interior .....................................157
interior trim ............................157
plastic parts ............................156
washing ....................................155
waxing .....................................155
wheels ......................................156
Climate control (see Air
conditioning or Heating) ......44–45
Clutch ................................117, 188
adjusting ..................................189
fluid ..........................................188
operation while driving ..........117
specifications ..........................209
Controls
power seat .................................65
Coolant ......................................173
refill capacities ........................224
specifications ..........................209
2008 F-650/750(f67)
Supplement
USA(fus)
Index
262
