Unloaded or lightly loaded vehicles
The braking system has been designed to safely stop your vehicle when
fully loaded to its GVWR.
WARNING:When operating empty or lightly loaded, sudden or
hard braking may induce wheel lockup with loss of vehicle
control and the possibility of accident and serious injury, especially on
wet or slippery road surfaces.
TRAILER TOWING
Towing a trailer places an additional load on your vehicle’s engine,
transmission, axle, brakes, tires and suspension. Inspect these
components carefully prior to and after any towing operation.
Consult your local motor vehicle speed regulations for towing a trailer.
Your vehicle’s load capacity is designated by weight, not by volume, so you
cannot necessarily use all available space when loading a vehicle. 2nd unit
bodies are not included in maximum trailer weight ratings. The weight of the
additional “body” must be subtracted from the maximum trailer weight.
Note:Do not exceed the GVWR or the GAWR specified on the
certification label.
Note:Do not exceed the GCWR rating or transmission damage may occur.
WARNING:Towing trailers beyond the maximum recommended
gross trailer weight exceeds the limit of the vehicle and could
result in engine damage, transmission damage, structural damage, loss
of vehicle control, vehicle rollover and personal injury.
Model Maximum
GVWR - lb (kg)Maximum
GCWR
F-650 Pro-Loader (Kick-Up
Frame)20500–26000
(9299–11792)*
F-650 Pro-Loader (Straight
Frame)/F-650 Straight Frame20500–29000
(9299–13154)*
F-750 25999–37000
(11793–16783)*
* Specific GCWR and maximum trailer weight applicable to a given
F–650/750 model is dependent on many variables including
transmission capability. Check with your sales consultant for the exact
rating on your vehicle.
Driving
147
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
Page 154 of 306
Passenger compartment fuse panel
The fuse box is located behind the passenger airbag cover and can be
accessed through the glove box.
Fuse/Relay
locationFuse amp
ratingFuse description
1 20A Horn
2 15A Flasher relay
3 20A Power point
4 10A Data Link Connector (DLC), Engine
diagnostic connector, Parking brake warning
5 15A Run relay
6 — Not used
7 — Not used
8 5A Radio, GEM
9 5A Power window relay
10 15A Heated mirrors
11 5A Wiper and washer systems
12 10A Transmission shift selector
13 20A Radio/SYNC, Power mirrors
14 10A Interior lamp relay
Roadside Emergencies
154
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
Page 305 of 306

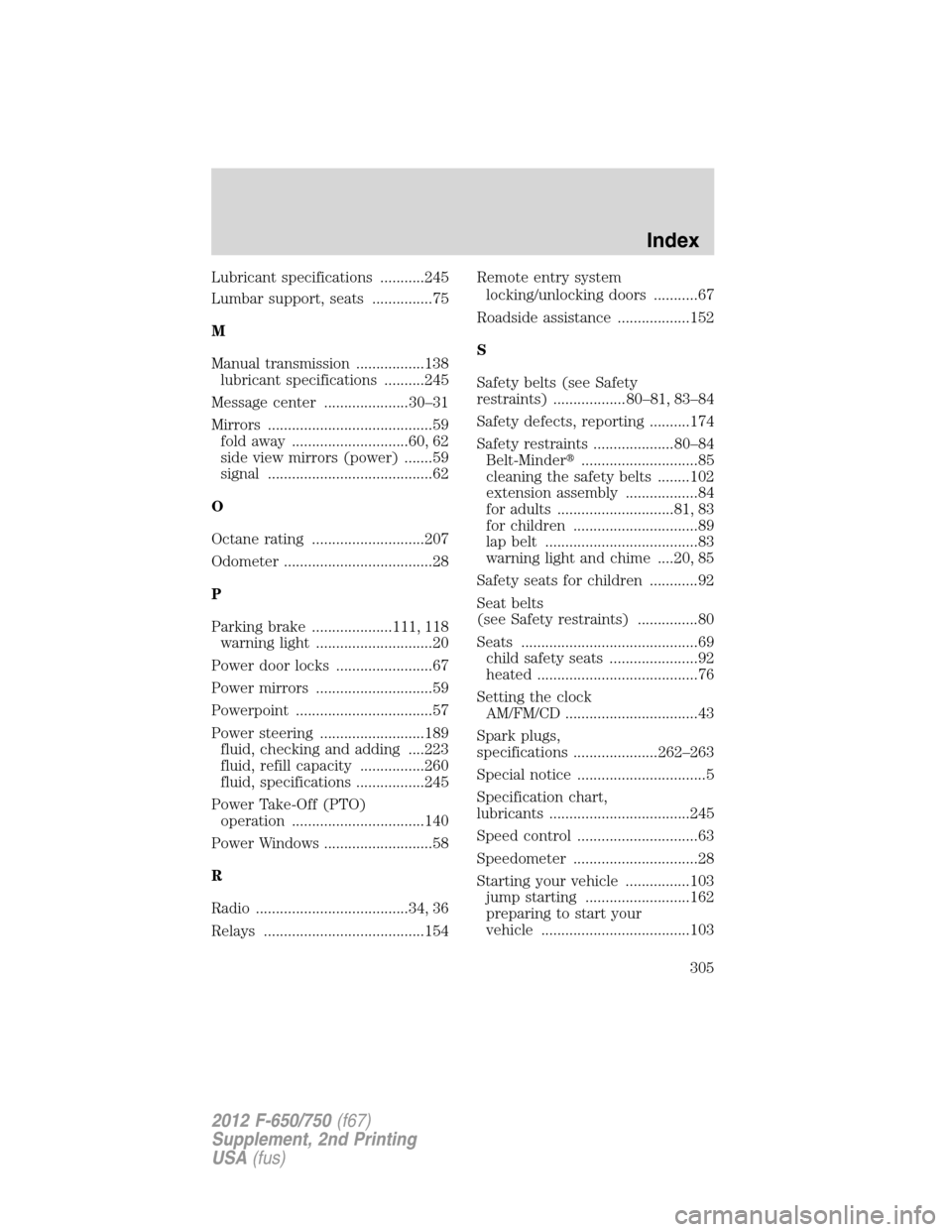

Lubricant specifications ...........245
Lumbar support, seats ...............75
M
Manual transmission .................138
lubricant specifications ..........245
Message center .....................30–31
Mirrors .........................................59
fold away .............................60, 62
side view mirrors (power) .......59
signal .........................................62
O
Octane rating ............................207
Odometer .....................................28
P
Parking brake ....................111, 118
warning light .............................20
Power door locks ........................67
Power mirrors .............................59
Powerpoint ..................................57
Power steering ..........................189
fluid, checking and adding ....223
fluid, refill capacity ................260
fluid, specifications .................245
Power Take-Off (PTO)
operation .................................140
Power Windows ...........................58
R
Radio ......................................34, 36
Relays ........................................154Remote entry system
locking/unlocking doors ...........67
Roadside assistance ..................152
S
Safety belts (see Safety
restraints) .................. 80–81, 83–84
Safety defects, reporting ..........174
Safety restraints ....................80–84
Belt-Minder.............................85
cleaning the safety belts ........102
extension assembly ..................84
for adults .............................81, 83
for children ...............................89
lap belt ......................................83
warning light and chime ....20, 85
Safety seats for children ............92
Seat belts
(see Safety restraints) ...............80
Seats ............................................69
child safety seats ......................92
heated ........................................76
Setting the clock
AM/FM/CD .................................43
Spark plugs,
specifications .....................262–263
Special notice ................................5
Specification chart,
lubricants ...................................245
Speed control ..............................63
Speedometer ...............................28
Starting your vehicle ................103
jump starting ..........................162
preparing to start your
vehicle .....................................103
