To be sure your vehicle is ready to operate, conduct a pre-trip inspection
at the beginning of each work period. Follow the steps listed in this
section to ensure a proper vehicle inspection procedure. The pages in
this section may be produced locally and used on a regular basis.
VEHICLE INSPECTION INFORMATION
Note:Always make sure the parking brake is applied before starting the
engine.
Engine compartment (with engine stopped)
Engine oilUse the dipstick to verify the oil level is in the
proper operating range.
Engine coolantLook through the plastic reservoir or the clear
sight glass on the reservoir (depending upon
vehicle equipment) and verify the coolant level is
within the proper operating range as marked on
the reservoir.Do not remove pressure cap
until the coolant has cooled.
Power steering
fluidVerify that the fluid level is in the proper
operating range. Refer toPower steering fluidin
theMaintenance and Specificationschapter.
Brake fluidRemove the master cylinder caps and inspect the
fluid level. The full mark is at the bottom of the
opening of the fluid ports.
Hydraulic clutch
fluidRemove the cap and inspect the fluid level. The
full mark is at the step of the reservoir.
Belts (fan,
alternator, water
pump and A/C
compressor)Inspect for glazing, fraying or cracking. There
should be no more than 5-7 cracks per rib, per
inch (2.5 cm).
Fluid leaksInspect for signs of fluid puddles, dripping fluid
on the ground under the engine or the underside
of the engine.
HVAC air inletInspect for debris that may have collected on the
HVAC air inlet grille or inside the exterior module
as this may cause reduced system performance.
Vehicle Inspection Guide
10
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

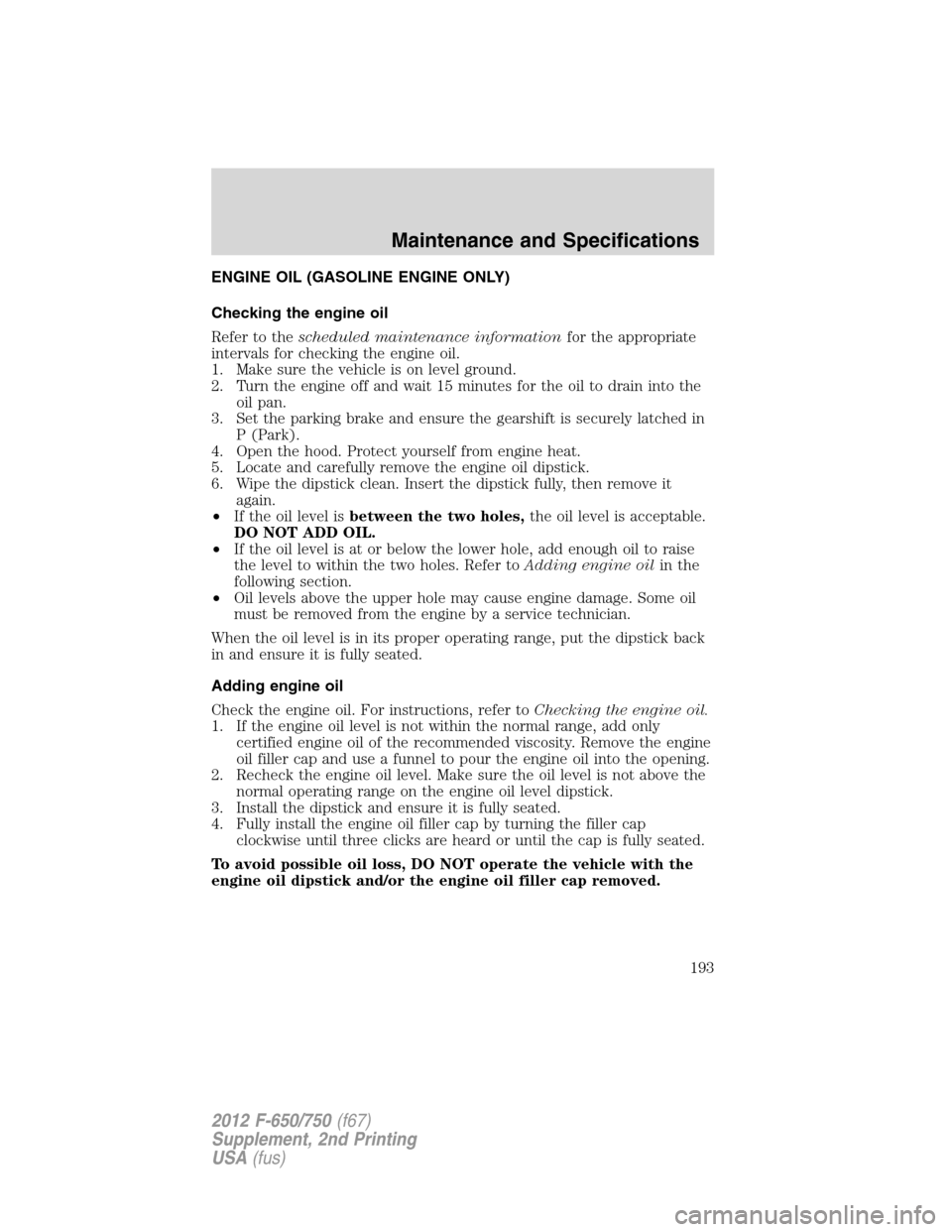

ENGINE OIL (GASOLINE ENGINE ONLY)
Checking the engine oil
Refer to thescheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait 15 minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in
P (Park).
4. Open the hood. Protect yourself from engine heat.
5. Locate and carefully remove the engine oil dipstick.
6. Wipe the dipstick clean. Insert the dipstick fully, then remove it
again.
•If the oil level isbetween the two holes,the oil level is acceptable.
DO NOT ADD OIL.
•If the oil level is at or below the lower hole, add enough oil to raise
the level to within the two holes. Refer toAdding engine oilin the
following section.
•Oil levels above the upper hole may cause engine damage. Some oil
must be removed from the engine by a service technician.
When the oil level is in its proper operating range, put the dipstick back
in and ensure it is fully seated.
Adding engine oil
Check the engine oil. For instructions, refer toChecking the engine oil.
1. If the engine oil level is not within the normal range, add only
certified engine oil of the recommended viscosity. Remove the engine
oil filler cap and use a funnel to pour the engine oil into the opening.
2. Recheck the engine oil level. Make sure the oil level is not above the
normal operating range on the engine oil level dipstick.
3. Install the dipstick and ensure it is fully seated.
4. Fully install the engine oil filler cap by turning the filler cap
clockwise until three clicks are heard or until the cap is fully seated.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil dipstick and/or the engine oil filler cap removed.
Maintenance and Specifications
193
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

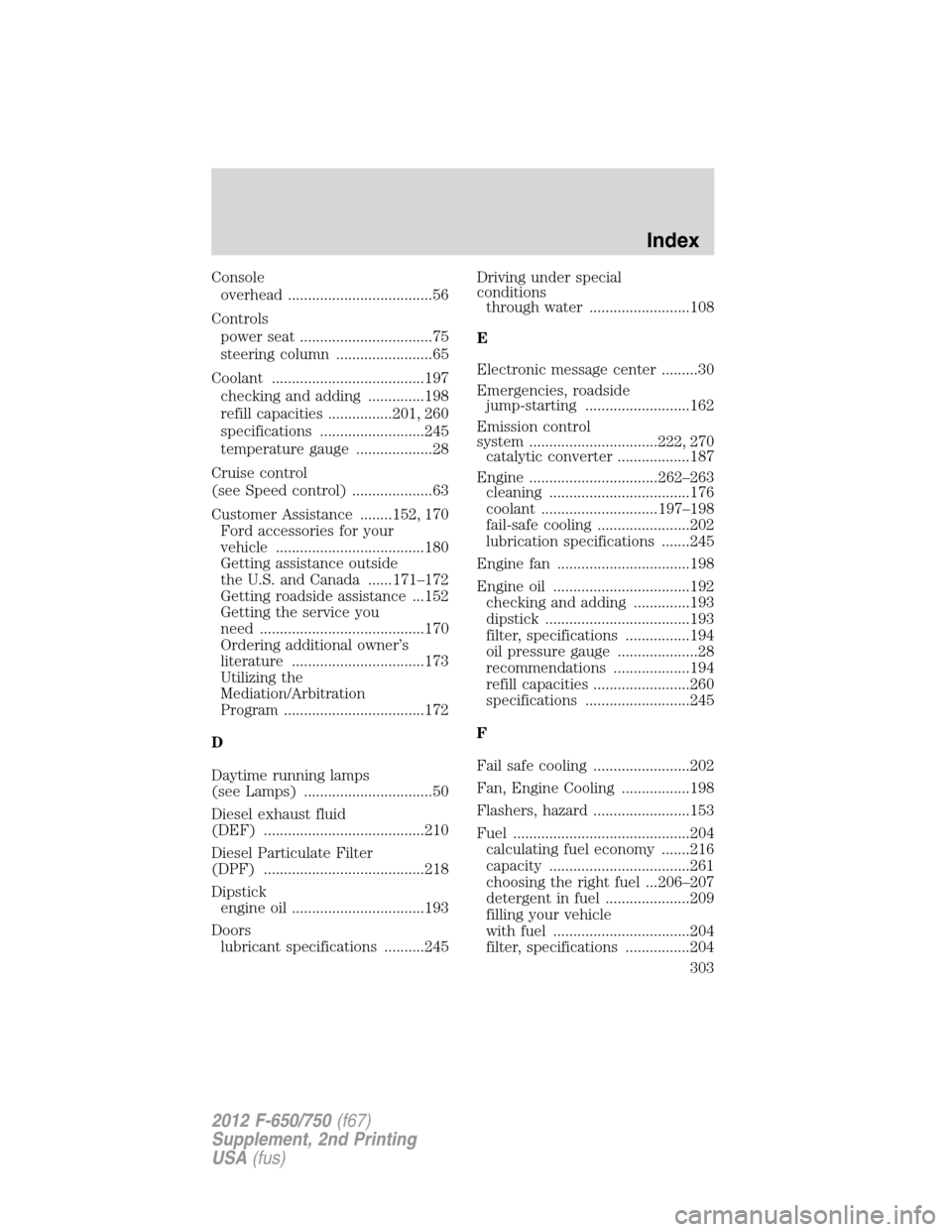

Console
overhead ....................................56
Controls
power seat .................................75
steering column ........................65
Coolant ......................................197
checking and adding ..............198
refill capacities ................201, 260
specifications ..........................245
temperature gauge ...................28
Cruise control
(see Speed control) ....................63
Customer Assistance ........152, 170
Ford accessories for your
vehicle .....................................180
Getting assistance outside
the U.S. and Canada ......171–172
Getting roadside assistance ...152
Getting the service you
need .........................................170
Ordering additional owner’s
literature .................................173
Utilizing the
Mediation/Arbitration
Program ...................................172
D
Daytime running lamps
(see Lamps) ................................50
Diesel exhaust fluid
(DEF) ........................................210
Diesel Particulate Filter
(DPF) ........................................218
Dipstick
engine oil .................................193
Doors
lubricant specifications ..........245Driving under special
conditions
through water .........................108
E
Electronic message center .........30
Emergencies, roadside
jump-starting ..........................162
Emission control
system ................................222, 270
catalytic converter ..................187
Engine ................................262–263
cleaning ...................................176
coolant .............................197–198
fail-safe cooling .......................202
lubrication specifications .......245
Engine fan .................................198
Engine oil ..................................192
checking and adding ..............193
dipstick ....................................193
filter, specifications ................194
oil pressure gauge ....................28
recommendations ...................194
refill capacities ........................260
specifications ..........................245
F
Fail safe cooling ........................202
Fan, Engine Cooling .................198
Flashers, hazard ........................153
Fuel ............................................204
calculating fuel economy .......216
capacity ...................................261
choosing the right fuel ...206–207
detergent in fuel .....................209
filling your vehicle
with fuel ..................................204
filter, specifications ................204
Index
303
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
