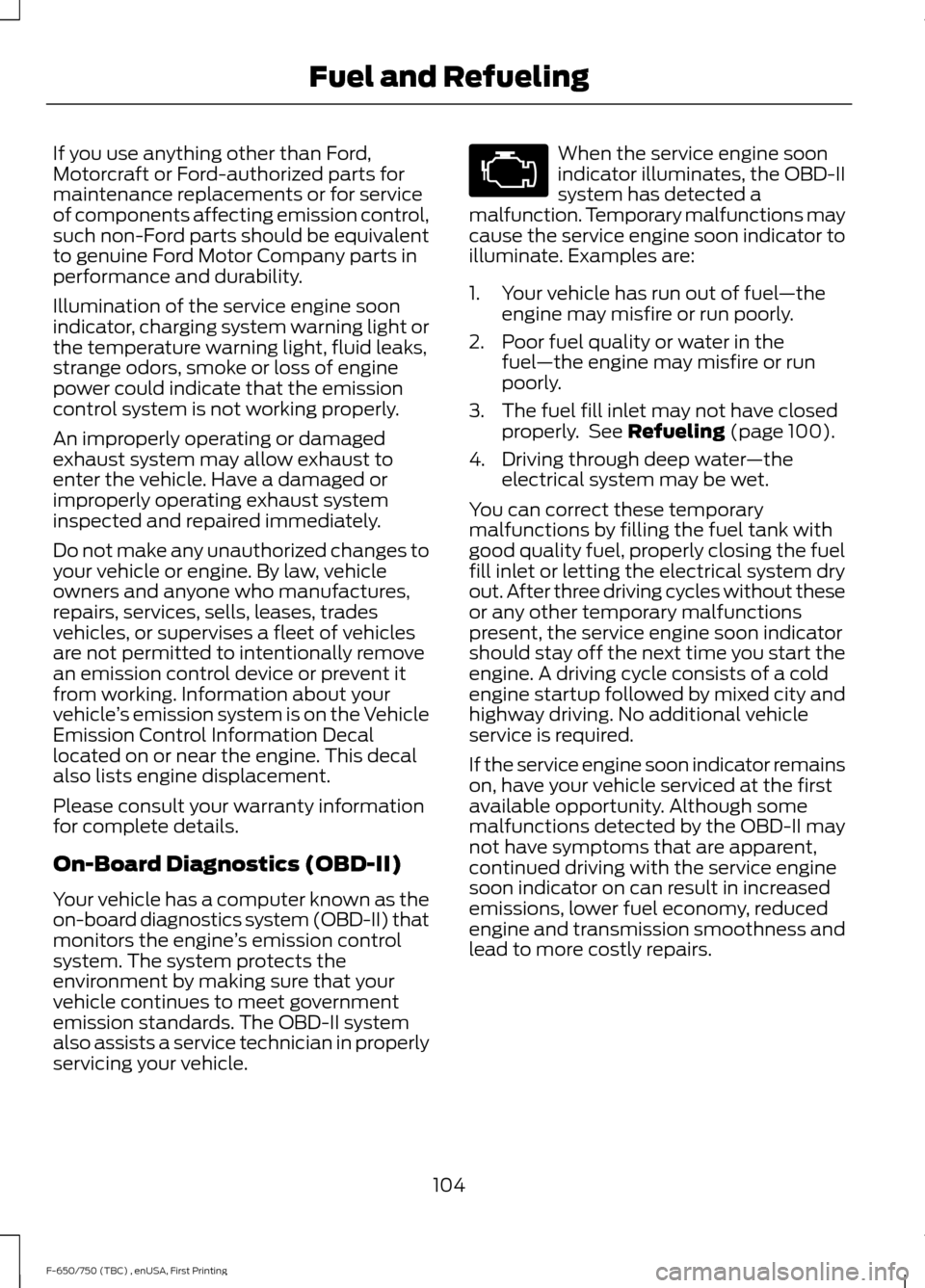

Page 107 of 382
If you use anything other than Ford,
Motorcraft or Ford-authorized parts for
maintenance replacements or for service
of components affecting emission control,
such non-Ford parts should be equivalent
to genuine Ford Motor Company parts in
performance and durability.
Illumination of the service engine soon
indicator, charging system warning light or
the temperature warning light, fluid leaks,
strange odors, smoke or loss of engine
power could indicate that the emission
control system is not working properly.
An improperly operating or damaged
exhaust system may allow exhaust to
enter the vehicle. Have a damaged or
improperly operating exhaust system
inspected and repaired immediately.
Do not make any unauthorized changes to
your vehicle or engine. By law, vehicle
owners and anyone who manufactures,
repairs, services, sells, leases, trades
vehicles, or supervises a fleet of vehicles
are not permitted to intentionally remove
an emission control device or prevent it
from working. Information about your
vehicle
’s emission system is on the Vehicle
Emission Control Information Decal
located on or near the engine. This decal
also lists engine displacement.
Please consult your warranty information
for complete details.
On-Board Diagnostics (OBD-II)
Your vehicle has a computer known as the
on-board diagnostics system (OBD-II) that
monitors the engine ’s emission control
system. The system protects the
environment by making sure that your
vehicle continues to meet government
emission standards. The OBD-II system
also assists a service technician in properly
servicing your vehicle. When the service engine soon
indicator illuminates, the OBD-II
system has detected a
malfunction. Temporary malfunctions may
cause the service engine soon indicator to
illuminate. Examples are:
1. Your vehicle has run out of fuel —the
engine may misfire or run poorly.
2. Poor fuel quality or water in the fuel —the engine may misfire or run
poorly.
3. The fuel fill inlet may not have closed properly. See Refueling (page 100).
4. Driving through deep water —the
electrical system may be wet.
You can correct these temporary
malfunctions by filling the fuel tank with
good quality fuel, properly closing the fuel
fill inlet or letting the electrical system dry
out. After three driving cycles without these
or any other temporary malfunctions
present, the service engine soon indicator
should stay off the next time you start the
engine. A driving cycle consists of a cold
engine startup followed by mixed city and
highway driving. No additional vehicle
service is required.
If the service engine soon indicator remains
on, have your vehicle serviced at the first
available opportunity. Although some
malfunctions detected by the OBD-II may
not have symptoms that are apparent,
continued driving with the service engine
soon indicator on can result in increased
emissions, lower fuel economy, reduced
engine and transmission smoothness and
lead to more costly repairs.
104
F-650/750 (TBC) , enUSA, First Printing Fuel and Refueling

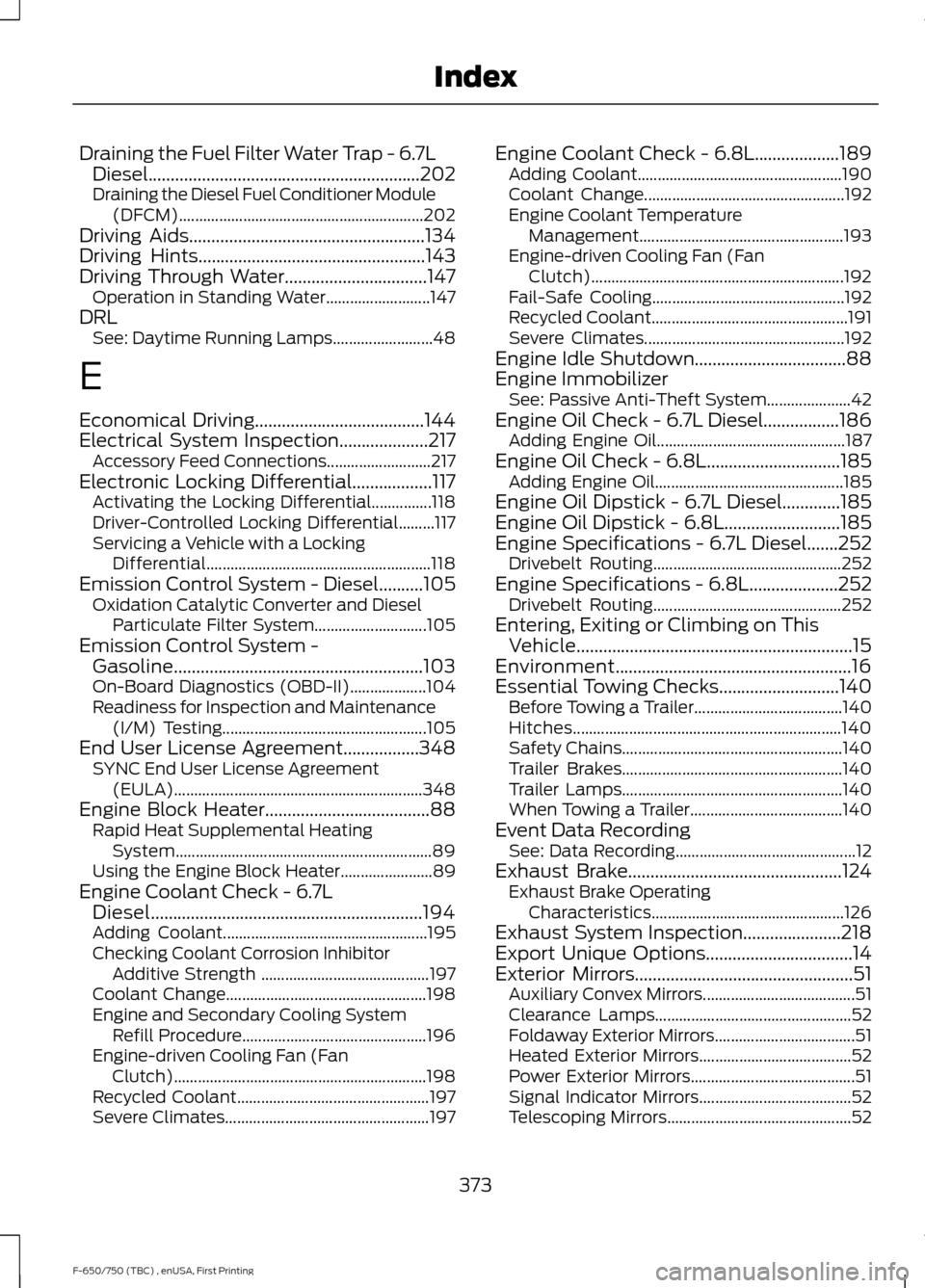

Page 376 of 382
Draining the Fuel Filter Water Trap - 6.7L
Diesel.............................................................202
Draining the Diesel Fuel Conditioner Module (DFCM)............................................................. 202
Driving Aids.....................................................134
Driving Hints...................................................143
Driving Through Water................................147 Operation in Standing Water.......................... 147
DRL See: Daytime Running Lamps......................... 48
E
Economical Driving......................................144
Electrical System Inspection
....................217
Accessory Feed Connections.......................... 217
Electronic Locking Differential..................117 Activating the Locking Differential...............118
Driver-Controlled Locking Differential.........117
Servicing a Vehicle with a Locking
Differential........................................................ 118
Emission Control System - Diesel..........105 Oxidation Catalytic Converter and Diesel
Particulate Filter System............................ 105
Emission Control System - Gasoline........................................................103
On-Board Diagnostics (OBD-II)................... 104
Readiness for Inspection and Maintenance (I/M) Testing................................................... 105
End User License Agreement.................348 SYNC End User License Agreement
(EULA).............................................................. 348
Engine Block Heater
.....................................88
Rapid Heat Supplemental Heating
System................................................................ 89
Using the Engine Block Heater....................... 89
Engine Coolant Check - 6.7L Diesel.............................................................194
Adding Coolant................................................... 195
Checking Coolant Corrosion Inhibitor Additive Strength .......................................... 197
Coolant Change.................................................. 198
Engine and Secondary Cooling System Refill Procedure.............................................. 196
Engine-driven Cooling Fan (Fan Clutch)............................................................... 198
Recycled Coolant................................................ 197
Severe Climates................................................... 197Engine Coolant Check - 6.8L...................189
Adding Coolant................................................... 190
Coolant Change.................................................. 192
Engine Coolant Temperature Management................................................... 193
Engine-driven Cooling Fan (Fan Clutch)............................................................... 192
Fail-Safe Cooling................................................ 192
Recycled Coolant................................................. 191
Severe Climates.................................................. 192
Engine Idle Shutdown..................................88
Engine Immobilizer See: Passive Anti-Theft System..................... 42
Engine Oil Check - 6.7L Diesel.................186 Adding Engine Oil............................................... 187
Engine Oil Check - 6.8L
..............................185
Adding Engine Oil............................................... 185
Engine Oil Dipstick - 6.7L Diesel.............185
Engine Oil Dipstick - 6.8L..........................185
Engine Specifications - 6.7L Diesel
.......252
Drivebelt Routing............................................... 252
Engine Specifications - 6.8L
....................252
Drivebelt Routing............................................... 252
Entering, Exiting or Climbing on This Vehicle..............................................................15
Environment.....................................................16
Essential Towing Checks...........................140 Before Towing a Trailer..................................... 140
Hitches................................................................... 140
Safety Chains....................................................... 140
Trailer Brakes....................................................... 140
Trailer Lamps....................................................... 140
When Towing a Trailer...................................... 140
Event Data Recording See: Data Recording............................................. 12
Exhaust Brake................................................124 Exhaust Brake Operating
Characteristics................................................ 126
Exhaust System Inspection......................218
Export Unique Options.................................14
Exterior Mirrors
.................................................51
Auxiliary Convex Mirrors...................................... 51
Clearance Lamps................................................. 52
Foldaway Exterior Mirrors...................................51
Heated Exterior Mirrors...................................... 52
Power Exterior Mirrors......................................... 51
Signal Indicator Mirrors...................................... 52
Telescoping Mirrors.............................................. 52
373
F-650/750 (TBC) , enUSA, First Printing Index
