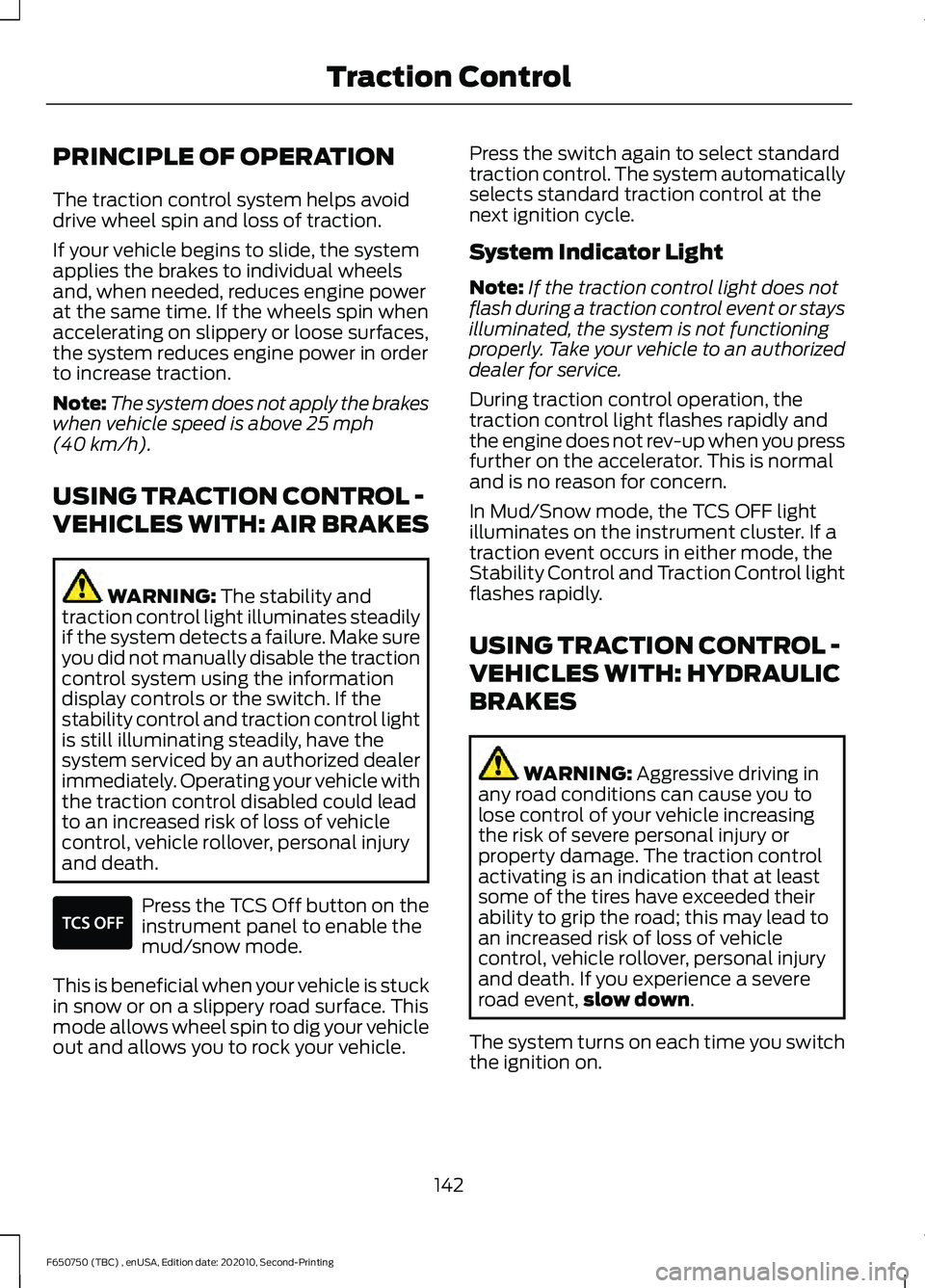

PRINCIPLE OF OPERATION
The traction control system helps avoid
drive wheel spin and loss of traction.
If your vehicle begins to slide, the system
applies the brakes to individual wheels
and, when needed, reduces engine power
at the same time. If the wheels spin when
accelerating on slippery or loose surfaces,
the system reduces engine power in order
to increase traction.
Note:
The system does not apply the brakes
when vehicle speed is above 25 mph
(40 km/h).
USING TRACTION CONTROL -
VEHICLES WITH: AIR BRAKES WARNING:
The stability and
traction control light illuminates steadily
if the system detects a failure. Make sure
you did not manually disable the traction
control system using the information
display controls or the switch. If the
stability control and traction control light
is still illuminating steadily, have the
system serviced by an authorized dealer
immediately. Operating your vehicle with
the traction control disabled could lead
to an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death. Press the TCS Off button on the
instrument panel to enable the
mud/snow mode.
This is beneficial when your vehicle is stuck
in snow or on a slippery road surface. This
mode allows wheel spin to dig your vehicle
out and allows you to rock your vehicle. Press the switch again to select standard
traction control. The system automatically
selects standard traction control at the
next ignition cycle.
System Indicator Light
Note:
If the traction control light does not
flash during a traction control event or stays
illuminated, the system is not functioning
properly. Take your vehicle to an authorized
dealer for service.
During traction control operation, the
traction control light flashes rapidly and
the engine does not rev-up when you press
further on the accelerator. This is normal
and is no reason for concern.
In Mud/Snow mode, the TCS OFF light
illuminates on the instrument cluster. If a
traction event occurs in either mode, the
Stability Control and Traction Control light
flashes rapidly.
USING TRACTION CONTROL -
VEHICLES WITH: HYDRAULIC
BRAKES WARNING:
Aggressive driving in
any road conditions can cause you to
lose control of your vehicle increasing
the risk of severe personal injury or
property damage. The traction control
activating is an indication that at least
some of the tires have exceeded their
ability to grip the road; this may lead to
an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death. If you experience a severe
road event, slow down
.
The system turns on each time you switch
the ignition on.
142
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Traction ControlE330660

Vehicles Sold in Canada: Getting
Roadside Assistance
To fully assist you should you have a
vehicle concern, Ford Motor Company of
Canada, Limited offers a complimentary
roadside assistance program. This program
is eligible within Canada or the continental
United States.
The service is available 24 hours a day,
seven days a week.
This program is separate from the New
Vehicle Limited Warranty, but the coverage
is concurrent with the powertrain coverage
period of your vehicle. Canadian roadside
coverage and benefits may differ from the
U.S. coverage.
If you require more information, please call
us in Canada at 1-800-665-2006, or visit
our website at www.ford.ca.
HAZARD FLASHERS
Note:
If used when the vehicle is not
running, the battery loses charge. As a result,
there may be insufficient power to restart
your vehicle. The hazard flasher control is located on
the instrument panel. Use it when your
vehicle is creating a safety hazard for other
motorists. •
Press the flasher control and all front
and rear direction indicators flash.
• Press the flasher control again to
switch them off.
FUEL SHUTOFF WARNING: If your vehicle has been
involved in a crash, have the fuel system
checked. Failure to follow this instruction
could result in fire, personal injury or
death.
Note: When you try to restart your vehicle
after a fuel shutoff, your vehicle makes sure
that various systems are safe to restart.
Once your vehicle determines that the
systems are safe, your vehicle allows you to
restart.
Note: In the event that your vehicle does
not restart after your third attempt, contact
a qualified technician.
The fuel pump shutoff stops the flow of
fuel to the engine in the event of a
moderate to severe crash. Not every
impact causes a shutoff.
Should your vehicle shut off after a crash,
you may restart your vehicle.
If your vehicle has a key system:
1. Turn key to the off position.
2. Turn key to the start position.
3. Turn key to the off position.
4. Turn key to the on position.
5. The fuel pump is now re-enabled.
182
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Roadside EmergenciesE304635

5. For diesel engines, you need to reset
the Intelligent Oil Life Monitor™. See
Information Displays (page 70).
Engine lubrication for severe
service operation
The following conditions define severe
operation for which engine operation with
SAE 5W-40 API CJ-4 is recommended. Oil
and oil filter change intervals will be
determined by the Intelligent Oil Life
Monitor™ as noted previously.
• Frequent or extended idling (over 10
minutes per hour of normal driving).
• Low-speed operation/stationary use.
• If vehicle is operated in sustained
ambient temperatures below
-9°F
(-23°C) or above 100°F (38°C).
• Frequent low-speed operation,
consistent heavy traffic less than
25 mph (40 km/h)
.
• Operating in severe dust conditions.
• Operating the vehicle off road.
• Towing a trailer over
1,000 mi
(1,600 km).
• Sustained, high-speed driving at Gross
Vehicle Weight Rating (maximum
loaded weight for vehicle operation).
• Use of fuels with sulfur content other
than ultra-low sulfur diesel (ULSD).
• Use of high-sulfur diesel fuel.
OIL CHANGE INDICATOR
RESET
Base Cluster
Use the information display controls on
the steering wheel to reset the oil change
indicator. From the main menu scroll to: Action and Description
Message
Press the right arrow button,
then from this menu scroll
to the following message.
Settings
Press the down arrow
button, then from this menu
scroll to the following
message.
Vehicle
Press the right arrow button,
then from this menu scroll
to the following message.
Oil Life
Reset
Press and hold the
OK
button until the instrument
cluster displays the
following message.
Oil Life
Hold to
Reset
Press and hold the
OK
button until the instrument
cluster displays the
following message.
Oil Life
Hold OK
to Reset
Reset Complete
If the instrument cluster
displays the following
message, repeat the
process.
Reset Cancelled
High Series Cluster
Use the information display controls on
the steering wheel to reset the oil change
indicator.
220
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Maintenance

Brake Lamp, Rear Lamp, Rear
Direction Indicator, License Plate
Lamp and Reverse Lamp
1.
Switch all of the lamps and the ignition
off.
2. Remove the four screws and the lamp lens from lamp assembly.
3. Remove the bulb by pulling it straight out.
CHANGING THE ENGINE-
MOUNTED AND DIESEL FUEL
CONDITIONER MODULE FUEL
FILTERS - 6.7L DIESEL WARNING: Do not dispose of fuel
in the household refuse or the public
sewage system. Use an authorized waste
disposal facility.
Your vehicle has two fuel filters. The first
filter mounts on top of the engine on the
left-hand side. The second filter is inside
the diesel fuel conditioner module. The
module is mounted between the inboard
side of the fuel tank and the frame rail. Regular fuel filter changes are an
important part of engine maintenance;
failing to keep with the scheduled
maintenance could lead to engine
performance issues and fuel injection
system damage. See
Scheduled
Maintenance (page 319).
Use only recommended service parts
conforming to specifications. See
Motorcraft Parts
(page 283).
Note: Using fuel that has high levels of
impurities may require more frequent filter
replacements than the service interval
specifies.
Diesel Fuel Conditioner Module
Filter
Removal
1. Access the underside of your vehicle. 2. The diesel fuel conditioner module is
on the left-hand frame rail.
244
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing MaintenanceE163828 E250852

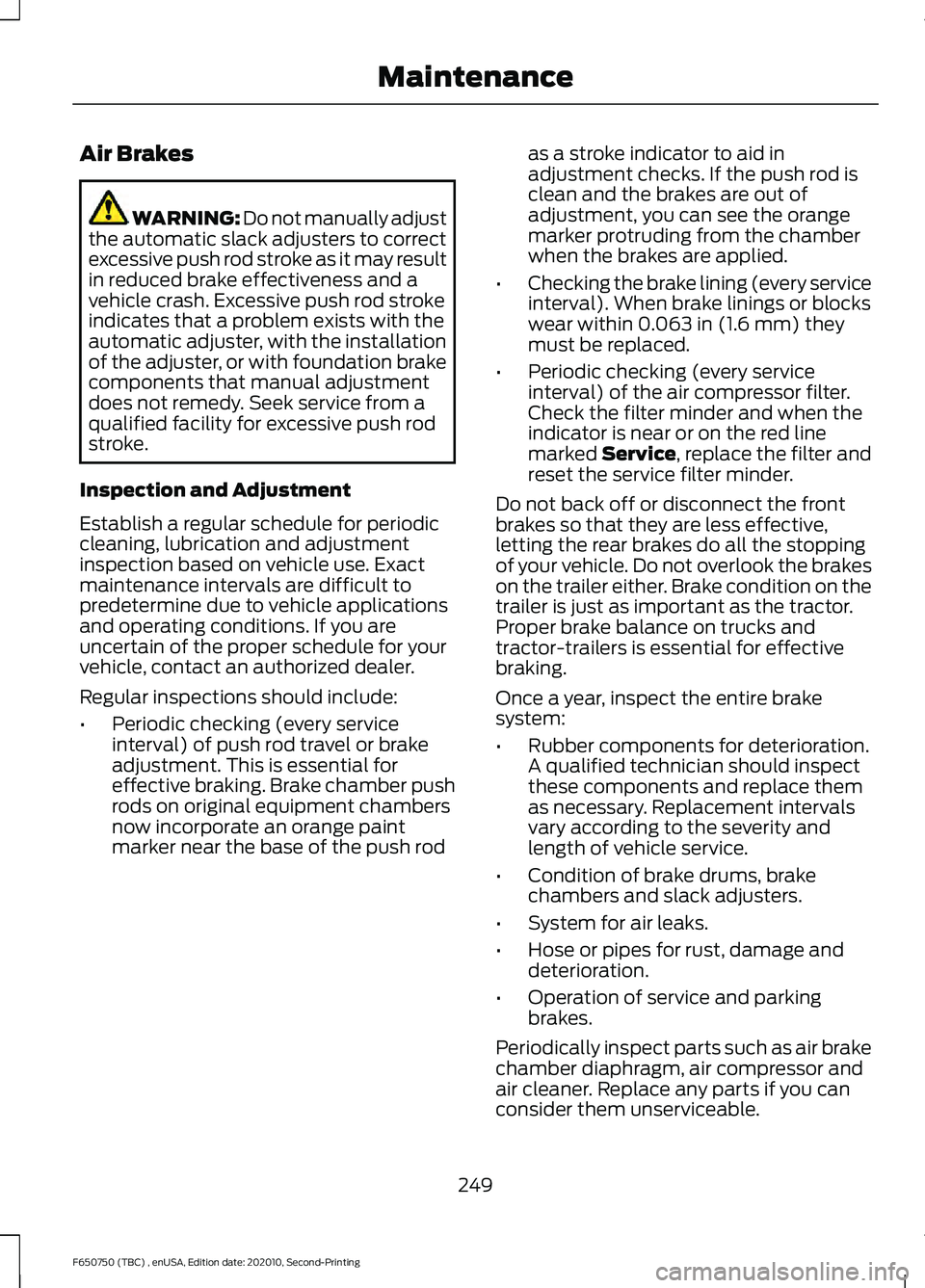

Air Brakes
WARNING: Do not manually adjust
the automatic slack adjusters to correct
excessive push rod stroke as it may result
in reduced brake effectiveness and a
vehicle crash. Excessive push rod stroke
indicates that a problem exists with the
automatic adjuster, with the installation
of the adjuster, or with foundation brake
components that manual adjustment
does not remedy. Seek service from a
qualified facility for excessive push rod
stroke.
Inspection and Adjustment
Establish a regular schedule for periodic
cleaning, lubrication and adjustment
inspection based on vehicle use. Exact
maintenance intervals are difficult to
predetermine due to vehicle applications
and operating conditions. If you are
uncertain of the proper schedule for your
vehicle, contact an authorized dealer.
Regular inspections should include:
• Periodic checking (every service
interval) of push rod travel or brake
adjustment. This is essential for
effective braking. Brake chamber push
rods on original equipment chambers
now incorporate an orange paint
marker near the base of the push rod as a stroke indicator to aid in
adjustment checks. If the push rod is
clean and the brakes are out of
adjustment, you can see the orange
marker protruding from the chamber
when the brakes are applied.
• Checking the brake lining (every service
interval). When brake linings or blocks
wear within 0.063 in (1.6 mm) they
must be replaced.
• Periodic checking (every service
interval) of the air compressor filter.
Check the filter minder and when the
indicator is near or on the red line
marked
Service, replace the filter and
reset the service filter minder.
Do not back off or disconnect the front
brakes so that they are less effective,
letting the rear brakes do all the stopping
of your vehicle. Do not overlook the brakes
on the trailer either. Brake condition on the
trailer is just as important as the tractor.
Proper brake balance on trucks and
tractor-trailers is essential for effective
braking.
Once a year, inspect the entire brake
system:
• Rubber components for deterioration.
A qualified technician should inspect
these components and replace them
as necessary. Replacement intervals
vary according to the severity and
length of vehicle service.
• Condition of brake drums, brake
chambers and slack adjusters.
• System for air leaks.
• Hose or pipes for rust, damage and
deterioration.
• Operation of service and parking
brakes.
Periodically inspect parts such as air brake
chamber diaphragm, air compressor and
air cleaner. Replace any parts if you can
consider them unserviceable.
249
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Maintenance

At Every Oil Change Interval as Indicated by the Information Display
1
Inspect the air filter restriction gauge. Replace the filter if necessary.
Inspect the automatic transmission fluid level. Consult an authorized dealer for
requirements.
Inspect the brake pads, shoes, rotors, drums, brake linings, hoses and the parking brake.
Inspect the engine and secondary coolant concentration, freeze-point protection, level
and hoses.
Inspect the exhaust system and heat shields.
Inspect the steering linkage, ball joints, suspension, tie-rod ends, driveshaft and the U-
joints. Lubricate any components that have grease fittings.
Inspect front oil hubs for leaks and check fluid level through hub cap sight glass.
1 Do not exceed one year/10,000 mi (16,000 km) or 350 engine hours between service
intervals.
2 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes. See Oil Change
Indicator Reset
(page 220).
3 Rotate the front wheels on vehicles with dual rear wheels when specified. Only rotate
the rear wheels if you notice unusual wear. Brake Fluid Maintenance
1
Change the brake fluid. 2
Every 3 Years
1 Perform this maintenance item every 3 years. Do not exceed the designated time for
the interval.
2 Brake fluid servicing requires special equipment available at your authorized dealer. Other Maintenance Items
1
Replace the engine-mounted and frame-mounted fuel
filters. 2
Every
22,000 mi
(36,000 km)
Inspect the engine and secondary cooling system coolant
concentration, freeze-point protection, additive, corrosion
inhibitor, strength, coolant level, and hoses. Add coolant
additive if necessary.3
Every
30,000 mi
(48,000 km)
327
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Scheduled Maintenance

Auxiliary Switches........................................315
Upfitter Interface Module................................ 316
Axle Inspection..............................................251
Front Axle............................................................... 251
B
Battery See: Changing the 12V Battery..................... 239
Bonnet Lock See: Opening and Closing the Hood...........213
Booster Seats
..................................................32
Types of Booster Seats...................................... 33
Brake Fluid Check.........................................237 Brake Fluid Service Interval............................ 238
Brakes...............................................................130 General Information.......................................... 130
Brake System Inspection..........................248 Air Brakes.............................................................. 249
Driveline Parking Brake..................................... 251
Hydraulic Brakes................................................ 250
Breaking-In......................................................179
Bulb Specification Chart
..........................305
C
Canceling the Set Speed...........................155
Capacities and Specifications - 6.7L Diesel
............................................................288
Air Conditioning System................................. 288
Alternative Engine Oil for Biodiesel Fuel Blends (B20 Max)......................................... 291
Alternative Engine Oil for Extremely Cold Climates............................................................ 291
Alternative Engine Oil for Severe Duty Service............................................................... 292
Alternative Rear Axle Fluid for Severe Duty Service.............................................................. 296
Automatic Transmission................................ 288
Diesel Exhaust Fluid (DEF) Tank.................293
Engine Coolant................................................... 289
Engine Oil............................................................. 290
Front Wheel Bearing Oil.................................. 295
Fuel Tank............................................................... 292
Grease.................................................................... 293
Hydraulic Brake System.................................. 293
Locks...................................................................... 294
Power Steering System................................... 294Rear Axle...............................................................
295
Washer Reservoir............................................... 296
Capacities and Specifications - 7.3L..................................................................297
Air Conditioning System.................................. 297
Alternative Engine Oil for Extremely Cold Climates.......................................................... 300
Alternative Rear Axle Fluid for Severe Duty Service.............................................................. 304
Automatic Transmission................................ 298
Engine Coolant................................................... 299
Engine Oil............................................................. 299
Front Wheel Bearing Oil.................................. 303
Fuel Tank............................................................... 301
Grease..................................................................... 301
Hydraulic Brake System................................... 301
Locks...................................................................... 302
Power Steering System................................... 302
Rear Axle............................................................... 303
Washer Reservoir.............................................. 304
Capacities and Specifications
.................281
Car Wash See: Cleaning the Exterior.............................. 256
Catalytic Converter
.......................................110
On-Board Diagnostics (OBD-II)...................... 111
Readiness for Inspection and Maintenance (I/M) Testing...................................................... 111
Changing a Bulb
...........................................243
Brake Lamp, Rear Lamp, Rear Direction
Indicator, License Plate Lamp and
Reverse Lamp................................................ 244
Front Clearance and Identification Lamp.................................................................. 243
Headlamp Bulbs................................................ 243
Changing a Fuse...........................................201 Fuses....................................................................... 201
Changing a Road Wheel............................277 Tire Change Procedure..................................... 277
Changing the 12V Battery.........................239 Battery Management System (If
Equipped)....................................................... 240
Changing the Engine Air Filter - 6.7L Diesel..............................................................221
Air Filter Replacement...................................... 222
Air Filter Restriction Gauge.............................. 221
Changing the Engine Air Filter - 7.3L..................................................................223
378
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Index

Changing the Engine-Mounted and
Diesel Fuel Conditioner Module Fuel
Filters - 6.7L Diesel...................................244
Diesel Fuel Conditioner Module Filter................................................................... 244
Engine-mounted Fuel Filter........................... 246
Changing the Engine Oil and Oil Filter................................................................219
Engine lubrication for severe service operation.......................................................... 220
Changing the Wiper Blades.....................242
Charging a Device...........................................91
Checking the Wiper Blades......................242
Child Restraint and Seatbelt Maintenance.................................................44
Child Restraint Positioning.........................34
Child Safety......................................................24
General Information............................................ 24
Child Safety Locks.........................................36
Cleaning Products
.......................................255
Materials............................................................... 255
Cleaning the Engine....................................257
Cleaning the Exterior
..................................256
Cleaning the Headlamps................................ 256
Exterior Chrome Parts..................................... 256
Exterior Plastic Parts........................................ 256
Stripes or Graphics............................................ 256
Underbody............................................................ 257
Under Hood.......................................................... 257
Cleaning the Instrument Panel and Instrument Cluster Lens
........................258
Cleaning the Interior...................................258
Mirrors.................................................................... 258
Cleaning the Wheels..................................259
Cleaning the Windows and Wiper Blades............................................................257
Climate Control
...............................................79
Cold Weather Precautions.........................177 Winter Operating Tips for Arctic Operation
-20°F (-29°C) and Below.......................... 179
Connected Vehicle
.....................................306
Connecting the Vehicle to a Mobile
Network........................................................... 306
Connected Vehicle Limitations..............306
Connected Vehicle Requirements
........306
Connected Vehicle – Troubleshooting.......................................306 Connecting a Bluetooth® Device...........312
Pairing a Device................................................... 312
Connecting the Vehicle to a Mobile Network.......................................................306
Connecting FordPass to the Connectivity Device............................................................... 306
Disabling the Connectivity Device..............306
What Is the Connectivity Device.................306
Coolant Check See: Engine Coolant Check - 6.7L Diesel....231
See: Engine Coolant Check - 7.3L................226
Cruise Control
................................................148
Cruise Control Indicators...........................155
Cruise Control - Vehicles With: Adaptive Cruise Control
...............................................52
Cruise Control - Vehicles With: Cruise Control.............................................................53
Customer Assistance
..................................187
D
Data Recording
.................................................13
Comfort, Convenience and Entertainment
Data....................................................................... 15
Event Data............................................................... 14
Service Data............................................................ 13
Services That Third Parties Provide...............15
Services That We Provide.................................. 15
Vehicles With a Connectivity Device..............15
Vehicles With an Emergency Call System................................................................. 16
Vehicles With SYNC............................................. 16
Daytime Running Lamps.............................57
Declaration of Conformity
........................376
Diesel Particulate Filter...............................116 Oxidation Catalytic Converter and Diesel
Particulate Filter System.............................. 117
Digital Radio
...................................................310
HD Radio Reception and Station
Troubleshooting.............................................. 311
Direction Indicators
.......................................58
Doors and Locks.............................................49
Draining the Fuel Filter Water Trap - 6.7L Diesel.............................................................225
Draining the Diesel Fuel Conditioner Module (DFCM)............................................................. 225
Driver Alert
......................................................156
Using Driver Alert................................................ 156
379
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Index

Driving Aids.....................................................156
Driving Hints....................................................176
Driving Through Water...............................180
Operation in Standing Water......................... 180
DRL See: Daytime Running Lamps......................... 57
E
Economical Driving.......................................177
Electrical System Inspection...................247 Accessory Feed Connections........................ 247
Electromagnetic Compatibility
..............348
Electronic Locking Differential................128 Activating the Electronic Locking
Differential....................................................... 128
Driver-Controlled Electronic Locking Differential....................................................... 128
Servicing a Vehicle with an Electronic Locking Differential....................................... 129
Emission Law.................................................109 Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance...........110
Tampering With a Noise Control System.............................................................. 109
End User License Agreement...................351 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) .................................. 351
Engine Block Heater
......................................97
Using the Engine Block Heater........................ 97
Engine Coolant Check - 6.7L Diesel.......231 Adding Coolant.................................................... 231
Checking Coolant Corrosion Inhibitor Additive Strength ......................................... 234
Coolant Change.................................................. 235
Engine and Secondary Cooling System Refill Procedure............................................. 233
Engine-driven Cooling Fan (Fan Clutch).............................................................. 235
Recycled Coolant............................................... 233
Severe Climates................................................. 234
Engine Coolant Check - 7.3L....................226 Adding Coolant................................................... 227
Coolant Change................................................. 229
Engine Coolant Temperature Management.................................................. 230
Engine-driven Cooling Fan (Fan Clutch).............................................................. 229Fail-Safe Cooling...............................................
229
Recycled Coolant............................................... 228
Severe Climates................................................. 228
Engine Emission Control...........................109
Engine Idle Shutdown..................................96
Engine Immobilizer See: Passive Anti-Theft System...................... 51
Engine Oil Check - 6.7L Diesel
.................218
Adding Engine Oil............................................... 219
Engine lubrication for severe service operation .......................................................... 219
Engine Oil Check - 7.3L
................................217
Adding Engine Oil................................................ 217
Engine Oil Dipstick - 6.7L Diesel..............217
Engine Oil Dipstick - 7.3L............................217
Engine Specifications - 6.7L Diesel
........281
Drivebelt Routing................................................ 281
Engine Specifications - 7.3L.....................282 Drivebelt Routing............................................... 283
Entering, Exiting or Climbing on This Vehicle
.............................................................20
Environment......................................................21
Essential Towing Checks............................173 Before Towing a Trailer...................................... 173
Hitches.................................................................... 173
Safety Chains........................................................ 173
Trailer Brakes........................................................ 173
Trailer Lamps........................................................ 173
When Towing a Trailer....................................... 173
Event Data Recording See: Data Recording............................................. 13
Exhaust Brake
................................................136
Exhaust Brake Operating
Characteristics................................................ 137
Exhaust System Inspection.....................248
Export Unique Options.................................19
Exterior Mirrors...............................................60 Auxiliary Convex Mirrors.................................... 60
Clearance Lamps.................................................. 61
Foldaway Exterior Mirrors................................. 60
Heated Exterior Mirrors....................................... 61
Power Exterior Mirrors........................................ 60
Signal Indicator Mirrors....................................... 61
Telescoping Mirrors.............................................. 61
380
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Index

Blocked Sensor....................................................
152
Canceling the Set Speed................................. 150
Changing the Set Speed................................. 150
Detection Issues................................................... 151
Following a Vehicle............................................ 149
Hilly Condition and Trailer Tow Usage.........151
Overriding the Set Speed................................ 150
Resuming the Set Speed.................................. 151
Setting the Adaptive Cruise Speed.............149
Setting the Gap Distance................................ 150
Switching Adaptive Cruise Control Off........................................................................\
. 151
Switching Adaptive Cruise Control On........................................................................\
148
System Not Available........................................ 152
Using Snow Chains......................................277
Using Stability Control...............................146
Using Traction Control - Vehicles With: Air Brakes
......................................................142
System Indicator Light...................................... 142
Using Traction Control - Vehicles With: Hydraulic Brakes........................................142
System Indicator Light...................................... 143
Using Voice Recognition............................313 Phone Voice Service.......................................... 313
V
Vehicle Care
...................................................255
General Information......................................... 255
Vehicle Identification Number
...............286
Vehicle Inspection Guide..........................203
Vehicle Inspection Information..............203
Trailer...................................................................... 210
Transmission........................................................ 210
Vehicle Storage............................................260 Body....................................................................... 260
Brakes..................................................................... 261
Cooling system................................................... 260
Disconnecting Your 12 Volt Battery............260
Engine.................................................................... 260
Fuel system......................................................... 260
General.................................................................. 260
Miscellaneous...................................................... 261
Removing Vehicle From Storage.................. 261
Tires........................................................................\
. 261
Ventilation See: Climate Control........................................... 79VIN
See: Vehicle Identification Number............286
W
Warning Lamps and Indicators................66 Anti-Lock Braking System................................ 66
Automatic Regeneration Control................... 66
Battery..................................................................... 66
Brake System........................................................ 66
Check Suspension............................................... 66
Cruise Control....................................................... 66
Diesel Exhaust Fluid........................................... 66
Direction Indicator............................................... 66
Door Ajar.................................................................. 67
Electronic Locking Differential........................ 67
Engine Coolant Temperature........................... 67
Engine Oil Pressure.............................................. 67
Exhaust Brake On................................................. 67
Fasten Seatbelt..................................................... 67
High Beam............................................................... 67
Hydromax................................................................ 67
Low Fuel Level....................................................... 67
Parking Brake Warning....................................... 67
Parking Lamps....................................................... 67
Powertrain Malfunction/Reduced Power/Electronic Throttle Control...........68
Service Engine Soon........................................... 68
Stability Control Indicator................................ 68
Traction Control Indicator................................. 68
Traction Control System Off........................... 68
Trailer Anti-Lock Brake System (ABS) ................................................................... 68
Transmission Tow/Haul.................................... 69
Two Speed Axle.................................................... 69
Wait to Start.......................................................... 69
Water in Fuel.......................................................... 69
Washer Fluid Check....................................242
Washers See: Cleaning the Exterior.............................. 256
See: Wipers and Washers................................. 54
Waxing..............................................................257
What Is Cruise Control................................154 Requirements.......................................................154
Wheel Nuts See: Changing a Road Wheel........................ 277
Wheels and Tires
.........................................262
Technical Specifications................................. 279
386
F650750 (TBC) , enUSA, Edition date: 202010, Second-Printing Index
