FORD F750 2005 11.G Owners Manual
Manufacturer: FORD, Model Year: 2005, Model line: F750, Model: FORD F750 2005 11.GPages: 272, PDF Size: 1.5 MB

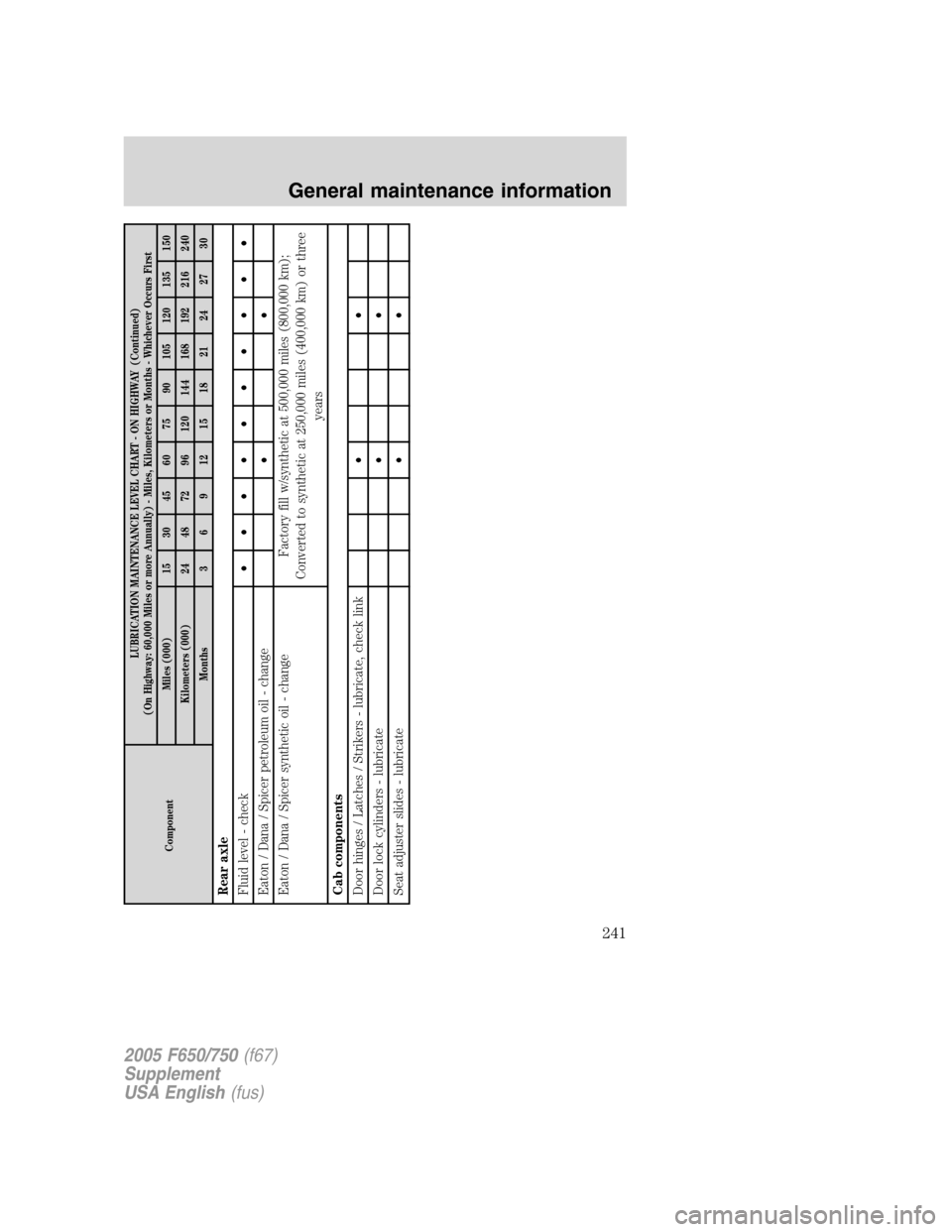

Page 241 of 272
ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY (Continued)
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 15 30 45 60 75 90 105 120 135 150
Kilometers (000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change••
Eaton / Dana / Spicer synthetic oil - change Factory fill w/synthetic at 500,000 miles (800,000 km);
Converted to synthetic at 250,000 miles (400,000 km) or three
years
Cab components
Door hinges / Latches / Strikers - lubricate, check link••
Door lock cylinders - lubricate••
Seat adjuster slides - lubricate••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
241
Page 242 of 272
ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 165 180 195 210 225 240 255 270 285 300
Kilometers (000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil••
Wheel bearing - grease type - repack•••••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay level / linkage - lubricate••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change level••
Power steering filter - replacement Five years or 500,000 miles (800,000 km)
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Propeller shaft SPL
U-joint - lubricate•••••
Propeller shaft non-SPL
U-joint and slip joint - lubricate••••••••••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
242
Page 243 of 272
ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY (Continued)
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 165 180 195 210 225 240 255 270 285 300
Kilometers (000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - Refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke - see 6.0L Engine section
at end of chart
Transmission
Automatic transmission and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton Fuller manual transmission - petroleum oil
change•••
Eaton Fuller manual transmission - synthetic oil
changeFactory fill w/synthetic at 500,000 miles (800,000 km);
Converted to synthetic at 250,000 miles (400,000 km)
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
243

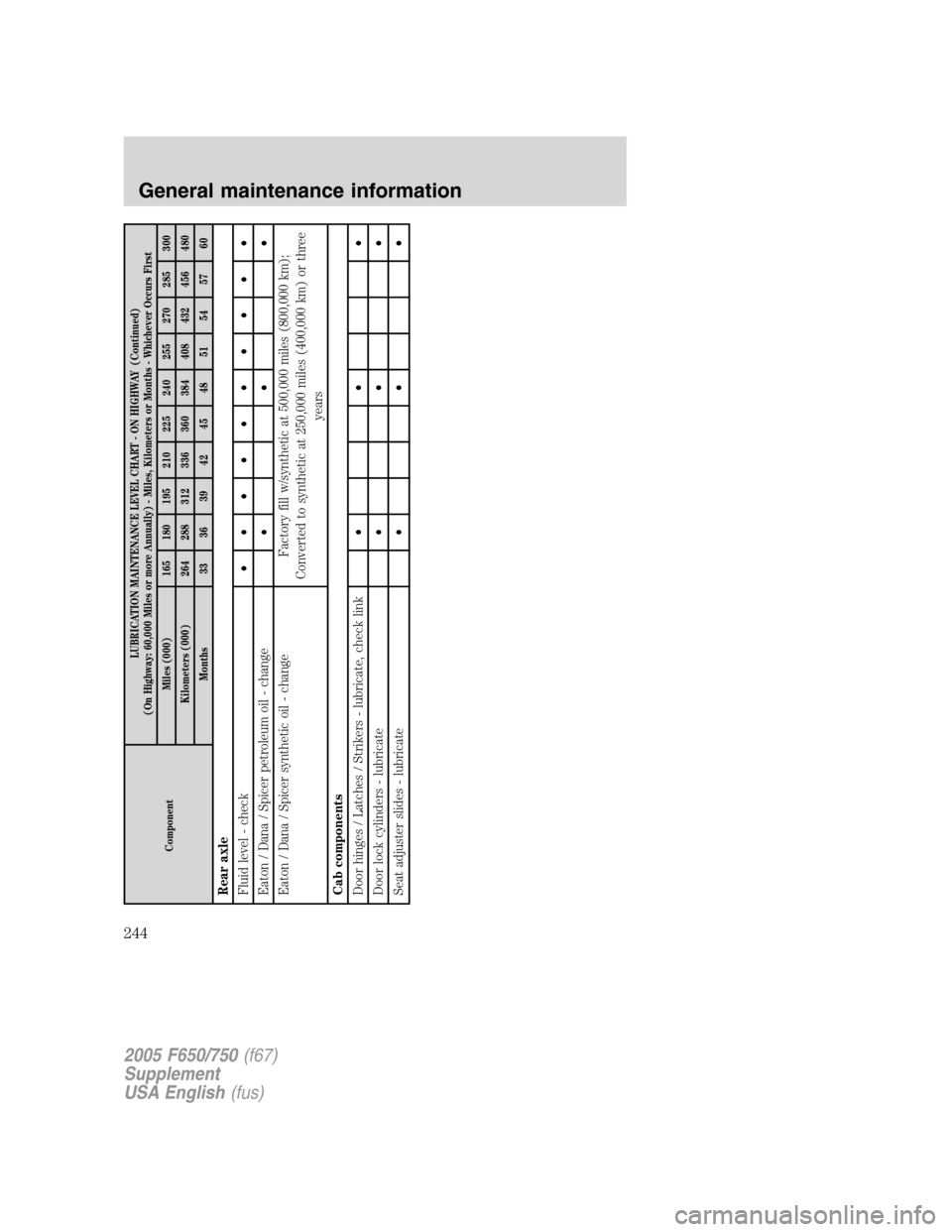

Page 244 of 272
ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY (Continued)
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 165 180 195 210 225 240 255 270 285 300
Kilometers (000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change•••
Eaton / Dana / Spicer synthetic oil - change Factory fill w/synthetic at 500,000 miles (800,000 km);
Converted to synthetic at 250,000 miles (400,000 km) or three
years
Cab components
Door hinges / Latches / Strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
244
Page 245 of 272
ComponentLUBRICATION MAINTENANCE LEVEL CHART - CITY
City - 59,000 Miles or Less Annually - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 10 20 30 40 50 60 70 80 90 100
Kilometers (000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil••
Wheel bearing - grease type - repack••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid••
Power steering filter - replacement Five years or 50,000 miles (80,000 km)
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Propeller shaft SPL
U-joint - lubricate•••••
Propeller shaft non-SPL
U-joint and slip joint - lubricate••••••••••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
245
Page 246 of 272
ComponentLUBRICATION MAINTENANCE LEVEL CHART - CITY (Continued)
City - 59,000 Miles or Less Annually - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 10 20 30 40 50 60 70 80 90 100
Kilometers (000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Brake system - air
Slack adjusters - lubricate••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke, see 6.0L engine section at
end of charts
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton Fuller manual transmission - petroleum oil
change••
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
246

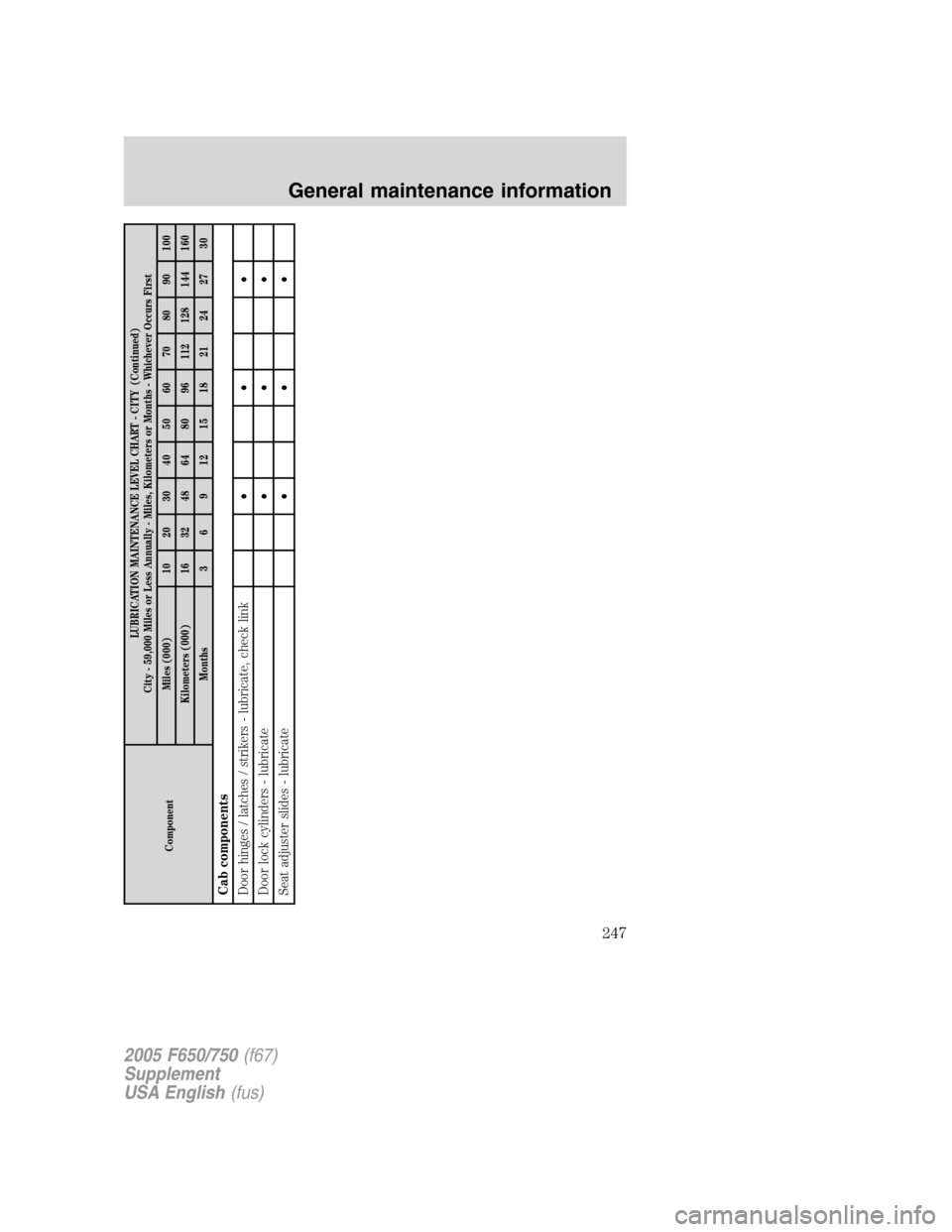

Page 247 of 272
ComponentLUBRICATION MAINTENANCE LEVEL CHART - CITY (Continued)
City - 59,000 Miles or Less Annually - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 10 20 30 40 50 60 70 80 90 100
Kilometers (000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Cab components
Door hinges / latches / strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
247
Page 248 of 272
ComponentLUBRICATION MAINTENANCE LEVEL CHART - CITY
City - 59,000 Miles or Less Annually - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 110 120 130 140 150 160 170 180 190 200
Kilometers (000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•••
Wheel bearing - grease type - repack•••
Tie rode ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•••
Power steering filter - replacement Five years or 50,000 miles (80,000 km)
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Propeller shaft SPL
U-joint - lubricate•••••
Propeller shaft non-SPL
U-joint and slip joint - lubricate••••••••••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
248
Page 249 of 272
ComponentLUBRICATION MAINTENANCE LEVEL CHART - CITY (Continued)
City - 59,000 Miles or Less Annually - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 110 120 130 140 150 160 170 180 190 200
Kilometers (000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke, see 6.0L engine section at
end of charts
Transmission
Automatic and Auto-shift transmission Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton Fuller manual transmission - petroleum oil
change••
Eaton Fuller manual transmission - synthetic oil
change•
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
249

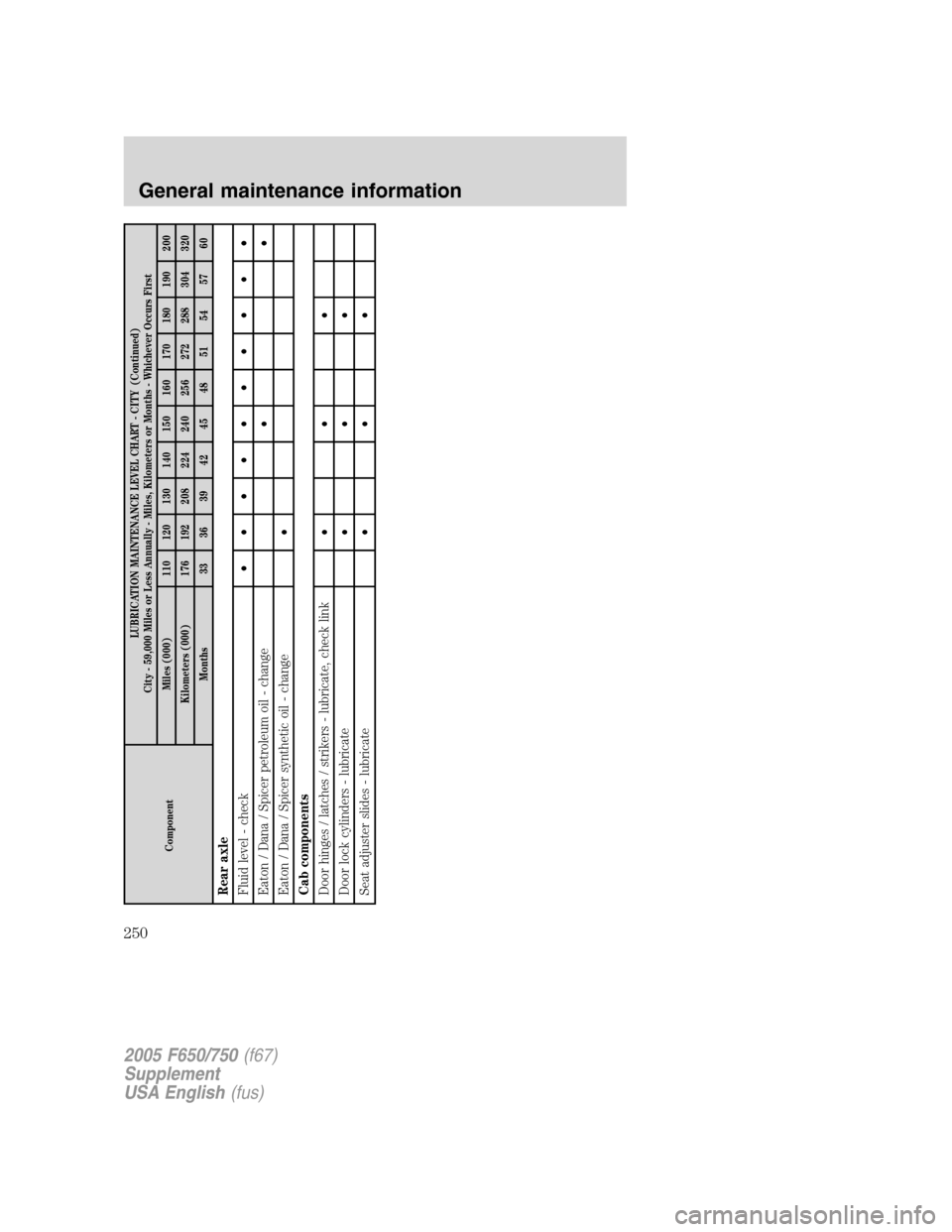

Page 250 of 272
ComponentLUBRICATION MAINTENANCE LEVEL CHART - CITY (Continued)
City - 59,000 Miles or Less Annually - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 110 120 130 140 150 160 170 180 190 200
Kilometers (000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change••
Eaton / Dana / Spicer synthetic oil - change•
Cab components
Door hinges / latches / strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
250
