FORD F750 2010 12.G Owners Manual

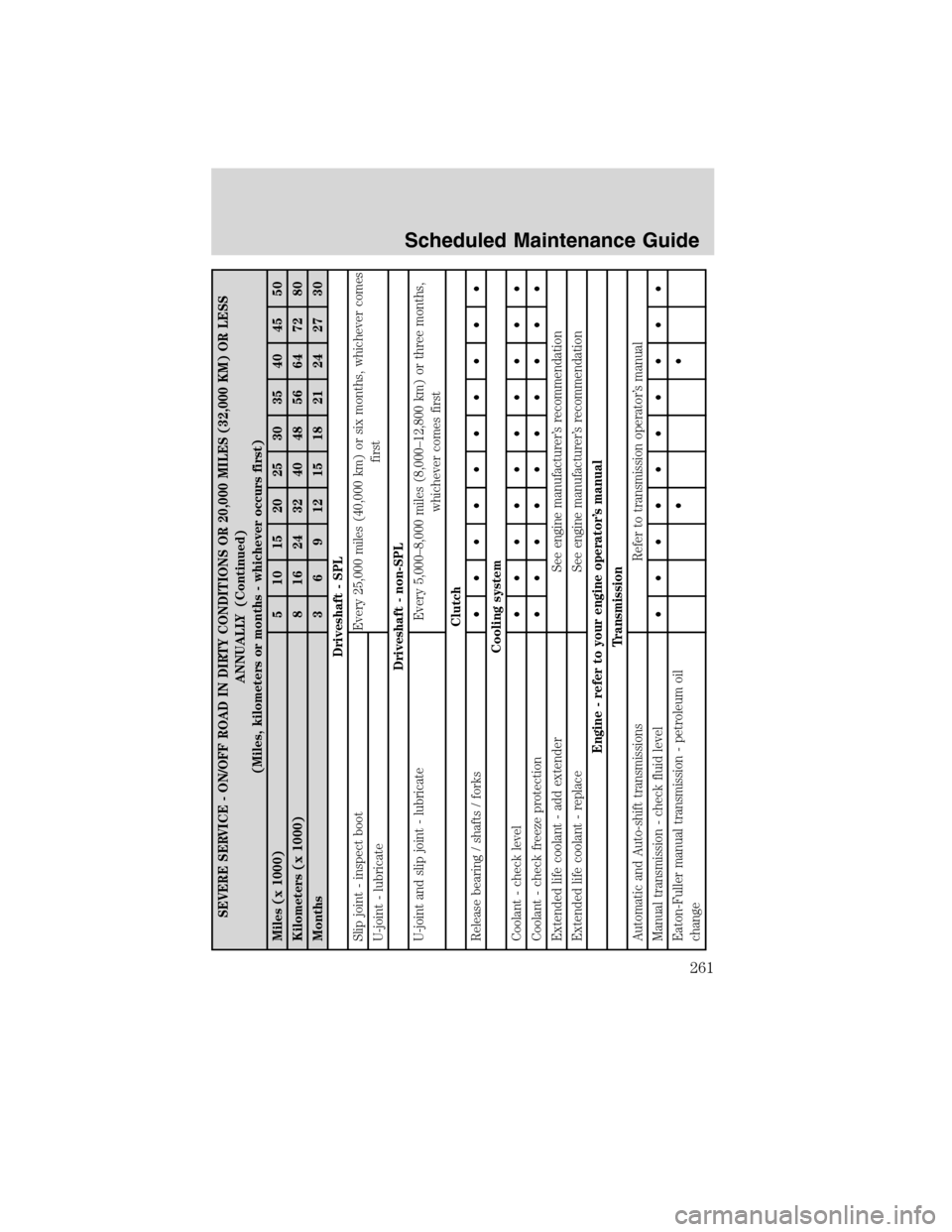

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Driveshaft - SPL
Slip joint - inspect boot Every 25,000 miles (40,000 km) or six months, whichever comes
first
U-joint - lubricate
Driveshaft - non-SPL
U-joint and slip joint - lubricate Every 5,000–8,000 miles (8,000–12,800 km) or three months,
whichever comes first
Clutch
Release bearing / shafts / forks••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to your engine operator’s manual
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission - petroleum oil
change••
Scheduled Maintenance Guide
261
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

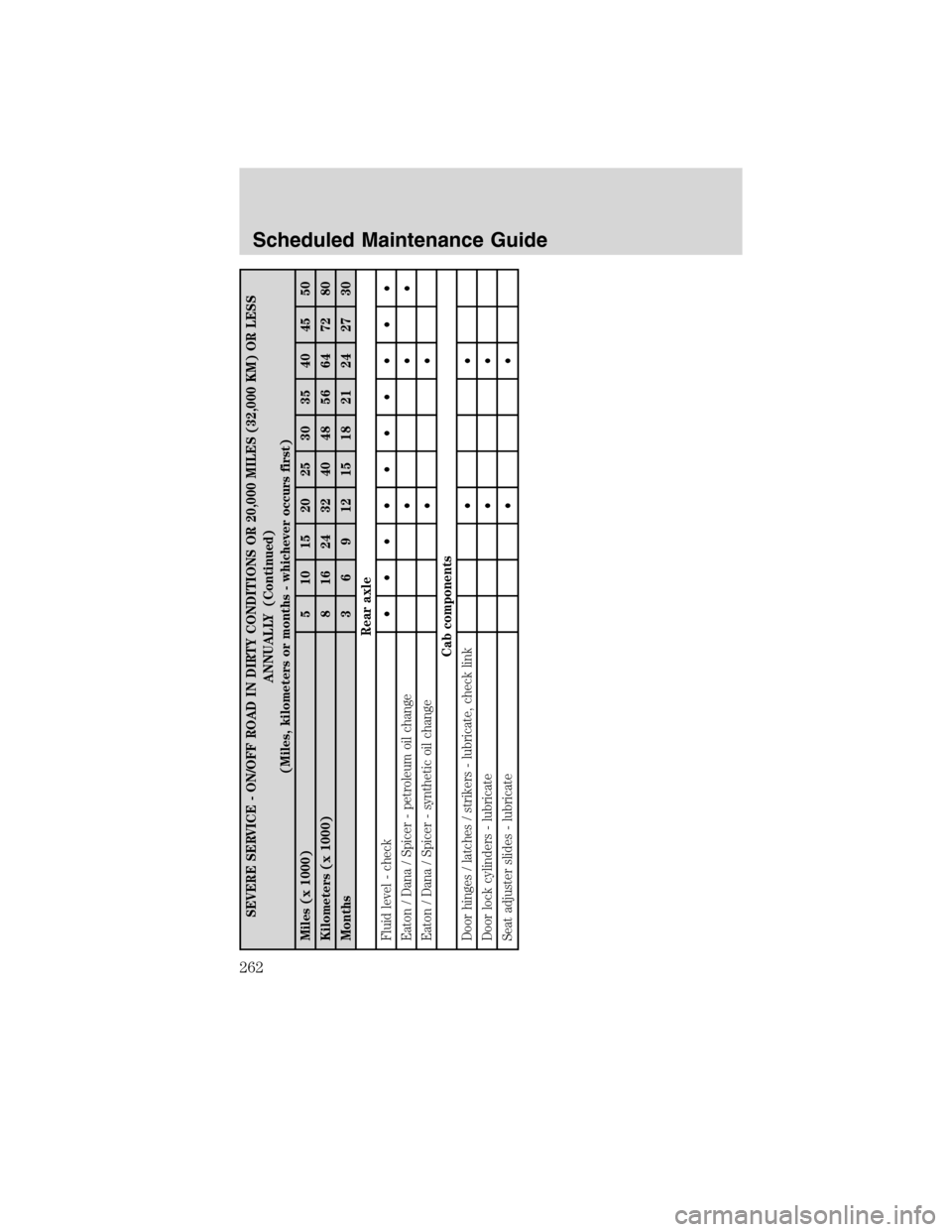

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer - petroleum oil change•••
Eaton / Dana / Spicer - synthetic oil change••
Cab components
Door hinges / latches / strikers - lubricate, check link••
Door lock cylinders - lubricate••
Seat adjuster slides - lubricate••
Scheduled Maintenance Guide
262
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

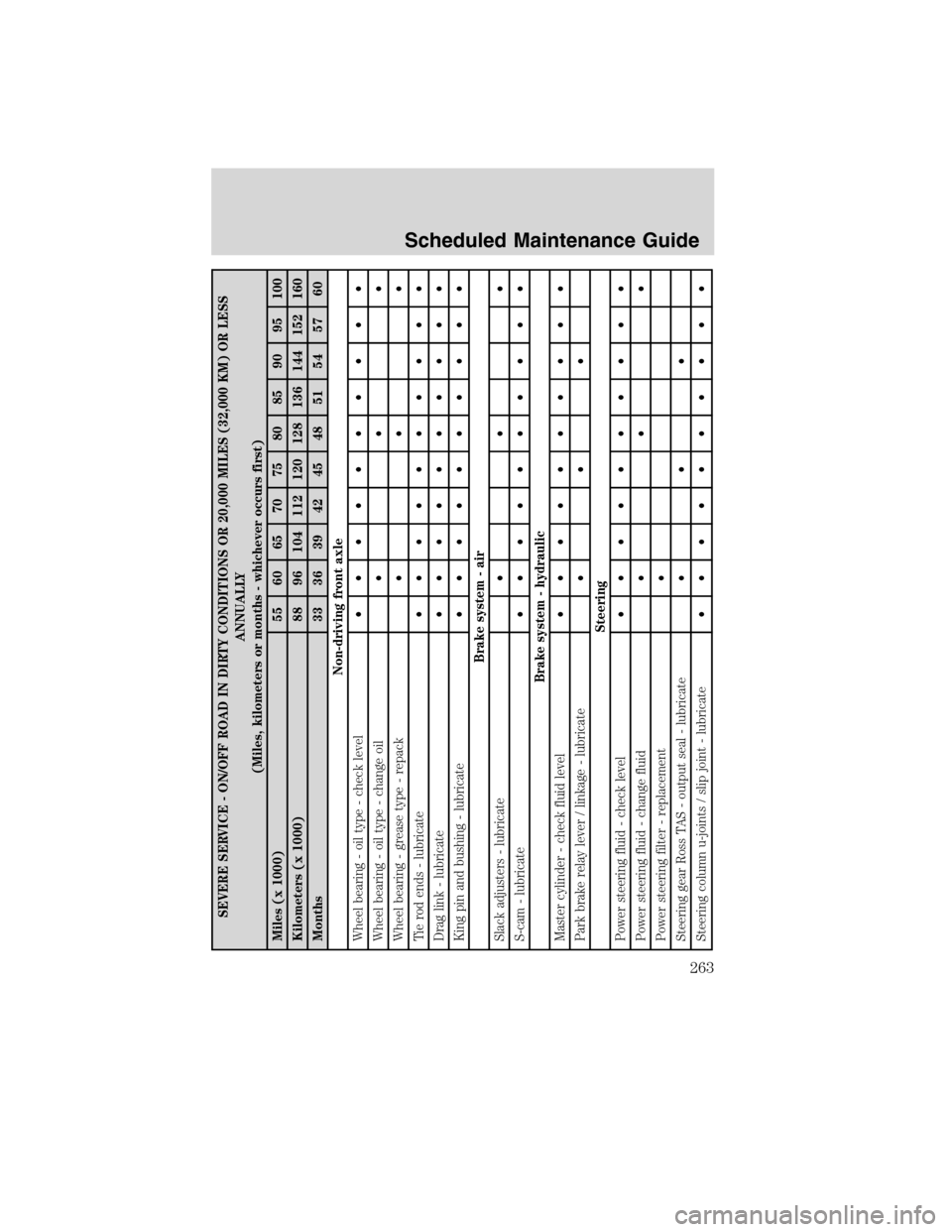

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•••
Wheel bearing - grease type - repack•••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage - lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•••
Power steering filter - replacement•
Steering gear Ross TAS - output seal - lubricate•••
Steering column u-joints / slip joint - lubricate••••••••••
Scheduled Maintenance Guide
263
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

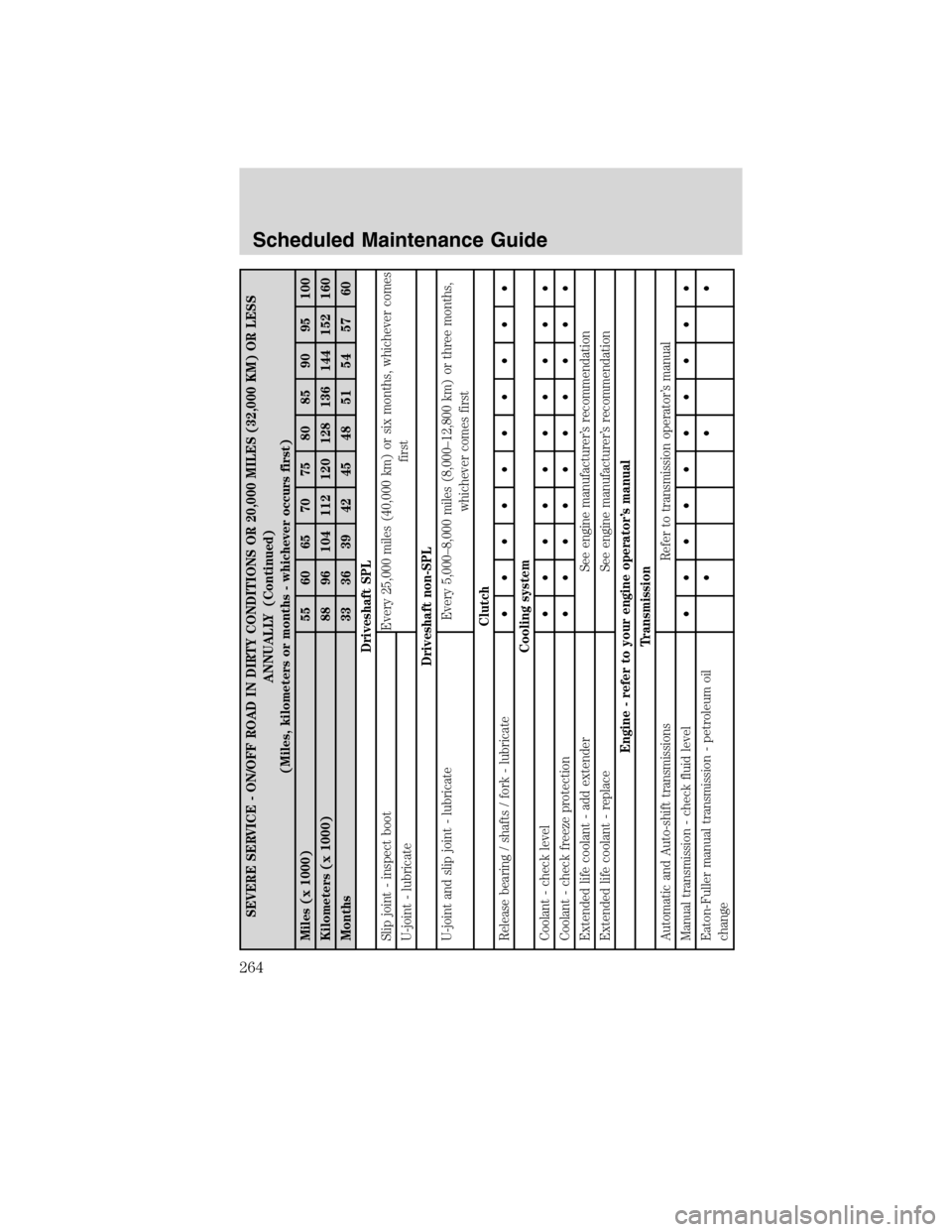

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Driveshaft SPL
Slip joint - inspect boot Every 25,000 miles (40,000 km) or six months, whichever comes
first
U-joint - lubricate
Driveshaft non-SPL
U-joint and slip joint - lubricate Every 5,000–8,000 miles (8,000–12,800 km) or three months,
whichever comes first
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to your engine operator’s manual
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission - petroleum oil
change•••
Scheduled Maintenance Guide
264
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

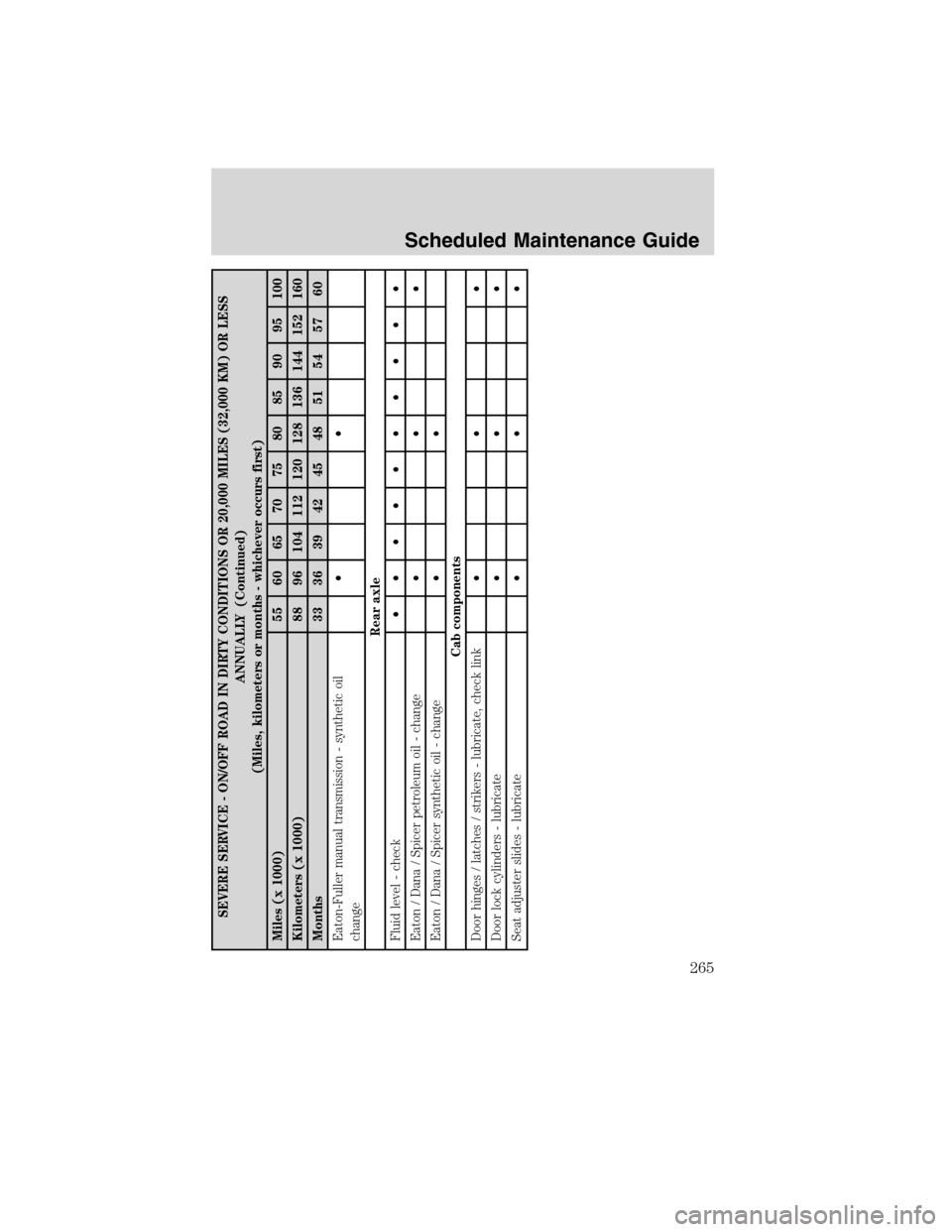

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20,000 MILES (32,000 KM) OR LESS
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Eaton-Fuller manual transmission - synthetic oil
change••
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change•••
Eaton / Dana / Spicer synthetic oil - change••
Cab components
Door hinges / latches / strikers - lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
Scheduled Maintenance Guide
265
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Scheduled Maintenance Guide
266
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

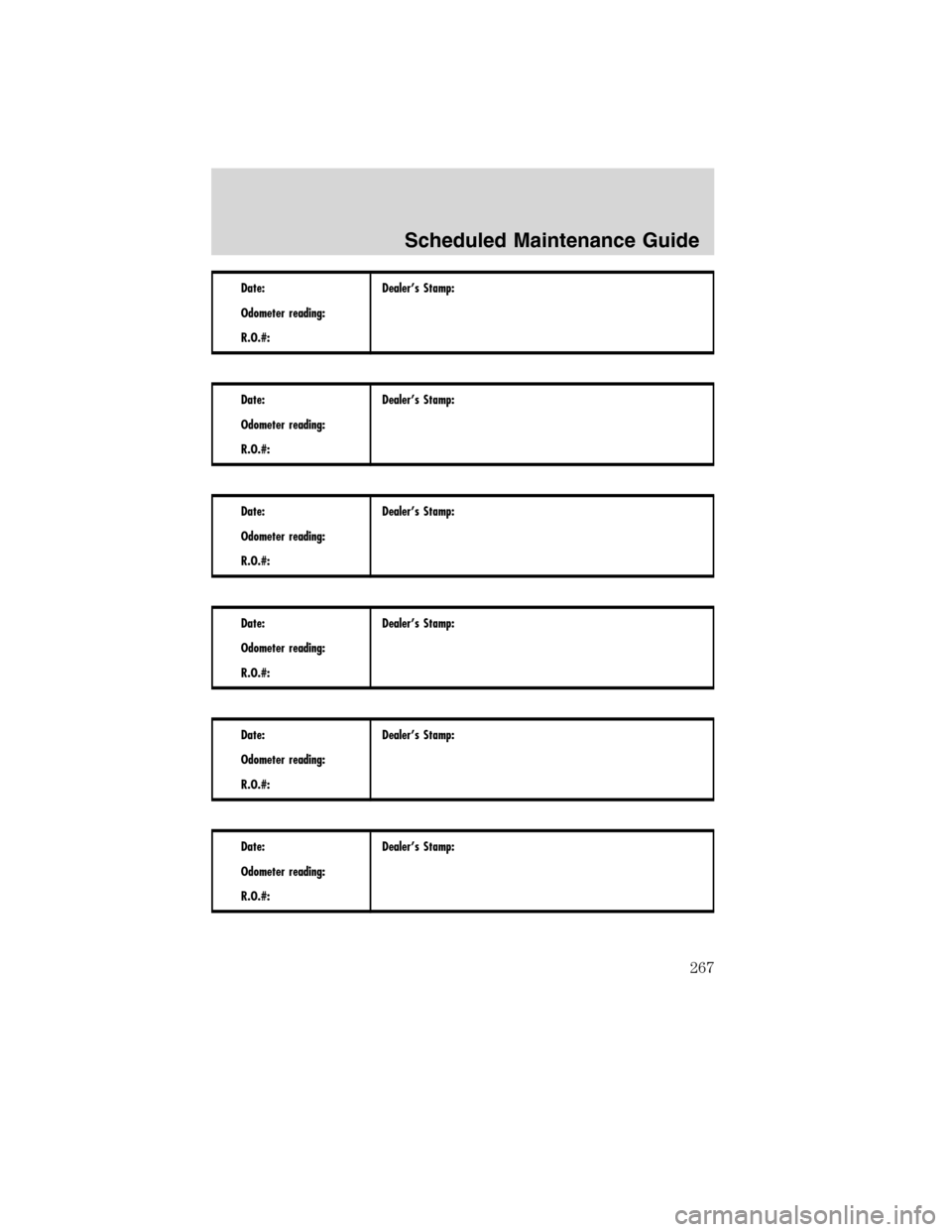

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Scheduled Maintenance Guide
267
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

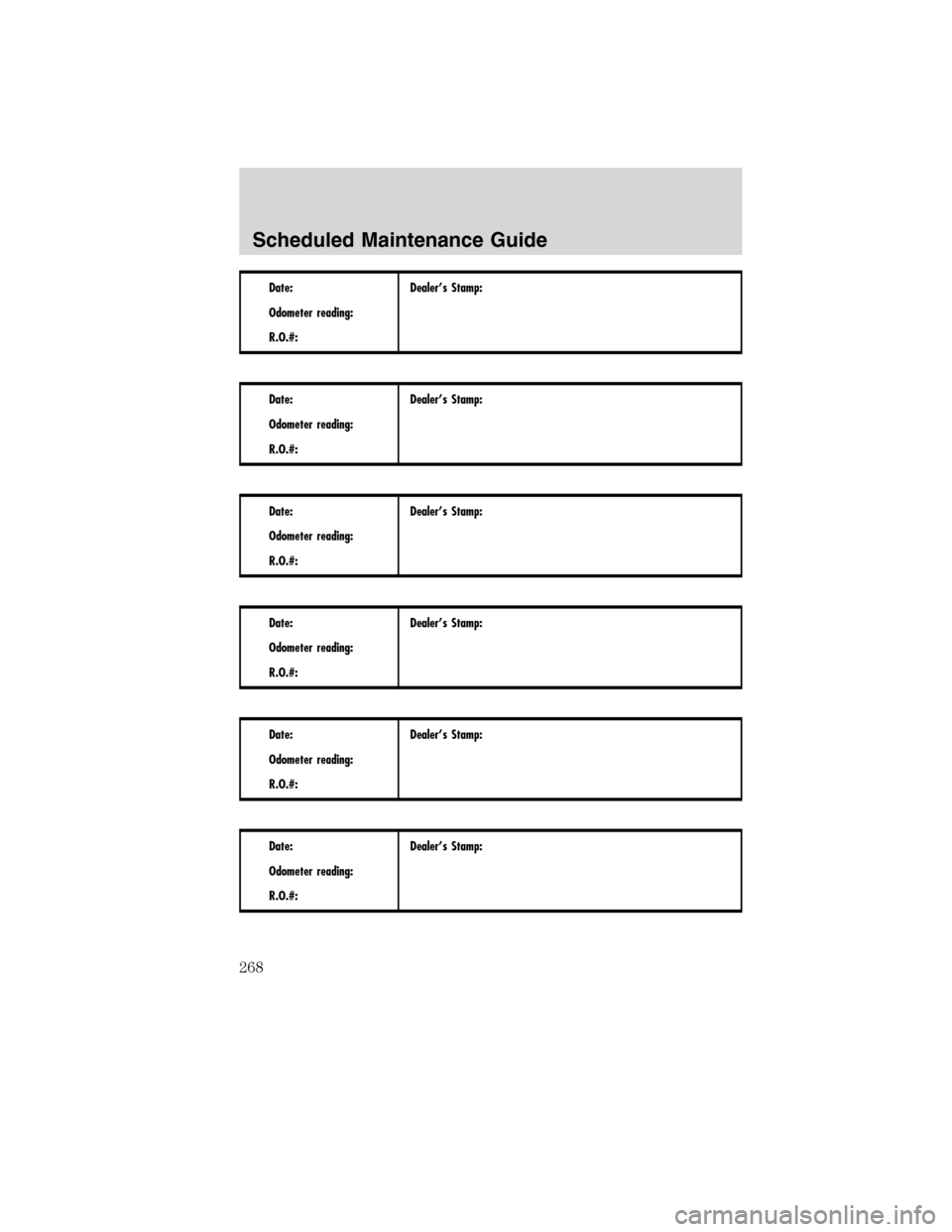

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Scheduled Maintenance Guide
268
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

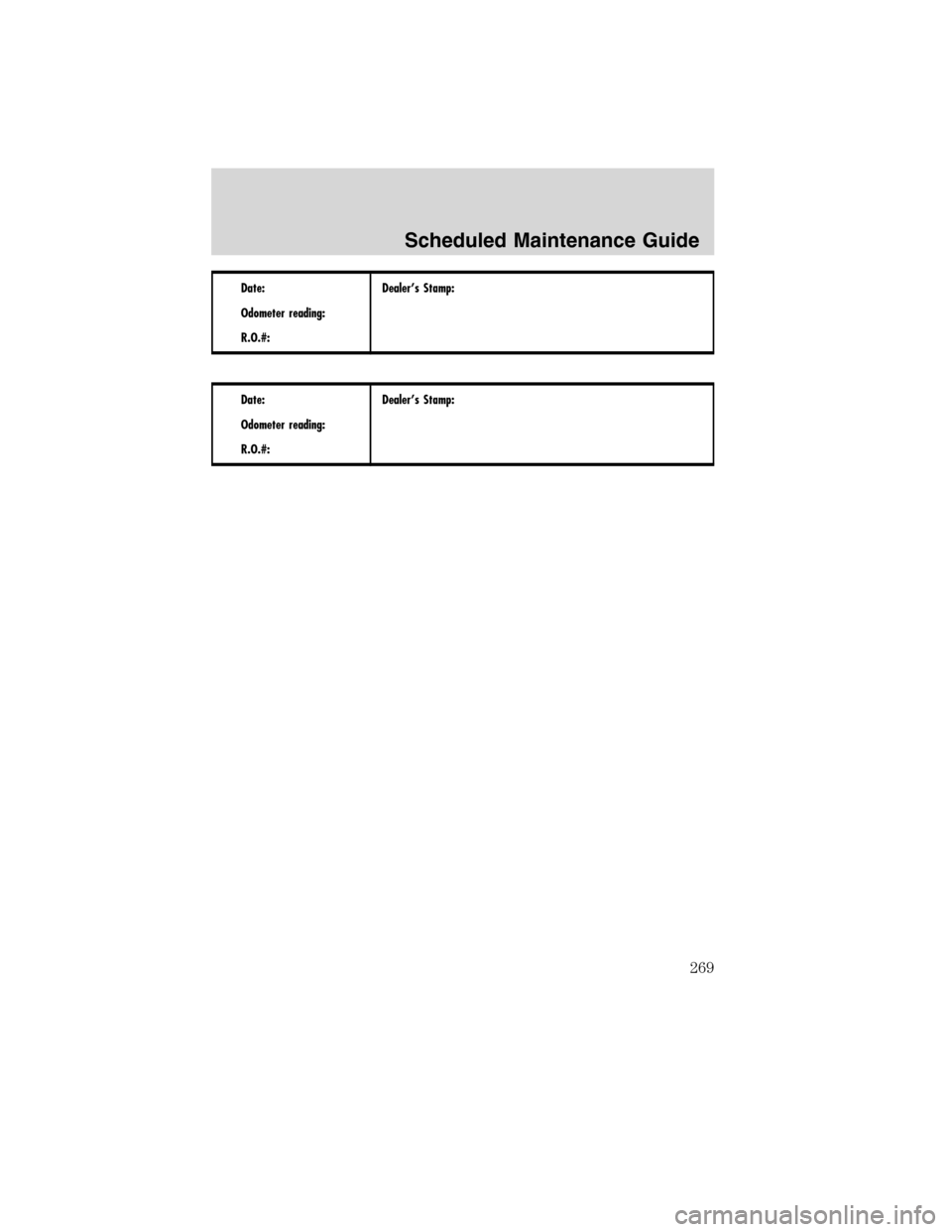

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Scheduled Maintenance Guide
269
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

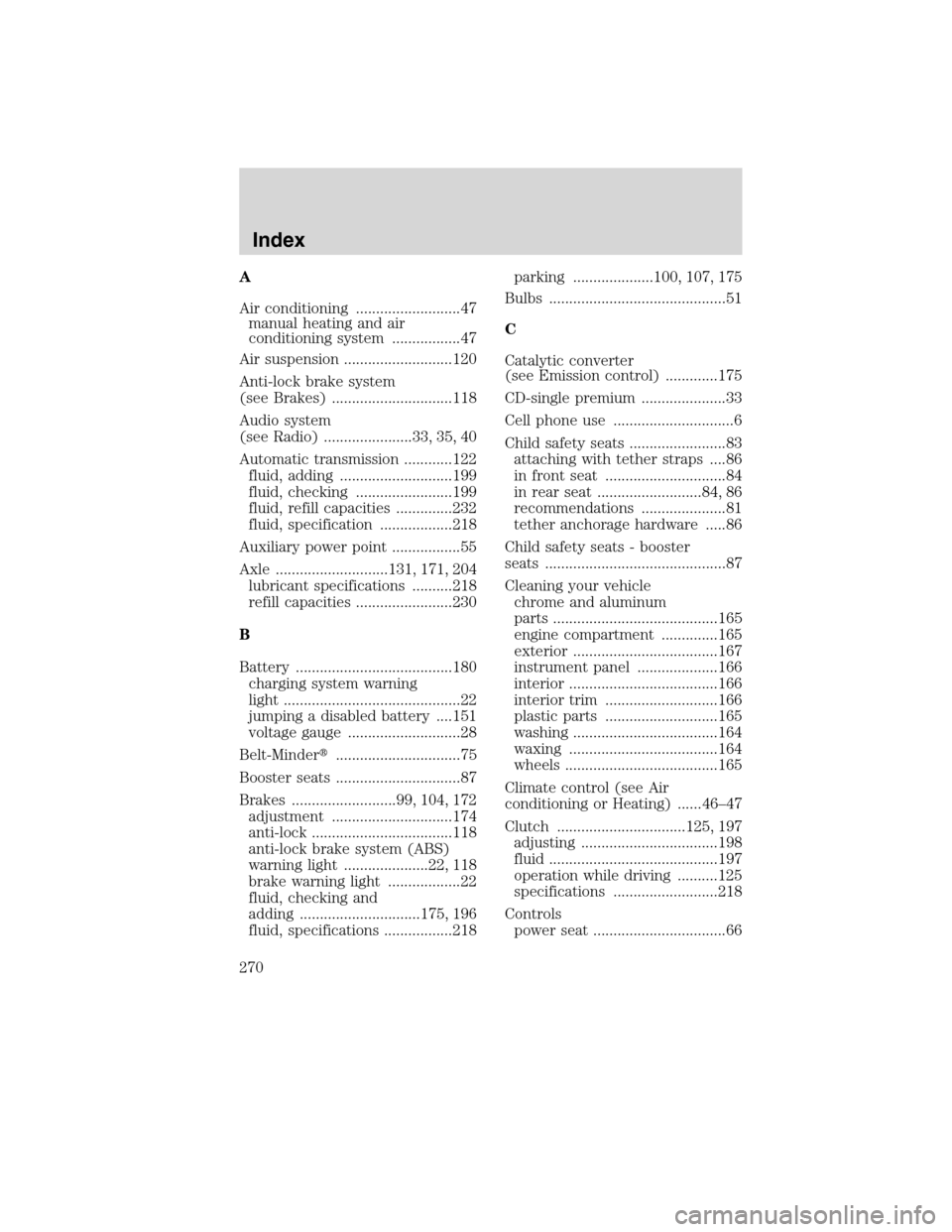

A
Air conditioning ..........................47
manual heating and air
conditioning system .................47
Air suspension ...........................120
Anti-lock brake system
(see Brakes) ..............................118
Audio system
(see Radio) ......................33, 35, 40
Automatic transmission ............122
fluid, adding ............................199
fluid, checking ........................199
fluid, refill capacities ..............232
fluid, specification ..................218
Auxiliary power point .................55
Axle ............................131, 171, 204
lubricant specifications ..........218
refill capacities ........................230
B
Battery .......................................180
charging system warning
light ............................................22
jumping a disabled battery ....151
voltage gauge ............................28
Belt-Minder...............................75
Booster seats ...............................87
Brakes ..........................99, 104, 172
adjustment ..............................174
anti-lock ...................................118
anti-lock brake system (ABS)
warning light .....................22, 118
brake warning light ..................22
fluid, checking and
adding ..............................175, 196
fluid, specifications .................218parking ....................100, 107, 175
Bulbs ............................................51
C
Catalytic converter
(see Emission control) .............175
CD-single premium .....................33
Cell phone use ..............................6
Child safety seats ........................83
attaching with tether straps ....86
in front seat ..............................84
in rear seat ..........................84, 86
recommendations .....................81
tether anchorage hardware .....86
Child safety seats - booster
seats .............................................87
Cleaning your vehicle
chrome and aluminum
parts .........................................165
engine compartment ..............165
exterior ....................................167
instrument panel ....................166
interior .....................................166
interior trim ............................166
plastic parts ............................165
washing ....................................164
waxing .....................................164
wheels ......................................165
Climate control (see Air
conditioning or Heating) ......46–47
Clutch ................................125, 197
adjusting ..................................198
fluid ..........................................197
operation while driving ..........125
specifications ..........................218
Controls
power seat .................................66
Index
