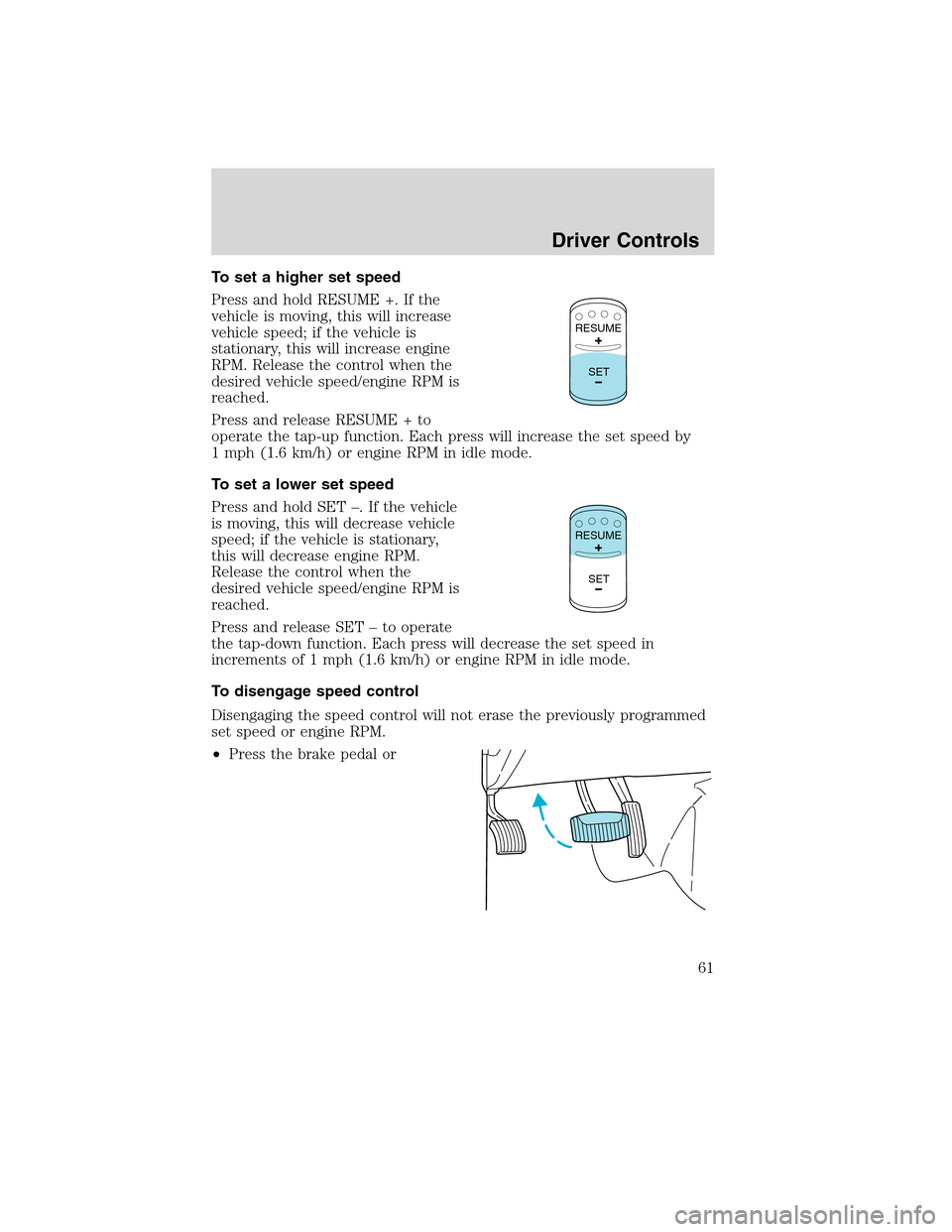

To set a higher set speed
Press and hold RESUME +. If the
vehicle is moving, this will increase
vehicle speed; if the vehicle is
stationary, this will increase engine
RPM. Release the control when the
desired vehicle speed/engine RPM is
reached.
Press and release RESUME + to
operate the tap-up function. Each press will increase the set speed by
1 mph (1.6 km/h) or engine RPM in idle mode.
To set a lower set speed
Press and hold SET –. If the vehicle
is moving, this will decrease vehicle
speed; if the vehicle is stationary,
this will decrease engine RPM.
Release the control when the
desired vehicle speed/engine RPM is
reached.
Press and release SET – to operate
the tap-down function. Each press will decrease the set speed in
increments of 1 mph (1.6 km/h) or engine RPM in idle mode.
To disengage speed control
Disengaging the speed control will not erase the previously programmed
set speed or engine RPM.
•Press the brake pedal or
SET RESUME
SET RESUME
Driver Controls
61
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

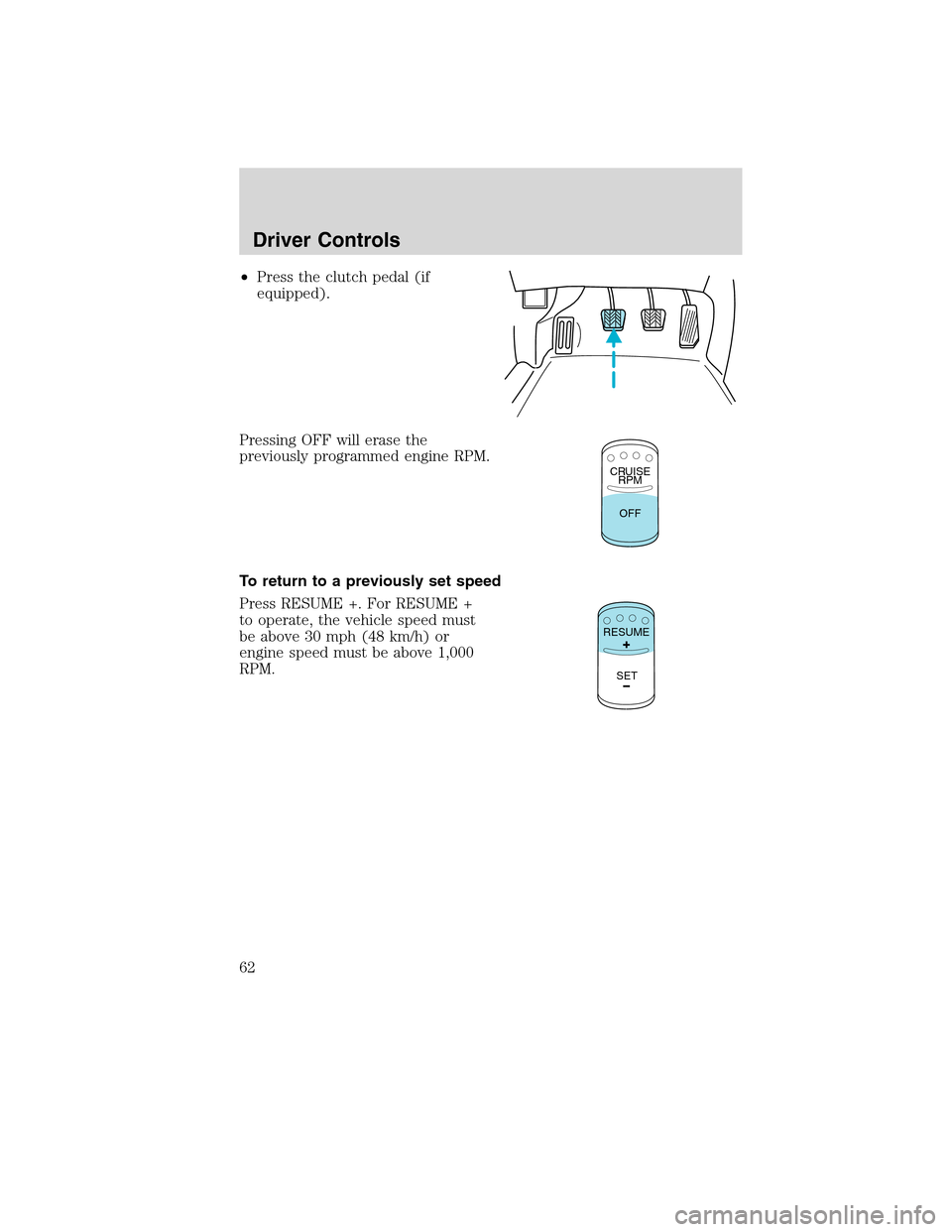

•Press the clutch pedal (if
equipped).
Pressing OFF will erase the
previously programmed engine RPM.
To return to a previously set speed
Press RESUME +. For RESUME +
to operate, the vehicle speed must
be above 30 mph (48 km/h) or
engine speed must be above 1,000
RPM.
CRUISE
RPM
OFF
SET RESUME
Driver Controls
62
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

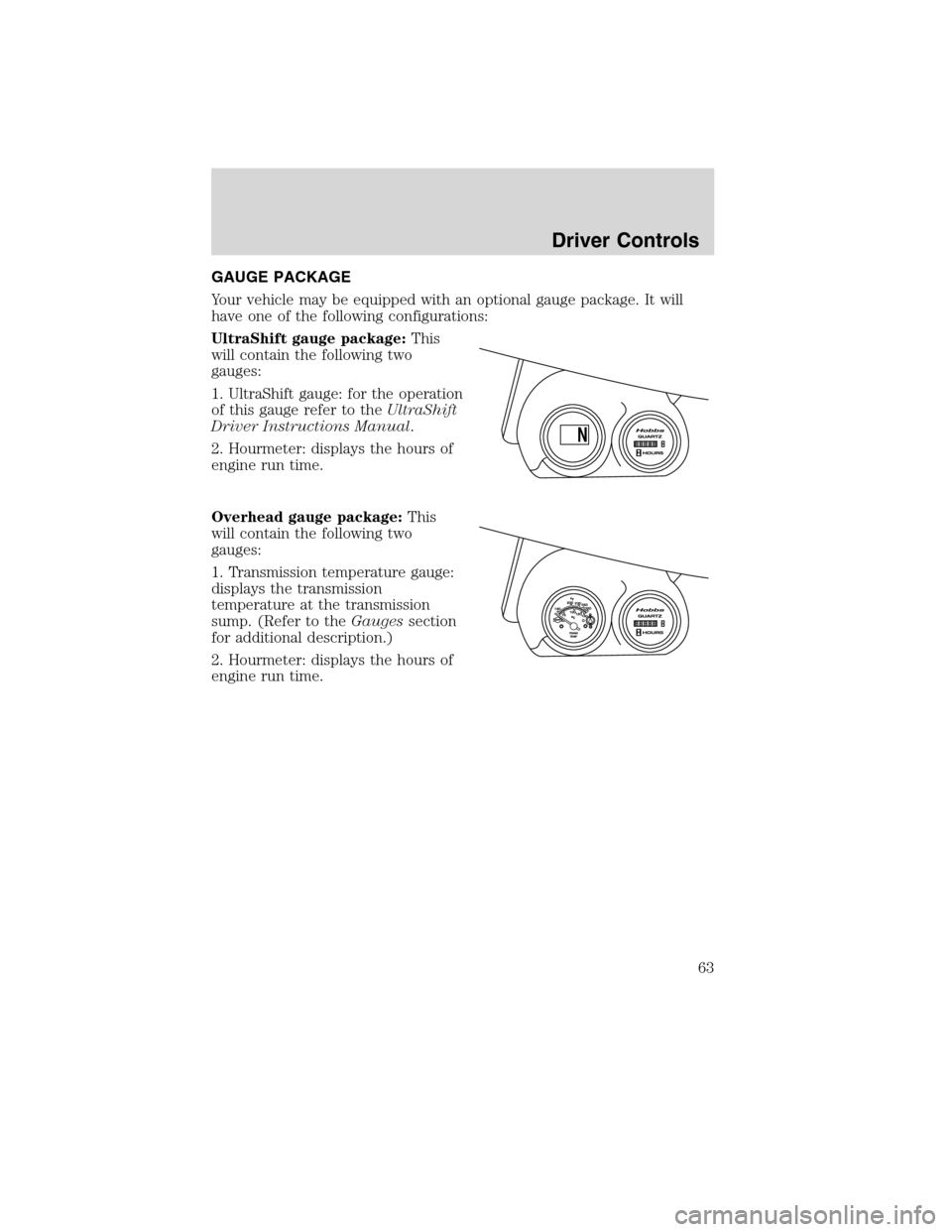

GAUGE PACKAGE
Your vehicle may be equipped with an optional gauge package. It will
have one of the following configurations:
UltraShift gauge package:This
will contain the following two
gauges:
1. UltraShift gauge: for the operation
of this gauge refer to theUltraShift
Driver Instructions Manual.
2. Hourmeter: displays the hours of
engine run time.
Overhead gauge package:This
will contain the following two
gauges:
1. Transmission temperature gauge:
displays the transmission
temperature at the transmission
sump. (Refer to theGaugessection
for additional description.)
2. Hourmeter: displays the hours of
engine run time.
Driver Controls
63
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

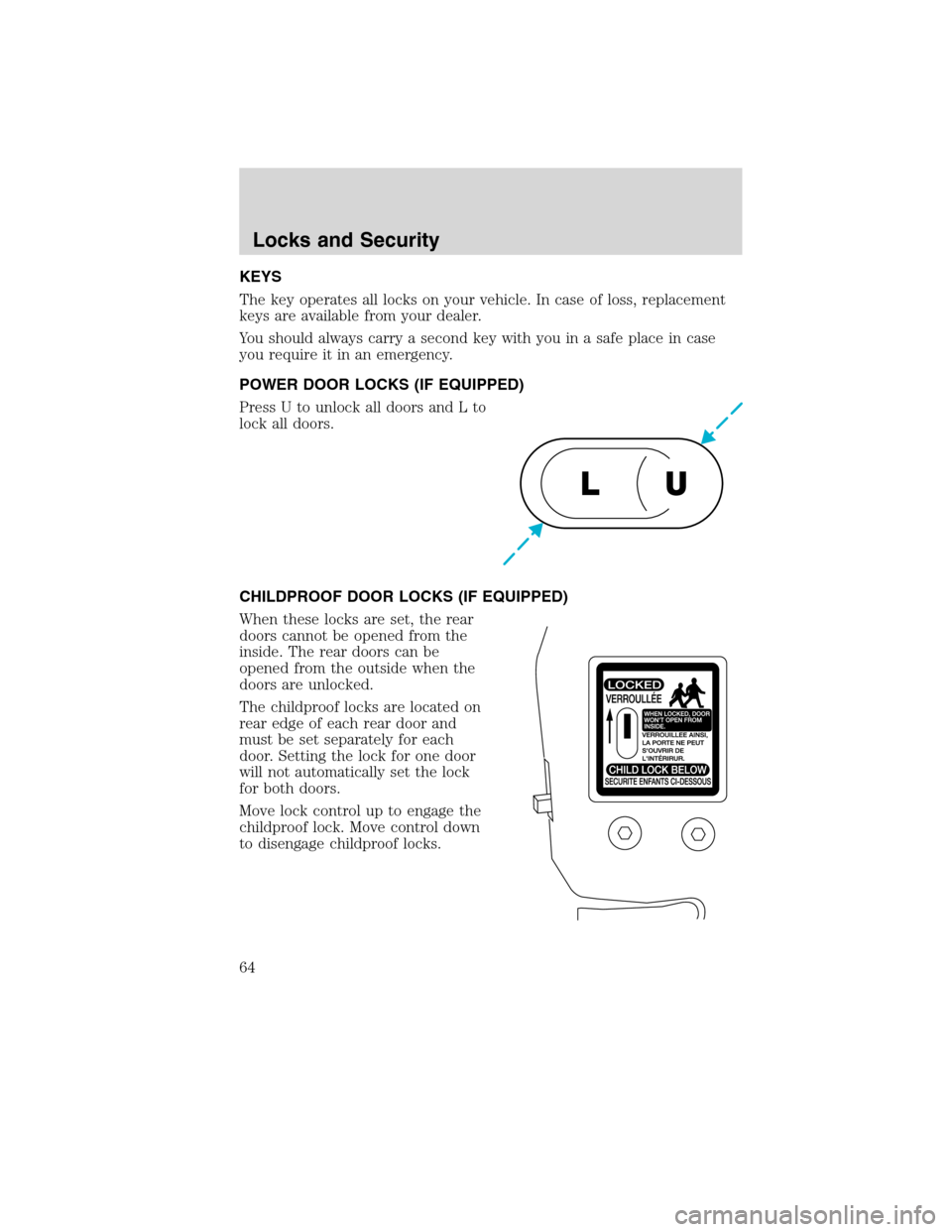

KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
POWER DOOR LOCKS (IF EQUIPPED)
Press U to unlock all doors and L to
lock all doors.
CHILDPROOF DOOR LOCKS (IF EQUIPPED)
When these locks are set, the rear
doors cannot be opened from the
inside. The rear doors can be
opened from the outside when the
doors are unlocked.
The childproof locks are located on
rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door
will not automatically set the lock
for both doors.
Move lock control up to engage the
childproof lock. Move control down
to disengage childproof locks.
U L
Locks and Security
64
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

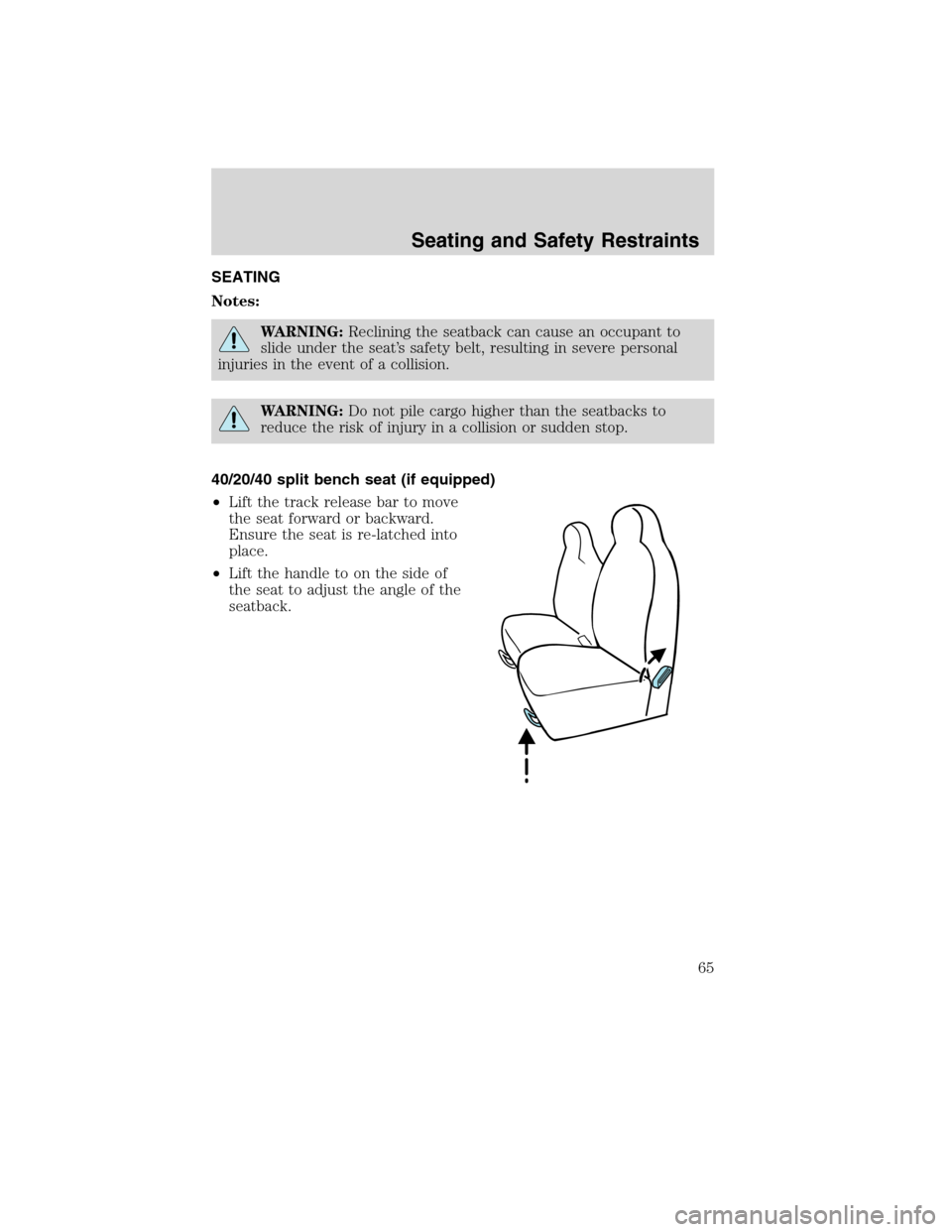

SEATING
Notes:
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING:Do not pile cargo higher than the seatbacks to
reduce the risk of injury in a collision or sudden stop.
40/20/40 split bench seat (if equipped)
•Lift the track release bar to move
the seat forward or backward.
Ensure the seat is re-latched into
place.
•Lift the handle to on the side of
the seat to adjust the angle of the
seatback.
Seating and Safety Restraints
65
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

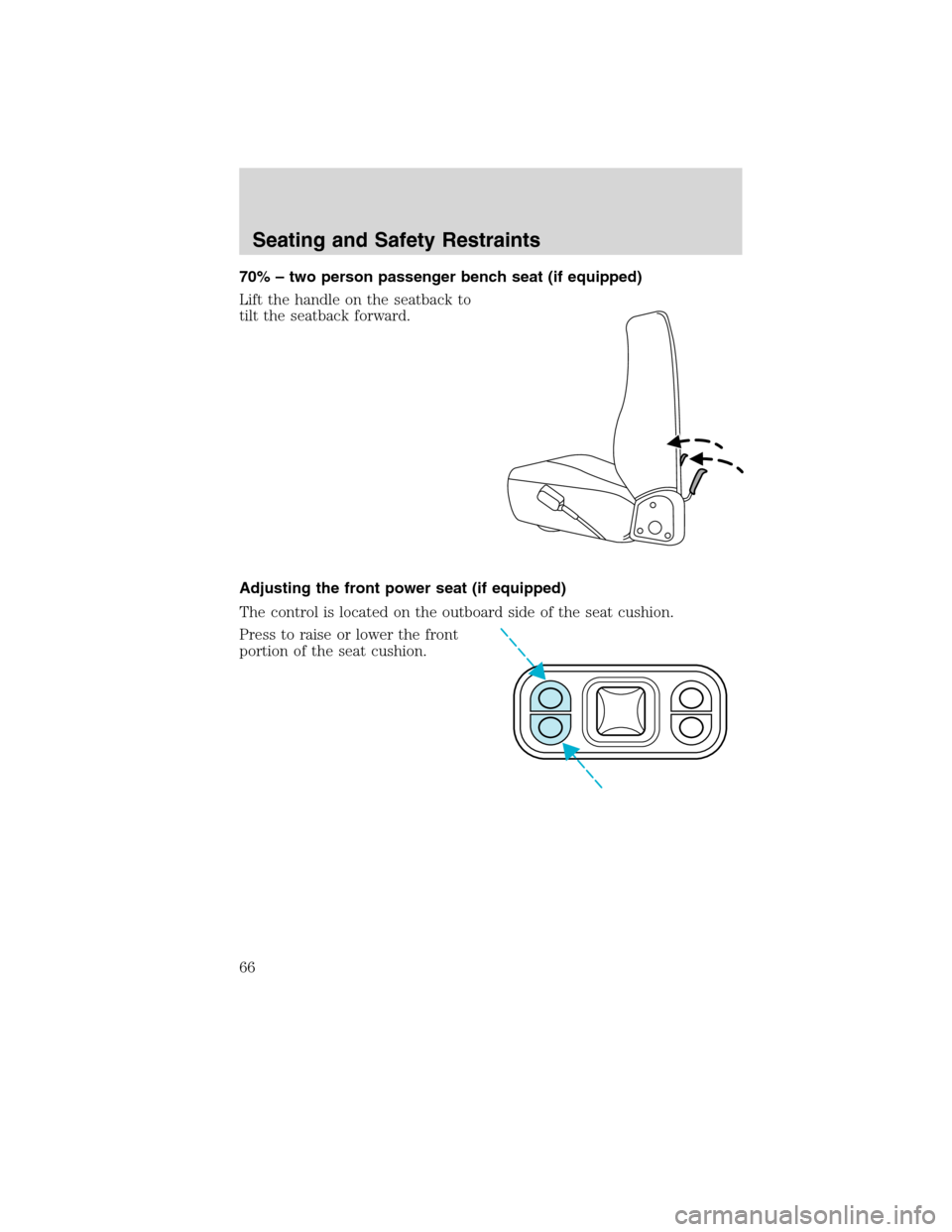

70% – two person passenger bench seat (if equipped)
Lift the handle on the seatback to
tilt the seatback forward.
Adjusting the front power seat (if equipped)
The control is located on the outboard side of the seat cushion.
Press to raise or lower the front
portion of the seat cushion.
Seating and Safety Restraints
66
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

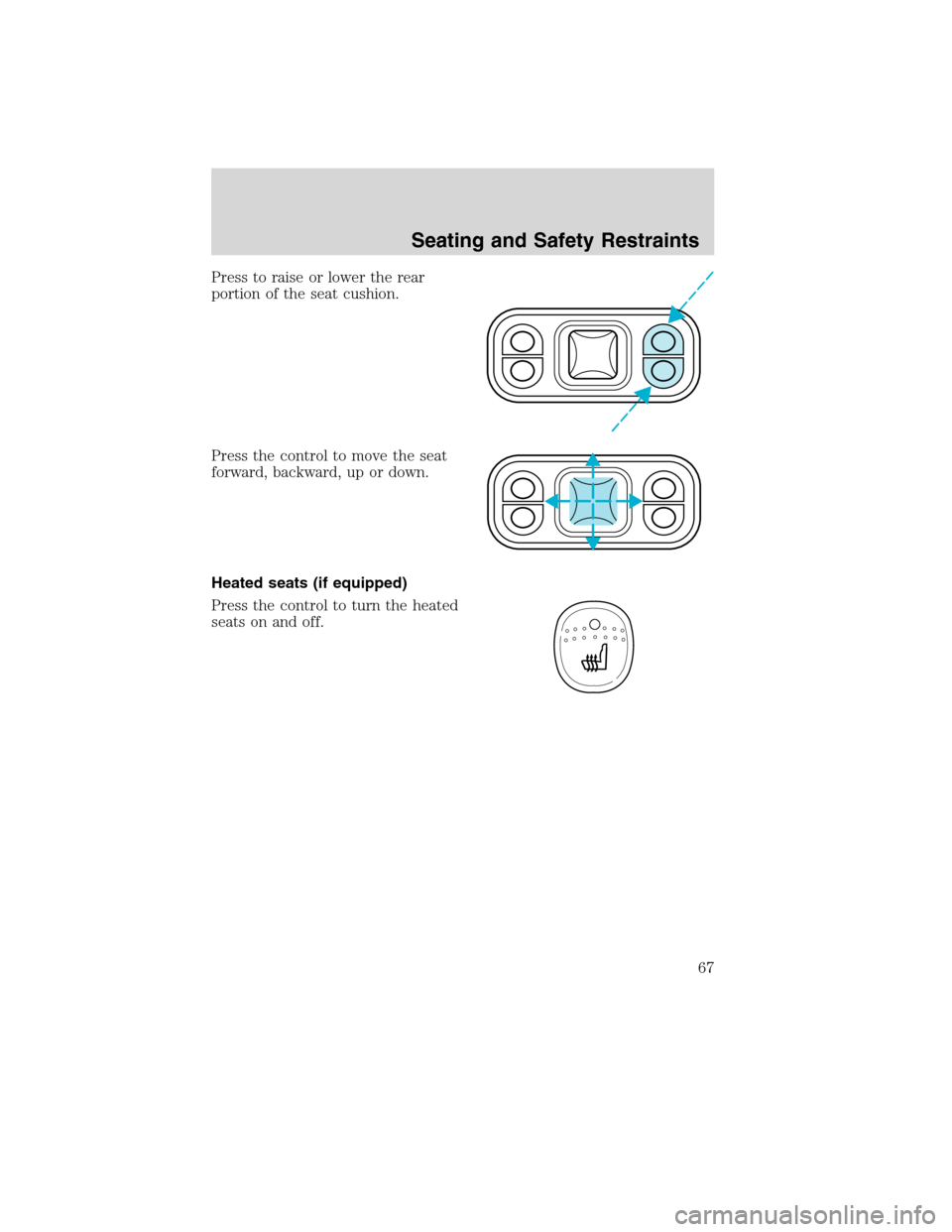

Press to raise or lower the rear
portion of the seat cushion.
Press the control to move the seat
forward, backward, up or down.
Heated seats (if equipped)
Press the control to turn the heated
seats on and off.
Seating and Safety Restraints
67
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

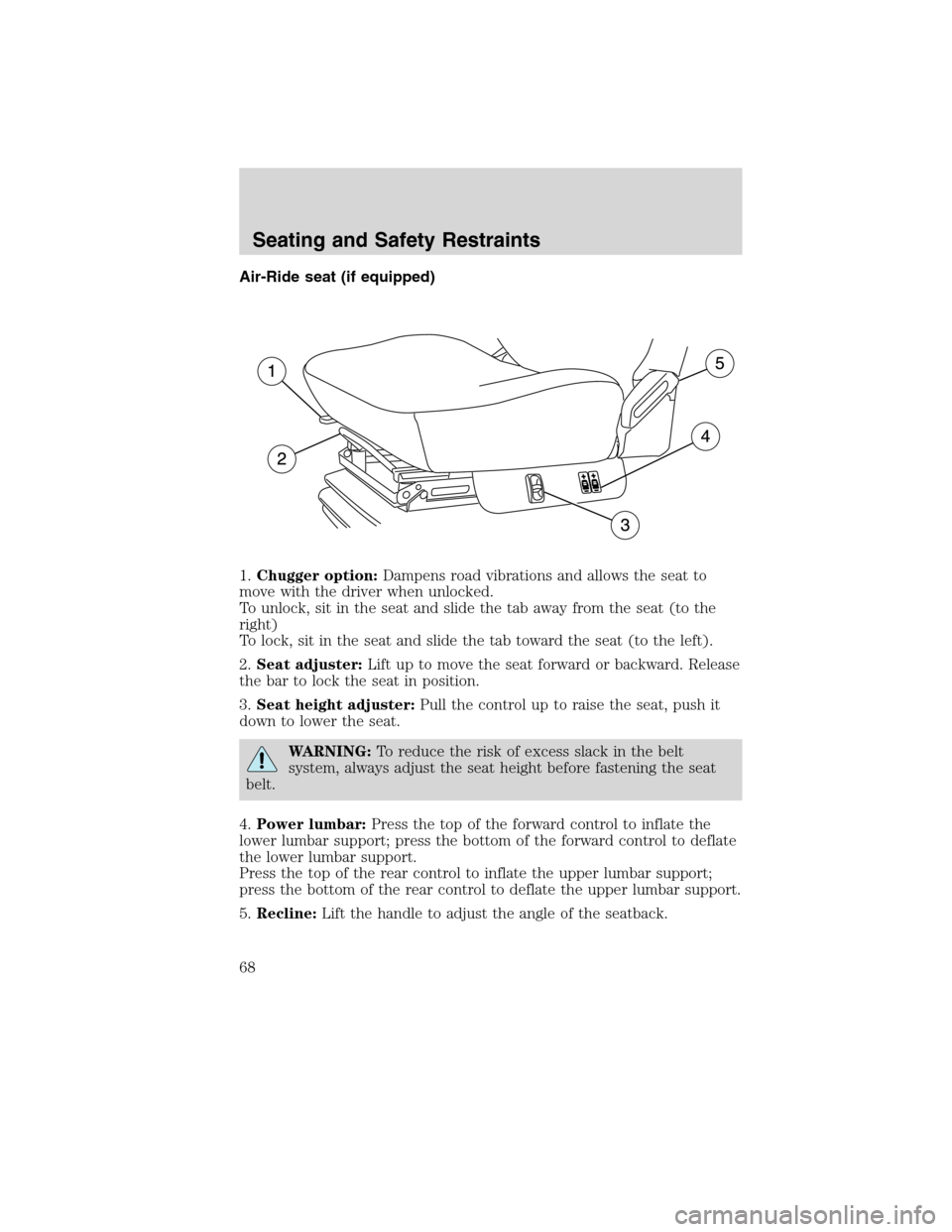

Air-Ride seat (if equipped)
1.Chugger option:Dampens road vibrations and allows the seat to
move with the driver when unlocked.
To unlock, sit in the seat and slide the tab away from the seat (to the
right)
To lock, sit in the seat and slide the tab toward the seat (to the left).
2.Seat adjuster:Lift up to move the seat forward or backward. Release
the bar to lock the seat in position.
3.Seat height adjuster:Pull the control up to raise the seat, push it
down to lower the seat.
WARNING:To reduce the risk of excess slack in the belt
system, always adjust the seat height before fastening the seat
belt.
4.Power lumbar:Press the top of the forward control to inflate the
lower lumbar support; press the bottom of the forward control to deflate
the lower lumbar support.
Press the top of the rear control to inflate the upper lumbar support;
press the bottom of the rear control to deflate the upper lumbar support.
5.Recline:Lift the handle to adjust the angle of the seatback.
Seating and Safety Restraints
68
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

REAR FLIP-UP SEAT (IF EQUIPPED)
Flipping up the seat
The rear seatback has a split 60/40
seat. Each seat cushion can be
flipped-up into the seatback
position.
1. Pull the control to release the
seat cushion.
2. Rotate the seat cushion up until it
locks into the vertical storage
position.
Returning the seat to horizontal position
WARNING:Always latch the vehicle seat to the floor, whether
the seat is occupied or empty. If not latched, the seat may cause
injury during a sudden stop.
WARNING:Make sure the safety belts are accessible and not
trapped behind the seat when the seat is returned to its
horizontal position.
1. Pull the control on the side of the seat to release the seat cushion
from its storage position.
2. Push the seat cushion down until it locks into the horizontal position.
SAFETY RESTRAINTS
Safety restraints precautions
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING:To reduce the risk of injury, make sure children sit
where they can be properly restrained.
Seating and Safety Restraints
69
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)

WARNING:All occupants of the vehicle, including the driver,
should always properly wear their safety belts.
WARNING:Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
WARNING:It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle that is not equipped
with seats and safety belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
WARNING:In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a safety
belt.
WARNING:Each seating position in your vehicle has a specific
safety belt assembly which is made up of one buckle and one
tongue that are designed to be used as a pair. 1) Use the shoulder belt
on the outside shoulder only. Never wear the shoulder belt under the
arm. 2) Never swing the safety belt around your neck over the inside
shoulder. 3) Never use a single belt for more than one person.
Combination lap and shoulder belts
1. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) until you hear a snap and feel
it latch. Make sure the tongue is
securely fastened in the buckle.
Seating and Safety Restraints
70
2010 F-650/750(f67)
Supplement(supplement), 1st Printing
USA(fus)
