width FORD FIESTA 2007 Workshop Manual

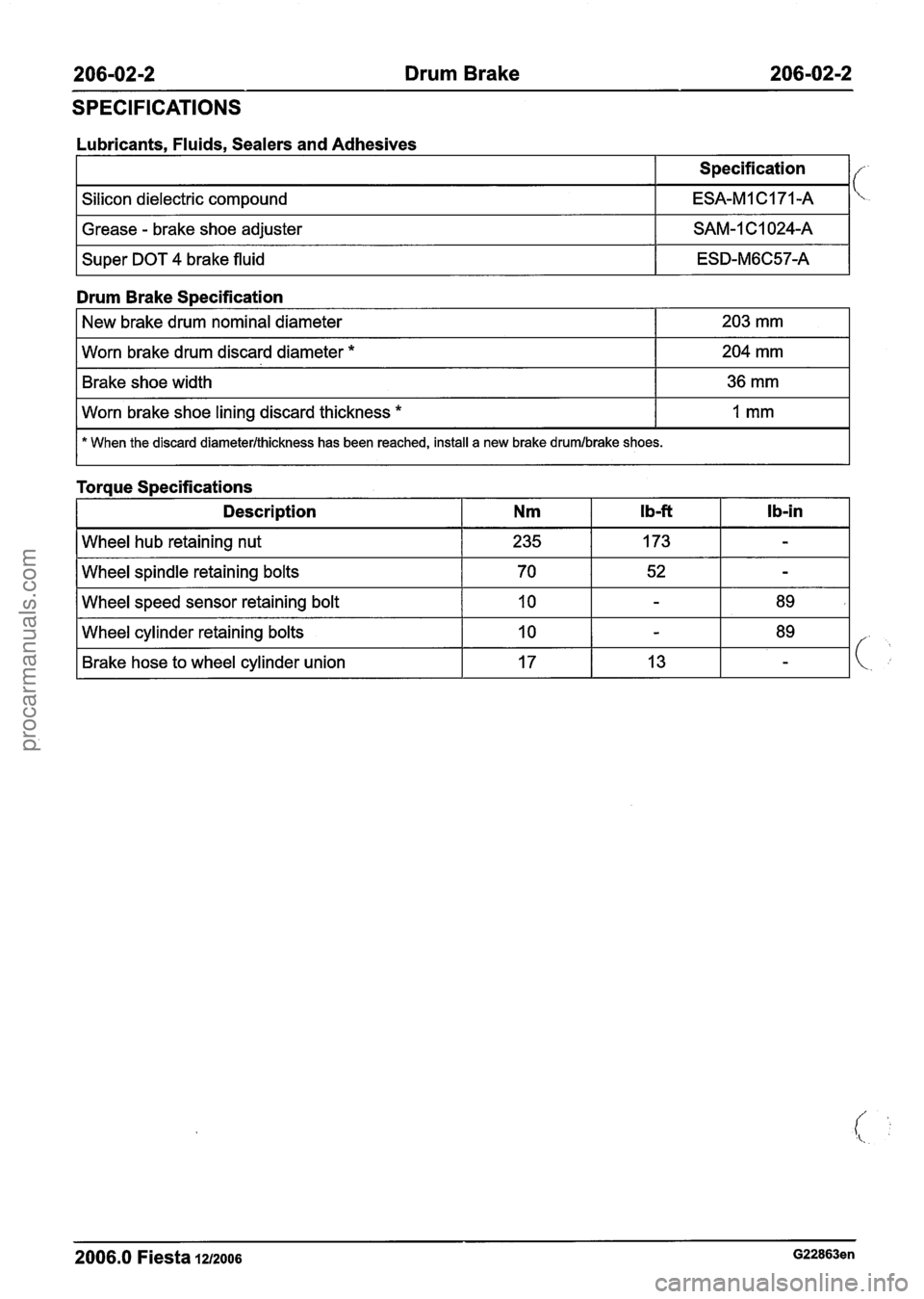

206-02-2 Drum Brake 206-02-2
SPECIFICATIONS
Lubricants, Fluids, Sealers and Adhesives
I Grease - brake shoe adjuster I SAM-1C1024-A I
Silicon dielectric compound
I Super DOT 4 brake fluid I ESD-M6C57-A I
Specification
ESA-MI C171-A
Drum Brake Specification
I Brake shoe width I 36 mm I
-- -- - -
New brake drum nominal diameter
Worn brake drum discard diameter
*
1 worn brake shoe lining discard thickness * I I mm I
203 mm
204 mm
I * When the discard diameterlthickness has been reached, install a new brake drumlbrake shoes.
Toraue S~ecifications
I Description I Nm
I Wheel spindle retaining bolts I 70 I 52 I - I
I Wheel speed sensor retaining bolt I 10 I - I 89 I
2006.0 Fiesta 1212006 G22863en
Wheel cylinder retaining bolts
Brake hose to wheel cylinder union 10
17 -
13
procarmanuals.com

303-00-33 Engine System - General Information 303-00-33
GENERAL PROCEDURES

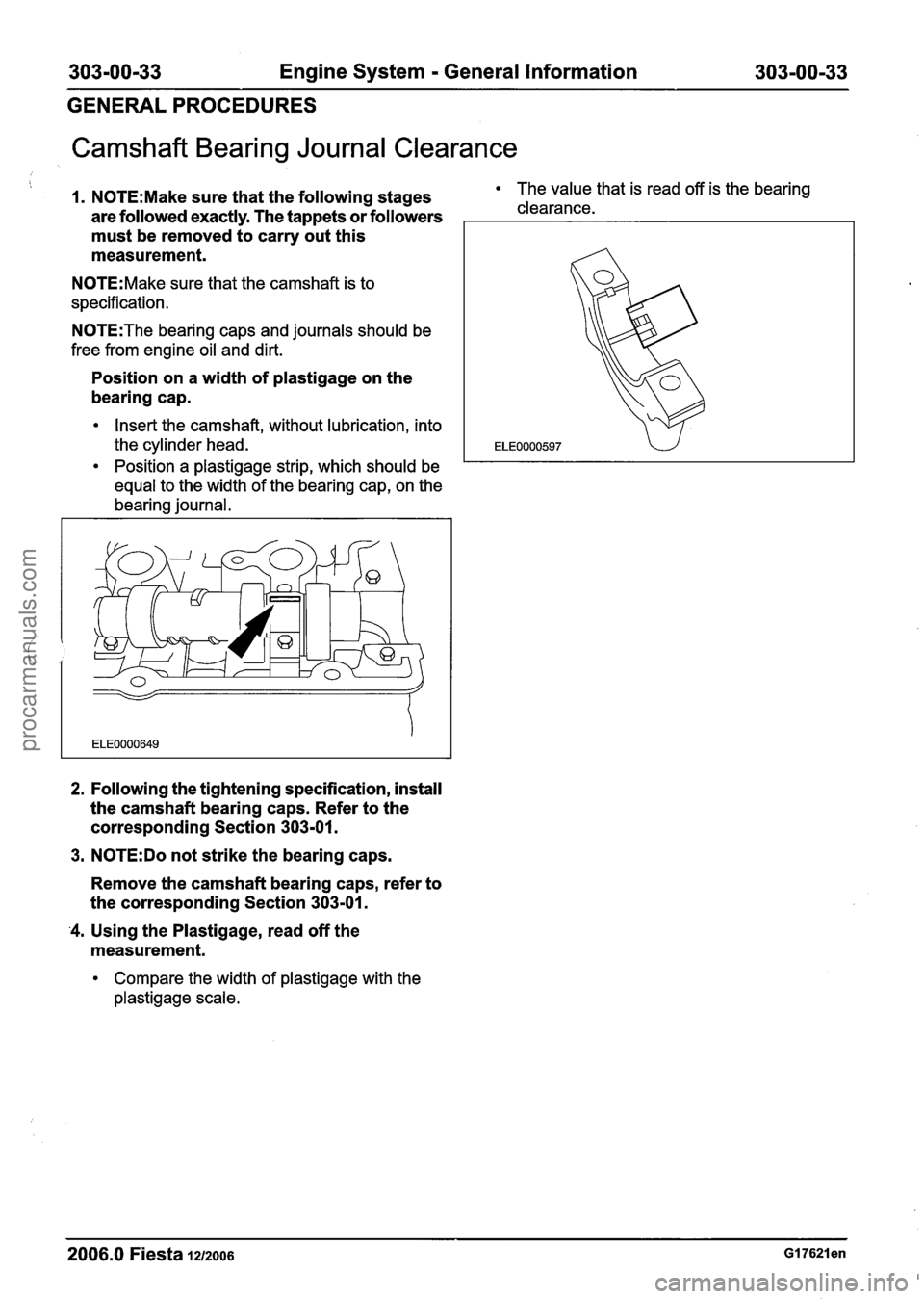

Camshaft Bearing Journal Clearance
1. N0TE:Make sure that the following stages The value that is read off is the bearing
are followed exactly. The tappets or followers clearance.
must be removed to carry out this
measurement.
N0TE:Make sure that the camshaft is to
specification.
N0TE:The bearing caps and journals should be
free from engine oil and dirt.
Position on a width of plastigage on the
bearing cap.
Insert the camshaft, without lubrication, into
the cylinder head.
Position
a plastigage strip, which should be
equal to the width of the bearing cap, on the
bearing journal.
2. Following the tightening specification, install
the camshaft bearing caps. Refer to the
corresponding Section 303-01.
3.
N0TE:Do not strike the bearing caps.
Remove the camshaft bearing caps, refer to
the corresponding Section 303-01.
'4. Using the Plastigage, read off the
measurement.
Compare the width of plastigage with the
plastigage scale.
2006.0 Fiesta 1212006
procarmanuals.com

303-00-54 Engine System - General Information 303-00-54
GENERAL PROCEDURES

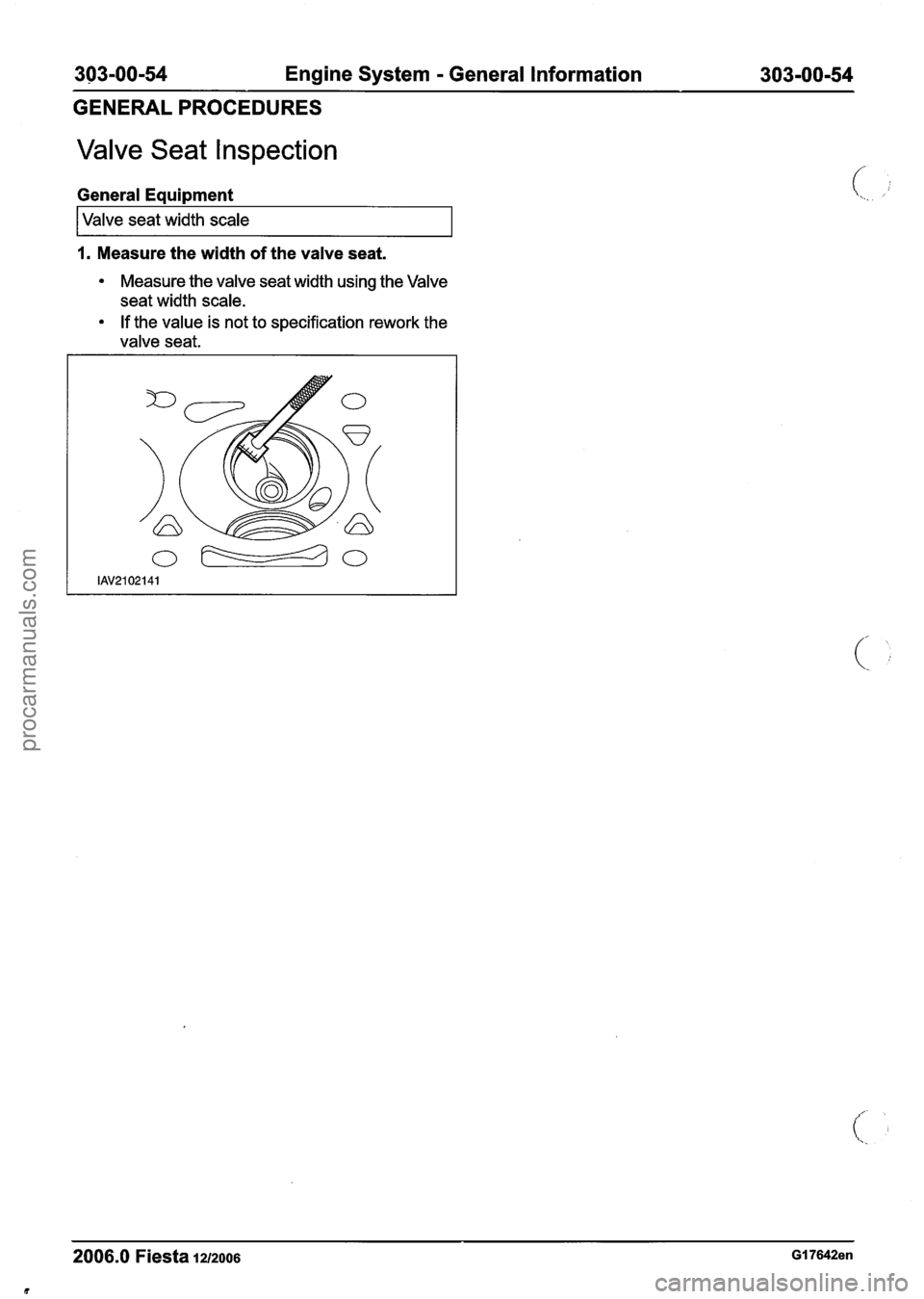

Valve Seat Inspection
General Equipment
I Valve seat width scale
1. Measure the width of the valve seat.
Measure the valve seat width using the Valve
seat width scale.
If the value is not to specification rework the
valve seat.
--
2006.0 Fiesta 1212006 GI 7642en
