FORD FIESTA 2011 6.G Owners Manual

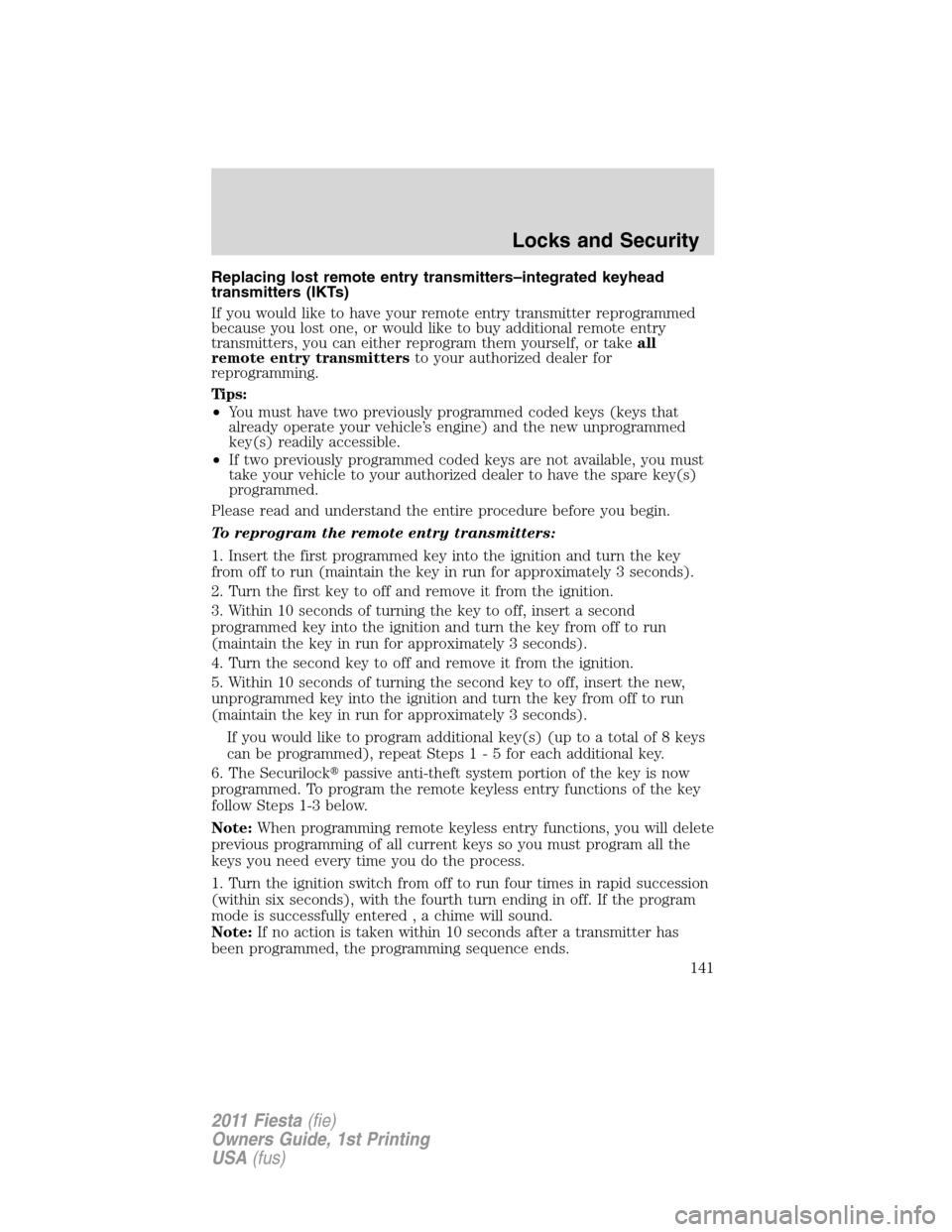

Replacing lost remote entry transmitters–integrated keyhead
transmitters (IKTs)
If you would like to have your remote entry transmitter reprogrammed
because you lost one, or would like to buy additional remote entry
transmitters, you can either reprogram them yourself, or takeall
remote entry transmittersto your authorized dealer for
reprogramming.
Tips:
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.
Please read and understand the entire procedure before you begin.
To reprogram the remote entry transmitters:
1. Insert the first programmed key into the ignition and turn the key
from off to run (maintain the key in run for approximately 3 seconds).
2. Turn the first key to off and remove it from the ignition.
3. Within 10 seconds of turning the key to off, insert a second
programmed key into the ignition and turn the key from off to run
(maintain the key in run for approximately 3 seconds).
4. Turn the second key to off and remove it from the ignition.
5. Within 10 seconds of turning the second key to off, insert the new,
unprogrammed key into the ignition and turn the key from off to run
(maintain the key in run for approximately 3 seconds).
If you would like to program additional key(s) (up to a total of 8 keys
can be programmed), repeat Steps1-5foreach additional key.
6. The Securilock
passive anti-theft system portion of the key is now
programmed. To program the remote keyless entry functions of the key
follow Steps 1-3 below.
Note:When programming remote keyless entry functions, you will delete
previous programming of all current keys so you must program all the
keys you need every time you do the process.
1. Turn the ignition switch from off to run four times in rapid succession
(within six seconds), with the fourth turn ending in off. If the program
mode is successfully entered , a chime will sound.
Note:If no action is taken within 10 seconds after a transmitter has
been programmed, the programming sequence ends.
Locks and Security
141
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

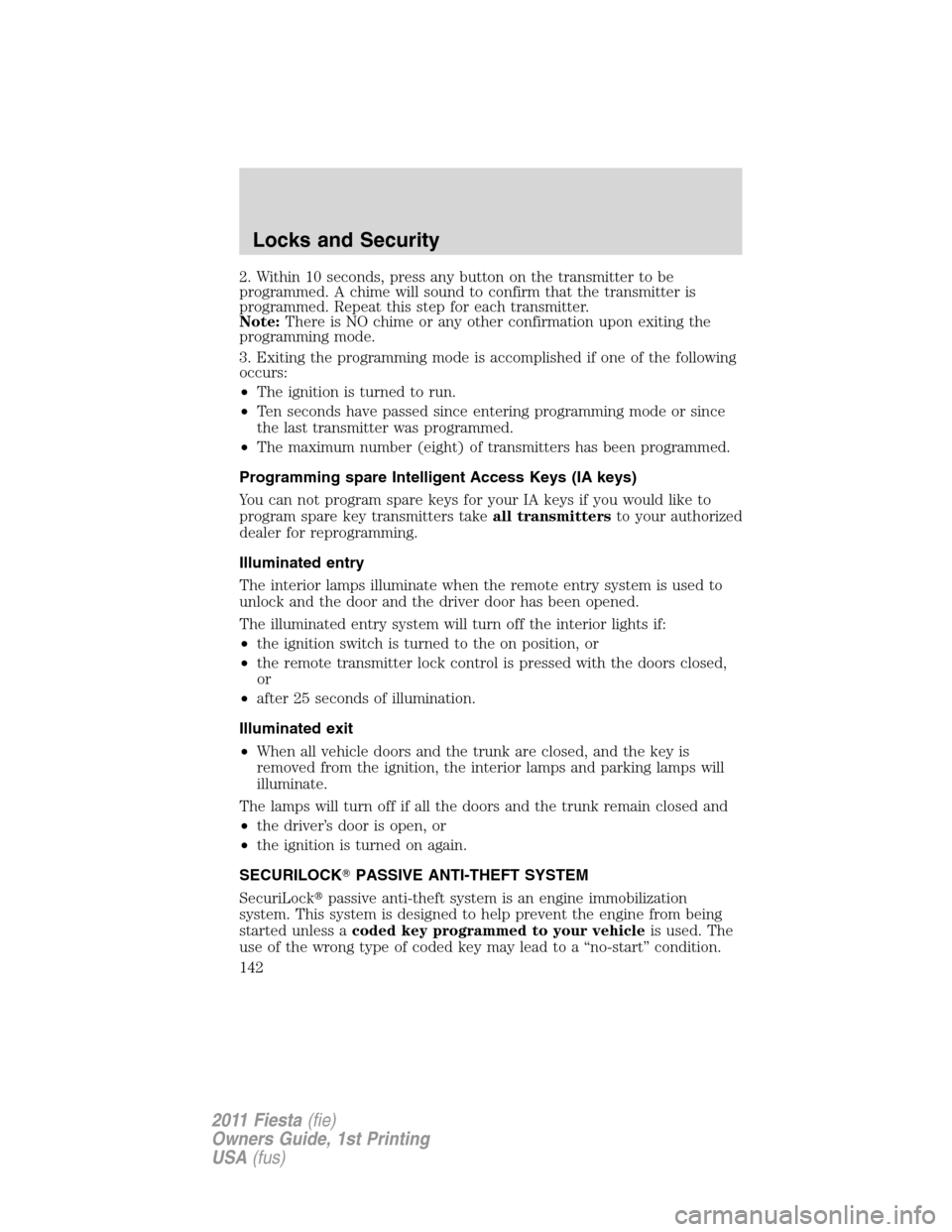

2. Within 10 seconds, press any button on the transmitter to be
programmed. A chime will sound to confirm that the transmitter is
programmed. Repeat this step for each transmitter.
Note:There is NO chime or any other confirmation upon exiting the
programming mode.
3. Exiting the programming mode is accomplished if one of the following
occurs:
•The ignition is turned to run.
•Ten seconds have passed since entering programming mode or since
the last transmitter was programmed.
•The maximum number (eight) of transmitters has been programmed.
Programming spare Intelligent Access Keys (IA keys)
You can not program spare keys for your IA keys if you would like to
program spare key transmitters takeall transmittersto your authorized
dealer for reprogramming.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock and the door and the driver door has been opened.
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the on position, or
•the remote transmitter lock control is pressed with the doors closed,
or
•after 25 seconds of illumination.
Illuminated exit
•When all vehicle doors and the trunk are closed, and the key is
removed from the ignition, the interior lamps and parking lamps will
illuminate.
The lamps will turn off if all the doors and the trunk remain closed and
•the driver’s door is open, or
•the ignition is turned on again.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
Locks and Security
142
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

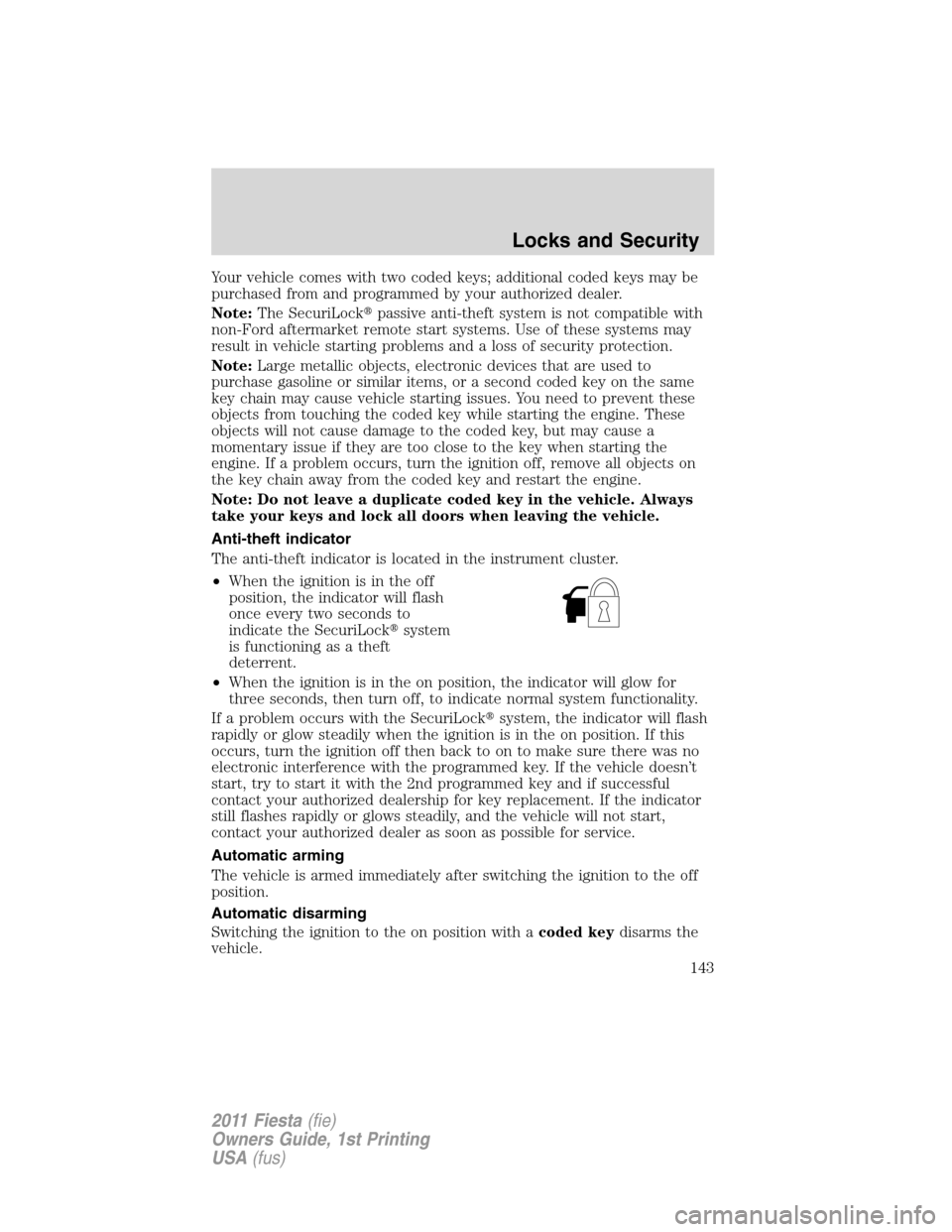

Your vehicle comes with two coded keys; additional coded keys may be
purchased from and programmed by your authorized dealer.
Note:The SecuriLock
passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Anti-theft indicator
The anti-theft indicator is located in the instrument cluster.
•When the ignition is in the off
position, the indicator will flash
once every two seconds to
indicate the SecuriLock
system
is functioning as a theft
deterrent.
•When the ignition is in the on position, the indicator will glow for
three seconds, then turn off, to indicate normal system functionality.
If a problem occurs with the SecuriLock
system, the indicator will flash
rapidly or glow steadily when the ignition is in the on position. If this
occurs, turn the ignition off then back to on to make sure there was no
electronic interference with the programmed key. If the vehicle doesn’t
start, try to start it with the 2nd programmed key and if successful
contact your authorized dealership for key replacement. If the indicator
still flashes rapidly or glows steadily, and the vehicle will not start,
contact your authorized dealer as soon as possible for service.
Automatic arming
The vehicle is armed immediately after switching the ignition to the off
position.
Automatic disarming
Switching the ignition to the on position with acoded keydisarms the
vehicle.
Locks and Security
143
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

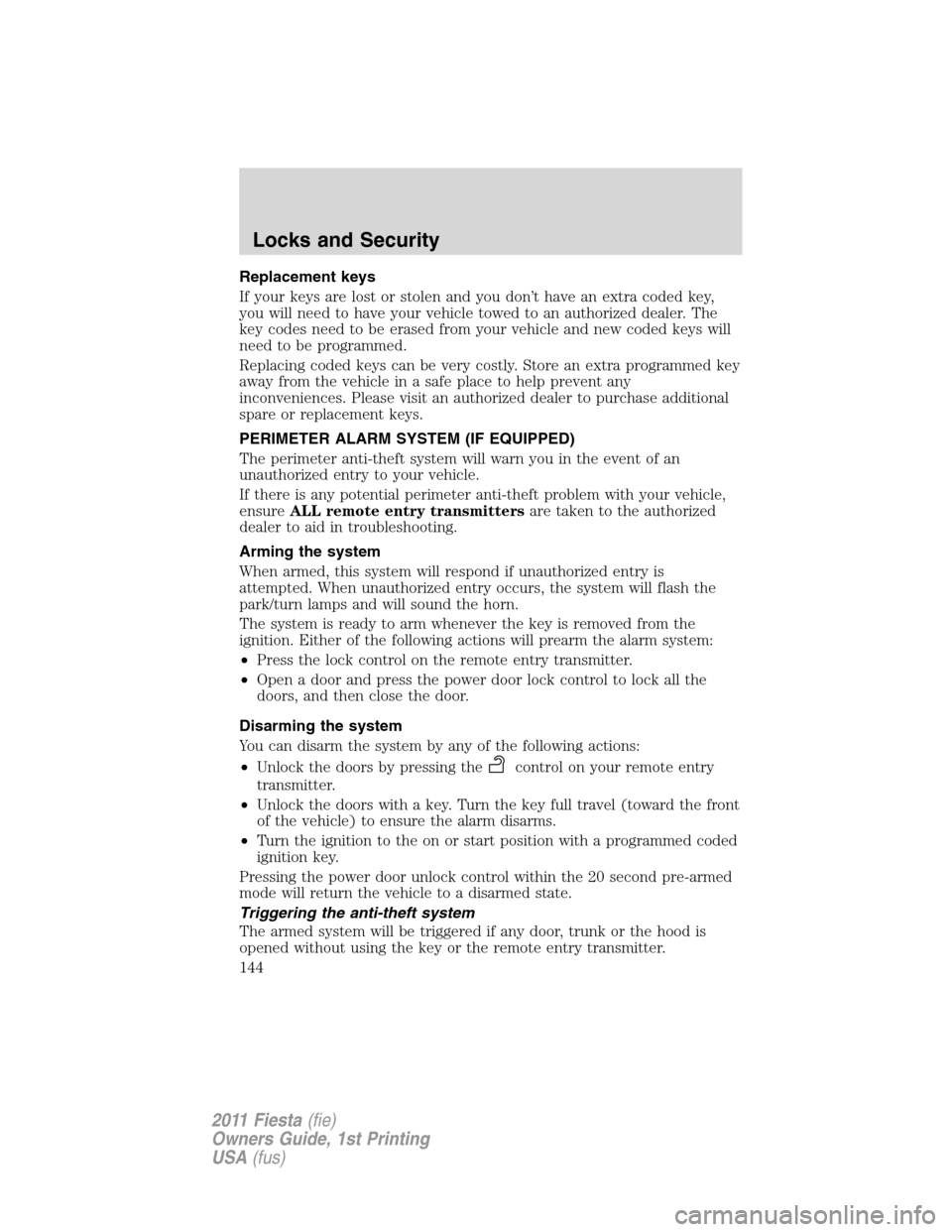

Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to an authorized dealer. The
key codes need to be erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Either of the following actions will prearm the alarm system:
•Press the lock control on the remote entry transmitter.
•Open a door and press the power door lock control to lock all the
doors, and then close the door.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Turn the ignition to the on or start position with a programmed coded
ignition key.
Pressing the power door unlock control within the 20 second pre-armed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if any door, trunk or the hood is
opened without using the key or the remote entry transmitter.
Locks and Security
144
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

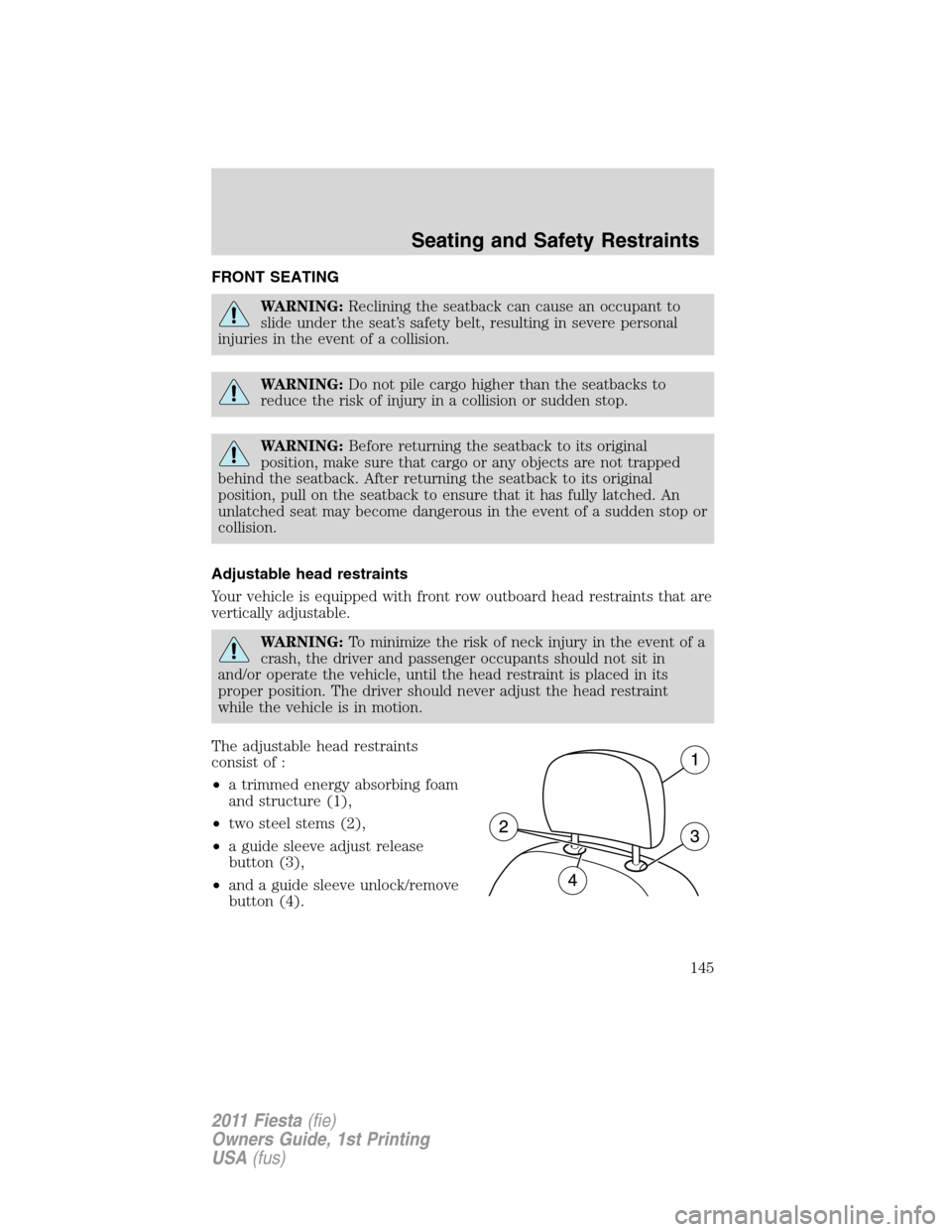

FRONT SEATING
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING:Do not pile cargo higher than the seatbacks to
reduce the risk of injury in a collision or sudden stop.
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that it has fully latched. An
unlatched seat may become dangerous in the event of a sudden stop or
collision.
Adjustable head restraints
Your vehicle is equipped with front row outboard head restraints that are
vertically adjustable.
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
The adjustable head restraints
consist of :
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•a guide sleeve adjust release
button (3),
•and a guide sleeve unlock/remove
button (4).
Seating and Safety Restraints
145
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

To adjust the head restraint, do the following:
1. Adjust the seatback to an upright driving/riding position.
2. Raise the head restraint by pulling up on the head restraint (1).
3. Lower the head restraint by pressing and holding the guide sleeve
adjust release button (3) and pushing down on the head restraint (1).
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
To remove the adjustable head restraint, do the following:
1. Pull up the head restraint until it reaches the highest adjustment
position.
2. Simultaneously press and hold both the adjust/release button (3) and
the unlock/remove button (4), then pull up on the head restraint.
To reinstall the adjustable head restraint, do the following:
1. Insert the two stems into the guide sleeve collars.
2. Push the head restraint down until it locks.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
WARNING:To minimize the risk of neck injury in the event of a
crash, head restraints must be installed properly.
Adjusting the front manual seat
WARNING:Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the passenger sensing system, resulting in
serious injury or death in a crash. Always sit upright against your
seatback, with your feet on the floor.
Seating and Safety Restraints
146
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

WARNING:To reduce the risk of possible serious injury: Do not
hang objects off seat back or stow objects in map pocket (if
equipped) when a child is in the front passenger seat. Do not place
objects underneath the front passenger seat or between the seat and
the center console (if equipped). Check the “passenger airbag off” or
“pass airbag off” indicator lamp for proper airbag status. Refer toFront
passenger sensing systemchapter for additional details. Failure to
follow these instructions may interfere with the front passenger seat
sensing system.
•Fore-aft adjustment
Pull the lever located under the
front edge of the seat to move the
seat forward or backward.
•Up-down seat adjustment (driver side only)
Pull up on the control to raise the
seat and push down on the control
to lower the seat.
Seating and Safety Restraints
147
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

•Recline adjustment
Lift the control to adjust the angle
of the seatback.
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
Heated seats (if equipped)
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical
conditions, must exercise care when using the seat heater. The seat
heater may cause burns even at low temperatures, especially if used
for long periods of time. Do not place anything on the seat that
insulates against heat, such as a blanket or cushion, because this may
cause the seat heater to overheat. Do not puncture the seat with pins,
needles, or other pointed objects because this may damage the heating
element which may cause the seat heater to overheat. An overheated
seat may cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
Seating and Safety Restraints
148
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

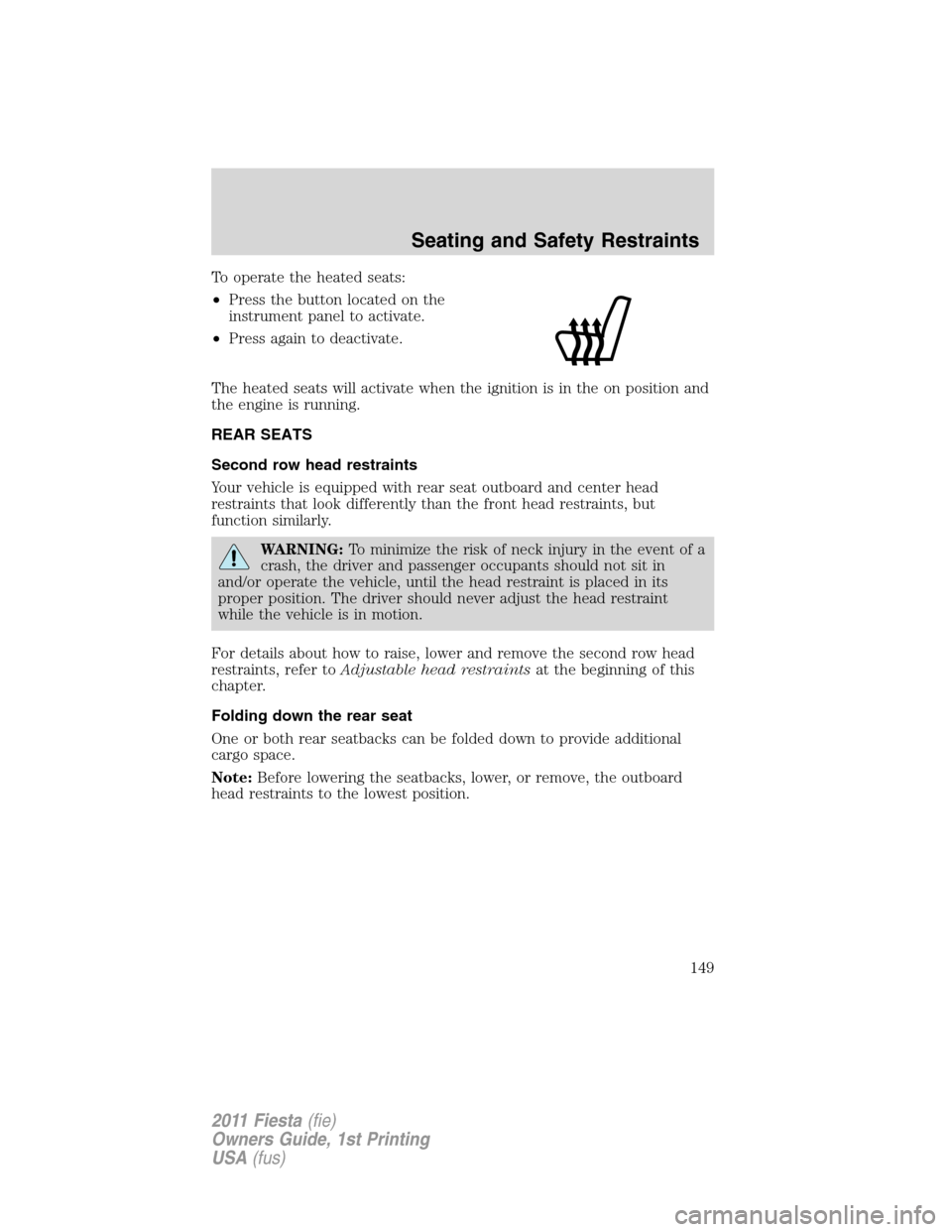

To operate the heated seats:
•Press the button located on the
instrument panel to activate.
•Press again to deactivate.
The heated seats will activate when the ignition is in the on position and
the engine is running.
REAR SEATS
Second row head restraints
Your vehicle is equipped with rear seat outboard and center head
restraints that look differently than the front head restraints, but
function similarly.
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
For details about how to raise, lower and remove the second row head
restraints, refer toAdjustable head restraintsat the beginning of this
chapter.
Folding down the rear seat
One or both rear seatbacks can be folded down to provide additional
cargo space.
Note:Before lowering the seatbacks, lower, or remove, the outboard
head restraints to the lowest position.
Seating and Safety Restraints
149
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

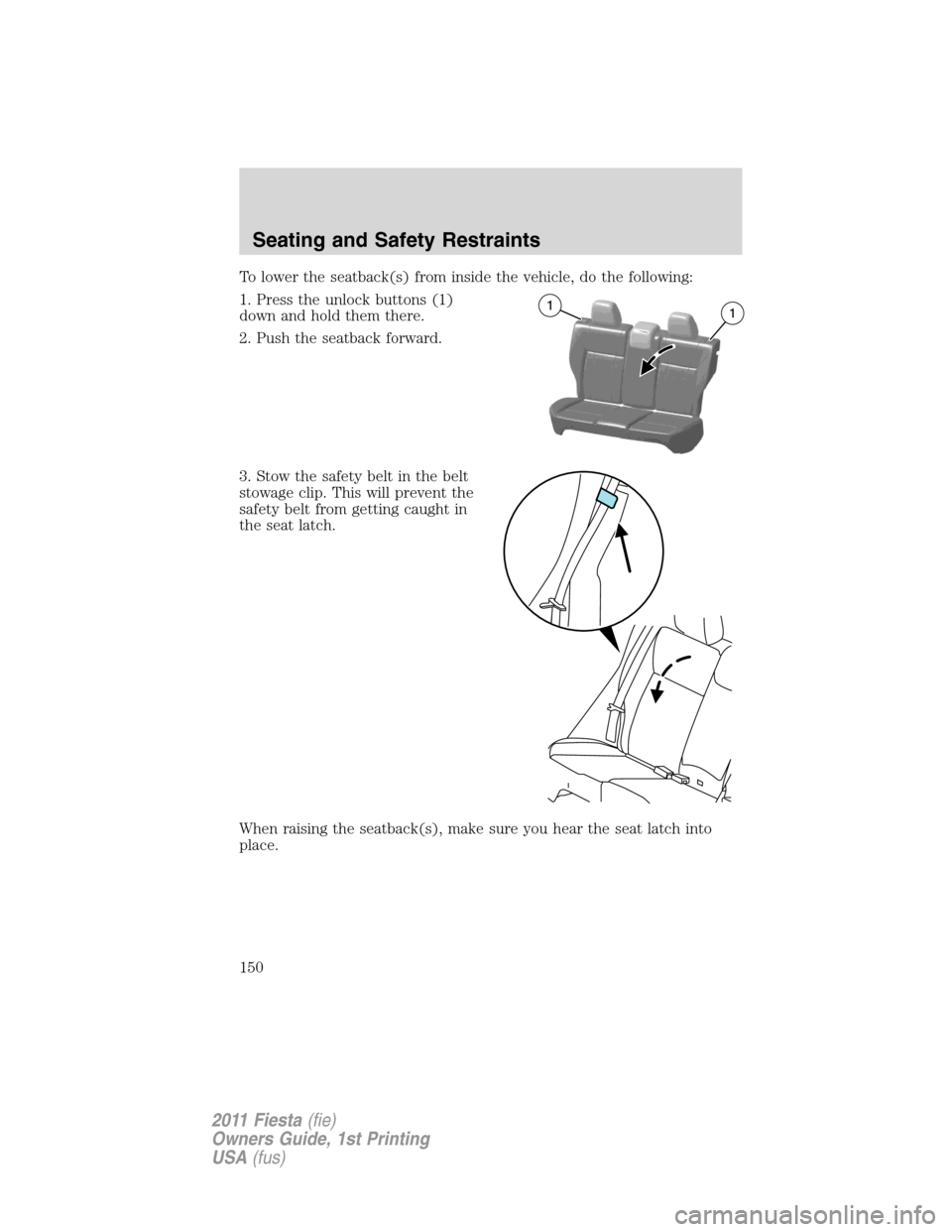

To lower the seatback(s) from inside the vehicle, do the following:
1. Press the unlock buttons (1)
down and hold them there.
2. Push the seatback forward.
3. Stow the safety belt in the belt
stowage clip. This will prevent the
safety belt from getting caught in
the seat latch.
When raising the seatback(s), make sure you hear the seat latch into
place.
11
Seating and Safety Restraints
150
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
