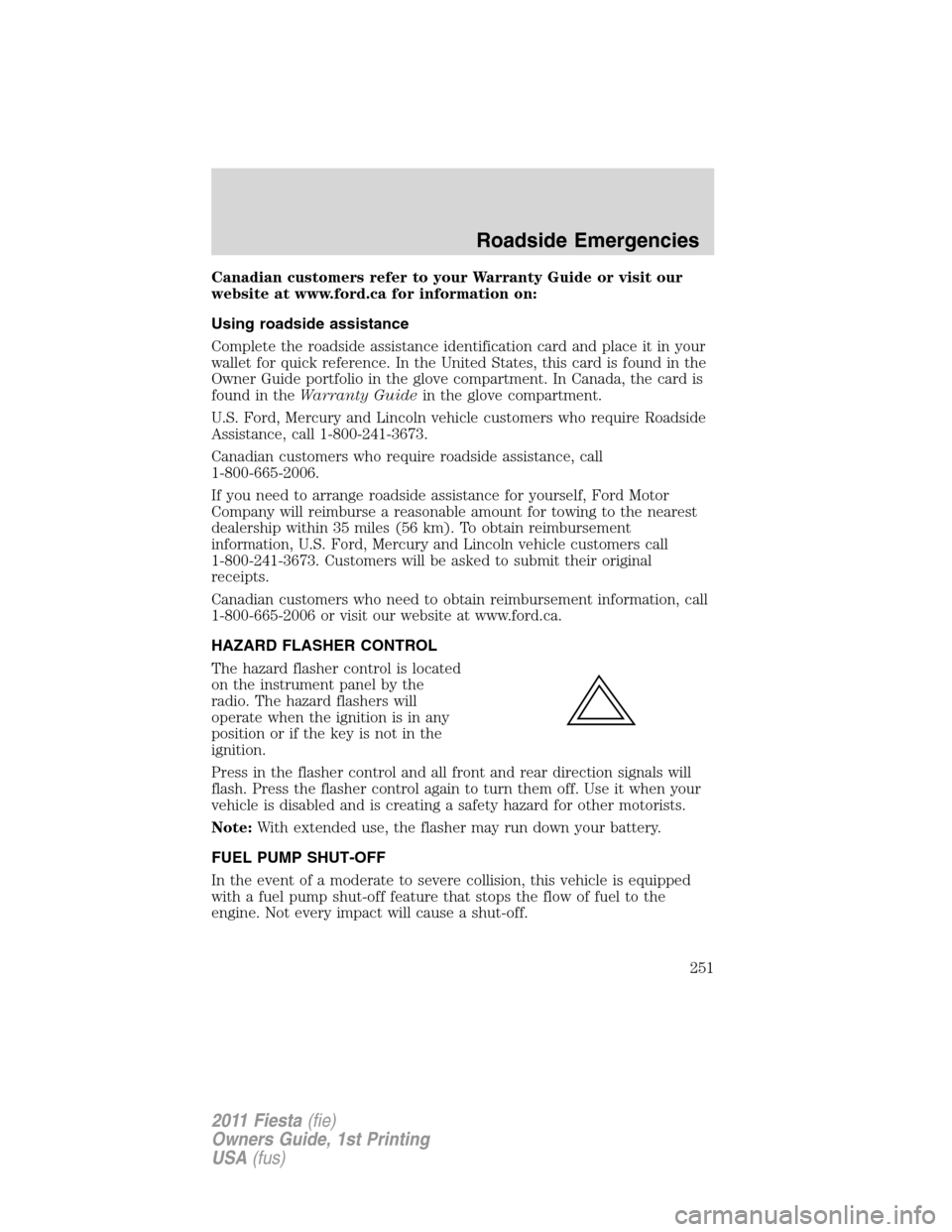

Canadian customers refer to your Warranty Guide or visit our
website at www.ford.ca for information on:
Using roadside assistance
Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment. In Canada, the card is
found in theWarranty Guidein the glove compartment.
U.S. Ford, Mercury and Lincoln vehicle customers who require Roadside
Assistance, call 1-800-241-3673.
Canadian customers who require roadside assistance, call
1-800-665-2006.
If you need to arrange roadside assistance for yourself, Ford Motor
Company will reimburse a reasonable amount for towing to the nearest
dealership within 35 miles (56 km). To obtain reimbursement
information, U.S. Ford, Mercury and Lincoln vehicle customers call
1-800-241-3673. Customers will be asked to submit their original
receipts.
Canadian customers who need to obtain reimbursement information, call
1-800-665-2006 or visit our website at www.ford.ca.
HAZARD FLASHER CONTROL
The hazard flasher control is located
on the instrument panel by the
radio. The hazard flashers will
operate when the ignition is in any
position or if the key is not in the
ignition.
Press in the flasher control and all front and rear direction signals will
flash. Press the flasher control again to turn them off. Use it when your
vehicle is disabled and is creating a safety hazard for other motorists.
Note:With extended use, the flasher may run down your battery.
FUEL PUMP SHUT-OFF
In the event of a moderate to severe collision, this vehicle is equipped
with a fuel pump shut-off feature that stops the flow of fuel to the
engine. Not every impact will cause a shut-off.
Roadside Emergencies
251
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 252 of 357

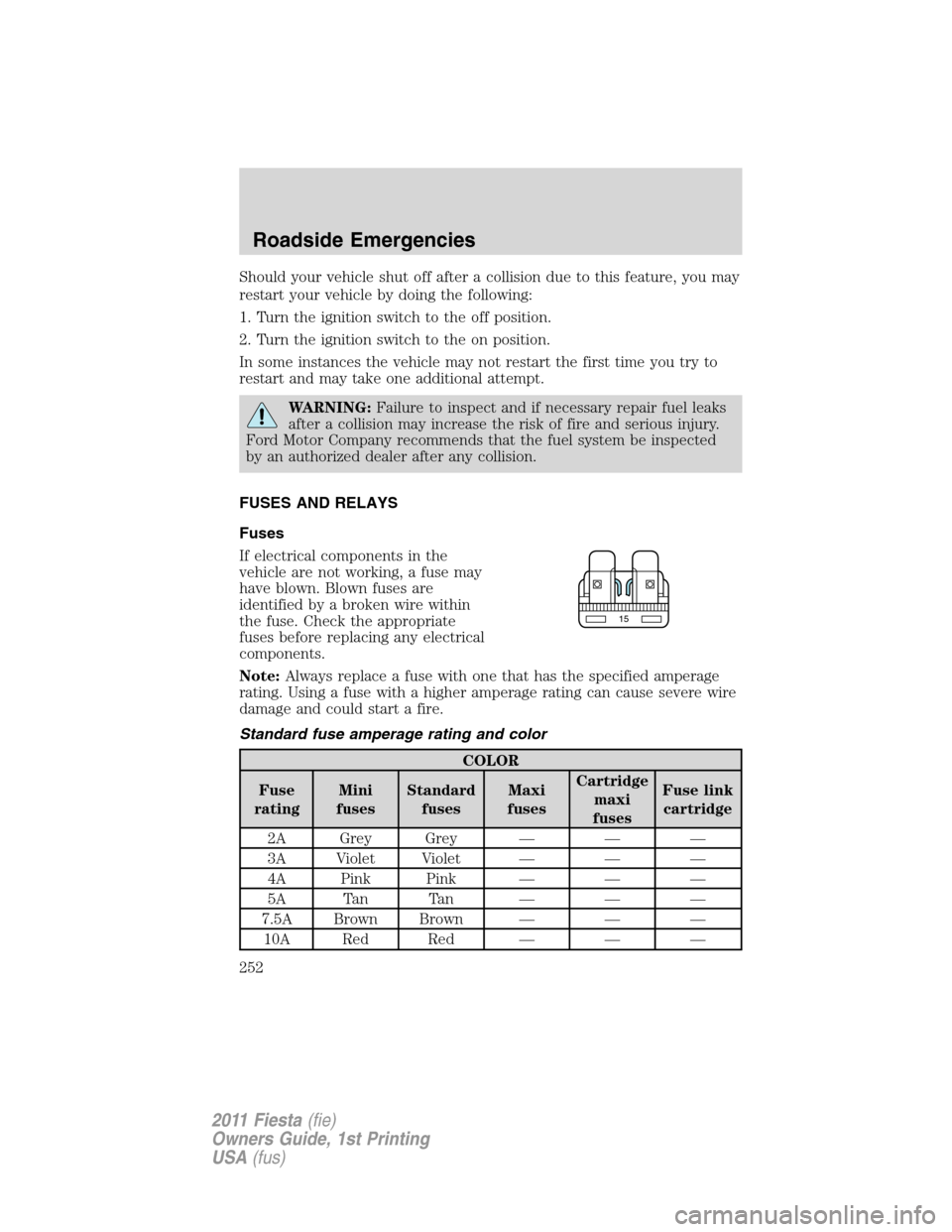

Should your vehicle shut off after a collision due to this feature, you may
restart your vehicle by doing the following:
1. Turn the ignition switch to the off position.
2. Turn the ignition switch to the on position.
In some instances the vehicle may not restart the first time you try to
restart and may take one additional attempt.
WARNING:Failure to inspect and if necessary repair fuel leaks
after a collision may increase the risk of fire and serious injury.
Ford Motor Company recommends that the fuel system be inspected
by an authorized dealer after any collision.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey — — —
3A Violet Violet — — —
4A Pink Pink — — —
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15
Roadside Emergencies
252
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 253 of 357

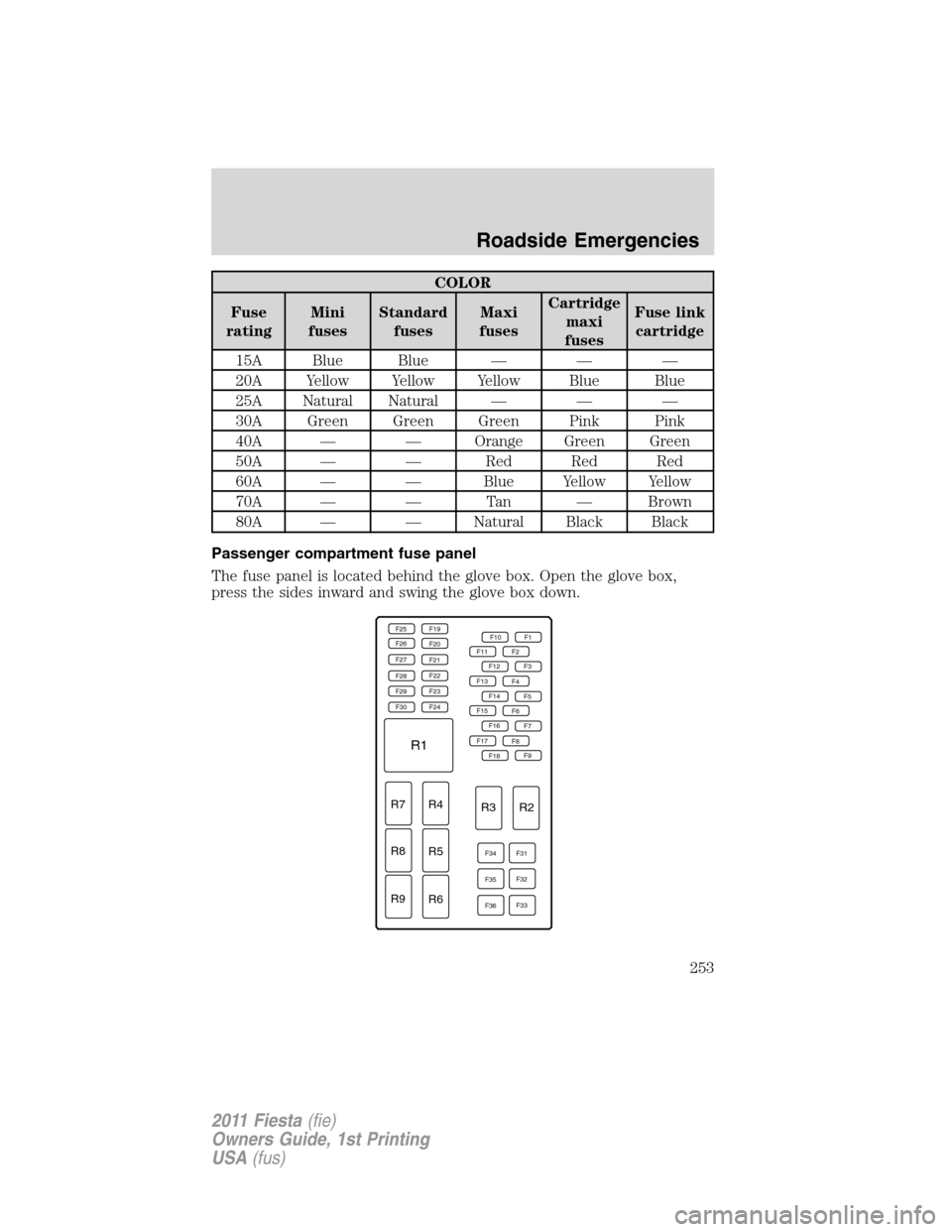

COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — — —
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue Yellow Yellow
70A — — Tan — Brown
80A — — Natural Black Black
Passenger compartment fuse panel
The fuse panel is located behind the glove box. Open the glove box,
press the sides inward and swing the glove box down.
F25 F19
F10 F1
F11
F13
F15
F17F2
F4
F6
F8 F12
F14
F16
F18
F34
F35
F36F31
F32
F33F3
F5
F7
F9 F20
F21
F22
F23
F24 F26
F27
F28
F29
F30
R1
R7 R4
R3 R2
R5
R6 R8
R9
Roadside Emergencies
253
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 254 of 357

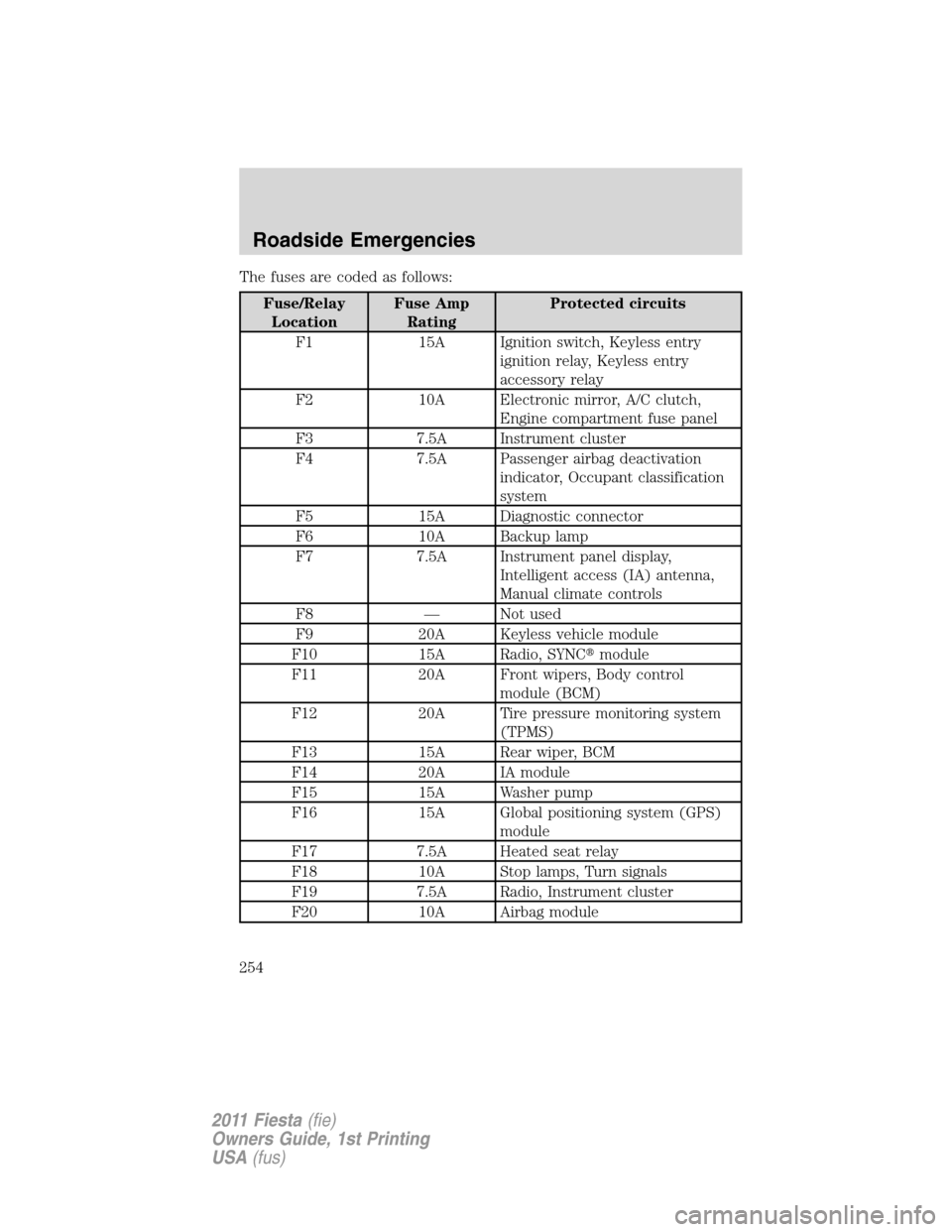

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
F1 15A Ignition switch, Keyless entry
ignition relay, Keyless entry
accessory relay
F2 10A Electronic mirror, A/C clutch,
Engine compartment fuse panel
F3 7.5A Instrument cluster
F4 7.5A Passenger airbag deactivation
indicator, Occupant classification
system
F5 15A Diagnostic connector
F6 10A Backup lamp
F7 7.5A Instrument panel display,
Intelligent access (IA) antenna,
Manual climate controls
F8 — Not used
F9 20A Keyless vehicle module
F10 15A Radio, SYNCmodule
F11 20A Front wipers, Body control
module (BCM)
F12 20A Tire pressure monitoring system
(TPMS)
F13 15A Rear wiper, BCM
F14 20A IA module
F15 15A Washer pump
F16 15A Global positioning system (GPS)
module
F17 7.5A Heated seat relay
F18 10A Stop lamps, Turn signals
F19 7.5A Radio, Instrument cluster
F20 10A Airbag module
Roadside Emergencies
254
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 255 of 357

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
F21 10A BCM, Climate control, Passive
anti-theft system transceiver,
Electronic power steering module,
Instrument cluster, Engine
compartment fuse panel
F22 7.5A Accelerator pedal position sensor,
Powertrain control module
(PCM), Gear shifter, Anti-lock
brake system (ABS) ignition feed
F23 10A Transmission control unit ignition
feed, TPMS ignition feed
F24 7.5A Front dome lamp, Moon roof
switch
F25 7.5A Exterior mirrors
F26 7.5A TPMS
F27 — Not used
F28 — Not used
F29 — Not used
F30 — Not used
F31 30A Driver and rear power window
switches
F32 20A Passenger compartment fuse
panel battery saver relay
F33 20A Power points
F34 30A Driver and passenger power
window switches
F35 20A Moon roof
F36 — Not used
R1 — Ignition relay
R2 — Left rear stop/turn lamp relay
R3 — Right rear stop/turn lamp relay
R4 — Driver heated seat relay
Roadside Emergencies
255
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 256 of 357

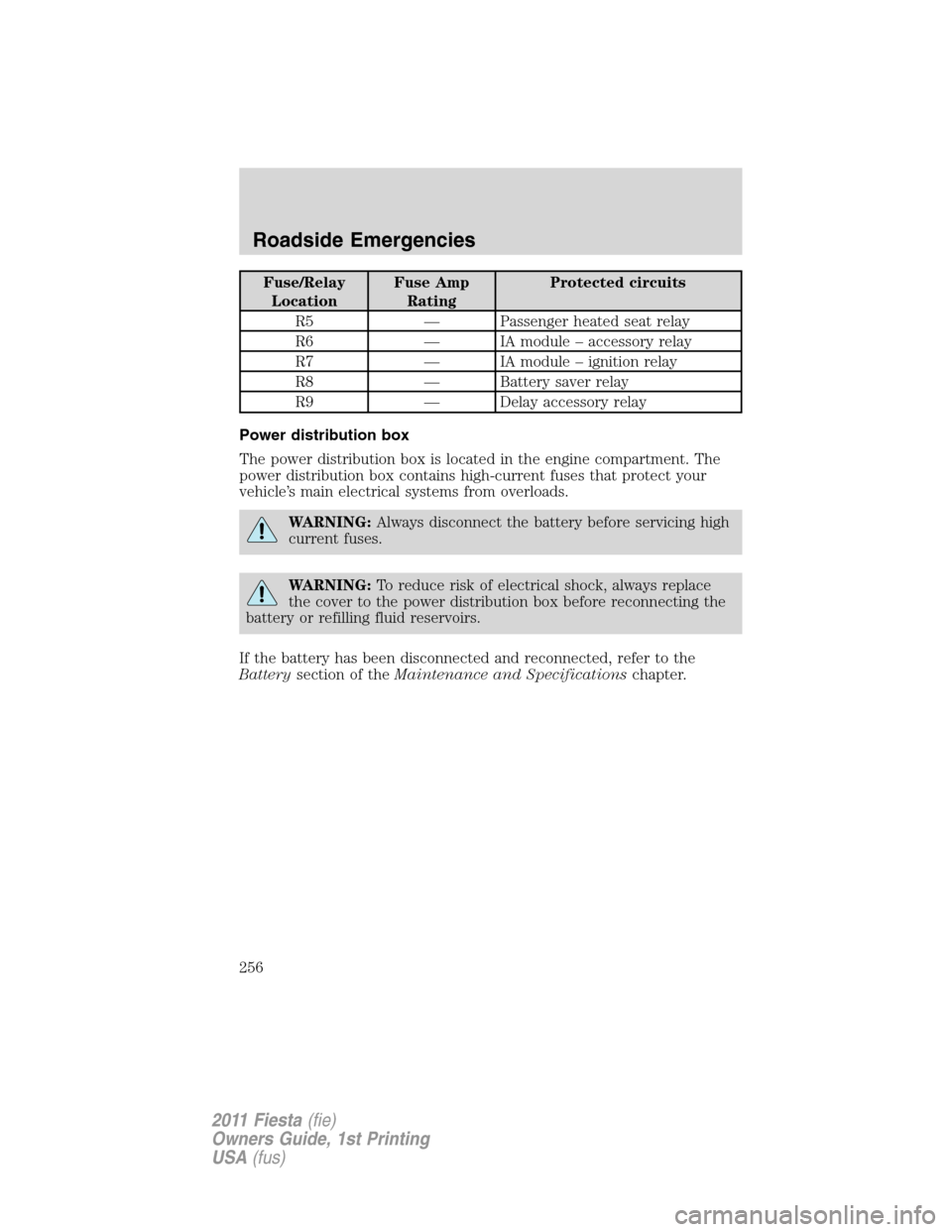

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
R5 — Passenger heated seat relay
R6 — IA module – accessory relay
R7 — IA module – ignition relay
R8 — Battery saver relay
R9 — Delay accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
256
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 257 of 357

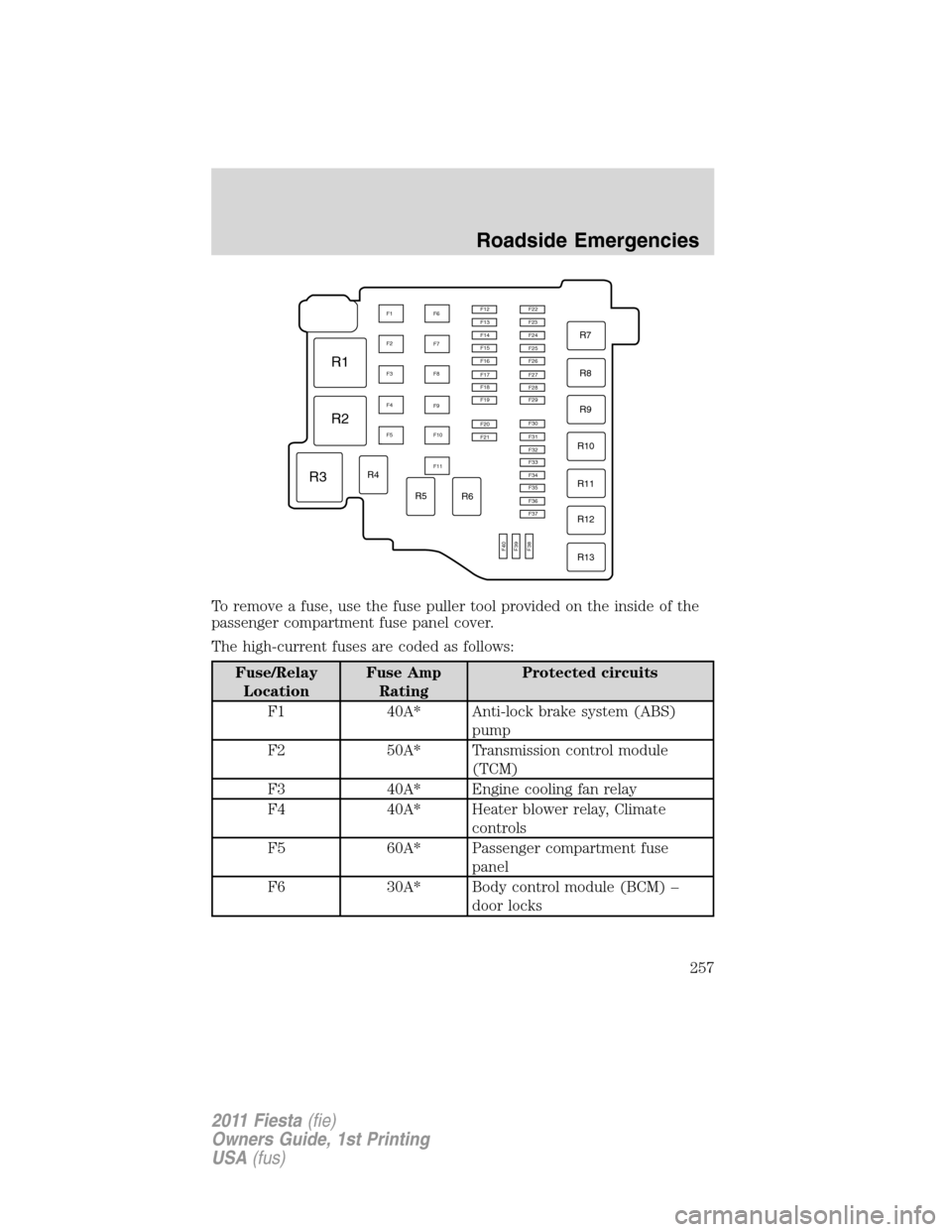

To remove a fuse, use the fuse puller tool provided on the inside of the
passenger compartment fuse panel cover.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
F1 40A* Anti-lock brake system (ABS)
pump
F2 50A* Transmission control module
(TCM)
F3 40A* Engine cooling fan relay
F4 40A* Heater blower relay, Climate
controls
F5 60A* Passenger compartment fuse
panel
F6 30A* Body control module (BCM) –
door locks
F22
F6 F1
F2
F3
F4
F5
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
F17
F18
F19
F20
F21F23F24
F25
F26
F27
F28
F29
F30
F31
F32
F33
F34
F35
F36
F37
F38 F39 F40
R7
R1
R2
R3R8
R9
R10
R11
R6 R5 R4
R12
R13
Roadside Emergencies
257
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 258 of 357

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
F7 60A* Passenger compartment fuse
panel
F8 30A* Fuel pump
F9 20A* ABS module valve
F10 — Not used
F11 30A* Starter inhibit relay, Starter motor
F12 10A** Left headlamp (high beam)
F13 10A** Right headlamp (high beam)
F14 10A** Left headlamp (low beam)
F15 10A** Right headlamp (low beam)
F16 15A** A/C clutch relay, Mass air flow
(MAF) sensor, Powertrain control
module (PCM), Fuel injectors,
Vehicle speed sensor (VSS),
Variable camshaft timing, Canister
purge
F17 15A** Heated exhaust gas oxygen
sensor, Catalyst module sensor
F18 15A** Ignition coil
F19 — Not used
F20 10A** Not used (spare)
F21 — Not used
F22 15A** BCM – exterior lighting
F23 7.5A** Low beam relay
F24 15A** BCM – turn signals
F25 15A** Low beam relay, Daytime running
lights
F26 7.5A** Power mirror switch, Driver
window switch
F27 7.5A** TCM, PCM, Natural vacuum leak
detection
F28 15A** Not used (spare)
Roadside Emergencies
258
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 259 of 357

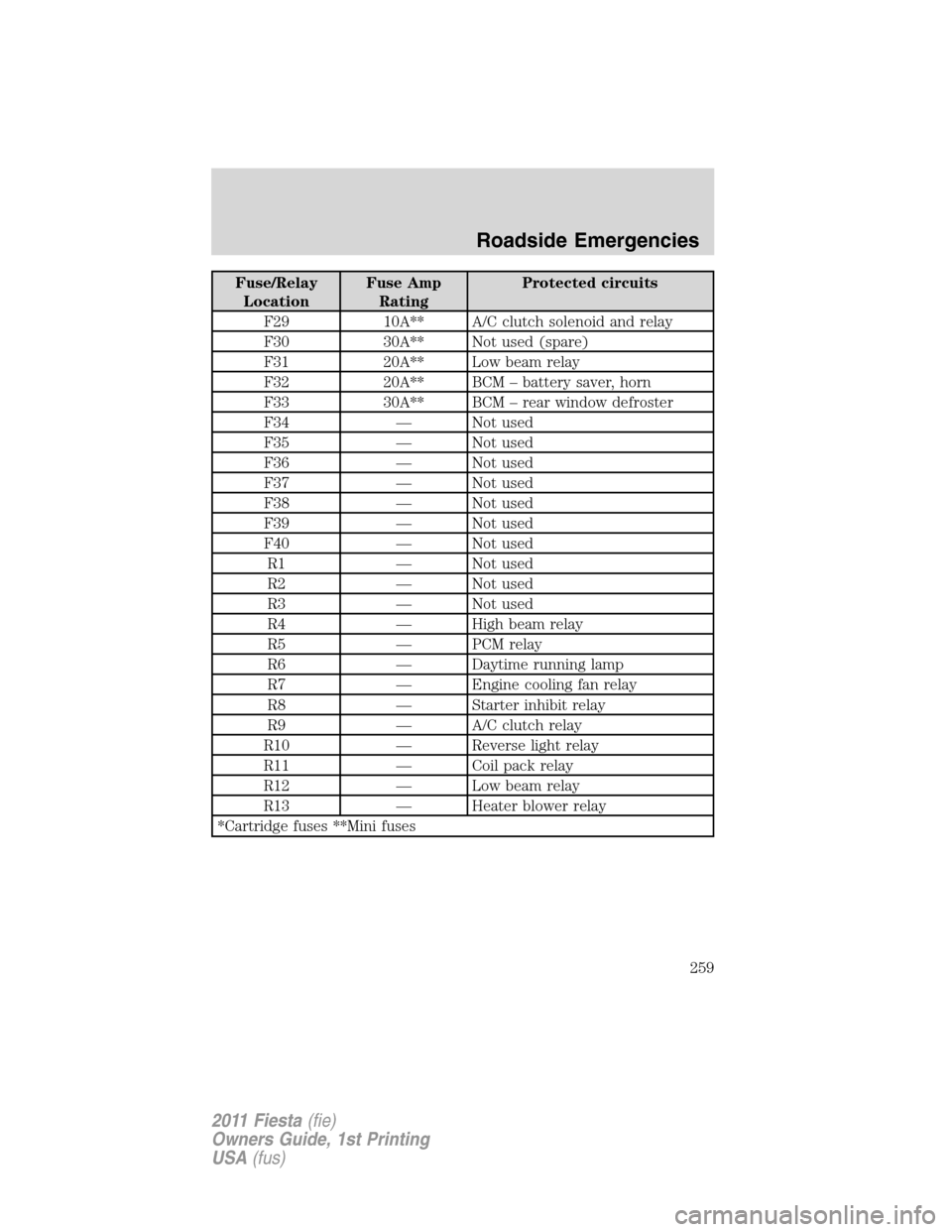

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
F29 10A** A/C clutch solenoid and relay
F30 30A** Not used (spare)
F31 20A** Low beam relay
F32 20A** BCM – battery saver, horn
F33 30A** BCM – rear window defroster
F34 — Not used
F35 — Not used
F36 — Not used
F37 — Not used
F38 — Not used
F39 — Not used
F40 — Not used
R1 — Not used
R2 — Not used
R3 — Not used
R4 — High beam relay
R5 — PCM relay
R6 — Daytime running lamp
R7 — Engine cooling fan relay
R8 — Starter inhibit relay
R9 — A/C clutch relay
R10 — Reverse light relay
R11 — Coil pack relay
R12 — Low beam relay
R13 — Heater blower relay
*Cartridge fuses **Mini fuses
Roadside Emergencies
259
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
Page 260 of 357

CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
Roadside Emergencies
260
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
