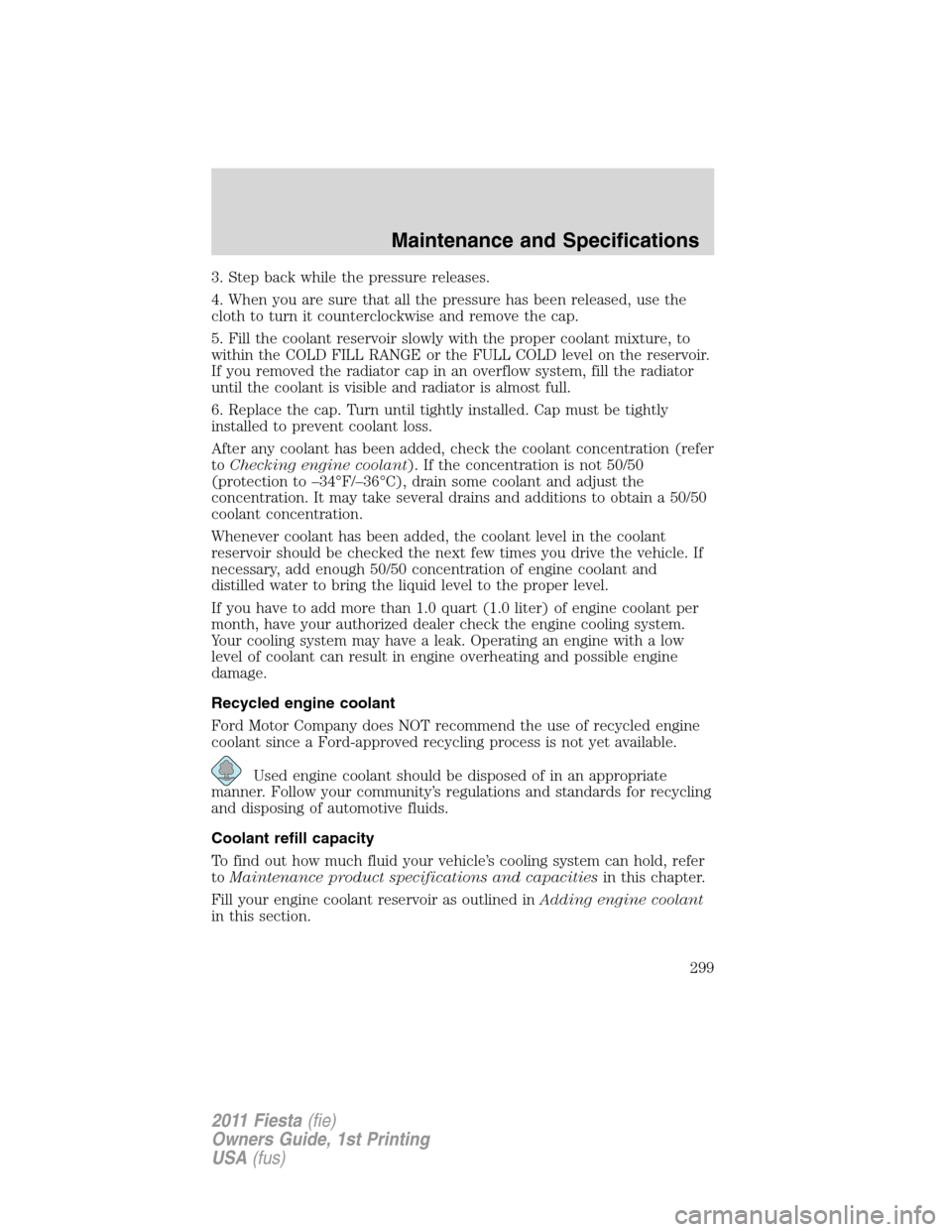

Page 299 of 357
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture, to
within the COLD FILL RANGE or the FULL COLD level on the reservoir.
If you removed the radiator cap in an overflow system, fill the radiator
until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. Cap must be tightly
installed to prevent coolant loss.
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your authorized dealer check the engine cooling system.
Your cooling system may have a leak. Operating an engine with a low
level of coolant can result in engine overheating and possible engine
damage.
Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant since a Ford-approved recycling process is not yet available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toMaintenance product specifications and capacitiesin this chapter.
Fill your engine coolant reservoir as outlined inAdding engine coolant
in this section.
Maintenance and Specifications
299
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

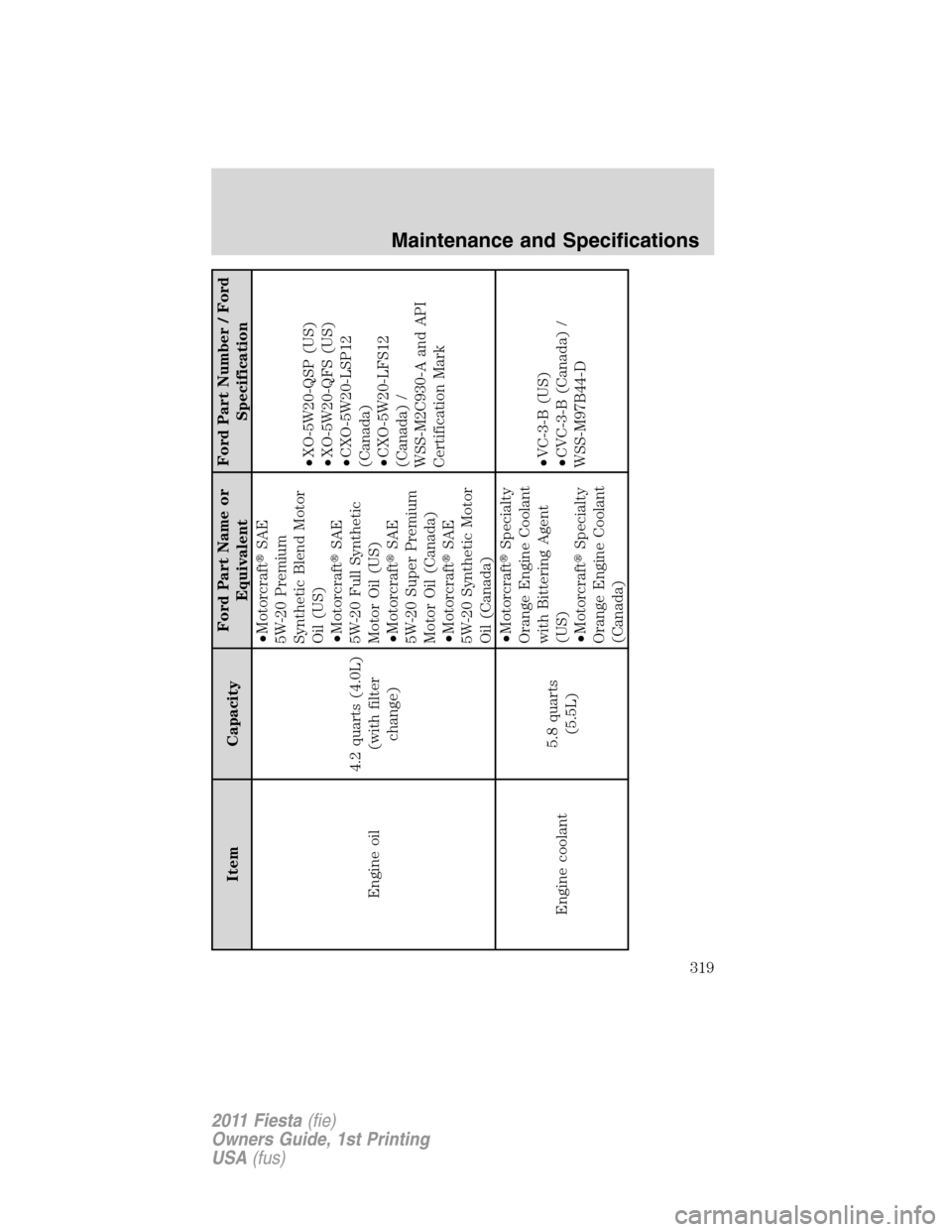

Page 319 of 357
Item CapacityFord Part Name or
EquivalentFord Part Number / Ford
Specification
Engine oil4.2 quarts (4.0L)
(with filter
change)•MotorcraftSAE
5W-20 Premium
Synthetic Blend Motor
Oil (US)
•MotorcraftSAE
5W-20 Full Synthetic
Motor Oil (US)
•MotorcraftSAE
5W-20 Super Premium
Motor Oil (Canada)
•MotorcraftSAE
5W-20 Synthetic Motor
Oil (Canada)•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20-LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Engine coolant5.8 quarts
(5.5L)•MotorcraftSpecialty
Orange Engine Coolant
with Bittering Agent
(US)
•MotorcraftSpecialty
Orange Engine Coolant
(Canada)•VC-3-B (US)
•CVC-3-B (Canada) /
WSS-M97B44-D
Maintenance and Specifications
319
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)

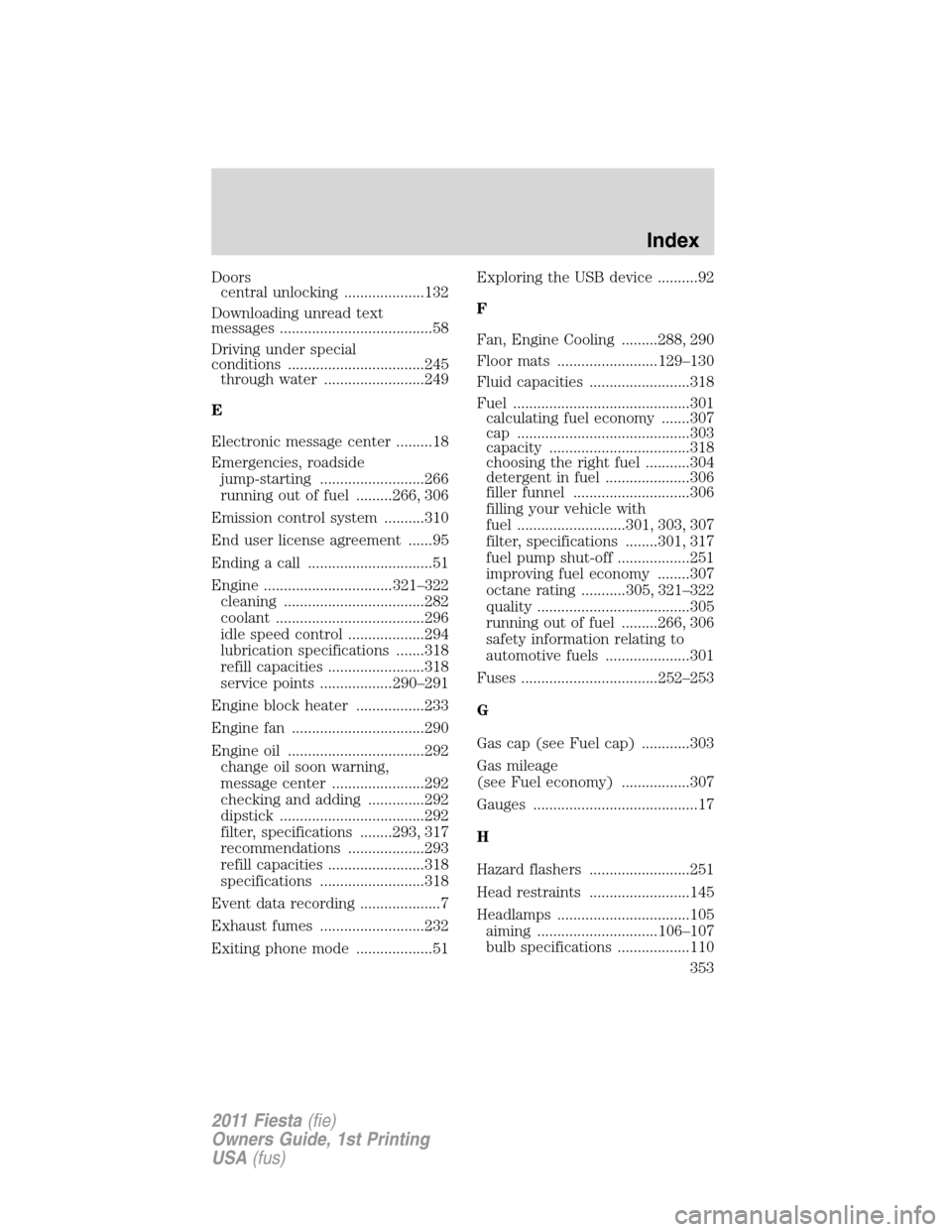

Page 353 of 357
Doors
central unlocking ....................132
Downloading unread text
messages ......................................58
Driving under special
conditions ..................................245
through water .........................249
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................266
running out of fuel .........266, 306
Emission control system ..........310
End user license agreement ......95
Ending a call ...............................51
Engine ................................321–322
cleaning ...................................282
coolant .....................................296
idle speed control ...................294
lubrication specifications .......318
refill capacities ........................318
service points ..................290–291
Engine block heater .................233
Engine fan .................................290
Engine oil ..................................292
change oil soon warning,
message center .......................292
checking and adding ..............292
dipstick ....................................292
filter, specifications ........293, 317
recommendations ...................293
refill capacities ........................318
specifications ..........................318
Event data recording ....................7
Exhaust fumes ..........................232
Exiting phone mode ...................51Exploring the USB device ..........92
F
Fan, Engine Cooling .........288, 290
Floor mats .........................129–130
Fluid capacities .........................318
Fuel ............................................301
calculating fuel economy .......307
cap ...........................................303
capacity ...................................318
choosing the right fuel ...........304
detergent in fuel .....................306
filler funnel .............................306
filling your vehicle with
fuel ...........................301, 303, 307
filter, specifications ........301, 317
fuel pump shut-off ..................251
improving fuel economy ........307
octane rating ...........305, 321–322
quality ......................................305
running out of fuel .........266, 306
safety information relating to
automotive fuels .....................301
Fuses ..................................252–253
G
Gas cap (see Fuel cap) ............303
Gas mileage
(see Fuel economy) .................307
Gauges .........................................17
H
Hazard flashers .........................251
Head restraints .........................145
Headlamps .................................105
aiming ..............................106–107
bulb specifications ..................110
Index
353
2011 Fiesta(fie)
Owners Guide, 1st Printing
USA(fus)
