FORD FIESTA 2012 Owners Manual

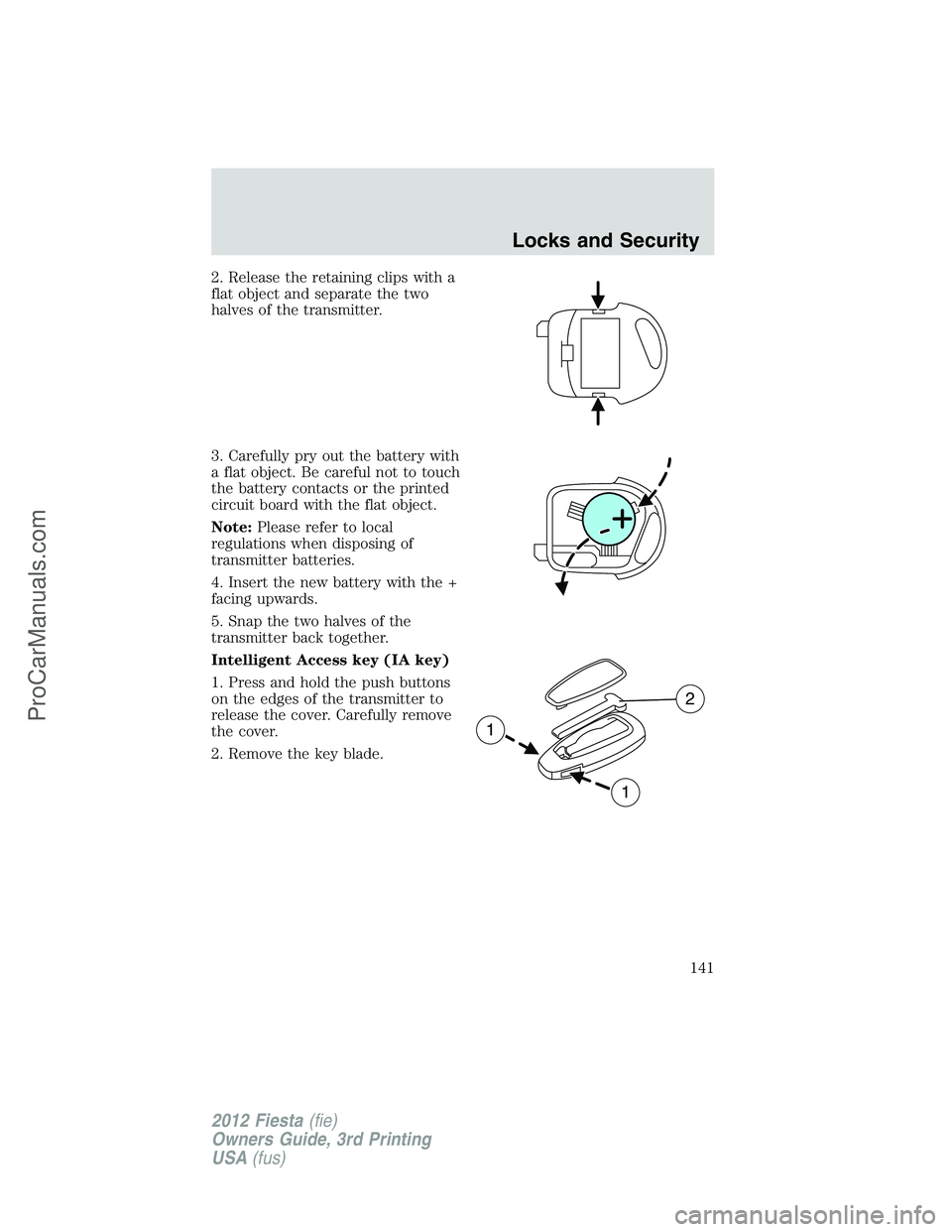

2. Release the retaining clips with a
flat object and separate the two
halves of the transmitter.
3. Carefully pry out the battery with
a flat object. Be careful not to touch
the battery contacts or the printed
circuit board with the flat object.
Note:Please refer to local
regulations when disposing of
transmitter batteries.
4. Insert the new battery with the +
facing upwards.
5. Snap the two halves of the
transmitter back together.
Intelligent Access key (IA key)
1. Press and hold the push buttons
on the edges of the transmitter to
release the cover. Carefully remove
the cover.
2. Remove the key blade.
1
1
2
Locks and Security
141
2012 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

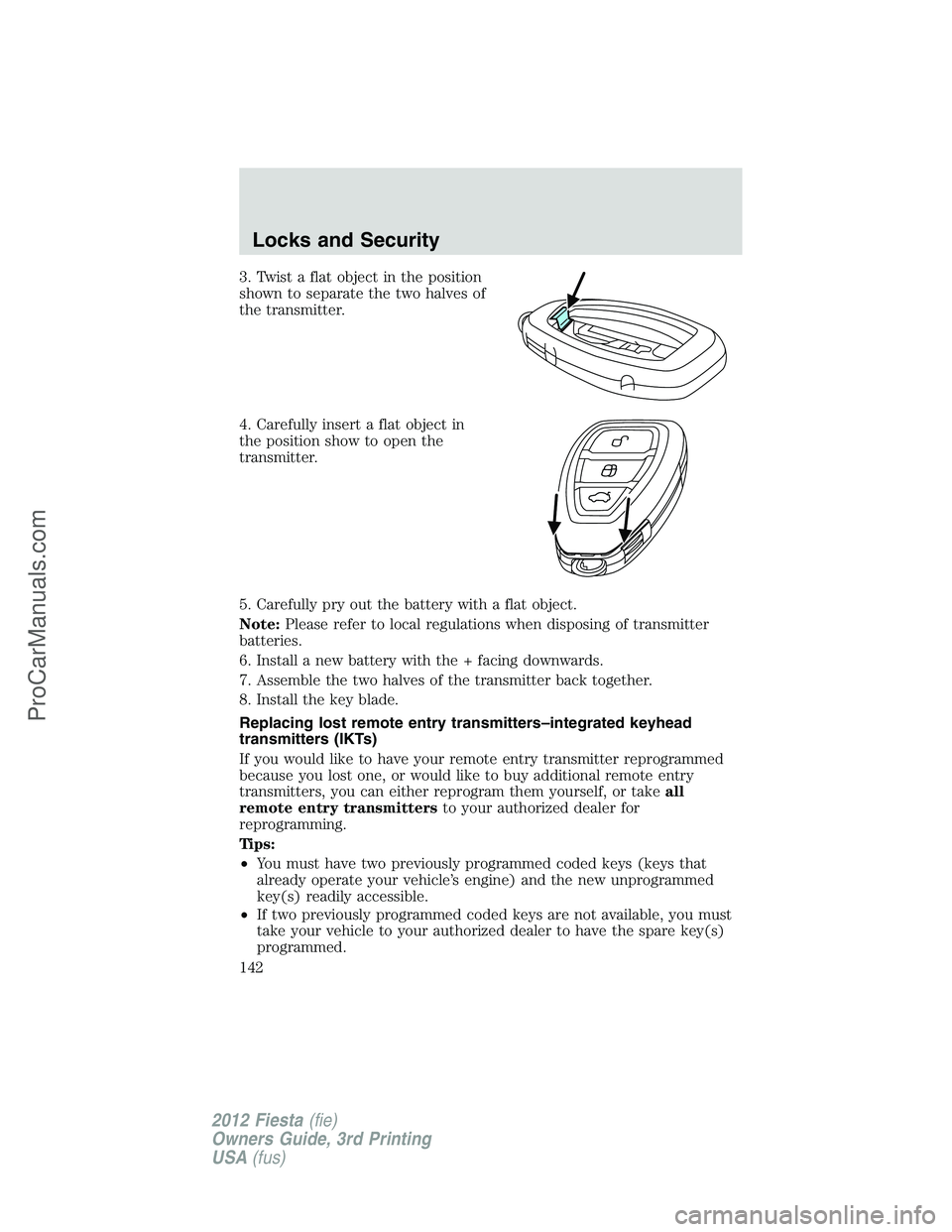

3. Twist a flat object in the position
shown to separate the two halves of
the transmitter.
4. Carefully insert a flat object in
the position show to open the
transmitter.
5. Carefully pry out the battery with a flat object.
Note:Please refer to local regulations when disposing of transmitter
batteries.
6. Install a new battery with the + facing downwards.
7. Assemble the two halves of the transmitter back together.
8. Install the key blade.
Replacing lost remote entry transmitters–integrated keyhead
transmitters (IKTs)
If you would like to have your remote entry transmitter reprogrammed
because you lost one, or would like to buy additional remote entry
transmitters, you can either reprogram them yourself, or takeall
remote entry transmittersto your authorized dealer for
reprogramming.
Tips:
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.
Locks and Security
142
2012 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

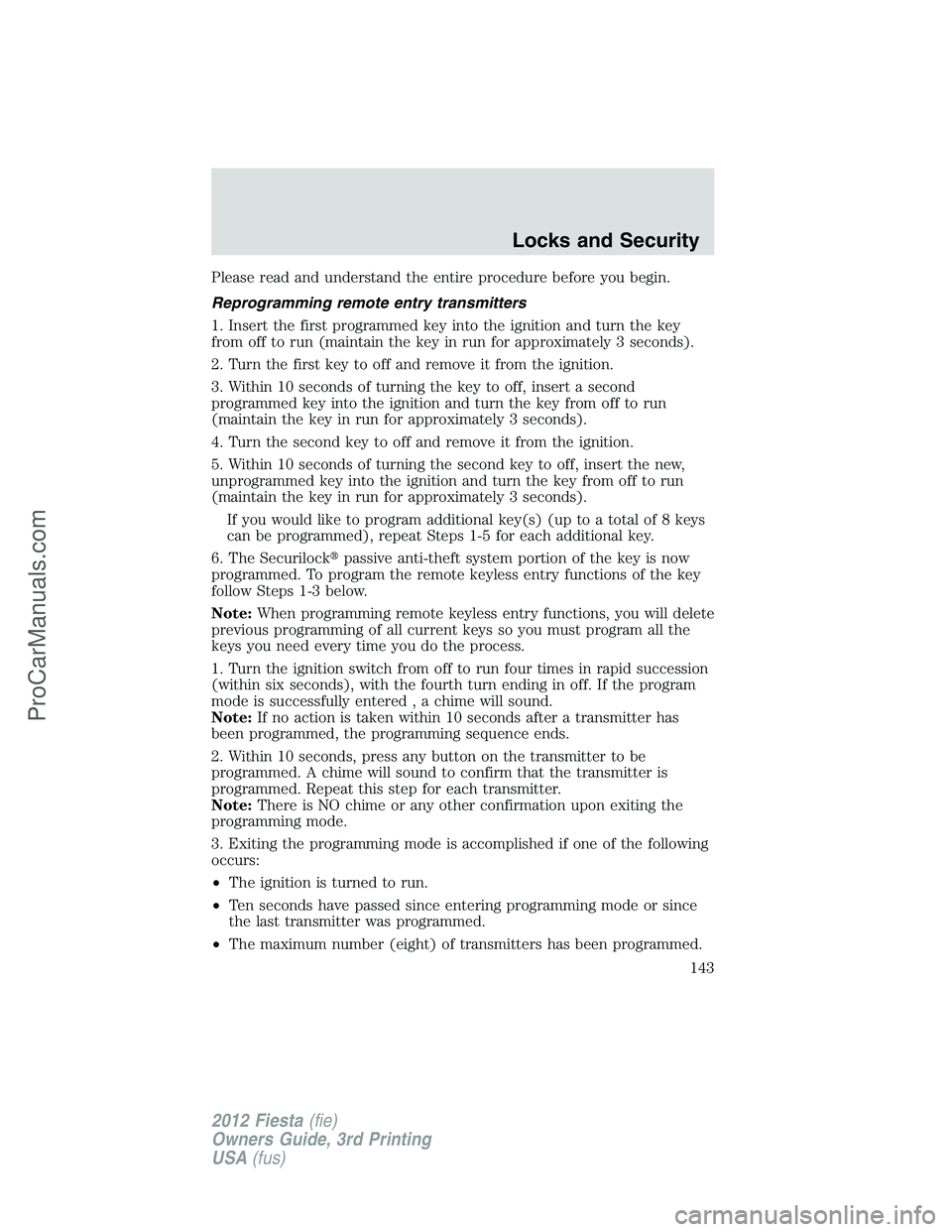

Please read and understand the entire procedure before you begin.
Reprogramming remote entry transmitters
1. Insert the first programmed key into the ignition and turn the key
from off to run (maintain the key in run for approximately 3 seconds).
2. Turn the first key to off and remove it from the ignition.
3. Within 10 seconds of turning the key to off, insert a second
programmed key into the ignition and turn the key from off to run
(maintain the key in run for approximately 3 seconds).
4. Turn the second key to off and remove it from the ignition.
5. Within 10 seconds of turning the second key to off, insert the new,
unprogrammed key into the ignition and turn the key from off to run
(maintain the key in run for approximately 3 seconds).
If you would like to program additional key(s) (up to a total of 8 keys
can be programmed), repeat Steps 1-5 for each additional key.
6. The Securilockpassive anti-theft system portion of the key is now
programmed. To program the remote keyless entry functions of the key
follow Steps 1-3 below.
Note:When programming remote keyless entry functions, you will delete
previous programming of all current keys so you must program all the
keys you need every time you do the process.
1. Turn the ignition switch from off to run four times in rapid succession
(within six seconds), with the fourth turn ending in off. If the program
mode is successfully entered , a chime will sound.
Note:If no action is taken within 10 seconds after a transmitter has
been programmed, the programming sequence ends.
2. Within 10 seconds, press any button on the transmitter to be
programmed. A chime will sound to confirm that the transmitter is
programmed. Repeat this step for each transmitter.
Note:There is NO chime or any other confirmation upon exiting the
programming mode.
3. Exiting the programming mode is accomplished if one of the following
occurs:
•The ignition is turned to run.
•Ten seconds have passed since entering programming mode or since
the last transmitter was programmed.
•The maximum number (eight) of transmitters has been programmed.
Locks and Security
143
2012 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

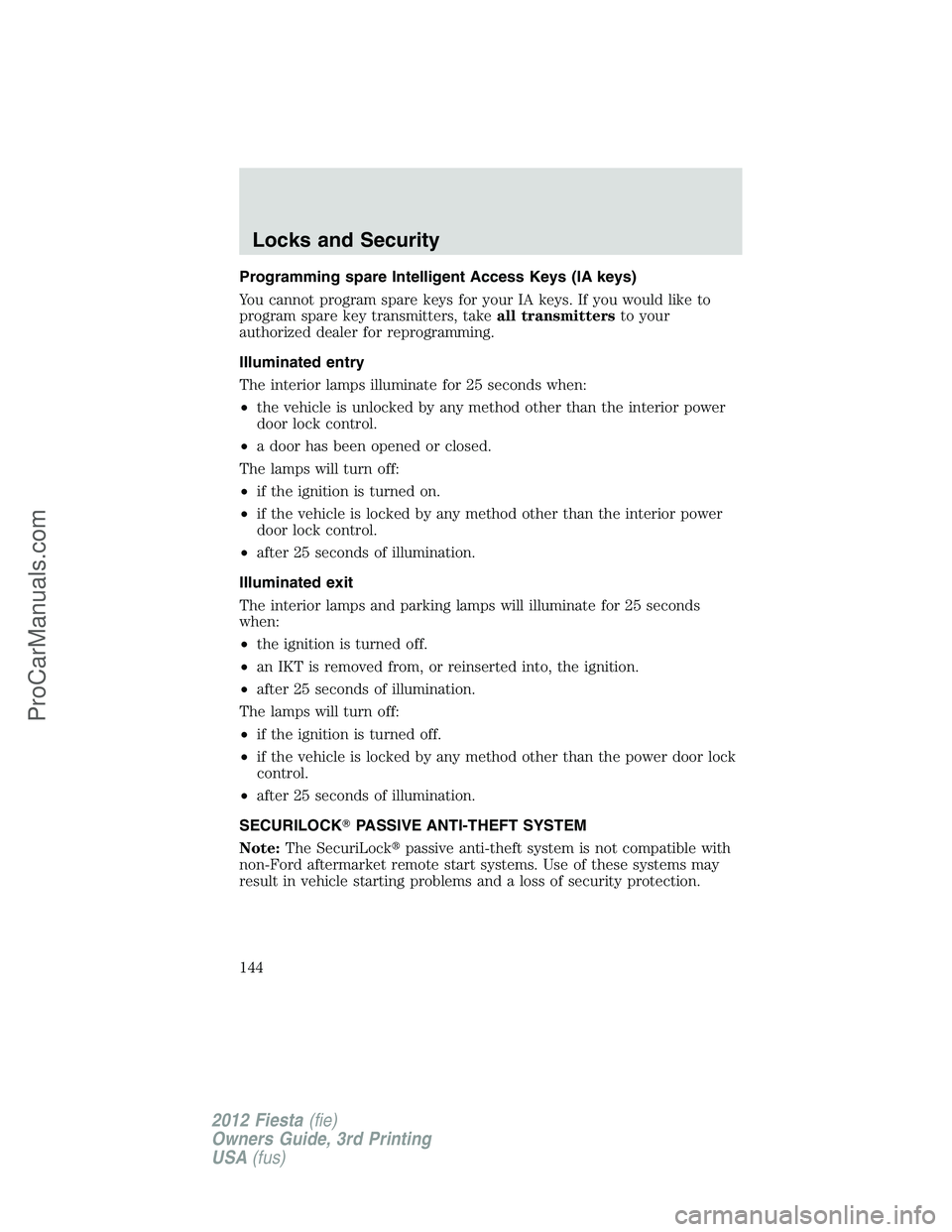

Programming spare Intelligent Access Keys (IA keys)
You cannot program spare keys for your IA keys. If you would like to
program spare key transmitters, takeall transmittersto your
authorized dealer for reprogramming.
Illuminated entry
The interior lamps illuminate for 25 seconds when:
•the vehicle is unlocked by any method other than the interior power
door lock control.
•a door has been opened or closed.
The lamps will turn off:
•if the ignition is turned on.
•if the vehicle is locked by any method other than the interior power
door lock control.
•after 25 seconds of illumination.
Illuminated exit
The interior lamps and parking lamps will illuminate for 25 seconds
when:
•the ignition is turned off.
•an IKT is removed from, or reinserted into, the ignition.
•after 25 seconds of illumination.
The lamps will turn off:
•if the ignition is turned off.
•if the vehicle is locked by any method other than the power door lock
control.
•after 25 seconds of illumination.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
Note:The SecuriLockpassive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Locks and Security
144
2012 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

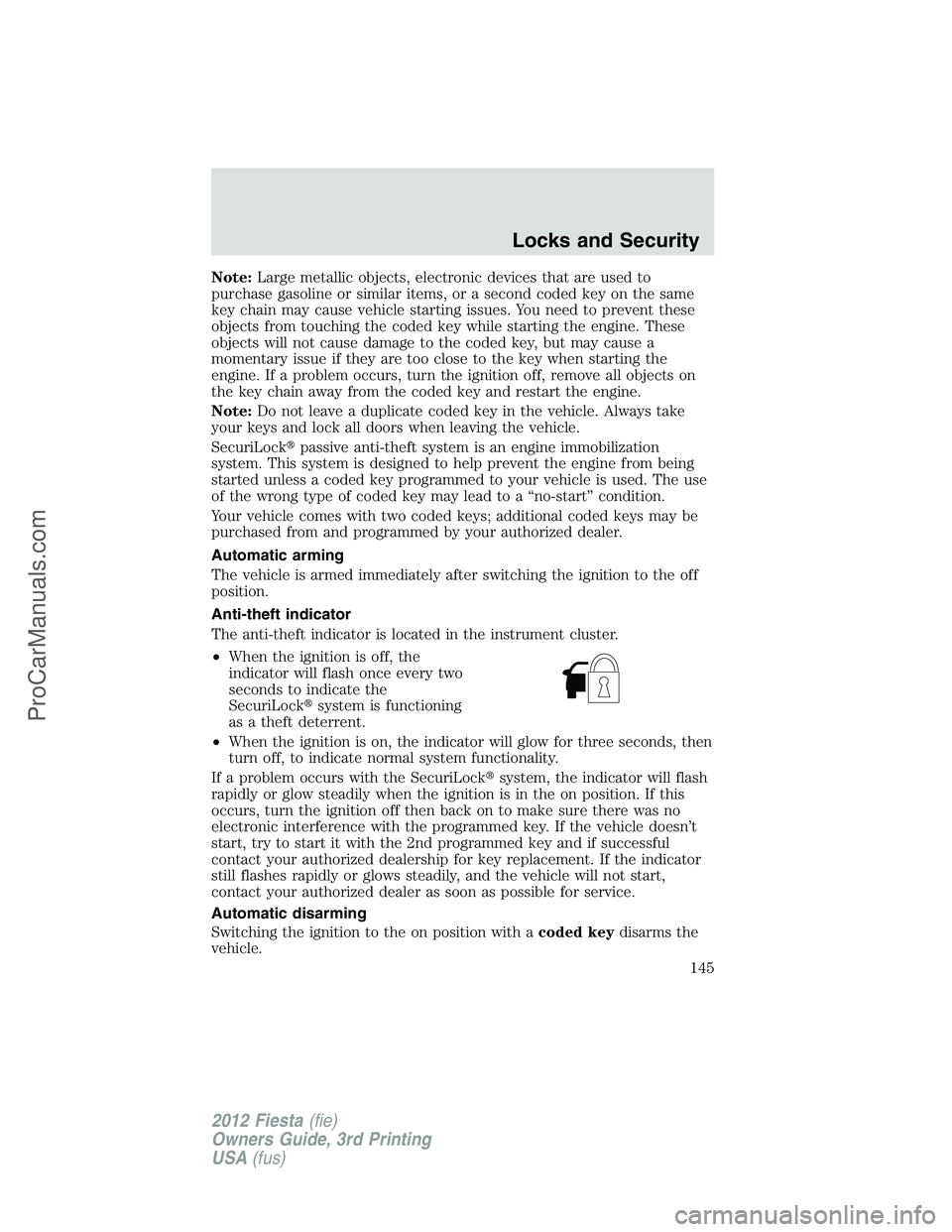

Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Note:Do not leave a duplicate coded key in the vehicle. Always take
your keys and lock all doors when leaving the vehicle.
SecuriLockpassive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless a coded key programmed to your vehicle is used. The use
of the wrong type of coded key may lead to a “no-start” condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from and programmed by your authorized dealer.
Automatic arming
The vehicle is armed immediately after switching the ignition to the off
position.
Anti-theft indicator
The anti-theft indicator is located in the instrument cluster.
•When the ignition is off, the
indicator will flash once every two
seconds to indicate the
SecuriLocksystem is functioning
as a theft deterrent.
•When the ignition is on, the indicator will glow for three seconds, then
turn off, to indicate normal system functionality.
If a problem occurs with the SecuriLocksystem, the indicator will flash
rapidly or glow steadily when the ignition is in the on position. If this
occurs, turn the ignition off then back on to make sure there was no
electronic interference with the programmed key. If the vehicle doesn’t
start, try to start it with the 2nd programmed key and if successful
contact your authorized dealership for key replacement. If the indicator
still flashes rapidly or glows steadily, and the vehicle will not start,
contact your authorized dealer as soon as possible for service.
Automatic disarming
Switching the ignition to the on position with acoded keydisarms the
vehicle.
Locks and Security
145
2012 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

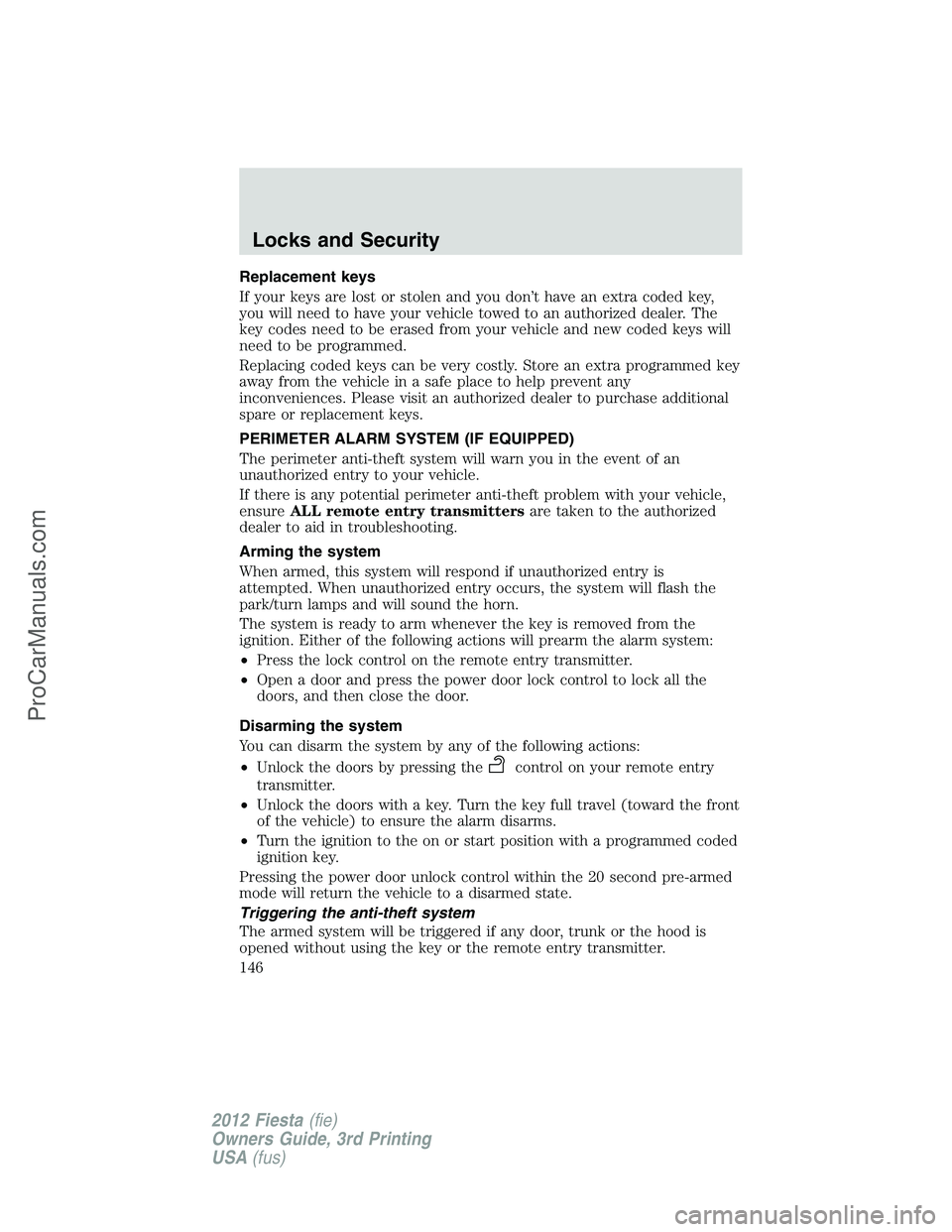

Replacement keys
If your keys are lost or stolen and you don’t have an extra coded key,
you will need to have your vehicle towed to an authorized dealer. The
key codes need to be erased from your vehicle and new coded keys will
need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Either of the following actions will prearm the alarm system:
•Press the lock control on the remote entry transmitter.
•Open a door and press the power door lock control to lock all the
doors, and then close the door.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Turn the ignition to the on or start position with a programmed coded
ignition key.
Pressing the power door unlock control within the 20 second pre-armed
mode will return the vehicle to a disarmed state.
Triggering the anti-theft system
The armed system will be triggered if any door, trunk or the hood is
opened without using the key or the remote entry transmitter.
Locks and Security
146
2012 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

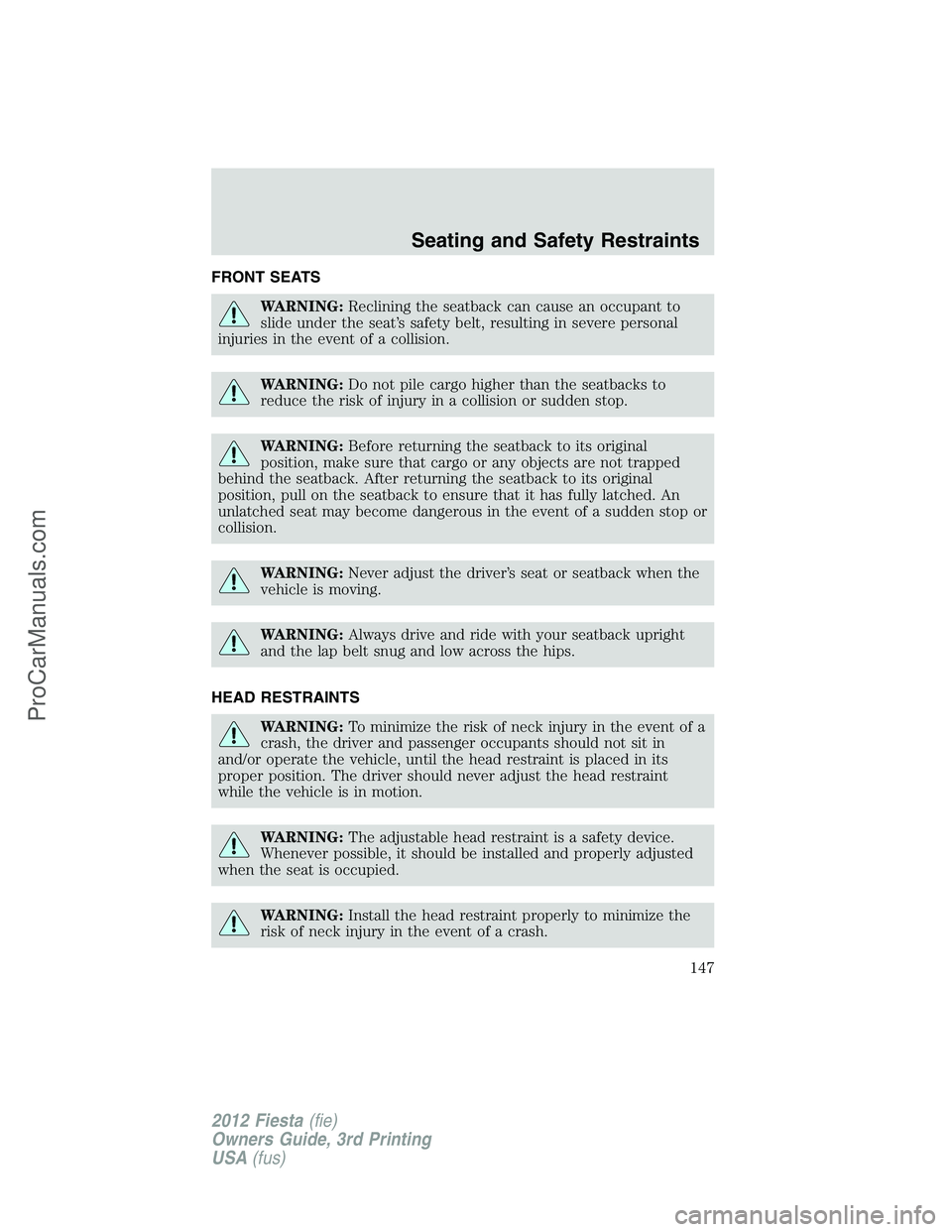

FRONT SEATS
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING:Do not pile cargo higher than the seatbacks to
reduce the risk of injury in a collision or sudden stop.
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that it has fully latched. An
unlatched seat may become dangerous in the event of a sudden stop or
collision.
WARNING:Never adjust the driver’s seat or seatback when the
vehicle is moving.
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
HEAD RESTRAINTS
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
WARNING:The adjustable head restraint is a safety device.
Whenever possible, it should be installed and properly adjusted
when the seat is occupied.
WARNING:Install the head restraint properly to minimize the
risk of neck injury in the event of a crash.
Seating and Safety Restraints
147
2012 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

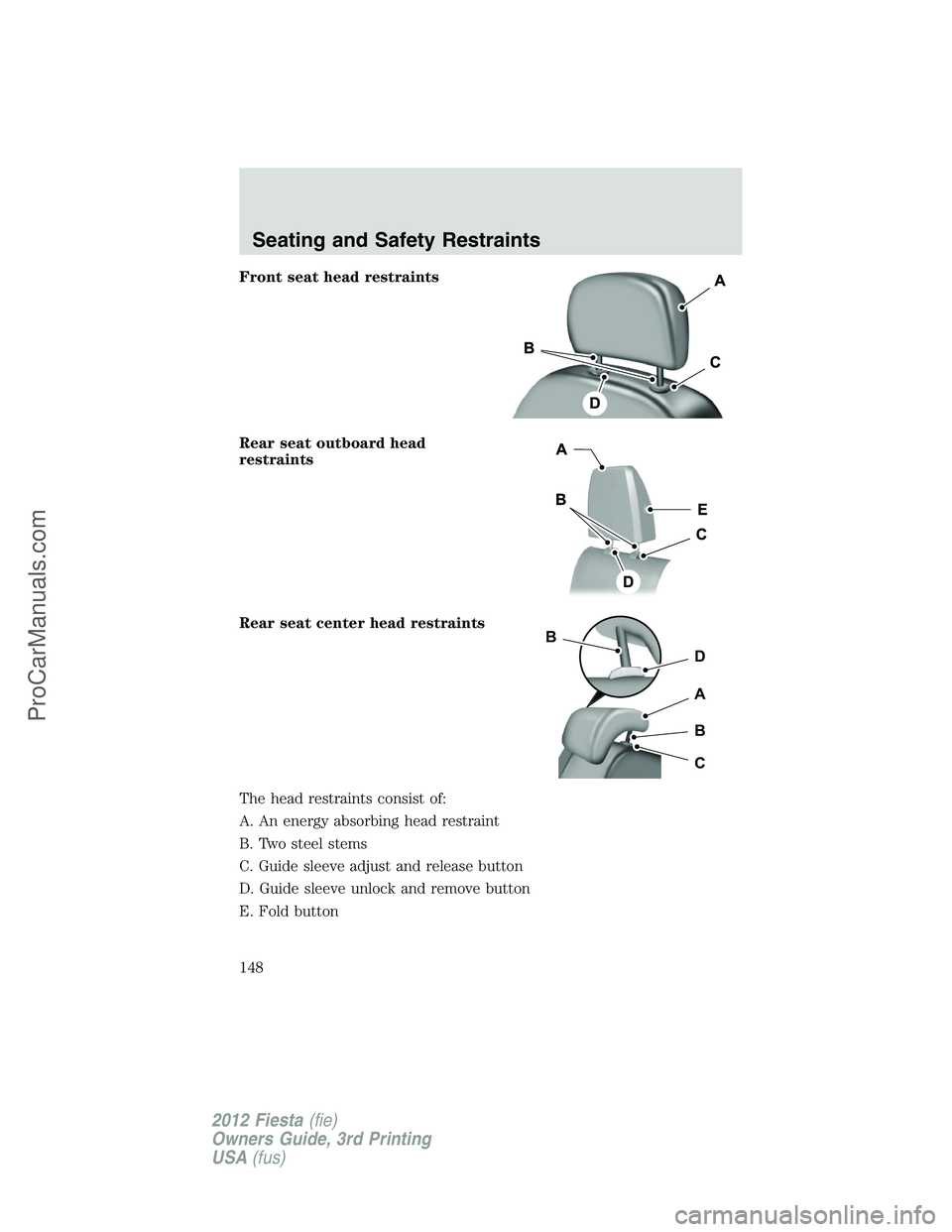

Front seat head restraints
Rear seat outboard head
restraints
Rear seat center head restraints
The head restraints consist of:
A. An energy absorbing head restraint
B. Two steel stems
C. Guide sleeve adjust and release button
D. Guide sleeve unlock and remove button
E. Fold button
D
B
A
B
C
Seating and Safety Restraints
148
2012 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

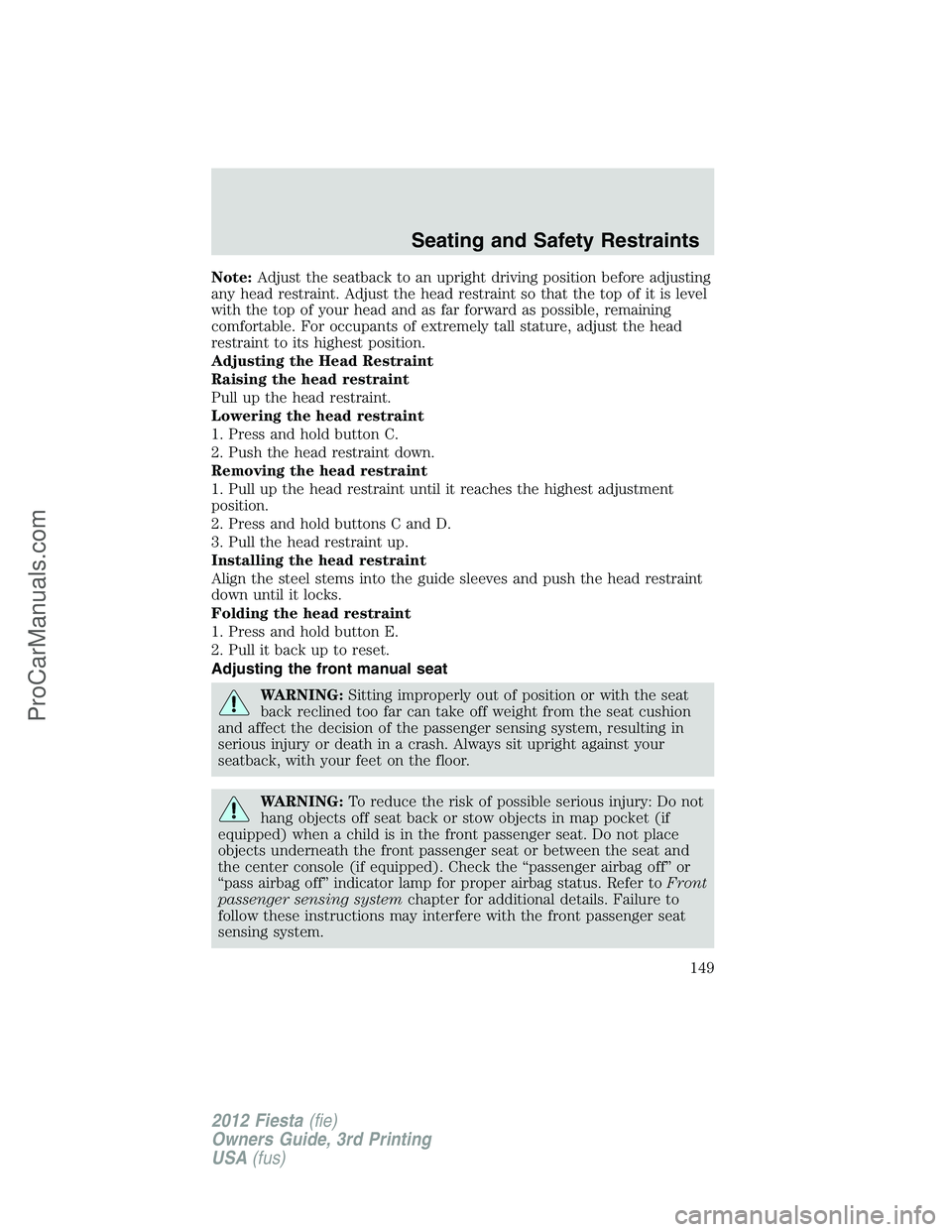

Note:Adjust the seatback to an upright driving position before adjusting
any head restraint. Adjust the head restraint so that the top of it is level
with the top of your head and as far forward as possible, remaining
comfortable. For occupants of extremely tall stature, adjust the head
restraint to its highest position.
Adjusting the Head Restraint
Raising the head restraint
Pull up the head restraint.
Lowering the head restraint
1. Press and hold button C.
2. Push the head restraint down.
Removing the head restraint
1. Pull up the head restraint until it reaches the highest adjustment
position.
2. Press and hold buttons C and D.
3. Pull the head restraint up.
Installing the head restraint
Align the steel stems into the guide sleeves and push the head restraint
down until it locks.
Folding the head restraint
1. Press and hold button E.
2. Pull it back up to reset.
Adjusting the front manual seat
WARNING:Sitting improperly out of position or with the seat
back reclined too far can take off weight from the seat cushion
and affect the decision of the passenger sensing system, resulting in
serious injury or death in a crash. Always sit upright against your
seatback, with your feet on the floor.
WARNING:To reduce the risk of possible serious injury: Do not
hang objects off seat back or stow objects in map pocket (if
equipped) when a child is in the front passenger seat. Do not place
objects underneath the front passenger seat or between the seat and
the center console (if equipped). Check the “passenger airbag off” or
“pass airbag off” indicator lamp for proper airbag status. Refer toFront
passenger sensing systemchapter for additional details. Failure to
follow these instructions may interfere with the front passenger seat
sensing system.
Seating and Safety Restraints
149
2012 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com

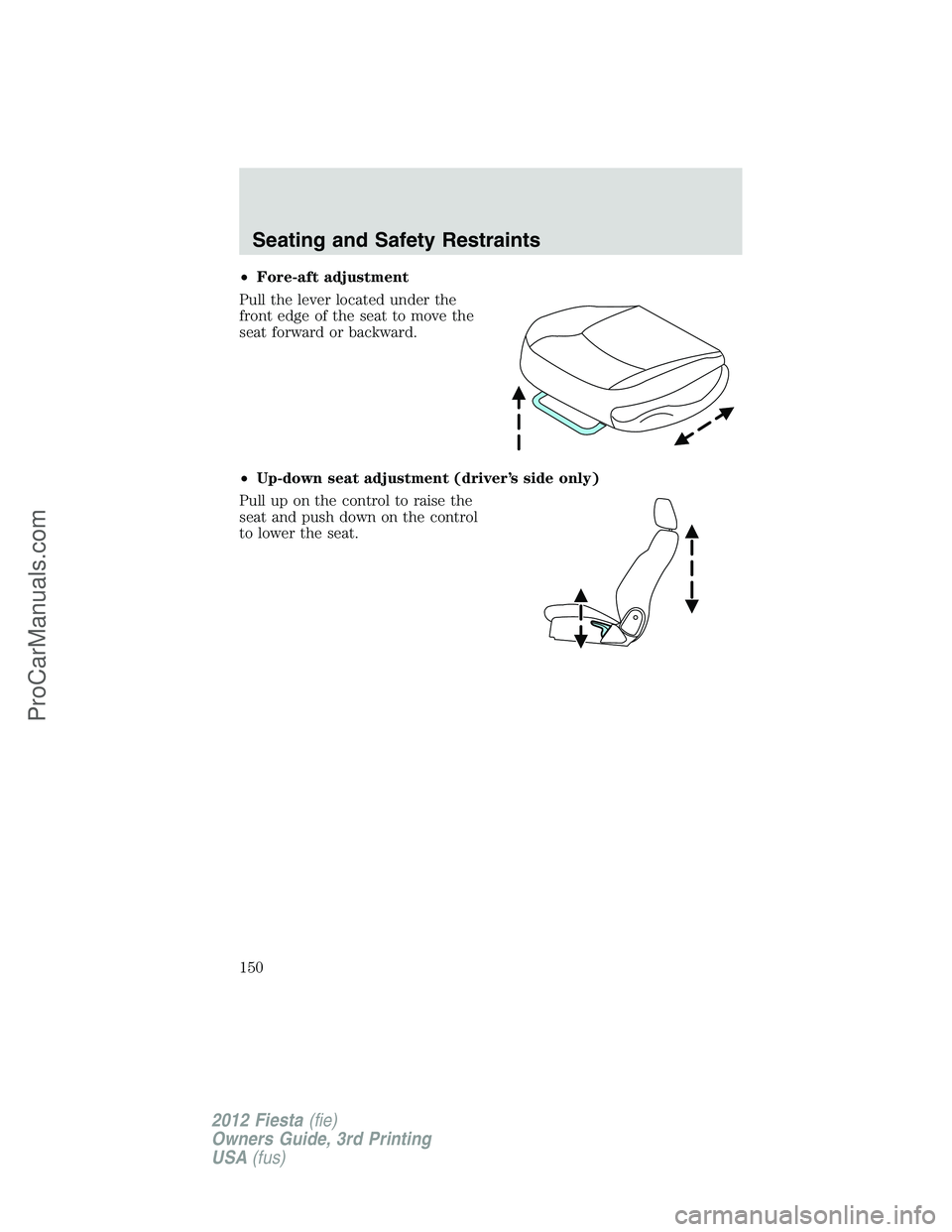

•Fore-aft adjustment
Pull the lever located under the
front edge of the seat to move the
seat forward or backward.
•Up-down seat adjustment (driver’s side only)
Pull up on the control to raise the
seat and push down on the control
to lower the seat.
Seating and Safety Restraints
150
2012 Fiesta(fie)
Owners Guide, 3rd Printing
USA(fus)
ProCarManuals.com
