FORD FIESTA 2013 7.G Owners Manual

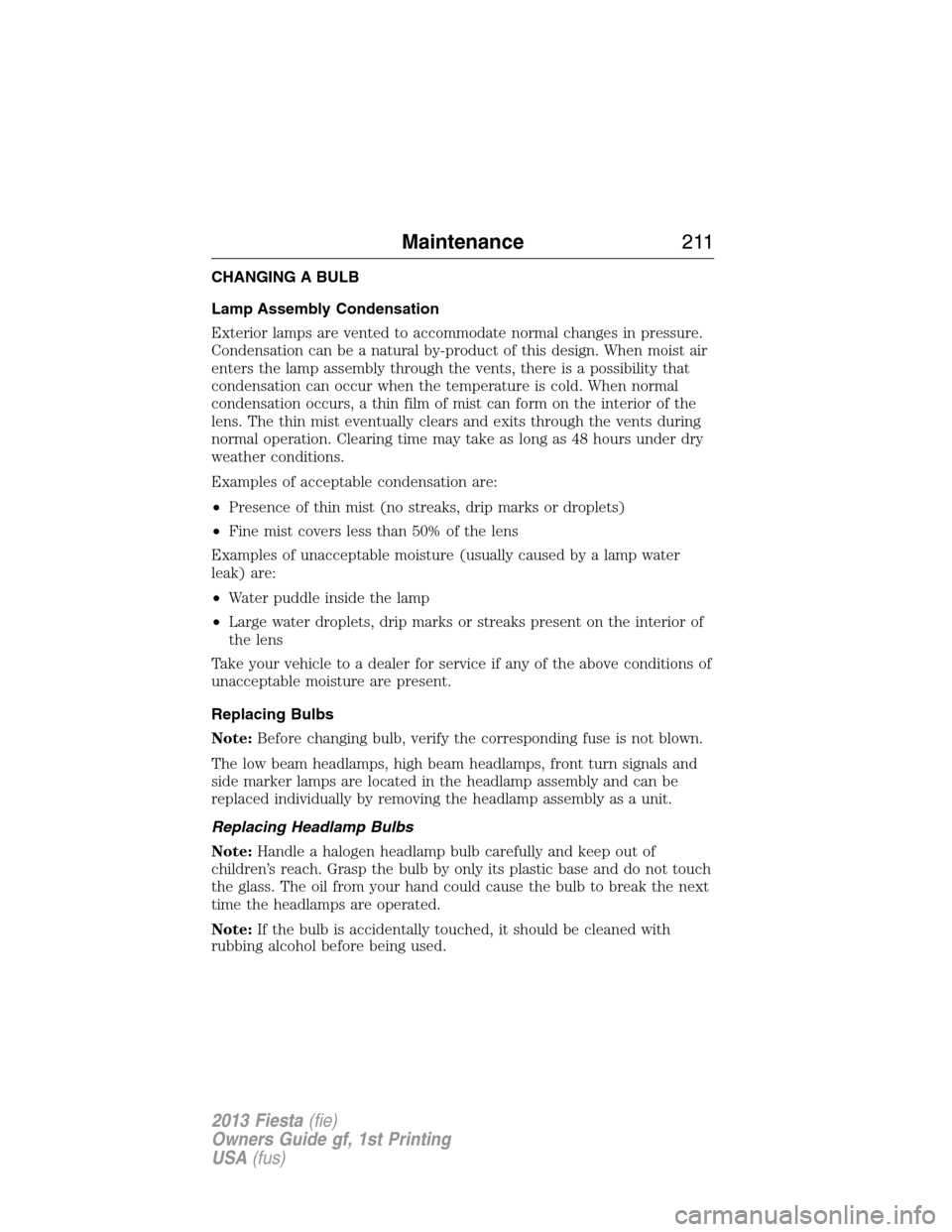

CHANGING A BULB
Lamp Assembly Condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
•Presence of thin mist (no streaks, drip marks or droplets)
•Fine mist covers less than 50% of the lens
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
•Water puddle inside the lamp
•Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Replacing Bulbs
Note:Before changing bulb, verify the corresponding fuse is not blown.
The low beam headlamps, high beam headlamps, front turn signals and
side marker lamps are located in the headlamp assembly and can be
replaced individually by removing the headlamp assembly as a unit.
Replacing Headlamp Bulbs
Note:Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb by only its plastic base and do not touch
the glass. The oil from your hand could cause the bulb to break the next
time the headlamps are operated.
Note:If the bulb is accidentally touched, it should be cleaned with
rubbing alcohol before being used.
Maintenance211
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

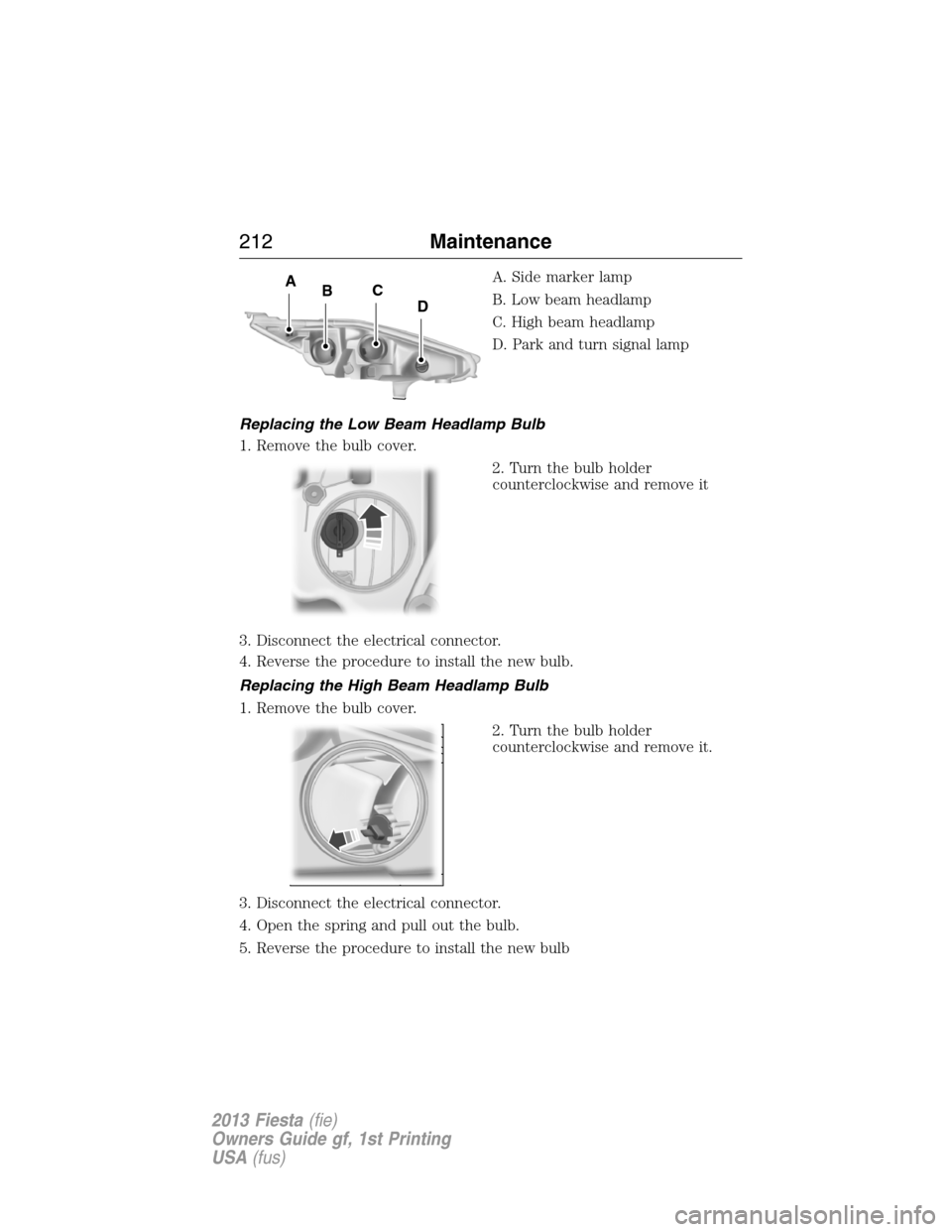

A. Side marker lamp
B. Low beam headlamp
C. High beam headlamp
D. Park and turn signal lamp
Replacing the Low Beam Headlamp Bulb
1. Remove the bulb cover.
2. Turn the bulb holder
counterclockwise and remove it
3. Disconnect the electrical connector.
4. Reverse the procedure to install the new bulb.
Replacing the High Beam Headlamp Bulb
1. Remove the bulb cover.
2. Turn the bulb holder
counterclockwise and remove it.
3. Disconnect the electrical connector.
4. Open the spring and pull out the bulb.
5. Reverse the procedure to install the new bulbC
DBA
212Maintenance
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

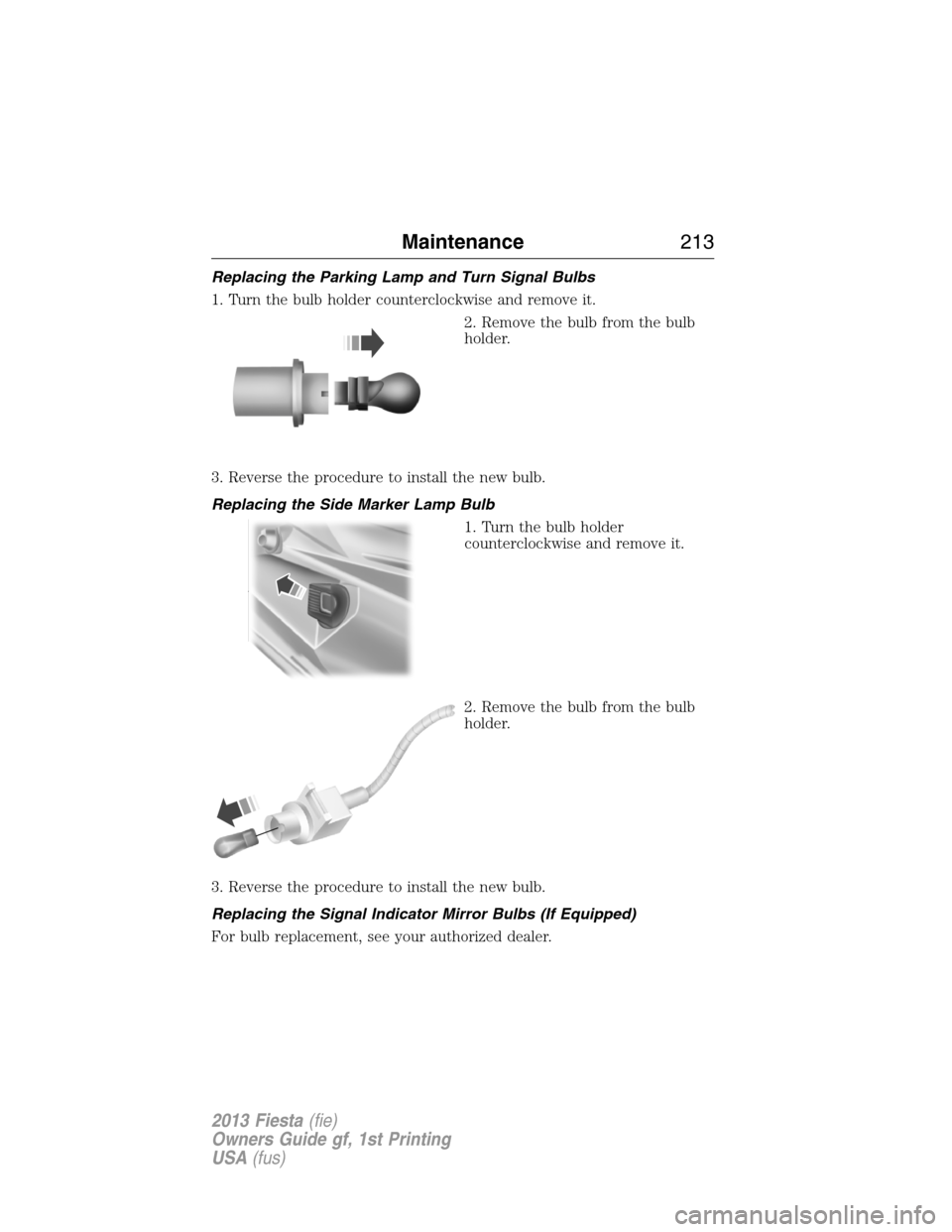

Replacing the Parking Lamp and Turn Signal Bulbs
1. Turn the bulb holder counterclockwise and remove it.
2. Remove the bulb from the bulb
holder.
3. Reverse the procedure to install the new bulb.
Replacing the Side Marker Lamp Bulb
1. Turn the bulb holder
counterclockwise and remove it.
2. Remove the bulb from the bulb
holder.
3. Reverse the procedure to install the new bulb.
Replacing the Signal Indicator Mirror Bulbs (If Equipped)
For bulb replacement, see your authorized dealer.
Maintenance213
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

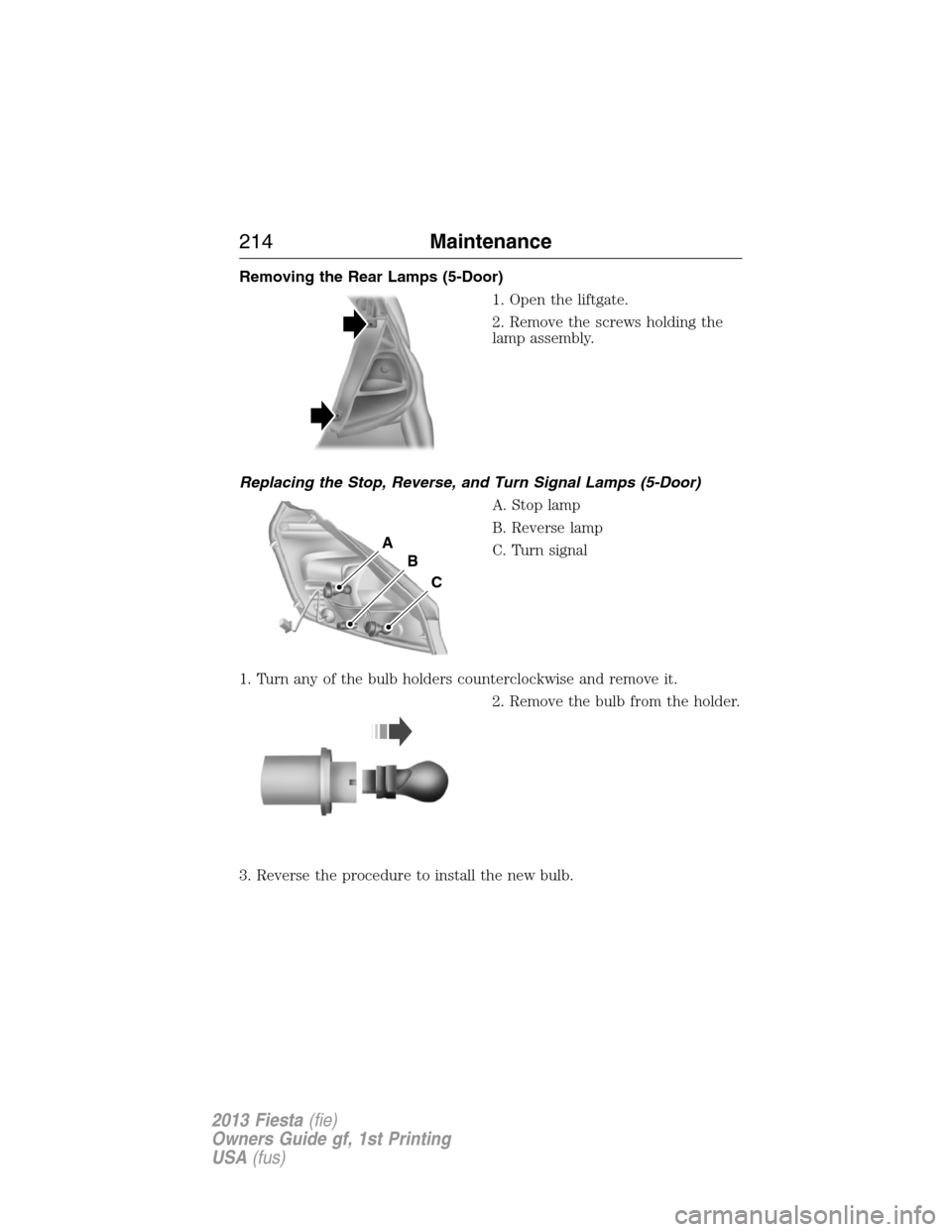

Removing the Rear Lamps (5-Door)
1. Open the liftgate.
2. Remove the screws holding the
lamp assembly.
Replacing the Stop, Reverse, and Turn Signal Lamps (5-Door)
A. Stop lamp
B. Reverse lamp
C. Turn signal
1. Turn any of the bulb holders counterclockwise and remove it.
2. Remove the bulb from the holder.
3. Reverse the procedure to install the new bulb.
A
B
C
214Maintenance
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

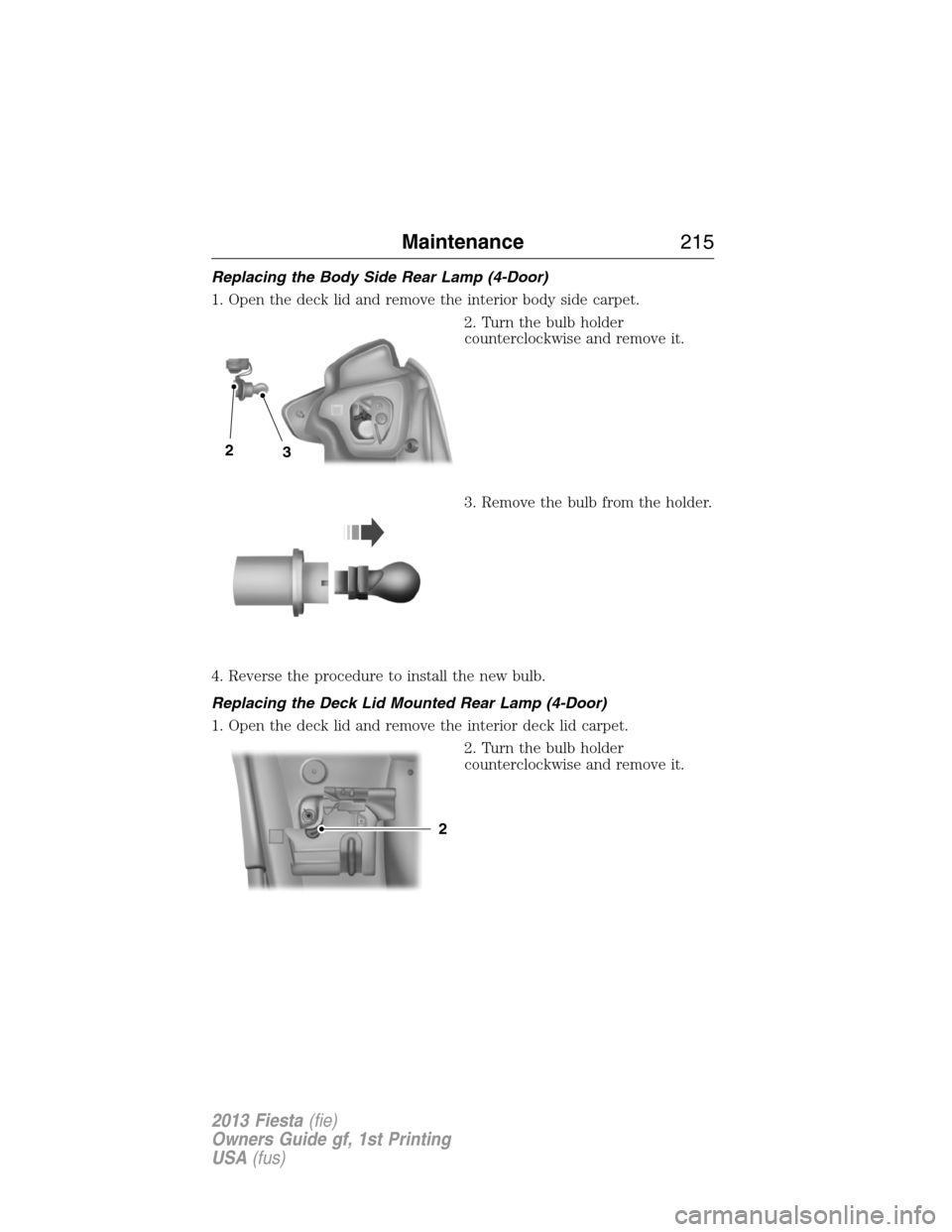

Replacing the Body Side Rear Lamp (4-Door)
1. Open the deck lid and remove the interior body side carpet.
2. Turn the bulb holder
counterclockwise and remove it.
3. Remove the bulb from the holder.
4. Reverse the procedure to install the new bulb.
Replacing the Deck Lid Mounted Rear Lamp (4-Door)
1. Open the deck lid and remove the interior deck lid carpet.
2. Turn the bulb holder
counterclockwise and remove it.
32
2
Maintenance215
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

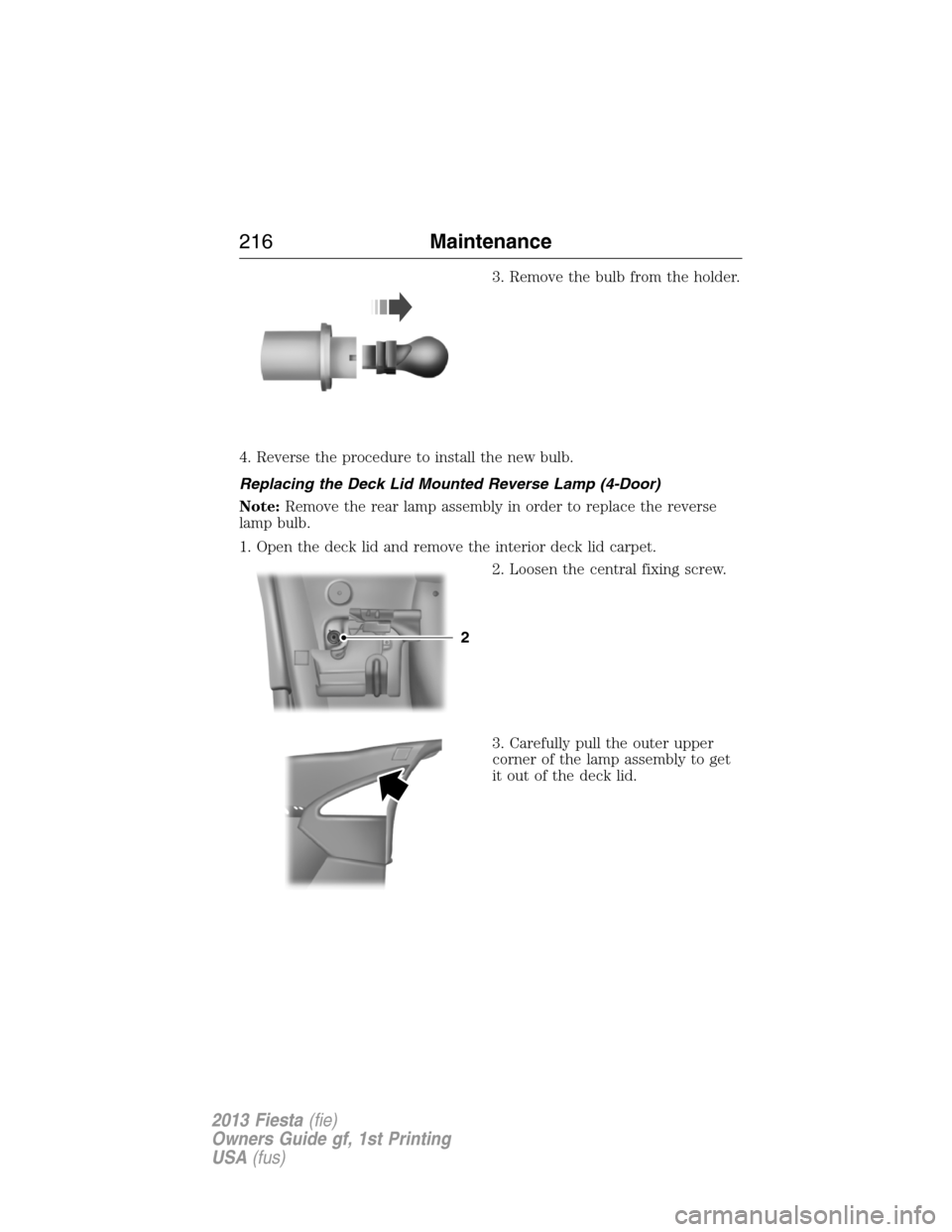

3. Remove the bulb from the holder.
4. Reverse the procedure to install the new bulb.
Replacing the Deck Lid Mounted Reverse Lamp (4-Door)
Note:Remove the rear lamp assembly in order to replace the reverse
lamp bulb.
1. Open the deck lid and remove the interior deck lid carpet.
2. Loosen the central fixing screw.
3. Carefully pull the outer upper
corner of the lamp assembly to get
it out of the deck lid.
2
216Maintenance
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

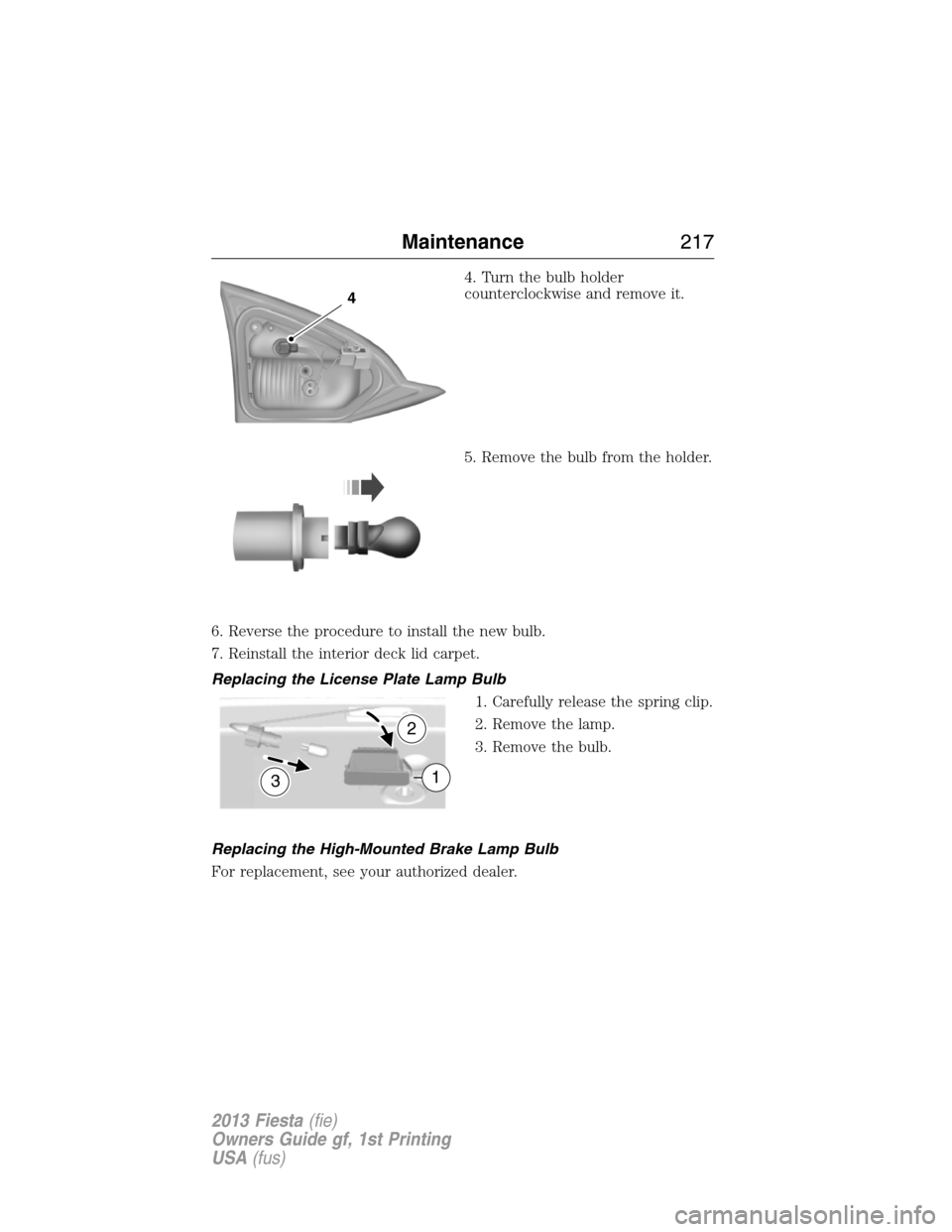

4. Turn the bulb holder
counterclockwise and remove it.
5. Remove the bulb from the holder.
6. Reverse the procedure to install the new bulb.
7. Reinstall the interior deck lid carpet.
Replacing the License Plate Lamp Bulb
1. Carefully release the spring clip.
2. Remove the lamp.
3. Remove the bulb.
Replacing the High-Mounted Brake Lamp Bulb
For replacement, see your authorized dealer.
4
3
2
1
Maintenance217
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

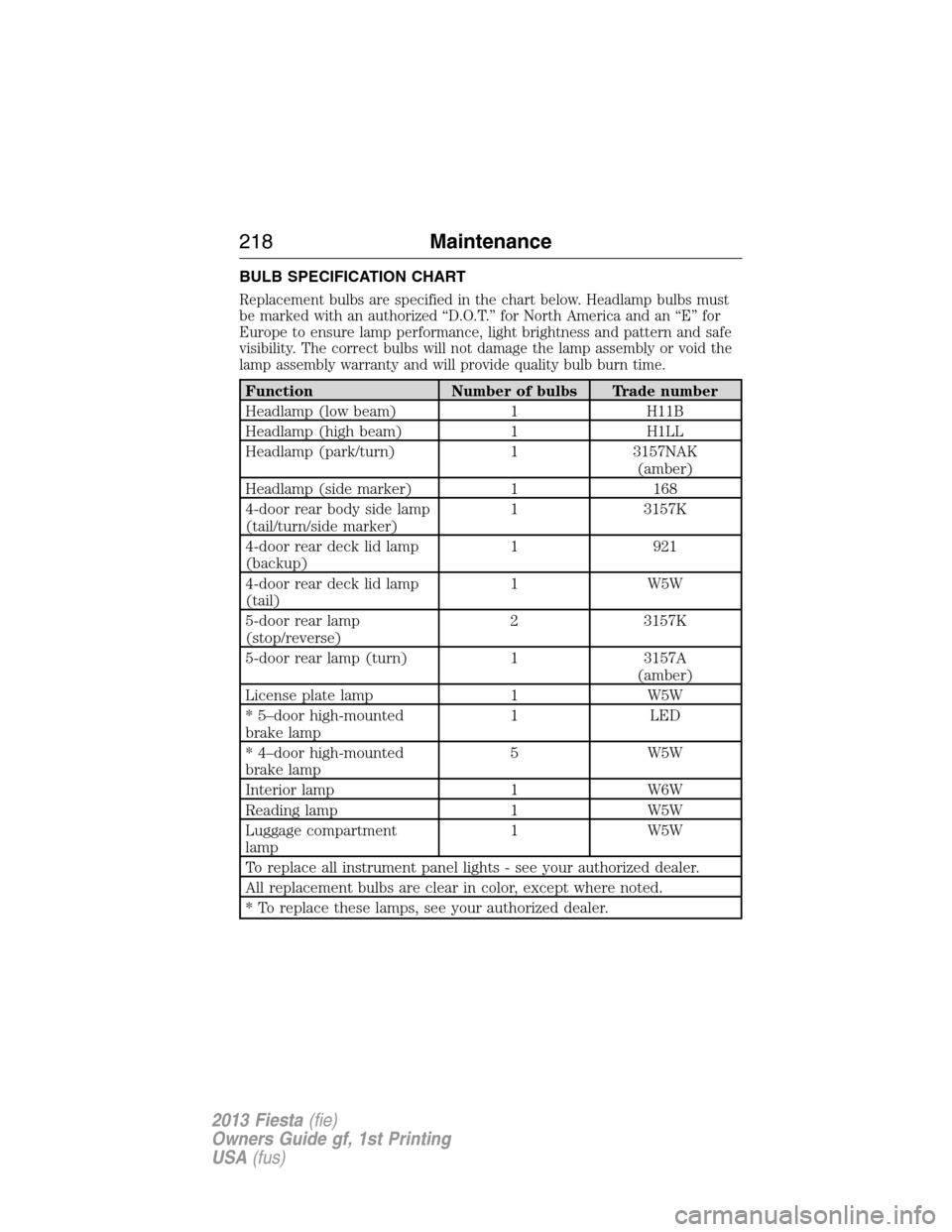

BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs must
be marked with an authorized “D.O.T.” for North America and an “E” for
Europe to ensure lamp performance, light brightness and pattern and safe
visibility. The correct bulbs will not damage the lamp assembly or void the
lamp assembly warranty and will provide quality bulb burn time.
Function Number of bulbs Trade number
Headlamp (low beam) 1 H11B
Headlamp (high beam) 1 H1LL
Headlamp (park/turn) 1 3157NAK
(amber)
Headlamp (side marker) 1 168
4-door rear body side lamp
(tail/turn/side marker)1 3157K
4-door rear deck lid lamp
(backup)1 921
4-door rear deck lid lamp
(tail)1 W5W
5-door rear lamp
(stop/reverse)2 3157K
5-door rear lamp (turn) 1 3157A
(amber)
License plate lamp 1 W5W
* 5–door high-mounted
brake lamp1 LED
* 4–door high-mounted
brake lamp5 W5W
Interior lamp 1 W6W
Reading lamp 1 W5W
Luggage compartment
lamp1 W5W
To replace all instrument panel lights - see your authorized dealer.
All replacement bulbs are clear in color, except where noted.
* To replace these lamps, see your authorized dealer.
218Maintenance
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

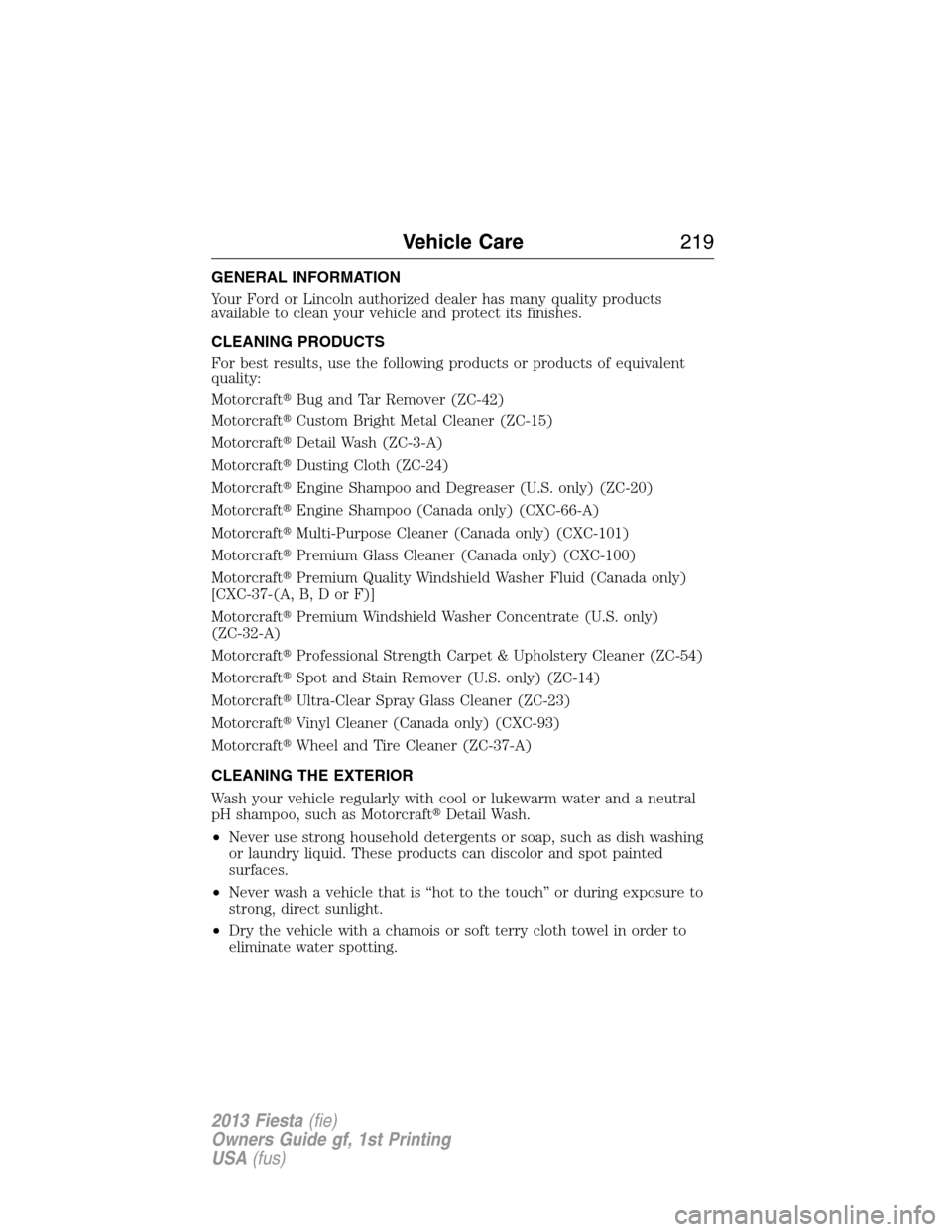

GENERAL INFORMATION
Your Ford or Lincoln authorized dealer has many quality products
available to clean your vehicle and protect its finishes.
CLEANING PRODUCTS
For best results, use the following products or products of equivalent
quality:
MotorcraftBug and Tar Remover (ZC-42)
MotorcraftCustom Bright Metal Cleaner (ZC-15)
MotorcraftDetail Wash (ZC-3-A)
MotorcraftDusting Cloth (ZC-24)
MotorcraftEngine Shampoo and Degreaser (U.S. only) (ZC-20)
MotorcraftEngine Shampoo (Canada only) (CXC-66-A)
MotorcraftMulti-Purpose Cleaner (Canada only) (CXC-101)
MotorcraftPremium Glass Cleaner (Canada only) (CXC-100)
MotorcraftPremium Quality Windshield Washer Fluid (Canada only)
[CXC-37-(A, B, D or F)]
MotorcraftPremium Windshield Washer Concentrate (U.S. only)
(ZC-32-A)
MotorcraftProfessional Strength Carpet & Upholstery Cleaner (ZC-54)
MotorcraftSpot and Stain Remover (U.S. only) (ZC-14)
MotorcraftUltra-Clear Spray Glass Cleaner (ZC-23)
MotorcraftVinyl Cleaner (Canada only) (CXC-93)
MotorcraftWheel and Tire Cleaner (ZC-37-A)
CLEANING THE EXTERIOR
Wash your vehicle regularly with cool or lukewarm water and a neutral
pH shampoo, such as MotorcraftDetail Wash.
•Never use strong household detergents or soap, such as dish washing
or laundry liquid. These products can discolor and spot painted
surfaces.
•Never wash a vehicle that is “hot to the touch” or during exposure to
strong, direct sunlight.
•Dry the vehicle with a chamois or soft terry cloth towel in order to
eliminate water spotting.
Vehicle Care219
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

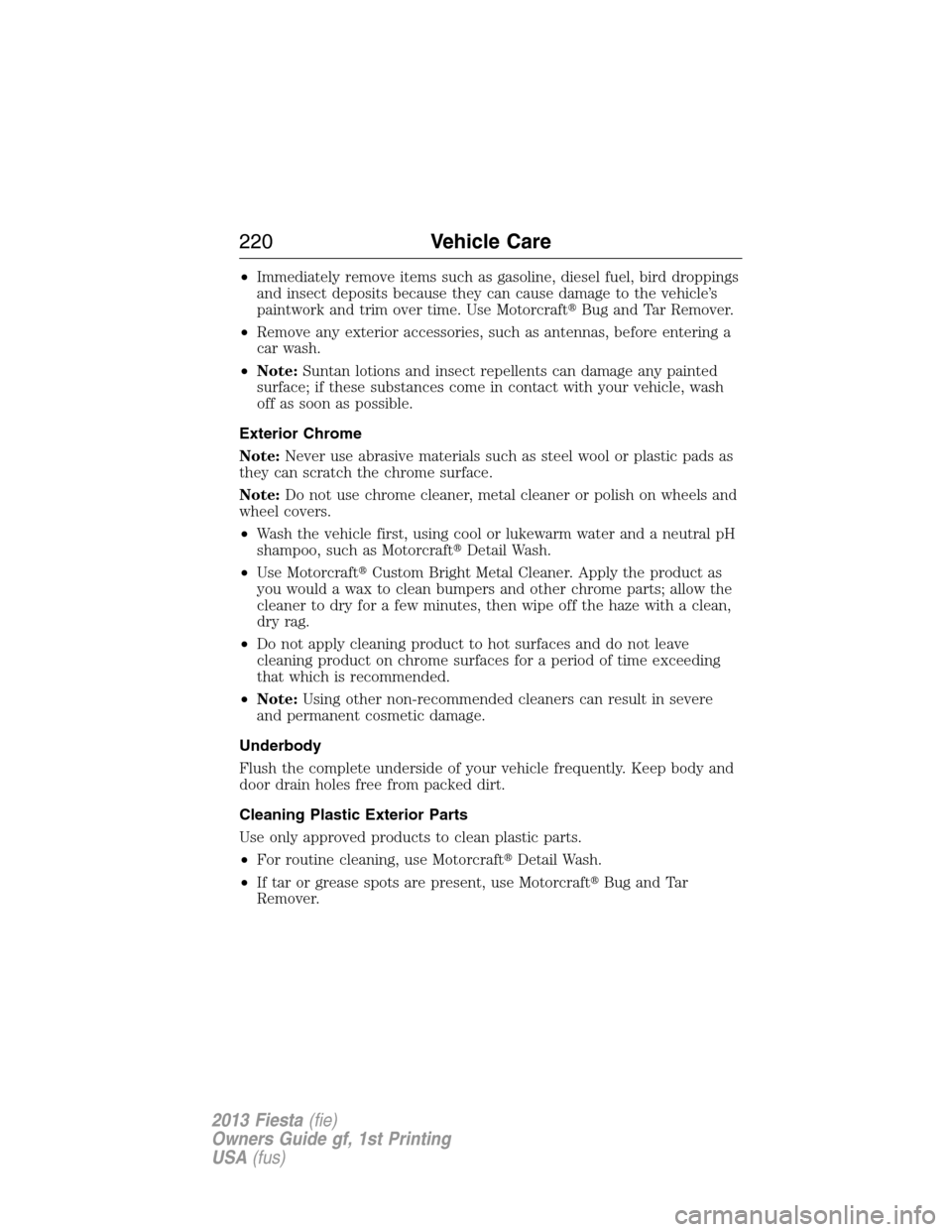

•Immediately remove items such as gasoline, diesel fuel, bird droppings
and insect deposits because they can cause damage to the vehicle’s
paintwork and trim over time. Use MotorcraftBug and Tar Remover.
•Remove any exterior accessories, such as antennas, before entering a
car wash.
•Note:Suntan lotions and insect repellents can damage any painted
surface; if these substances come in contact with your vehicle, wash
off as soon as possible.
Exterior Chrome
Note:Never use abrasive materials such as steel wool or plastic pads as
they can scratch the chrome surface.
Note:Do not use chrome cleaner, metal cleaner or polish on wheels and
wheel covers.
•Wash the vehicle first, using cool or lukewarm water and a neutral pH
shampoo, such as MotorcraftDetail Wash.
•Use MotorcraftCustom Bright Metal Cleaner. Apply the product as
you would a wax to clean bumpers and other chrome parts; allow the
cleaner to dry for a few minutes, then wipe off the haze with a clean,
dry rag.
•Do not apply cleaning product to hot surfaces and do not leave
cleaning product on chrome surfaces for a period of time exceeding
that which is recommended.
•Note:Using other non-recommended cleaners can result in severe
and permanent cosmetic damage.
Underbody
Flush the complete underside of your vehicle frequently. Keep body and
door drain holes free from packed dirt.
Cleaning Plastic Exterior Parts
Use only approved products to clean plastic parts.
•For routine cleaning, use MotorcraftDetail Wash.
•If tar or grease spots are present, use MotorcraftBug and Tar
Remover.
