FORD FIESTA 2018 Owners Manual

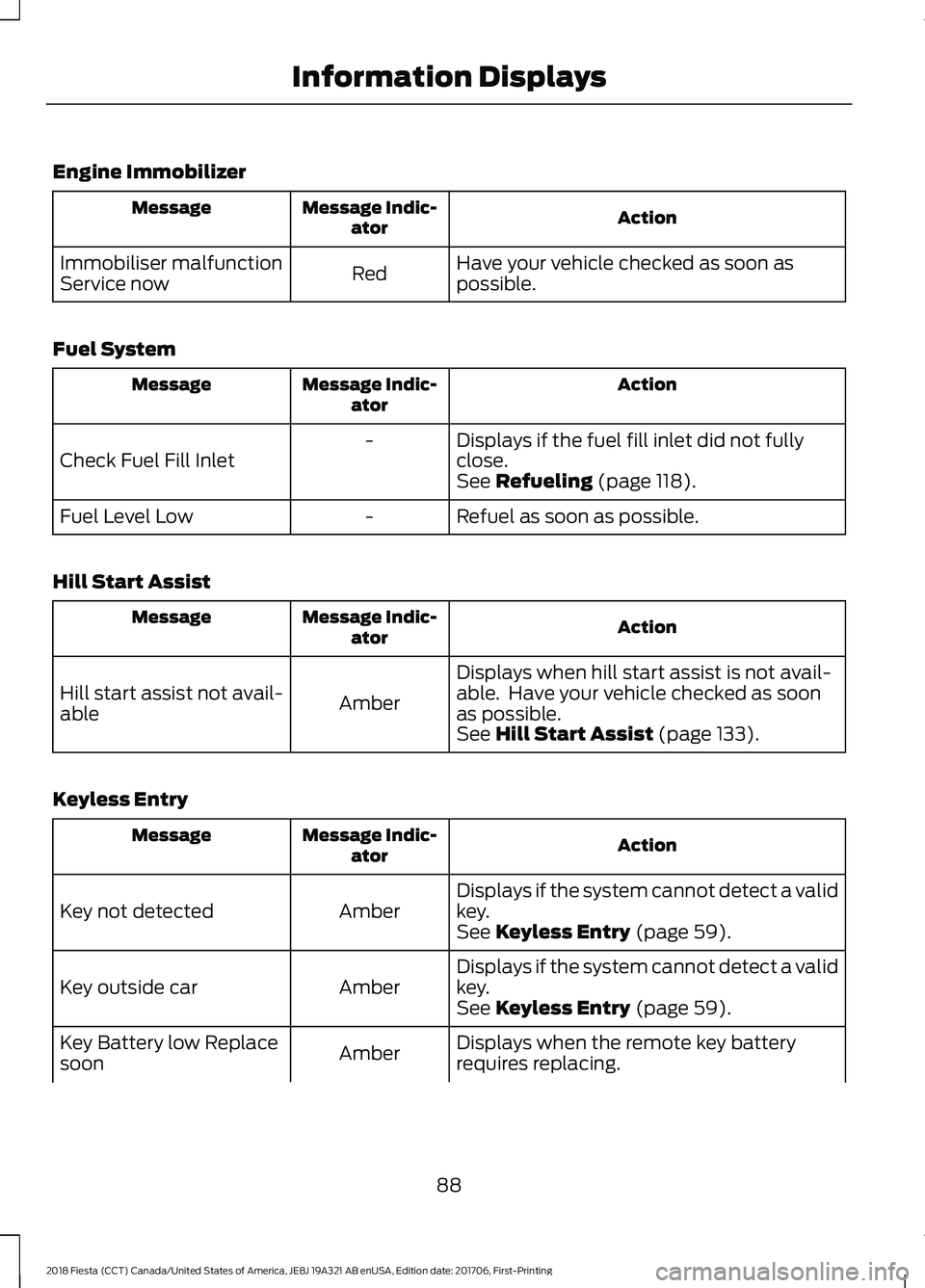

Engine Immobilizer
Action
Message Indic-
ator
Message
Have your vehicle checked as soon as
possible.
Red
Immobiliser malfunction
Service now
Fuel System Action
Message Indic-
ator
Message
Displays if the fuel fill inlet did not fully
close.
-
Check Fuel Fill Inlet See Refueling (page 118).
Refuel as soon as possible.
-
Fuel Level Low
Hill Start Assist Action
Message Indic-
ator
Message
Displays when hill start assist is not avail-
able. Have your vehicle checked as soon
as possible.
Amber
Hill start assist not avail-
able
See
Hill Start Assist (page 133).
Keyless Entry Action
Message Indic-
ator
Message
Displays if the system cannot detect a valid
key.
Amber
Key not detected
See
Keyless Entry (page 59).
Displays if the system cannot detect a valid
key.
Amber
Key outside car
See
Keyless Entry (page 59).
Displays when the remote key battery
requires replacing.
Amber
Key Battery low Replace
soon
88
2018 Fiesta (CCT) Canada/United States of America, JE8J 19A321 AB enUSA, Edition date: 201706, First-Printing Information Displays

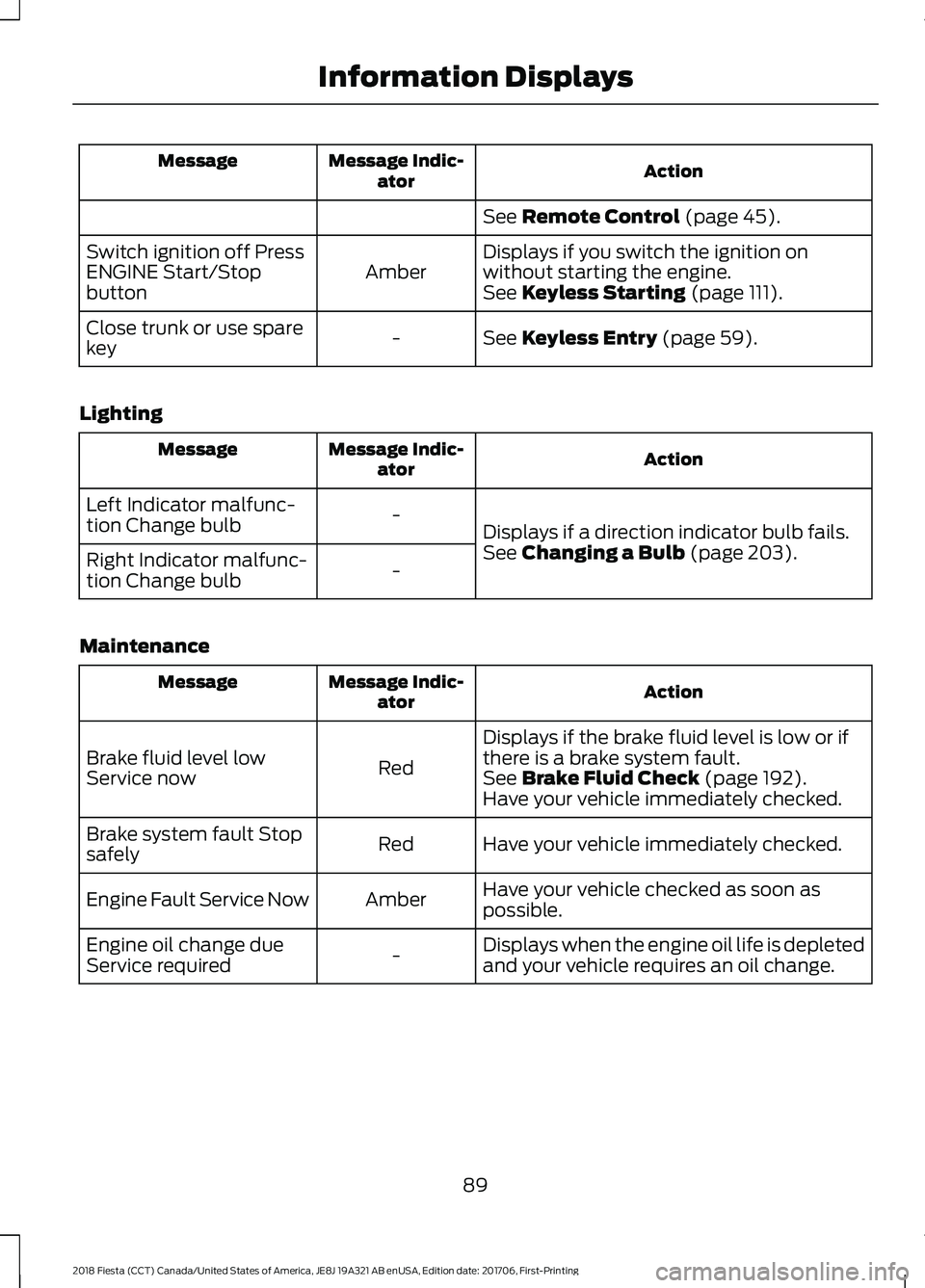

Action
Message Indic-
ator
Message
See Remote Control (page 45).
Displays if you switch the ignition on
without starting the engine.
Amber
Switch ignition off Press
ENGINE Start/Stop
button
See
Keyless Starting (page 111).
See
Keyless Entry (page 59).
-
Close trunk or use spare
key
Lighting Action
Message Indic-
ator
Message
Displays if a direction indicator bulb fails.
-
Left Indicator malfunc-
tion Change bulb
See
Changing a Bulb (page 203).
-
Right Indicator malfunc-
tion Change bulb
Maintenance Action
Message Indic-
ator
Message
Displays if the brake fluid level is low or if
there is a brake system fault.
Red
Brake fluid level low
Service now
See
Brake Fluid Check (page 192).
Have your vehicle immediately checked.
Have your vehicle immediately checked.
Red
Brake system fault Stop
safely
Have your vehicle checked as soon as
possible.
Amber
Engine Fault Service Now
Displays when the engine oil life is depleted
and your vehicle requires an oil change.
-
Engine oil change due
Service required
89
2018 Fiesta (CCT) Canada/United States of America, JE8J 19A321 AB enUSA, Edition date: 201706, First-Printing Information Displays

MyKey
Action
Message Indic-
ator
Message
Displays when a MyKey is in use and the
MyKey speed limit is reached.
Amber
MyKey Vehicle at Top
Speed
See MyKey™ (page 50).
Displays when MyKey is active.
-
MyKey active Drive Safely
See
MyKey™ (page 50).
Displays when starting your vehicle, a
MyKey is in use and the MyKey speed limit
is on.
-
Speed Limited to {MyKey
limit ##0} km/h
See
MyKey™ (page 50).
Displays when a MyKey is in use and the
MyKey speed limit is reached.
-
MyKey Check speed Drive
safely
See
MyKey™ (page 50).
Displays when a MyKey is in use and your
vehicle speed approaches a preset speed
limit.
-
MyKey Vehicle near top
speed
See
MyKey™ (page 50).
Displays when a MyKey is in use and seat-
belt reminder is activated.
-
MyKey Buckle up to
unmute audio
See
MyKey™ (page 50).
Displays when a MyKey is in use and the
user tries to switch the parking aid system
off.
-
MyKey Park aid cannot
be deactivated
See
MyKey™ (page 50).
Displays when a MyKey is in use and the
user tries to switch the stability control
system off.
-
MyKey ESC cannot be
deactivated
See
MyKey™ (page 50).
Displays when a MyKey is in use and the
user tries to exceed 45% of the maximum
volume.
-
MyKey Volume limit
See
MyKey™ (page 50).
90
2018 Fiesta (CCT) Canada/United States of America, JE8J 19A321 AB enUSA, Edition date: 201706, First-Printing Information Displays

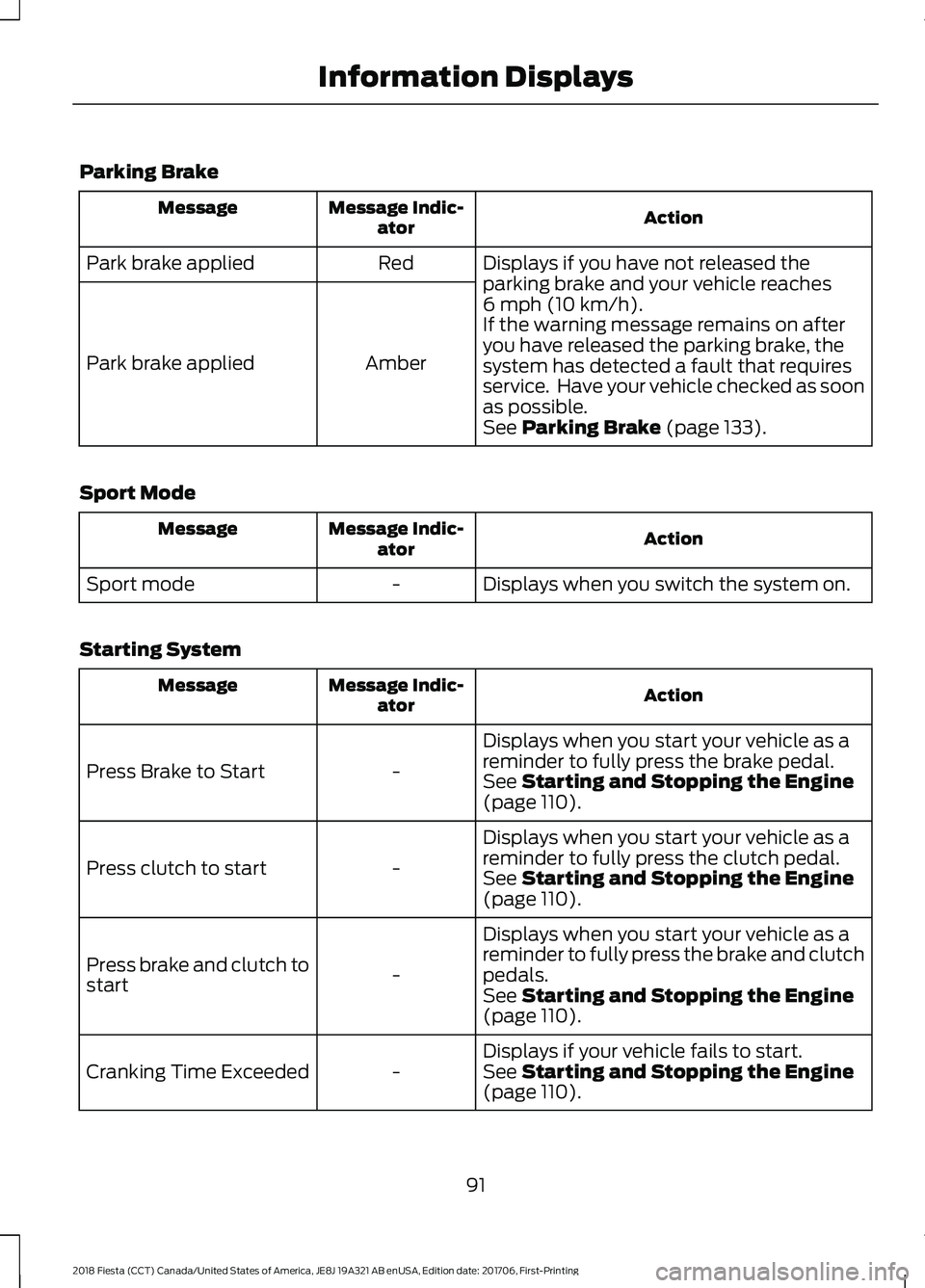

Parking Brake
Action
Message Indic-
ator
Message
Displays if you have not released the
parking brake and your vehicle reaches
6 mph (10 km/h).
Red
Park brake applied
Amber
Park brake applied If the warning message remains on after
you have released the parking brake, the
system has detected a fault that requires
service. Have your vehicle checked as soon
as possible.
See
Parking Brake (page 133).
Sport Mode Action
Message Indic-
ator
Message
Displays when you switch the system on.
-
Sport mode
Starting System Action
Message Indic-
ator
Message
Displays when you start your vehicle as a
reminder to fully press the brake pedal.
-
Press Brake to Start
See
Starting and Stopping the Engine
(page 110).
Displays when you start your vehicle as a
reminder to fully press the clutch pedal.
-
Press clutch to start
See
Starting and Stopping the Engine
(page 110).
Displays when you start your vehicle as a
reminder to fully press the brake and clutch
pedals.
-
Press brake and clutch to
start
See
Starting and Stopping the Engine
(page 110).
Displays if your vehicle fails to start.
-
Cranking Time Exceeded See
Starting and Stopping the Engine
(page 110).
91
2018 Fiesta (CCT) Canada/United States of America, JE8J 19A321 AB enUSA, Edition date: 201706, First-Printing Information Displays

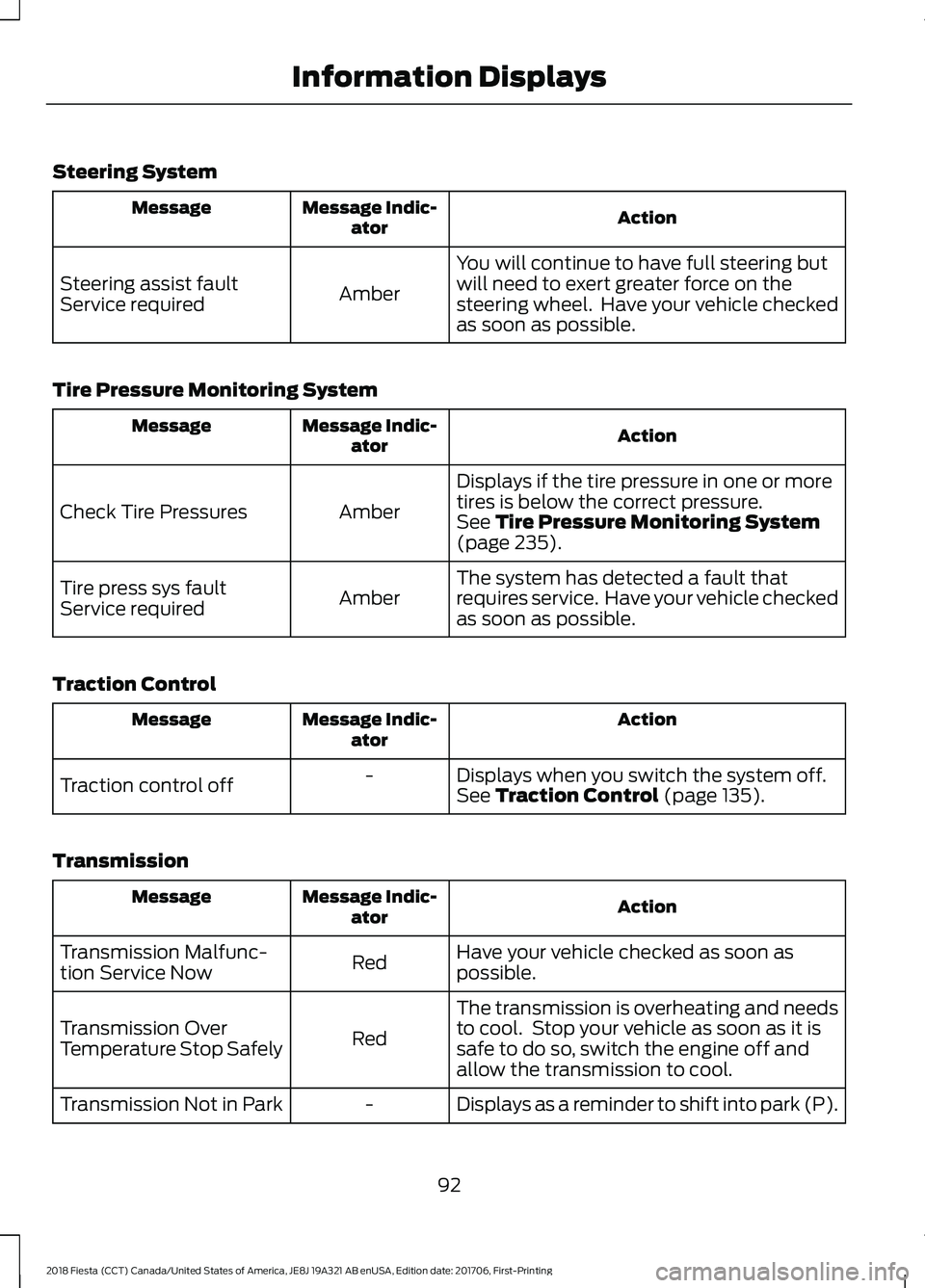

Steering System
Action
Message Indic-
ator
Message
You will continue to have full steering but
will need to exert greater force on the
steering wheel. Have your vehicle checked
as soon as possible.
Amber
Steering assist fault
Service required
Tire Pressure Monitoring System Action
Message Indic-
ator
Message
Displays if the tire pressure in one or more
tires is below the correct pressure.
Amber
Check Tire Pressures
See Tire Pressure Monitoring System
(page 235).
The system has detected a fault that
requires service. Have your vehicle checked
as soon as possible.
Amber
Tire press sys fault
Service required
Traction Control Action
Message Indic-
ator
Message
Displays when you switch the system off.
-
Traction control off See
Traction Control (page 135).
Transmission Action
Message Indic-
ator
Message
Have your vehicle checked as soon as
possible.
Red
Transmission Malfunc-
tion Service Now
The transmission is overheating and needs
to cool. Stop your vehicle as soon as it is
safe to do so, switch the engine off and
allow the transmission to cool.
Red
Transmission Over
Temperature Stop Safely
Displays as a reminder to shift into park (P).
-
Transmission Not in Park
92
2018 Fiesta (CCT) Canada/United States of America, JE8J 19A321 AB enUSA, Edition date: 201706, First-Printing Information Displays

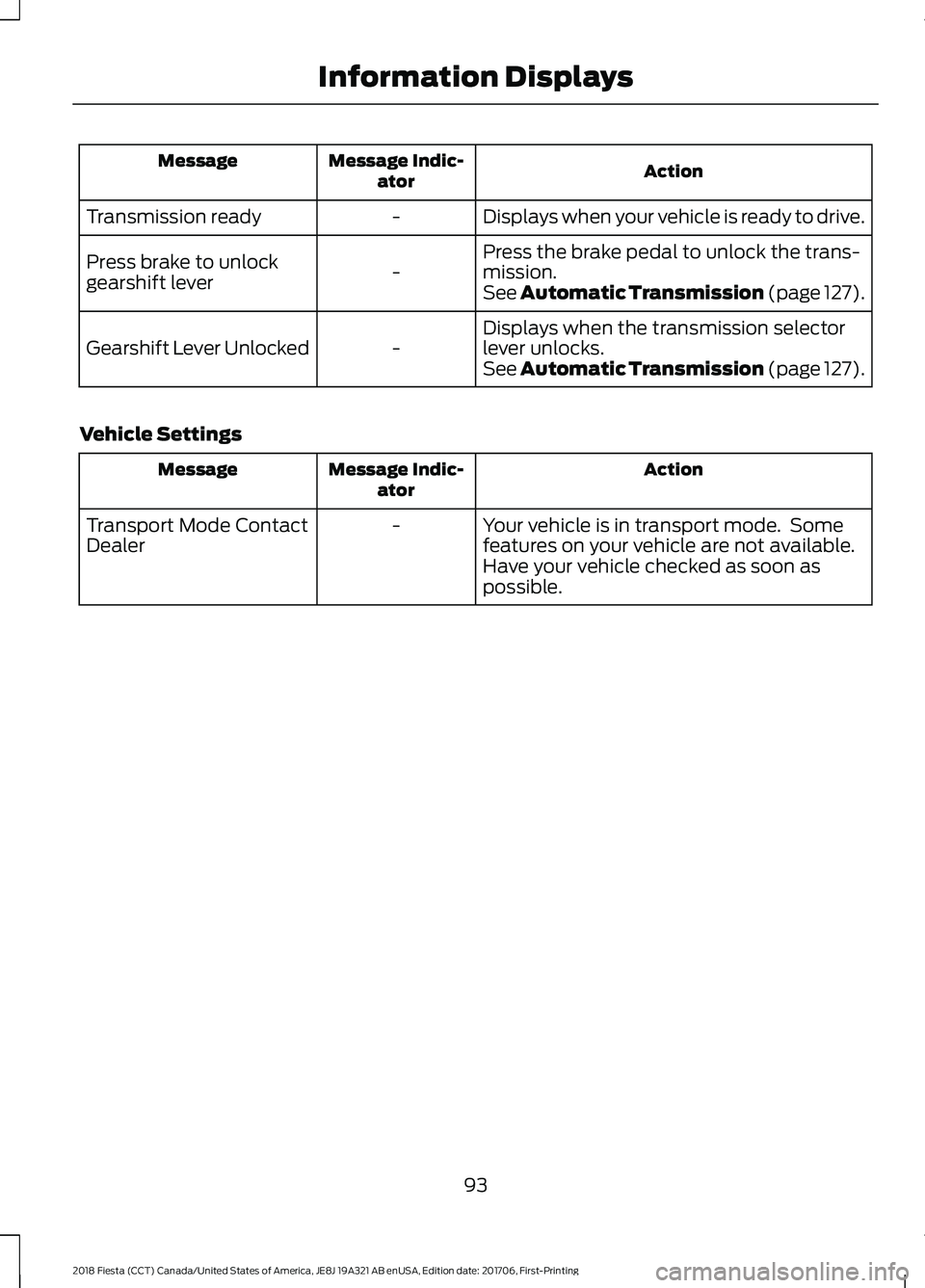

Action
Message Indic-
ator
Message
Displays when your vehicle is ready to drive.
-
Transmission ready
Press the brake pedal to unlock the trans-
mission.
-
Press brake to unlock
gearshift lever
See Automatic Transmission (page 127).
Displays when the transmission selector
lever unlocks.
-
Gearshift Lever Unlocked
See Automatic Transmission (page 127).
Vehicle Settings Action
Message Indic-
ator
Message
Your vehicle is in transport mode. Some
features on your vehicle are not available.
Have your vehicle checked as soon as
possible.
-
Transport Mode Contact
Dealer
93
2018 Fiesta (CCT) Canada/United States of America, JE8J 19A321 AB enUSA, Edition date: 201706, First-Printing Information Displays

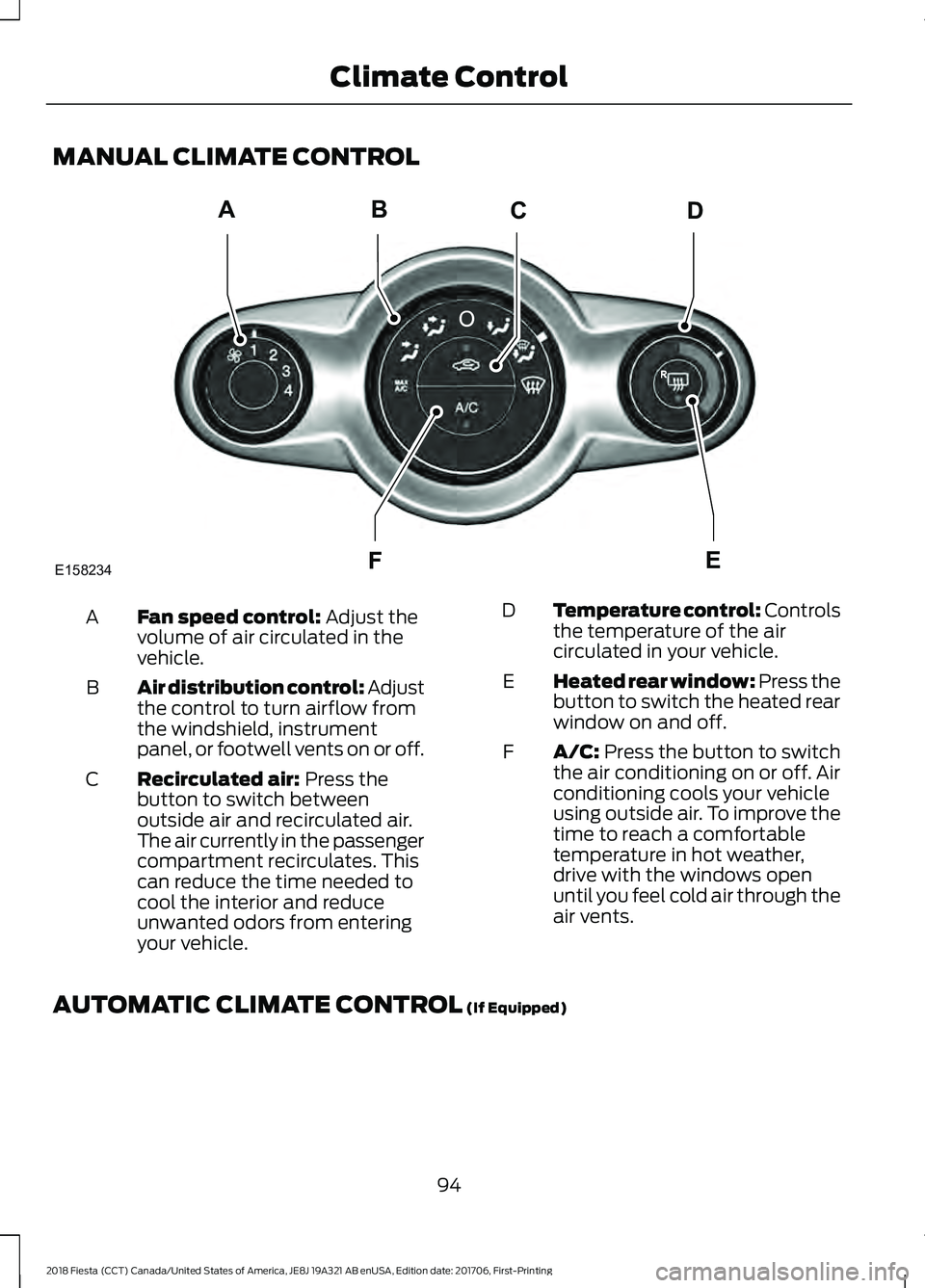

MANUAL CLIMATE CONTROL
Fan speed control: Adjust the
volume of air circulated in the
vehicle.
A
Air distribution control:
Adjust
the control to turn airflow from
the windshield, instrument
panel, or footwell vents on or off.
B
Recirculated air:
Press the
button to switch between
outside air and recirculated air.
The air currently in the passenger
compartment recirculates. This
can reduce the time needed to
cool the interior and reduce
unwanted odors from entering
your vehicle.
C Temperature control: Controls
the temperature of the air
circulated in your vehicle.
D
Heated rear window:
Press the
button to switch the heated rear
window on and off.
E
A/C:
Press the button to switch
the air conditioning on or off. Air
conditioning cools your vehicle
using outside air. To improve the
time to reach a comfortable
temperature in hot weather,
drive with the windows open
until you feel cold air through the
air vents.
F
AUTOMATIC CLIMATE CONTROL
(If Equipped)
94
2018 Fiesta (CCT) Canada/United States of America, JE8J 19A321 AB enUSA, Edition date: 201706, First-Printing Climate ControlABCD
F
E
E158234

Fan speed: Adjust the volume
of air circulated in the vehicle.
A
Air distribution control:
Adjust
the control to turn airflow from
the windshield, instrument
panel, or footwell vents on or off.
You can distribute air through
any combination of these vents.
B
MAX Defrost:
Press the button
to switch on defrost. Outside air
flows through the windshield
vents, air conditioning
automatically turns on, and fan
automatically adjusts to the
C
highest speed. You can also use
this setting to defrost and clear
the windshield of a thin covering
of ice. The heated rear window
also automatically turns on
when you select maximum
defrost. MAX A/C:
Press the button to
maximize cooling. Recirculated
air flows through the instrument
panel vents, air conditioning
automatically turns on, and the
fan automatically adjusts to the
highest speed.
D
Temperature control: Controls
the temperature of the air
circulated in your vehicle.
E
A/C:
Press the button to switch
the air conditioning on or off. Air
conditioning cools your vehicle
using outside air. To improve the
time to reach a comfortable
temperature in hot weather,
drive with the windows open
until you feel cold air through the
air vents.
F
95
2018 Fiesta (CCT) Canada/United States of America, JE8J 19A321 AB enUSA, Edition date: 201706, First-Printing Climate ControlE158263

Recirculated air: Press the
button to switch between
outside air and recirculated air.
The air currently in the passenger
compartment recirculates. This
can reduce the time needed to
cool the interior and reduce
unwanted odors from entering
your vehicle.
G
Note:
Recirculated air may also
turn on and off automatically in
instrument panel or instrument
panel and floor airflow modes
during hot weather to improve
cooling efficiency.
OFF:
Press the button to switch
the system on and off. When the
system is off, it prevents outside
air from entering the vehicle.
H
Heated rear window:
Press the
button to switch the heated rear
window on and off.
I
AUTO:
Press the button to
switch on automatic operation.
Select the desired temperature
using the temperature control.
The system adjusts fan speed,
air distribution, air conditioning
operation, and selects outside
air or recirculated air to heat or
cool the vehicle in order to
maintain the desired
temperature.
J Temperature Control You can set the temperature between 61°F
(16°C)
and 82°F (28°C). In position low,
the system switches to permanent cooling.
In position high, the system switches to
permanent heating.
Note: If you select either position low or
high, the system will not regulate a stable
temperature.
HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints WARNING:
Prolonged use of
recirculated air may cause the windows to
fog up. If the windows fog up, follow the
settings for demisting the windshield.
Note: You may feel a small amount of air
from the footwell air vents regardless of the
air distribution setting.
96
2018 Fiesta (CCT) Canada/United States of America, JE8J 19A321 AB enUSA, Edition date: 201706, First-Printing Climate ControlE148690

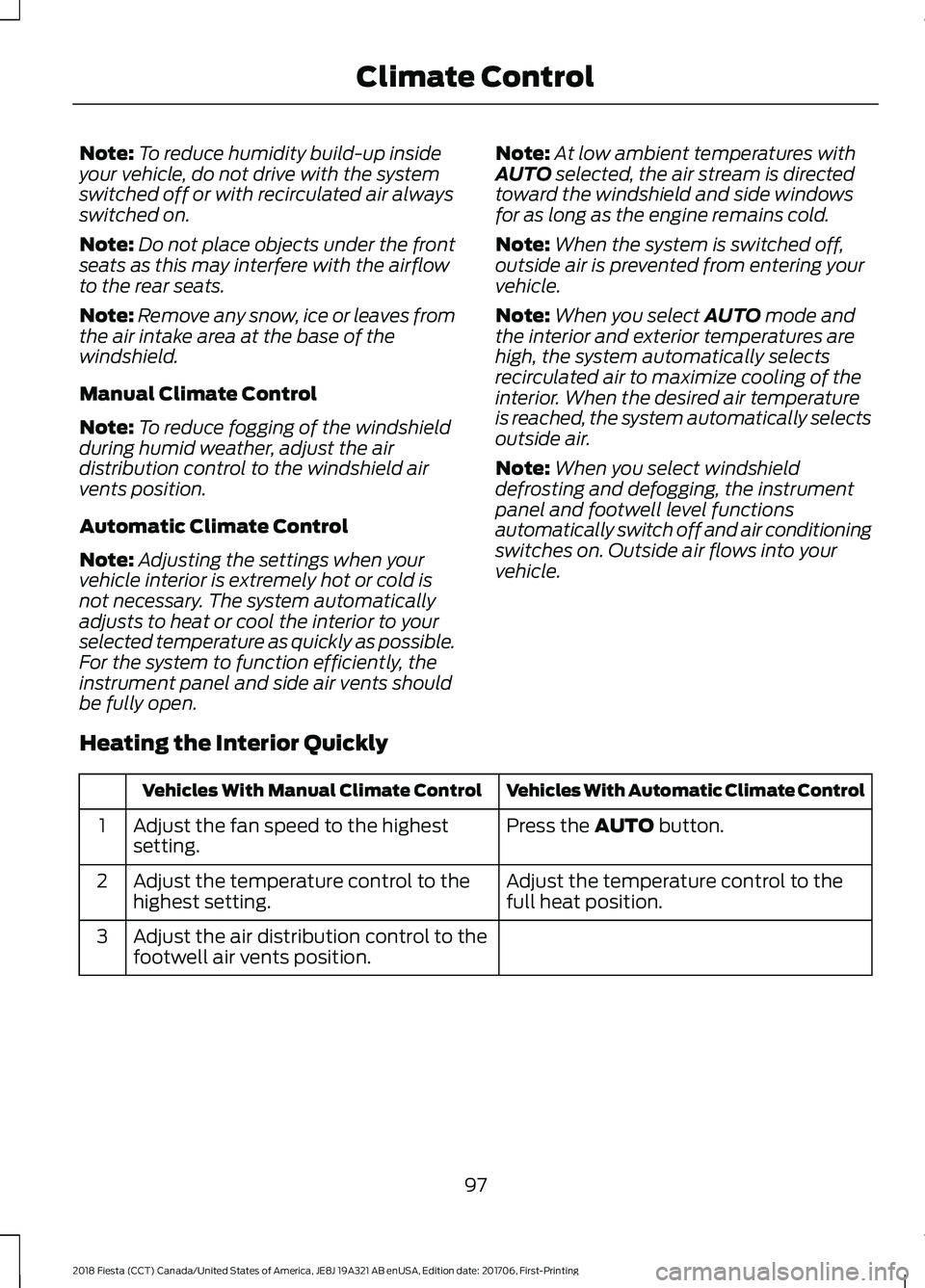

Note:
To reduce humidity build-up inside
your vehicle, do not drive with the system
switched off or with recirculated air always
switched on.
Note: Do not place objects under the front
seats as this may interfere with the airflow
to the rear seats.
Note: Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.
Manual Climate Control
Note: To reduce fogging of the windshield
during humid weather, adjust the air
distribution control to the windshield air
vents position.
Automatic Climate Control
Note: Adjusting the settings when your
vehicle interior is extremely hot or cold is
not necessary. The system automatically
adjusts to heat or cool the interior to your
selected temperature as quickly as possible.
For the system to function efficiently, the
instrument panel and side air vents should
be fully open. Note:
At low ambient temperatures with
AUTO selected, the air stream is directed
toward the windshield and side windows
for as long as the engine remains cold.
Note: When the system is switched off,
outside air is prevented from entering your
vehicle.
Note: When you select
AUTO mode and
the interior and exterior temperatures are
high, the system automatically selects
recirculated air to maximize cooling of the
interior. When the desired air temperature
is reached, the system automatically selects
outside air.
Note: When you select windshield
defrosting and defogging, the instrument
panel and footwell level functions
automatically switch off and air conditioning
switches on. Outside air flows into your
vehicle.
Heating the Interior Quickly Vehicles With Automatic Climate Control
Vehicles With Manual Climate Control
Press the
AUTO button.
Adjust the fan speed to the highest
setting.
1
Adjust the temperature control to the
full heat position.
Adjust the temperature control to the
highest setting.
2
Adjust the air distribution control to the
footwell air vents position.
3
97
2018 Fiesta (CCT) Canada/United States of America, JE8J 19A321 AB enUSA, Edition date: 201706, First-Printing Climate Control
