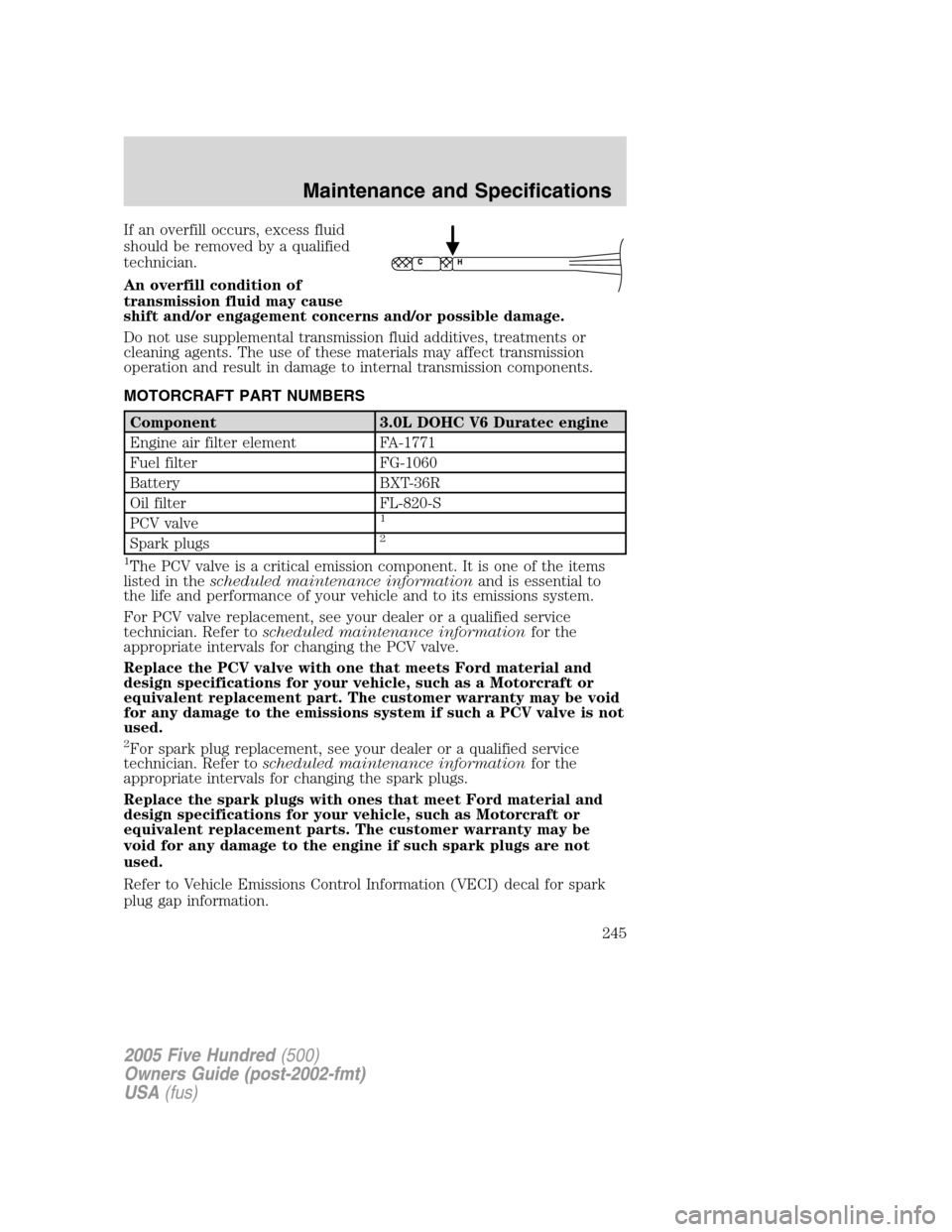

If an overfill occurs, excess fluid
should be removed by a qualified
technician.
An overfill condition of
transmission fluid may cause
shift and/or engagement concerns and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
MOTORCRAFT PART NUMBERS
Component 3.0L DOHC V6 Duratec engine
Engine air filter element FA-1771
Fuel filter FG-1060
Battery BXT-36R
Oil filter FL-820-S
PCV valve
1
Spark plugs2
1
The PCV valve is a critical emission component. It is one of the items
listed in thescheduled maintenance informationand is essential to
the life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your dealer or a qualified service
technician. Refer toscheduled maintenance informationfor the
appropriate intervals for changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your dealer or a qualified service
technician. Refer toscheduled maintenance informationfor the
appropriate intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
245

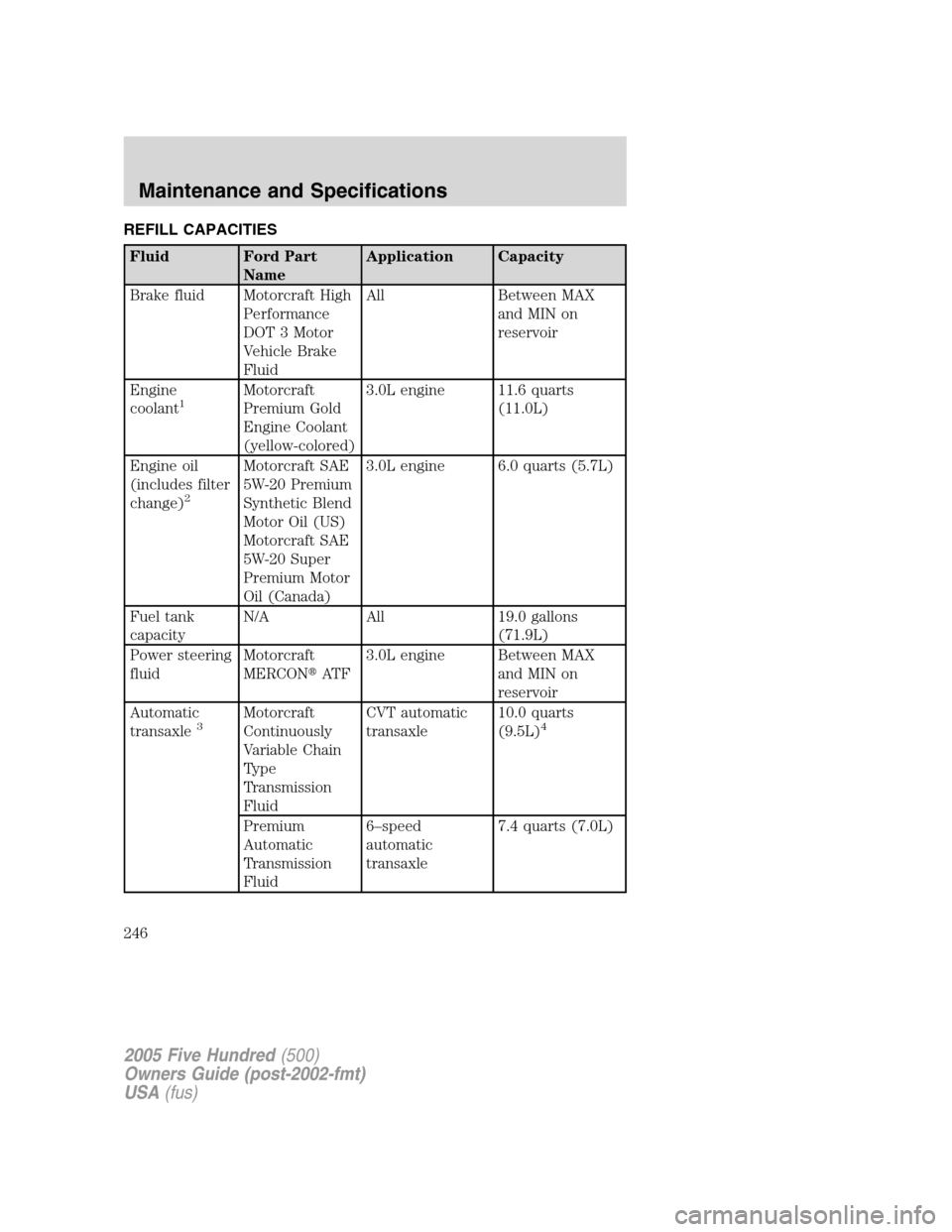

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Between MAX
and MIN on
reservoir
Engine
coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)3.0L engine 11.6 quarts
(11.0L)
Engine oil
(includes filter
change)
2
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)3.0L engine 6.0 quarts (5.7L)
Fuel tank
capacityN/A All 19.0 gallons
(71.9L)
Power steering
fluidMotorcraft
MERCONAT F3.0L engine Between MAX
and MIN on
reservoir
Automatic
transaxle
3Motorcraft
Continuously
Variable Chain
Type
Transmission
FluidCVT automatic
transaxle10.0 quarts
(9.5L)4
Premium
Automatic
Transmission
Fluid6–speed
automatic
transaxle7.4 quarts (7.0L)
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
246

Fluid Ford Part
NameApplication Capacity

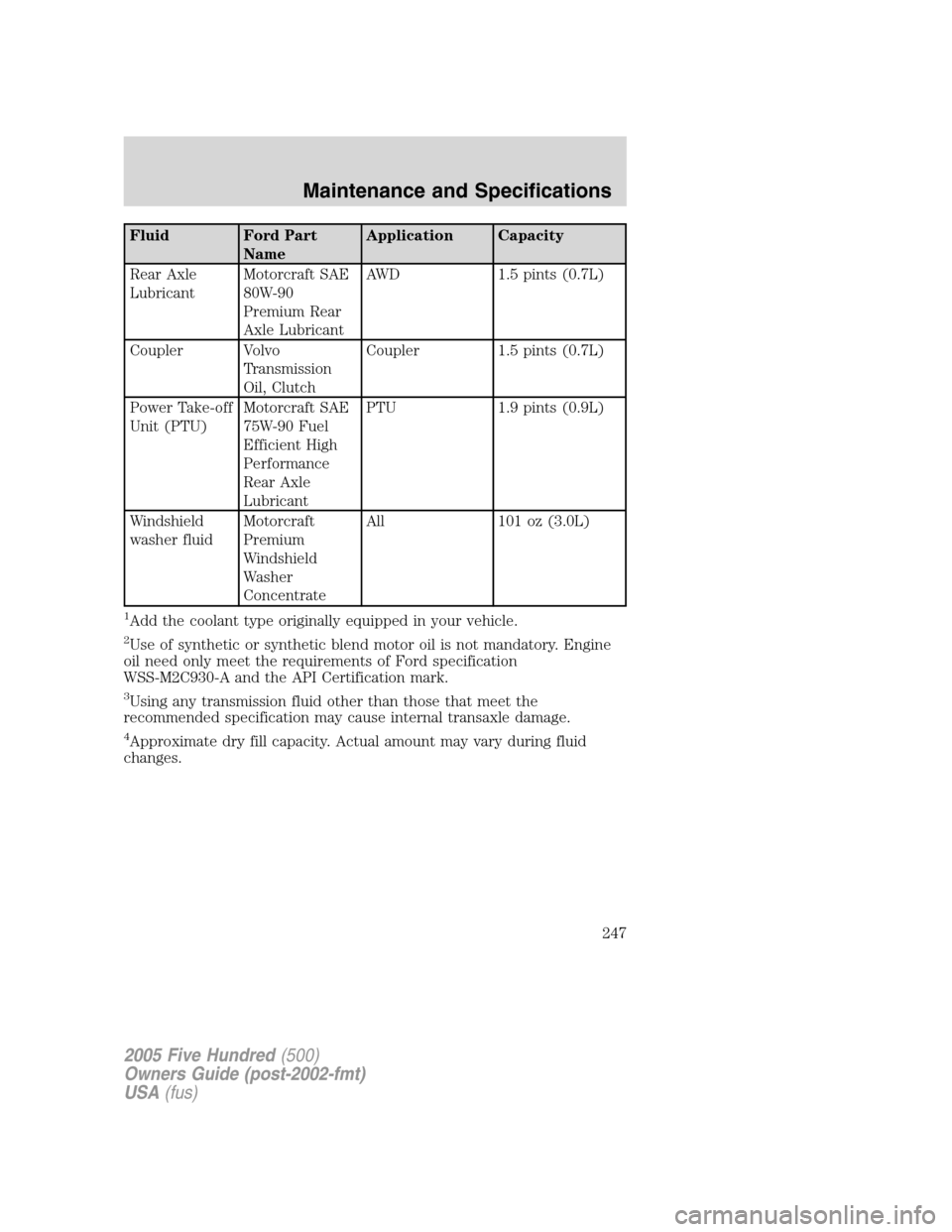

Rear Axle
LubricantMotorcraft SAE
80W-90
Premium Rear
Axle LubricantAWD 1.5 pints (0.7L)
Coupler Volvo
Transmission
Oil, ClutchCoupler 1.5 pints (0.7L)
Power Take-off
Unit (PTU)Motorcraft SAE
75W-90 Fuel
Efficient High
Performance
Rear Axle
LubricantPTU 1.9 pints (0.9L)
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 101 oz (3.0L)
1Add the coolant type originally equipped in your vehicle.
2Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
3Using any transmission fluid other than those that meet the
recommended specification may cause internal transaxle damage.
4Approximate dry fill capacity. Actual amount may vary during fluid
changes.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
247

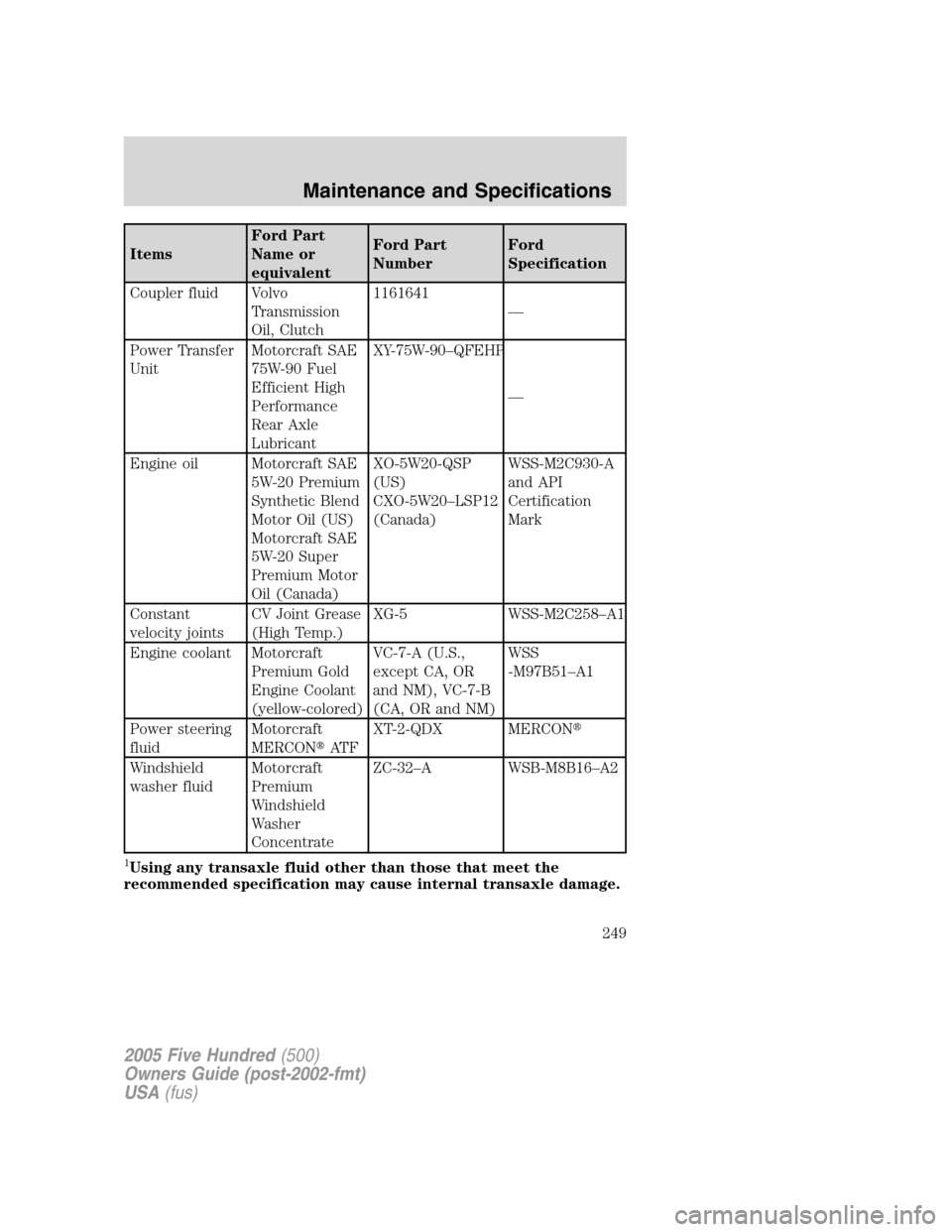

ItemsFord Part
Name or
equivalentFord Part
NumberFord
Specification
Coupler fluid Volvo
Transmission
Oil, Clutch1161641
—
Power Transfer
UnitMotorcraft SAE
75W-90 Fuel
Efficient High
Performance
Rear Axle
LubricantXY-75W-90–QFEHP
—
Engine oil Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C930-A
and API
Certification
Mark
Constant
velocity jointsCV Joint Grease
(High Temp.)XG-5 WSS-M2C258–A1
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA, OR
and NM), VC-7-B
(CA, OR and NM)WSS
-M97B51–A1
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1Using any transaxle fluid other than those that meet the
recommended specification may cause internal transaxle damage.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
249

ENGINE DATA
Engine 3.0L-DOHC V6 engine
Displacement 183 cubic inches
Required fuel 87 octane
Firing order 1–4–2–5–3–6
Spark plug gap 1.32–1.42mm (0.052–0.056 inch)
Ignition system Coil on plug
Compression ratio 10.0:1
VEHICLE DIMENSIONS
Vehicle dimensions Inches (mm)
(1) Overall length 200.7 (5099)
(2) Overall width 74.5 (1892)
(3) Overall height 61.5 (1561)
(4) Wheelbase 112.9 (2867)
(5) Tread - Front 64.6 (1640)
(5) Tread - Rear 65.0 (1650)
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
250

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transaxle.
Transmission/Transaxle code designations
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label . The following table tells you
which transmission or transaxle
each code represents.
Code Description
A CVT (continuously variable transaxle)
B Six-speed automatic (Aisin F21)
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
253

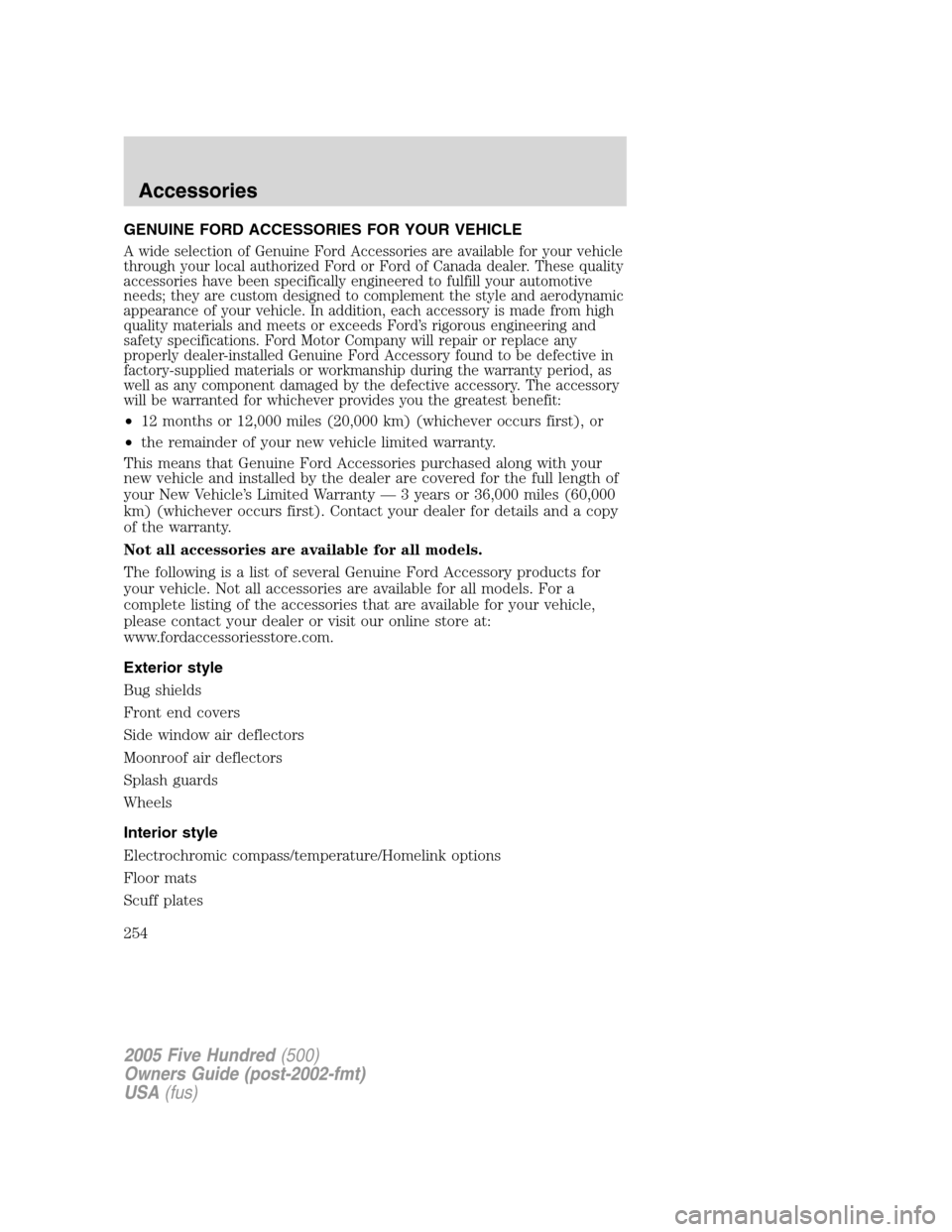

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your vehicle
through your local authorized Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and aerodynamic
appearance of your vehicle. In addition, each accessory is made from high
quality materials and meets or exceeds Ford’s rigorous engineering and
safety specifications. Ford Motor Company will repair or replace any
properly dealer-installed Genuine Ford Accessory found to be defective in
factory-supplied materials or workmanship during the warranty period, as
well as any component damaged by the defective accessory. The accessory
will be warranted for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products for
your vehicle. Not all accessories are available for all models. For a
complete listing of the accessories that are available for your vehicle,
please contact your dealer or visit our online store at:
www.fordaccessoriesstore.com.
Exterior style
Bug shields
Front end covers
Side window air deflectors
Moonroof air deflectors
Splash guards
Wheels
Interior style
Electrochromic compass/temperature/Homelink options
Floor mats
Scuff plates
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
254

Lifestyle
Engine block heaters
Interior cargo organization and management
Smoker’s pack
Peace of mind
First aid kits
Full vehicle covers
Highway safety kits
Keyless entry keypads
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your dealer for specific weight
information.
•
The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service technician.
•Mobile communications systems may harm the operation of your vehicle,
particularly if they are not properly designed for automotive use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the dealer or the owner may adversely affect battery
performance and durability.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
255

A
Accessory delay ..........................48
Air cleaner filter .......................245
Air conditioning ....................27, 29
Airbag supplemental restraint
system ........................109, 116, 119
and child safety seats ............111
description ..............109, 116, 119
disposal ....................................122
driver airbag ............111, 117, 120
indicator light .................116, 121
operation .................111, 117, 120
passenger airbag .....111, 117, 120
side airbag ...............................116
All Wheel Drive (AWD),
driving off road .........................178
Antifreeze
(see Engine coolant) ................225
Anti-lock brake system
(see Brakes) ..............................169
Anti-theft system ........................86
arming the system ....................86
disarming a triggered system ..87
Audio system (see Radio) ...17, 20
Automatic transaxle
fluid, adding ....................242–243
fluid, checking ................242–243
fluid, refill capacities ..............246
fluid, specification ..................250
Automatic transmission
driving an automatic
overdrive .........................174–175
Axle
lubricant specifications ..........248
B
Battery .......................................223acid, treating emergencies .....223
jumping a disabled battery ....194
maintenance-free ....................223
replacement, specifications ...245
servicing ..................................223
BeltMinder .................................103
Brakes ........................................169
anti-lock ...................................169
anti-lock brake system (ABS)
warning light ...........................169
fluid, checking and adding ....242
fluid, refill capacities ..............246
fluid, specifications .........248, 250
lubricant specifications ..248, 250
parking ....................................170
shift interlock ..........................172
Bulbs ............................................37
C
Capacities for refilling fluids ....246
Cargo net .....................................71
Cassette tape player ...................17
Cell phone use ............................70
Changing a tire .........................138
Child safety restraints ..............123
child safety belts ....................123
Child safety seats ......................125
attaching with tether straps ..129
in front seat ............................127
in rear seat ..............................127
Cleaning your vehicle
engine compartment ..............211
instrument panel ....................213
interior .....................................213
interior trim ............................213
plastic parts ............................212
washing ....................................210
waxing .....................................210
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
256

wheels ......................................211
wiper blades ............................212
Climate control (see Air
conditioning or Heating) ......27, 29
Clock ............................................45
Clock adjust
6-CD in dash .............................21
Compass, electronic
set zone adjustment .................61
Console ........................................70
overhead ....................................45
Controls
power seat .................................90
steering column ........................53
Coolant
checking and adding ..............225
refill capacities ................230, 246
specifications ..................248, 250
Cruise control
(see Speed control) ....................50
Cupholder(s) ...............................94
Customer Assistance ................185
Ford accessories for your
vehicle .....................................214
Ford Extended Service
Plan ..........................................207
Getting assistance outside the
U.S. and Canada .....................208
Getting roadside assistance ...185
Getting the service you
need .........................................201
Ordering additional owner’s
literature .................................208
The Dispute Settlement
Board .......................................203
Utilizing the
Mediation/Arbitration
Program ...................................206D
Daytime running lamps
(see Lamps) ................................34
Dipstick
automatic transmission
fluid ..................................242–243
engine oil .................................219
Doors
lubricant specifications ..........248
Driving under special
conditions ..........................179, 182
sand .........................................181
snow and ice ...........................183
through water .................181, 184
E
Electronic message center .........59
Emergencies, roadside
jump-starting ..........................194
Emission control system ..........239
Engine ........................................250
cleaning ...................................211
coolant .....................................225
idle speed control ...................223
lubrication
specifications ..................248, 250
refill capacities ........................246
service points ..........................218
starting after a collision .........186
Engine block heater .................168
Engine oil ..................................219
change oil soon warning,
message center .......................219
checking and adding ..............219
dipstick ....................................219
filter, specifications ........222, 245
recommendations ...................222
refill capacities ........................246
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
257
