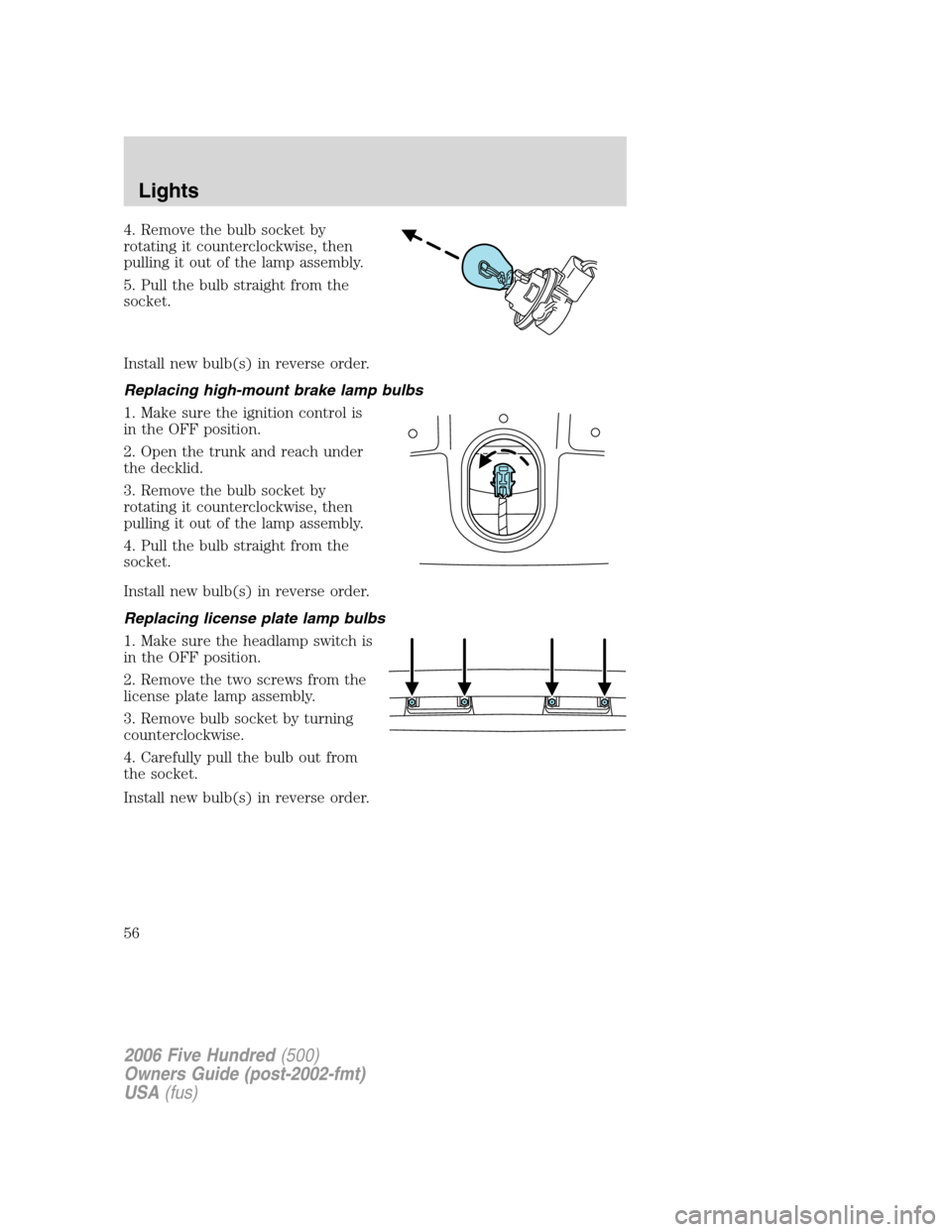

4. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
5. Pull the bulb straight from the
socket.
Install new bulb(s) in reverse order.
Replacing high-mount brake lamp bulbs
1. Make sure the ignition control is
in the OFF position.
2. Open the trunk and reach under
the decklid.
3. Remove the bulb socket by
rotating it counterclockwise, then
pulling it out of the lamp assembly.
4. Pull the bulb straight from the
socket.
Install new bulb(s) in reverse order.
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the two screws from the
license plate lamp assembly.
3. Remove bulb socket by turning
counterclockwise.
4. Carefully pull the bulb out from
the socket.
Install new bulb(s) in reverse order.
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
56

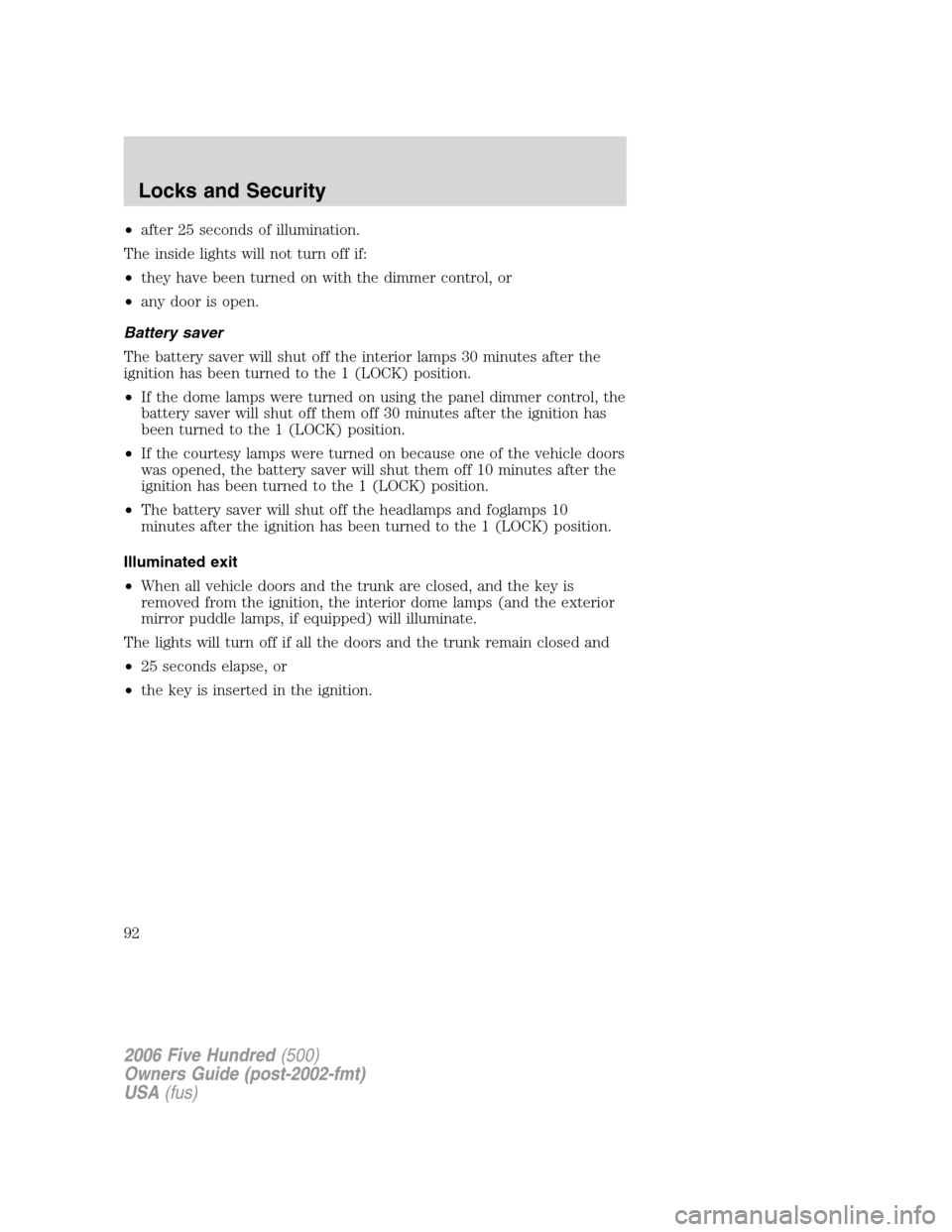

•after 25 seconds of illumination.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Battery saver
The battery saver will shut off the interior lamps 30 minutes after the
ignition has been turned to the 1 (LOCK) position.
•If the dome lamps were turned on using the panel dimmer control, the
battery saver will shut off them off 30 minutes after the ignition has
been turned to the 1 (LOCK) position.
•If the courtesy lamps were turned on because one of the vehicle doors
was opened, the battery saver will shut them off 10 minutes after the
ignition has been turned to the 1 (LOCK) position.
•The battery saver will shut off the headlamps and foglamps 10
minutes after the ignition has been turned to the 1 (LOCK) position.
Illuminated exit
•When all vehicle doors and the trunk are closed, and the key is
removed from the ignition, the interior dome lamps (and the exterior
mirror puddle lamps, if equipped) will illuminate.
The lights will turn off if all the doors and the trunk remain closed and
•25 seconds elapse, or
•the key is inserted in the ignition.
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
92

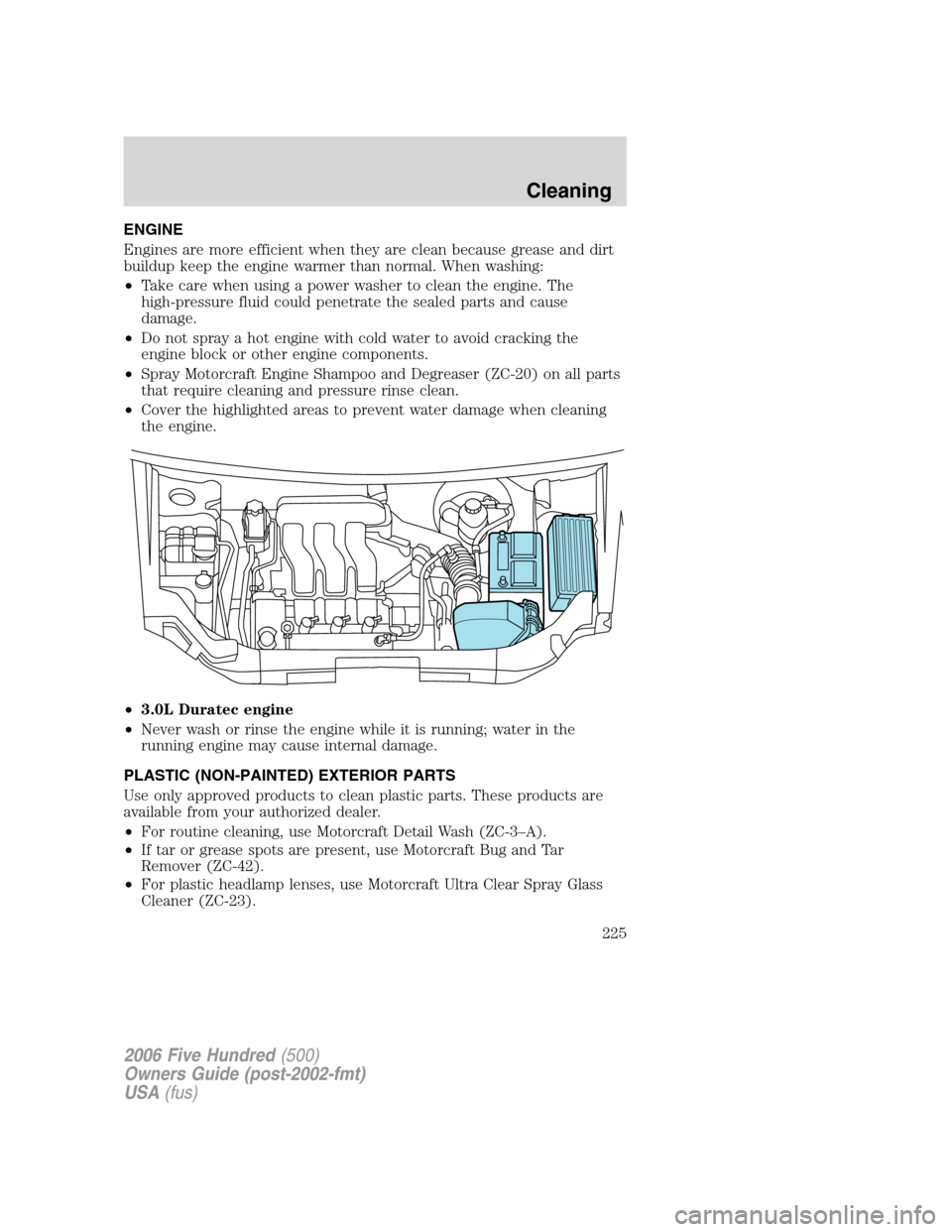

ENGINE
Engines are more efficient when they are clean because grease and dirt
buildup keep the engine warmer than normal. When washing:
•Take care when using a power washer to clean the engine. The
high-pressure fluid could penetrate the sealed parts and cause
damage.
•Do not spray a hot engine with cold water to avoid cracking the
engine block or other engine components.
•Spray Motorcraft Engine Shampoo and Degreaser (ZC-20) on all parts
that require cleaning and pressure rinse clean.
•Cover the highlighted areas to prevent water damage when cleaning
the engine.
•3.0L Duratec engine
•Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use Motorcraft Detail Wash (ZC-3–A).
•If tar or grease spots are present, use Motorcraft Bug and Tar
Remover (ZC-42).
•For plastic headlamp lenses, use Motorcraft Ultra Clear Spray Glass
Cleaner (ZC-23).
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
225

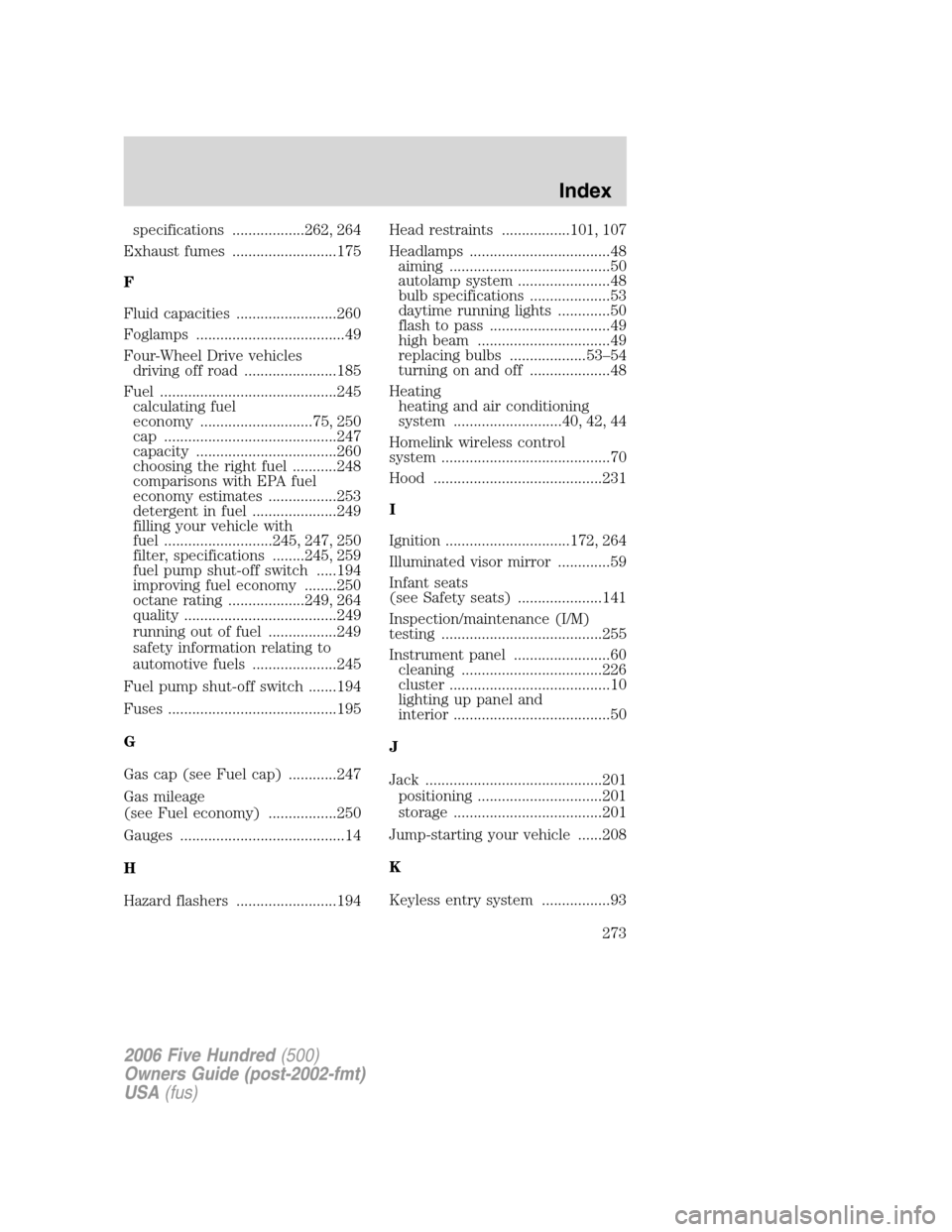

specifications ..................262, 264
Exhaust fumes ..........................175
F
Fluid capacities .........................260
Foglamps .....................................49
Four-Wheel Drive vehicles
driving off road .......................185
Fuel ............................................245
calculating fuel
economy ............................75, 250
cap ...........................................247
capacity ...................................260
choosing the right fuel ...........248
comparisons with EPA fuel
economy estimates .................253
detergent in fuel .....................249
filling your vehicle with
fuel ...........................245, 247, 250
filter, specifications ........245, 259
fuel pump shut-off switch .....194
improving fuel economy ........250
octane rating ...................249, 264
quality ......................................249
running out of fuel .................249
safety information relating to
automotive fuels .....................245
Fuel pump shut-off switch .......194
Fuses ..........................................195
G
Gas cap (see Fuel cap) ............247
Gas mileage
(see Fuel economy) .................250
Gauges .........................................14
H
Hazard flashers .........................194Head restraints .................101, 107
Headlamps ...................................48
aiming ........................................50
autolamp system .......................48
bulb specifications ....................53
daytime running lights .............50
flash to pass ..............................49
high beam .................................49
replacing bulbs ...................53–54
turning on and off ....................48
Heating
heating and air conditioning
system ...........................40, 42, 44
Homelink wireless control
system ..........................................70
Hood ..........................................231
I
Ignition ...............................172, 264
Illuminated visor mirror .............59
Infant seats
(see Safety seats) .....................141
Inspection/maintenance (I/M)
testing ........................................255
Instrument panel ........................60
cleaning ...................................226
cluster ........................................10
lighting up panel and
interior .......................................50
J
Jack ............................................201
positioning ...............................201
storage .....................................201
Jump-starting your vehicle ......208
K
Keyless entry system .................93
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
273

autolock .....................................94
keypad .......................................93
locking and unlocking doors ....94
programming entry code .........93
Keys .............................................97
positions of the ignition .........172
L
Lamps
autolamp system .......................48
bulb replacement
specifications chart ..................53
daytime running light ...............50
fog lamps ...................................49
headlamps .................................48
headlamps, flash to pass ..........49
instrument panel, dimming .....50
interior lamps ...........................52
replacing bulbs .............53–54, 57
Lane change indicator
(see Turn signal) ........................52
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........176
Load limits .................................163
Locks
autolock .....................................94
childproof ..................................85
doors ..........................................84
Lubricant specifications ...262, 264
Lug nuts ....................................208
Lumbar support, seats .............102
M
Message center ...........................74
english/metric button ...............79
system check button ................79
warning messages .....................80
Mirrors .........................................64automatic dimming rearview
mirror ........................................64
fold away ...................................64
heated ........................................65
side view mirrors (power) .......64
Moon roof ....................................69
Motorcraft parts ........228, 245, 259
N
Navigation system .......................25
O
Octane rating ............................249
Oil (see Engine oil) ..................234
P
Parking brake ............................177
Parts (see Motorcraft parts) ....259
Passenger Occupant
Classification Sensor .................110
Power adjustable foot pedals .....65
Power distribution box
(see Fuses) ...............................198
Power door locks ........................84
Power mirrors .............................64
Power point .................................61
Power steering ..........................178
fluid, checking and adding ....255
fluid, refill capacity ................260
fluid, specifications .........262, 264
Power Windows ...........................61
R
Radio ......................................17, 20
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
274
