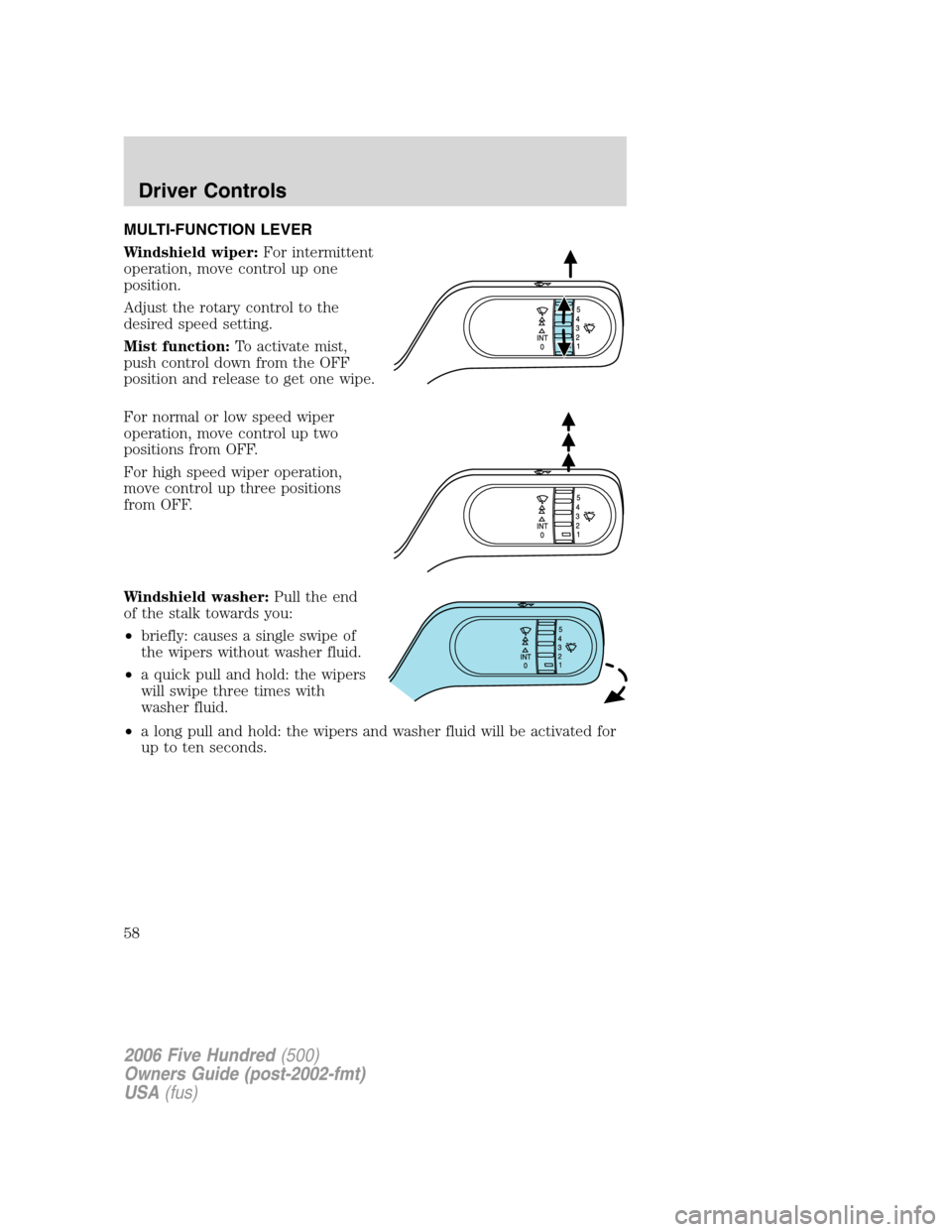

MULTI-FUNCTION LEVER
Windshield wiper:For intermittent
operation, move control up one
position.
Adjust the rotary control to the
desired speed setting.
Mist function:To activate mist,
push control down from the OFF
position and release to get one wipe.
For normal or low speed wiper
operation, move control up two
positions from OFF.
For high speed wiper operation,
move control up three positions
from OFF.
Windshield washer:Pull the end
of the stalk towards you:
•briefly: causes a single swipe of
the wipers without washer fluid.
•a quick pull and hold: the wipers
will swipe three times with
washer fluid.
•a long pull and hold: the wipers and washer fluid will be activated for
up to ten seconds.
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
58

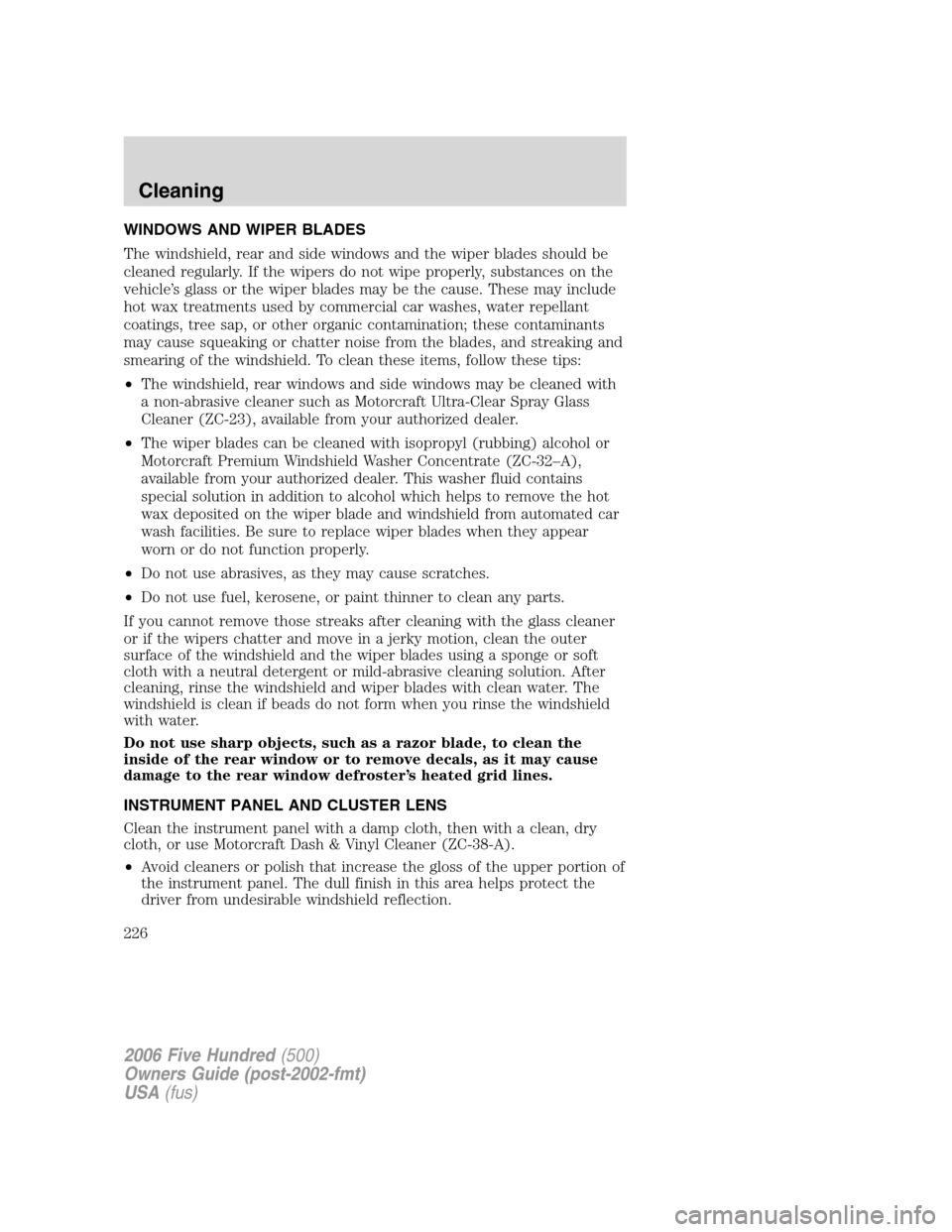

WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellant
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32–A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
INSTRUMENT PANEL AND CLUSTER LENS
Clean the instrument panel with a damp cloth, then with a clean, dry
cloth, or use Motorcraft Dash & Vinyl Cleaner (ZC-38-A).
•Avoid cleaners or polish that increase the gloss of the upper portion of
the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Cleaning
226

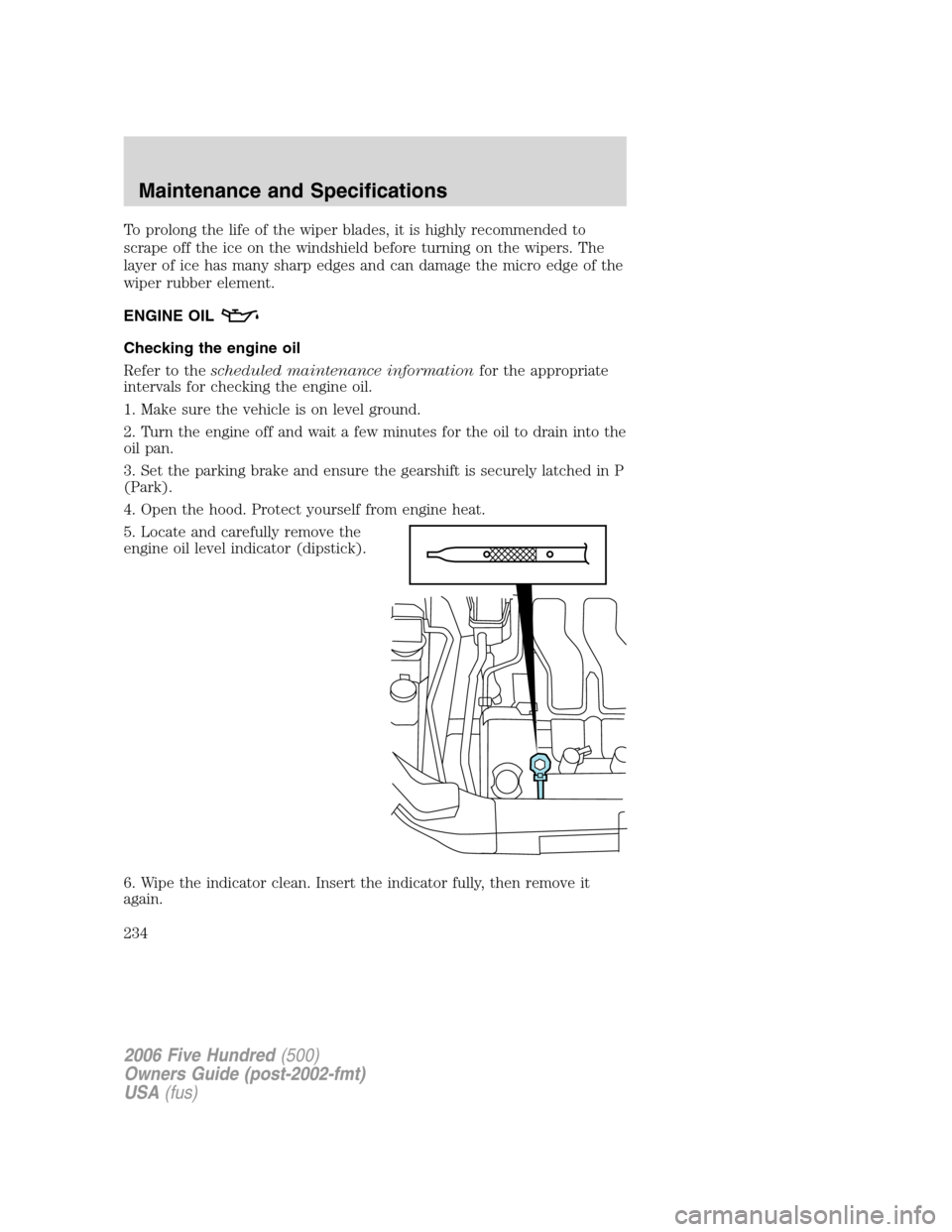

To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
ENGINE OIL
Checking the engine oil
Refer to thescheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait a few minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in P
(Park).
4. Open the hood. Protect yourself from engine heat.
5. Locate and carefully remove the
engine oil level indicator (dipstick).
6. Wipe the indicator clean. Insert the indicator fully, then remove it
again.
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
234

recreational towing .................171
trailer towing ..........................169
wrecker ....................................214
Traction control ........................178
Transaxle
fluid, checking and adding
(automatic) .....................256–257
fluid, refill capacities ..............260
lubricant specifications ..........264
Transmission .............................179
brake-shift interlock (BSI) ....179
lubricant specifications ..........262
Trunk ...........................................85
remote release ....................83, 88
Turn signal ..................................52
V
Vehicle dimensions ...................264Vehicle Identification Number
(VIN) ..........................................266
Vehicle loading ..........................163
Ventilating your vehicle ...........175
W
Warning lights (see Lights) .......10
Washer fluid ..............................233
Water, Driving through .............191
Windows
power .........................................61
Windshield washer fluid and
wipers
checking and adding fluid .....233
operation ...................................58
replacing wiper blades ...........233
Wrecker towing .........................214
2006 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
276
