snow chains FORD FIVE HUNDRED 2007 D258 / 1.G Owners Manual

SNOW TIRES AND CHAINS
Snow tires must be the same size and grade as the tires you
currently have on your vehicle.
The tires on your vehicle have all weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use chains, it is recommended that steel
wheels (of the same size and specifications) be used, as chains may chip
aluminum wheels.
Follow these guidelines when using snow tires and chains:
•Use only SAE class “S” cables or equivalent on the front axle for
P215/60R17 equipped vehicles. SAE class “S” chains or other
conventional link chains may cause damage to the vehicles wheel
house and/or body. Use of optional spike spider type traction devices
or equivalent is also acceptable.
•Do not install tire chains, cables, or optional traction devices on the
rear tires. This could cause damage to the vehicle’s wheel house or
body.
•Do not use tire chains, cables, or optional traction devices with
optional P225/55R18 tires.
•Install cable chains securely, verifying that the cables do not touch any
wiring, brake lines or fuel lines.
•Drive cautiously. If you hear the cables rub or bang against your
vehicle, stop and re-tighten the cables. If this does not work, remove
the cables to prevent damage to your vehicle.
•If possible, avoid fully loading your vehicle.
•Remove the tire cables when they are no longer needed. Do not use
tire cables on dry roads.
•The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when
using snow tires and chains.
•Do not exceed 30 mph (48 km/h) with tire cables on your vehicle.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Tires, Wheels and Loading
173

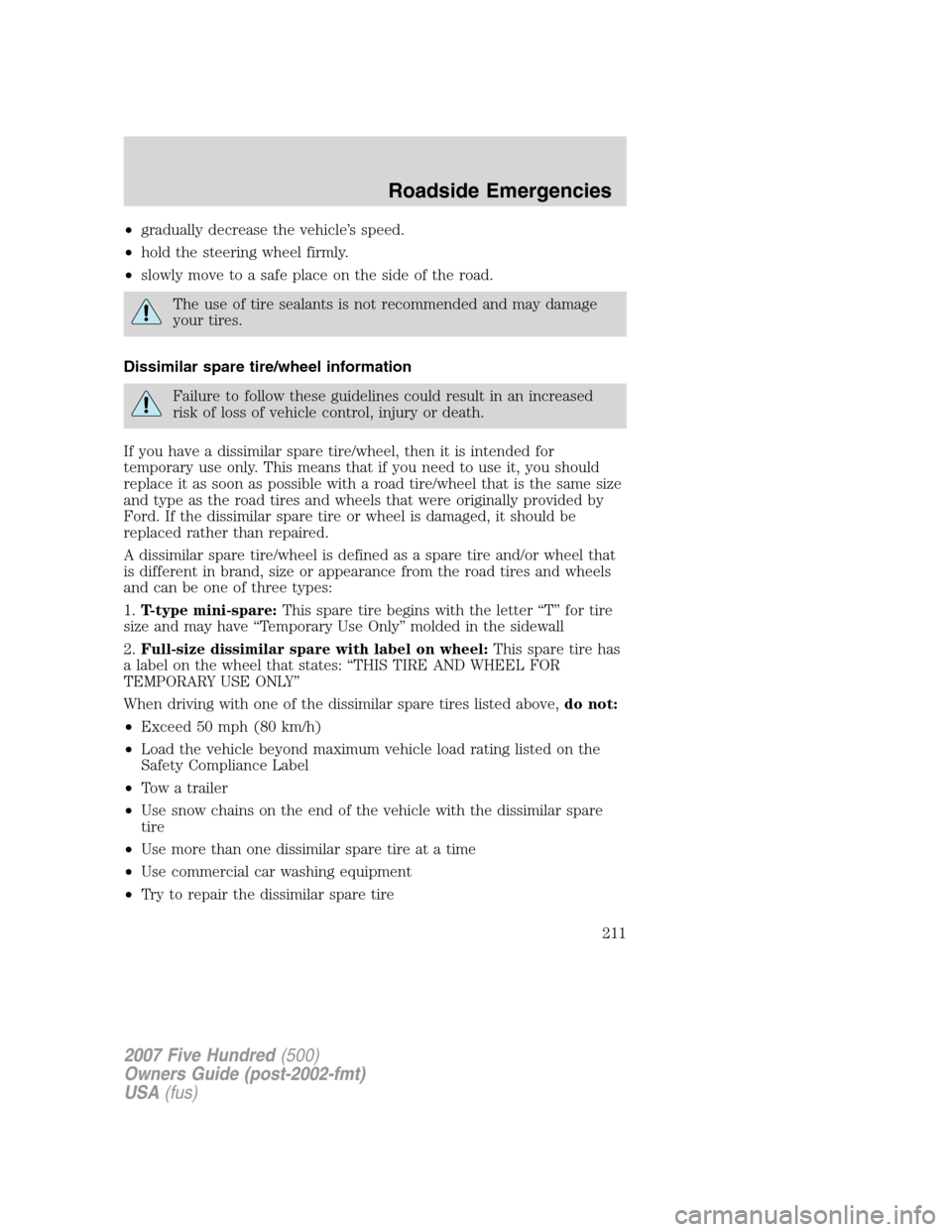

•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
The use of tire sealants is not recommended and may damage
your tires.
Dissimilar spare tire/wheel information
Failure to follow these guidelines could result in an increased
risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
211

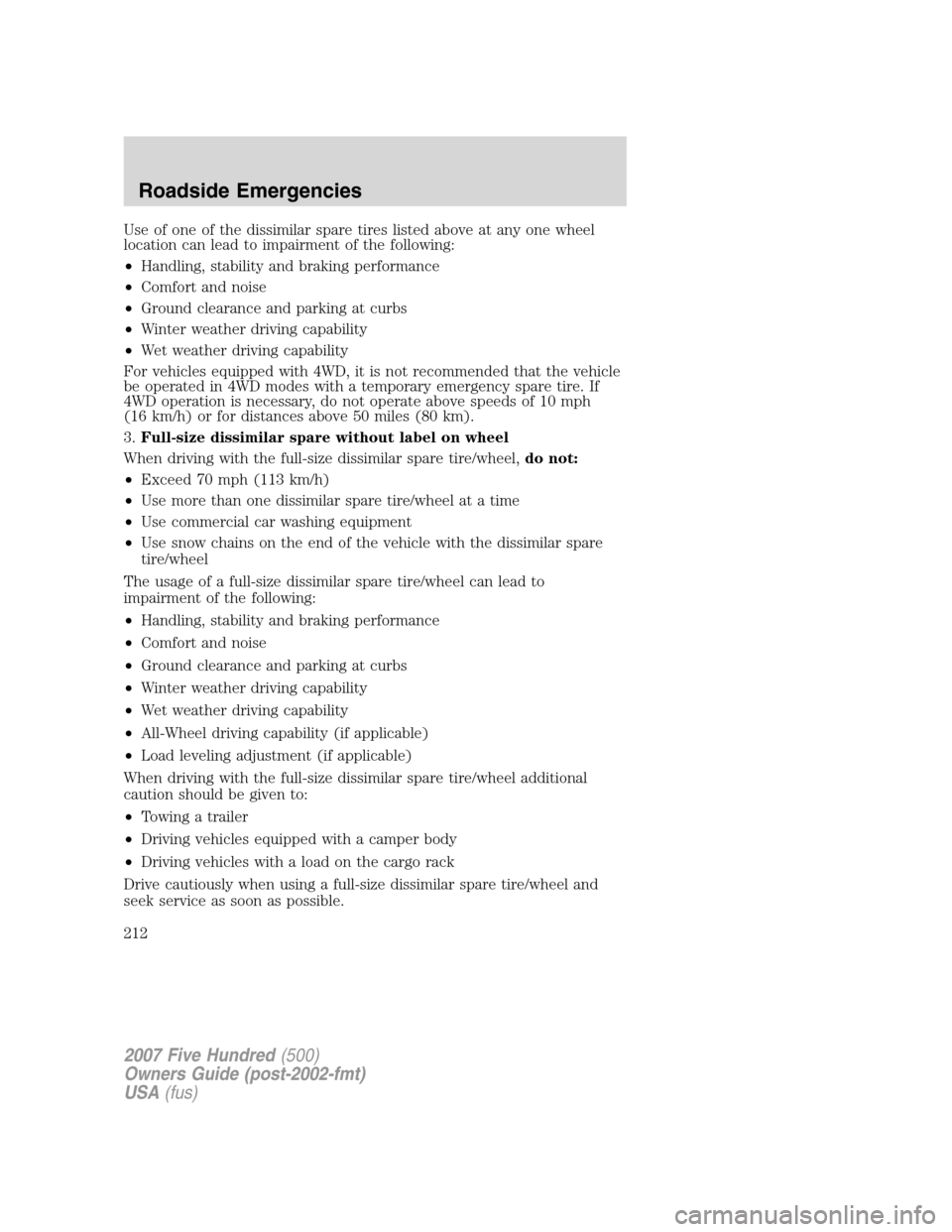

Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
For vehicles equipped with 4WD, it is not recommended that the vehicle
be operated in 4WD modes with a temporary emergency spare tire. If
4WD operation is necessary, do not operate above speeds of 10 mph
(16 km/h) or for distances above 50 miles (80 km).
3.Full-size dissimilar spare without label on wheel
When driving with the full-size dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow chains on the end of the vehicle with the dissimilar spare
tire/wheel
The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
•Handling, stability and braking performance
•Comfort and noise
•Ground clearance and parking at curbs
•Winter weather driving capability
•Wet weather driving capability
•All-Wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
When driving with the full-size dissimilar spare tire/wheel additional
caution should be given to:
•Towing a trailer
•Driving vehicles equipped with a camper body
•Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
212

Rear seat entertainment
system ..........................................30
Relays ........................................204
Remote entry system .................96
illuminated entry ............100, 102
locking/unlocking doors .....96–97
opening the trunk .....................97
panic alarm ...............................97
replacement/additional
transmitters ...............................99
replacing the batteries .............98
Reverse sensing system ...........193
Roadside assistance ..................202
S
Safety Belt Maintenance ..........125
Safety belts
(see Safety restraints) ............117,
121–124
Safety Canopy ...........................142
Safety defects,
reporting ............................231–232
Safety restraints ........117, 121–125
Belt-Minder...........................126
extension assembly ................125
for adults .........................122–124
for children .....................145–146
Occupant Classification
Sensor ......................................119
safety belt maintenance .........125
warning light and chime ........126
Safety seats for children ..........150
Safety Compliance
Certification Label ....................275
Satellite Radio Information ........27
Seats ..........................................110
child safety seats ....................150front seats ...............110, 112, 114
heated ........................................50
memory seat .....................97, 115
SecuriLock passive
anti-theft system .......................105
Servicing your vehicle ..............240
Setting the clock
AM/FM single CD .....................17
AM/FM/In-dash 6 CD ................22
Spare tire
(see Changing the Tire) ...........213
Spark plugs,
specifications .....................271, 274
Specification chart,
lubricants ...................................272
Speed control ..............................72
Starting your vehicle ........182–184
jump starting ..........................217
Steering wheel
controls ......................................75
tilting .........................................65
T
Tilt steering wheel ......................65
Tires ...........................158–159, 210
alignment ................................166
care ..........................................162
changing ..........................210, 213
checking the pressure ............162
inflating ...................................160
label .........................................172
replacing ..................................164
rotating ....................................166
safety practices .......................165
sidewall information ...............168
snow tires and chains ............173
spare tire .................................211
terminology .............................159
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
283
