spark plugs replace FORD FIVE HUNDRED 2007 D258 / 1.G Owners Manual

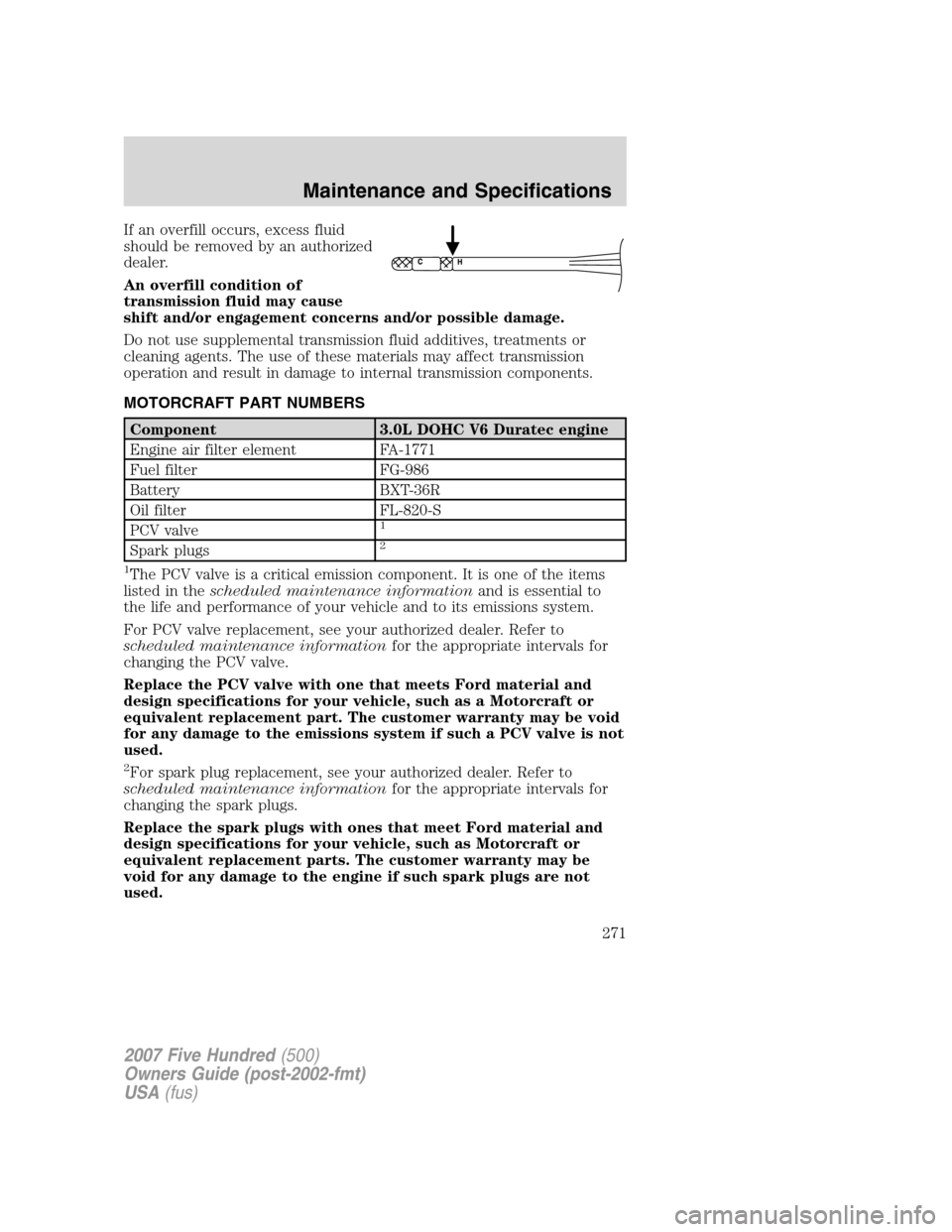

If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
An overfill condition of
transmission fluid may cause
shift and/or engagement concerns and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
MOTORCRAFT PART NUMBERS
Component 3.0L DOHC V6 Duratec engine
Engine air filter element FA-1771
Fuel filter FG-986
Battery BXT-36R
Oil filter FL-820-S
PCV valve
1
Spark plugs2
1
The PCV valve is a critical emission component. It is one of the items
listed in thescheduled maintenance informationand is essential to
the life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
271

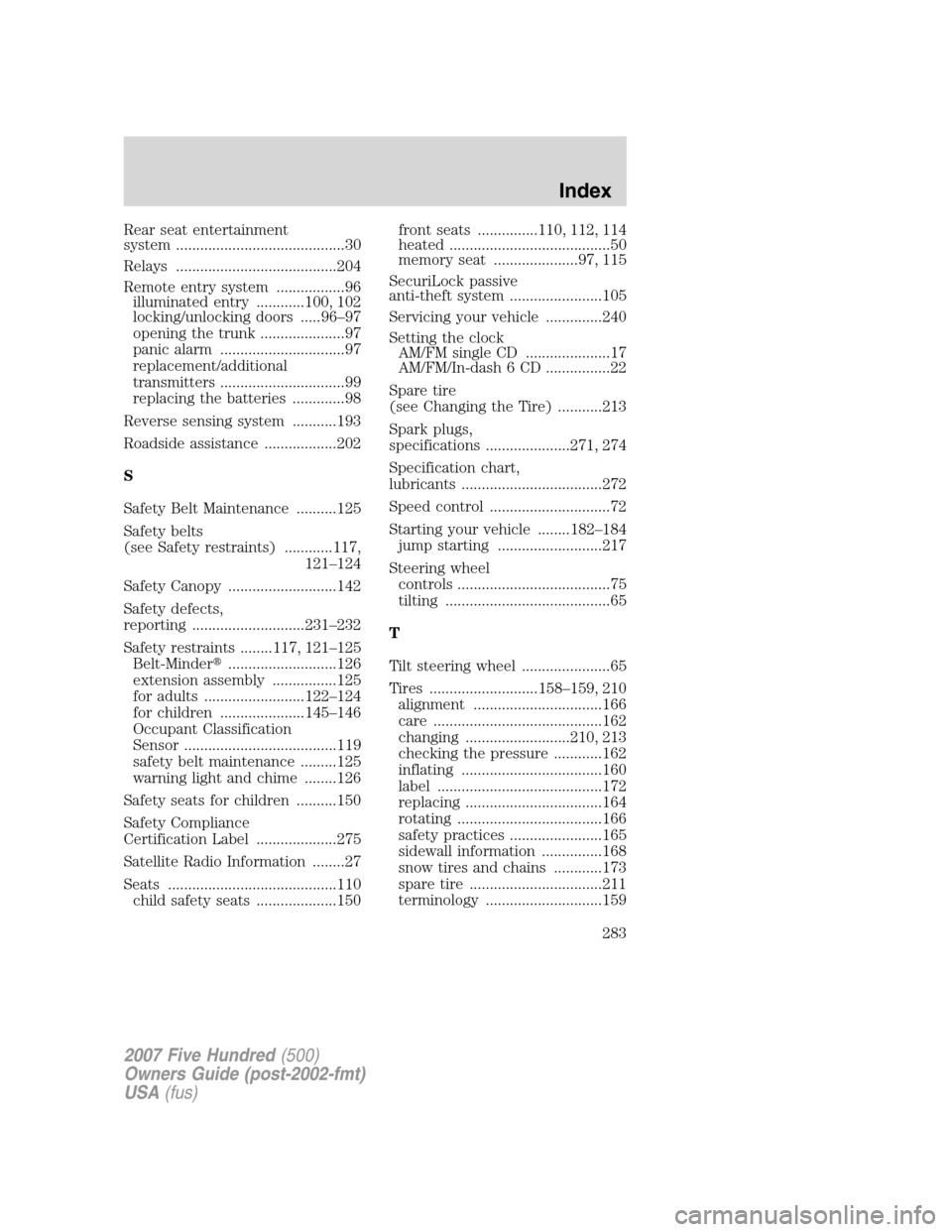

Rear seat entertainment
system ..........................................30
Relays ........................................204
Remote entry system .................96
illuminated entry ............100, 102
locking/unlocking doors .....96–97
opening the trunk .....................97
panic alarm ...............................97
replacement/additional
transmitters ...............................99
replacing the batteries .............98
Reverse sensing system ...........193
Roadside assistance ..................202
S
Safety Belt Maintenance ..........125
Safety belts
(see Safety restraints) ............117,
121–124
Safety Canopy ...........................142
Safety defects,
reporting ............................231–232
Safety restraints ........117, 121–125
Belt-Minder...........................126
extension assembly ................125
for adults .........................122–124
for children .....................145–146
Occupant Classification
Sensor ......................................119
safety belt maintenance .........125
warning light and chime ........126
Safety seats for children ..........150
Safety Compliance
Certification Label ....................275
Satellite Radio Information ........27
Seats ..........................................110
child safety seats ....................150front seats ...............110, 112, 114
heated ........................................50
memory seat .....................97, 115
SecuriLock passive
anti-theft system .......................105
Servicing your vehicle ..............240
Setting the clock
AM/FM single CD .....................17
AM/FM/In-dash 6 CD ................22
Spare tire
(see Changing the Tire) ...........213
Spark plugs,
specifications .....................271, 274
Specification chart,
lubricants ...................................272
Speed control ..............................72
Starting your vehicle ........182–184
jump starting ..........................217
Steering wheel
controls ......................................75
tilting .........................................65
T
Tilt steering wheel ......................65
Tires ...........................158–159, 210
alignment ................................166
care ..........................................162
changing ..........................210, 213
checking the pressure ............162
inflating ...................................160
label .........................................172
replacing ..................................164
rotating ....................................166
safety practices .......................165
sidewall information ...............168
snow tires and chains ............173
spare tire .................................211
terminology .............................159
2007 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
283
