Page 3 of 397
Roadside Emergencies 292
Getting roadside assistance 292
Hazard flasher control 293
Fuel pump shut-off 294
Fuses and relays 294
Changing tires 302
Temporary mobility kit 309
Wheel lug nut torque 318
Jump starting 319
Wrecker towing 325
Customer Assistance 327
Reporting safety defects (U.S. only) 333
Reporting safety defects (Canada only) 333
Cleaning 334
Maintenance and Specifications 343
Engine compartment 345
Engine oil 349
Battery 352
Engine coolant 354
Fuel information 361
Air filter(s) 376
Part numbers 378
Maintenance product specifications and capacities 379
Engine data 382
Table of Contents
3
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)
Page 11 of 397
Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)
Page 351 of 397

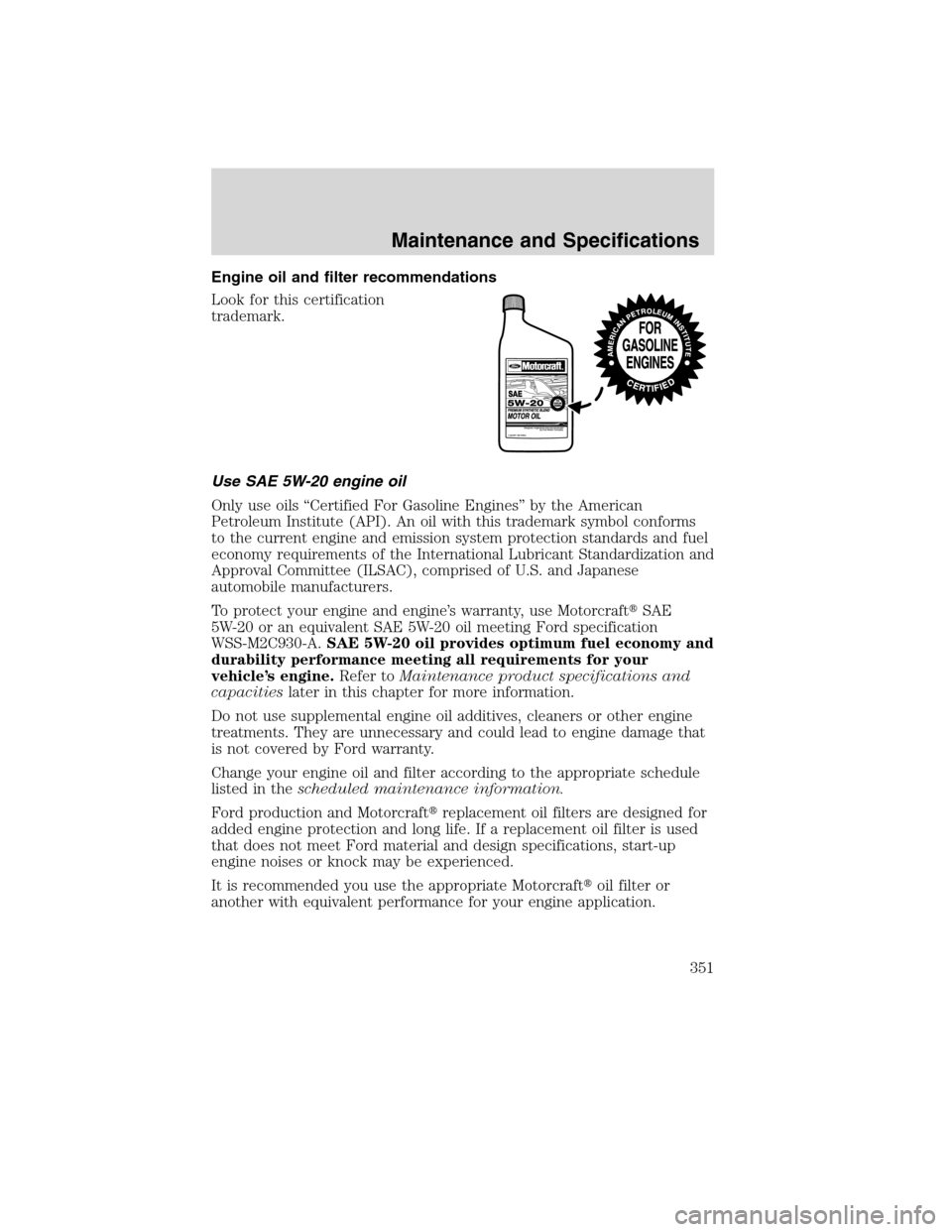

Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine and engine’s warranty, use MotorcraftSAE
5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification
WSS-M2C930-A.SAE 5W-20 oil provides optimum fuel economy and
durability performance meeting all requirements for your
vehicle’s engine.Refer toMaintenance product specifications and
capacitieslater in this chapter for more information.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
Ford production and Motorcraftreplacement oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraftoil filter or
another with equivalent performance for your engine application.
Maintenance and Specifications
351
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)
Page 361 of 397

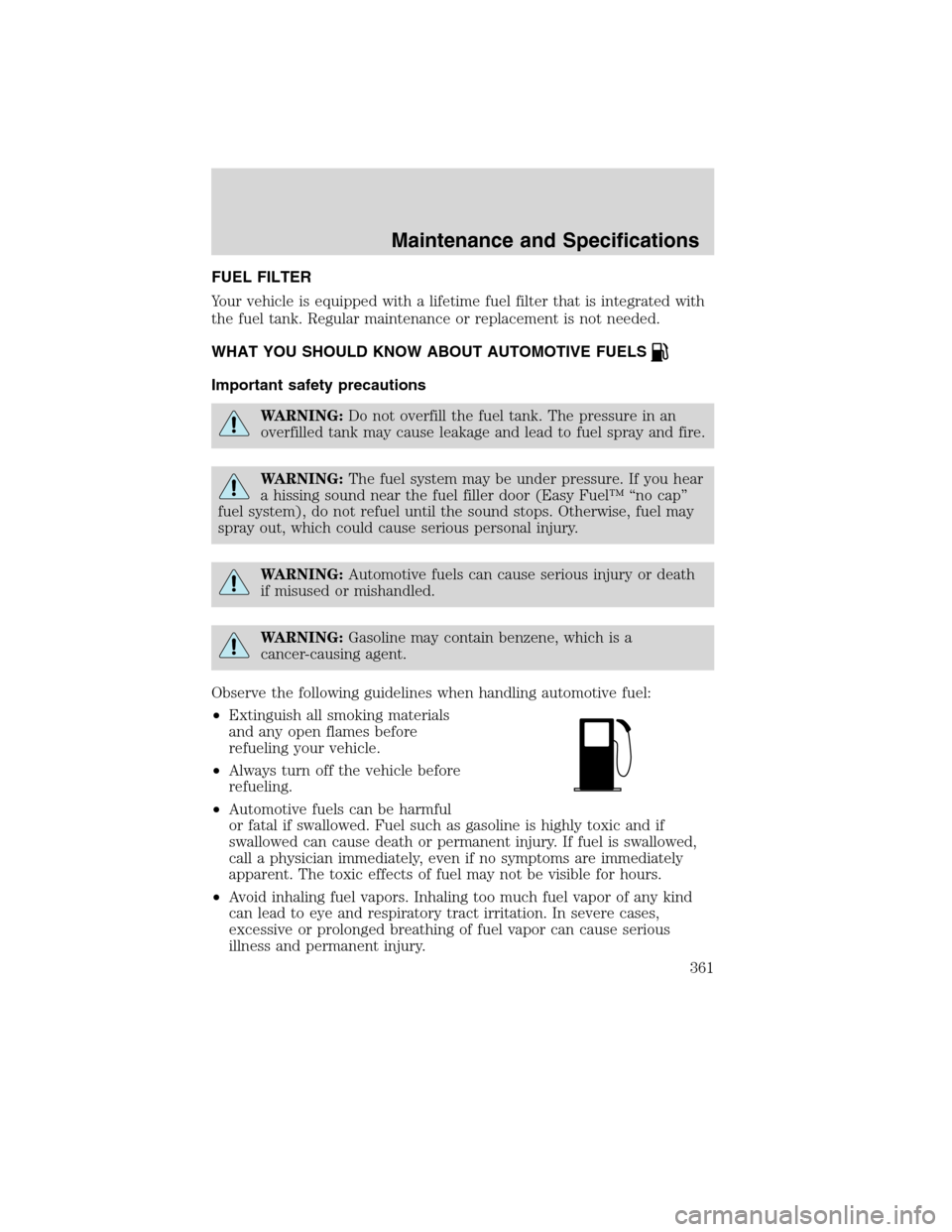

FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
WARNING:Do not overfill the fuel tank. The pressure in an
overfilled tank may cause leakage and lead to fuel spray and fire.
WARNING:The fuel system may be under pressure. If you hear
a hissing sound near the fuel filler door (Easy Fuel™ “no cap”
fuel system), do not refuel until the sound stops. Otherwise, fuel may
spray out, which could cause serious personal injury.
WARNING:Automotive fuels can cause serious injury or death
if misused or mishandled.
WARNING:Gasoline may contain benzene, which is a
cancer-causing agent.
Observe the following guidelines when handling automotive fuel:
•Extinguish all smoking materials
and any open flames before
refueling your vehicle.
•Always turn off the vehicle before
refueling.
•Automotive fuels can be harmful
or fatal if swallowed. Fuel such as gasoline is highly toxic and if
swallowed can cause death or permanent injury. If fuel is swallowed,
call a physician immediately, even if no symptoms are immediately
apparent. The toxic effects of fuel may not be visible for hours.
•Avoid inhaling fuel vapors. Inhaling too much fuel vapor of any kind
can lead to eye and respiratory tract irritation. In severe cases,
excessive or prolonged breathing of fuel vapor can cause serious
illness and permanent injury.
Maintenance and Specifications
361
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)
Page 393 of 397
Engine ........................................382
cleaning ...................................336
coolant .....................................354
fail-safe cooling .......................359
idle speed control ...................352
lubrication specifications .......379
refill capacities ........................379
service points ..................345–346
Engine block heater .................258
Engine oil ..................................349
change oil soon warning,
message center .......................349
checking and adding ..............349
dipstick ....................................349
filter, specifications ........351, 378
recommendations ...................351
refill capacities ........................379
specifications ..........................379
Event data recording ....................7
Exhaust fumes ..........................258
F
Fail safe cooling ........................359
Family entertainment system ....46
Fleet MyKey programming ......143
Fluid capacities .........................379
Fog lamps ....................................81
Four-Wheel Drive vehicles
driving off road .......................286
Freezer ........................................97
Fuel ............................................361
calculating fuel
economy ............................20, 367
cap ...........................................363
capacity ...................................379
choosing the right fuel ...........364comparisons with EPA fuel
economy estimates .................370
detergent in fuel .....................365
filler funnel .............................365
filling your vehicle with
fuel ...........................361, 363, 367
filter, specifications ........361, 378
fuel pump shut-off ..................294
improving fuel economy ........367
octane rating ...................364, 382
quality ......................................365
running out of fuel .........319, 365
safety information relating to
automotive fuels .....................361
Fuses ..........................................294
G
Garage door opener ..................109
Gas cap (see Fuel cap) ............363
Gas mileage
(see Fuel economy) .................367
Gauges .........................................16
H
Hazard flashers .........................293
Head restraints .................160, 162
Headlamps ...................................80
aiming ..................................82–83
autolamp system .......................80
bulb specifications ....................86
daytime running lights .............82
flash to pass ..............................81
high beam .................................81
replacing bulbs .........................87
turning on and off ....................80
Heating
heating and air conditioning
system ...........................68, 71, 74
Index
393
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)
