Roadside Emergencies 292
Getting roadside assistance 292
Hazard flasher control 293
Fuel pump shut-off 294
Fuses and relays 294
Changing tires 302
Temporary mobility kit 309
Wheel lug nut torque 318
Jump starting 319
Wrecker towing 325
Customer Assistance 327
Reporting safety defects (U.S. only) 333
Reporting safety defects (Canada only) 333
Cleaning 334
Maintenance and Specifications 343
Engine compartment 345
Engine oil 349
Battery 352
Engine coolant 354
Fuel information 361
Air filter(s) 376
Part numbers 378
Maintenance product specifications and capacities 379
Engine data 382
Table of Contents
3
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

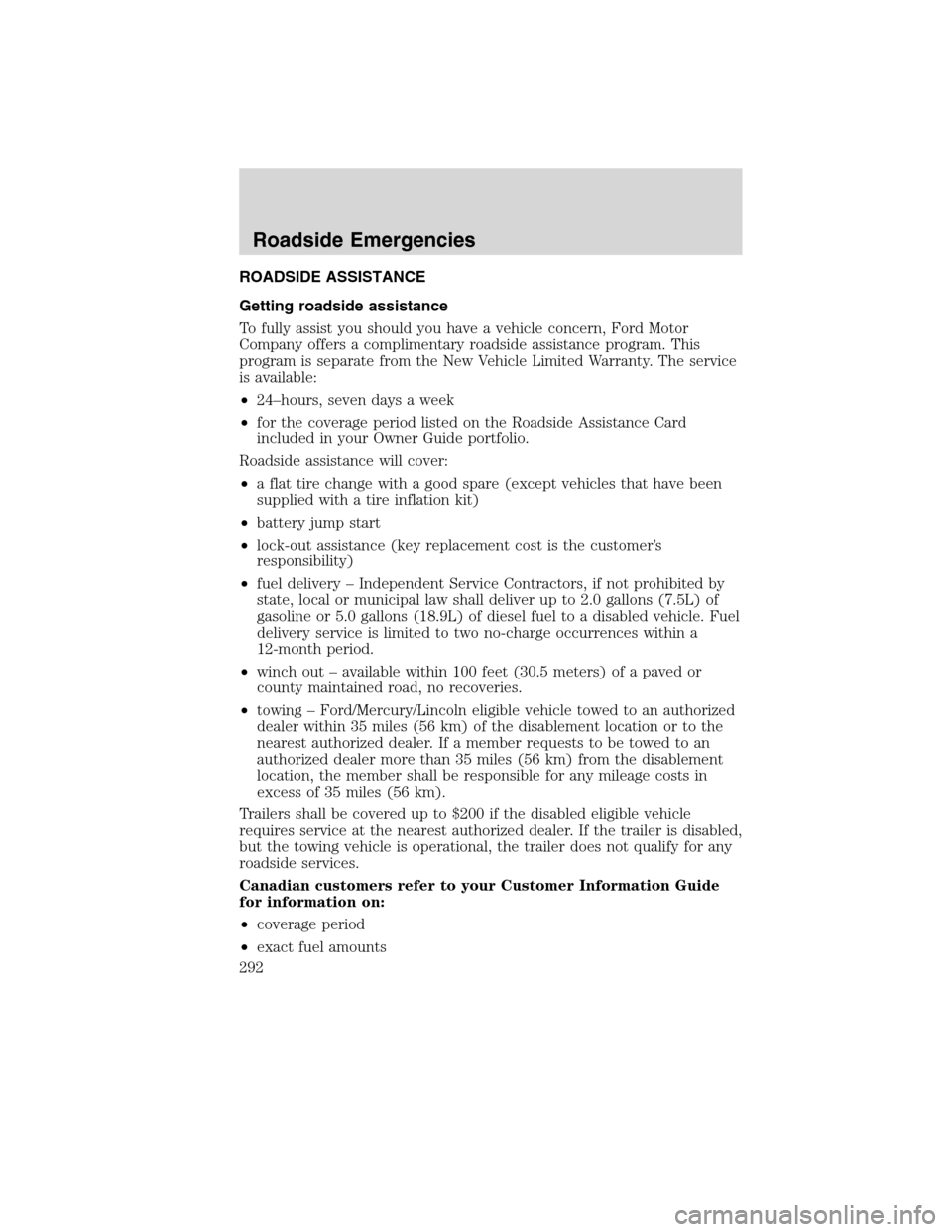

ROADSIDE ASSISTANCE
Getting roadside assistance
To fully assist you should you have a vehicle concern, Ford Motor
Company offers a complimentary roadside assistance program. This
program is separate from the New Vehicle Limited Warranty. The service
is available:
•24–hours, seven days a week
•for the coverage period listed on the Roadside Assistance Card
included in your Owner Guide portfolio.
Roadside assistance will cover:
•a flat tire change with a good spare (except vehicles that have been
supplied with a tire inflation kit)
•battery jump start
•lock-out assistance (key replacement cost is the customer’s
responsibility)
•fuel delivery – Independent Service Contractors, if not prohibited by
state, local or municipal law shall deliver up to 2.0 gallons (7.5L) of
gasoline or 5.0 gallons (18.9L) of diesel fuel to a disabled vehicle. Fuel
delivery service is limited to two no-charge occurrences within a
12-month period.
•winch out – available within 100 feet (30.5 meters) of a paved or
county maintained road, no recoveries.
•towing – Ford/Mercury/Lincoln eligible vehicle towed to an authorized
dealer within 35 miles (56 km) of the disablement location or to the
nearest authorized dealer. If a member requests to be towed to an
authorized dealer more than 35 miles (56 km) from the disablement
location, the member shall be responsible for any mileage costs in
excess of 35 miles (56 km).
Trailers shall be covered up to $200 if the disabled eligible vehicle
requires service at the nearest authorized dealer. If the trailer is disabled,
but the towing vehicle is operational, the trailer does not qualify for any
roadside services.
Canadian customers refer to your Customer Information Guide
for information on:
•coverage period
•exact fuel amounts
Roadside Emergencies
292
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Note:Inspect the wheel pilot hole
prior to installation. If there is
visible corrosion in wheel pilot hole,
remove loose particles by wiping
with clean rag and apply grease.
Apply grease only to the wheel pilot
hole surface by smearing a “dime”
(1 square cm) sized glob of grease
around the wheel pilot surface (1)
with end of finger. DO NOT apply
grease to lugnut/stud holes or
wheel-to-brake surfaces.
RUNNING OUT OF FUEL
If you have run out of fuel and need to refill the vehicle with a portable
fuel container, seeRunning out of fuelin theMaintenance and
Specificationschapter for proper fuel filling method using a portable
fuel container and the included fuel filler funnel.Do notinsert the
nozzle of portable fuel containers or any type of aftermarket funnels into
the Easy Fuel™ “no cap” fuel system as it can be damaged. You must
use the included funnel in such circumstances.
WARNING:Do not insert the nozzle of portable fuel containers
or aftermarket funnels into the Easy Fuel™ system. This could
damage the fuel system and its seal, and may cause fuel to run onto
the ground instead of filling the tank, all of which could result in
serious personal injury.
JUMP STARTING
WARNING:The gases around the battery can explode if
exposed to flames, sparks, or lit cigarettes. An explosion could
result in injury or vehicle damage.
WARNING:Batteries contain sulfuric acid which can burn skin,
eyes and clothing, if contacted.
Do not attempt to push-start your automatic transmission
vehicle. Automatic transmissions do not have push-start
capability. Attempting to push-start a vehicle with an automatic
transmission may cause transmission damage.
Roadside Emergencies
319
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Preparing your vehicle
When the battery is disconnected or a new battery is installed, the
automatic transmission must relearn its shift strategy. As a result, the
transmission may have firm and/or soft shifts. This operation is
considered normal and will not affect function or durability of the
transmission. Over time, the adaptive learning process will fully update
transmission operation.
1.Use only a 12–volt supply to start your vehicle.
2. Do not disconnect the battery of the disabled vehicle as this could
damage the vehicle’s electrical system.
3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
+–+–
Roadside Emergencies
320
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

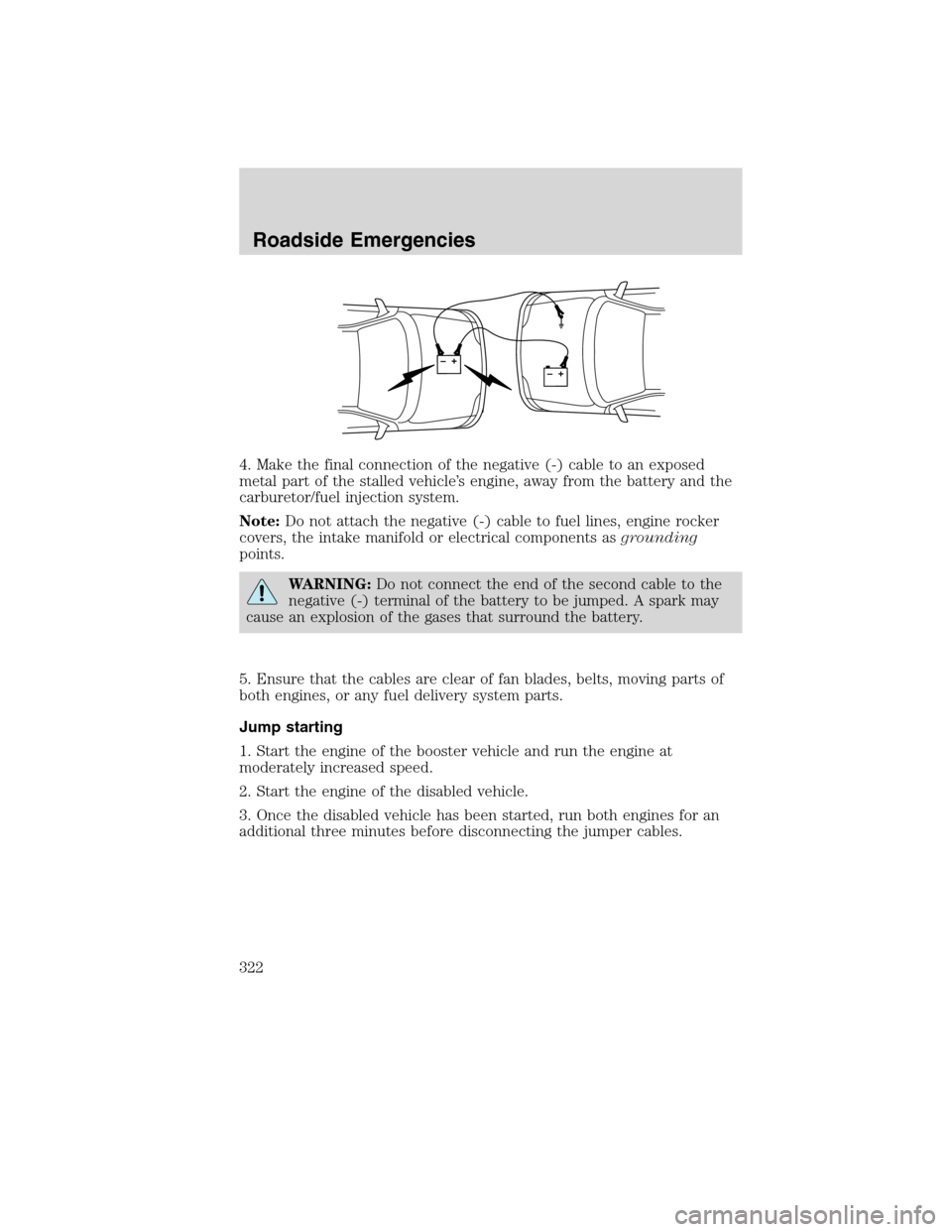

4. Make the final connection of the negative (-) cable to an exposed
metal part of the stalled vehicle’s engine, away from the battery and the
carburetor/fuel injection system.
Note:Do not attach the negative (-) cable to fuel lines, engine rocker
covers, the intake manifold or electrical components asgrounding
points.
WARNING:Do not connect the end of the second cable to the
negative (-) terminal of the battery to be jumped. A spark may
cause an explosion of the gases that surround the battery.
5. Ensure that the cables are clear of fan blades, belts, moving parts of
both engines, or any fuel delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run the engine at
moderately increased speed.
2. Start the engine of the disabled vehicle.
3. Once the disabled vehicle has been started, run both engines for an
additional three minutes before disconnecting the jumper cables.
+–+–
Roadside Emergencies
322
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

3. Remove the jumper cable from the positive (+) terminal of the booster
vehicle’s battery.
4. Remove the jumper cable from the positive (+) terminal of the
disabled vehicle’s battery.
After the disabled vehicle has been started and the jumper cables
removed, allow it to idle for several minutes so the engine computer can
relearnits idle conditions.
+–+–
+–+–
Roadside Emergencies
324
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and CanadaIt’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and MotorcraftParts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
388
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Child safety seats ......................203
in front seat ............................204
in rear seat ..............................204
LATCH .....................................207
recommendations ...................201
tether anchorage hardware ...210
Child safety seats - booster
seats ...........................................213
Cleaning your vehicle
engine compartment ..............336
instrument panel ....................339
interior .....................................340
plastic parts ............................338
washing ....................................334
waxing .....................................335
wheels ......................................335
wiper blades ............................338
Climate control
(see Air conditioning or
Heating) ...........................68, 71, 74
Clock ............................................93
Clock adjust
AM/FM .......................................29
Compass, electronic ....................94
calibration .................................95
set zone adjustment .................95
Console
overhead ....................................94
Controls
power seat ...............................156
steering column ......................106
Coolant
checking and adding ..............354
refill capacities ................357, 379
specifications ..........................379
Cooler ..........................................97
Cruise control
(see Speed control) ..................104Customer Assistance ................292
Ford Extended Service
Plan ..........................................388
Getting assistance outside the
U.S. and Canada .....................331
Getting roadside assistance ...292
Getting the service you
need .........................................327
Ordering additional owner’s
literature .................................332
Utilizing the
Mediation/Arbitration
Program ...................................330
D
Daytime running lamps
(see Lamps) ................................82
Defrost
rear window and rearview
mirrors .......................................74
windshield .................................74
Dipstick
automatic transmission
fluid ..........................................374
engine oil .................................349
Driving under special
conditions ..........................287, 289
sand .........................................288
snow and ice ...........................290
through water .................288, 291
DVD system .................................46
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................319
running out of fuel .........319, 365
Emission control system ..........370
Index
392
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Homelink wireless control
system ........................................110
Hood ..........................................344
I
Ignition ...............................255, 382
Illuminated visor mirror .............93
Infant seats
(see Safety seats) .....................203
Inspection/maintenance (I/M)
testing ........................................372
Instrument panel
cleaning ...................................339
cluster ........................................12
lighting up panel and
interior .......................................82
J
Jack ............................................302
positioning ...............................302
storage .....................................302
Jump-starting your vehicle ......319
K
Keyless entry system
autolock ...................................127
keypad .....................................138
locking and unlocking doors ..139
programming entry code .......138
Keys ...................................126, 141
positions of the ignition .........255
L
Lamps
autolamp system .......................80bulb replacement
specifications chart ..................86
daytime running light ...............82
fog lamps ...................................81
headlamps .................................80
headlamps, flash to pass ..........81
instrument panel, dimming .....82
interior lamps .....................85, 87
replacing bulbs .........................87
LATCH anchors .........................207
Liftgate ......................119–120, 134
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........261
Load limits .................................242
Locks
autolock ...................................127
childproof ................................131
doors ........................................127
Lubricant specifications ...........379
Lug nuts ....................................318
Lumbar support, seats .....155, 158
M
Message center ...........................18
english/metric button ...............22
system check button ................22
warning messages .....................22
Mirrors .......................................103
automatic dimming rearview
mirror ......................................103
heated ................................74, 104
programmable memory ..........135
side view mirrors (power) .....103
Moon roof ..................................108
Motorcraftparts ..............341, 378
MyKey ........................................143
N
Navigation system .......................67
Index
394
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Satellite Radio Information ........43
Seats ..........................................151
child safety seats ....................203
climate control ..........................74
easy access/easyout feature ..159
front seats ...............................154
heated ........................71, 158, 167
memory seat ...................135, 159
second row seats ............162, 165
third row seats ........165, 168–169
Second-row power fold seat ....164
SecuriCode keyless entry
system ........................................138
SecuriLock passive anti-theft
system ........................................140
Servicing your vehicle ..............343
Setting the clock .........................29
SOS Post Crash Alert ...............198
Spare tire
(see Changing the Tire) ...........304
Spark plugs,
specifications .....................378, 382
Specification chart,
lubricants ...................................379
Speed control ............................104
Starting your vehicle ........255–257
jump starting ..........................319
Steering wheel
controls ....................................106
tilting .........................................92
Stereo
6-CD in dash .............................28
CD-MP3 .....................................28
SYNC..........................................67
T
Temporary mobility kit .............309Tilt steering wheel ......................92
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....236
Tires ...........................220–221, 302
alignment ................................228
care ..........................................224
changing ..................302, 304–305
checking the pressure ............224
inflating ...................................222
label .........................................235
replacing ..................................226
rotating ....................................229
safety practices .......................228
sidewall information ...............230
snow tires and chains ............241
spare tire .................................302
Temporary mobility kit ..........309
terminology .............................221
tire grades ...............................221
treadwear ........................220, 225
Towing .......................................249
recreational towing .................253
trailer towing ..........................249
wrecker ....................................325
Transaxle
fluid, refill capacities ..............379
lubricant specifications ..........379
Transmission .............................270
brake-shift interlock (BSI) ....269
fluid, checking and adding
(automatic) .............................374
Turn signal ..................................84
U
Universal garage door opener ..109
USB port ......................................39
Index
396
2010 Flex(471)
Owners Guide, 1st Printing
USA(fus)
