Troubleshooting

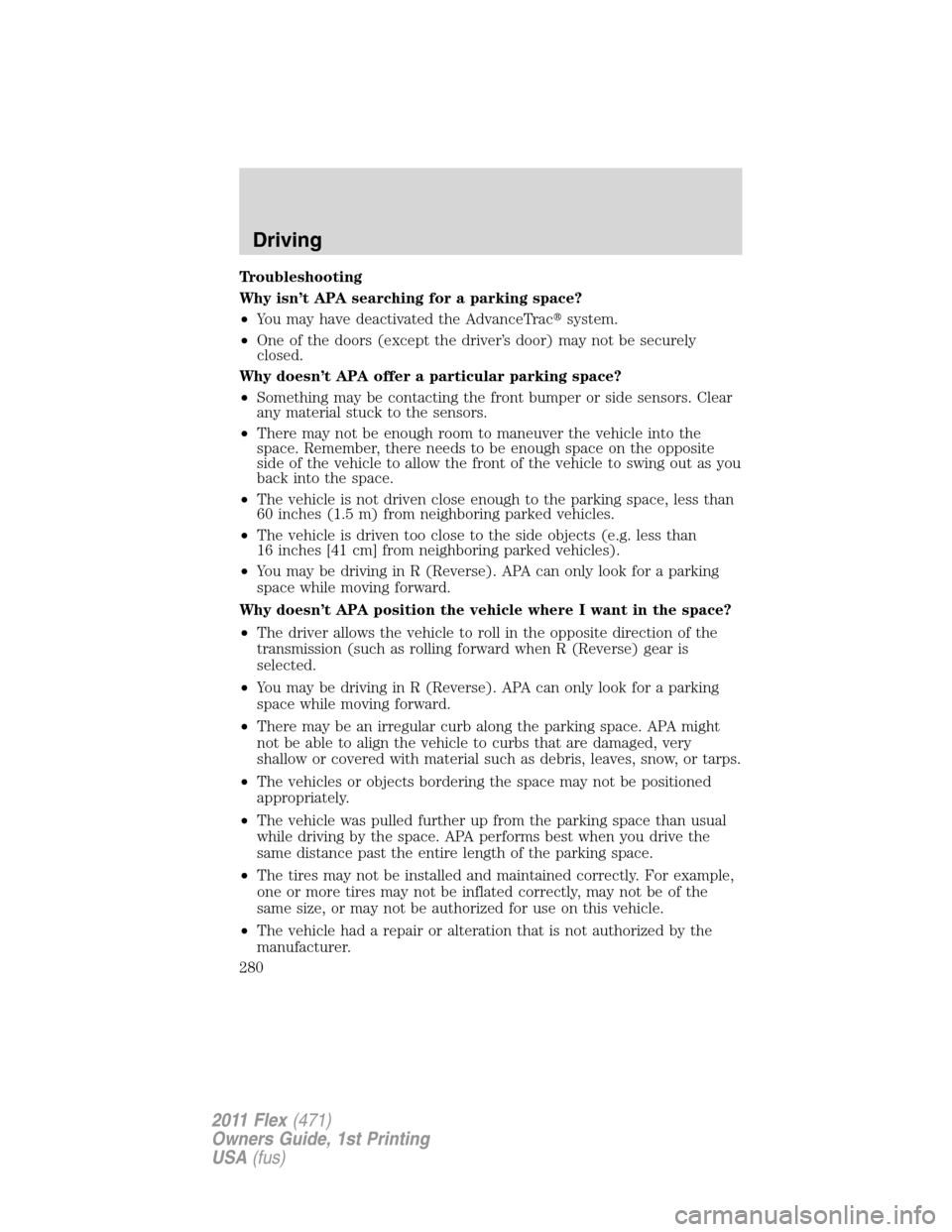

Why isn’t APA searching for a parking space?
•You may have deactivated the AdvanceTracsystem.
•One of the doors (except the driver’s door) may not be securely
closed.
Why doesn’t APA offer a particular parking space?
•Something may be contacting the front bumper or side sensors. Clear
any material stuck to the sensors.
•There may not be enough room to maneuver the vehicle into the
space. Remember, there needs to be enough space on the opposite
side of the vehicle to allow the front of the vehicle to swing out as you
back into the space.
•The vehicle is not driven close enough to the parking space, less than
60 inches (1.5 m) from neighboring parked vehicles.
•The vehicle is driven too close to the side objects (e.g. less than
16 inches [41 cm] from neighboring parked vehicles).
•You may be driving in R (Reverse). APA can only look for a parking
space while moving forward.
Why doesn’t APA position the vehicle where I want in the space?
•The driver allows the vehicle to roll in the opposite direction of the
transmission (such as rolling forward when R (Reverse) gear is
selected.
•You may be driving in R (Reverse). APA can only look for a parking
space while moving forward.
•There may be an irregular curb along the parking space. APA might
not be able to align the vehicle to curbs that are damaged, very
shallow or covered with material such as debris, leaves, snow, or tarps.
•The vehicles or objects bordering the space may not be positioned
appropriately.
•The vehicle was pulled further up from the parking space than usual
while driving by the space. APA performs best when you drive the
same distance past the entire length of the parking space.
•The tires may not be installed and maintained correctly. For example,
one or more tires may not be inflated correctly, may not be of the
same size, or may not be authorized for use on this vehicle.
•The vehicle had a repair or alteration that is not authorized by the
manufacturer.
Driving
280
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
32 10A Restraint control module
33 10A TT battery charge relay coil
34 5A Roll stability control, Refrigerator
relay coil, Electric power assist
steering
35 10A Steering angle sensor, Reverse
sensing system, Active park assist,
Heated seat, AWD, DC/AC
inverter, Rearview camera
36 5A Passive anti-theft system module
37 10A Not used (spare)
38 20A TT park lamps
39 20A Radio/navigation
40 20A Rear heated seats
41 15A Switch illumination, Auto dimming
mirror, Moon roof, Mood lighting
42 10A Not used (spare)
43 10A Auxiliary climate control relay,
Rear window defroster relay, Rear
wiper
44 10A Not used (spare)
45 5A Wiper relay, climate control relay
46 7.5A Occupant classification sensor
(OCS), Passenger airbag
deactivation indicator (PADI)
47 30A Circuit
BreakerPower windows
48 Full ISO relay Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Roadside Emergencies
294
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
7 30A* Amplifier
8 — Not used
9 40A* Anti-lock brake system (ABS)
pump
10 30A* Starter relay
11 30A* Powertrain control module (PCM)
relay
12 20A* ABS valve
13 20A** Left high intensity discharge
(HID) headlamp
14 10A** Brake on/off (BOO) switch
15 25A** Rear wiper
16 20A** Right HID headlamp
17 10A** Alternator sensor
18 20A* Rear power point
19 20A* Console power point
20 40A* Rear defroster
21 20A* Console power point (rear of front
console)
22 20A* Subwoofer amplifier
23 10A** PCM keep alive power, Canister
vent
24 10A** A/C clutch
25 15A** Refrigerator
26 20A** Backup relay
27 15A** Fuel relay (Fuel pump driver
module, Fuel pump)
28 80A* Cooling fan
29 — Not used
30 30A* Battery charge – trailer tow (TT)
31 40A* Auxiliary blower motor
32 30A* Driver seat motor
Roadside Emergencies
296
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
64 HC micro relay PCM
65 G8VA relay A/C clutch
66 G8VA relay Fuel pump
* Cartridge Fuses ** Mini Fuses
CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
Roadside Emergencies
298
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

•Read the information in theTips for use of the temporary mobility
kitsection to ensure safe operation of the temporary mobility kit and
your vehicle.
Tips for use of the temporary mobility kit
Read the following list of tips to ensure safe operation of the temporary
mobility kit:
•Before operating the temporary mobility kit, make sure your vehicle is
safely off the road and away from moving traffic. Turn on the hazard
lights.
•Always set the parking brake to ensure the vehicle doesn’t move
unexpectedly.
•Do not remove any foreign objects, such as nails or screws, from the
tire.
•When using the temporary mobility kit, leave the engine running
(only if the vehicle is outdoors or in a well-ventilated area)so
the compressor doesn’t drain the vehicle’s battery.
•Do not allow the compressor to operate continuously for more than
15 minutes; this will help prevent the compressor from overheating.
•Never leave the temporary mobility kit unattended when it is
operating.
•Sealant compound contains latex. Make sure that you use the
non-latex gloves provided to avoid an allergic reaction.
•Keep the temporary mobility kit away from children.
•Only use the temporary mobility kit when the ambient temperature is
between -40°F (-40°C) and 158°F (70°C).
•Only use the sealing compound before the use by date. The use by
date is on the lower right hand corner of the label located on the
sealant canister (bottle).Check the use by date regularly and
replace the canister after four years.
•Do not store the temporary mobility kit unsecured inside the
passenger compartment of the vehicle as it may cause injury during a
sudden stop or collision. Always store the kit in its original location.
•After sealant use, the TPMS sensor and valve stem on the wheel must
be replaced by an authorized Ford dealer.
•When inflating a tire or other objects, use the black air hose only. Do
not use the transparent hose which is designed for sealant application
only.
Roadside Emergencies
307
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

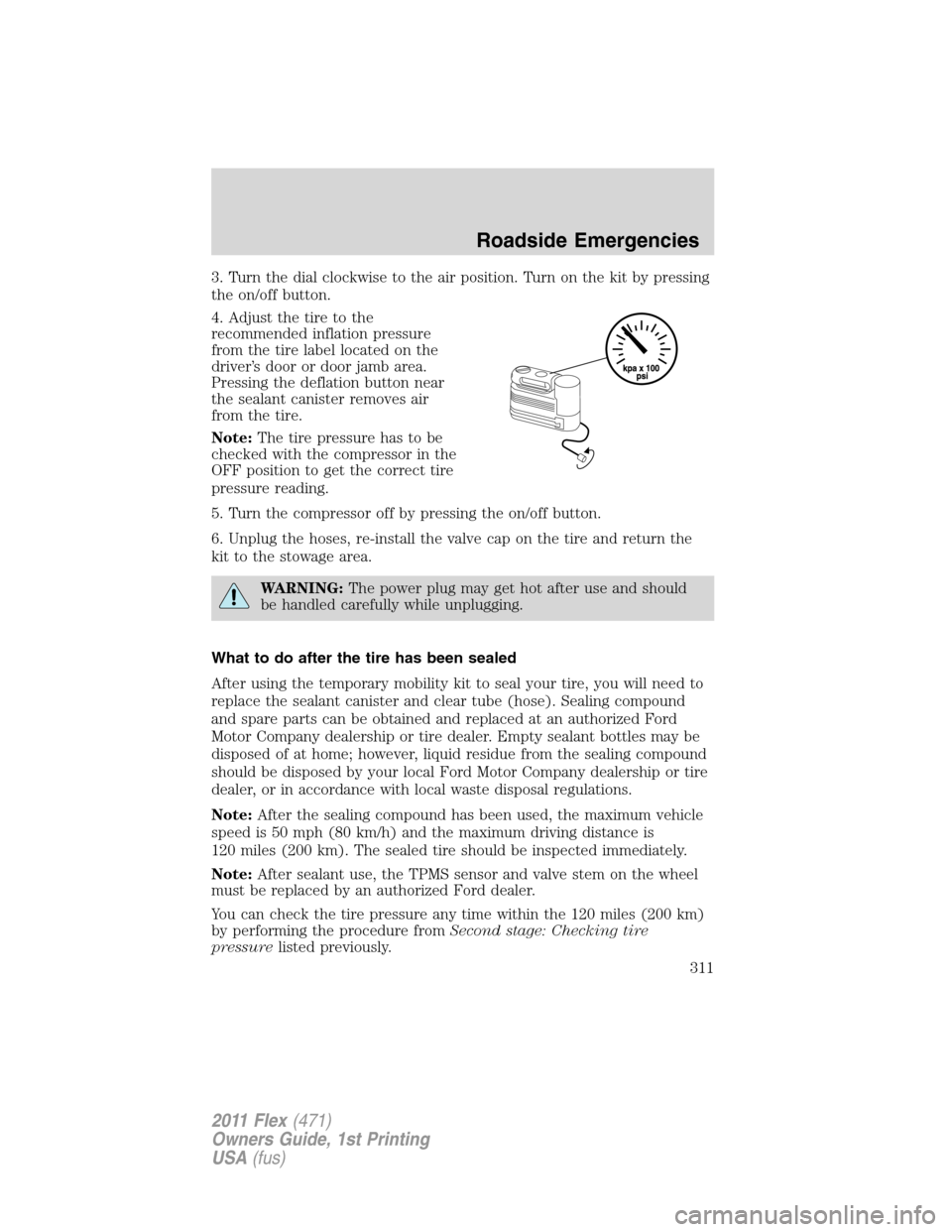

3. Turn the dial clockwise to the air position. Turn on the kit by pressing
the on/off button.
4. Adjust the tire to the
recommended inflation pressure
from the tire label located on the
driver’s door or door jamb area.
Pressing the deflation button near
the sealant canister removes air
from the tire.
Note:The tire pressure has to be
checked with the compressor in the
OFF position to get the correct tire
pressure reading.
5. Turn the compressor off by pressing the on/off button.
6. Unplug the hoses, re-install the valve cap on the tire and return the
kit to the stowage area.
WARNING:The power plug may get hot after use and should
be handled carefully while unplugging.
What to do after the tire has been sealed
After using the temporary mobility kit to seal your tire, you will need to
replace the sealant canister and clear tube (hose). Sealing compound
and spare parts can be obtained and replaced at an authorized Ford
Motor Company dealership or tire dealer. Empty sealant bottles may be
disposed of at home; however, liquid residue from the sealing compound
should be disposed by your local Ford Motor Company dealership or tire
dealer, or in accordance with local waste disposal regulations.
Note:After the sealing compound has been used, the maximum vehicle
speed is 50 mph (80 km/h) and the maximum driving distance is
120 miles (200 km). The sealed tire should be inspected immediately.
Note:After sealant use, the TPMS sensor and valve stem on the wheel
must be replaced by an authorized Ford dealer.
You can check the tire pressure any time within the 120 miles (200 km)
by performing the procedure fromSecond stage: Checking tire
pressurelisted previously.
Roadside Emergencies
311
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

B. Clean the area around the clamp
that connects the air filter assembly
to the rubber hose (1).
C. Remove the bolt cover (if
equipped).
D. Remove two bolts that attach the air filter assembly to the front of
the vehicle (2).
E. Loosen the clamp holding the air filter assembly to the rubber hose
(1).
F. Remove the harness retaining clip by pulling up (3). Do not
disconnect the sensor (4).
G. Without disconnecting the sensor (4), pull the air filter assembly up
to disconnect the air filter assembly from the seated grommets located
underneath the air filter assembly.
1
432
Maintenance and Specifications
370
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

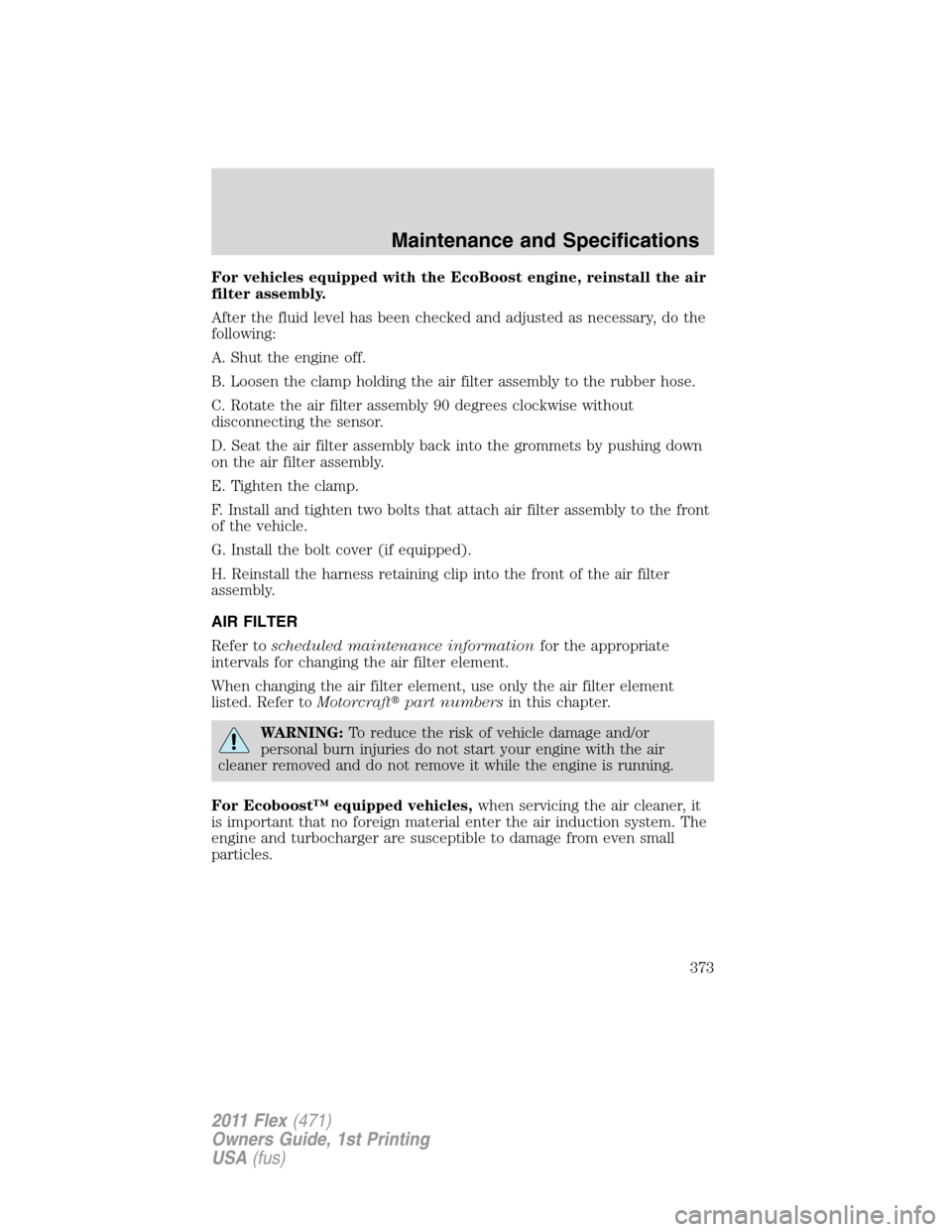

For vehicles equipped with the EcoBoost engine, reinstall the air
filter assembly.
After the fluid level has been checked and adjusted as necessary, do the
following:
A. Shut the engine off.
B. Loosen the clamp holding the air filter assembly to the rubber hose.
C. Rotate the air filter assembly 90 degrees clockwise without
disconnecting the sensor.
D. Seat the air filter assembly back into the grommets by pushing down
on the air filter assembly.
E. Tighten the clamp.
F. Install and tighten two bolts that attach air filter assembly to the front
of the vehicle.
G. Install the bolt cover (if equipped).
H. Reinstall the harness retaining clip into the front of the air filter
assembly.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraftpart numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
For Ecoboost™ equipped vehicles,when servicing the air cleaner, it
is important that no foreign material enter the air induction system. The
engine and turbocharger are susceptible to damage from even small
particles.
Maintenance and Specifications
373
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

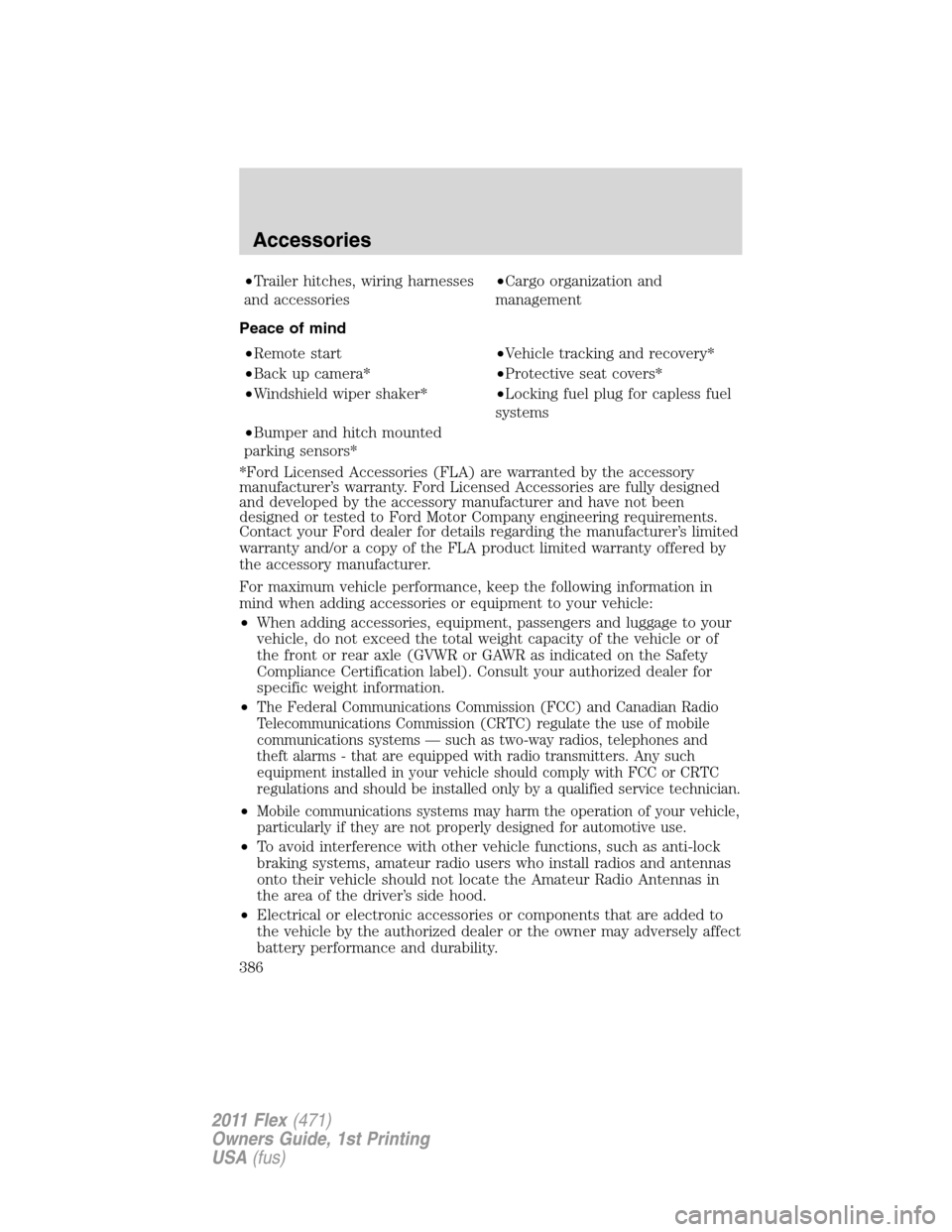

•Trailer hitches, wiring harnesses
and accessories•Cargo organization and
management
Peace of mind
•Remote start•Vehicle tracking and recovery*
•Back up camera*•Protective seat covers*
•Windshield wiper shaker*•Locking fuel plug for capless fuel
systems
•Bumper and hitch mounted
parking sensors*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•
The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service technician.
•Mobile communications systems may harm the operation of your vehicle,
particularly if they are not properly designed for automotive use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
Accessories
386
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

P
Parental MyKey
programming .............................119
Park Assist ................................276
Parking brake ............................256
Parts
(see Motorcraftparts) ...........377
Passenger Occupant
Classification Sensor .................167
Power adjustable foot pedals ...103
Power distribution box
(see Fuses) ...............................294
Power door locks ......................124
Power liftgate ............................113
Power mirrors ...........................103
Power point .................................98
Power steering ..........................263
fluid, checking and adding ....368
fluid, refill capacity ................378
fluid, specifications .................378
Power Windows .........................100
R
Radio ............................................28
6-CD in dash .............................28
Rear heated seats .....................159
Rear seat entertainment
system ..........................................47
Rear-view camera system .........274
Recommendations for
attaching safety restraints for
children ......................................197
Refrigerator .................................97
Relays ........................................290Remote entry system .......129–130
illuminated entry ....................134
locking/unlocking
doors ................................130–131
opening the trunk ...................131
panic alarm .............................131
replacement/additional
transmitters .............................134
replacing the batteries ...........133
Reverse sensing system ...........272
Roadside assistance ..................288
Roof rack ...................................117
S
Safety belts (see Safety
restraints) ..165, 169–171, 173–174
Safety Canopy ...................189, 191
Safety defects, reporting ..........326
Safety
restraints ...165, 169–171, 173–174
Belt-Minder...........................175
extension assembly ................173
for adults .................170–171, 173
for children .............................195
Occupant Classification
Sensor ......................................167
warning light and
chime ...............................174–175
Safety restraints - LATCH
anchors ......................................203
Safety seats for children ..........199
Safety Compliance
Certification Label ....................382
Satellite Radio .............................28
Satellite Radio Information ........43
Index
416
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)
