lumbar support FORD FLEX 2011 1.G Owners Manual

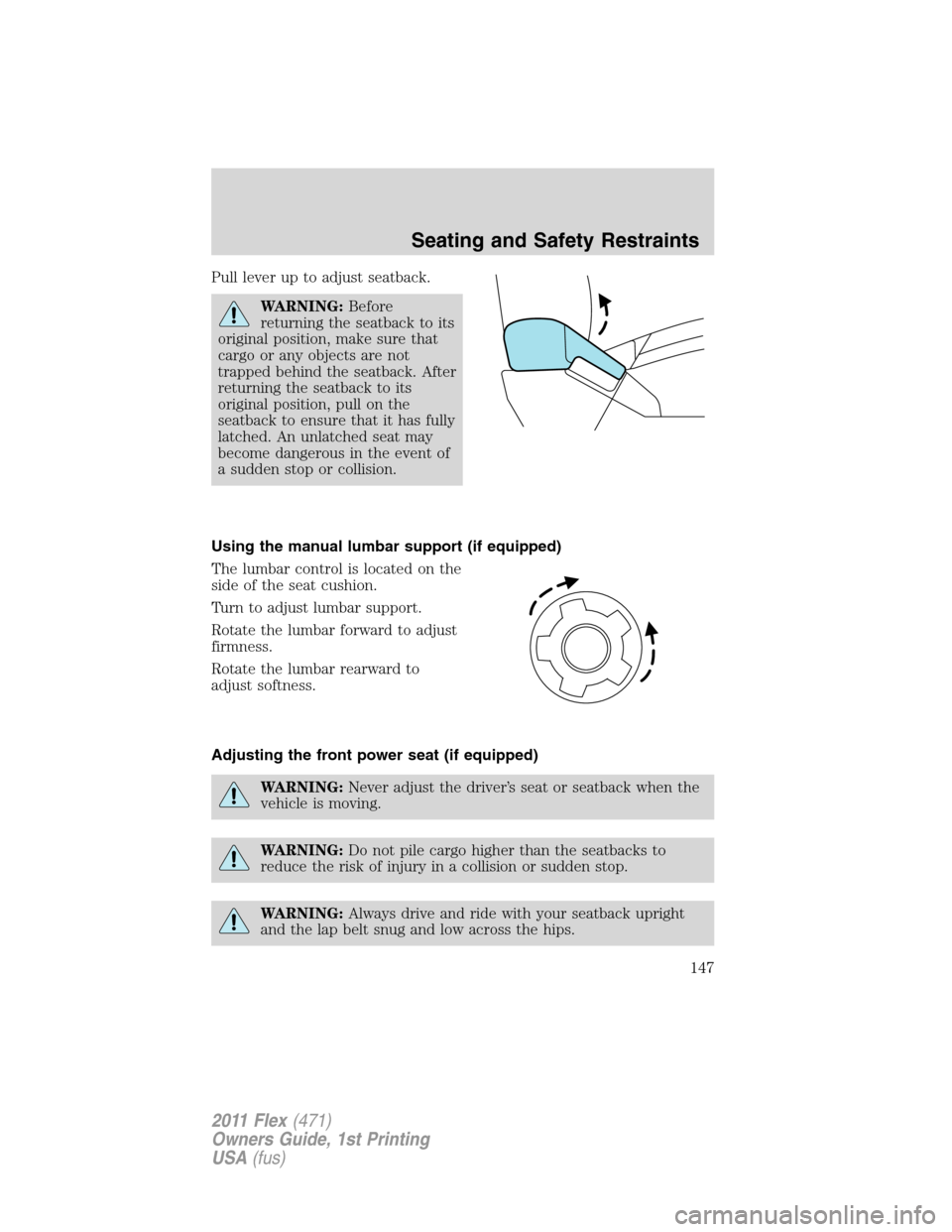

Pull lever up to adjust seatback.
WARNING:Before
returning the seatback to its
original position, make sure that
cargo or any objects are not
trapped behind the seatback. After
returning the seatback to its
original position, pull on the
seatback to ensure that it has fully
latched. An unlatched seat may
become dangerous in the event of
a sudden stop or collision.
Using the manual lumbar support (if equipped)
The lumbar control is located on the
side of the seat cushion.
Turn to adjust lumbar support.
Rotate the lumbar forward to adjust
firmness.
Rotate the lumbar rearward to
adjust softness.
Adjusting the front power seat (if equipped)
WARNING:Never adjust the driver’s seat or seatback when the
vehicle is moving.
WARNING:Do not pile cargo higher than the seatbacks to
reduce the risk of injury in a collision or sudden stop.
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
Seating and Safety Restraints
147
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

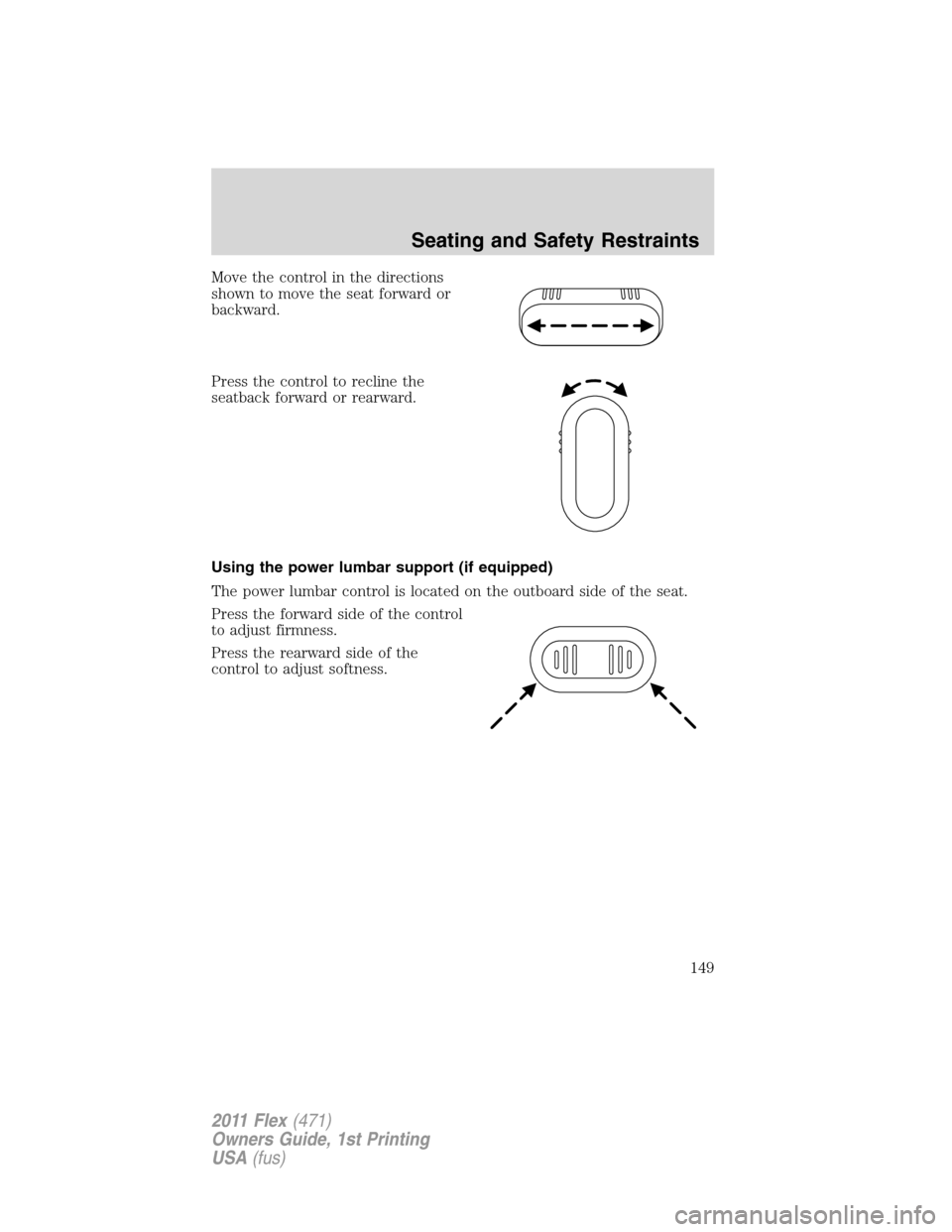

Move the control in the directions
shown to move the seat forward or
backward.
Press the control to recline the
seatback forward or rearward.
Using the power lumbar support (if equipped)
The power lumbar control is located on the outboard side of the seat.
Press the forward side of the control
to adjust firmness.
Press the rearward side of the
control to adjust softness.
Seating and Safety Restraints
149
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Illuminated visor mirror .............93
Infant seats
(see Safety seats) .....................199
Inspection/maintenance (I/M)
testing ........................................367
Instrument panel
cleaning ...................................331
cluster ........................................12
lighting up panel and
interior .......................................83
J
Jack ............................................298
positioning ...............................298
storage .....................................298
Jump-starting your vehicle ......315
K
Keyless entry system
autolock ...................................124
keypad .....................................135
locking and unlocking doors ..136
programming entry code .......135
Keys ...................................118, 138
positions of the ignition .........250
L
Lamps
autolamp system .......................81
bulb replacement
specifications chart ..................87
daytime running light ...............83
fog lamps ...................................82
headlamps .................................81
headlamps, flash to pass ..........83
instrument panel, dimming .....83
interior lamps .....................85, 88
replacing bulbs .........................88LATCH anchors .........................203
Liftgate ......................112–113, 131
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........256
Load limits .................................237
Locks
autolock ...................................124
childproof ................................128
doors ........................................124
Lubricant specifications ...........378
Lug nuts ....................................313
Lumbar support, seats .....147, 149
M
Message center ...........................18
english/metric button ...............22
system check button ................22
warning messages .....................22
Mirrors ...............................102–103
automatic dimming rearview
mirror ......................................102
heated ................................74, 103
programmable memory ..........132
side view mirrors (power) .....103
Moon roof ..................................107
Motorcraftparts ..............335, 377
MyKey ........................................119
N
Navigation system .......................67
O
Octane rating ............................359
Oil (see Engine oil) ..................342
Overdrive ...................................266
Index
415
2011 Flex(471)
Owners Guide, 1st Printing
USA(fus)
