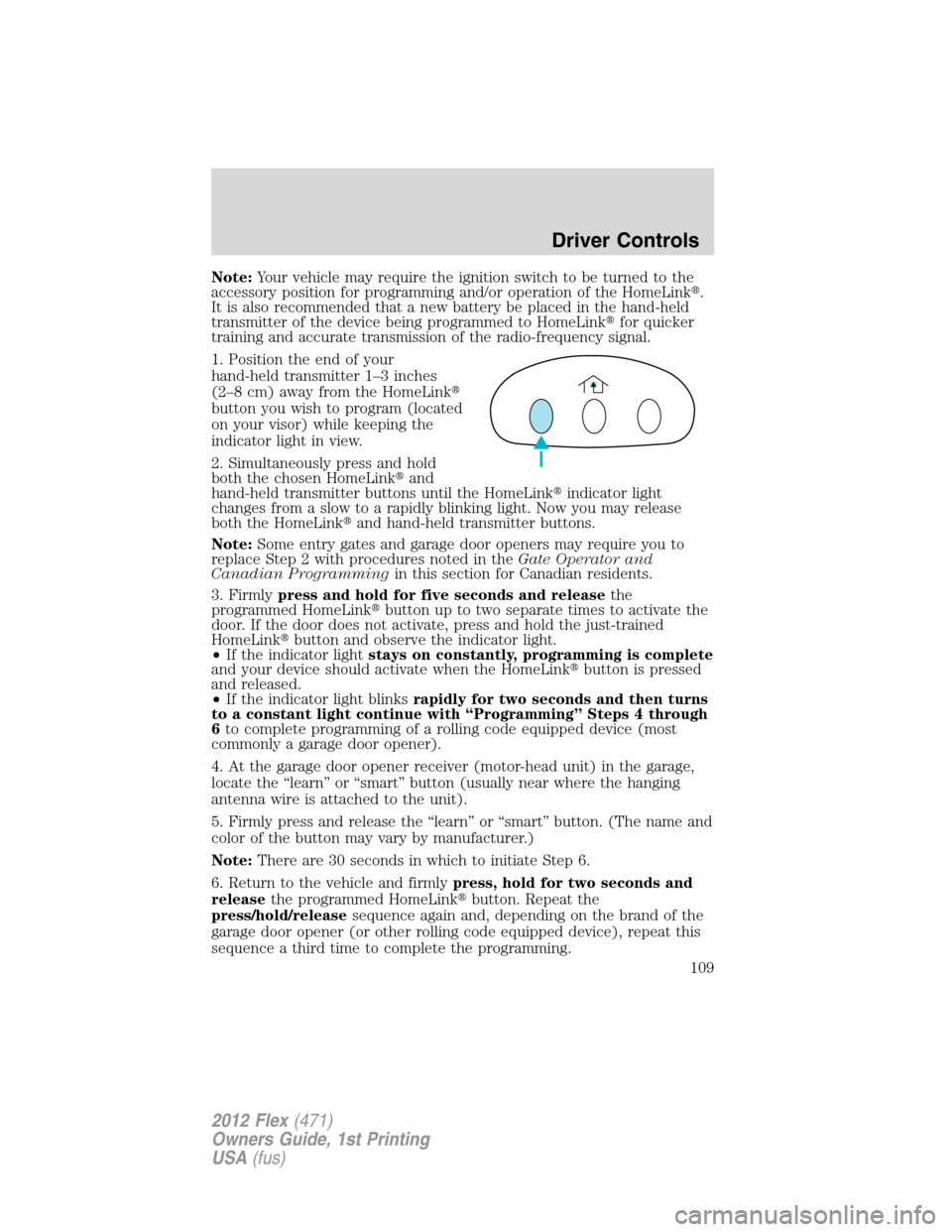

Note:Your vehicle may require the ignition switch to be turned to the
accessory position for programming and/or operation of the HomeLink.
It is also recommended that a new battery be placed in the hand-held
transmitter of the device being programmed to HomeLinkfor quicker
training and accurate transmission of the radio-frequency signal.
1. Position the end of your
hand-held transmitter 1–3 inches
(2–8 cm) away from the HomeLink
button you wish to program (located
on your visor) while keeping the
indicator light in view.
2. Simultaneously press and hold
both the chosen HomeLinkand
hand-held transmitter buttons until the HomeLinkindicator light
changes from a slow to a rapidly blinking light. Now you may release
both the HomeLinkand hand-held transmitter buttons.
Note:Some entry gates and garage door openers may require you to
replace Step 2 with procedures noted in theGate Operator and
Canadian Programmingin this section for Canadian residents.
3. Firmlypress and hold for five seconds and releasethe
programmed HomeLinkbutton up to two separate times to activate the
door. If the door does not activate, press and hold the just-trained
HomeLinkbutton and observe the indicator light.
•If the indicator lightstays on constantly, programming is complete
and your device should activate when the HomeLinkbutton is pressed
and released.
•If the indicator light blinksrapidly for two seconds and then turns
to a constant light continue with “Programming” Steps 4 through
6to complete programming of a rolling code equipped device (most
commonly a garage door opener).
4. At the garage door opener receiver (motor-head unit) in the garage,
locate the “learn” or “smart” button (usually near where the hanging
antenna wire is attached to the unit).
5. Firmly press and release the “learn” or “smart” button. (The name and
color of the button may vary by manufacturer.)
Note:There are 30 seconds in which to initiate Step 6.
6. Return to the vehicle and firmlypress, hold for two seconds and
releasethe programmed HomeLinkbutton. Repeat the
press/hold/releasesequence again and, depending on the brand of the
garage door opener (or other rolling code equipped device), repeat this
sequence a third time to complete the programming.
Driver Controls
109
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

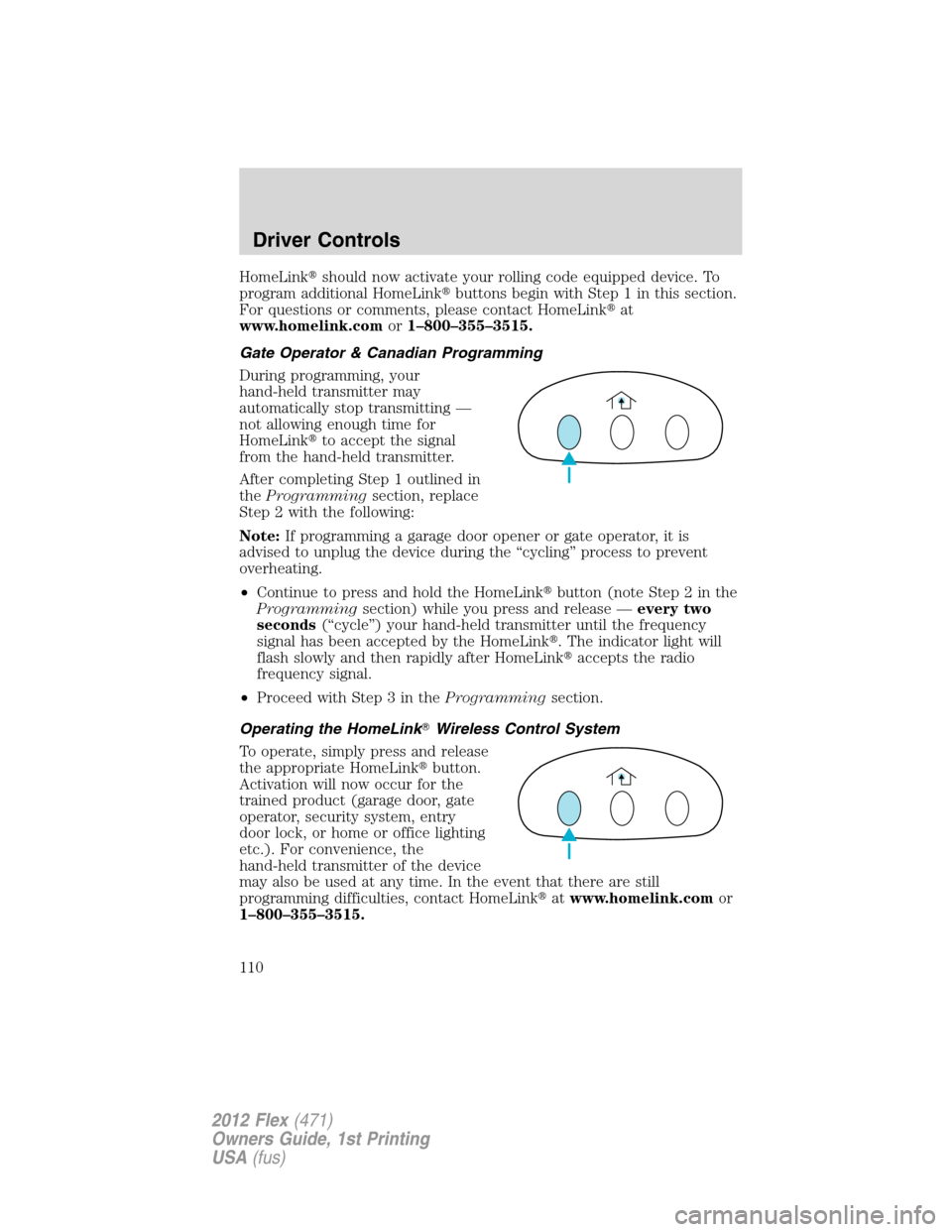

HomeLinkshould now activate your rolling code equipped device. To
program additional HomeLinkbuttons begin with Step 1 in this section.
For questions or comments, please contact HomeLinkat
www.homelink.comor1–800–355–3515.
Gate Operator & Canadian Programming
During programming, your
hand-held transmitter may
automatically stop transmitting —
not allowing enough time for
HomeLinkto accept the signal
from the hand-held transmitter.
After completing Step 1 outlined in
theProgrammingsection, replace
Step 2 with the following:
Note:If programming a garage door opener or gate operator, it is
advised to unplug the device during the “cycling” process to prevent
overheating.
•Continue to press and hold the HomeLinkbutton (note Step 2 in the
Programmingsection) while you press and release —every two
seconds(“cycle”) your hand-held transmitter until the frequency
signal has been accepted by the HomeLink. The indicator light will
flash slowly and then rapidly after HomeLinkaccepts the radio
frequency signal.
•Proceed with Step 3 in theProgrammingsection.
Operating the HomeLinkWireless Control System
To operate, simply press and release
the appropriate HomeLinkbutton.
Activation will now occur for the
trained product (garage door, gate
operator, security system, entry
door lock, or home or office lighting
etc.). For convenience, the
hand-held transmitter of the device
may also be used at any time. In the event that there are still
programming difficulties, contact HomeLinkatwww.homelink.comor
1–800–355–3515.
Driver Controls
110
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

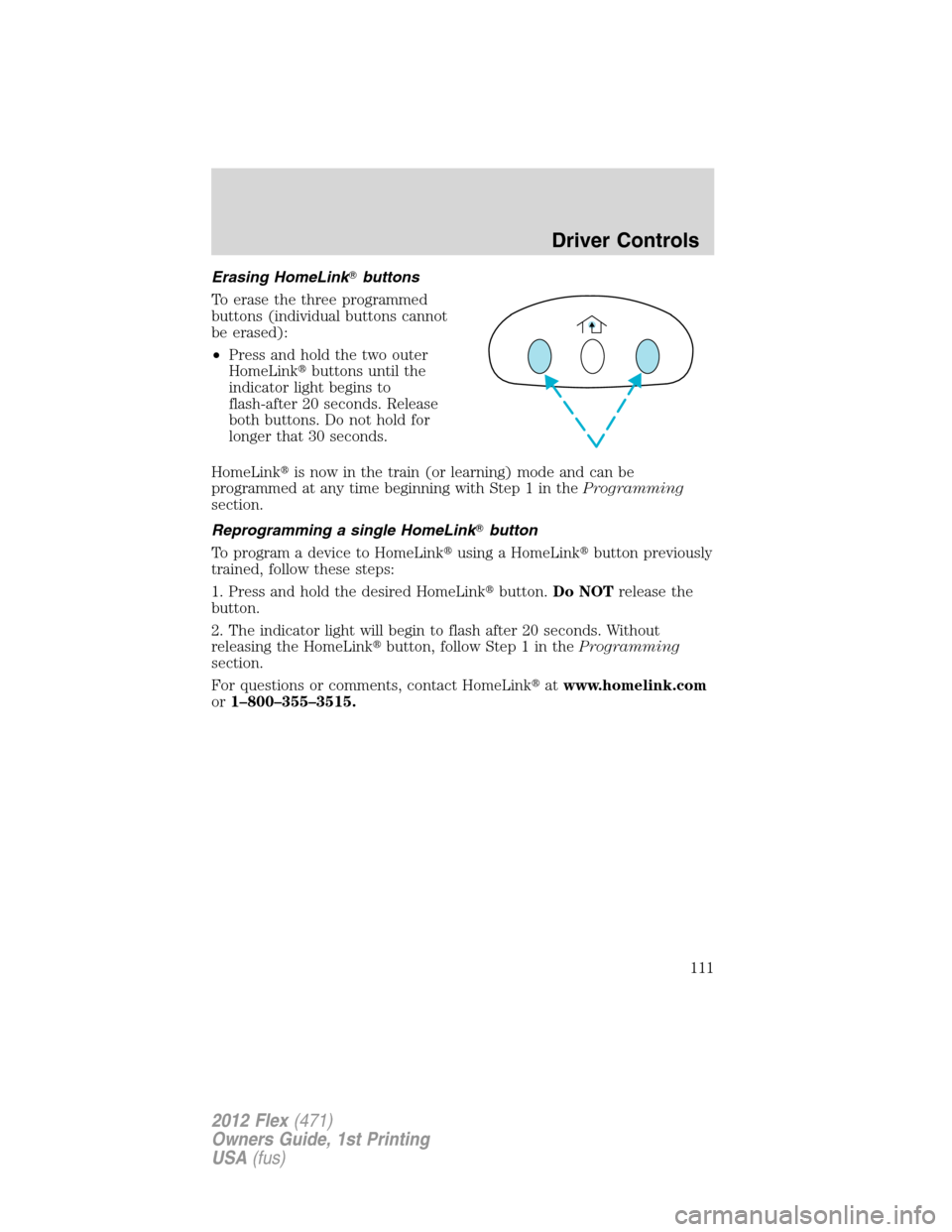

Erasing HomeLinkbuttons
To erase the three programmed
buttons (individual buttons cannot
be erased):
•Press and hold the two outer
HomeLinkbuttons until the
indicator light begins to
flash-after 20 seconds. Release
both buttons. Do not hold for
longer that 30 seconds.
HomeLinkis now in the train (or learning) mode and can be
programmed at any time beginning with Step 1 in theProgramming
section.
Reprogramming a single HomeLinkbutton
To program a device to HomeLinkusing a HomeLinkbutton previously
trained, follow these steps:
1. Press and hold the desired HomeLinkbutton.Do NOTrelease the
button.
2. The indicator light will begin to flash after 20 seconds. Without
releasing the HomeLinkbutton, follow Step 1 in theProgramming
section.
For questions or comments, contact HomeLinkatwww.homelink.com
or1–800–355–3515.
Driver Controls
111
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

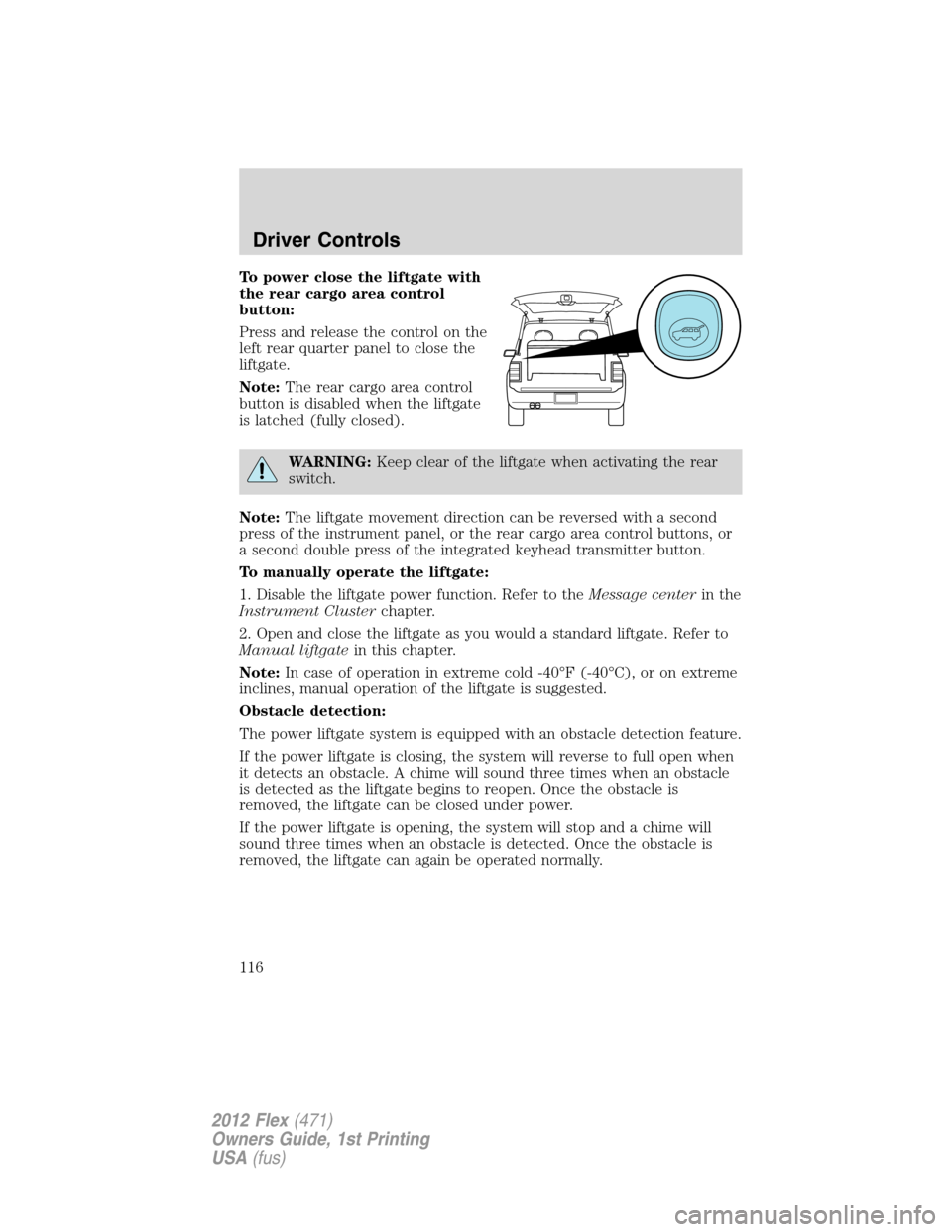

To power close the liftgate with
the rear cargo area control
button:
Press and release the control on the
left rear quarter panel to close the
liftgate.
Note:The rear cargo area control
button is disabled when the liftgate
is latched (fully closed).
WARNING:Keep clear of the liftgate when activating the rear
switch.
Note:The liftgate movement direction can be reversed with a second
press of the instrument panel, or the rear cargo area control buttons, or
a second double press of the integrated keyhead transmitter button.
To manually operate the liftgate:
1. Disable the liftgate power function. Refer to theMessage centerin the
Instrument Clusterchapter.
2. Open and close the liftgate as you would a standard liftgate. Refer to
Manual liftgatein this chapter.
Note:In case of operation in extreme cold -40°F (-40°C), or on extreme
inclines, manual operation of the liftgate is suggested.
Obstacle detection:
The power liftgate system is equipped with an obstacle detection feature.
If the power liftgate is closing, the system will reverse to full open when
it detects an obstacle. A chime will sound three times when an obstacle
is detected as the liftgate begins to reopen. Once the obstacle is
removed, the liftgate can be closed under power.
If the power liftgate is opening, the system will stop and a chime will
sound three times when an obstacle is detected. Once the obstacle is
removed, the liftgate can again be operated normally.
Driver Controls
116
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

MYKEY
The MyKeyfeature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey. The key will remain restricted
until MyKeyis cleared. Any remaining keys are referred to as an
“administrator key” or admin key. The admin key can be used to create a
MyKey, program optional MyKeysettings, and clear the MyKey
feature. When the MyKeyfeature is enabled the user can use system
check in the message center to see how many MyKeysand admin keys
are programmed to the vehicle, and how many total miles have been
driven with the MyKeyactive.
MyKeyrestricted features
Standard settings – These settings cannot be changed
•The audio system will be muted whenever Belt-Minderis activated
until the safety belts are buckled. Refer to theSeating and Safety
Restraintschapter for a detailed description of Belt-Minder
operation.
•Low fuel warnings are displayed in the message center followed by a
chime when the distance to empty value reaches 75 miles (120 km).
•The reverse sensing system cannot be turned off.
Optional settings – These settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the radio or (if equipped)
navigation screen when attempting to exceed the limited volume.
•The AdvanceTracsystem cannot be turned off. When this optional
setting is on, the MyKeyuser will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud, or sand.
Create a MyKey
To program MyKeyon one of the keys programmed to the vehicle,
insert the key that you want to make a MyKeyinto the ignition. Turn
the ignition on. Use the message center buttons to do the following:
1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.
Locks and Security
120
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.
MyKeyis successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKeyoptional settings
section. If your vehicle is equipped with remote start, see theUsing
MyKeywith remote start systemssection.
Note:The MyKeycan be cleared within the same key cycle that it was
created, otherwise a standard key (administrator key) is required to
clear the MyKeyprogramming. To clear all MyKeysgo to Step 2 in the
Clear MyKeysection.
Programming MyKeyoptional settings
Turn the ignition on using an admin key. To program the optional
settings, use the message center buttons to do the following:
1. Press SETUP until RESET FOR MYKEY SETTINGS is displayed.
2. Press and release the RESET button to display MyKeysetup menus.
The first menu shown is:
MYKEY MAX MPH <80 MPH> OFF
3. If you don’t want to change the maximum speed setting, press the
SETUP button to display the next menu. The remaining menus appear as
follows with the default settings shown:
MYKEY MPH TONES 45 55 65
MYKEY VOLUME LIMIT OFF
MYKEY ADVTRAC CTRL ON .
4. On any of the menus press RESET to highlight your choice with the
<…>.
5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat Steps 4 and 5 until you are done changing the optional
settings.
Clear MyKey
To reset all MyKeysas admin keys do the following:
1. Turn the vehicle on using the admin key.
Locks and Security
121
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

•If the courtesy lamps were turned on because one of the vehicle doors
or the liftgate was opened, the battery saver will shut off them off
10 minutes after the ignition has been turned to the off position.
•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned to the off position.
SECURICODE™ KEYLESS ENTRY SYSTEM
The keypad is invisible until touched and then it lights up so you can see
and touch the appropriate buttons.Note:If you enter your entry code
too fast on the keypad, the unlock function may not work. Re-enter your
entry code more slowly.
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•recall memory seat, power
mirrors, and adjustable pedals (if
equipped).
The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s
wallet card in the glove box and is
available from your authorized
dealer. You can also create up to
three of your own 5–digit personal
entry codes.
When touching the controls on the keypad, touch the middle of the
controls.
Programming a personal entry code and keypad association to
memory seats, mirrors, and adjustable pedals (if equipped)
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds touch the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. For memory recall feature, enter the sixth digit 1•2 to store driver 1
settings or 3•4 to store driver 2 settings.
Locks and Security
134
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

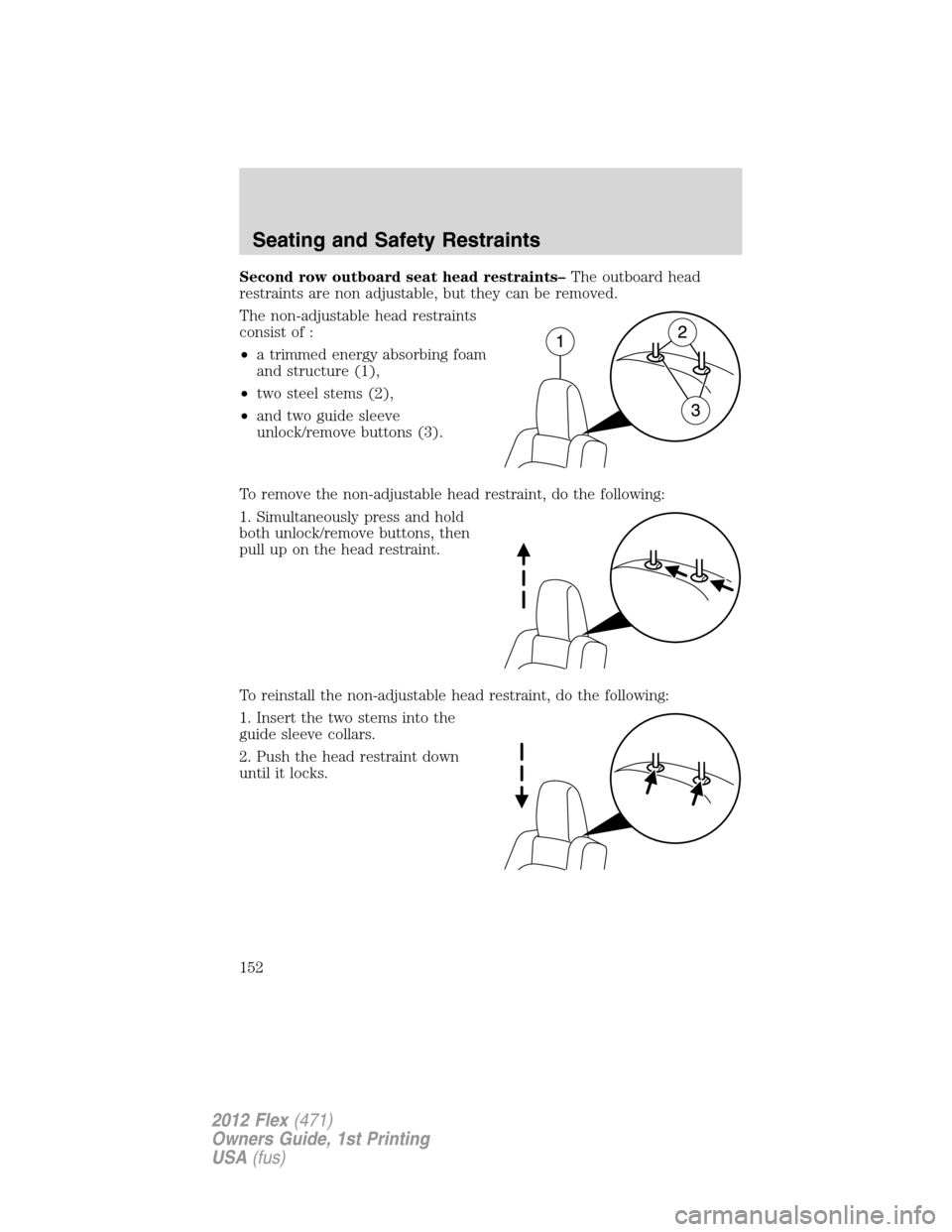

Second row outboard seat head restraints–The outboard head
restraints are non adjustable, but they can be removed.
The non-adjustable head restraints
consist of :
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•and two guide sleeve
unlock/remove buttons (3).
To remove the non-adjustable head restraint, do the following:
1. Simultaneously press and hold
both unlock/remove buttons, then
pull up on the head restraint.
To reinstall the non-adjustable head restraint, do the following:
1. Insert the two stems into the
guide sleeve collars.
2. Push the head restraint down
until it locks.
Seating and Safety Restraints
152
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

WARNING:Ensure the seat is latched to vehicle floor by
pushing/pulling on seat. If not latched, the seat may cause injury
during a sudden stop.
PowerFoldthird-row seat (if equipped)
The third row seat features a power one-touch operation that allows you
to adjust the Left, Right, or Both seats into a NORMAL, STOW, FOLD, or
TAILGATE position with just one touch of a button. The third row seat
also includes obstacle detection that allows the seat to stop and reverse
direction if it hits an obstacle so that the obstacle can be removed.
The third row power seat buttons are located behind the third row seats
on the left-hand quarter trim panel.
Note:The power fold seats work only when the vehicle is in P (Park)
and the tailgate is open. If the ignition is off and the feature is still
running, the battery saver will turn it off after 10 minutes. You can
reactivate the power seats by pressing
on the remote entry key fob
or by using the unlock procedure on the keyless entry keypad. Refer to
SecuriCode™ keyless entry systemin theLocks and Securitychapter.
Keeping the key in accessory or run positions will prevent the feature
from timing out.
Seating and Safety Restraints
162
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

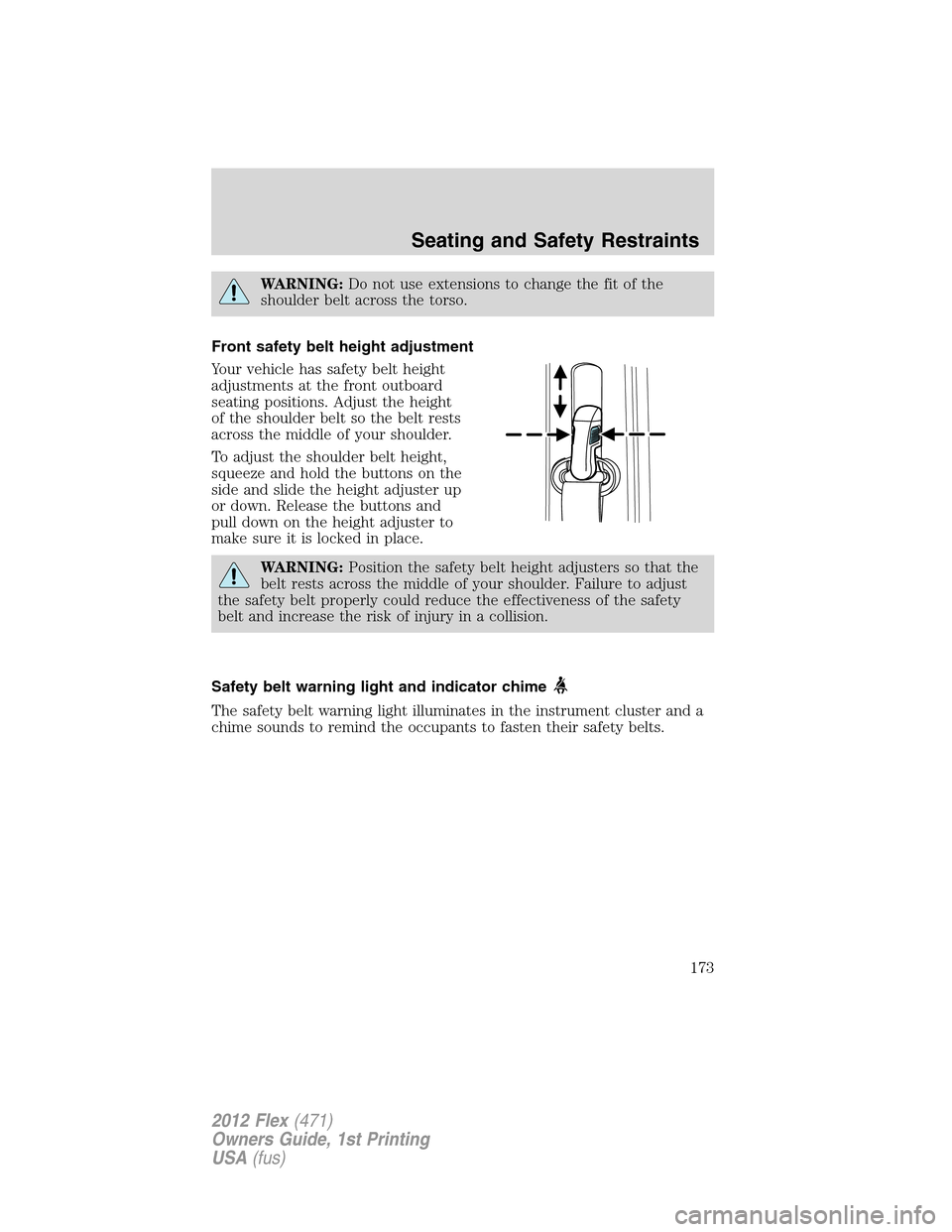

WARNING:Do not use extensions to change the fit of the
shoulder belt across the torso.
Front safety belt height adjustment
Your vehicle has safety belt height
adjustments at the front outboard
seating positions. Adjust the height
of the shoulder belt so the belt rests
across the middle of your shoulder.
To adjust the shoulder belt height,
squeeze and hold the buttons on the
side and slide the height adjuster up
or down. Release the buttons and
pull down on the height adjuster to
make sure it is locked in place.
WARNING:Position the safety belt height adjusters so that the
belt rests across the middle of your shoulder. Failure to adjust
the safety belt properly could reduce the effectiveness of the safety
belt and increase the risk of injury in a collision.
Safety belt warning light and indicator chime
The safety belt warning light illuminates in the instrument cluster and a
chime sounds to remind the occupants to fasten their safety belts.
Seating and Safety Restraints
173
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)
