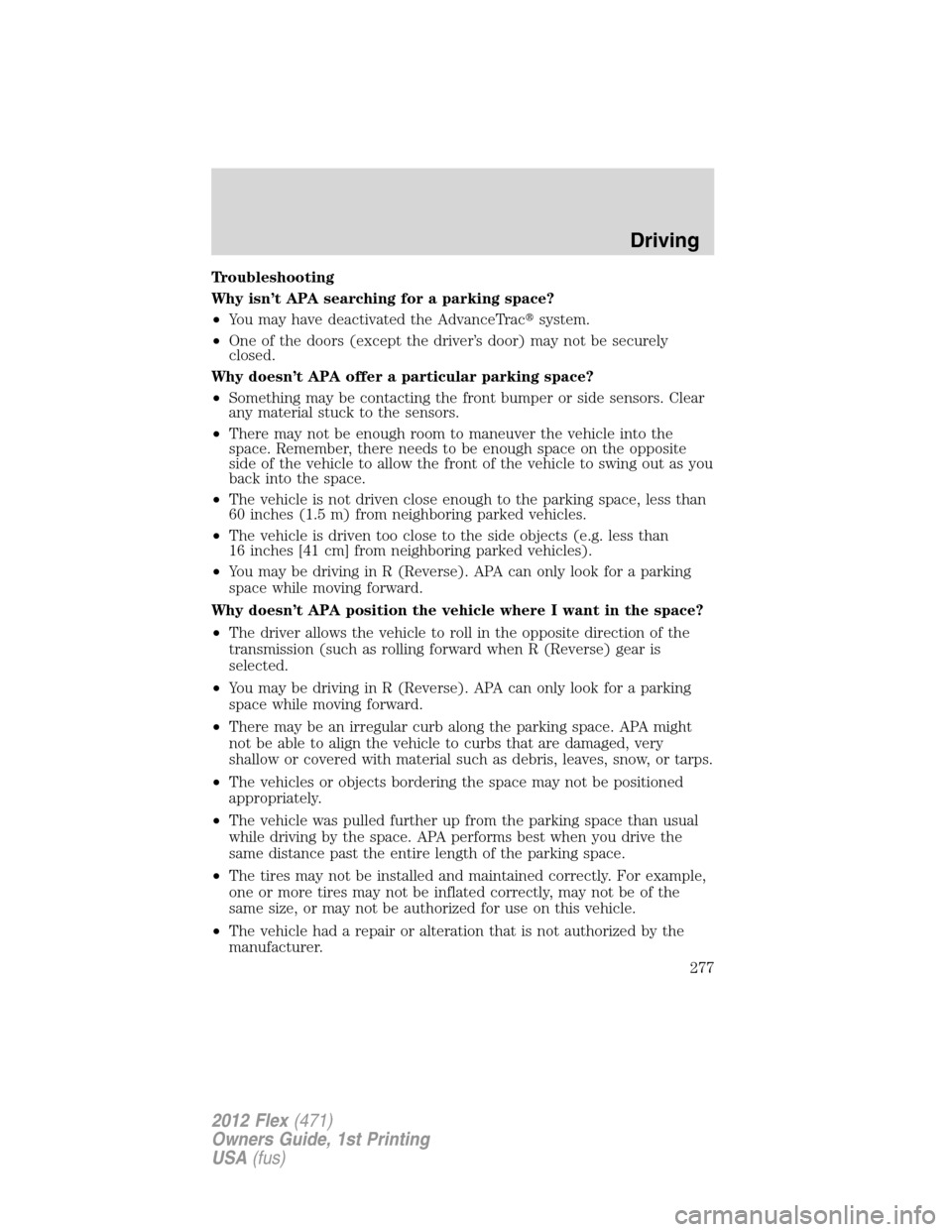

Troubleshooting
Why isn’t APA searching for a parking space?
•You may have deactivated the AdvanceTracsystem.
•One of the doors (except the driver’s door) may not be securely
closed.
Why doesn’t APA offer a particular parking space?
•Something may be contacting the front bumper or side sensors. Clear
any material stuck to the sensors.
•There may not be enough room to maneuver the vehicle into the
space. Remember, there needs to be enough space on the opposite
side of the vehicle to allow the front of the vehicle to swing out as you
back into the space.
•The vehicle is not driven close enough to the parking space, less than
60 inches (1.5 m) from neighboring parked vehicles.
•The vehicle is driven too close to the side objects (e.g. less than
16 inches [41 cm] from neighboring parked vehicles).
•You may be driving in R (Reverse). APA can only look for a parking
space while moving forward.
Why doesn’t APA position the vehicle where I want in the space?
•The driver allows the vehicle to roll in the opposite direction of the
transmission (such as rolling forward when R (Reverse) gear is
selected.
•You may be driving in R (Reverse). APA can only look for a parking
space while moving forward.
•There may be an irregular curb along the parking space. APA might
not be able to align the vehicle to curbs that are damaged, very
shallow or covered with material such as debris, leaves, snow, or tarps.
•The vehicles or objects bordering the space may not be positioned
appropriately.
•The vehicle was pulled further up from the parking space than usual
while driving by the space. APA performs best when you drive the
same distance past the entire length of the parking space.
•The tires may not be installed and maintained correctly. For example,
one or more tires may not be inflated correctly, may not be of the
same size, or may not be authorized for use on this vehicle.
•The vehicle had a repair or alteration that is not authorized by the
manufacturer.
Driving
277
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

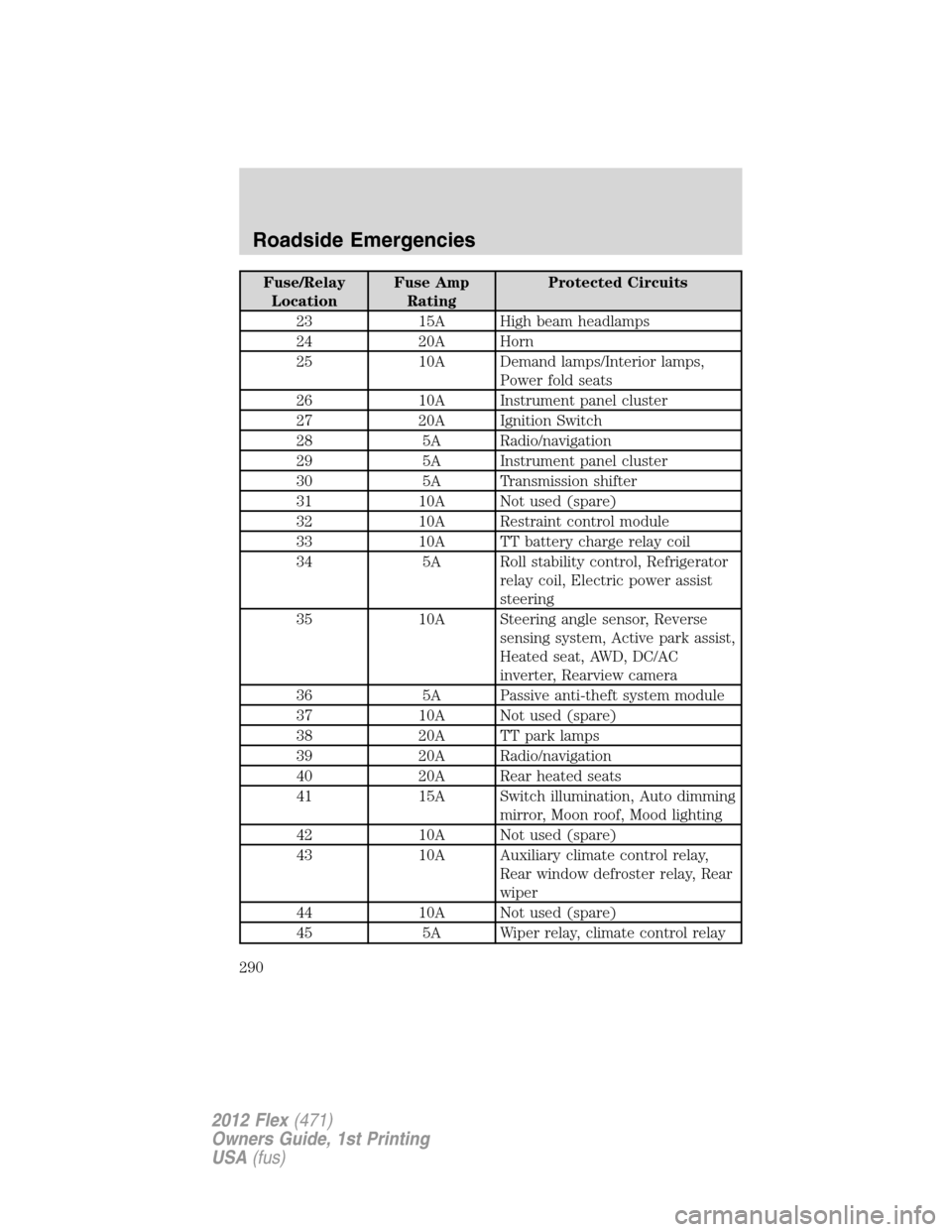

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
23 15A High beam headlamps
24 20A Horn
25 10A Demand lamps/Interior lamps,
Power fold seats
26 10A Instrument panel cluster
27 20A Ignition Switch
28 5A Radio/navigation
29 5A Instrument panel cluster
30 5A Transmission shifter
31 10A Not used (spare)
32 10A Restraint control module
33 10A TT battery charge relay coil
34 5A Roll stability control, Refrigerator
relay coil, Electric power assist
steering
35 10A Steering angle sensor, Reverse
sensing system, Active park assist,
Heated seat, AWD, DC/AC
inverter, Rearview camera
36 5A Passive anti-theft system module
37 10A Not used (spare)
38 20A TT park lamps
39 20A Radio/navigation
40 20A Rear heated seats
41 15A Switch illumination, Auto dimming
mirror, Moon roof, Mood lighting
42 10A Not used (spare)
43 10A Auxiliary climate control relay,
Rear window defroster relay, Rear
wiper
44 10A Not used (spare)
45 5A Wiper relay, climate control relay
Roadside Emergencies
290
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

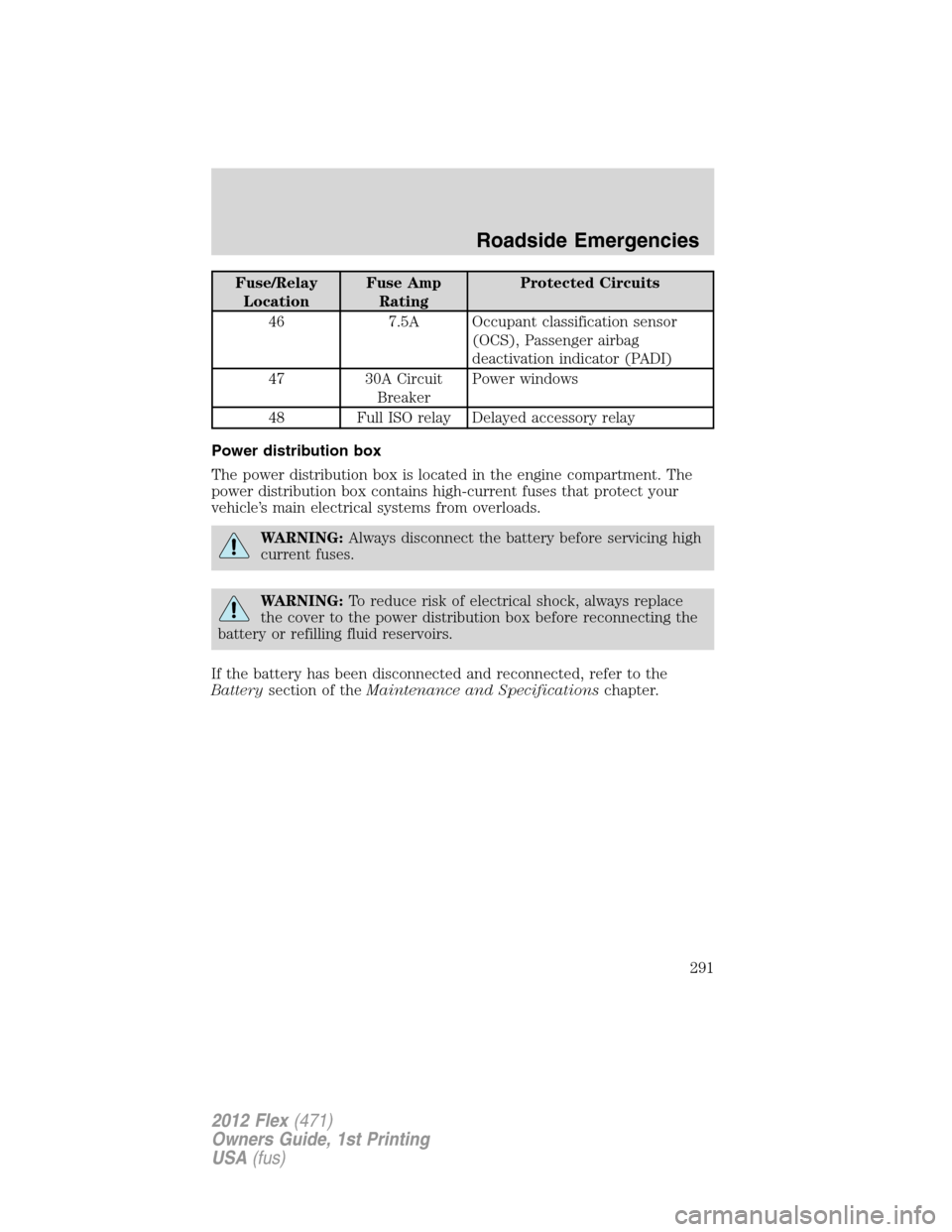

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
46 7.5A Occupant classification sensor
(OCS), Passenger airbag
deactivation indicator (PADI)
47 30A Circuit
BreakerPower windows
48 Full ISO relay Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
291
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
13 20A** Left high intensity discharge
(HID) headlamp
14 10A** Brake on/off (BOO) switch
15 25A** Rear wiper
16 20A** Right HID headlamp
17 10A** Alternator sensor
18 20A* Rear power point
19 20A* Console power point
20 40A* Rear defroster
21 20A* Console power point (rear of front
console)
22 — Not used
23 10A** PCM keep alive power, Canister
vent
24 10A** A/C clutch
25 15A** Refrigerator
26 20A** Backup relay
27 15A** Fuel relay (Fuel pump driver
module, Fuel pump)
28 80A* Cooling fan
29 — Not used
30 30A* Battery charge – trailer tow (TT)
31 40A* Auxiliary blower motor
32 30A* Driver seat motor
33 30A* 3rd row power seats
34 30A* Power liftgate
35 40A* Front A/C blower
36 10A** Backup lamps
37 10A** PCM run/start
38 10A** TT backup lamps
39 Diode Fuel diode
40 Diode One touch integrated start diode
Roadside Emergencies
293
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

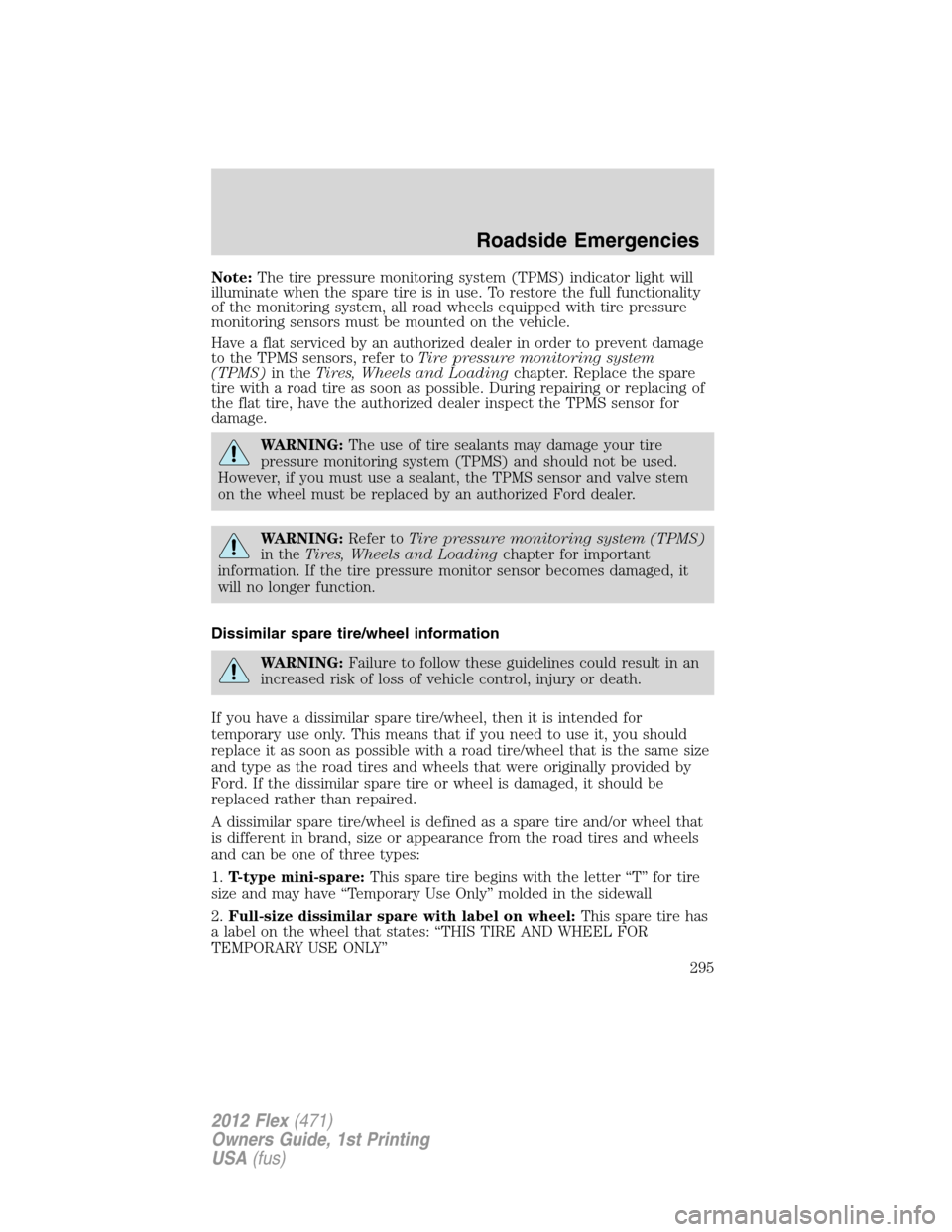

Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
Roadside Emergencies
295
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

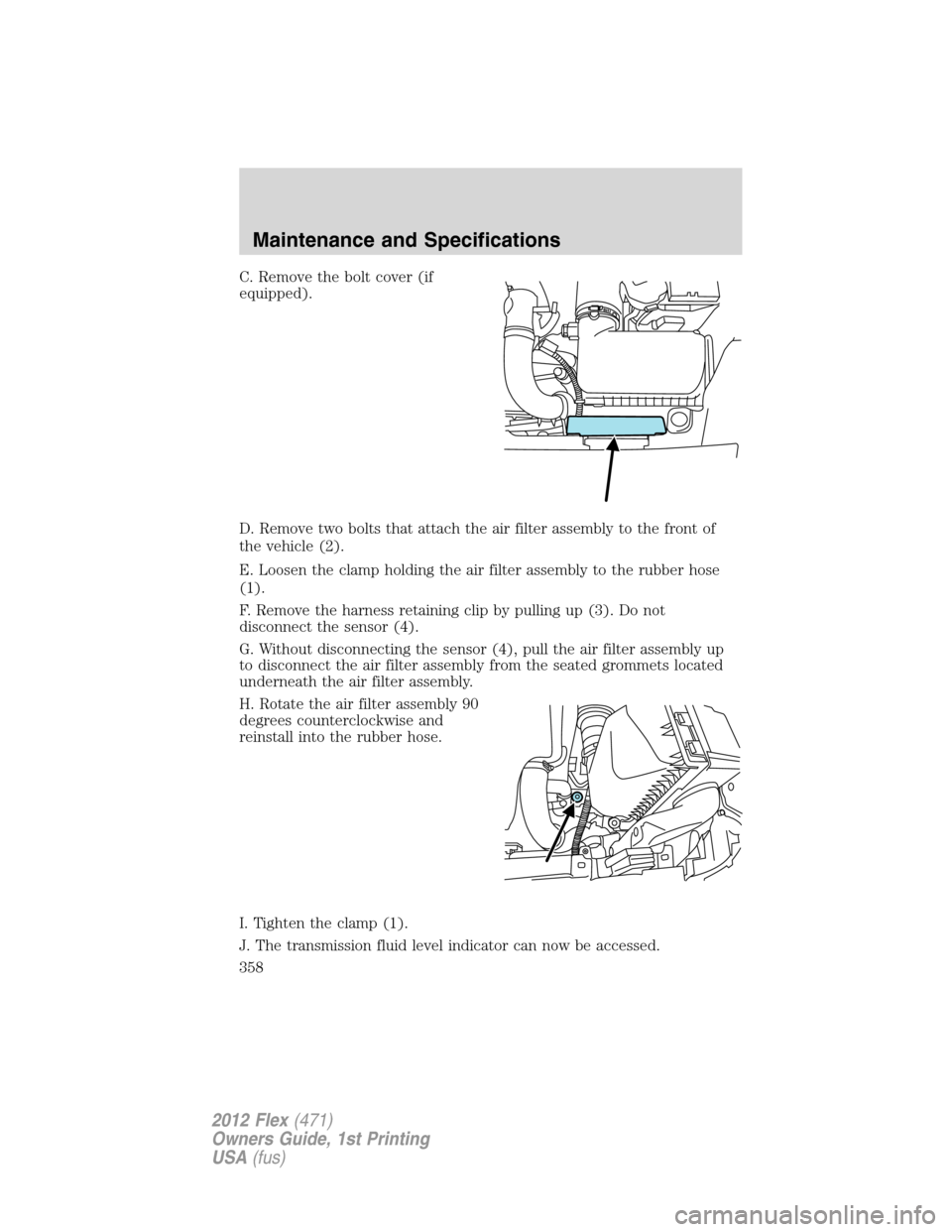

C. Remove the bolt cover (if
equipped).
D. Remove two bolts that attach the air filter assembly to the front of
the vehicle (2).
E. Loosen the clamp holding the air filter assembly to the rubber hose
(1).
F. Remove the harness retaining clip by pulling up (3). Do not
disconnect the sensor (4).
G. Without disconnecting the sensor (4), pull the air filter assembly up
to disconnect the air filter assembly from the seated grommets located
underneath the air filter assembly.
H. Rotate the air filter assembly 90
degrees counterclockwise and
reinstall into the rubber hose.
I. Tighten the clamp (1).
J. The transmission fluid level indicator can now be accessed.
Maintenance and Specifications
358
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

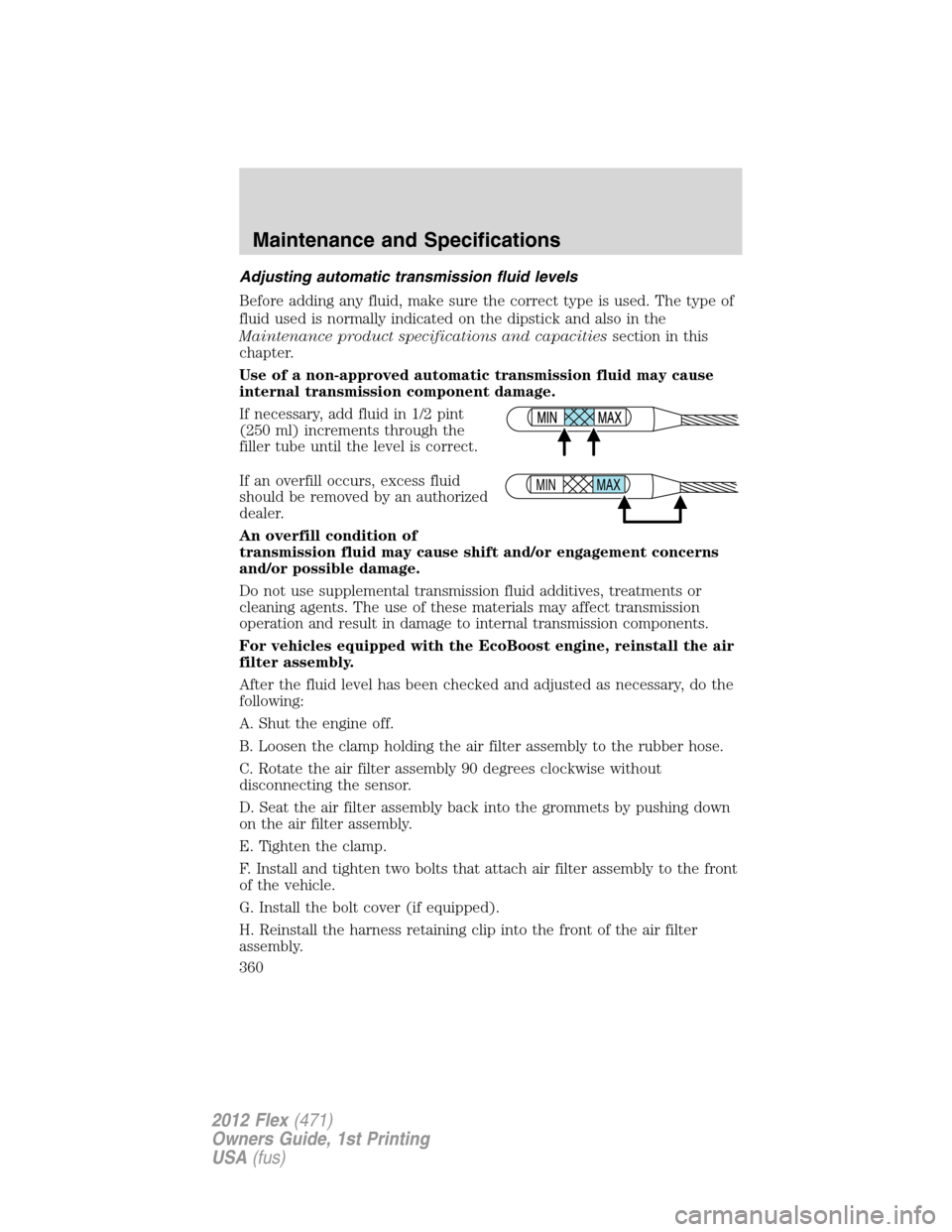

Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Maintenance product specifications and capacitiessection in this
chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
If necessary, add fluid in 1/2 pint
(250 ml) increments through the
filler tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
An overfill condition of
transmission fluid may cause shift and/or engagement concerns
and/or possible damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
For vehicles equipped with the EcoBoost engine, reinstall the air
filter assembly.
After the fluid level has been checked and adjusted as necessary, do the
following:
A. Shut the engine off.
B. Loosen the clamp holding the air filter assembly to the rubber hose.
C. Rotate the air filter assembly 90 degrees clockwise without
disconnecting the sensor.
D. Seat the air filter assembly back into the grommets by pushing down
on the air filter assembly.
E. Tighten the clamp.
F. Install and tighten two bolts that attach air filter assembly to the front
of the vehicle.
G. Install the bolt cover (if equipped).
H. Reinstall the harness retaining clip into the front of the air filter
assembly.
MAX MIN
Maintenance and Specifications
360
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

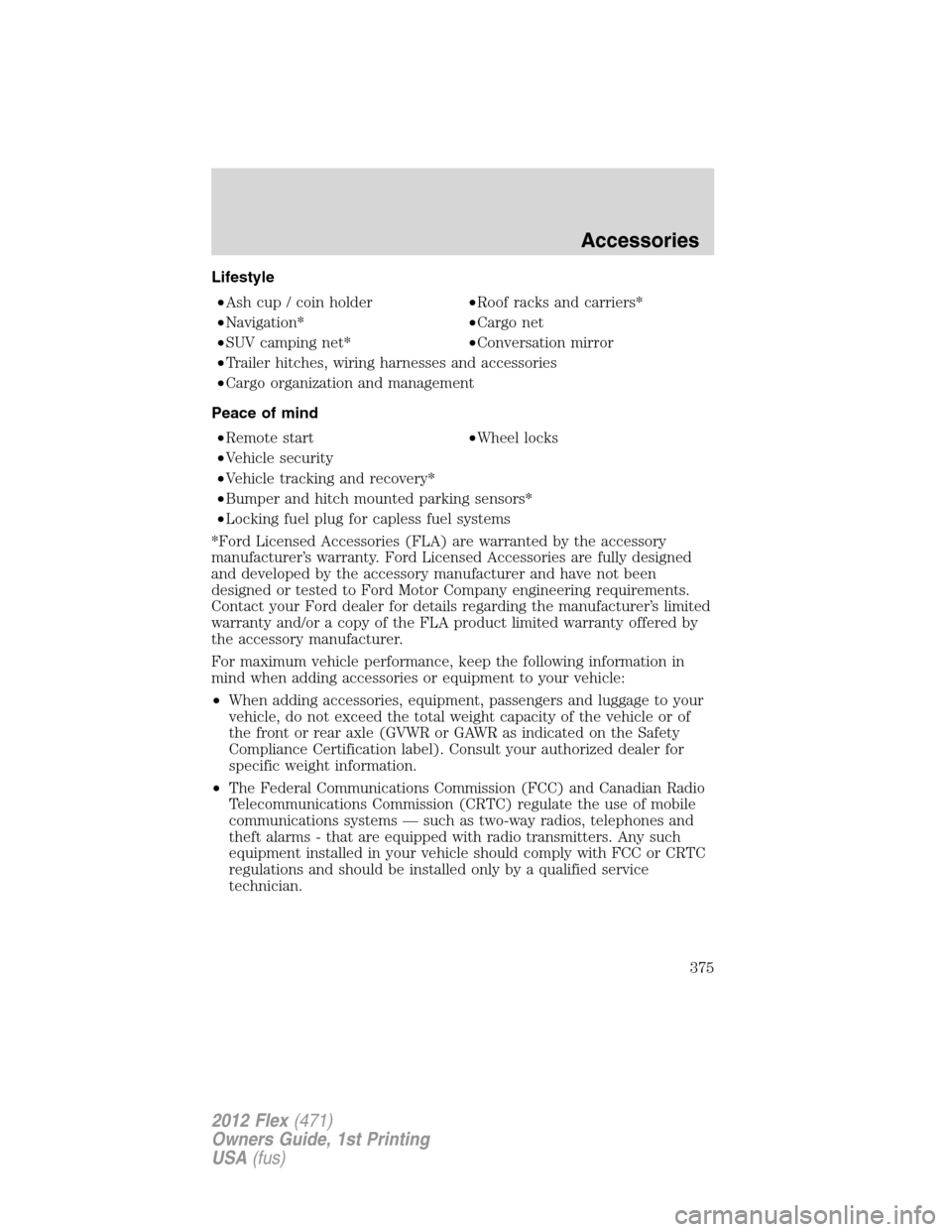

Lifestyle
•Ash cup / coin holder•Roof racks and carriers*
•Navigation*•Cargo net
•SUV camping net*•Conversation mirror
•Trailer hitches, wiring harnesses and accessories
•Cargo organization and management
Peace of mind
•Remote start•Wheel locks
•Vehicle security
•Vehicle tracking and recovery*
•Bumper and hitch mounted parking sensors*
•Locking fuel plug for capless fuel systems
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
Accessories
375
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

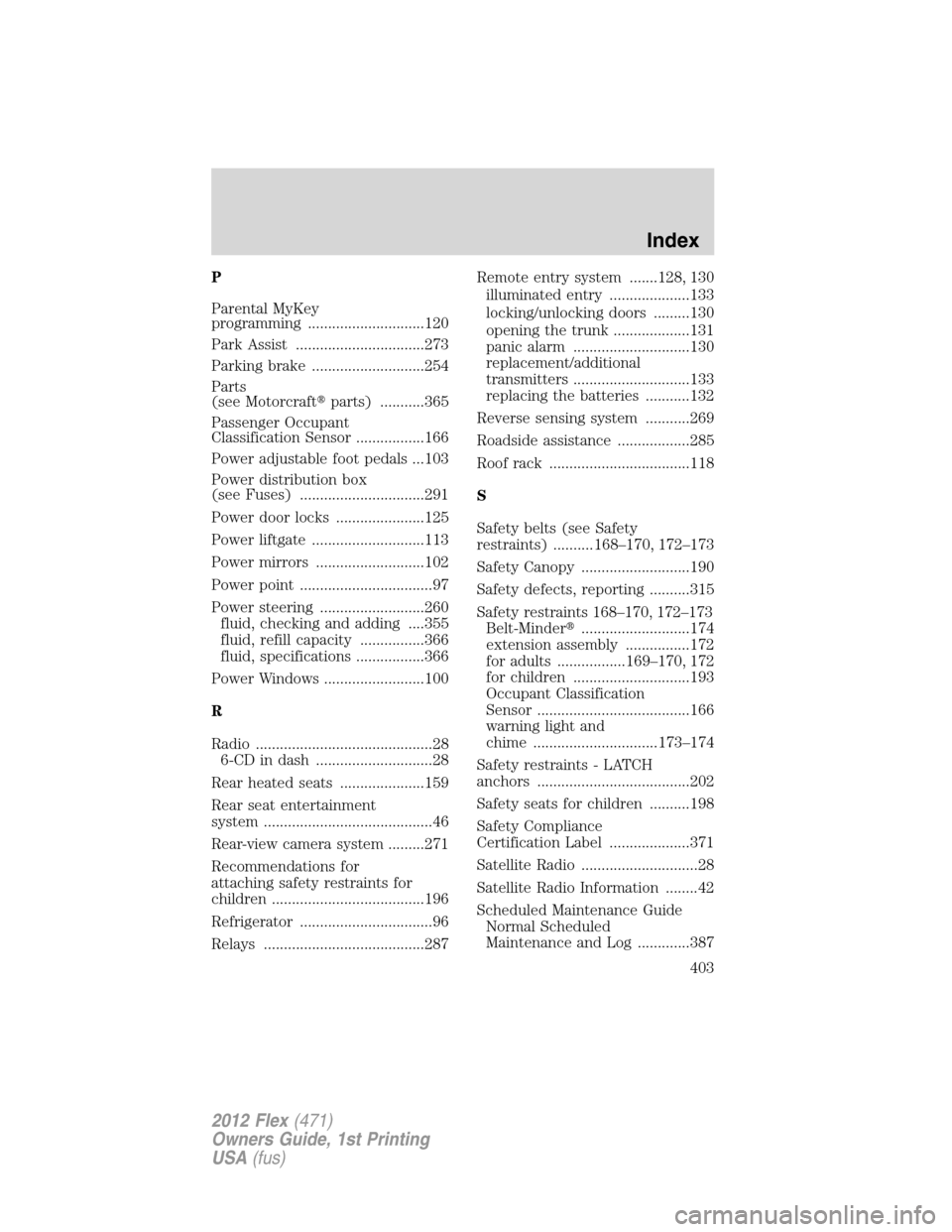

P
Parental MyKey
programming .............................120
Park Assist ................................273
Parking brake ............................254
Parts
(see Motorcraftparts) ...........365
Passenger Occupant
Classification Sensor .................166
Power adjustable foot pedals ...103
Power distribution box
(see Fuses) ...............................291
Power door locks ......................125
Power liftgate ............................113
Power mirrors ...........................102
Power point .................................97
Power steering ..........................260
fluid, checking and adding ....355
fluid, refill capacity ................366
fluid, specifications .................366
Power Windows .........................100
R
Radio ............................................28
6-CD in dash .............................28
Rear heated seats .....................159
Rear seat entertainment
system ..........................................46
Rear-view camera system .........271
Recommendations for
attaching safety restraints for
children ......................................196
Refrigerator .................................96
Relays ........................................287Remote entry system .......128, 130
illuminated entry ....................133
locking/unlocking doors .........130
opening the trunk ...................131
panic alarm .............................130
replacement/additional
transmitters .............................133
replacing the batteries ...........132
Reverse sensing system ...........269
Roadside assistance ..................285
Roof rack ...................................118
S
Safety belts (see Safety
restraints) ..........168–170, 172–173
Safety Canopy ...........................190
Safety defects, reporting ..........315
Safety restraints 168–170, 172–173
Belt-Minder...........................174
extension assembly ................172
for adults .................169–170, 172
for children .............................193
Occupant Classification
Sensor ......................................166
warning light and
chime ...............................173–174
Safety restraints - LATCH
anchors ......................................202
Safety seats for children ..........198
Safety Compliance
Certification Label ....................371
Satellite Radio .............................28
Satellite Radio Information ........42
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............387
Index
403
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)
