Remote control
Unless otherwise stated, all operations can be carried out with the
remote control. Always point the remote control directly at the player.
Ensure that there are no obstructions between the remote and player.
Press the MON A B control to select either Monitor A or Monitor B.
Note:Each headrest monitor is labeled with an identifier (either A or B)
found in the upper right corner of the system.
Note:Use the remote to adjust the volume levels for wired headphones
for headrest media sources only (DVD, USB port and auxiliary inputs).
To adjust the volume levels on the infrared wireless headphones
(provided with your system), first use the remote control
volume-controls to adjust volume settings to maximum, then use the
rotary volume control on the side of the headphones to adjust the
volume to the desired listening level.
1.
(On/off):Press to turn each monitor/headrest system on or off.
Entertainment Systems
51
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

2.Cursor controls:Use in various active menus to advance the cursor
up/down/left/right. When not in a menu, the left and right cursor controls
decrease and increase the display brightness, and the left and right
cursor controls advance to the next or previous station when accessing
the radio tuner in dual play mode (AM/FM/SR).
3.DISPLAY:Press to access the on-screen display of title track, chapter
and time elapsed.
4.RETURN:Press to return to the previous menu screen.
5.SETUP: Press to access the setup menu for each monitor. Refer to
Setup Menulater in this section for more information.
6.MON A/B:Press to select either monitor A or monitor B to be
controlled by the remote control.
7.VOL (Volume):When in Dual Play only, press to increase (
)or
decrease (
) the volume for the wired headphones for headrest media
sources only (DVD, USB port and auxiliary inputs). (Wireless headphone
volume is controlled with the rotary dial on the right ear piece.)
8.Fast Forward/Next:In DVD mode, press and hold for a quick
advance within the DVD. Press and release to advance to the next
chapter. In CD/MP3 mode, press to access the next track. When using a
flash/thumb drive, press to access the next track.
9.Play/Pause:Press to play or pause a DVD, disc or flash/thumb drive
track.
10.TITLE:Press to access the on-screen display of the root DVD disc
menu.
11.STOP:Press to stop the current DVD, disc or flash/thumb drive
track.
12.
/Speaker/Headphone(Single/Dual Play): Press to switch
between Single Play (same media playing through all speakers) and Dual
Play (headphone mode, the rear speakers are muted). You can also press
the 2 and 4 memory presets on the audio system at the same time to
perform the same function.
Note:Whenever either headrest system presses this button, both
systems will automatically go into dual play mode. In order to return to
single play mode, you must press this button on both headrest systems.
13.Numeric Keypad:Use the numeric controls to enter in a specific
CD/MP3 track or DVD chapter to be played.
14.C (Cancel):Press to cancel/clear the numeric input (i.e. chapter
number).
Entertainment Systems
52
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

15.MEDIA for Monitor A:In Dual Play mode, press MEDIA repeatedly
to select from the possible media sources: (Monitor A, Monitor B, AM,
FM1, FM2, SR1, SR2, SR3 (satellite radio, if equipped), Disc, Jukebox (if
equipped) and SYNC(if equipped). The selected media type will
display on the screen. When Monitor A is chosen, you can also use the
auxiliary inputs and the USB port on the headrest system.
MEDIA for Monitor B:In Dual Play mode, press MEDIA repeatedly to
select from the possible media sources: (Monitor A, Monitor B). The
selected media type will display on the screen. When Monitor B is
chosen, you can also use the auxiliary inputs and USB port on the
headrest system.
For further information, please refer toSingle play/Dual playlater in
this section.
Note:Each headrest monitor is labeled with an identifier (either A or B)
found in the upper right corner of the system.
16.MUTE:Press to mute the volume of the active media source.
(headphone and speakers, where applicable.) Press again to restore
volume.
17.EJECT:Press to eject a disc from the system. OPEN will display on
the screen.
18.Fast reverse/Previous:When a DVD is playing, press and hold for a
quick reverse within the DVD. Press and release for the previous
chapter. Press PLAY to resume normal playback speed and volume.
In CD/MP3 mode, press to access the previous track. When using a
flash/thumb drive, press to access the next track.
19.MENU:Press to access the DVD or CD disc menu for selections.
Press again to return to DVD play.
Note:For certain discs, you may need to press ENTER to return to DVD
play.
20.SUBTITLE(DVD dependent): Press to turn the subtitle feature ON
or OFF.
21.LANGUAGE(DVD dependent): Press to select the desired
language.
22.ENTER:Press to select the highlighted menu option.
23.ILLUMINATION: Press to illuminate the remote control and
backlight all of the buttons for night use.
Entertainment Systems
53
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Battery replacement
Batteries are supplied with the
remote control unit. Since all
batteries have a limited shelf life,
replace them when the unit fails to
control the DVD player.
Remove the screw and unlatch the battery cover to access the batteries.
The remote control unit uses two AAA batteries which are supplied with
the unit.
Headphones
Wireless headphones
WARNING:The driver should never use the headphones while
driving the vehicle. Using headphones may prevent the driver
from hearing audible warnings such as horns or emergency sirens,
which could result in a crash causing serious injury. Give your full
attention to driving and to the road.
Your FES system is equipped with two sets of battery powered, infrared
wireless headphones. Two AAA batteries are needed to operate the
headphones. (Batteries are included.)
Entertainment Systems
54
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Additional infrared wireless headphones may be purchased for use with
the system. Also, wired headphones may be purchased and plugged in
where indicated on the left and right hand sides of the system. Refer to
Wired Headphonesfollowing.

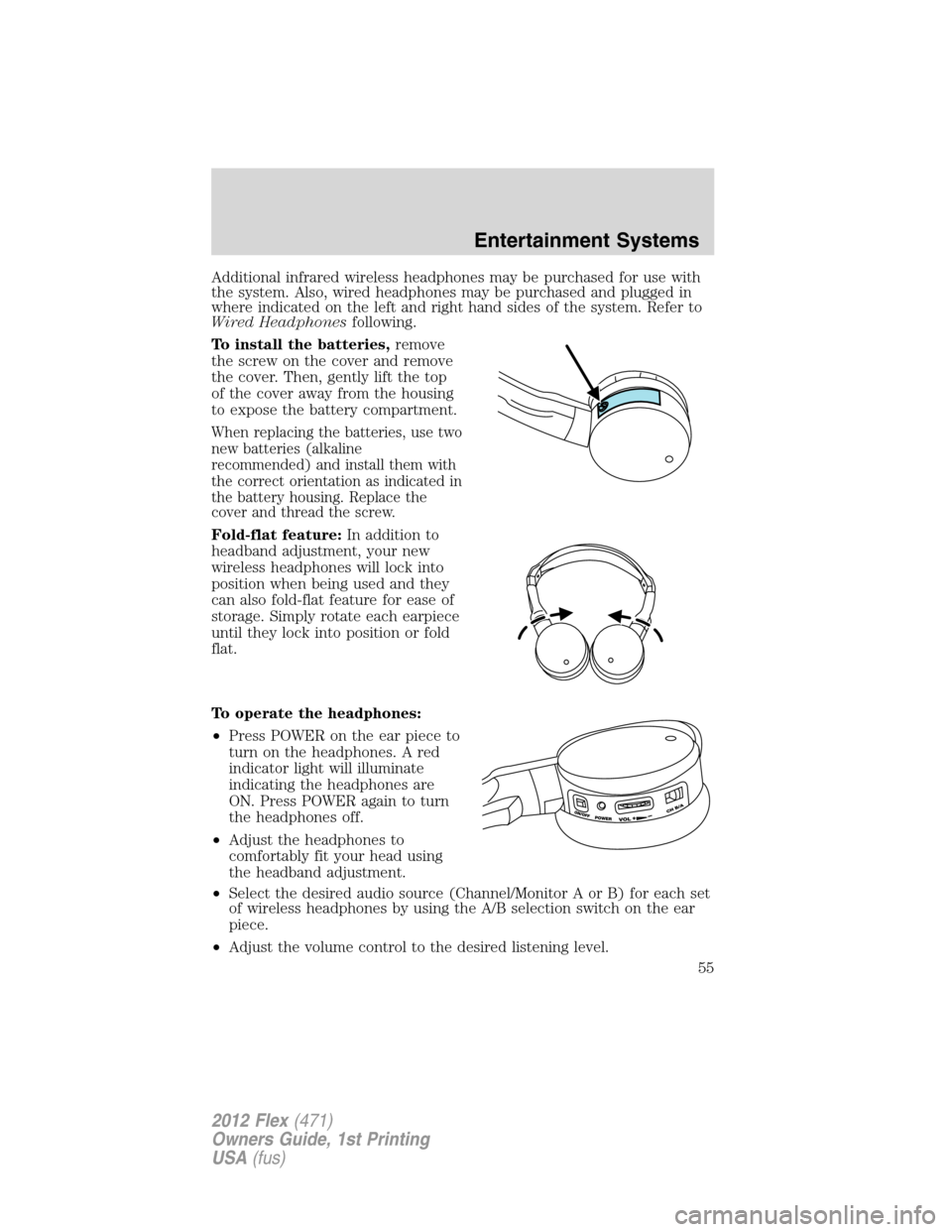

To install the batteries,remove
the screw on the cover and remove
the cover. Then, gently lift the top
of the cover away from the housing
to expose the battery compartment.
When replacing the batteries, use two
new batteries (alkaline
recommended) and install them with
the correct orientation as indicated in
the battery housing. Replace the
cover and thread the screw.
Fold-flat feature:In addition to
headband adjustment, your new
wireless headphones will lock into
position when being used and they
can also fold-flat feature for ease of
storage. Simply rotate each earpiece
until they lock into position or fold
flat.
To operate the headphones:
•Press POWER on the ear piece to
turn on the headphones. A red
indicator light will illuminate
indicating the headphones are
ON. Press POWER again to turn
the headphones off.
•Adjust the headphones to
comfortably fit your head using
the headband adjustment.
•Select the desired audio source (Channel/Monitor A or B) for each set
of wireless headphones by using the A/B selection switch on the ear
piece.
•Adjust the volume control to the desired listening level.
Entertainment Systems
55
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Ensure that the headphones are turned off when not in use. After
approximately one minute of not being in use (no infrared signal is
received), the wireless headphones will automatically turn off. They will
also turn off after two hours of continuous use as a power save feature.
If this happens, simply turn the headphones on again and continue use.
Wired headphones
WARNING:Do not leave children unattended in the vehicle and
do not let children operate the system while unsupervised. If
wired headphones or auxiliary systems are used, children may become
entangled in the cords and seriously injure themselves.
WARNING:The driver should never use the headphones while
driving the vehicle. Using headphones may prevent the driver
from hearing audible warnings such as horns or emergency sirens,
which could result in a crash causing serious injury. Give your full
attention to driving and to the road.
Wired headphone jacks on the FES (Family Entertainment System) are
universal so you may purchase and use additional wired headphones for
your system. Plug them into the 3.5 mm headphone jack(s) located
behind the trim covers on the face of each monitor. These headphones
will be active when in Dual Play mode.
To listen to the audio on wired headphones (not included), connect the
wired headphones into the monitor headphone jacks. Available wired
headphone sources are limited to the sources available to whichever
monitor is being listened to. Adjust the volume using the volume control
on the DVD system remote control.
Operation
Single play/dual play
Your DVD and audio system work together with the infrared headphones
and wired headphones (not included) to allow the rear seat passengers
to listen to the radio (and other media sources) over the headphones.
This enables the front and rear seat passengers to listen to a variety of
sources a variety of ways.
Single Play:Single play consists of all occupants in the vehicle listening
to the same playing media over the front and rear speakers. When the
DVD system is on and in single play, the same source will play through
all vehicle speakers.
Entertainment Systems
56
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Dual Play:Dual play is when the rear seat passengers choose to listen
to a different playing media than the front seat passengers. With the
DVD and rear seat controls turned on, the rear seat passengers may
choose to listen to: Monitor A, Monitor B, AM, FM1, FM2 SR1, SR2, SR3
(satellite radio, if equipped), Disc, Jukebox (if equipped), or SYNC(if
equipped). While the front speakers play the chosen selection for the
front audio system, the rear seat passengers can listen to another over
the headphones. The headphone icon will appear in the display
indicating that the headphones are active.
You can access dual play mode in any of the following ways:
•If your vehicle is equipped with a touchscreen system:
a.Ensure that the vehicle ignition is turned on. Inserting a DVD into
the system will automatically activate dual play mode.
b.Press the RADIO or MEDIA hard button. Select the ‘Rear Zone’ tab
on the touchscreen and select ‘On’ for the headphones and ‘Enabled’
for the rear controls. To return to single zone, select ‘Off’ for the
headphones.
•If your vehicle is equipped with a non-touchscreen system:
a.Press the headphone/speaker (
/) button on the remote
control or DVD system. Press again on both headrest systems to
return to single play mode.
b.Press the 2 and 4 memory presets on the radio at the same time.
Press again to return to single play mode.
Note:If the front seat passengers are listening to the radio, the rear seat
passengers can also listen to the radio; however, they will be limited to
listening to the same radio channel.
•Once you have entered Dual play mode, the Channel A or Channel B
controls on the headphones are now active. Both Channel A and
Channel B can be listened to on the wired headphones (not included)
or on the infrared (IR) wireless headphones.
•On the wireless headphones, select the Channel A or Channel B
buttons on each pair of wireless headphones.
•Press MEDIA to change the audio source for the Channel A or
Channel B headphones. (This information will display on the DVD
system screen).
Note:Channel B headphones can only listen to either the DVD media,
Monitor A or the DVD system auxiliary inputs. Channel A headphones
have access to all available media sources.
Entertainment Systems
57
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Radio interaction:If your vehicle is equipped with a non-touchscreen
audio system, you can press AUX on the radio repeatedly until DVD
appears in the display. Then, press MENU to access HEADPHONES
ON/OFF, REAR ZONE CONTROL ON/OFF and other options. Turn the
TUNE control to select ON/OFF for HEADPHONES (ON will activate
Dual Play and OFF will activate Single Play). For the REAR ZONE
CONTROL, selecting ON will give the rear seat passengers control over
the DVD system and selecting OFF will turn off control for the rear seat
passengers.
Press the MEDIA button to access radio or satellite radio media sources
while in dual play mode. Once the desired media source selection
appears on the screen, press MENU/SEL on the DVD headrest A system
when and then press
/to step forward or back through any
saved presets.
When accessing SYNCin dual
play mode,press MENU/SEL on
DVD headrest monitor A when
SYNC appears on the screen then
press
/to scroll through
SYNCmedia options of: USB,
Bluetooth, Line in (auxiliary audio
mode) and Exit.
Supported USB devices:To help ensure compatibility, the DVD system
has been tested with most brands of flash/thumb devices and most
common personal audio players.
Setup menu options
To access the set up menu, first select the desired headrest/monitor
system by pressing MON A or MON B. Then press SETUP on the remote
control.
Note:This is the only way to gain access to the Setup menu options.
You cannot access from the monitor headrest controls.
Note:On any of the following screens, press
/to access the
previous/next menu level.
Entertainment Systems
58
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Aspect ratio (TV display type)
This screen allows you to select the
viewing size and shape of the video
displayed on the LCD screen. This is
disc dependent feature.
To access:
1. Press SETUP on the remote to access the menu options.
2. Press
/to ’highlight’ the monitor icon. (A disc will appear
beneath the icon signifying it is the current selection.)
3. Press
to select and enter the TV display menu.
4. When TV display is highlighted, press
to enter the menu.
5. Press
/to select from the following settings:
•Normal P/S(Pan and Scan): Displays the wide picture on the screen
with a portion of the left and right sides removed.
•Normal L/B(Letter-Box): Displays the wide picture with black bands
on the upper and lower portions of the screen.
•Wide:Displays the wide picture.
6. When the desired selection is highlighted, press ENTER on the remote
control to confirm the selection.
OSD language
This screen allows you to select the
language you would like for use with
the DVD player commands and
set-up screens.
To access:
1. Press SETUP on the remote to access the menu options.
Entertainment Systems
59
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

2. Press/to ’highlight’ the monitor icon. (A disc will appear
beneath the icon signifying it is the current selection.)
3. Press
to select and enter the OSD language menu.
4. When OSD Lang is highlighted, press
to access the menu.
5. Press
/to select from all available languages.
6. When the desired language is highlighted, press ENTER on the remote
to confirm the selection.
Note:The default language is English.
Angle mark
This feature allows you to select
from different viewing angles that
may be found on the disc. This is a
disc dependent feature. If the DVD
does not have this capability, it will
not be available.
Note:This is a disc dependent
feature.
To access:
1. Press SETUP on the remote to access the menu options.
2. Press
/to ’highlight’ the monitor icon. (A disc will appear
beneath the icon signifying it is the current selection.)
3. Press
to select and enter the TV display menu.
4. When Angle Mark is highlighted, press
to access the menu.
5. Press
/to select from all available angles.
6. When the desired language is highlighted, press ENTER on the remote
to confirm the selection.
Entertainment Systems
60
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)
