mirror controls FORD FLEX 2012 1.G Owners Manual

Introduction 4
Instrument Cluster 12
Warning lights and chimes 12
Gauges 16
Message center 18
Entertainment Systems 28
AM/FM stereo with CD/MP3 28
Auxiliary input jack (Line in) 37
USB port 38
Satellite radio information 42
Family entertainment system 46
Navigation system 66
SYNC66
Climate Controls 67
Manual heating and air conditioning 67
Dual electronic automatic temperature control 70
Navigation system based climate control 73
Rear window defroster 78
Lights 80
Headlamps 80
Turn signal control 84
Bulb replacement 85
Driver Controls 90
Windshield wiper/washer control 90
Steering wheel adjustment 91
Power windows 100
Mirrors 101
Speed control 103
Moon roof 107
Table of Contents
1
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

10.Power/cabin temperature:Press to activate/deactivate the
climate control system. When the system is off, outside air is prevented
from entering the vehicle.
Turn the dial to increase/decrease the airflow temperature on the
driver side of the vehicle. This control also adjusts the passenger side
temperature when PASS TEMP is off.
11.
Driver heated seat control:Press to heat the driver seat. Press
once to activate high heat (two indicator lights). Press again to activate
low heat (one indicator light). Press again to deactivate the driver
heated seat. Refer toFront seatingin theSeating and Safety
Restraintschapter for more information.
12.
RRear defroster/heated mirrors:Press to activate/deactivate the
rear window defroster and heated outside mirrors (if equipped). Refer to
Rear window defrosterlater in this chapter andHeated outside
mirrorsin theDriver controlschapter for more information.
13.
–Front fan speed control:Press to decrease the fan speed for
the front climate area.
14.
Rear climate system power:Press to activate/deactivate the
rear climate control system.
15.REAR CTRL:Press to change control of the rear climate system
from the front to the rear controls.
16.TEMP– Rear temperature control:Press to decrease the
temperature for the rear climate area.
17.TEMP+ Rear temperature control:Press to increase the
temperature for the rear climate area.
18.
–Rear fan speed control:Press to decrease the fan speed for
the rear climate area.
19.
+Rear fan speed control:Press to increase the fan speed for
the rear climate area.
Climate Controls
72
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

DUAL ZONE AUTOMATIC TEMPERATURE CONTROL (NAVIGATION
BASED–IF EQUIPPED)
Temperature conversion:To switch between Fahrenheit and Celsius,
refer toMessage centerin theInstrument Clusterchapter.
1.Climate:Press to control the climate control system through the
touch display screen. SeeTouchscreen functionslater in this section.
2.
RRear defroster:Press to activate/deactivate the rear window
defroster. Refer toRear window defrosterlater in this chapter for more
information. If your vehicle is equipped with heated mirrors, the same
button will activate both.
3.A/C:Press to activate/deactivate air conditioning. Use with
recirculated air to improve cooling performance and efficiency. A/C
engages automatically in MAX A/C,
(defrost) and
(floor/defrost).
4.Passenger temperature:Press to activate separate passenger
temperature control and increase/decrease the air temperature on the
passenger side of the vehicle.
Climate Controls
73
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

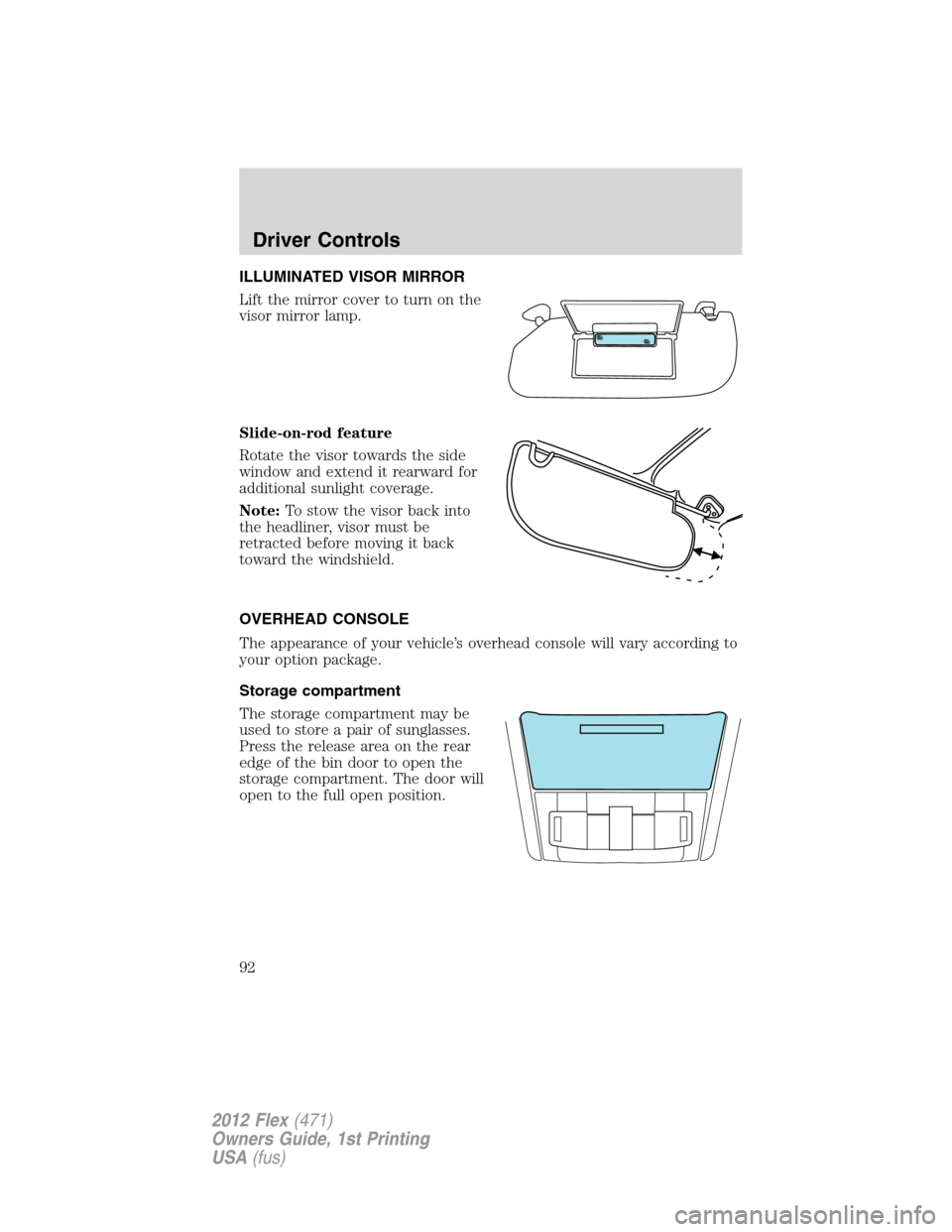

ILLUMINATED VISOR MIRROR
Lift the mirror cover to turn on the
visor mirror lamp.
Slide-on-rod feature
Rotate the visor towards the side
window and extend it rearward for
additional sunlight coverage.
Note:To stow the visor back into
the headliner, visor must be
retracted before moving it back
toward the windshield.
OVERHEAD CONSOLE
The appearance of your vehicle’s overhead console will vary according to
your option package.
Storage compartment
The storage compartment may be
used to store a pair of sunglasses.
Press the release area on the rear
edge of the bin door to open the
storage compartment. The door will
open to the full open position.
Driver Controls
92
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Security override
To override a bounce-back condition, within two seconds after the
window reaches the bounce-back position, pull and hold the switch up
andthe window will travel up with no bounce-back or pinch
protection.If the switch is released before the window is fully closed,
the window will stop. For example, this can be used to overcome the
resistance of ice on the window or seals.
Window lock
The window lock feature allows only
the driver to operate the power
windows.
To lock out all the window controls
(except for the driver’s) press the
right side of the control. Press the
left side to restore the window
controls.
Accessory delay
With accessory delay, the window switches, audio system and moon roof
(if equipped) may be used for up to 10 minutes after the ignition is
turned off or until either front door is opened.
INTERIOR MIRROR
The interior rearview mirror has two pivot points on the support arm
which lets you adjust the mirror up or down and from side to side.
WARNING:Do not adjust the mirror while the vehicle is in
motion.
Automatic dimming interior rear view mirror
The interior rear view mirror has an auto-dimming function. The
electronic day/night mirror will change from the normal (high reflective)
state to the non-glare (darkened) state when bright lights (glare) reach
the mirror. When the mirror detects bright light from behind the vehicle,
it will automatically adjust (darken) to minimize glare.
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior rear
view mirror since this may impair proper mirror performance.
Driver Controls
101
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Note:A rear center passenger and/or raised rear center headrest (if
equipped) may also block the light from reaching the sensor.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Memory mirrors (if equipped)
The power side view mirror positions are saved when doing a memory
set and can be recalled along with the vehicle personality features when
a memory position is selected through the remote entry transmitter,
keyless entry keypad or memory switch on the driver’s door. Refer to
Front seatsin theSeating and Safety Restraintschapter.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Driver Controls
102
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

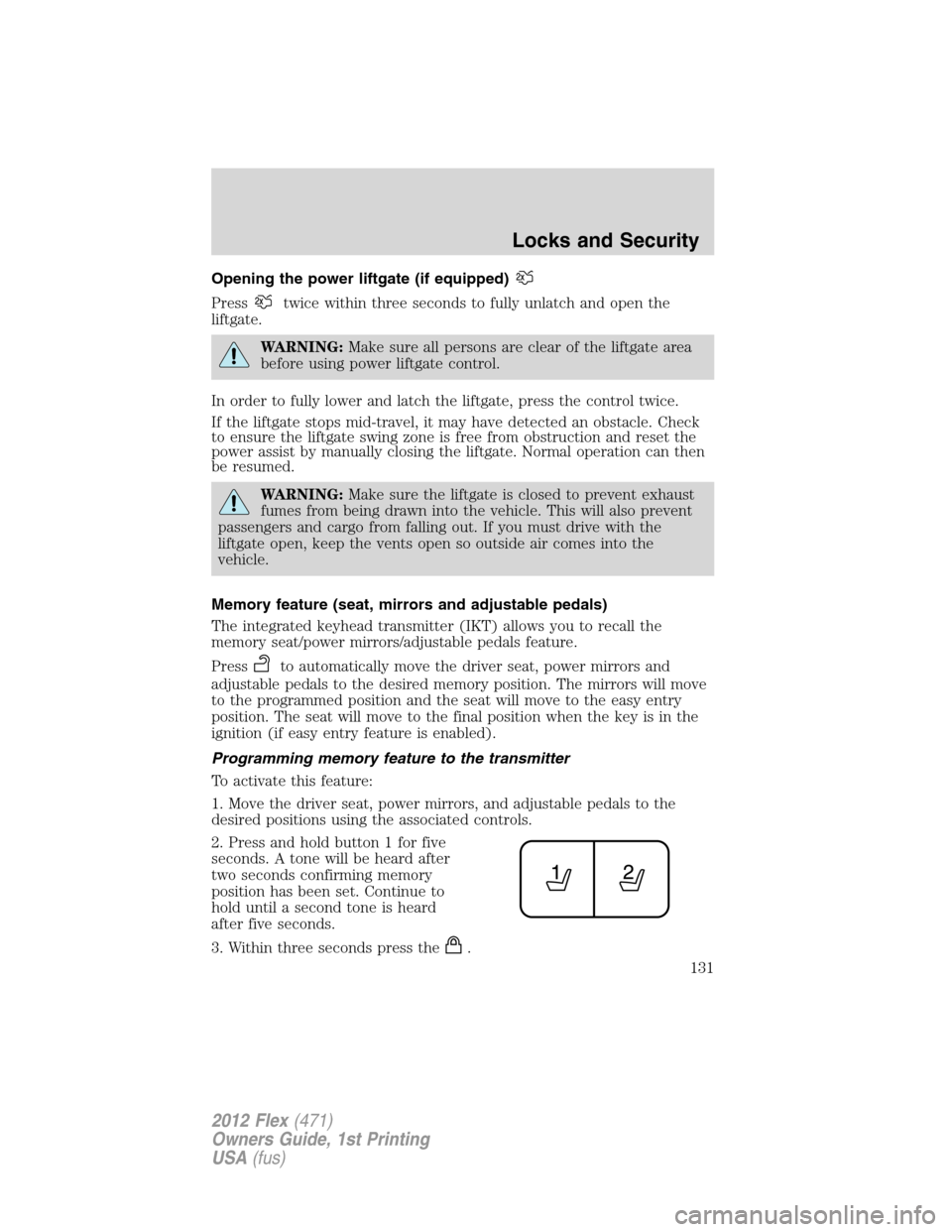

Opening the power liftgate (if equipped)
Presstwice within three seconds to fully unlatch and open the
liftgate.
WARNING:Make sure all persons are clear of the liftgate area
before using power liftgate control.
In order to fully lower and latch the liftgate, press the control twice.
If the liftgate stops mid-travel, it may have detected an obstacle. Check
to ensure the liftgate swing zone is free from obstruction and reset the
power assist by manually closing the liftgate. Normal operation can then
be resumed.
WARNING:Make sure the liftgate is closed to prevent exhaust
fumes from being drawn into the vehicle. This will also prevent
passengers and cargo from falling out. If you must drive with the
liftgate open, keep the vents open so outside air comes into the
vehicle.
Memory feature (seat, mirrors and adjustable pedals)
The integrated keyhead transmitter (IKT) allows you to recall the
memory seat/power mirrors/adjustable pedals feature.
Press
to automatically move the driver seat, power mirrors and
adjustable pedals to the desired memory position. The mirrors will move
to the programmed position and the seat will move to the easy entry
position. The seat will move to the final position when the key is in the
ignition (if easy entry feature is enabled).
Programming memory feature to the transmitter
To activate this feature:
1. Move the driver seat, power mirrors, and adjustable pedals to the
desired positions using the associated controls.
2. Press and hold button 1 for five
seconds. A tone will be heard after
two seconds confirming memory
position has been set. Continue to
hold until a second tone is heard
after five seconds.
3. Within three seconds press the
.
Locks and Security
131
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

•If the courtesy lamps were turned on because one of the vehicle doors
or the liftgate was opened, the battery saver will shut off them off
10 minutes after the ignition has been turned to the off position.
•The battery saver will shut off the headlamps 10 minutes after the
ignition has been turned to the off position.
SECURICODE™ KEYLESS ENTRY SYSTEM
The keypad is invisible until touched and then it lights up so you can see
and touch the appropriate buttons.Note:If you enter your entry code
too fast on the keypad, the unlock function may not work. Re-enter your
entry code more slowly.
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•recall memory seat, power
mirrors, and adjustable pedals (if
equipped).
The keypad can be operated with
the factory set 5–digit entry code;
this code is located on the owner’s
wallet card in the glove box and is
available from your authorized
dealer. You can also create up to
three of your own 5–digit personal
entry codes.
When touching the controls on the keypad, touch the middle of the
controls.
Programming a personal entry code and keypad association to
memory seats, mirrors, and adjustable pedals (if equipped)
To create your own personal entry code:
1. Enter the factory set code.
2. Within five seconds touch the 1•2 on the keypad.
3. Enter your personal 5-digit code. Each number must be entered
within five seconds of each other.
4. For memory recall feature, enter the sixth digit 1•2 to store driver 1
settings or 3•4 to store driver 2 settings.
Locks and Security
134
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

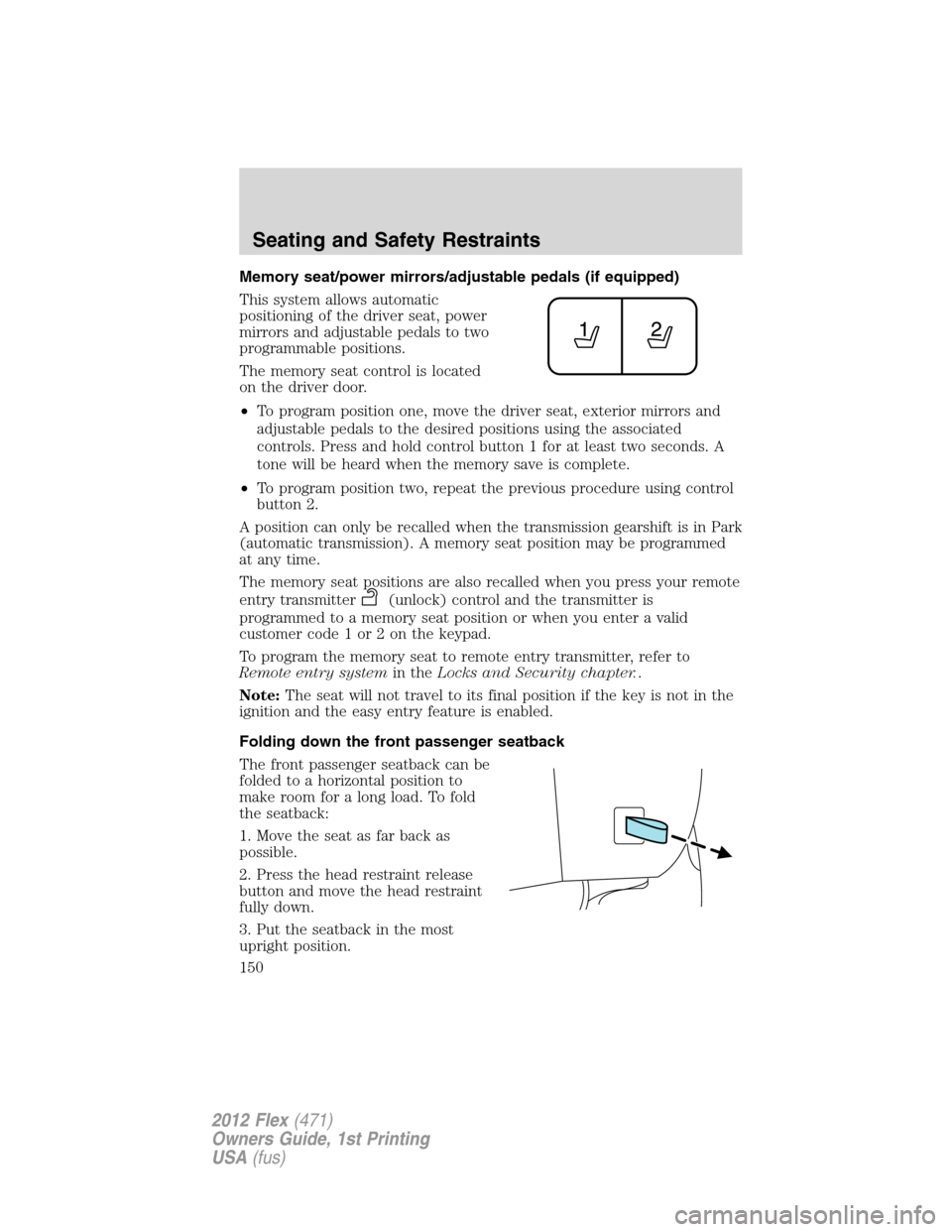

Memory seat/power mirrors/adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat, power
mirrors and adjustable pedals to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position one, move the driver seat, exterior mirrors and
adjustable pedals to the desired positions using the associated
controls. Press and hold control button 1 for at least two seconds. A
tone will be heard when the memory save is complete.
•To program position two, repeat the previous procedure using control
button 2.
A position can only be recalled when the transmission gearshift is in Park
(automatic transmission). A memory seat position may be programmed
at any time.
The memory seat positions are also recalled when you press your remote
entry transmitter
(unlock) control and the transmitter is
programmed to a memory seat position or when you enter a valid
customer code 1 or 2 on the keypad.
To program the memory seat to remote entry transmitter, refer to
Remote entry systemin theLocks and Security chapter..
Note:The seat will not travel to its final position if the key is not in the
ignition and the easy entry feature is enabled.
Folding down the front passenger seatback
The front passenger seatback can be
folded to a horizontal position to
make room for a long load. To fold
the seatback:
1. Move the seat as far back as
possible.
2. Press the head restraint release
button and move the head restraint
fully down.
3. Put the seatback in the most
upright position.
Seating and Safety Restraints
150
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

in rear seat ..............................198
LATCH .....................................202
recommendations ...................196
tether anchorage hardware ...205
Child safety seats - booster
seats ...........................................208
Cleaning your vehicle
engine compartment ..............317
instrument panel ....................320
interior .....................................321
plastic parts ............................319
washing ....................................316
waxing .....................................316
wheels ......................................317
wiper blades ............................319
Climate control
(see Air conditioning or
Heating) ...........................67, 70, 73
Clock ......................................28, 93
Compass, electronic ....................93
calibration .................................94
set zone adjustment .................94
Console
overhead ....................................92
Controls
power seat ...............................147
steering column ......................105
Coolant
checking and adding ..............336
refill capacities ................339, 366
specifications ..........................366
Cooler ..........................................96
Cruise control
(see Speed control) ..................103
Customer Assistance ................285
Ford Extended Service
Plan ..................................377, 380Getting assistance outside the
U.S. and Canada .....................312
Getting roadside assistance ...285
Getting the service you
need .........................................308
Ordering additional owner’s
literature .................................314
Utilizing the
Mediation/Arbitration
Program ...................................312
D
Daytime running lamps
(see Lamps) ................................82
Defrost
rear window and rearview
mirrors .......................................73
windshield .................................73
Dipstick
automatic transmission
fluid ..........................................356
engine oil .................................330
Driving under special
conditions ..........................280, 282
sand .........................................281
snow and ice ...........................283
through water .................281, 284
DVD region coding .....................63
DVD system .................................46
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................302
running out of fuel .........302, 348
Emission control system ..........352
Engine ........................................370
cleaning ...................................317
Index
400
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)
