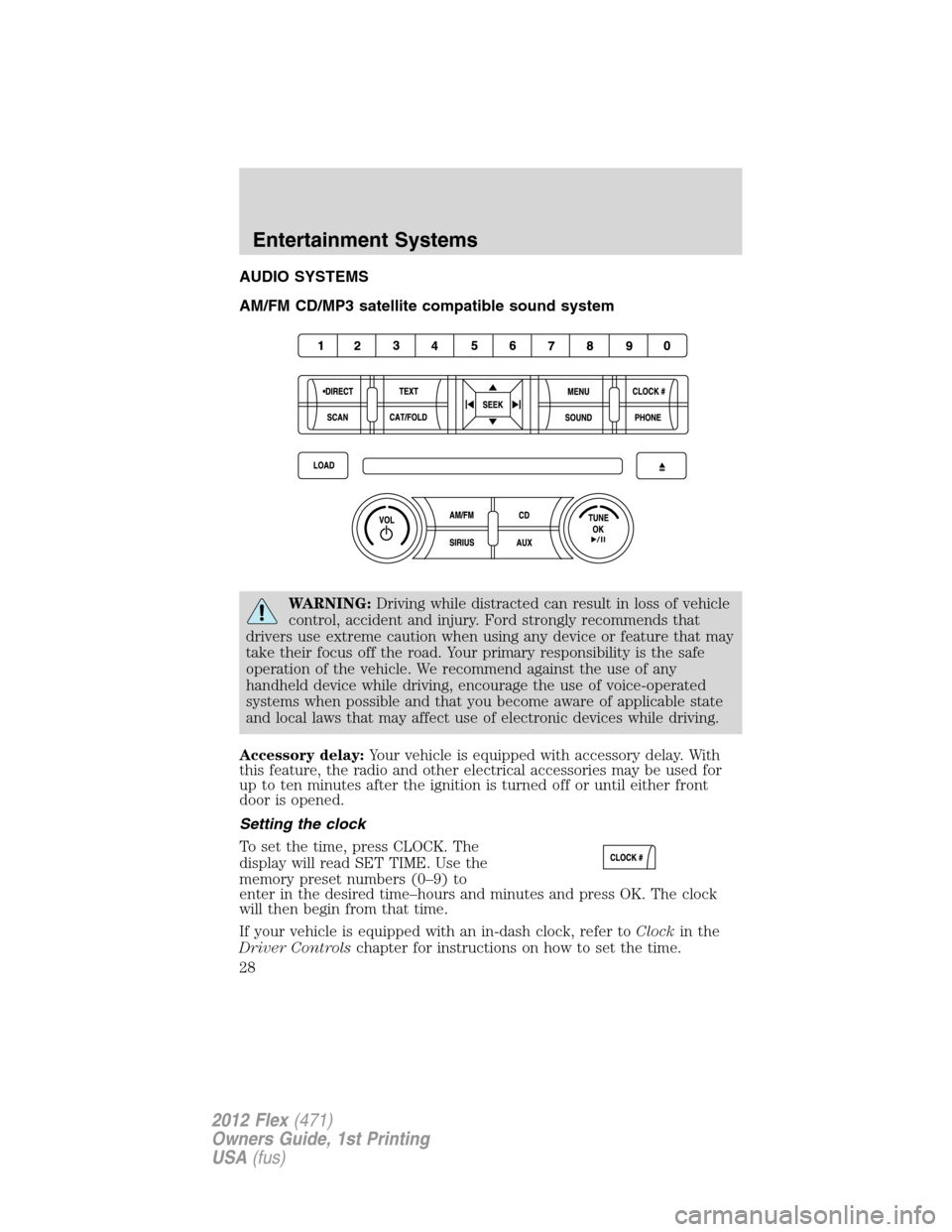

set clock FORD FLEX 2012 1.G Owners Manual

AUDIO SYSTEMS
AM/FM CD/MP3 satellite compatible sound system
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving, encourage the use of voice-operated
systems when possible and that you become aware of applicable state
and local laws that may affect use of electronic devices while driving.
Accessory delay:Your vehicle is equipped with accessory delay. With
this feature, the radio and other electrical accessories may be used for
up to ten minutes after the ignition is turned off or until either front
door is opened.
Setting the clock
To set the time, press CLOCK. The
display will read SET TIME. Use the
memory preset numbers (0–9) to
enter in the desired time–hours and minutes and press OK. The clock
will then begin from that time.
If your vehicle is equipped with an in-dash clock, refer toClockin the
Driver Controlschapter for instructions on how to set the time.
Entertainment Systems
28
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

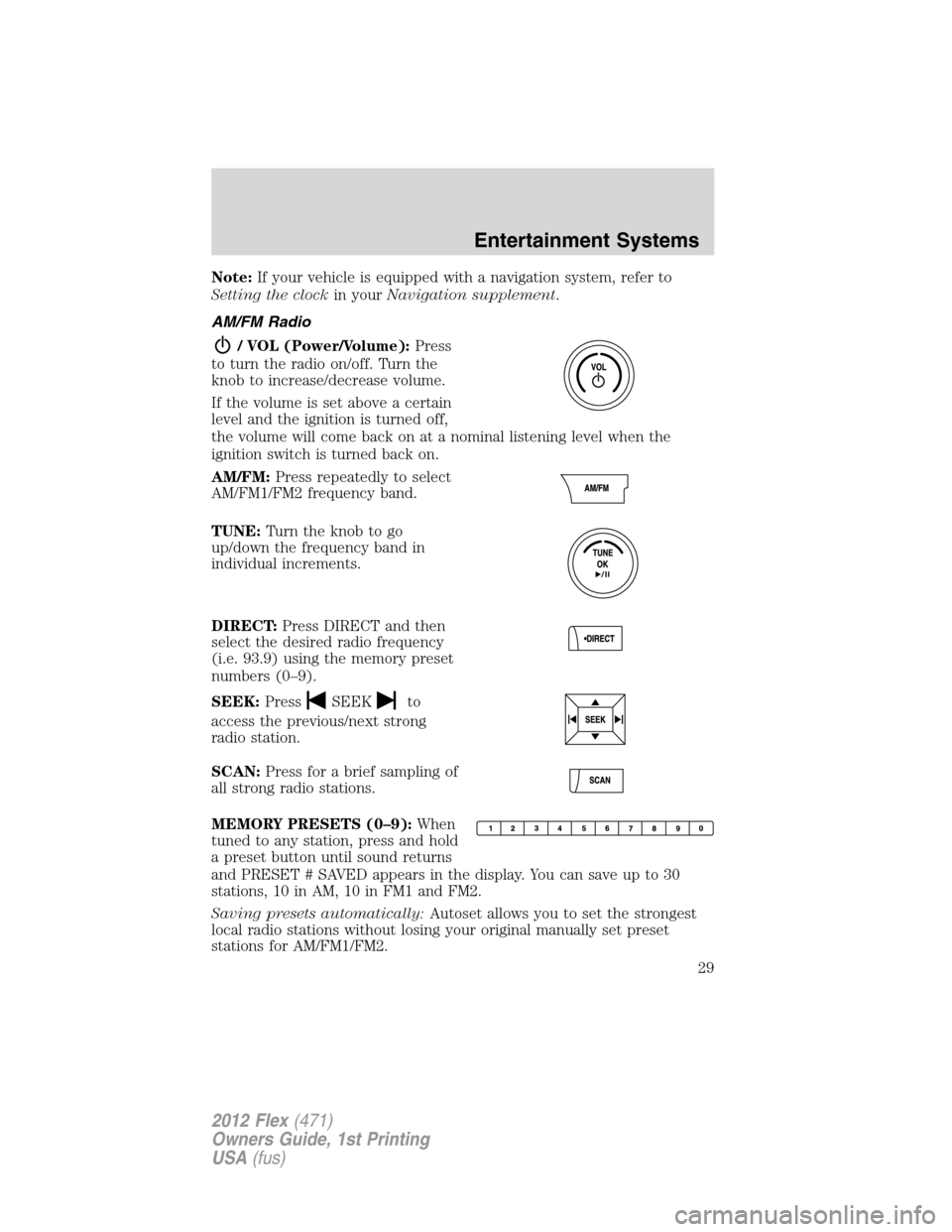

Note:If your vehicle is equipped with a navigation system, refer to
Setting the clockin yourNavigation supplement.
AM/FM Radio
/ VOL (Power/Volume):Press
to turn the radio on/off. Turn the
knob to increase/decrease volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a nominal listening level when the
ignition switch is turned back on.
AM/FM:Press repeatedly to select
AM/FM1/FM2 frequency band.
TUNE:Turn the knob to go
up/down the frequency band in
individual increments.
DIRECT:Press DIRECT and then
select the desired radio frequency
(i.e. 93.9) using the memory preset
numbers (0–9).
SEEK:Press
SEEKto
access the previous/next strong
radio station.
SCAN:Press for a brief sampling of
all strong radio stations.
MEMORY PRESETS (0–9):When
tuned to any station, press and hold
a preset button until sound returns
and PRESET # SAVED appears in the display. You can save up to 30
stations, 10 in AM, 10 in FM1 and FM2.
Saving presets automatically:Autoset allows you to set the strongest
local radio stations without losing your original manually set preset
stations for AM/FM1/FM2.
Entertainment Systems
29
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

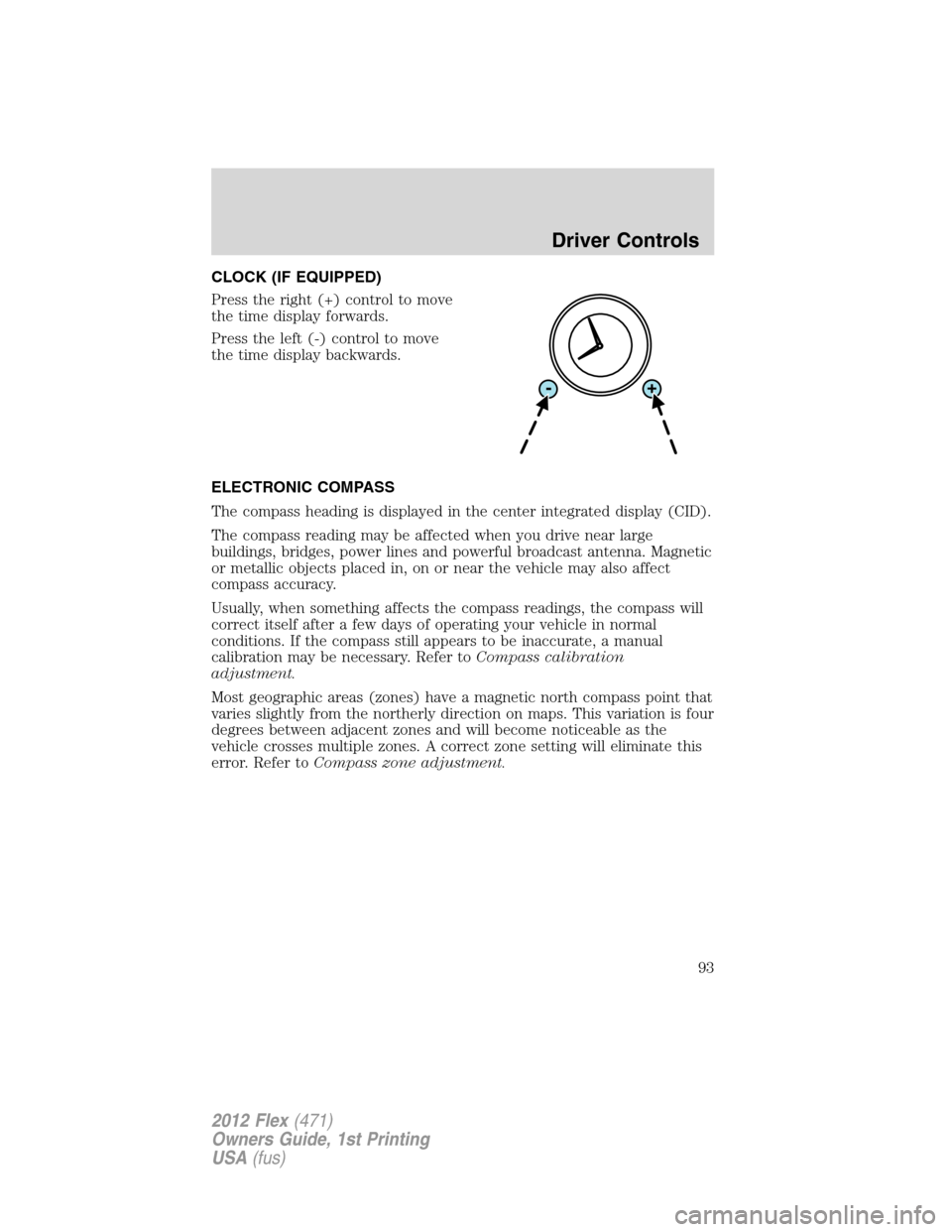

CLOCK (IF EQUIPPED)
Press the right (+) control to move
the time display forwards.
Press the left (-) control to move
the time display backwards.
ELECTRONIC COMPASS
The compass heading is displayed in the center integrated display (CID).
The compass reading may be affected when you drive near large
buildings, bridges, power lines and powerful broadcast antenna. Magnetic
or metallic objects placed in, on or near the vehicle may also affect
compass accuracy.
Usually, when something affects the compass readings, the compass will
correct itself after a few days of operating your vehicle in normal
conditions. If the compass still appears to be inaccurate, a manual
calibration may be necessary. Refer toCompass calibration
adjustment.
Most geographic areas (zones) have a magnetic north compass point that
varies slightly from the northerly direction on maps. This variation is four
degrees between adjacent zones and will become noticeable as the
vehicle crosses multiple zones. A correct zone setting will eliminate this
error. Refer toCompass zone adjustment.
Driver Controls
93
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

Note:A rear center passenger and/or raised rear center headrest (if
equipped) may also block the light from reaching the sensor.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
EXTERIOR MIRRORS
Power side view mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
Memory mirrors (if equipped)
The power side view mirror positions are saved when doing a memory
set and can be recalled along with the vehicle personality features when
a memory position is selected through the remote entry transmitter,
keyless entry keypad or memory switch on the driver’s door. Refer to
Front seatsin theSeating and Safety Restraintschapter.
Heated outside mirrors
(if equipped)
Both mirrors are heated
automatically to remove ice, mist
and fog when the rear window
defrost is activated.
Do not remove ice from the
mirrors with a scraper or
attempt to readjust the mirror
glass if it is frozen in place.
These actions could cause damage to the glass and mirrors.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
Driver Controls
102
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

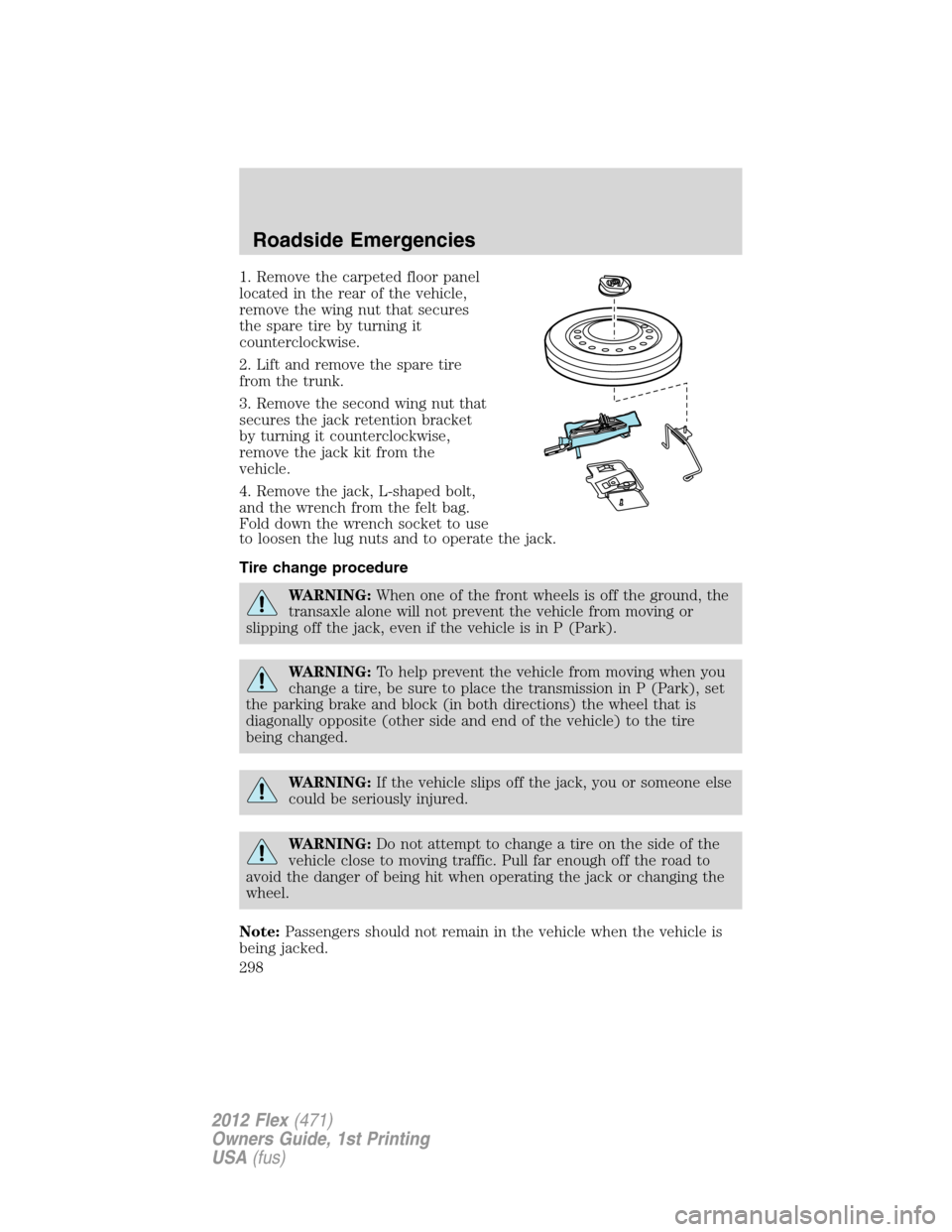

1. Remove the carpeted floor panel
located in the rear of the vehicle,
remove the wing nut that secures
the spare tire by turning it
counterclockwise.
2. Lift and remove the spare tire
from the trunk.
3. Remove the second wing nut that
secures the jack retention bracket
by turning it counterclockwise,
remove the jack kit from the
vehicle.
4. Remove the jack, L-shaped bolt,
and the wrench from the felt bag.
Fold down the wrench socket to use
to loosen the lug nuts and to operate the jack.
Tire change procedure
WARNING:When one of the front wheels is off the ground, the
transaxle alone will not prevent the vehicle from moving or
slipping off the jack, even if the vehicle is in P (Park).
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure to place the transmission in P (Park), set
the parking brake and block (in both directions) the wheel that is
diagonally opposite (other side and end of the vehicle) to the tire
being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.
Note:Passengers should not remain in the vehicle when the vehicle is
being jacked.
Roadside Emergencies
298
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
intervals listed inscheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and distilled water.
For best results, coolant concentration should be tested with a
refractometer such as Rotunda tool 300-ROB75240E available from your
dealer. Ford does not recommend the use of hydrometers or coolant test
strips for measuring coolant concentration. The level of coolant should
be maintained at the FULL COLD level or within the COLD FILL RANGE
in the coolant reservoir. If the level falls below, add coolant per the
instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•Improved freeze protection.
•Improved boiling protection.
•Protection against rust and other forms of corrosion.
•Proper function of calibrated gauges.
L
E
A
D
RETURN
RECYCLE
Maintenance and Specifications
336
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

in rear seat ..............................198
LATCH .....................................202
recommendations ...................196
tether anchorage hardware ...205
Child safety seats - booster
seats ...........................................208
Cleaning your vehicle
engine compartment ..............317
instrument panel ....................320
interior .....................................321
plastic parts ............................319
washing ....................................316
waxing .....................................316
wheels ......................................317
wiper blades ............................319
Climate control
(see Air conditioning or
Heating) ...........................67, 70, 73
Clock ......................................28, 93
Compass, electronic ....................93
calibration .................................94
set zone adjustment .................94
Console
overhead ....................................92
Controls
power seat ...............................147
steering column ......................105
Coolant
checking and adding ..............336
refill capacities ................339, 366
specifications ..........................366
Cooler ..........................................96
Cruise control
(see Speed control) ..................103
Customer Assistance ................285
Ford Extended Service
Plan ..................................377, 380Getting assistance outside the
U.S. and Canada .....................312
Getting roadside assistance ...285
Getting the service you
need .........................................308
Ordering additional owner’s
literature .................................314
Utilizing the
Mediation/Arbitration
Program ...................................312
D
Daytime running lamps
(see Lamps) ................................82
Defrost
rear window and rearview
mirrors .......................................73
windshield .................................73
Dipstick
automatic transmission
fluid ..........................................356
engine oil .................................330
Driving under special
conditions ..........................280, 282
sand .........................................281
snow and ice ...........................283
through water .................281, 284
DVD region coding .....................63
DVD system .................................46
E
Electronic message center .........18
Emergencies, roadside
jump-starting ..........................302
running out of fuel .........302, 348
Emission control system ..........352
Engine ........................................370
cleaning ...................................317
Index
400
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)

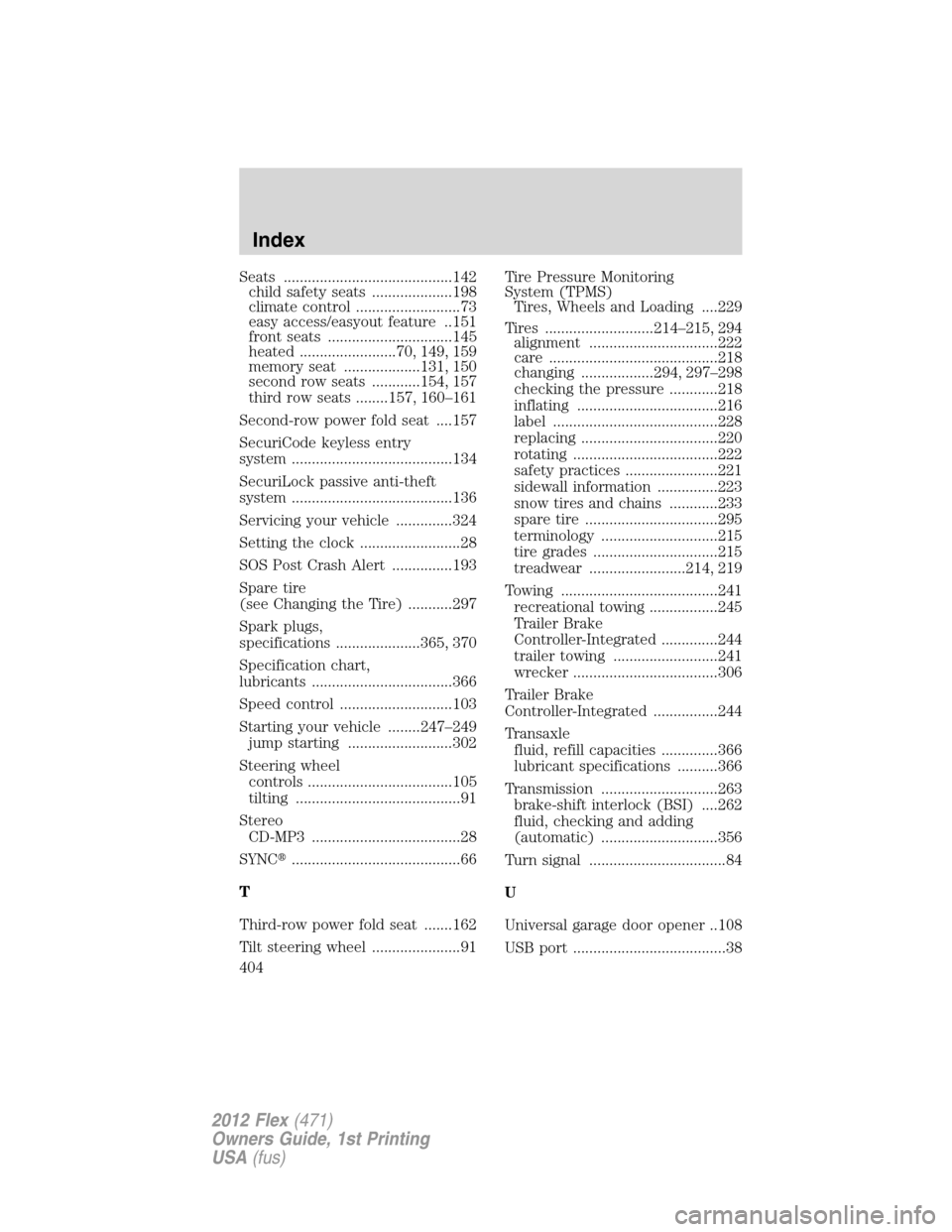

Seats ..........................................142
child safety seats ....................198
climate control ..........................73
easy access/easyout feature ..151
front seats ...............................145
heated ........................70, 149, 159
memory seat ...................131, 150
second row seats ............154, 157
third row seats ........157, 160–161
Second-row power fold seat ....157
SecuriCode keyless entry
system ........................................134
SecuriLock passive anti-theft
system ........................................136
Servicing your vehicle ..............324
Setting the clock .........................28
SOS Post Crash Alert ...............193
Spare tire
(see Changing the Tire) ...........297
Spark plugs,
specifications .....................365, 370
Specification chart,
lubricants ...................................366
Speed control ............................103
Starting your vehicle ........247–249
jump starting ..........................302
Steering wheel
controls ....................................105
tilting .........................................91
Stereo
CD-MP3 .....................................28
SYNC..........................................66
T
Third-row power fold seat .......162
Tilt steering wheel ......................91Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....229
Tires ...........................214–215, 294
alignment ................................222
care ..........................................218
changing ..................294, 297–298
checking the pressure ............218
inflating ...................................216
label .........................................228
replacing ..................................220
rotating ....................................222
safety practices .......................221
sidewall information ...............223
snow tires and chains ............233
spare tire .................................295
terminology .............................215
tire grades ...............................215
treadwear ........................214, 219
Towing .......................................241
recreational towing .................245
Trailer Brake
Controller-Integrated ..............244
trailer towing ..........................241
wrecker ....................................306
Trailer Brake
Controller-Integrated ................244
Transaxle
fluid, refill capacities ..............366
lubricant specifications ..........366
Transmission .............................263
brake-shift interlock (BSI) ....262
fluid, checking and adding
(automatic) .............................356
Turn signal ..................................84
U
Universal garage door opener ..108
USB port ......................................38
Index
404
2012 Flex(471)
Owners Guide, 1st Printing
USA(fus)
