Page 2 of 554

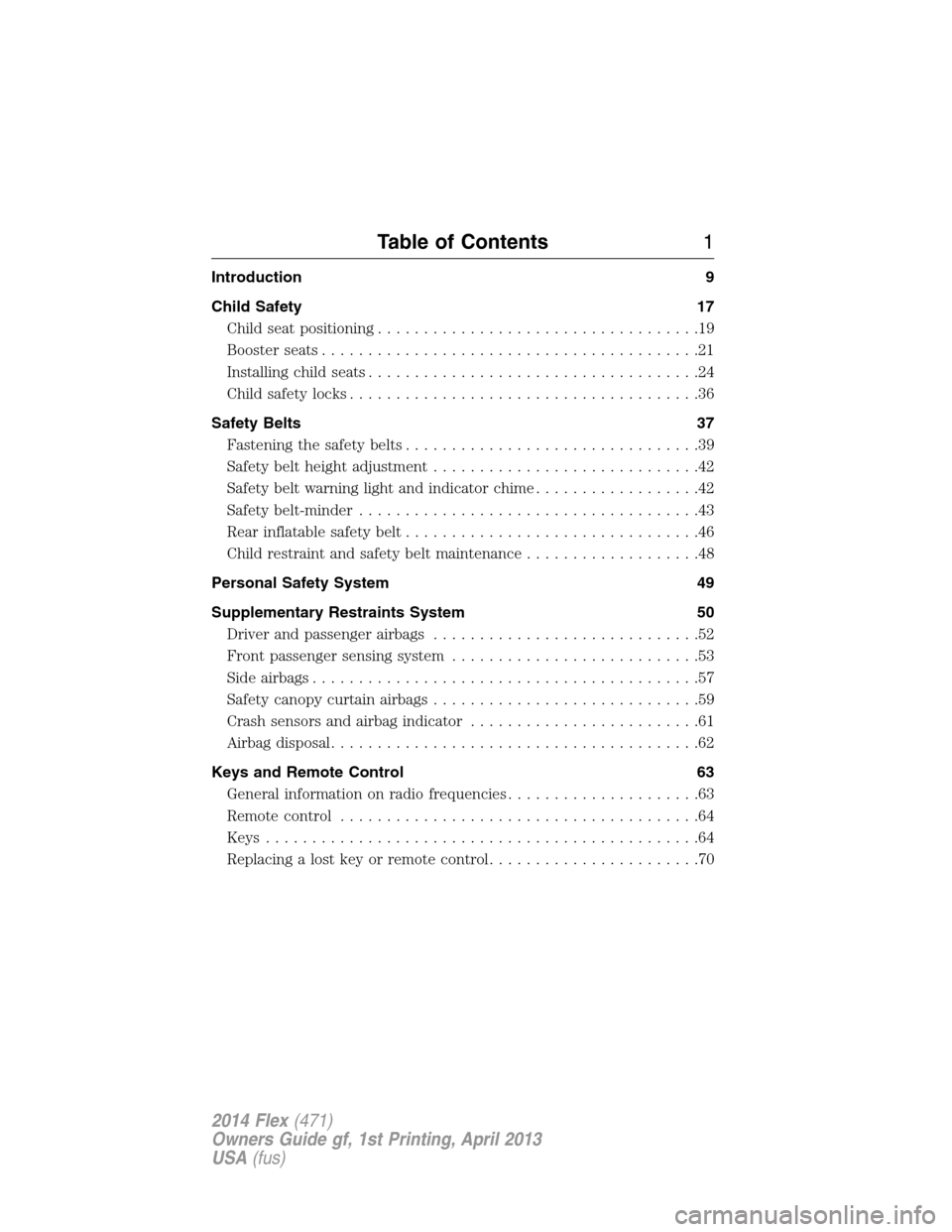

Introduction 9
Child Safety 17
Child seat positioning...................................19
Booster seats.........................................21
Installing child seats....................................24
Child safety locks......................................36
Safety Belts 37
Fastening the safety belts................................39
Safety belt height adjustment.............................42
Safetybeltwarninglightandindicatorchime..................42
Safety belt-minder.....................................43
Rear inflatable safety belt................................46
Child restraint and safety belt maintenance...................48
Personal Safety System 49
Supplementary Restraints System 50
Driver and passenger airbags.............................52
Front passenger sensing system...........................53
Side airbags..........................................57
Safety canopy curtain airbags.............................59
Crash sensors and airbag indicator.........................61
Airbag disposal........................................62
Keys and Remote Control 63
General information on radio frequencies.....................63
Remote control.......................................64
Keys...............................................64
Replacing a lost key or remote control.......................70
Table of Contents1
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
Page 3 of 554

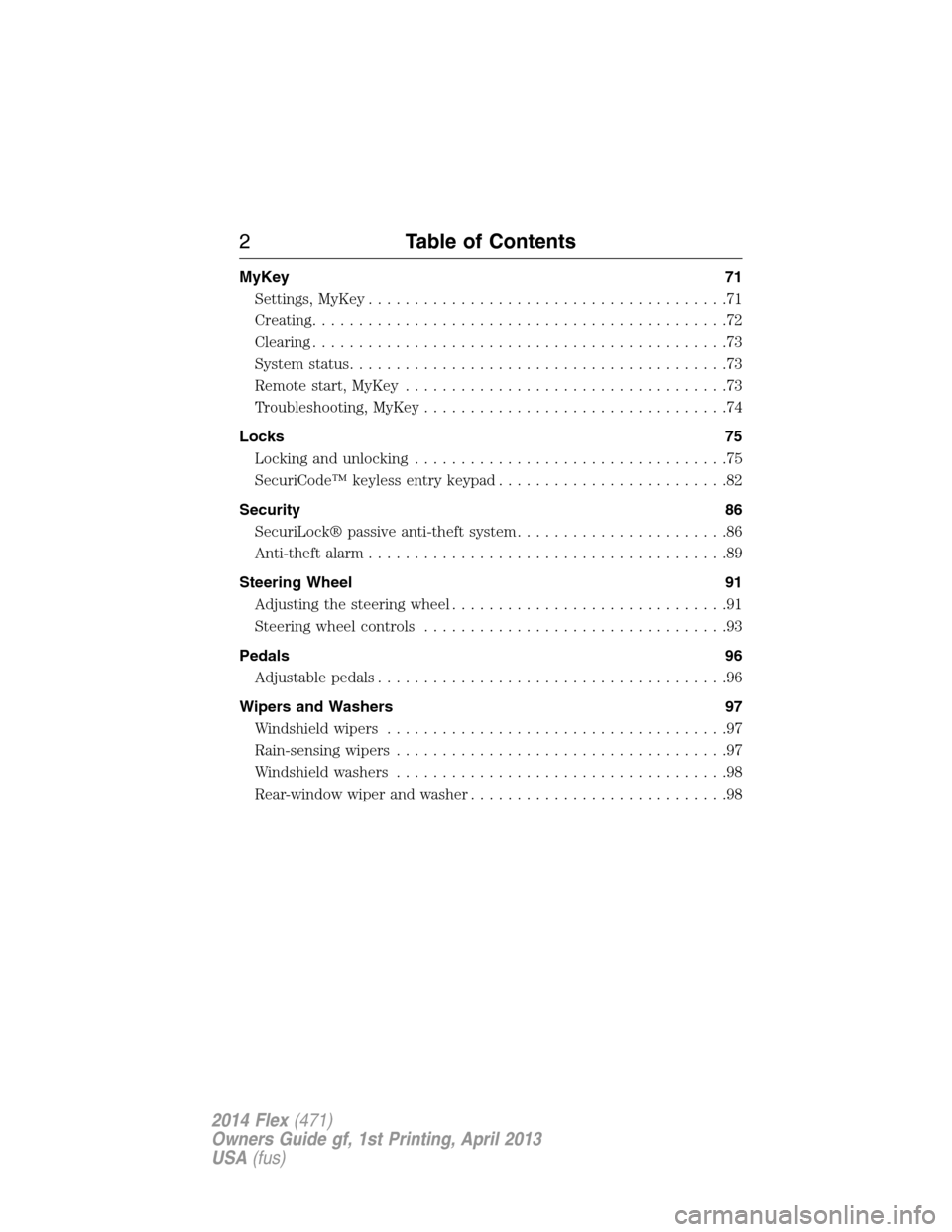

MyKey 71
Settings, MyKey.......................................71
Creating.............................................72
Clearing.............................................73
System status.........................................73
Remote start, MyKey...................................73
Troubleshooting, MyKey.................................74
Locks 75
Locking and unlocking..................................75
SecuriCode™ keyless entry keypad.........................82
Security 86
SecuriLock® passive anti-theft system.......................86
Anti-theft alarm.......................................89
Steering Wheel 91
Adjusting the steering wheel..............................91
Steering wheel controls.................................93
Pedals 96
Adjustable pedals......................................96
Wipers and Washers 97
Windshield wipers.....................................97
Rain-sensing wipers....................................97
Windshield washers....................................98
Rear-window wiper and washer............................98
2Table of Contents
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
Page 37 of 554

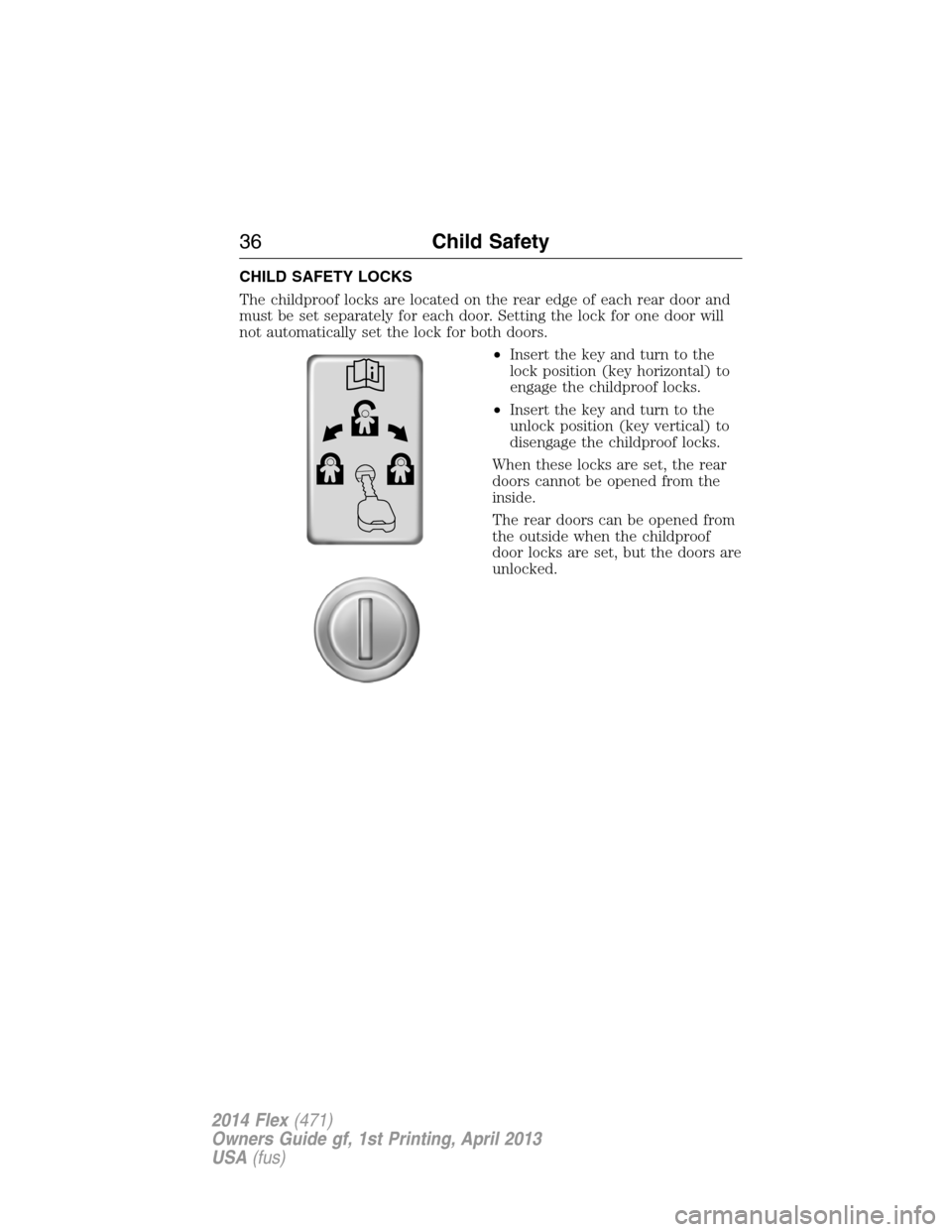

CHILD SAFETY LOCKS
The childproof locks are located on the rear edge of each rear door and
must be set separately for each door. Setting the lock for one door will
not automatically set the lock for both doors.
•Insert the key and turn to the
lock position (key horizontal) to
engage the childproof locks.
•Insert the key and turn to the
unlock position (key vertical) to
disengage the childproof locks.
When these locks are set, the rear
doors cannot be opened from the
inside.
The rear doors can be opened from
the outside when the childproof
door locks are set, but the doors are
unlocked.
36Child Safety
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
Page 46 of 554

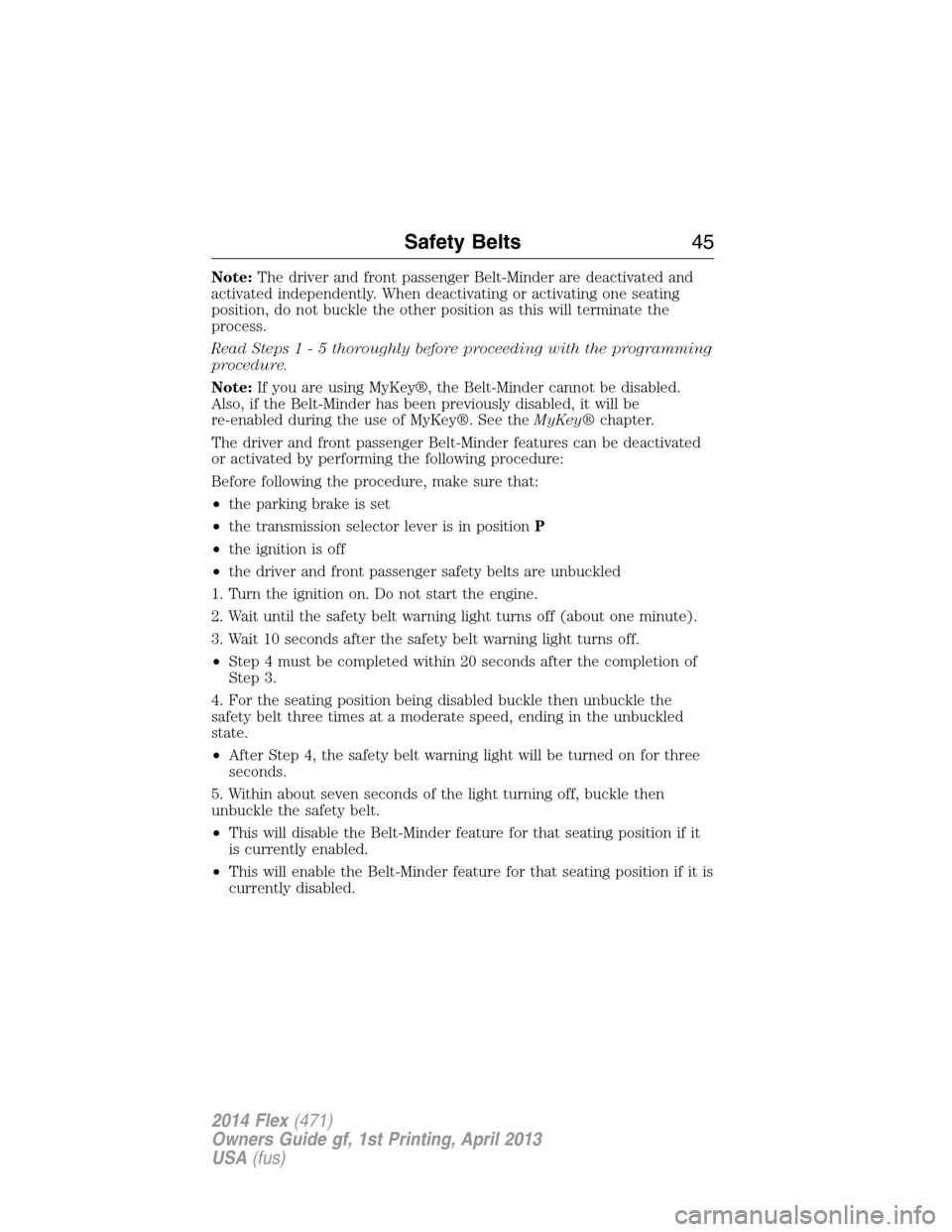

Note:The driver and front passenger Belt-Minder are deactivated and
activated independently. When deactivating or activating one seating
position, do not buckle the other position as this will terminate the
process.
Read Steps1-5thoroughly before proceeding with the programming
procedure.
Note:If you are using MyKey®, the Belt-Minder cannot be disabled.
Also, if the Belt-Minder has been previously disabled, it will be
re-enabled during the use of MyKey®. See theMyKey®chapter.
The driver and front passenger Belt-Minder features can be deactivated
or activated by performing the following procedure:
Before following the procedure, make sure that:
•the parking brake is set
•the transmission selector lever is in positionP
•the ignition is off
•the driver and front passenger safety belts are unbuckled
1. Turn the ignition on. Do not start the engine.
2. Wait until the safety belt warning light turns off (about one minute).
3. Wait 10 seconds after the safety belt warning light turns off.
•Step 4 must be completed within 20 seconds after the completion of
Step 3.
4. For the seating position being disabled buckle then unbuckle the
safety belt three times at a moderate speed, ending in the unbuckled
state.
•After Step 4, the safety belt warning light will be turned on for three
seconds.
5. Within about seven seconds of the light turning off, buckle then
unbuckle the safety belt.
•This will disable the Belt-Minder feature for that seating position if it
is currently enabled.
•This will enable the Belt-Minder feature for that seating position if it is
currently disabled.
Safety Belts45
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
Page 64 of 554

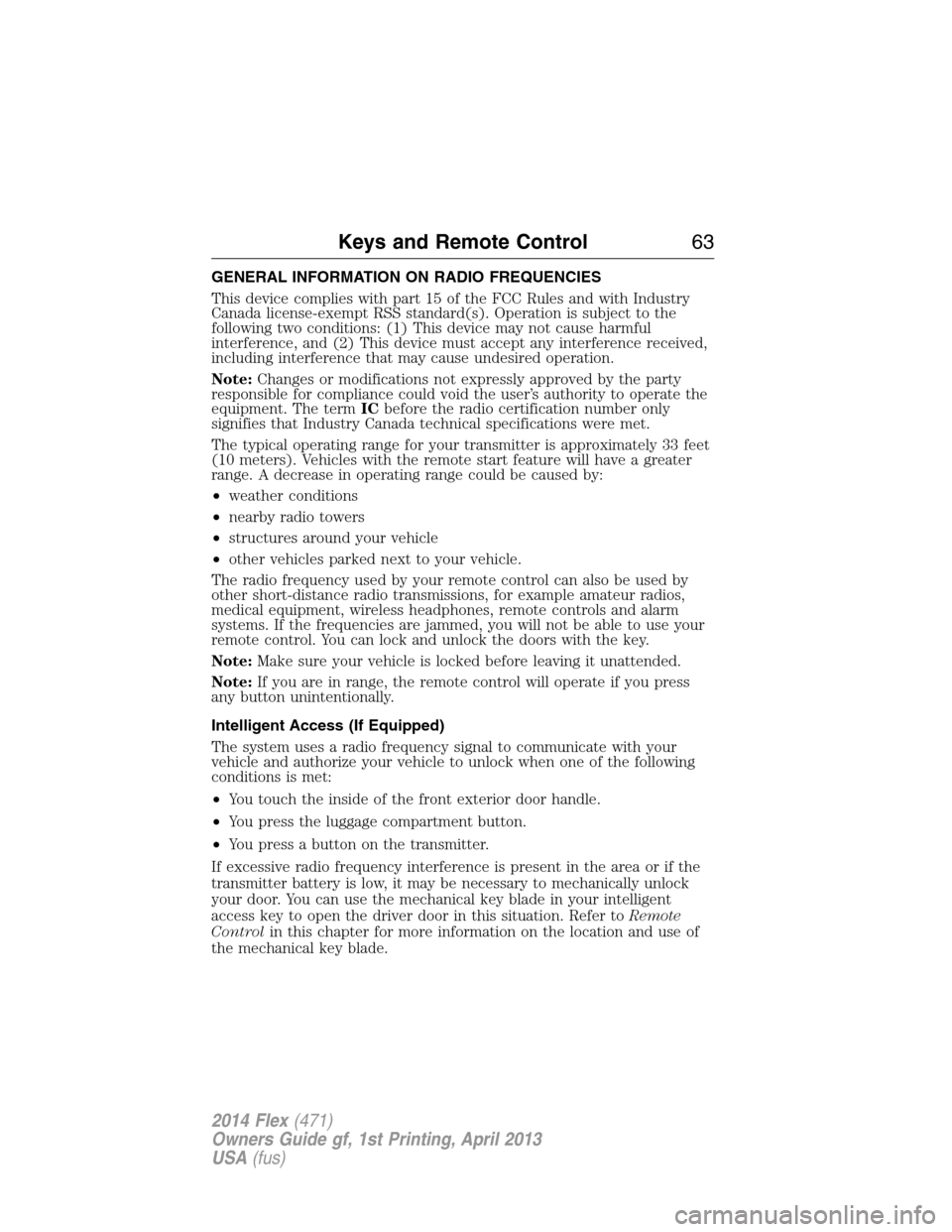

GENERAL INFORMATION ON RADIO FREQUENCIES
This device complies with part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. The termICbefore the radio certification number only
signifies that Industry Canada technical specifications were met.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to your vehicle.
The radio frequency used by your remote control can also be used by
other short-distance radio transmissions, for example amateur radios,
medical equipment, wireless headphones, remote controls and alarm
systems. If the frequencies are jammed, you will not be able to use your
remote control. You can lock and unlock the doors with the key.
Note:Make sure your vehicle is locked before leaving it unattended.
Note:If you are in range, the remote control will operate if you press
any button unintentionally.
Intelligent Access (If Equipped)
The system uses a radio frequency signal to communicate with your
vehicle and authorize your vehicle to unlock when one of the following
conditions is met:
•You touch the inside of the front exterior door handle.
•You press the luggage compartment button.
•You press a button on the transmitter.
If excessive radio frequency interference is present in the area or if the
transmitter battery is low, it may be necessary to mechanically unlock
your door. You can use the mechanical key blade in your intelligent
access key to open the driver door in this situation. Refer toRemote
Controlin this chapter for more information on the location and use of
the mechanical key blade.
Keys and Remote Control63
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
Page 65 of 554

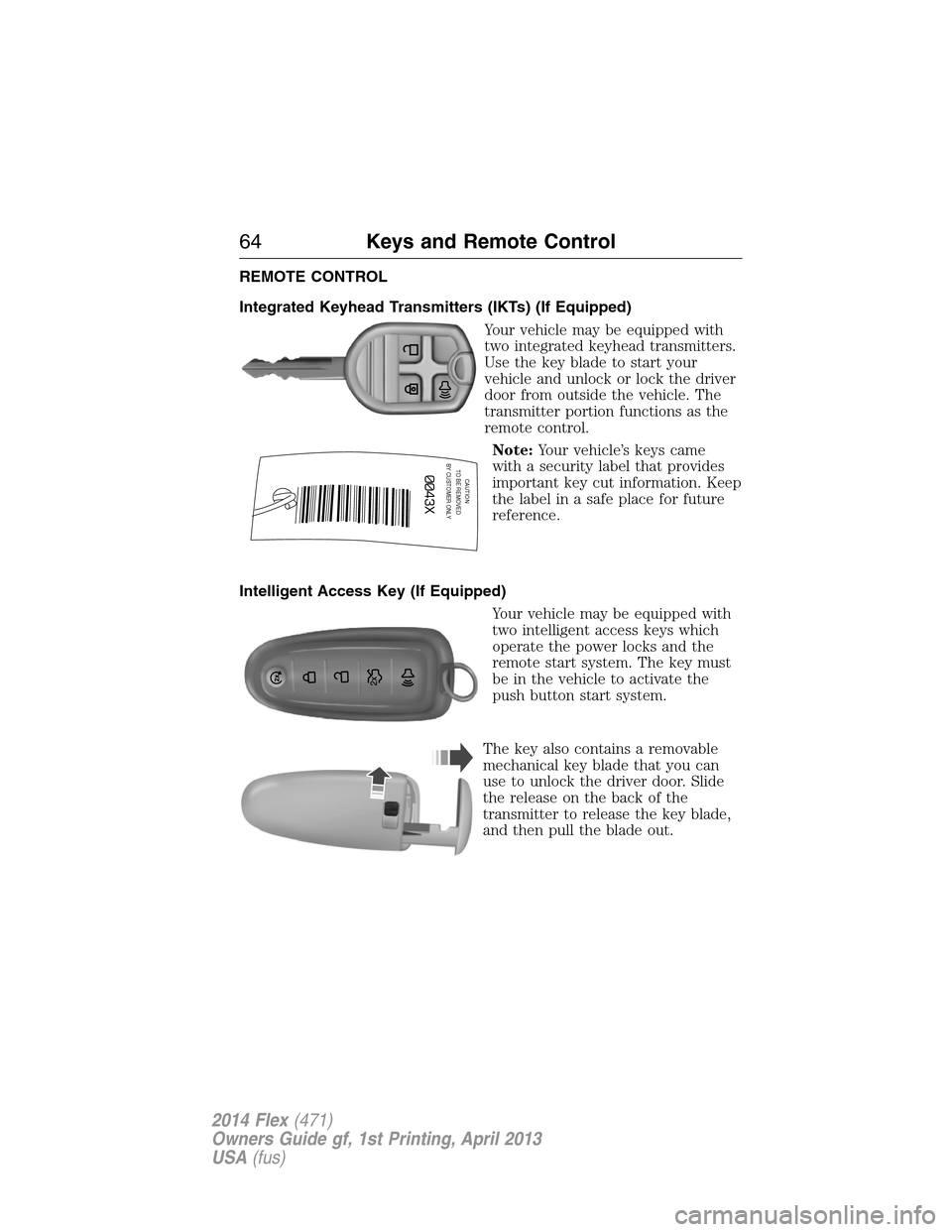

REMOTE CONTROL
Integrated Keyhead Transmitters (IKTs) (If Equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters.
Use the key blade to start your
vehicle and unlock or lock the driver
door from outside the vehicle. The
transmitter portion functions as the
remote control.
Note:Your vehicle’s keys came
with a security label that provides
important key cut information. Keep
the label in a safe place for future
reference.
Intelligent Access Key (If Equipped)
Your vehicle may be equipped with
two intelligent access keys which
operate the power locks and the
remote start system. The key must
be in the vehicle to activate the
push button start system.
The key also contains a removable
mechanical key blade that you can
use to unlock the driver door. Slide
the release on the back of the
transmitter to release the key blade,
and then pull the blade out.
CAUTIONTO BE REMOVED
BY CUSTOMER ONLY
64Keys and Remote Control
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
Page 66 of 554

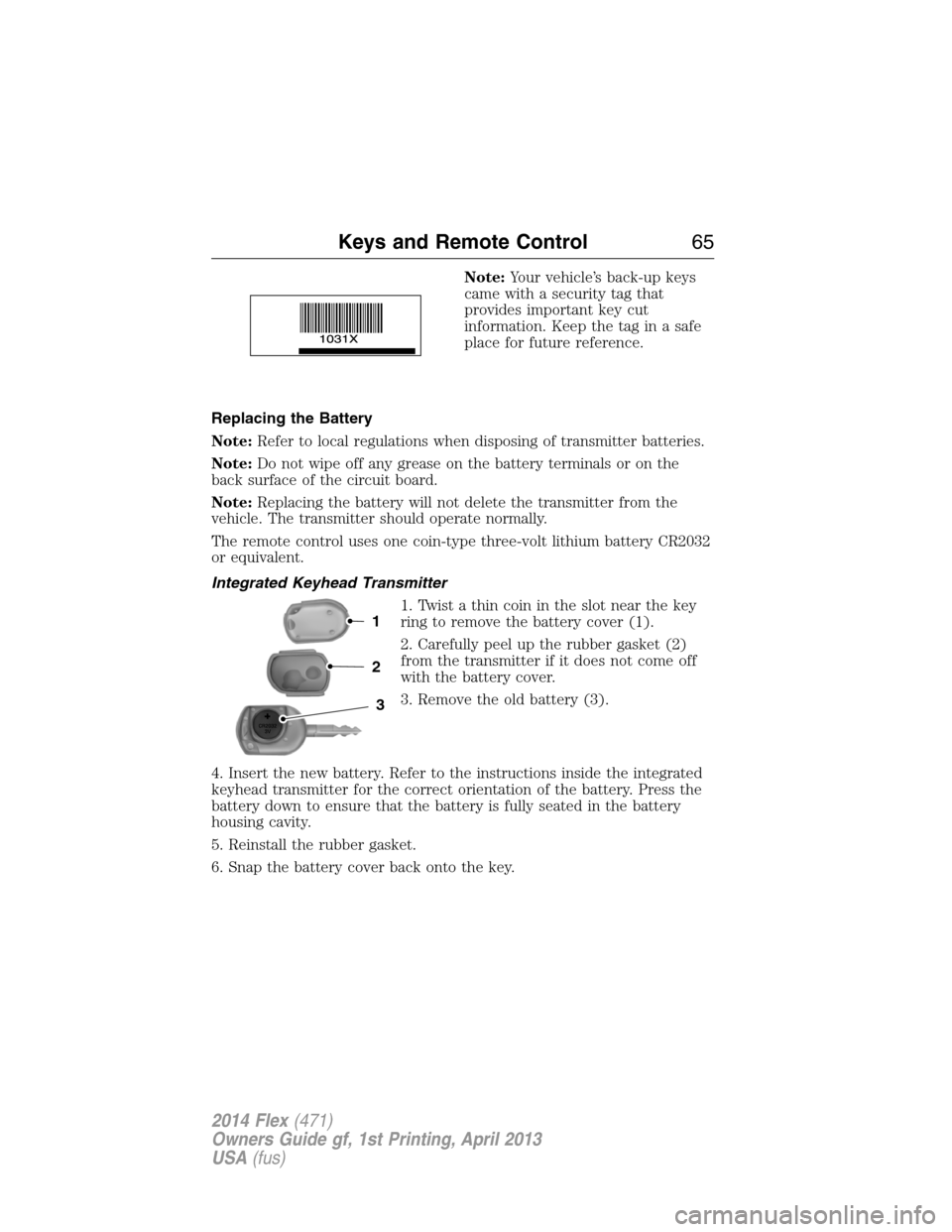

Note:Your vehicle’s back-up keys
came with a security tag that
provides important key cut
information. Keep the tag in a safe
place for future reference.
Replacing the Battery
Note:Refer to local regulations when disposing of transmitter batteries.
Note:Do not wipe off any grease on the battery terminals or on the
back surface of the circuit board.
Note:Replacing the battery will not delete the transmitter from the
vehicle. The transmitter should operate normally.
The remote control uses one coin-type three-volt lithium battery CR2032
or equivalent.
Integrated Keyhead Transmitter
1. Twist a thin coin in the slot near the key
ring to remove the battery cover (1).
2. Carefully peel up the rubber gasket (2)
from the transmitter if it does not come off
with the battery cover.
3. Remove the old battery (3).
4. Insert the new battery. Refer to the instructions inside the integrated
keyhead transmitter for the correct orientation of the battery. Press the
battery down to ensure that the battery is fully seated in the battery
housing cavity.
5. Reinstall the rubber gasket.
6. Snap the battery cover back onto the key.
3
2
1
Keys and Remote Control65
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
Page 67 of 554

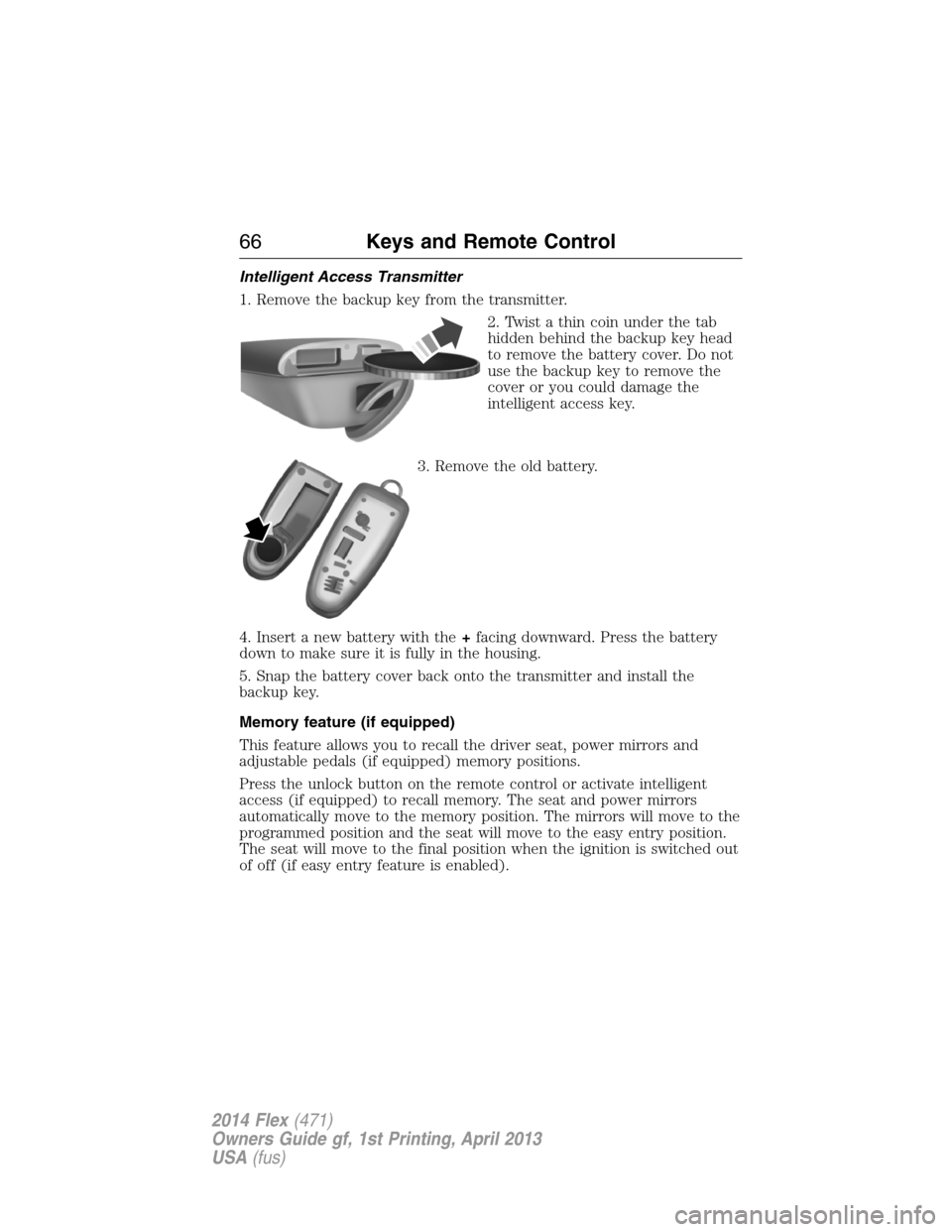

Intelligent Access Transmitter
1. Remove the backup key from the transmitter.
2. Twist a thin coin under the tab
hidden behind the backup key head
to remove the battery cover. Do not
use the backup key to remove the
cover or you could damage the
intelligent access key.
3. Remove the old battery.
4. Insert a new battery with the+facing downward. Press the battery
down to make sure it is fully in the housing.
5. Snap the battery cover back onto the transmitter and install the
backup key.
Memory feature (if equipped)
This feature allows you to recall the driver seat, power mirrors and
adjustable pedals (if equipped) memory positions.
Press the unlock button on the remote control or activate intelligent
access (if equipped) to recall memory. The seat and power mirrors
automatically move to the memory position. The mirrors will move to the
programmed position and the seat will move to the easy entry position.
The seat will move to the final position when the ignition is switched out
of off (if easy entry feature is enabled).
66Keys and Remote Control
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
Page 68 of 554

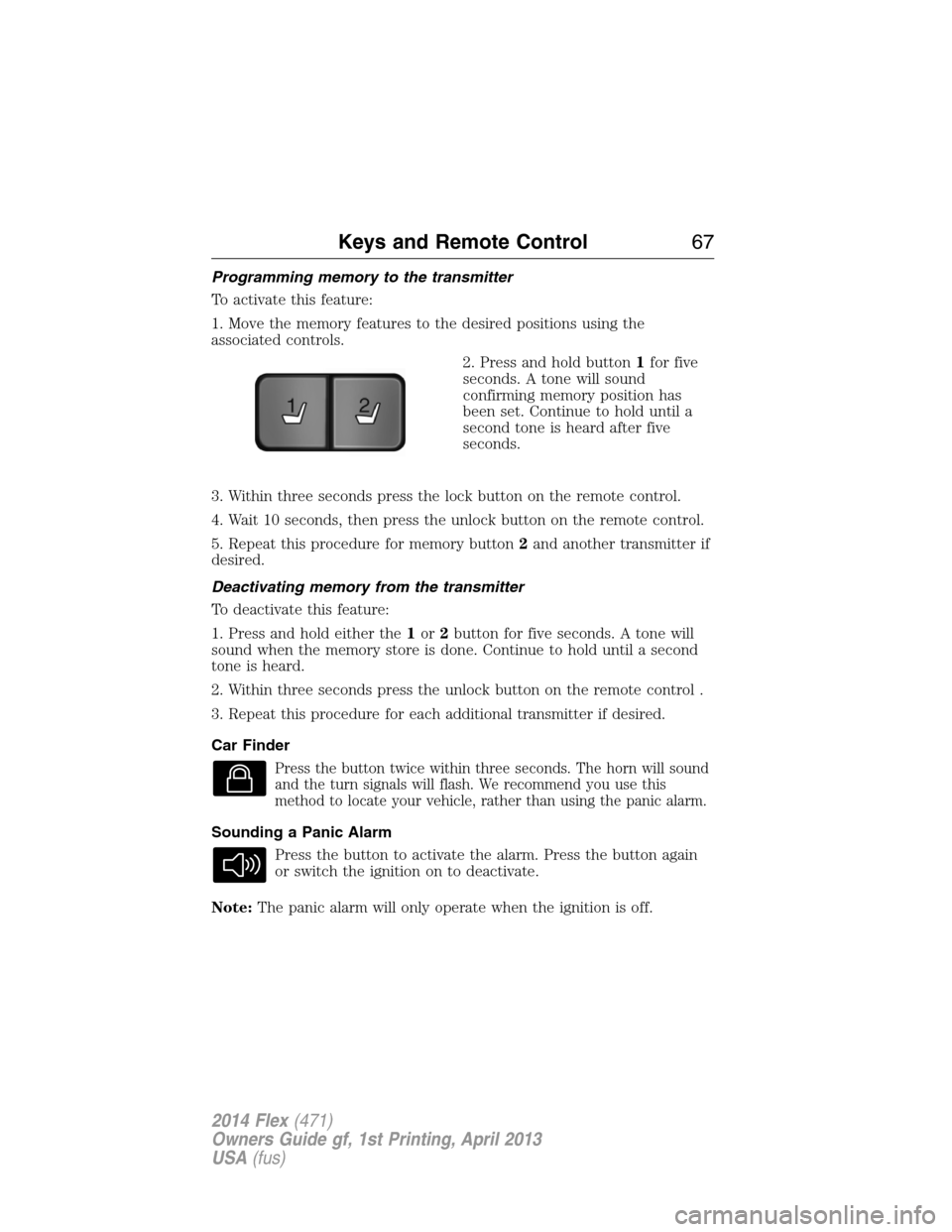

Programming memory to the transmitter
To activate this feature:
1. Move the memory features to the desired positions using the
associated controls.
2. Press and hold button1for five
seconds. A tone will sound
confirming memory position has
been set. Continue to hold until a
second tone is heard after five
seconds.
3. Within three seconds press the lock button on the remote control.
4. Wait 10 seconds, then press the unlock button on the remote control.
5. Repeat this procedure for memory button2and another transmitter if
desired.
Deactivating memory from the transmitter
To deactivate this feature:
1. Press and hold either the1or2button for five seconds. A tone will
sound when the memory store is done. Continue to hold until a second
tone is heard.
2. Within three seconds press the unlock button on the remote control .
3. Repeat this procedure for each additional transmitter if desired.
Car Finder
Press the button twice within three seconds. The horn will sound
and the turn signals will flash. We recommend you use this
method to locate your vehicle, rather than using the panic alarm.
Sounding a Panic Alarm
Press the button to activate the alarm. Press the button again
or switch the ignition on to deactivate.
Note:The panic alarm will only operate when the ignition is off.
21
Keys and Remote Control67
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
Page 69 of 554

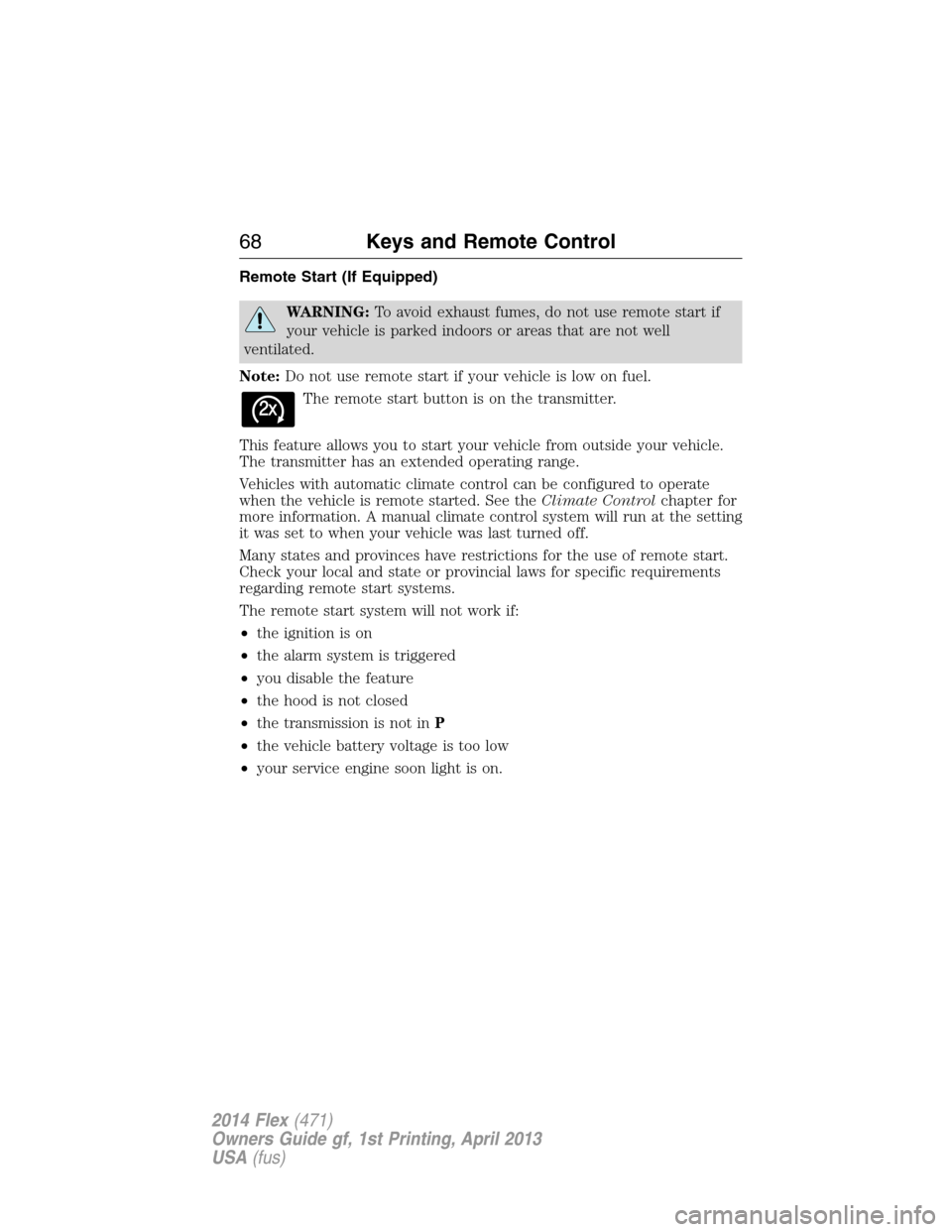

Remote Start (If Equipped)
WARNING:To avoid exhaust fumes, do not use remote start if
your vehicle is parked indoors or areas that are not well
ventilated.
Note:Do not use remote start if your vehicle is low on fuel.
The remote start button is on the transmitter.
This feature allows you to start your vehicle from outside your vehicle.
The transmitter has an extended operating range.
Vehicles with automatic climate control can be configured to operate
when the vehicle is remote started. See theClimate Controlchapter for
more information. A manual climate control system will run at the setting
it was set to when your vehicle was last turned off.
Many states and provinces have restrictions for the use of remote start.
Check your local and state or provincial laws for specific requirements
regarding remote start systems.
The remote start system will not work if:
•the ignition is on
•the alarm system is triggered
•you disable the feature
•the hood is not closed
•the transmission is not inP
•the vehicle battery voltage is too low
•your service engine soon light is on.
68Keys and Remote Control
2014 Flex(471)
Owners Guide gf, 1st Printing, April 2013
USA(fus)
