technical specifications FORD FLEX 2016 1.G Owners Manual

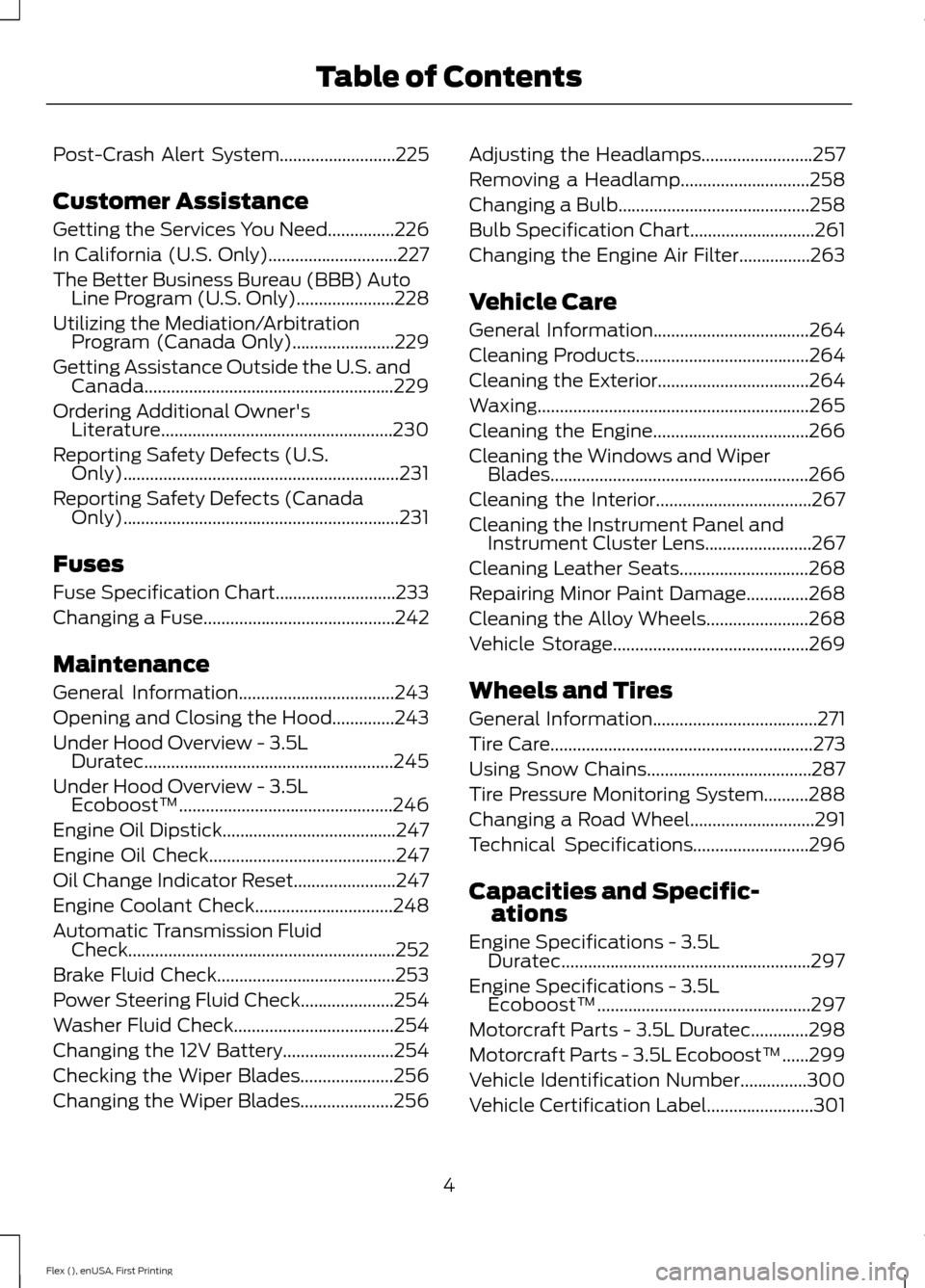

Post-Crash Alert System..........................225
Customer Assistance
Getting the Services You Need...............226
In California (U.S. Only).............................227
The Better Business Bureau (BBB) Auto
Line Program (U.S. Only)......................228
Utilizing the Mediation/Arbitration Program (Canada Only).......................229
Getting Assistance Outside the U.S. and Canada........................................................229
Ordering Additional Owner's Literature....................................................230
Reporting Safety Defects (U.S. Only)..............................................................231
Reporting Safety Defects (Canada Only)..............................................................231
Fuses
Fuse Specification Chart...........................233
Changing a Fuse...........................................242
Maintenance
General Information
...................................243
Opening and Closing the Hood..............243
Under Hood Overview - 3.5L Duratec........................................................245
Under Hood Overview - 3.5L Ecoboost™................................................246
Engine Oil Dipstick.......................................247
Engine Oil Check..........................................247
Oil Change Indicator Reset.......................247
Engine Coolant Check
...............................248
Automatic Transmission Fluid Check ............................................................
252
Brake Fluid Check........................................253
Power Steering Fluid Check.....................254
Washer Fluid Check....................................254
Changing the 12V Battery.........................254
Checking the Wiper Blades.....................256
Changing the Wiper Blades.....................256 Adjusting the Headlamps.........................257
Removing a Headlamp.............................258
Changing a Bulb...........................................258
Bulb Specification Chart
............................261
Changing the Engine Air Filter................263
Vehicle Care
General Information
...................................264
Cleaning Products
.......................................264
Cleaning the Exterior..................................264
Waxing.............................................................265
Cleaning the Engine
...................................266
Cleaning the Windows and Wiper Blades..........................................................266
Cleaning the Interior...................................267
Cleaning the Instrument Panel and Instrument Cluster Lens........................267
Cleaning Leather Seats.............................268
Repairing Minor Paint Damage..............268
Cleaning the Alloy Wheels
.......................268
Vehicle Storage
............................................269
Wheels and Tires
General Information.....................................271
Tire Care
...........................................................273
Using Snow Chains.....................................287
Tire Pressure Monitoring System..........288
Changing a Road Wheel
............................291
Technical Specifications..........................296
Capacities and Specific- ations
Engine Specifications - 3.5L Duratec........................................................297
Engine Specifications - 3.5L Ecoboost™................................................297
Motorcraft Parts - 3.5L Duratec.............298
Motorcraft Parts - 3.5L Ecoboost™......299
Vehicle Identification Number...............300
Vehicle Certification Label........................301
4
Flex (), enUSA, First Printing Table of Contents

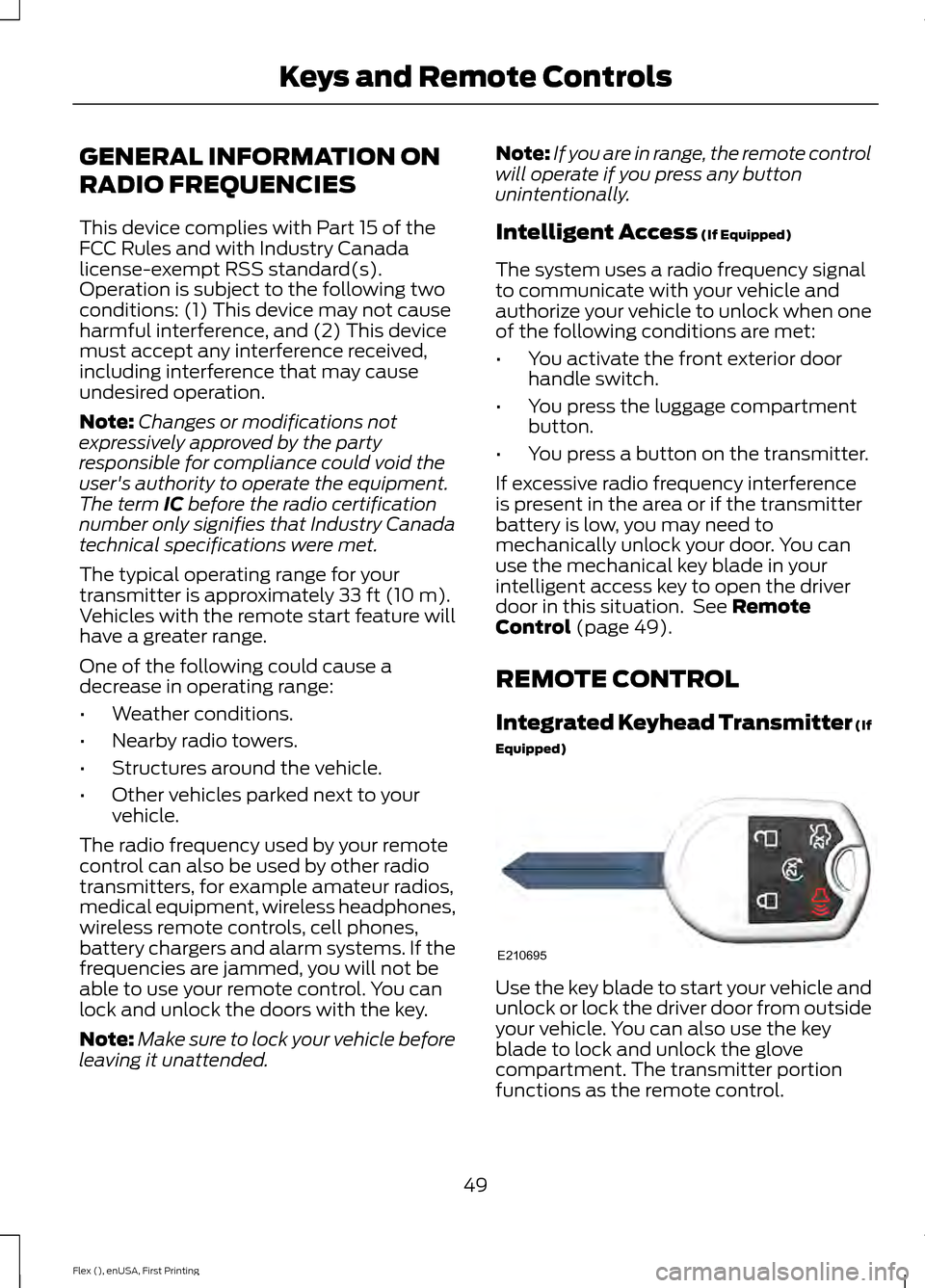

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately
33 ft (10 m).
Vehicles with the remote start feature will
have a greater range.
One of the following could cause a
decrease in operating range:
• Weather conditions.
• Nearby radio towers.
• Structures around the vehicle.
• Other vehicles parked next to your
vehicle.
The radio frequency used by your remote
control can also be used by other radio
transmitters, for example amateur radios,
medical equipment, wireless headphones,
wireless remote controls, cell phones,
battery chargers and alarm systems. If the
frequencies are jammed, you will not be
able to use your remote control. You can
lock and unlock the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended. Note:
If you are in range, the remote control
will operate if you press any button
unintentionally.
Intelligent Access
(If Equipped)
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
• You activate the front exterior door
handle switch.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the driver
door in this situation. See
Remote
Control (page 49).
REMOTE CONTROL
Integrated Keyhead Transmitter (If
Equipped) Use the key blade to start your vehicle and
unlock or lock the driver door from outside
your vehicle. You can also use the key
blade to lock and unlock the glove
compartment. The transmitter portion
functions as the remote control.
49
Flex (), enUSA, First Printing Keys and Remote ControlsE210695

8. Remove the wheel cover with the lug
wrench tip and loosen each wheel lug
nut one-half turn counterclockwise,
but do not remove them until the wheel
is raised off the ground. 9. The vehicle jacking points are shown
above, and are depicted on the warning
label on the jack. 10. Put the jack in the jack notch next to
the tire you are changing. Turn the
jack handle clockwise until the wheel
is completely off the ground.
11. Remove the lug nuts with the lug wrench.
12. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts
until the wheel is snug against the
hub. Do not fully tighten the lug nuts
until the wheel has been lowered.
13. Lower the wheel by turning the jack handle counterclockwise. 14.
Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page
296).
15. Install the wheel cover.
Stowing the flat tire 294
Flex (), enUSA, First Printing Wheels and TiresE145908 E201156 12
3
4
5
E75442 E194296

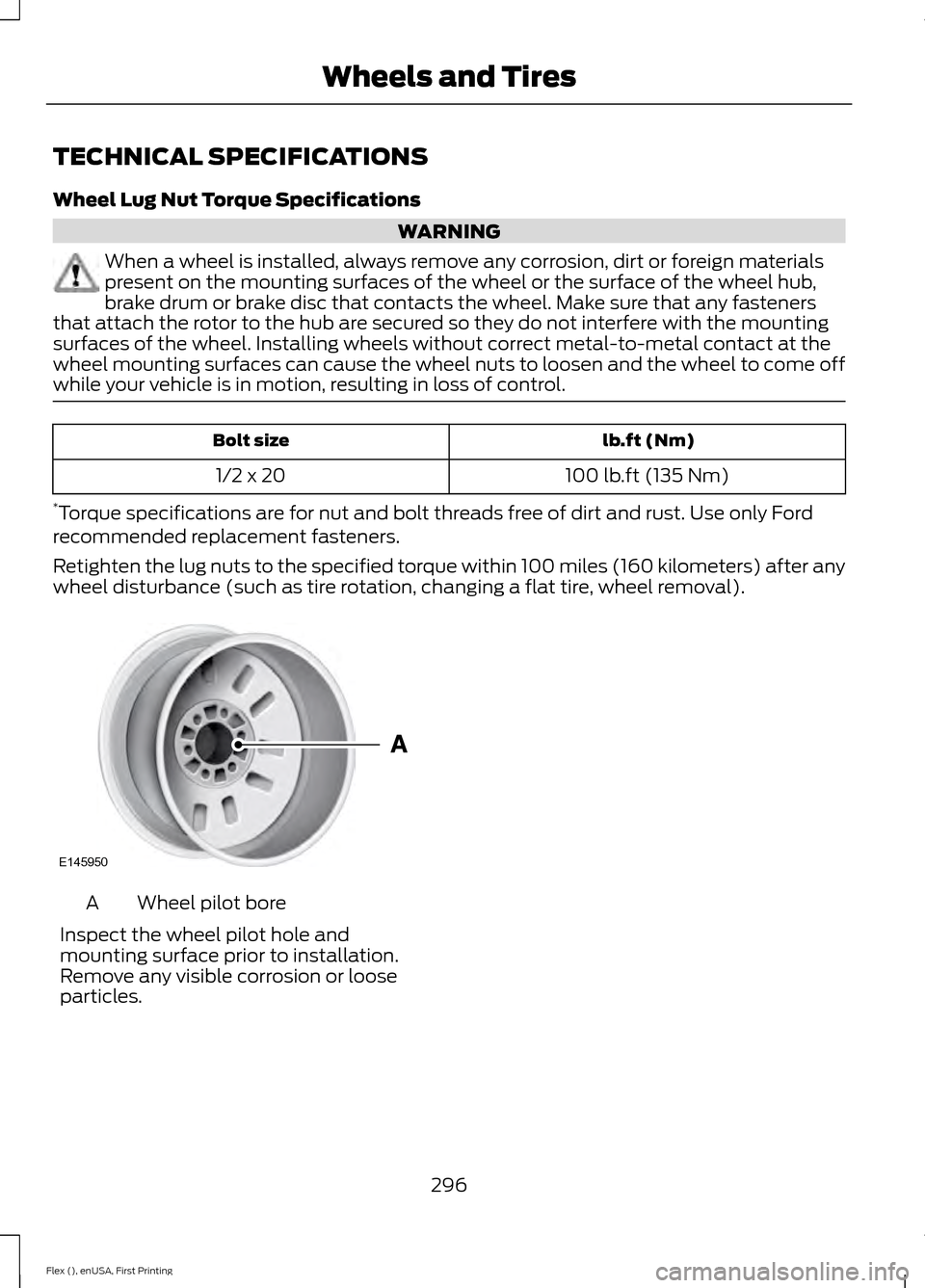

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or the surface of the wheel hub,
brake drum or brake disc that contacts the wheel. Make sure that any fasteners
that attach the rotor to the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off
while your vehicle is in motion, resulting in loss of control. lb.ft (Nm)
Bolt size
100 lb.ft (135 Nm)
1/2 x 20
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal). Wheel pilot bore
A
Inspect the wheel pilot hole and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.
296
Flex (), enUSA, First Printing Wheels and TiresE145950

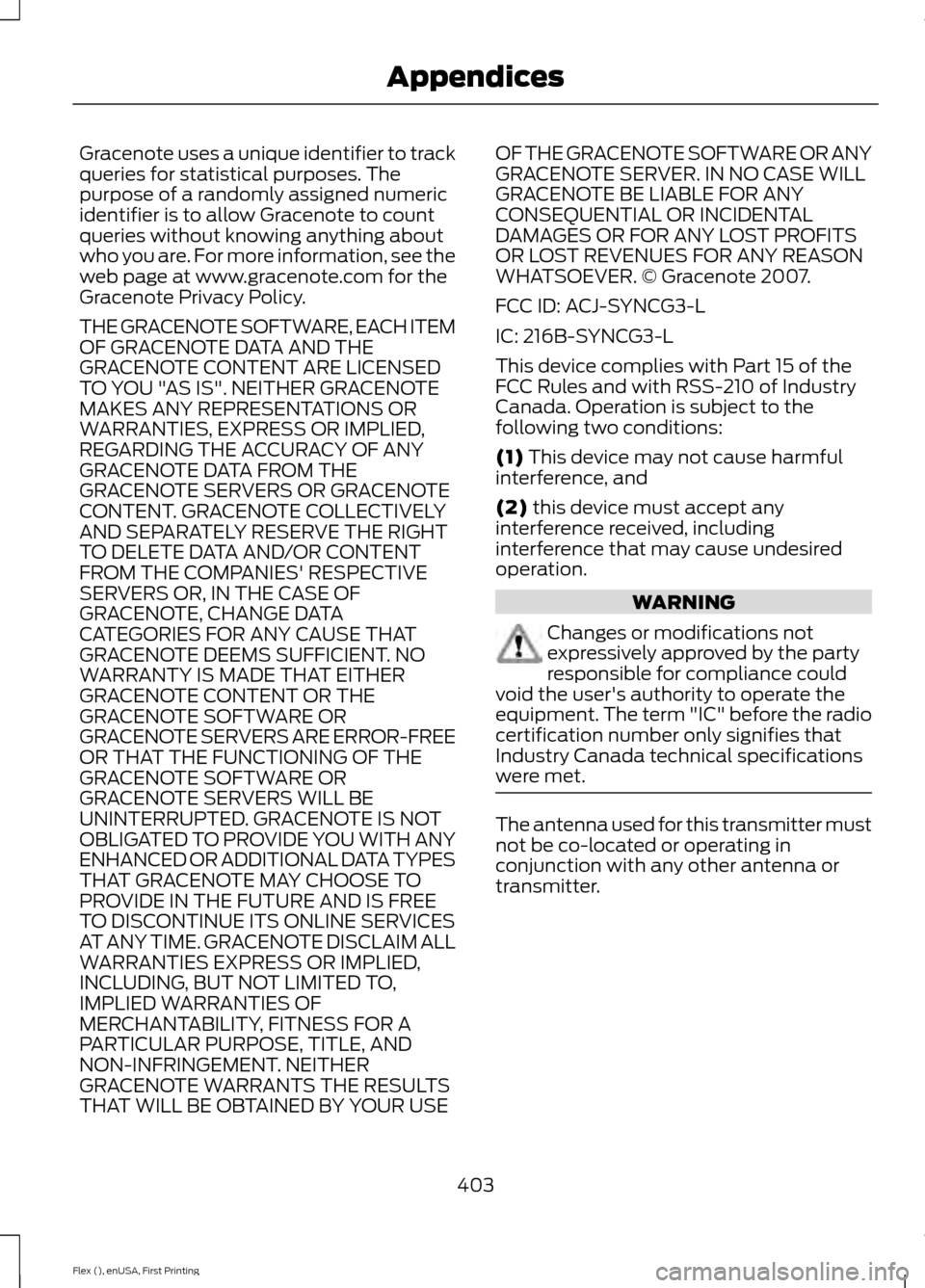

Gracenote uses a unique identifier to track
queries for statistical purposes. The
purpose of a randomly assigned numeric
identifier is to allow Gracenote to count
queries without knowing anything about
who you are. For more information, see the
web page at www.gracenote.com for the
Gracenote Privacy Policy.
THE GRACENOTE SOFTWARE, EACH ITEM
OF GRACENOTE DATA AND THE
GRACENOTE CONTENT ARE LICENSED
TO YOU "AS IS". NEITHER GRACENOTE
MAKES ANY REPRESENTATIONS OR
WARRANTIES, EXPRESS OR IMPLIED,
REGARDING THE ACCURACY OF ANY
GRACENOTE DATA FROM THE
GRACENOTE SERVERS OR GRACENOTE
CONTENT. GRACENOTE COLLECTIVELY
AND SEPARATELY RESERVE THE RIGHT
TO DELETE DATA AND/OR CONTENT
FROM THE COMPANIES' RESPECTIVE
SERVERS OR, IN THE CASE OF
GRACENOTE, CHANGE DATA
CATEGORIES FOR ANY CAUSE THAT
GRACENOTE DEEMS SUFFICIENT. NO
WARRANTY IS MADE THAT EITHER
GRACENOTE CONTENT OR THE
GRACENOTE SOFTWARE OR
GRACENOTE SERVERS ARE ERROR-FREE
OR THAT THE FUNCTIONING OF THE
GRACENOTE SOFTWARE OR
GRACENOTE SERVERS WILL BE
UNINTERRUPTED. GRACENOTE IS NOT
OBLIGATED TO PROVIDE YOU WITH ANY
ENHANCED OR ADDITIONAL DATA TYPES
THAT GRACENOTE MAY CHOOSE TO
PROVIDE IN THE FUTURE AND IS FREE
TO DISCONTINUE ITS ONLINE SERVICES
AT ANY TIME. GRACENOTE DISCLAIM ALL
WARRANTIES EXPRESS OR IMPLIED,
INCLUDING, BUT NOT LIMITED TO,
IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE, TITLE, AND
NON-INFRINGEMENT. NEITHER
GRACENOTE WARRANTS THE RESULTS
THAT WILL BE OBTAINED BY YOUR USE
OF THE GRACENOTE SOFTWARE OR ANY
GRACENOTE SERVER. IN NO CASE WILL
GRACENOTE BE LIABLE FOR ANY
CONSEQUENTIAL OR INCIDENTAL
DAMAGES OR FOR ANY LOST PROFITS
OR LOST REVENUES FOR ANY REASON
WHATSOEVER. © Gracenote 2007.
FCC ID: ACJ-SYNCG3-L
IC: 216B-SYNCG3-L
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and
(2)
this device must accept any
interference received, including
interference that may cause undesired
operation. WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could
void the user's authority to operate the
equipment. The term "IC" before the radio
certification number only signifies that
Industry Canada technical specifications
were met. The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter.
403
Flex (), enUSA, First Printing Appendices

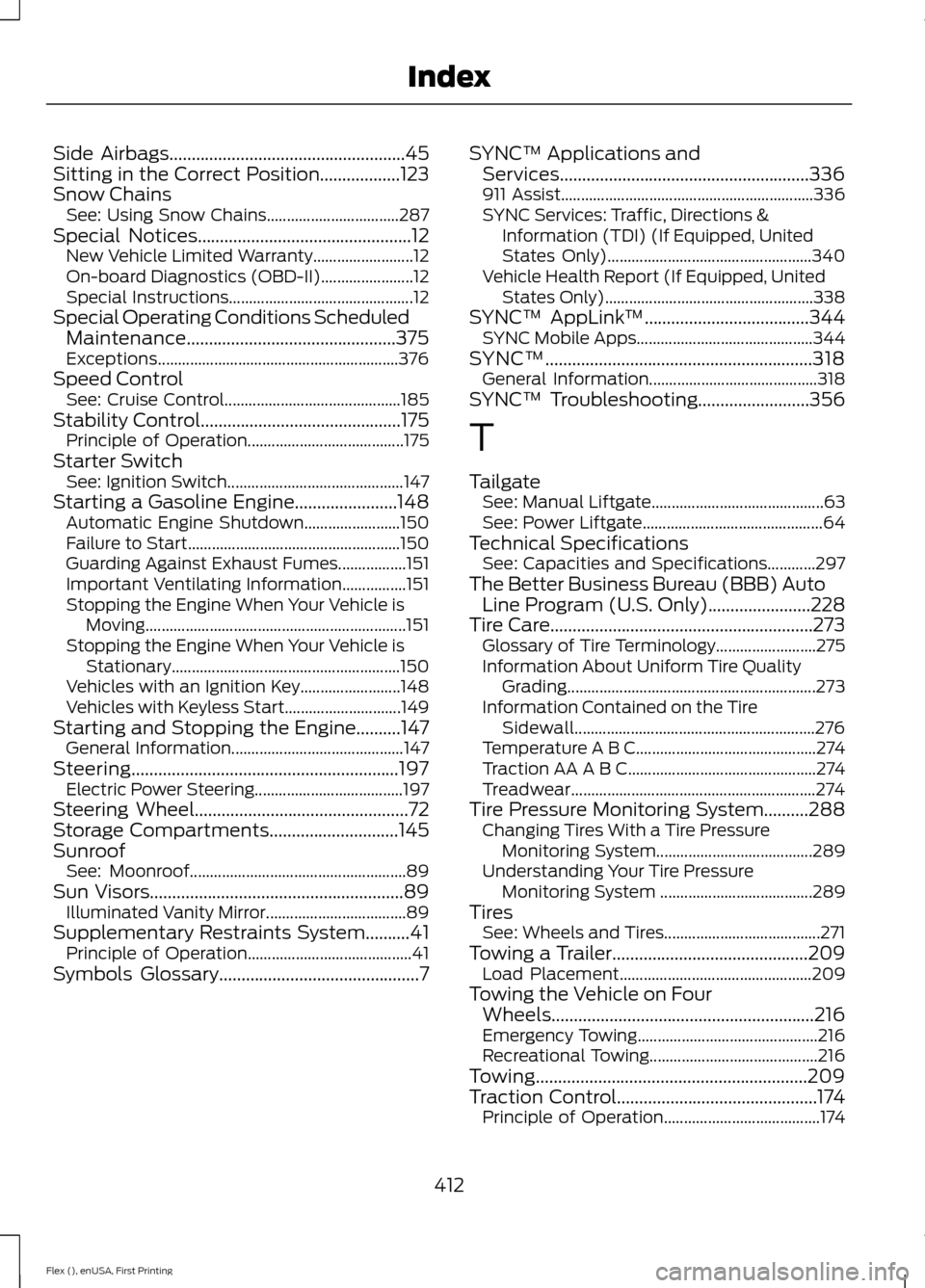

Side Airbags.....................................................45
Sitting in the Correct Position..................123
Snow Chains See: Using Snow Chains................................. 287
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
On-board Diagnostics (OBD-II)....................... 12
Special Instructions.............................................. 12
Special Operating Conditions Scheduled Maintenance...............................................375
Exceptions............................................................ 376
Speed Control See: Cruise Control............................................ 185
Stability Control
.............................................175
Principle of Operation....................................... 175
Starter Switch See: Ignition Switch............................................ 147
Starting a Gasoline Engine.......................148 Automatic Engine Shutdown........................ 150
Failure to Start..................................................... 150
Guarding Against Exhaust Fumes.................151
Important Ventilating Information................151
Stopping the Engine When Your Vehicle is Moving................................................................. 151
Stopping the Engine When Your Vehicle is Stationary......................................................... 150
Vehicles with an Ignition Key......................... 148
Vehicles with Keyless Start............................. 149
Starting and Stopping the Engine..........147 General Information........................................... 147
Steering............................................................197 Electric Power Steering..................................... 197
Steering Wheel
................................................72
Storage Compartments.............................145
Sunroof See: Moonroof...................................................... 89
Sun Visors.........................................................89 Illuminated Vanity Mirror................................... 89
Supplementary Restraints System..........41 Principle of Operation......................................... 41
Symbols Glossary
.............................................7 SYNC™ Applications and
Services........................................................336
911 Assist............................................................... 336
SYNC Services: Traffic, Directions & Information (TDI) (If Equipped, United
States Only)................................................... 340
Vehicle Health Report (If Equipped, United States Only).................................................... 338
SYNC™ AppLink ™
.....................................344
SYNC Mobile Apps............................................ 344
SYNC™............................................................318 General Information.......................................... 318
SYNC™ Troubleshooting
.........................356
T
Tailgate See: Manual Liftgate........................................... 63
See: Power Liftgate............................................. 64
Technical Specifications See: Capacities and Specifications............297
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)
.......................228
Tire Care...........................................................273 Glossary of Tire Terminology......................... 275
Information About Uniform Tire Quality Grading.............................................................. 273
Information Contained on the Tire Sidewall............................................................ 276
Temperature A B C............................................. 274
Traction AA A B C............................................... 274
Treadwear............................................................. 274
Tire Pressure Monitoring System..........288 Changing Tires With a Tire Pressure
Monitoring System....................................... 289
Understanding Your Tire Pressure Monitoring System ...................................... 289
Tires See: Wheels and Tires....................................... 271
Towing a Trailer
............................................209
Load Placement................................................ 209
Towing the Vehicle on Four Wheels...........................................................216
Emergency Towing............................................. 216
Recreational Towing.......................................... 216
Towing.............................................................209
Traction Control.............................................174 Principle of Operation....................................... 174
412
Flex (), enUSA, First Printing Index

Vehicle Storage............................................269
Battery................................................................... 270
Body....................................................................... 269
Brakes..................................................................... 270
Cooling system................................................... 270
Engine.................................................................... 269
Fuel system.......................................................... 270
General.................................................................. 269
Miscellaneous..................................................... 270
Removing Vehicle From Storage.................. 270
Tires........................................................................\
. 270
Ventilation See: Climate Control.......................................... 114
VIN See: Vehicle Identification Number...........300
Voice Control
....................................................74
W
Warning Lamps and Indicators
.................92
Adaptive Cruise Control..................................... 92
Airbag Readiness................................................. 93
Anti-Lock Braking System................................ 93
Battery...................................................................... 93
Brake System......................................................... 93
Charging System.................................................. 93
Cruise Control........................................................ 93
Directional Indicator............................................ 95
Door Ajar.................................................................. 93
Engine Coolant Temperature.......................... 93
Engine Oil................................................................ 94
Fasten Seatbelt.................................................... 94
Front Airbag........................................................... 94
Front Fog Lamps.................................................. 94
Head Up Display................................................... 94
High Beam.............................................................. 94
Liftgate Ajar............................................................ 94
Low Fuel Level...................................................... 94
Low Tire Pressure Warning............................... 94
Low Washer Fluid................................................. 94
Parking Lamps...................................................... 94
Powertrain Malfunction/Reduced Power................................................................... 95
Service Engine Soon........................................... 95
Stability Control.................................................... 95
Stability Control Off............................................ 95
Washer Fluid Check....................................254 Washers
See: Cleaning the Exterior.............................. 264
See: Wipers and Washers................................. 76
Waxing
.............................................................265
Wheel Nuts See: Changing a Road Wheel........................ 291
Wheels and Tires...........................................271 General Information........................................... 271
Technical Specifications................................. 296
Windows and Mirrors
...................................86
Windshield Washers......................................77
Windshield Wipers.........................................76 Speed Dependent Wipers................................. 76
Wiper Blades See: Checking the Wiper Blades.................. 256
Wipers and Washers.....................................76
Wrecker Towing See: Transporting the Vehicle........................ 215
414
Flex (), enUSA, First Printing Index
