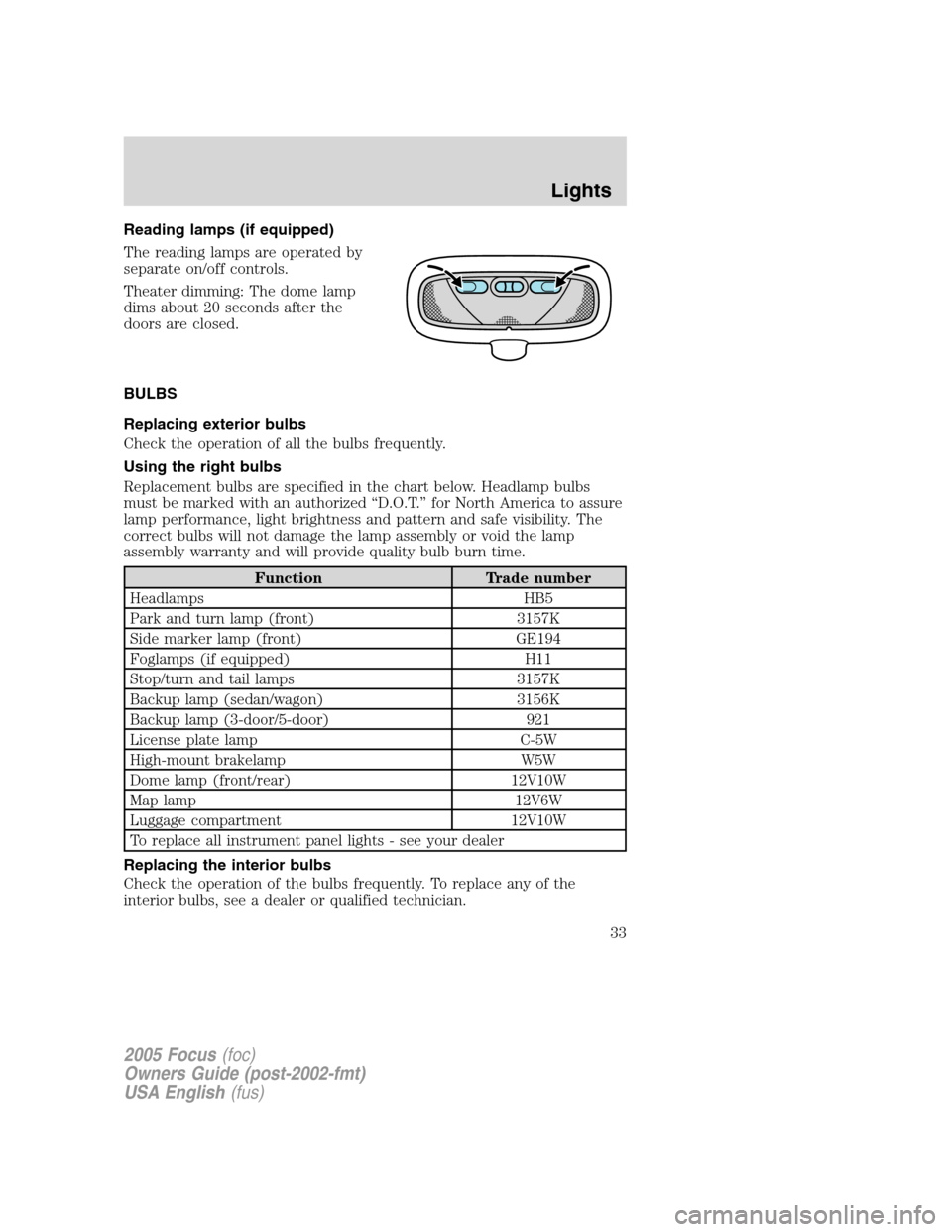

Reading lamps (if equipped)
The reading lamps are operated by
separate on/off controls.
Theater dimming: The dome lamp
dims about 20 seconds after the
doors are closed.
BULBS
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized“D.O.T.”for North America to assure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Function Trade number
Headlamps HB5
Park and turn lamp (front) 3157K
Side marker lamp (front) GE194
Foglamps (if equipped) H11
Stop/turn and tail lamps 3157K
Backup lamp (sedan/wagon) 3156K
Backup lamp (3-door/5-door) 921
License plate lamp C-5W
High-mount brakelamp W5W
Dome lamp (front/rear) 12V10W
Map lamp 12V6W
Luggage compartment 12V10W
To replace all instrument panel lights - see your dealer
Replacing the interior bulbs
Check the operation of the bulbs frequently. To replace any of the
interior bulbs, see a dealer or qualified technician.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
33
