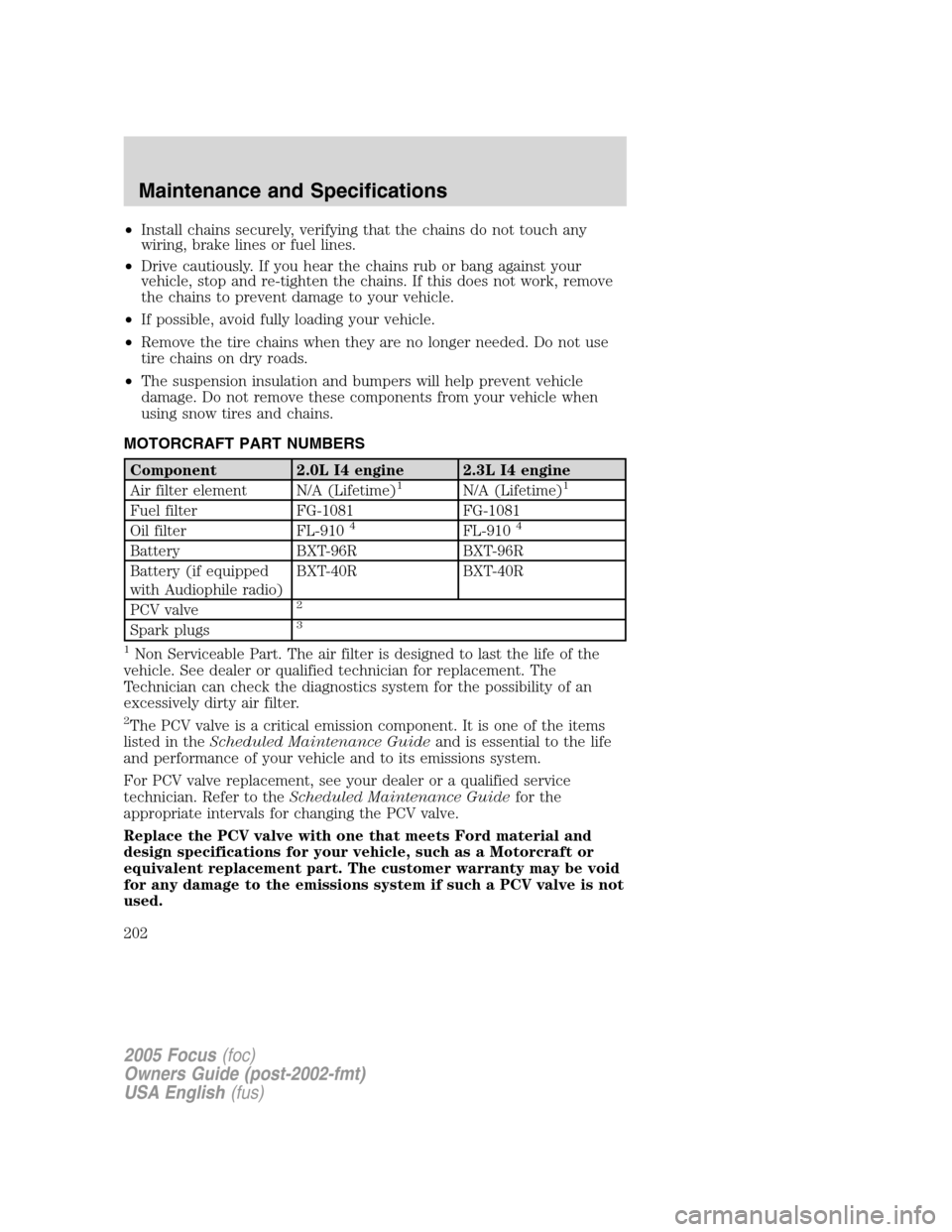

•Install chains securely, verifying that the chains do not touch any
wiring, brake lines or fuel lines.
•Drive cautiously. If you hear the chains rub or bang against your
vehicle, stop and re-tighten the chains. If this does not work, remove
the chains to prevent damage to your vehicle.
•If possible, avoid fully loading your vehicle.
•Remove the tire chains when they are no longer needed. Do not use
tire chains on dry roads.
•The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when
using snow tires and chains.
MOTORCRAFT PART NUMBERS
Component 2.0L I4 engine 2.3L I4 engine
Air filter element N/A (Lifetime)1N/A (Lifetime)1
Fuel filter FG-1081 FG-1081
Oil filter FL-9104FL-9104
Battery BXT-96R BXT-96R
Battery (if equipped
with Audiophile radio)BXT-40R BXT-40R
PCV valve
2
Spark plugs3
1
Non Serviceable Part. The air filter is designed to last the life of the
vehicle. See dealer or qualified technician for replacement. The
Technician can check the diagnostics system for the possibility of an
excessively dirty air filter.
2The PCV valve is a critical emission component. It is one of the items
listed in theScheduled Maintenance Guideand is essential to the life
and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your dealer or a qualified service
technician. Refer to theScheduled Maintenance Guidefor the
appropriate intervals for changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
202

3For spark plug replacement, see your dealer or a qualified service
technician. Refer to theScheduled Maintenance Guidefor the
appropriate intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
4Only use the specified replacement oil filter. The use of a non-specified
oil filter can result in engine damage.
REFILL CAPACITIES
Fluid Ford Part Name Application Capacity
Brake fluid
and clutch
fluidMotorcraft High
Performance DOT
3 Motor Vehicle
Brake FluidAll Fill to line on
reservoir
Engine
coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)2.0L engine 5.75L (6.1 quarts)
2.3L engine 5.75L (6.1 quarts)
Engine oil
(includes
filter
change)
4
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)2.0L engine 4.3L (4.5 quarts)
2.3L engine 4.3L (4.5 quarts)
Fuel tank N/A 2.0/2.3L 53L (14.0 gallons)
Power
steering fluidMotorcraft
MERCONAT FAll Fill to between
MIN and MAX
lines on reservoir
2005 Focus(foc)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
203
