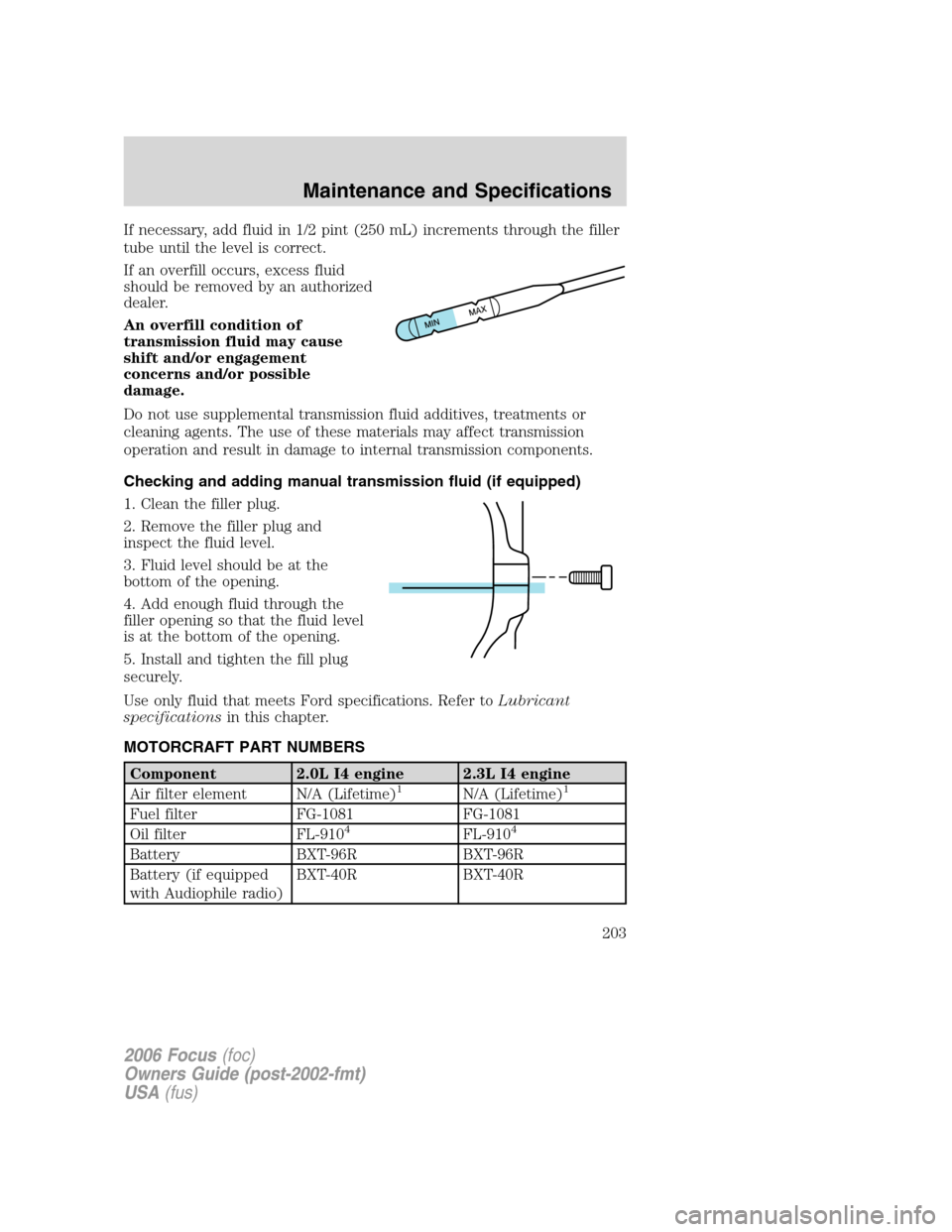

If necessary, add fluid in 1/2 pint (250 mL) increments through the filler
tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
An overfill condition of
transmission fluid may cause
shift and/or engagement
concerns and/or possible
damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
Checking and adding manual transmission fluid (if equipped)
1. Clean the filler plug.
2. Remove the filler plug and
inspect the fluid level.
3. Fluid level should be at the
bottom of the opening.
4. Add enough fluid through the
filler opening so that the fluid level
is at the bottom of the opening.
5. Install and tighten the fill plug
securely.
Use only fluid that meets Ford specifications. Refer toLubricant
specificationsin this chapter.
MOTORCRAFT PART NUMBERS
Component 2.0L I4 engine 2.3L I4 engine
Air filter element N/A (Lifetime)1N/A (Lifetime)1
Fuel filter FG-1081 FG-1081
Oil filter FL-9104FL-9104
Battery BXT-96R BXT-96R
Battery (if equipped
with Audiophile radio)BXT-40R BXT-40R
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
203

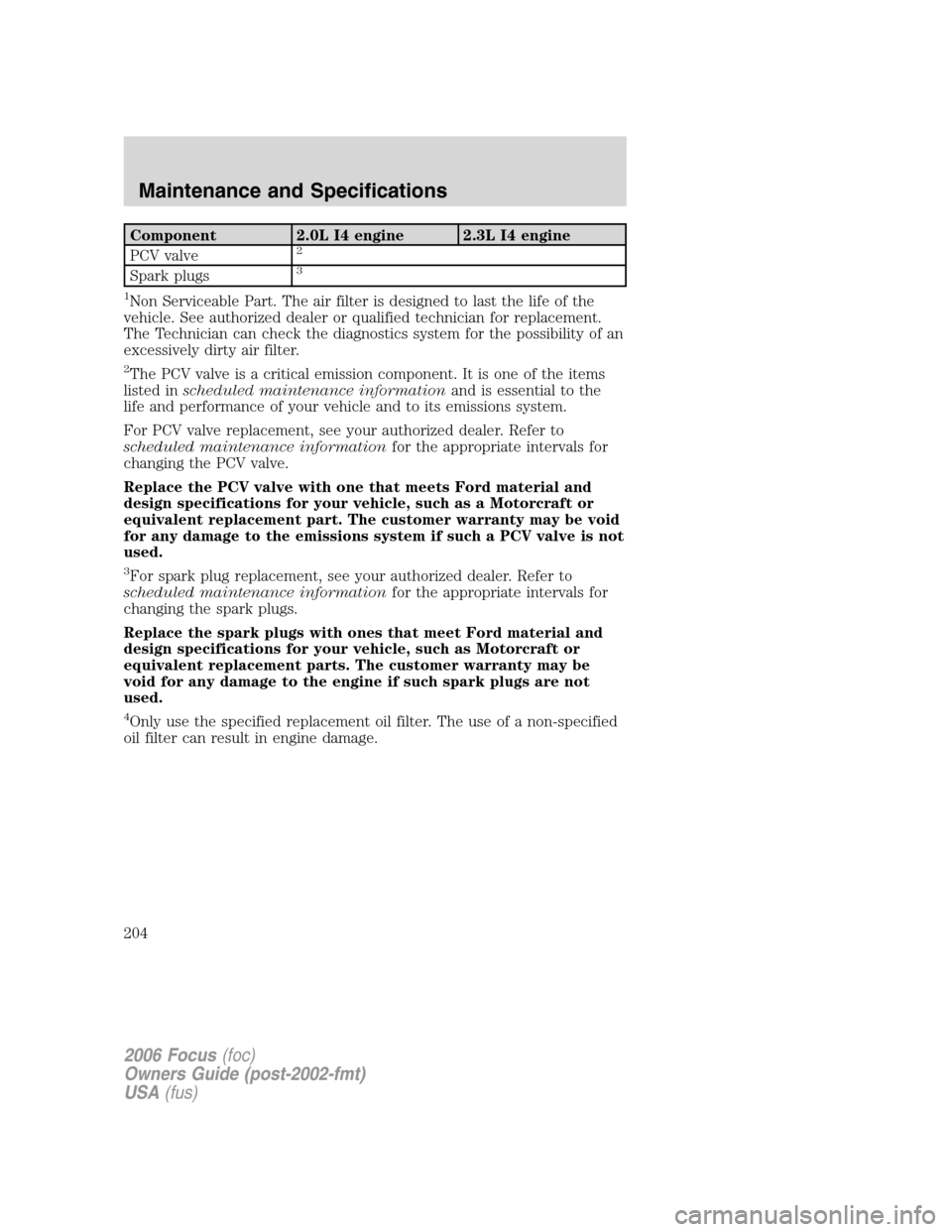

Component 2.0L I4 engine 2.3L I4 engine
PCV valve2
Spark plugs3
1
Non Serviceable Part. The air filter is designed to last the life of the
vehicle. See authorized dealer or qualified technician for replacement.
The Technician can check the diagnostics system for the possibility of an
excessively dirty air filter.
2The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
3For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
4Only use the specified replacement oil filter. The use of a non-specified
oil filter can result in engine damage.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
204

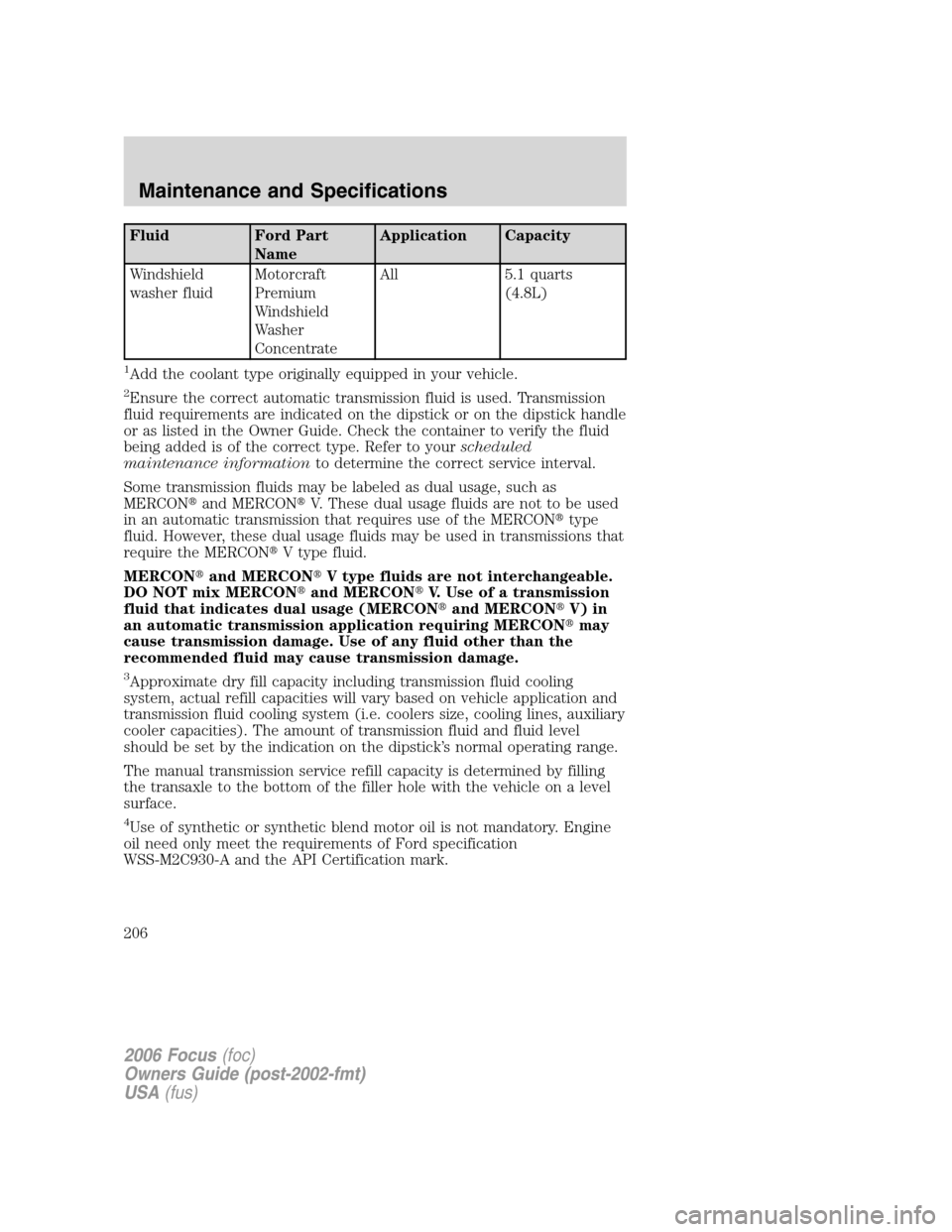

Fluid Ford Part
NameApplication Capacity
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 5.1 quarts
(4.8L)
1Add the coolant type originally equipped in your vehicle.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick handle
or as listed in the Owner Guide. Check the container to verify the fluid
being added is of the correct type. Refer to yourscheduled
maintenance informationto determine the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
3Approximate dry fill capacity including transmission fluid cooling
system, actual refill capacities will vary based on vehicle application and
transmission fluid cooling system (i.e. coolers size, cooling lines, auxiliary
cooler capacities). The amount of transmission fluid and fluid level
should be set by the indication on the dipstick’s normal operating range.
The manual transmission service refill capacity is determined by filling
the transaxle to the bottom of the filler hole with the vehicle on a level
surface.
4Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
206

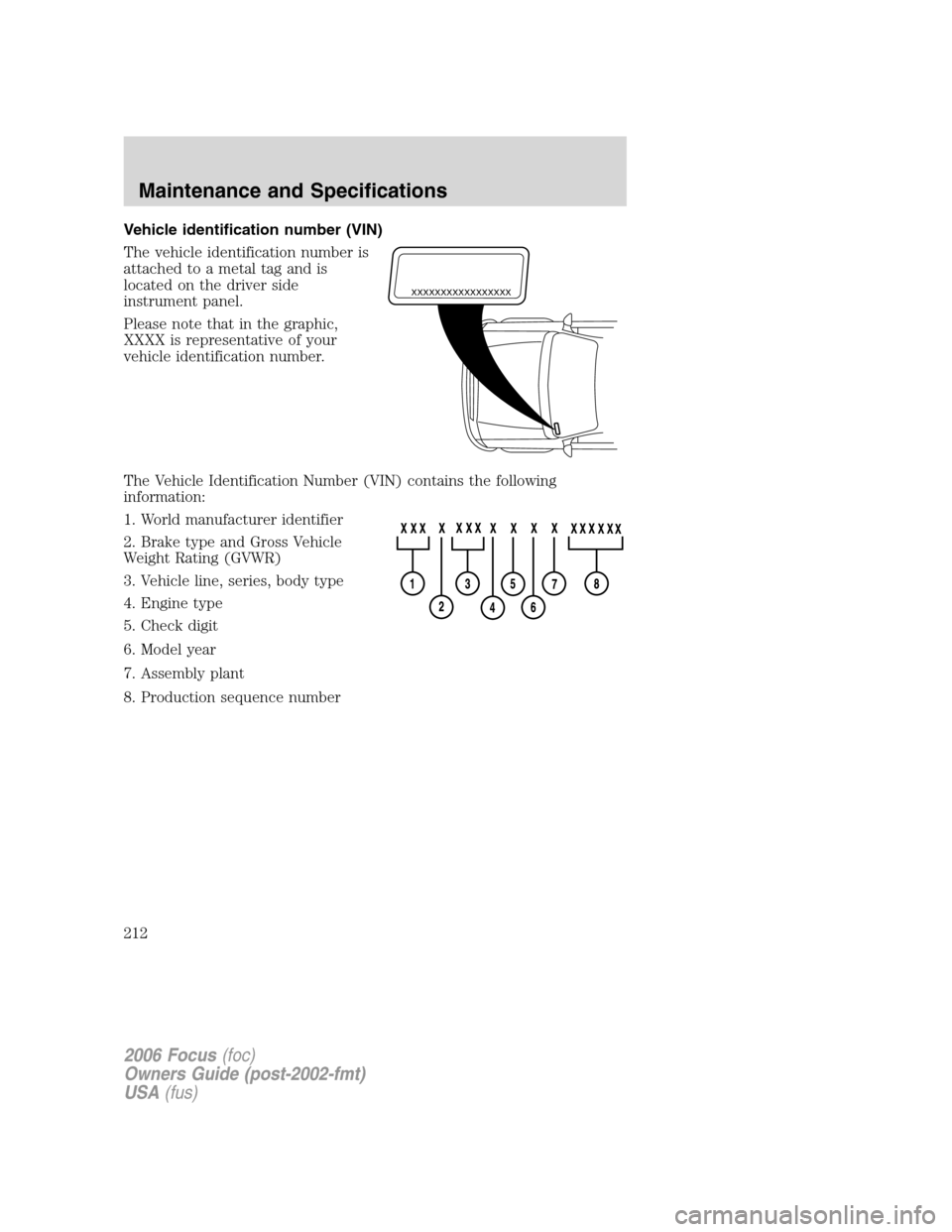

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
XXXXXXXXXXXXXXXXX
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
212

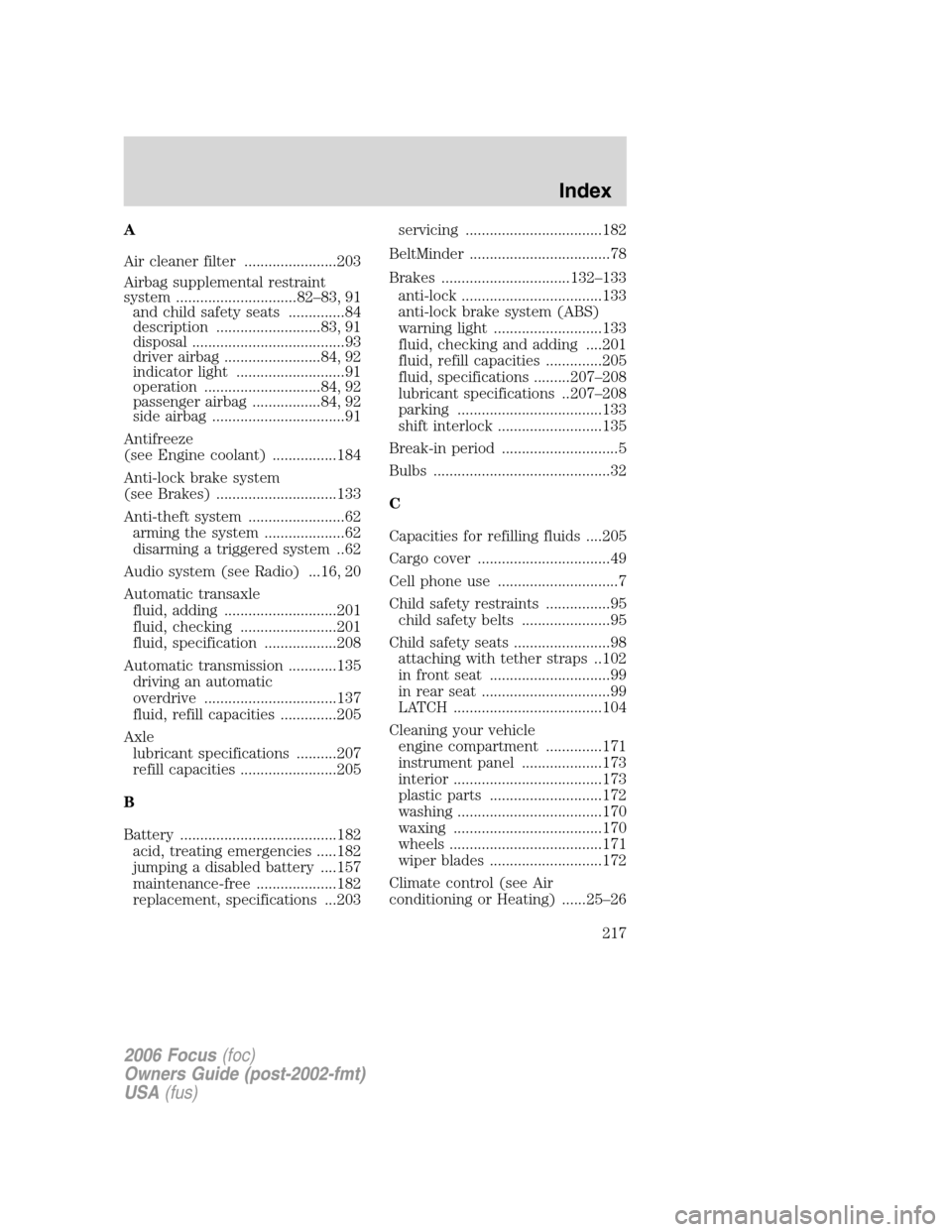

A
Air cleaner filter .......................203
Airbag supplemental restraint
system ..............................82–83, 91
and child safety seats ..............84
description ..........................83, 91
disposal ......................................93
driver airbag ........................84, 92
indicator light ...........................91
operation .............................84, 92
passenger airbag .................84, 92
side airbag .................................91
Antifreeze
(see Engine coolant) ................184
Anti-lock brake system
(see Brakes) ..............................133
Anti-theft system ........................62
arming the system ....................62
disarming a triggered system ..62
Audio system (see Radio) ...16, 20
Automatic transaxle
fluid, adding ............................201
fluid, checking ........................201
fluid, specification ..................208
Automatic transmission ............135
driving an automatic
overdrive .................................137
fluid, refill capacities ..............205
Axle
lubricant specifications ..........207
refill capacities ........................205
B
Battery .......................................182
acid, treating emergencies .....182
jumping a disabled battery ....157
maintenance-free ....................182
replacement, specifications ...203servicing ..................................182
BeltMinder ...................................78
Brakes ................................132–133
anti-lock ...................................133
anti-lock brake system (ABS)
warning light ...........................133
fluid, checking and adding ....201
fluid, refill capacities ..............205
fluid, specifications .........207–208
lubricant specifications ..207–208
parking ....................................133
shift interlock ..........................135
Break-in period .............................5
Bulbs ............................................32
C
Capacities for refilling fluids ....205
Cargo cover .................................49
Cell phone use ..............................7
Child safety restraints ................95
child safety belts ......................95
Child safety seats ........................98
attaching with tether straps ..102
in front seat ..............................99
in rear seat ................................99
LATCH .....................................104
Cleaning your vehicle
engine compartment ..............171
instrument panel ....................173
interior .....................................173
plastic parts ............................172
washing ....................................170
waxing .....................................170
wheels ......................................171
wiper blades ............................172
Climate control (see Air
conditioning or Heating) ......25–26
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
217

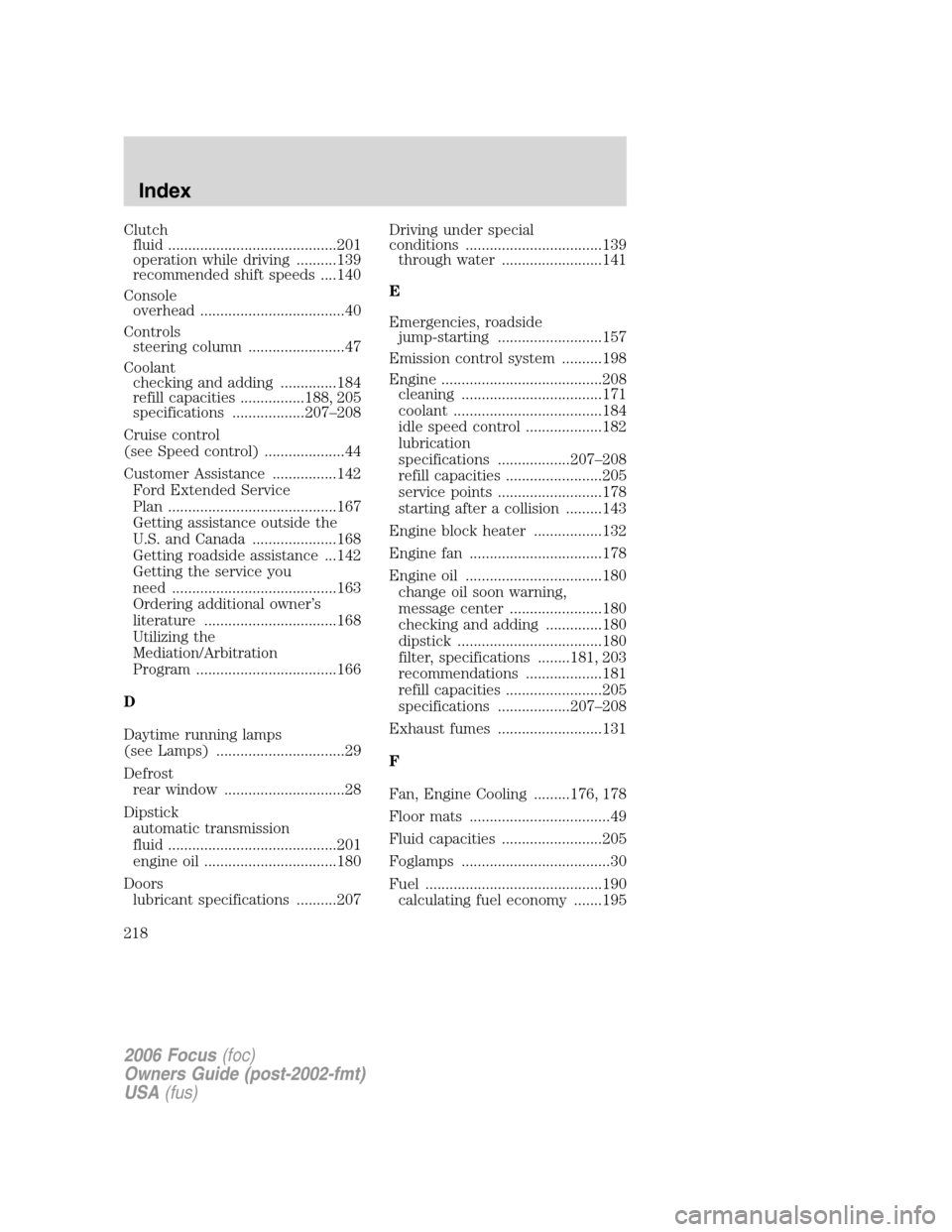

Clutch
fluid ..........................................201
operation while driving ..........139
recommended shift speeds ....140
Console
overhead ....................................40
Controls
steering column ........................47
Coolant
checking and adding ..............184
refill capacities ................188, 205
specifications ..................207–208
Cruise control
(see Speed control) ....................44
Customer Assistance ................142
Ford Extended Service
Plan ..........................................167
Getting assistance outside the
U.S. and Canada .....................168
Getting roadside assistance ...142
Getting the service you
need .........................................163
Ordering additional owner’s
literature .................................168
Utilizing the
Mediation/Arbitration
Program ...................................166
D
Daytime running lamps
(see Lamps) ................................29
Defrost
rear window ..............................28
Dipstick
automatic transmission
fluid ..........................................201
engine oil .................................180
Doors
lubricant specifications ..........207Driving under special
conditions ..................................139
through water .........................141
E
Emergencies, roadside
jump-starting ..........................157
Emission control system ..........198
Engine ........................................208
cleaning ...................................171
coolant .....................................184
idle speed control ...................182
lubrication
specifications ..................207–208
refill capacities ........................205
service points ..........................178
starting after a collision .........143
Engine block heater .................132
Engine fan .................................178
Engine oil ..................................180
change oil soon warning,
message center .......................180
checking and adding ..............180
dipstick ....................................180
filter, specifications ........181, 203
recommendations ...................181
refill capacities ........................205
specifications ..................207–208
Exhaust fumes ..........................131
F
Fan, Engine Cooling .........176, 178
Floor mats ...................................49
Fluid capacities .........................205
Foglamps .....................................30
Fuel ............................................190
calculating fuel economy .......195
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
218

Load limits .................................121
Locks
autolock .....................................52
childproof ..................................54
Lubricant specifications ...207–208
Lug nuts ....................................156
M
Manual transaxle
lubricant specifications ..........208
Manual transmission .................139
fluid capacities ........................205
reverse .....................................140
Mirrors .........................................43
heated ........................................43
side view mirrors (power) .......43
Moon roof ....................................47
Motorcraft parts ........174, 190, 203
O
Octane rating ............................194
Oil (see Engine oil) ..................180
P
Parking brake ............................133
Parts (see Motorcraft parts) ....203
Passenger Occupant
Classification Sensor ...................70
Power distribution box
(see Fuses) ...............................148
Power mirrors .............................43
Power point .................................41
Power steering ..........................135
fluid, checking and adding ....200fluid, refill capacity ................205
fluid, specifications .........207–208
Power Windows ...........................42
R
Radio ......................................16, 20
Rear window defroster ...............28
Relays ........................................144
Remote audio controls ...............47
Remote entry system .................56
locking/unlocking doors ...........52
opening the trunk .....................58
Roadside assistance ..................142
S
Safety Belt Maintenance ............77
Safety belts
(see Safety restraints) ...68, 72–75
Safety defects, reporting ..........169
Safety restraints ..............68, 72–76
belt minder ...............................78
extension assembly ..................76
for adults .............................73–75
for children .........................94–95
Occupant Classification
Sensor ........................................70
safety belt maintenance ...........77
warning light and chime ....77–78
Safety seats for children ............98
Safety Compliance
Certification Label ....................211
Seat belts
(see Safety restraints) ...............68
Seats ............................................63
child safety seats ......................98
Servicing your vehicle ..............176
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
220
