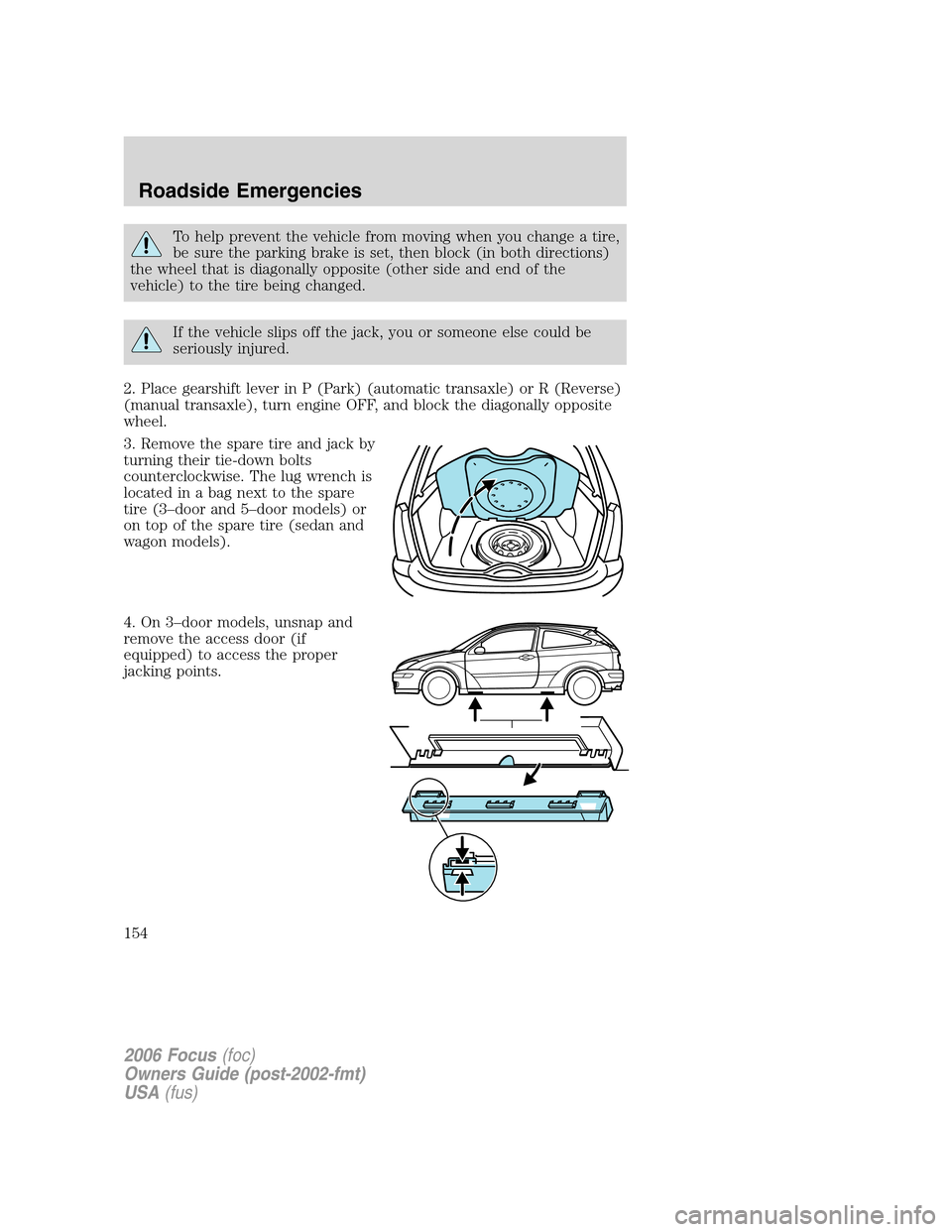

To help prevent the vehicle from moving when you change a tire,
be sure the parking brake is set, then block (in both directions)
the wheel that is diagonally opposite (other side and end of the
vehicle) to the tire being changed.
If the vehicle slips off the jack, you or someone else could be
seriously injured.
2. Place gearshift lever in P (Park) (automatic transaxle) or R (Reverse)
(manual transaxle), turn engine OFF, and block the diagonally opposite
wheel.
3. Remove the spare tire and jack by
turning their tie-down bolts
counterclockwise. The lug wrench is
located in a bag next to the spare
tire (3–door and 5–door models) or
on top of the spare tire (sedan and
wagon models).
4. On 3–door models, unsnap and
remove the access door (if
equipped) to access the proper
jacking points.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
154

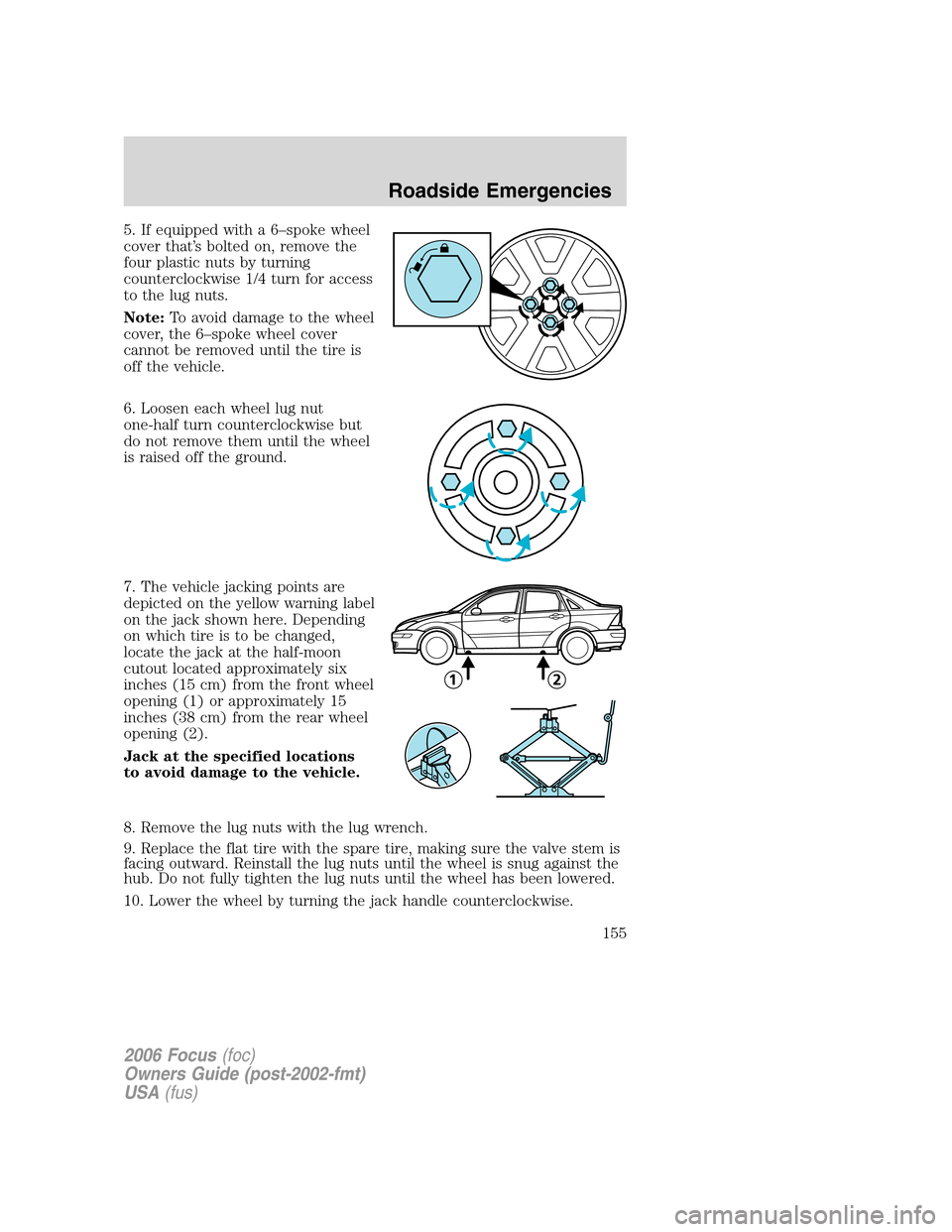

5. If equipped with a 6–spoke wheel
cover that’s bolted on, remove the
four plastic nuts by turning
counterclockwise 1/4 turn for access
to the lug nuts.
Note:To avoid damage to the wheel
cover, the 6–spoke wheel cover
cannot be removed until the tire is
off the vehicle.
6. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
7. The vehicle jacking points are
depicted on the yellow warning label
on the jack shown here. Depending
on which tire is to be changed,
locate the jack at the half-moon
cutout located approximately six
inches (15 cm) from the front wheel
opening (1) or approximately 15
inches (38 cm) from the rear wheel
opening (2).
Jack at the specified locations
to avoid damage to the vehicle.
8. Remove the lug nuts with the lug wrench.
9. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts until the wheel is snug against the
hub. Do not fully tighten the lug nuts until the wheel has been lowered.
10. Lower the wheel by turning the jack handle counterclockwise.
2006 Focus (foc)
Owners Guide (post-2002-fmt)
USA (fus)
Roadside Emergencies
155
