power steering fluid FORD FOCUS 2006 2.G Owners Manual

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
9

The Traction Control
switch is
located on the center console, by
the gearshift lever. The Traction
Control
system will automatically
turn on every time the ignition is
turned off and on.
If you should become stuck in snow
or ice or on a very slippery road surface, try switching the Traction
Control
system off by pressing the switch. This may allow excess wheel
spin to “dig” the vehicle out and enable a successful “rocking” maneuver.
If you want to turn off the Traction Control
system be aware that, for
safety reasons, the switch must be pressed and held for at least one
second before the system is turned off. To re-engage the Traction
Control
system, the button must again be held for at least one second.
If a system fault is detected, the traction control active light will
illuminate, the Traction Control
button will not turn the system on or
off and your vehicle should be serviced by an authorized dealer.
STEERING
To prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering pump reservoir
fluid level (below the MIN mark on the reservoir).
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
AUTOMATIC TRANSMISSION OPERATION (IF EQUIPPED)
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the ON position unless the brake pedal is depressed.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
135

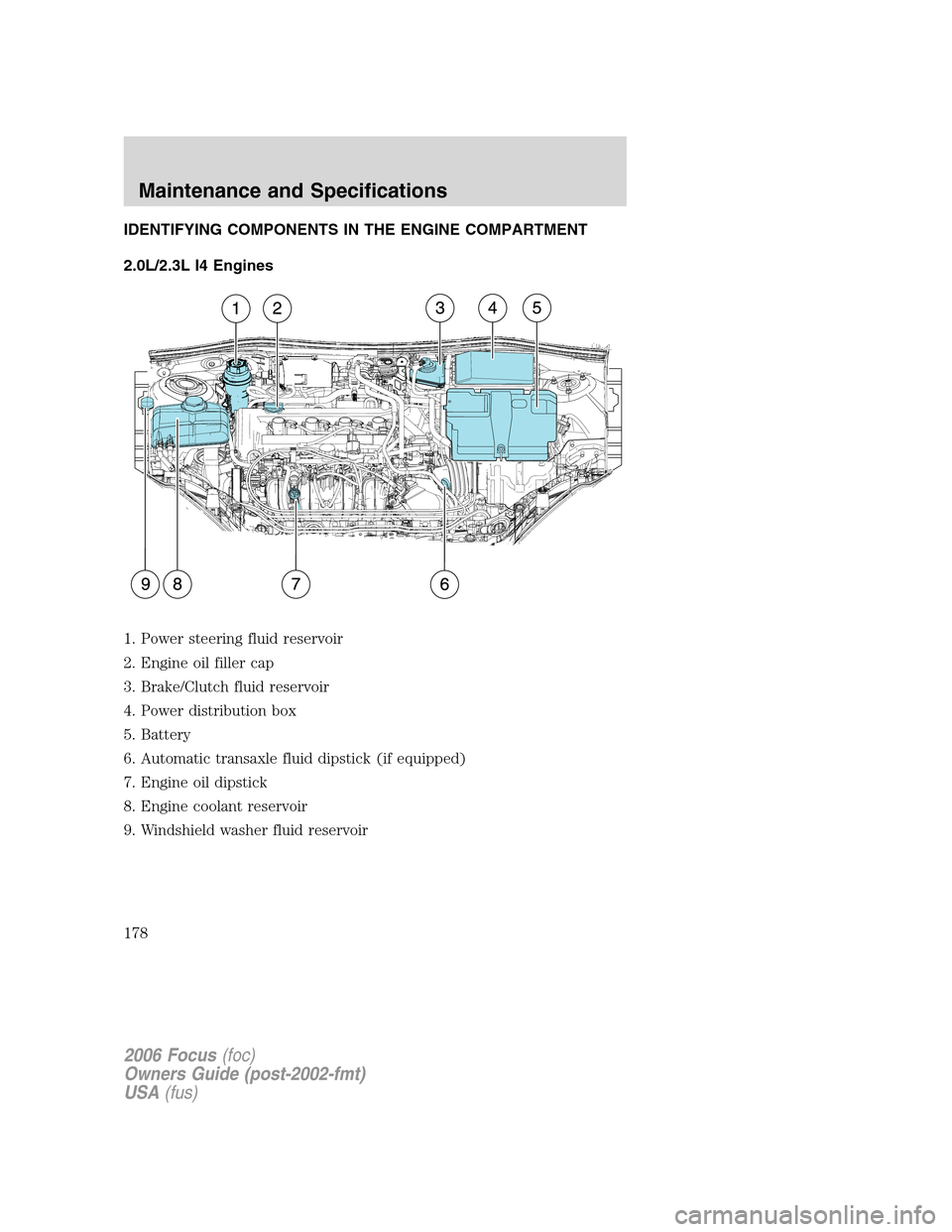

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
2.0L/2.3L I4 Engines
1. Power steering fluid reservoir
2. Engine oil filler cap
3. Brake/Clutch fluid reservoir
4. Power distribution box
5. Battery
6. Automatic transaxle fluid dipstick (if equipped)
7. Engine oil dipstick
8. Engine coolant reservoir
9. Windshield washer fluid reservoir
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
178

Readiness for Inspection/Maintenance (I/M) testing
In some localities, it may be a legal requirement to pass an I/M test of
the on-board diagnostics system. If your
indicator is on, refer to
the description in theWarning lights and chimessection of the
Instrument Clusterchapter. Your vehicle may not pass the I/M test with
the
indicator on.
If the vehicle’s powertrain system or its battery has just been serviced,
the on-board diagnostics system is reset to a “not ready for I/M test”
condition. To ready the on-board diagnostics system for I/M testing, a
minimum of 30 minutes of city and highway driving is necessary as
described below:
•First, at least 10 minutes of driving on an expressway or highway.
•Next, at least 20 minutes driving in stop-and-go, city-type traffic with
at least four idle periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete.
POWER STEERING FLUID
Check the fluid. Refer to the
scheduled maintenance
informationfor service
maintenance schedules.
1. Start the engine and let it run
until it reaches normal operating
schedules.
2. Turn the steering wheel left and
right several times.
3. Turn the engine off.
4. Check the fluid level.
5. If the fluid is below the MIN line,
add fluid in small amounts until it
reaches the correct level (between
the MIN and MAX lines).
Use only MERCONAT F.
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
200

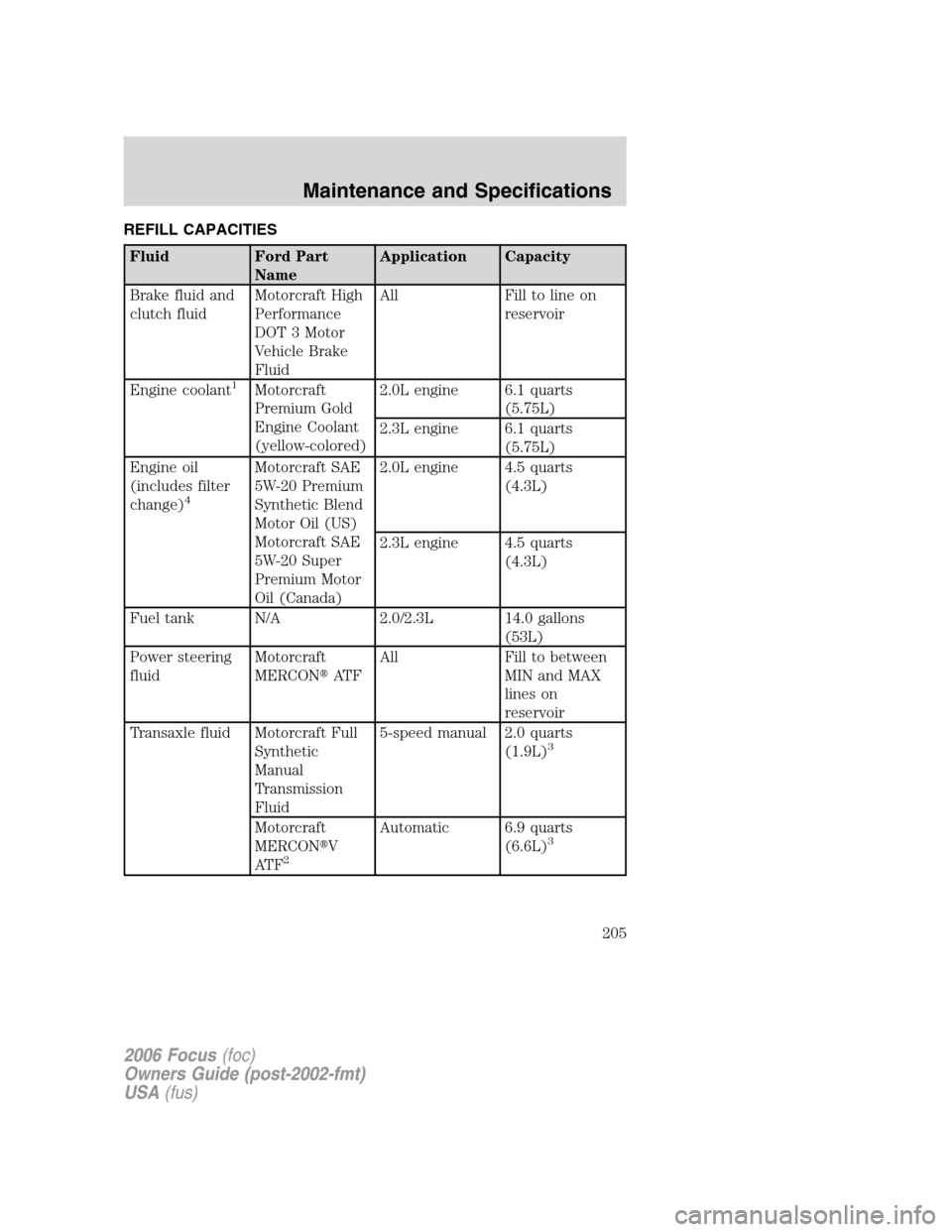

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid and
clutch fluidMotorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)2.0L engine 6.1 quarts
(5.75L)
2.3L engine 6.1 quarts
(5.75L)
Engine oil
(includes filter
change)
4
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)2.0L engine 4.5 quarts
(4.3L)
2.3L engine 4.5 quarts
(4.3L)
Fuel tank N/A 2.0/2.3L 14.0 gallons
(53L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to between
MIN and MAX
lines on
reservoir
Transaxle fluid Motorcraft Full
Synthetic
Manual
Transmission
Fluid5-speed manual 2.0 quarts
(1.9L)
3
Motorcraft
MERCONV
AT F
2
Automatic 6.9 quarts
(6.6L)3
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
205

ItemFord Part
Name or
EquivalentFord Part
NumberFord
Specification
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA, OR
and NM),
VC-7-B (CA, OR
and NM)WSS-
M97B51-A1
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Windshield
washer fluidMotorcraft
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
ENGINE DATA
Engine 2.0L I4 engine 2.3L I4 engine
Cubic inches 121 138
Required fuel 87 octane 87 octane
Firing order 1–3–4–2 1–3–4–2
Ignition system C.O.P C.O.P
Compression ratio 10.1:1 9.7:1
Spark plug gap .051 inch +/- .002
1.3 mm +/- .05.051 inch +/- .002
1.3 mm +/- .05
VEHICLE DIMENSIONS
Vehicle
dimensionsSedan - inches
(mm)3dr/5dr -
inches (mm)Wagon - inches
(mm)
(1) Overall
length175.2 (4450) 168.5 (4279) 178.5 (4533)
(2) Overall
width78.7 (1998) 78.7 (1998) 78.7 (1998)
(3) Overall
height56.9 (1446) 57.0 (1447) 59.2 (1504)
1
(4) Wheelbase 103.0 (2615) 103.0 (2615) 103.0 (2615)
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
208

Load limits .................................121
Locks
autolock .....................................52
childproof ..................................54
Lubricant specifications ...207–208
Lug nuts ....................................156
M
Manual transaxle
lubricant specifications ..........208
Manual transmission .................139
fluid capacities ........................205
reverse .....................................140
Mirrors .........................................43
heated ........................................43
side view mirrors (power) .......43
Moon roof ....................................47
Motorcraft parts ........174, 190, 203
O
Octane rating ............................194
Oil (see Engine oil) ..................180
P
Parking brake ............................133
Parts (see Motorcraft parts) ....203
Passenger Occupant
Classification Sensor ...................70
Power distribution box
(see Fuses) ...............................148
Power mirrors .............................43
Power point .................................41
Power steering ..........................135
fluid, checking and adding ....200fluid, refill capacity ................205
fluid, specifications .........207–208
Power Windows ...........................42
R
Radio ......................................16, 20
Rear window defroster ...............28
Relays ........................................144
Remote audio controls ...............47
Remote entry system .................56
locking/unlocking doors ...........52
opening the trunk .....................58
Roadside assistance ..................142
S
Safety Belt Maintenance ............77
Safety belts
(see Safety restraints) ...68, 72–75
Safety defects, reporting ..........169
Safety restraints ..............68, 72–76
belt minder ...............................78
extension assembly ..................76
for adults .............................73–75
for children .........................94–95
Occupant Classification
Sensor ........................................70
safety belt maintenance ...........77
warning light and chime ....77–78
Safety seats for children ............98
Safety Compliance
Certification Label ....................211
Seat belts
(see Safety restraints) ...............68
Seats ............................................63
child safety seats ......................98
Servicing your vehicle ..............176
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
220

Spark plugs,
specifications .....................203, 208
Specification chart,
lubricants ...........................207–208
Speed control ..............................44
Starting your vehicle ........129–131
jump starting ..........................157
Steering wheel
controls ......................................47
tilting .........................................40
Sunroof (moonroof) ...................47
T
Temperature control
(see Climate control) .................25
Tilt steering wheel ......................40
Tires ...................................106–107
alignment ................................112
care ..........................................110
changing ..................................153
checking the pressure ............110
inspecting and inflating .........108
label .........................................119
replacing ..................................114
rotating ....................................113
safety practices .......................112
sidewall information ...............114
snow tires and chains ............120
spare tire .................................151
terminology .............................107
tire grades ...............................107
treadwear ........................106, 111
Towing .......................................125
recreational towing .................128
trailer towing ..........................125
wrecker ....................................162
Traction control ........................134Transaxle
lubricant specifications ..........208
Transmission
automatic operation ...............135
brake-shift interlock (BSI) ....135
fluid, checking and adding
(automatic) .............................201
fluid, checking and adding
(manual) .................................203
fluid, refill capacities ..............205
lubricant specifications ..........207
manual operation ....................139
Trunk ...........................................54
remote release ..........................58
Turn signal ..................................31
V
Vehicle dimensions ...................208
Vehicle Identification Number
(VIN) ..........................................212
Vehicle loading ..........................121
Ventilating your vehicle ...........132
W
Warning lights (see Lights) .......10
Washer fluid ..............................179
Water, Driving through .............141
Windows
power .........................................42
rear wiper/washer .....................39
Windshield washer fluid and
wipers
checking and adding fluid .....179
operation ...................................39
replacing wiper blades ...........179
Wrecker towing .........................162
2006 Focus(foc)
Owners Guide (post-2002-fmt)
USA(fus)
Index
221
