Page 201 of 224

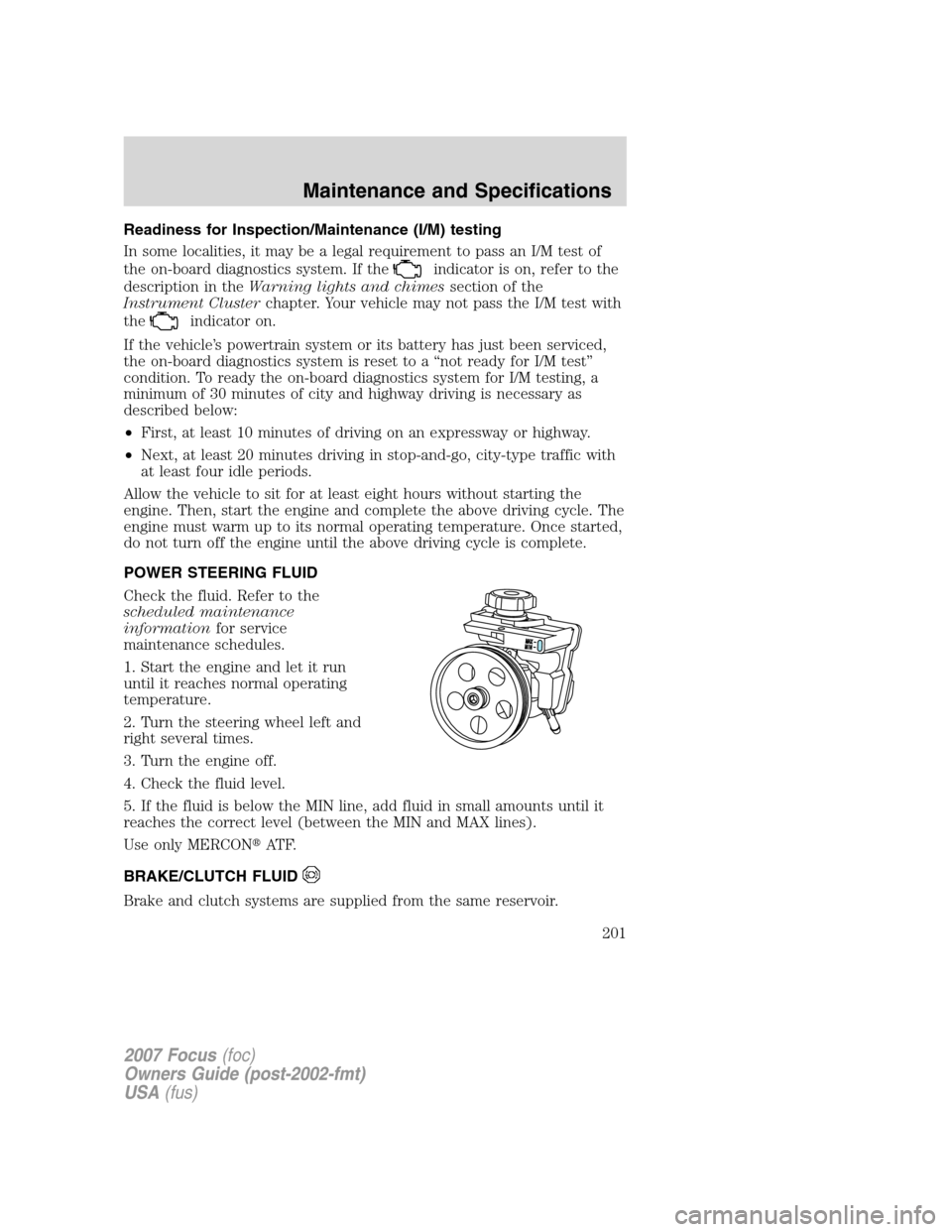

FORD FOCUS 2007 2.G Owners Manual Readiness for Inspection/Maintenance (I/M) testing
In some localities, it may be a legal requirement to pass an I/M test of
the on-board diagnostics system. If the
indicator is on, refer to the
descri

Page 202 of 224

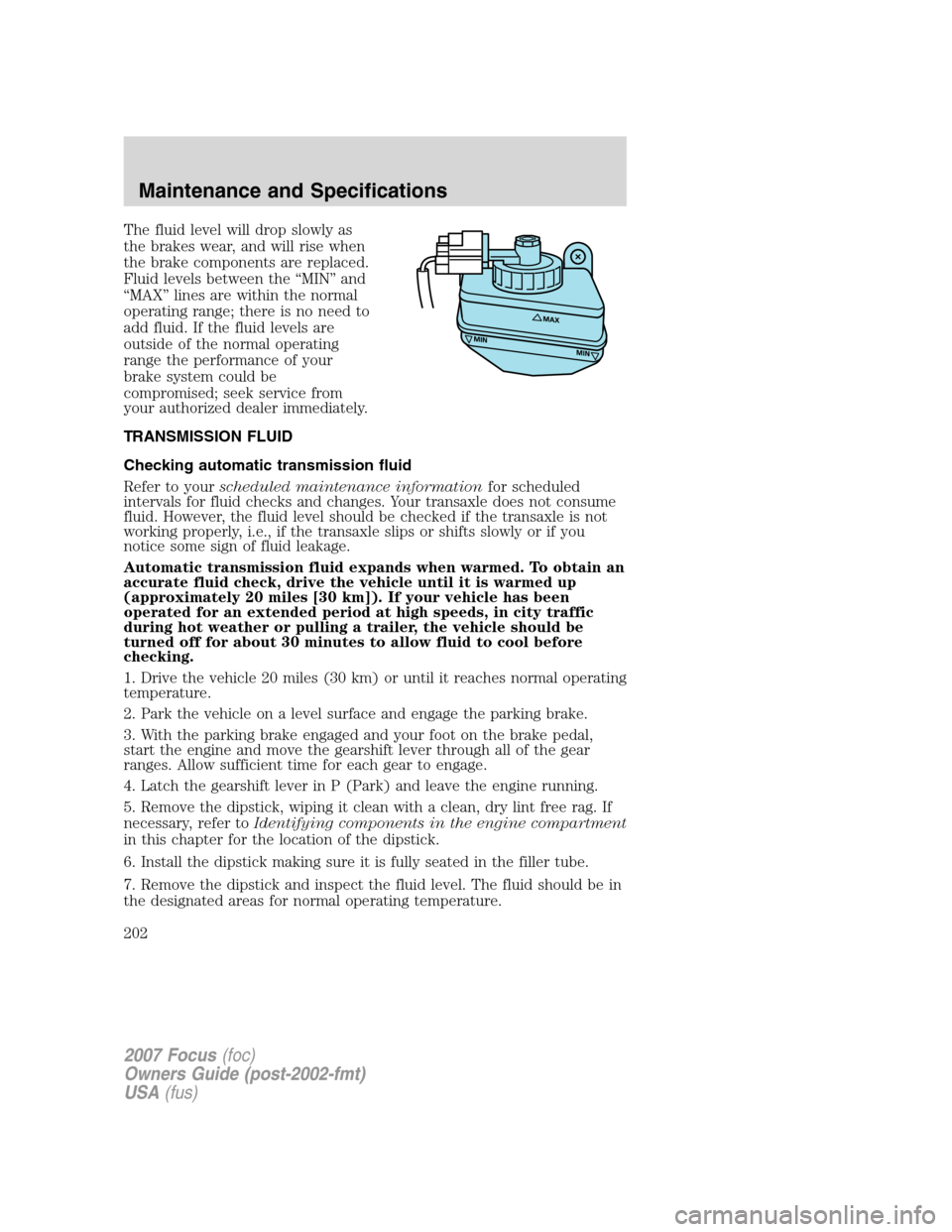

FORD FOCUS 2007 2.G Owners Manual The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range;

Page 203 of 224

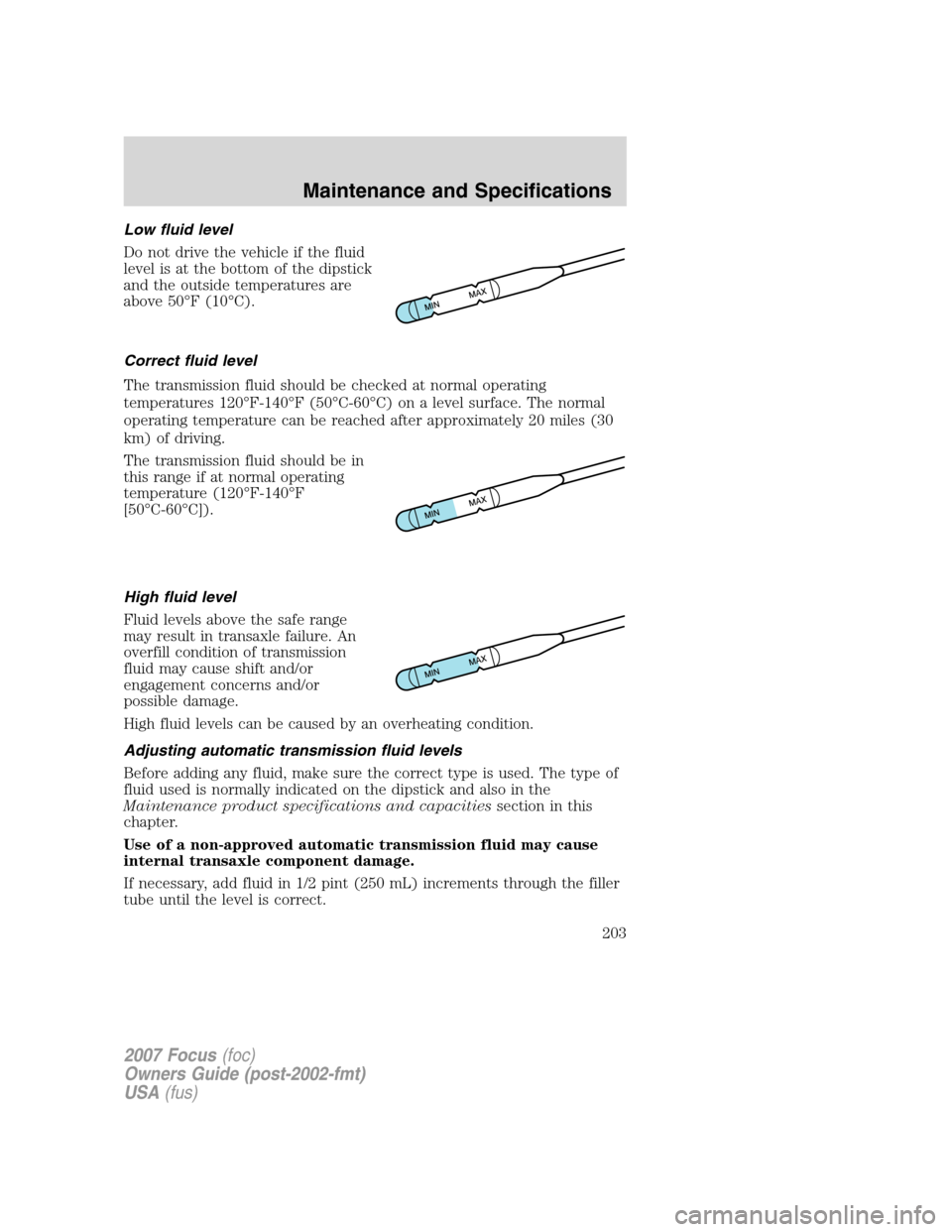

FORD FOCUS 2007 2.G Owners Manual Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the outside temperatures are
above 50°F (10°C).
Correct fluid level
The transmission fluid should be

Page 204 of 224

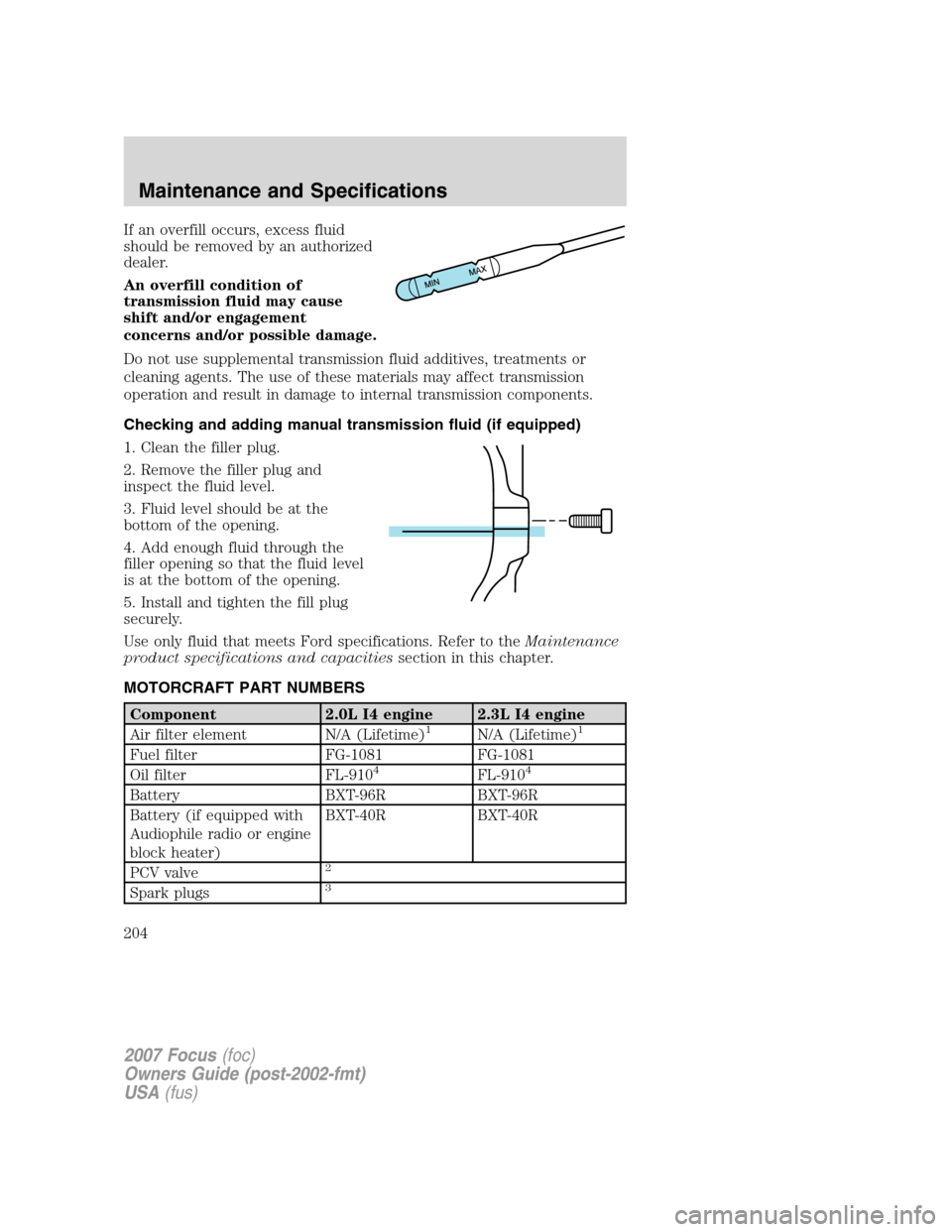

FORD FOCUS 2007 2.G Owners Manual If an overfill occurs, excess fluid
should be removed by an authorized
dealer.
An overfill condition of
transmission fluid may cause
shift and/or engagement
concerns and/or possible damage.
Do not use

Page 205 of 224

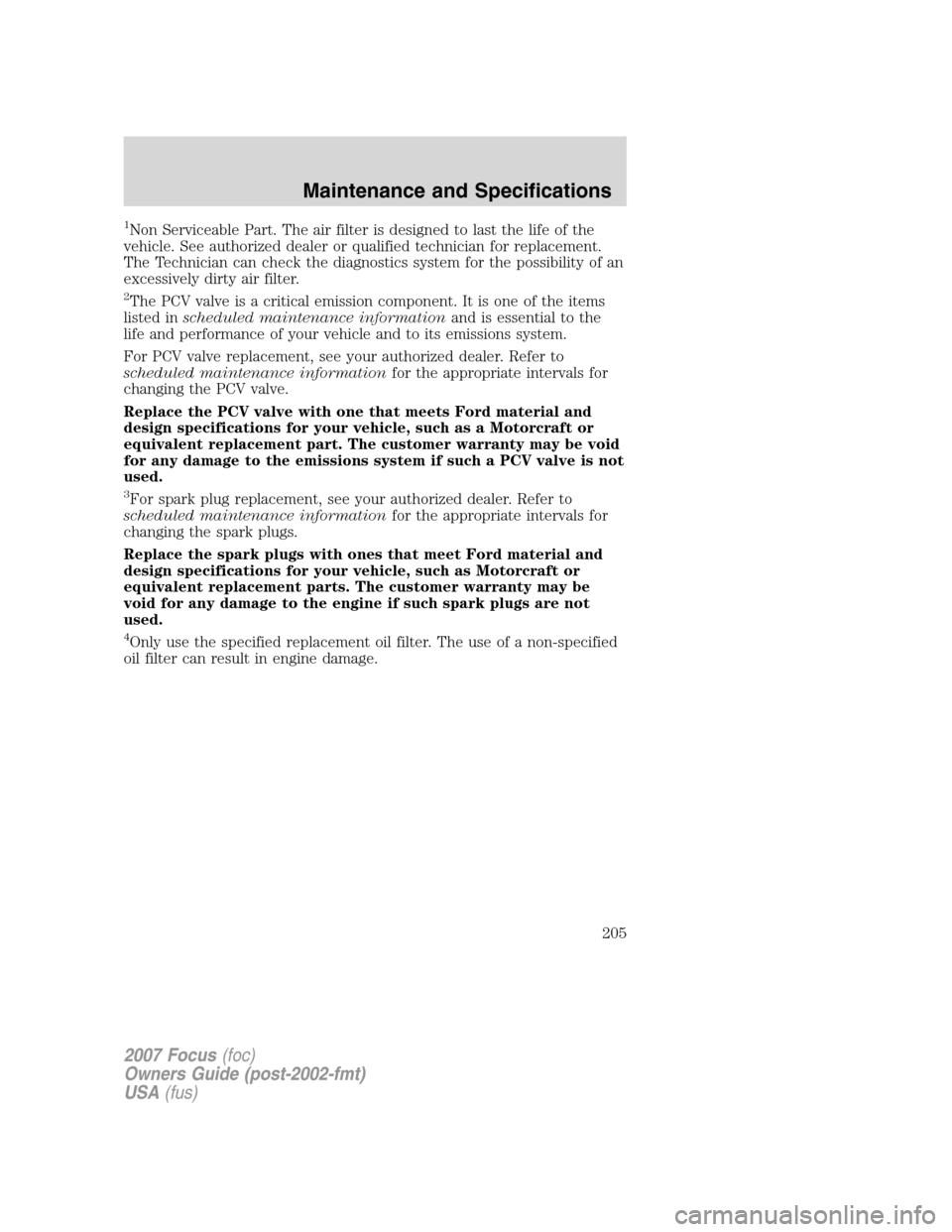

FORD FOCUS 2007 2.G Owners Manual 1Non Serviceable Part. The air filter is designed to last the life of the
vehicle. See authorized dealer or qualified technician for replacement.
The Technician can check the diagnostics system for th

Page 206 of 224

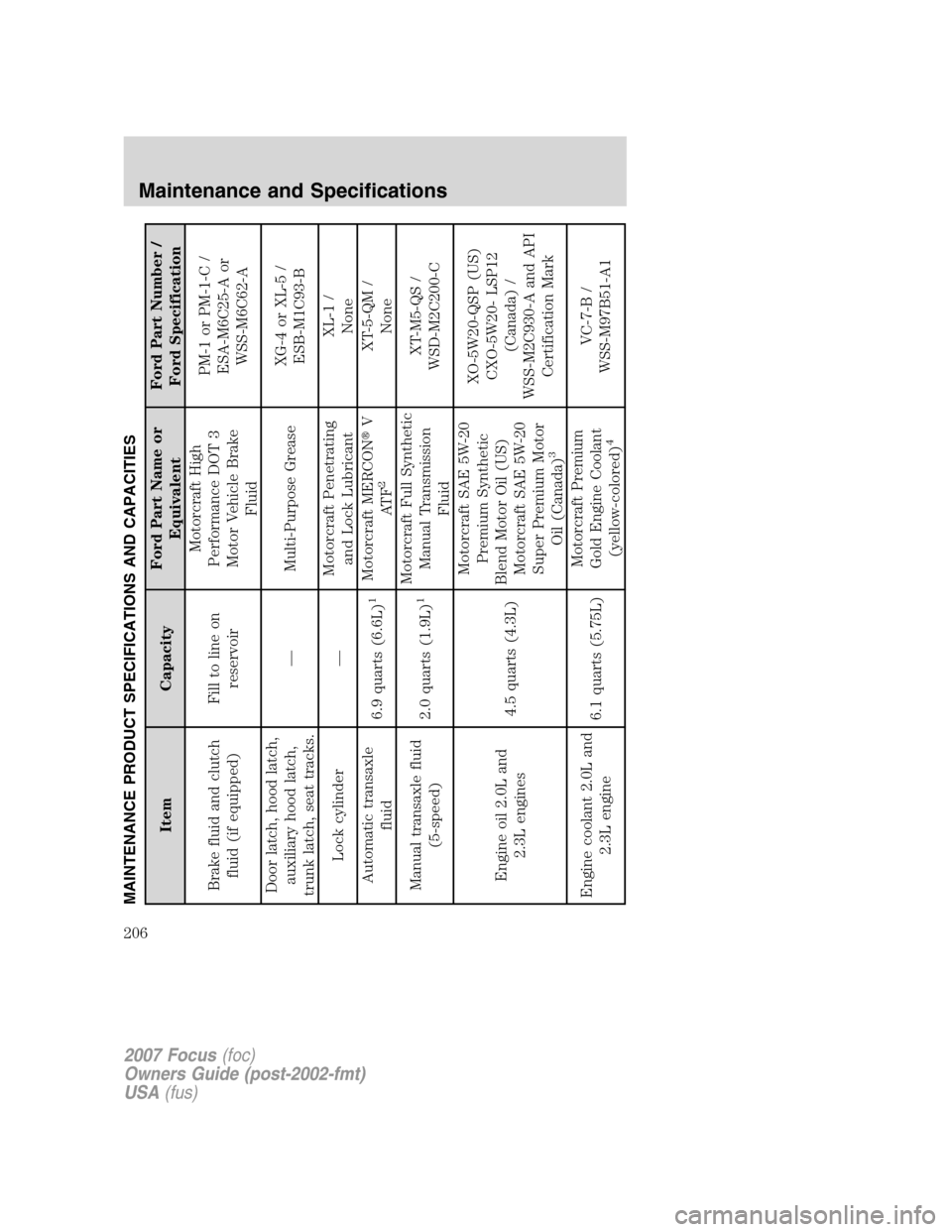

FORD FOCUS 2007 2.G Owners Manual MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
EquivalentFord Part Number /
Ford Specification
Brake fluid and clutch
fluid (if equipped)Fill to line on
reservoirMoto

Page 207 of 224

FORD FOCUS 2007 2.G Owners Manual Item CapacityFord Part Name or
EquivalentFord Part Number /
Ford Specification
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Power steering fluidFi

Page 208 of 224

FORD FOCUS 2007 2.G Owners Manual 1Approximate dry fill capacity including transmission fluid cooling system, actual refill capacities
will vary based on vehicle application and transmission fluid cooling system (i.e. coolers size,
co

Page 209 of 224

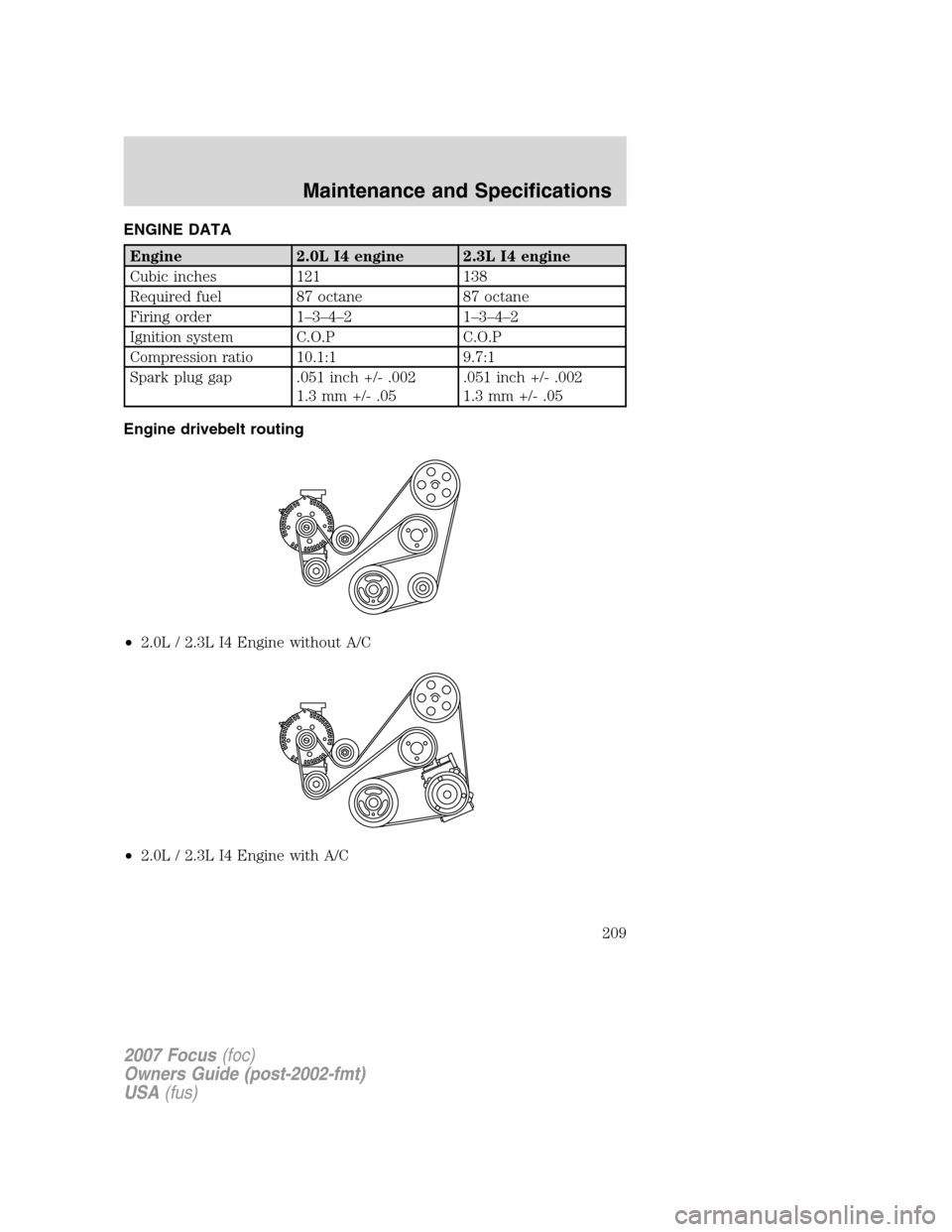

FORD FOCUS 2007 2.G Owners Manual ENGINE DATA
Engine 2.0L I4 engine 2.3L I4 engine
Cubic inches 121 138
Required fuel 87 octane 87 octane
Firing order 1–3–4–2 1–3–4–2
Ignition system C.O.P C.O.P
Compression ratio 10.1:1 9.

Page 210 of 224

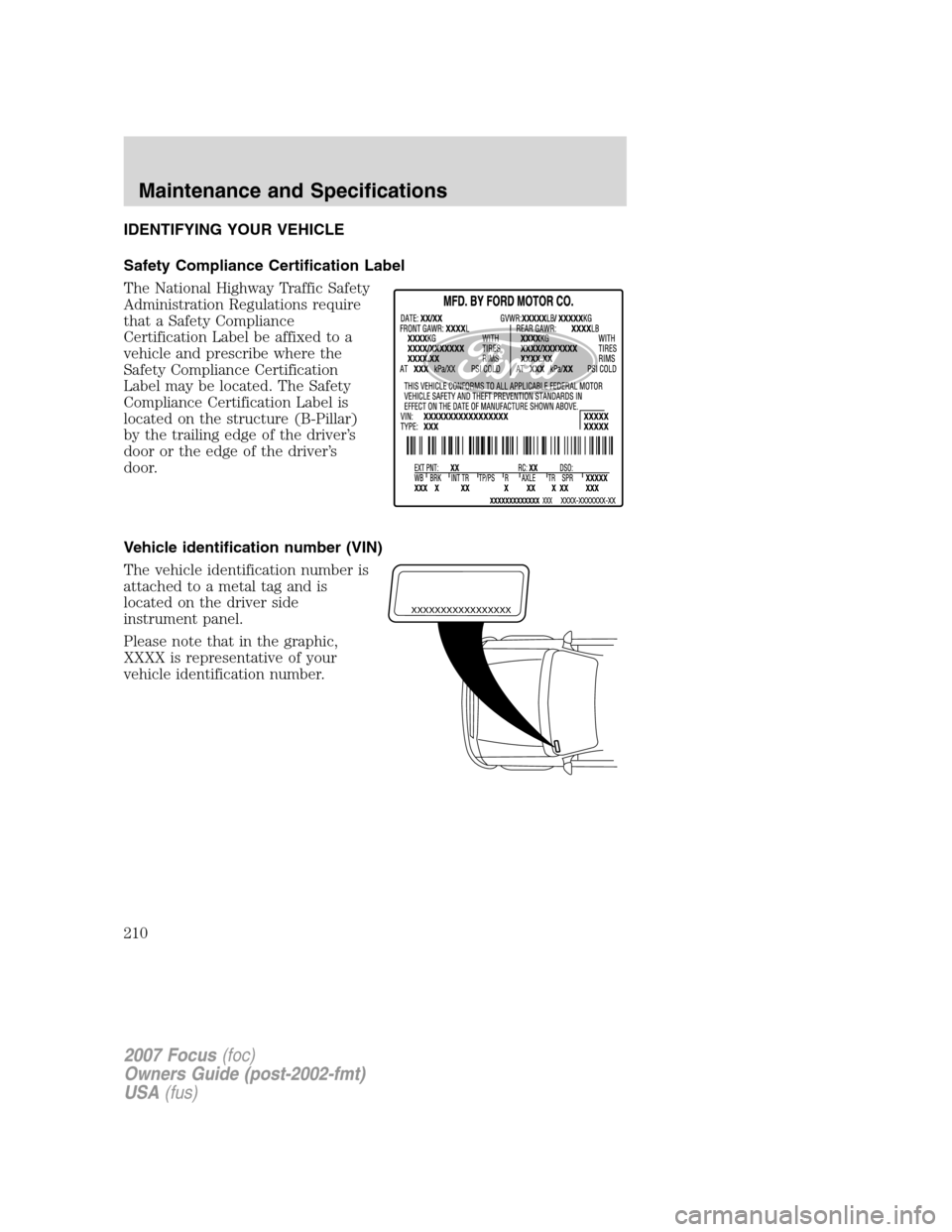

FORD FOCUS 2007 2.G Owners Manual IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehic
