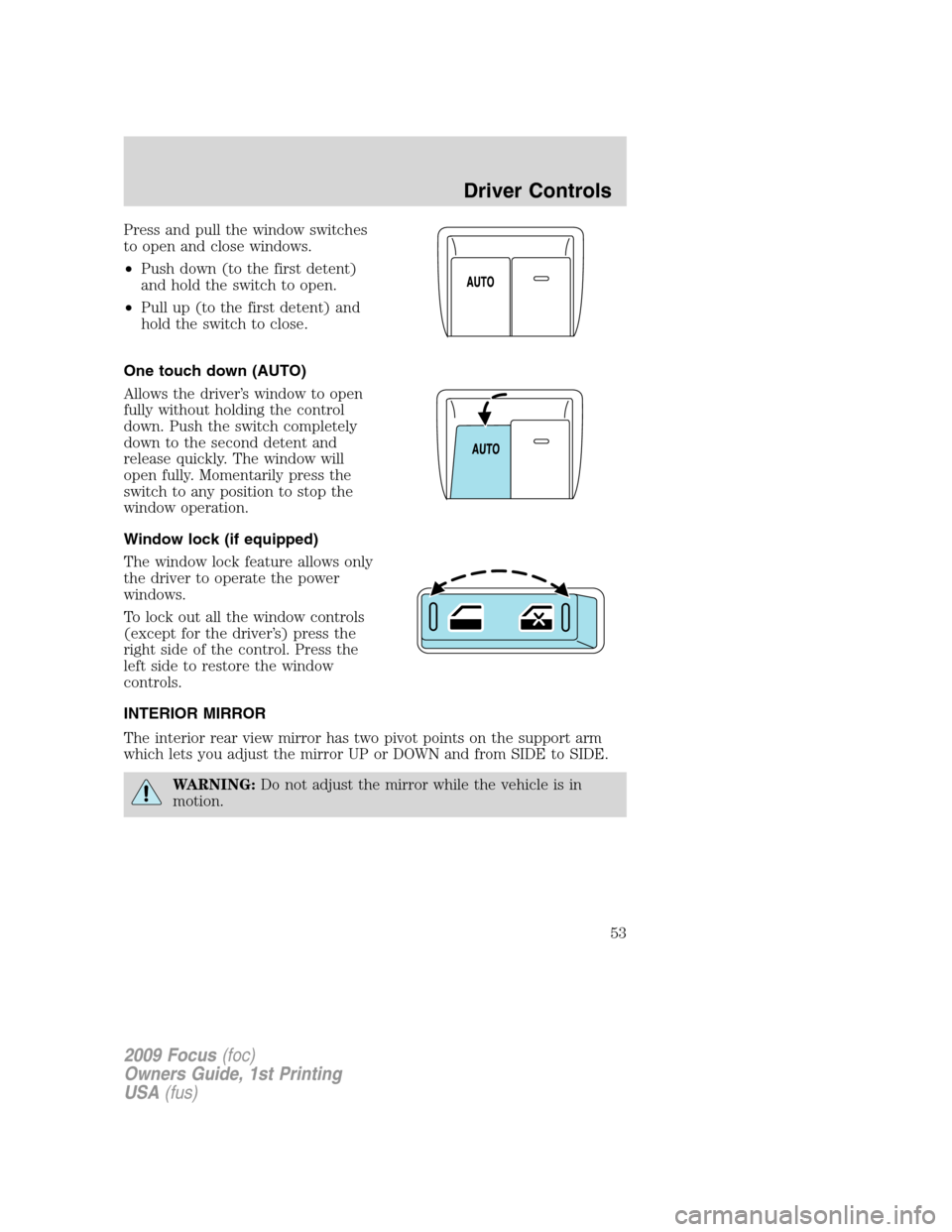

rear view mirror FORD FOCUS 2009 2.G Owners Manual

Press and pull the window switches
to open and close windows.
•Push down (to the first detent)
and hold the switch to open.
•Pull up (to the first detent) and
hold the switch to close.
One touch down (AUTO)
Allows the driver’s window to open
fully without holding the control
down. Push the switch completely
down to the second detent and
release quickly. The window will
open fully. Momentarily press the
switch to any position to stop the
window operation.
Window lock (if equipped)
The window lock feature allows only
the driver to operate the power
windows.
To lock out all the window controls
(except for the driver’s) press the
right side of the control. Press the
left side to restore the window
controls.
INTERIOR MIRROR
The interior rear view mirror has two pivot points on the support arm
which lets you adjust the mirror UP or DOWN and from SIDE to SIDE.
WARNING:Do not adjust the mirror while the vehicle is in
motion.
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
53

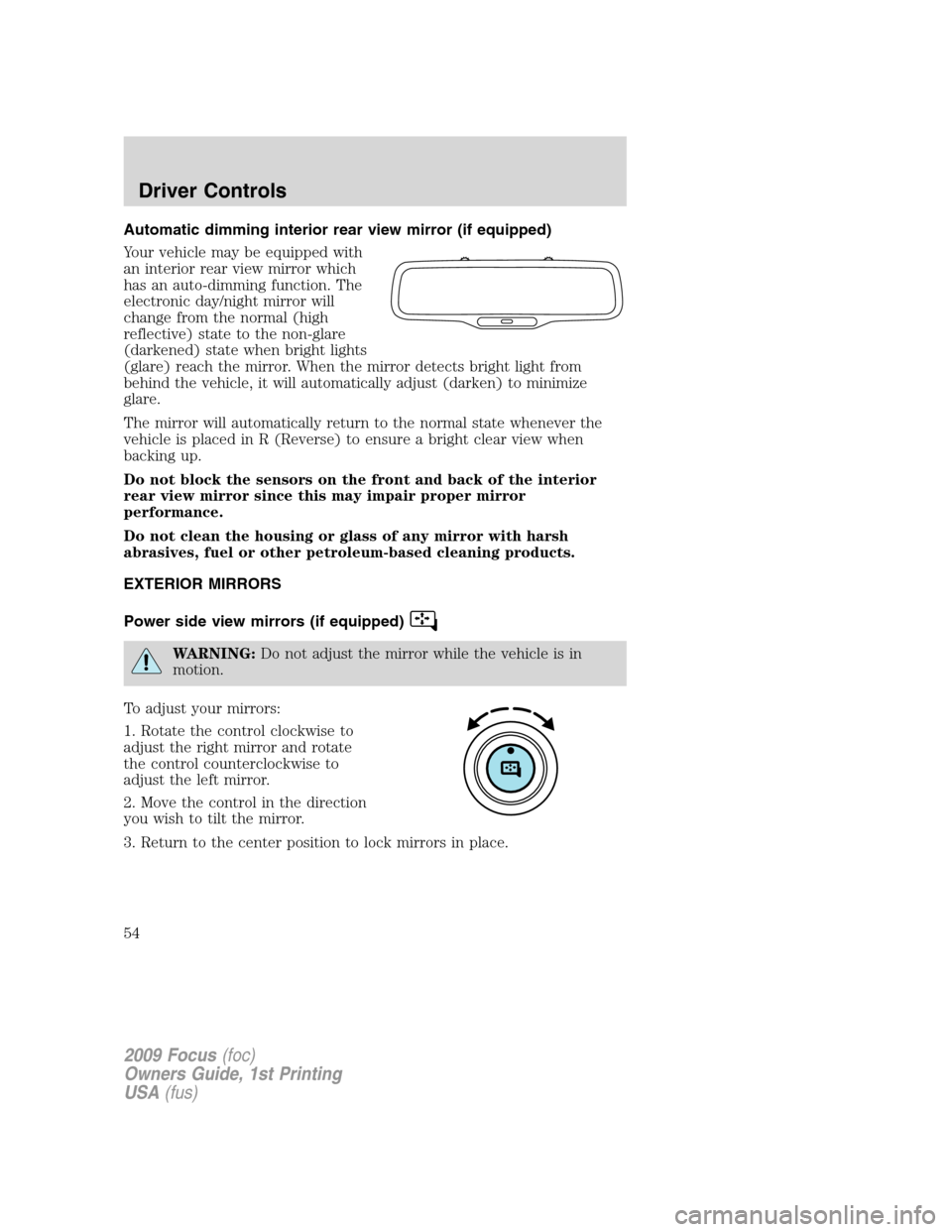

Automatic dimming interior rear view mirror (if equipped)
Your vehicle may be equipped with
an interior rear view mirror which
has an auto-dimming function. The
electronic day/night mirror will
change from the normal (high
reflective) state to the non-glare
(darkened) state when bright lights
(glare) reach the mirror. When the mirror detects bright light from
behind the vehicle, it will automatically adjust (darken) to minimize
glare.
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensors on the front and back of the interior
rear view mirror since this may impair proper mirror
performance.
Do not clean the housing or glass of any mirror with harsh
abrasives, fuel or other petroleum-based cleaning products.
EXTERIOR MIRRORS
Power side view mirrors (if equipped)
WARNING:Do not adjust the mirror while the vehicle is in
motion.
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to lock mirrors in place.
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Driver Controls
54

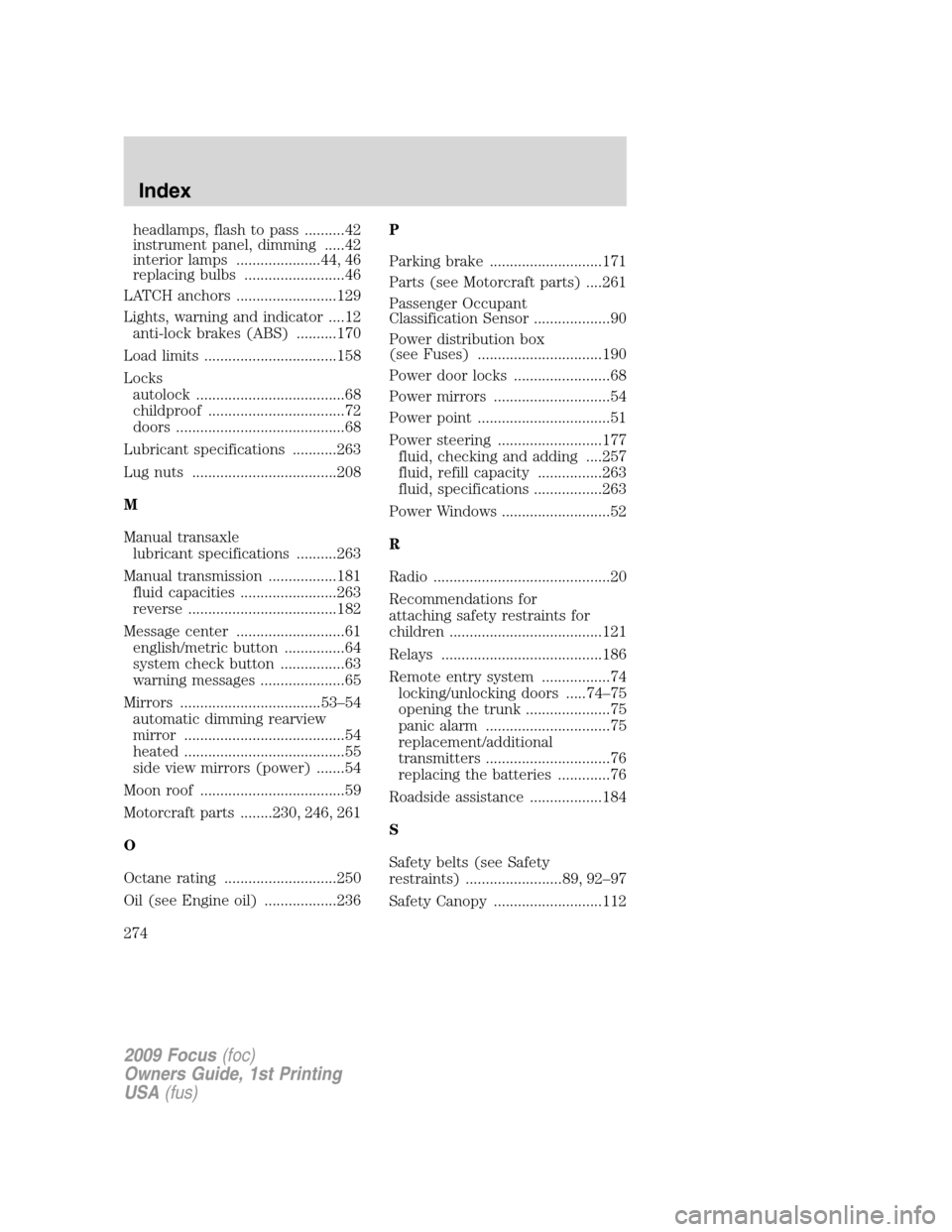

headlamps, flash to pass ..........42
instrument panel, dimming .....42
interior lamps .....................44, 46
replacing bulbs .........................46
LATCH anchors .........................129
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........170
Load limits .................................158
Locks
autolock .....................................68
childproof ..................................72
doors ..........................................68
Lubricant specifications ...........263
Lug nuts ....................................208
M
Manual transaxle
lubricant specifications ..........263
Manual transmission .................181
fluid capacities ........................263
reverse .....................................182
Message center ...........................61
english/metric button ...............64
system check button ................63
warning messages .....................65
Mirrors ...................................53–54
automatic dimming rearview
mirror ........................................54
heated ........................................55
side view mirrors (power) .......54
Moon roof ....................................59
Motorcraft parts ........230, 246, 261
O
Octane rating ............................250
Oil (see Engine oil) ..................236P
Parking brake ............................171
Parts (see Motorcraft parts) ....261
Passenger Occupant
Classification Sensor ...................90
Power distribution box
(see Fuses) ...............................190
Power door locks ........................68
Power mirrors .............................54
Power point .................................51
Power steering ..........................177
fluid, checking and adding ....257
fluid, refill capacity ................263
fluid, specifications .................263
Power Windows ...........................52
R
Radio ............................................20
Recommendations for
attaching safety restraints for
children ......................................121
Relays ........................................186
Remote entry system .................74
locking/unlocking doors .....74–75
opening the trunk .....................75
panic alarm ...............................75
replacement/additional
transmitters ...............................76
replacing the batteries .............76
Roadside assistance ..................184
S
Safety belts (see Safety
restraints) ........................89, 92–97
Safety Canopy ...........................112
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Index
274
