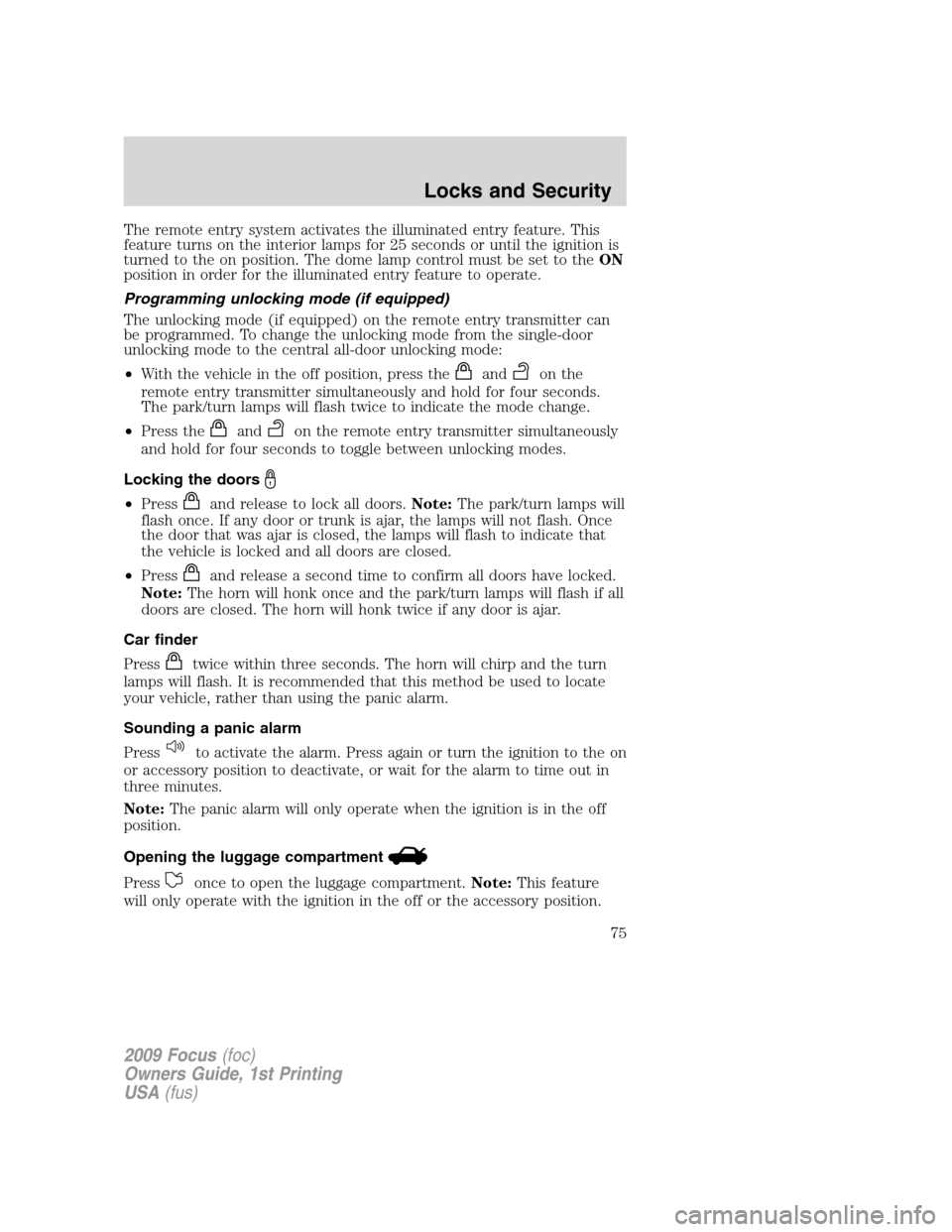

The remote entry system activates the illuminated entry feature. This
feature turns on the interior lamps for 25 seconds or until the ignition is
turned to the on position. The dome lamp control must be set to theON
position in order for the illuminated entry feature to operate.
Programming unlocking mode (if equipped)
The unlocking mode (if equipped) on the remote entry transmitter can
be programmed. To change the unlocking mode from the single-door
unlocking mode to the central all-door unlocking mode:
•With the vehicle in the off position, press the
andon the
remote entry transmitter simultaneously and hold for four seconds.
The park/turn lamps will flash twice to indicate the mode change.
•Press the
andon the remote entry transmitter simultaneously
and hold for four seconds to toggle between unlocking modes.
Locking the doors
•Pressand release to lock all doors.Note:The park/turn lamps will
flash once. If any door or trunk is ajar, the lamps will not flash. Once
the door that was ajar is closed, the lamps will flash to indicate that
the vehicle is locked and all doors are closed.
•Press
and release a second time to confirm all doors have locked.
Note:The horn will honk once and the park/turn lamps will flash if all
doors are closed. The horn will honk twice if any door is ajar.
Car finder
Press
twice within three seconds. The horn will chirp and the turn
lamps will flash. It is recommended that this method be used to locate
your vehicle, rather than using the panic alarm.
Sounding a panic alarm
Press
to activate the alarm. Press again or turn the ignition to the on
or accessory position to deactivate, or wait for the alarm to time out in
three minutes.
Note:The panic alarm will only operate when the ignition is in the off
position.
Opening the luggage compartment
Pressonce to open the luggage compartment.Note:This feature
will only operate with the ignition in the off or the accessory position.
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Locks and Security
75

Fuse/Relay
LocationFuse Amp
RatingProtected circuits
7 10A Left Low beam Headlamp
8 10A Right Low beam Headlamp
9 15A Interior Lamps
10 15A Instrument Panel Backlighting
11 10A Not used (spare)
12 7.5A Power Mirrors
13 5A SYNC
14 10A Not used (spare)
15 10A Recirculated Air, Air Conditioning
16 15A Not used (spare)
17 20A Power Locks, Trunk Release
18 20A Heated Seats
19 25A Not used (spare)
20 15A Data Link Connector
21 15A Fog lamps, Fog lamp Indicator
22 15A Parking Lamps
23 15A High Beam Lamps
24 20A Horn
25 10A Demand Lamps, Trunk Lamps
26 10A Instrument Cluster
27 20A Ignition Switch
28 5A Radio (Start)
29 5A Instrument Cluster (Run/Start)
30 5A Not used (spare)
31 10A ABS
32 10A Restraints Control Module
33 10A Not used (spare)
34 5A Not used (spare)
35 10A Not used (spare)
36 5A PATS Module
37 10A Climate Control (Run/Start)
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
189

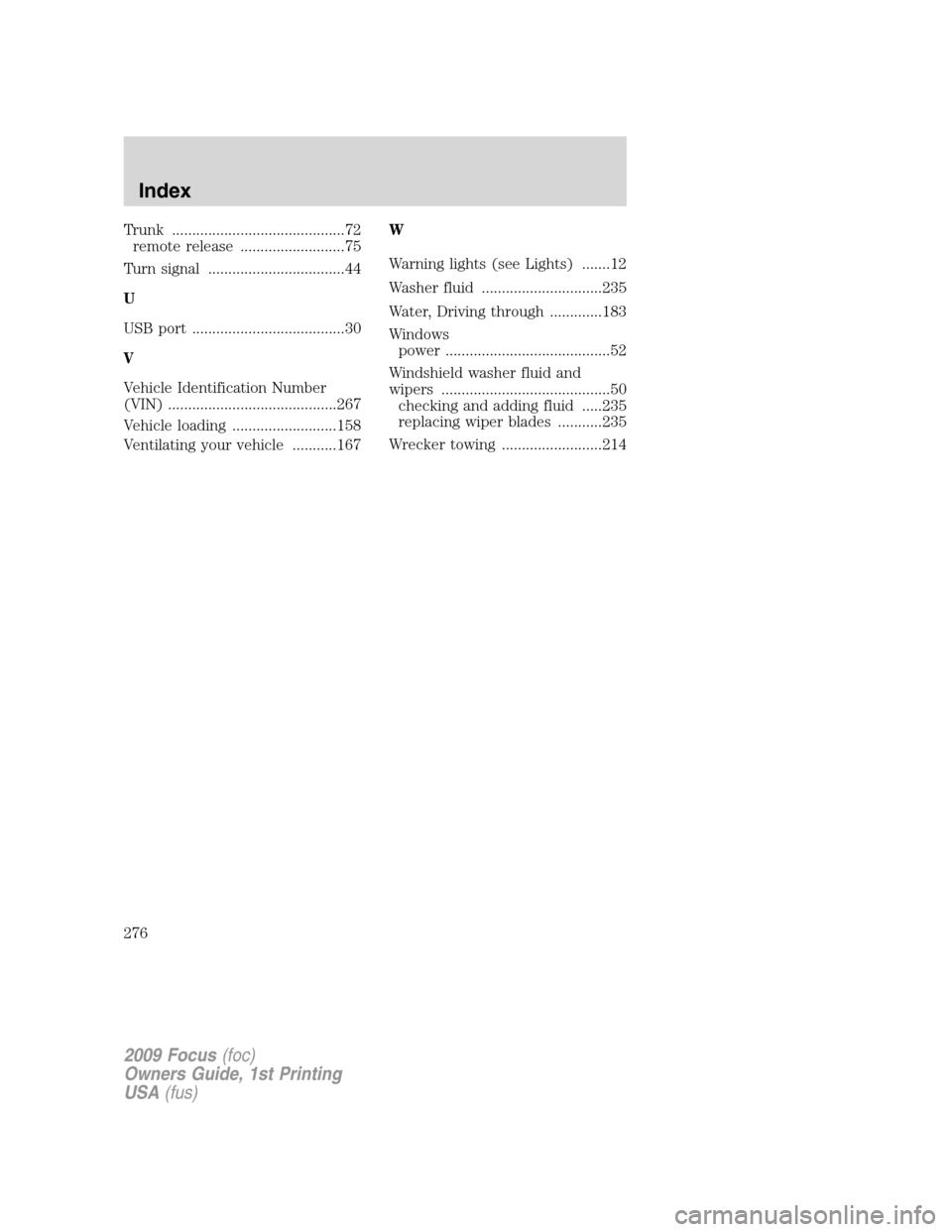

Trunk ...........................................72
remote release ..........................75
Turn signal ..................................44
U
USB port ......................................30
V
Vehicle Identification Number
(VIN) ..........................................267
Vehicle loading ..........................158
Ventilating your vehicle ...........167W
Warning lights (see Lights) .......12
Washer fluid ..............................235
Water, Driving through .............183
Windows
power .........................................52
Windshield washer fluid and
wipers ..........................................50
checking and adding fluid .....235
replacing wiper blades ...........235
Wrecker towing .........................214
2009 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
Index
276
