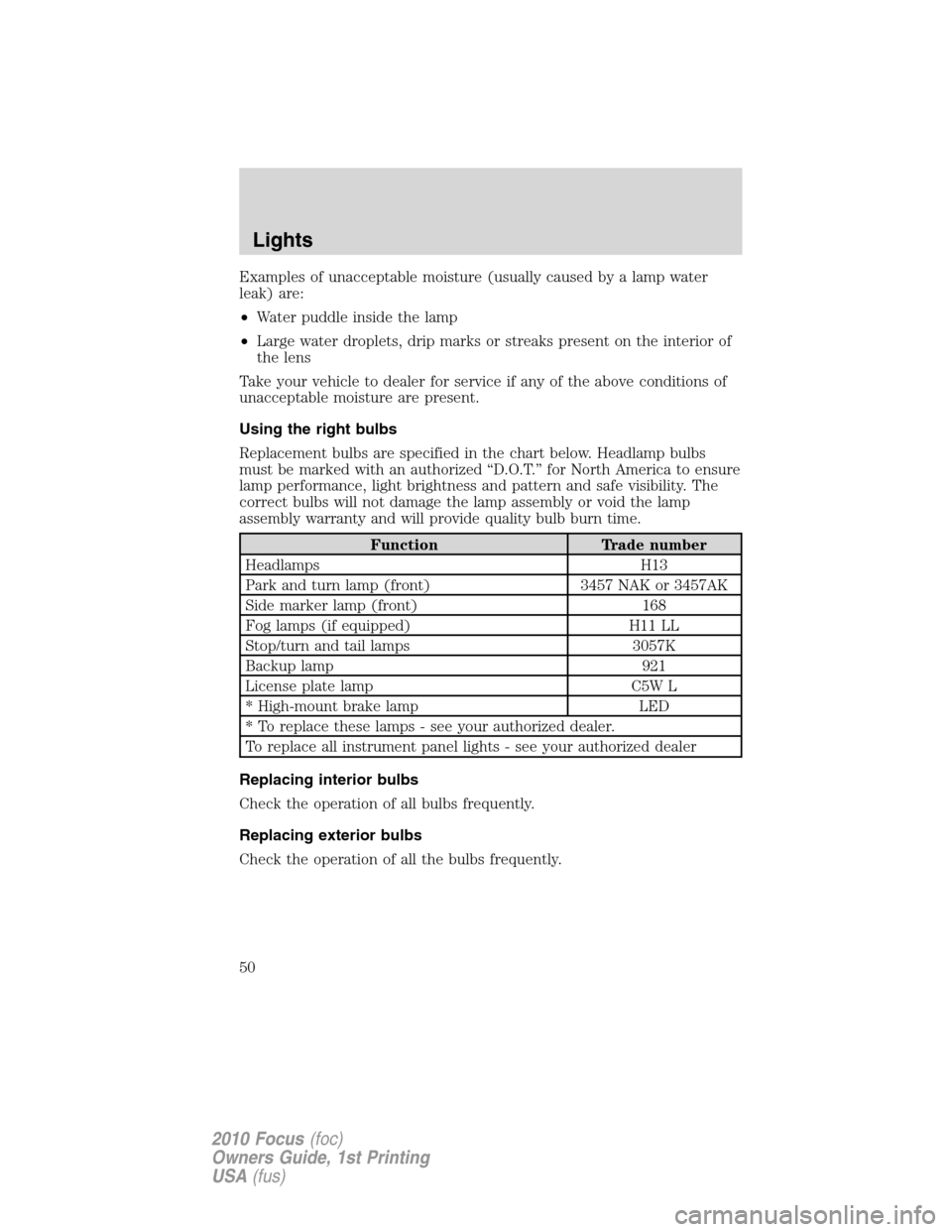

Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
•Water puddle inside the lamp
•Large water droplets, drip marks or streaks present on the interior of
the lens
Take your vehicle to dealer for service if any of the above conditions of
unacceptable moisture are present.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America to ensure
lamp performance, light brightness and pattern and safe visibility. The
correct bulbs will not damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn time.
Function Trade number
Headlamps H13
Park and turn lamp (front) 3457 NAK or 3457AK
Side marker lamp (front) 168
Fog lamps (if equipped) H11 LL
Stop/turn and tail lamps 3057K
Backup lamp 921
License plate lamp C5W L
* High-mount brake lamp LED
* To replace these lamps - see your authorized dealer.
To replace all instrument panel lights - see your authorized dealer
Replacing interior bulbs
Check the operation of all bulbs frequently.
Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Lights
50
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

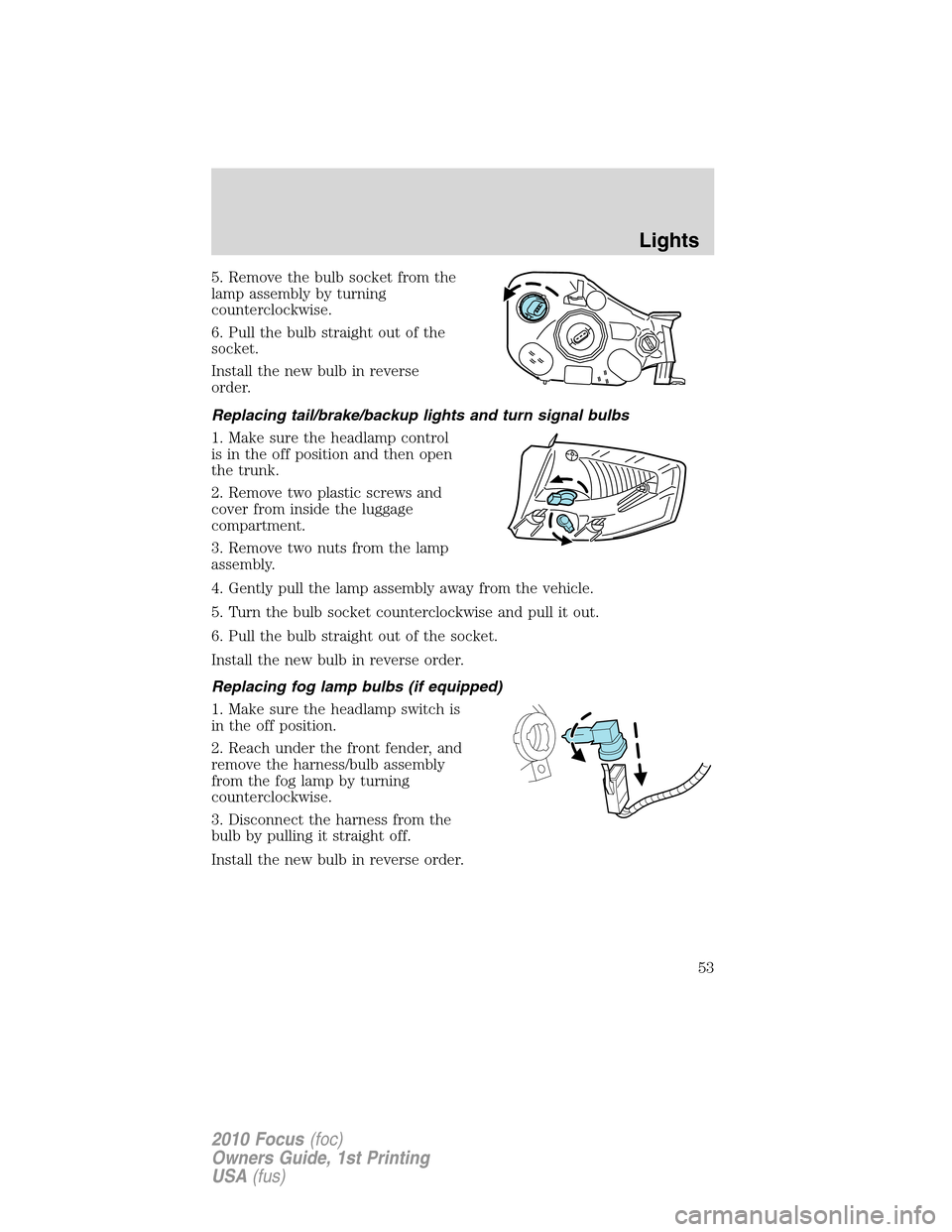

5. Remove the bulb socket from the
lamp assembly by turning
counterclockwise.
6. Pull the bulb straight out of the
socket.
Install the new bulb in reverse
order.
Replacing tail/brake/backup lights and turn signal bulbs
1. Make sure the headlamp control
is in the off position and then open
the trunk.
2. Remove two plastic screws and
cover from inside the luggage
compartment.
3. Remove two nuts from the lamp
assembly.
4. Gently pull the lamp assembly away from the vehicle.
5. Turn the bulb socket counterclockwise and pull it out.
6. Pull the bulb straight out of the socket.
Install the new bulb in reverse order.
Replacing fog lamp bulbs (if equipped)
1. Make sure the headlamp switch is
in the off position.
2. Reach under the front fender, and
remove the harness/bulb assembly
from the fog lamp by turning
counterclockwise.
3. Disconnect the harness from the
bulb by pulling it straight off.
Install the new bulb in reverse order.
Lights
53
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

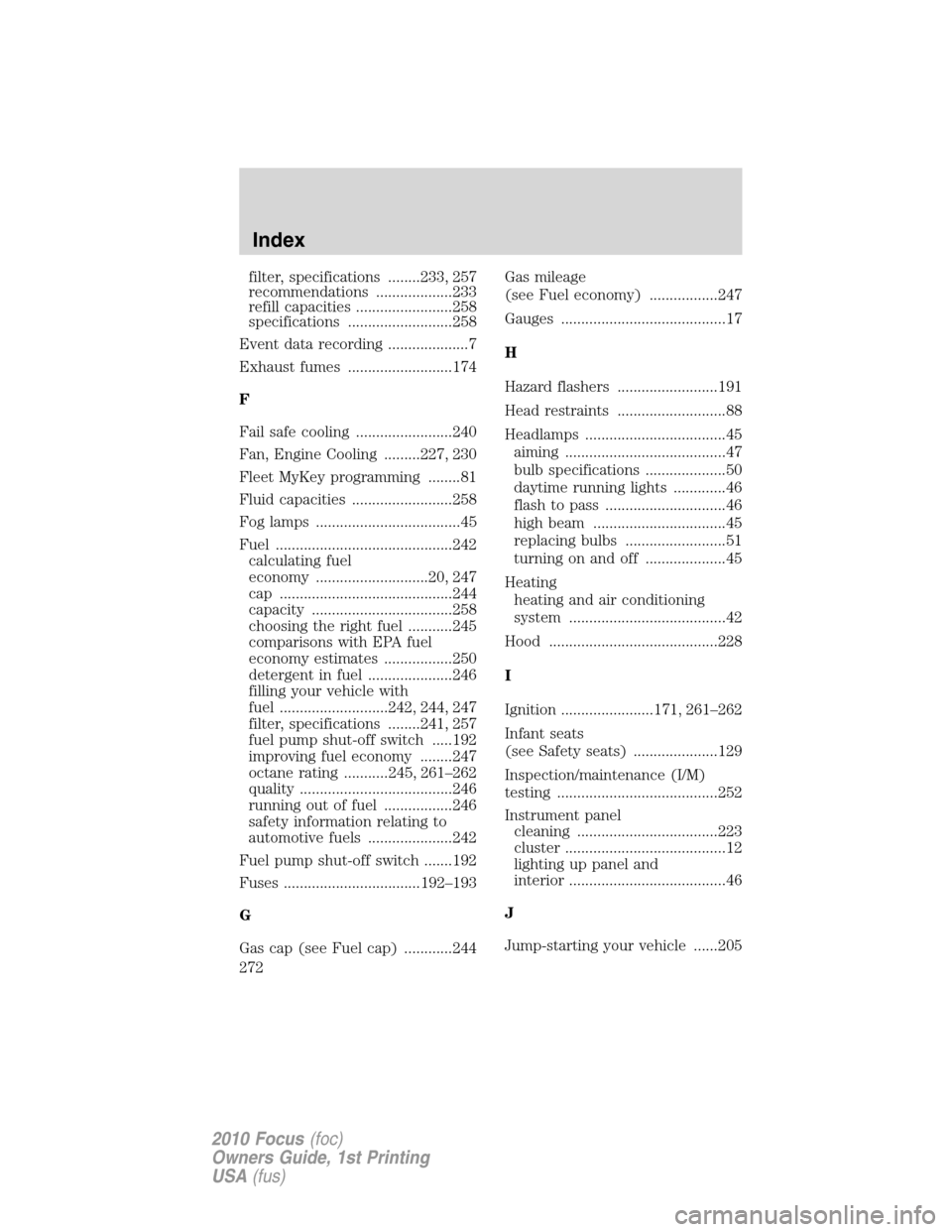

filter, specifications ........233, 257
recommendations ...................233
refill capacities ........................258
specifications ..........................258
Event data recording ....................7
Exhaust fumes ..........................174
F
Fail safe cooling ........................240
Fan, Engine Cooling .........227, 230
Fleet MyKey programming ........81
Fluid capacities .........................258
Fog lamps ....................................45
Fuel ............................................242
calculating fuel
economy ............................20, 247
cap ...........................................244
capacity ...................................258
choosing the right fuel ...........245
comparisons with EPA fuel
economy estimates .................250
detergent in fuel .....................246
filling your vehicle with
fuel ...........................242, 244, 247
filter, specifications ........241, 257
fuel pump shut-off switch .....192
improving fuel economy ........247
octane rating ...........245, 261–262
quality ......................................246
running out of fuel .................246
safety information relating to
automotive fuels .....................242
Fuel pump shut-off switch .......192
Fuses ..................................192–193
G
Gas cap (see Fuel cap) ............244Gas mileage
(see Fuel economy) .................247
Gauges .........................................17
H
Hazard flashers .........................191
Head restraints ...........................88
Headlamps ...................................45
aiming ........................................47
bulb specifications ....................50
daytime running lights .............46
flash to pass ..............................46
high beam .................................45
replacing bulbs .........................51
turning on and off ....................45
Heating
heating and air conditioning
system .......................................42
Hood ..........................................228
I
Ignition .......................171, 261–262
Infant seats
(see Safety seats) .....................129
Inspection/maintenance (I/M)
testing ........................................252
Instrument panel
cleaning ...................................223
cluster ........................................12
lighting up panel and
interior .......................................46
J
Jump-starting your vehicle ......205
Index
272
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

K
Keyless entry system
autolock .....................................69
Keys .............................................79
positions of the ignition .........171
L
Lamps
bulb replacement
specifications chart ..................50
daytime running light ...............46
fog lamps ...................................45
headlamps .................................45
headlamps, flash to pass ..........46
instrument panel, dimming .....46
interior lamps .....................48–50
replacing bulbs .........................51
LATCH anchors .........................135
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........177
Load limits .................................163
Locks
autolock .....................................69
childproof ..................................72
doors ..........................................68
Lubricant specifications ...........258
Lug nuts ....................................204
M
Manual transmission .................187
fluid capacities ........................258
lubricant specifications ..........258
reverse .....................................188
Message center ...........................18
english/metric button ...............21
system check button ................21
warning messages .....................21Mirrors ...................................60–61
automatic dimming rearview
mirror ........................................60
heated ........................................61
side view mirrors (power) .......61
Moon roof ....................................66
Motorcraftparts ..............226, 257
MyKey ..........................................81
O
Octane rating ............................245
Oil (see Engine oil) ..................232
P
Parental MyKey programming ...81
Parking brake ............................178
Parts
(see Motorcraftparts) ...........257
Passenger Occupant
Classification Sensor ...................97
Power distribution box
(see Fuses) ...............................196
Power door locks ........................68
Power mirrors .............................61
Power point .................................58
Power steering ..........................182
fluid, checking and adding ....253
fluid, refill capacity ................258
fluid, specifications .................258
Power Windows ...........................59
R
Radio ............................................25
Index
273
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
