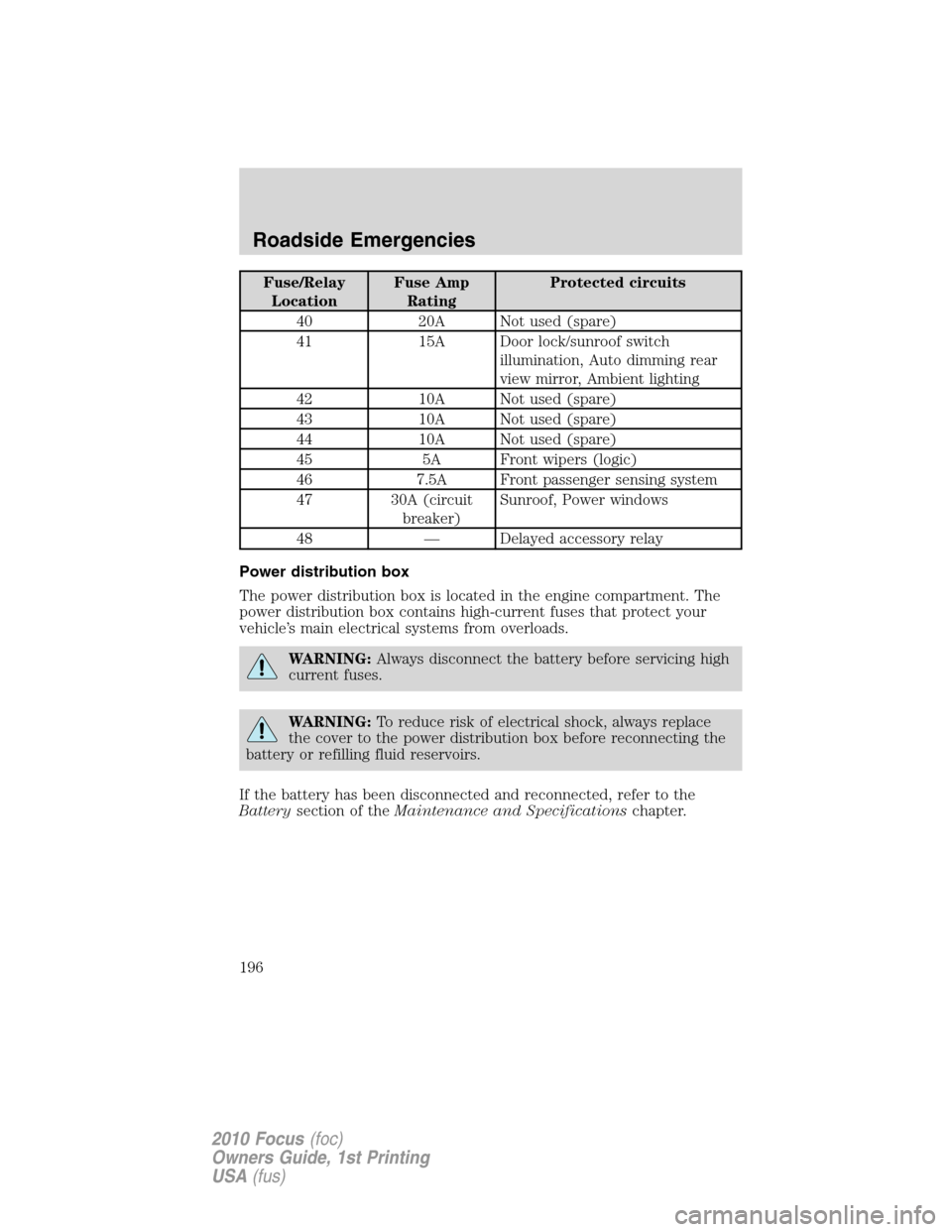

Page 196 of 275
Fuse/Relay
LocationFuse Amp
RatingProtected circuits
40 20A Not used (spare)
41 15A Door lock/sunroof switch
illumination, Auto dimming rear
view mirror, Ambient lighting
42 10A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Front wipers (logic)
46 7.5A Front passenger sensing system
47 30A (circuit
breaker)Sunroof, Power windows
48 — Delayed accessory relay
Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
WARNING:Always disconnect the battery before servicing high
current fuses.
WARNING:To reduce risk of electrical shock, always replace
the cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
Roadside Emergencies
196
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

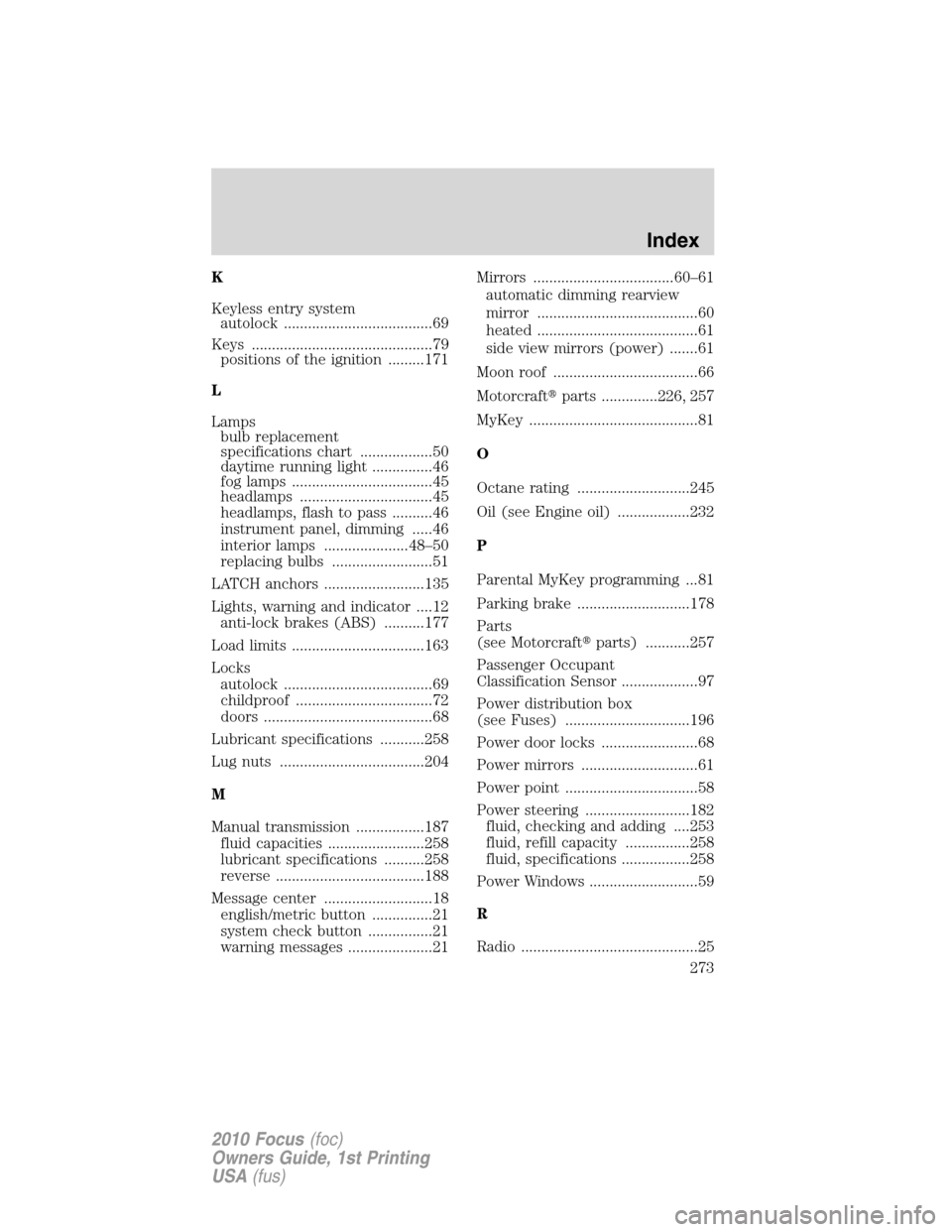

Page 273 of 275
K
Keyless entry system
autolock .....................................69
Keys .............................................79
positions of the ignition .........171
L
Lamps
bulb replacement
specifications chart ..................50
daytime running light ...............46
fog lamps ...................................45
headlamps .................................45
headlamps, flash to pass ..........46
instrument panel, dimming .....46
interior lamps .....................48–50
replacing bulbs .........................51
LATCH anchors .........................135
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........177
Load limits .................................163
Locks
autolock .....................................69
childproof ..................................72
doors ..........................................68
Lubricant specifications ...........258
Lug nuts ....................................204
M
Manual transmission .................187
fluid capacities ........................258
lubricant specifications ..........258
reverse .....................................188
Message center ...........................18
english/metric button ...............21
system check button ................21
warning messages .....................21Mirrors ...................................60–61
automatic dimming rearview
mirror ........................................60
heated ........................................61
side view mirrors (power) .......61
Moon roof ....................................66
Motorcraftparts ..............226, 257
MyKey ..........................................81
O
Octane rating ............................245
Oil (see Engine oil) ..................232
P
Parental MyKey programming ...81
Parking brake ............................178
Parts
(see Motorcraftparts) ...........257
Passenger Occupant
Classification Sensor ...................97
Power distribution box
(see Fuses) ...............................196
Power door locks ........................68
Power mirrors .............................61
Power point .................................58
Power steering ..........................182
fluid, checking and adding ....253
fluid, refill capacity ................258
fluid, specifications .................258
Power Windows ...........................59
R
Radio ............................................25
Index
273
2010 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
