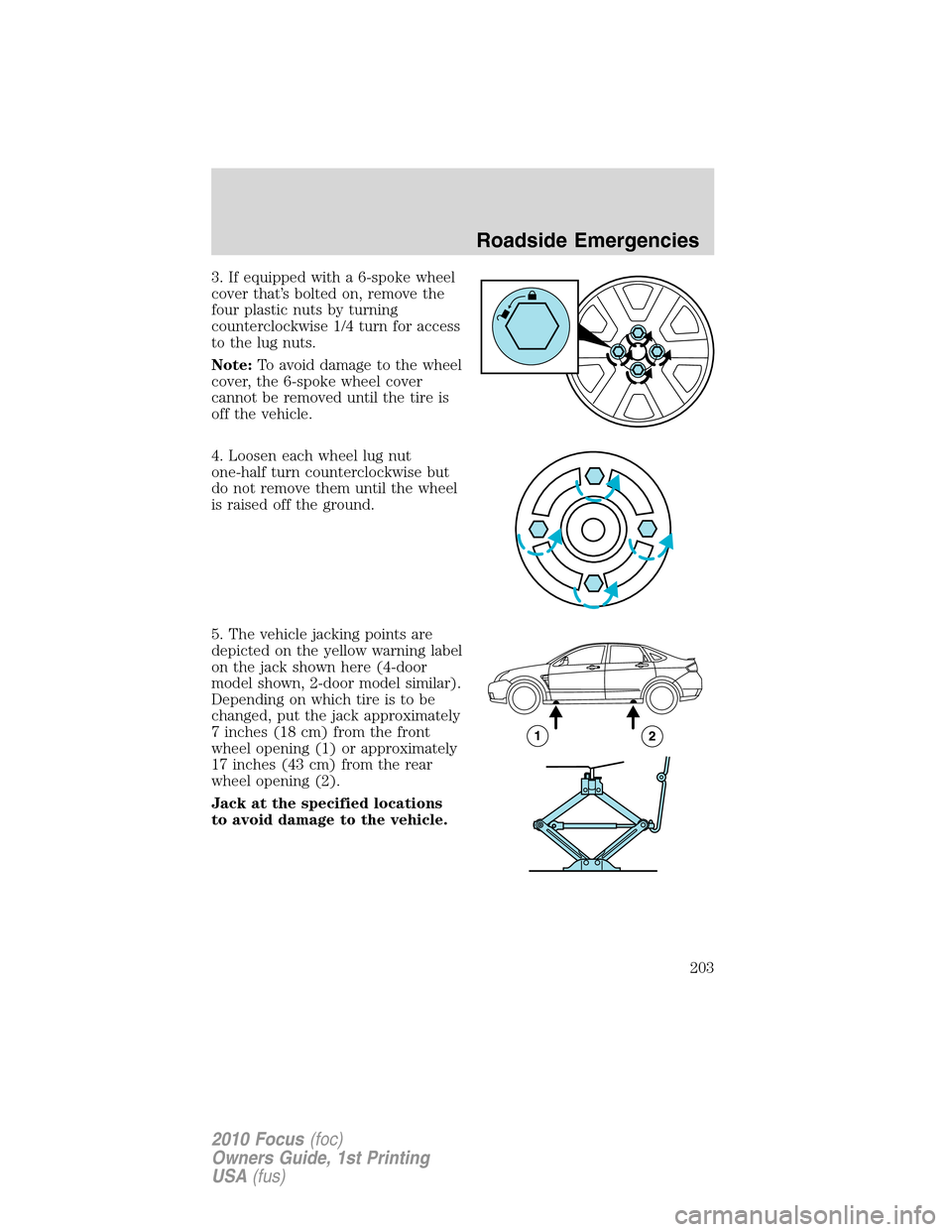

3. If equipped with a 6-spoke wheel
cover that’s bolted on, remove the
four plastic nuts by turning
counterclockwise 1/4 turn for access
to the lug nuts.
Note:To avoid damage to the wheel
cover, the 6-spoke wheel cover
cannot be removed until the tire is
off the vehicle.
4. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
5. The vehicle jacking points are
depicted on the yellow warning label
on the jack shown here (4-door
model shown, 2-door model similar).
Depending on which tire is to be
changed, put the jack approximately
7 inches (18 cm) from the front
wheel opening (1) or approximately
17 inches (43 cm) from the rear
wheel opening (2).
Jack at the specified locations
to avoid damage to the vehicle.
