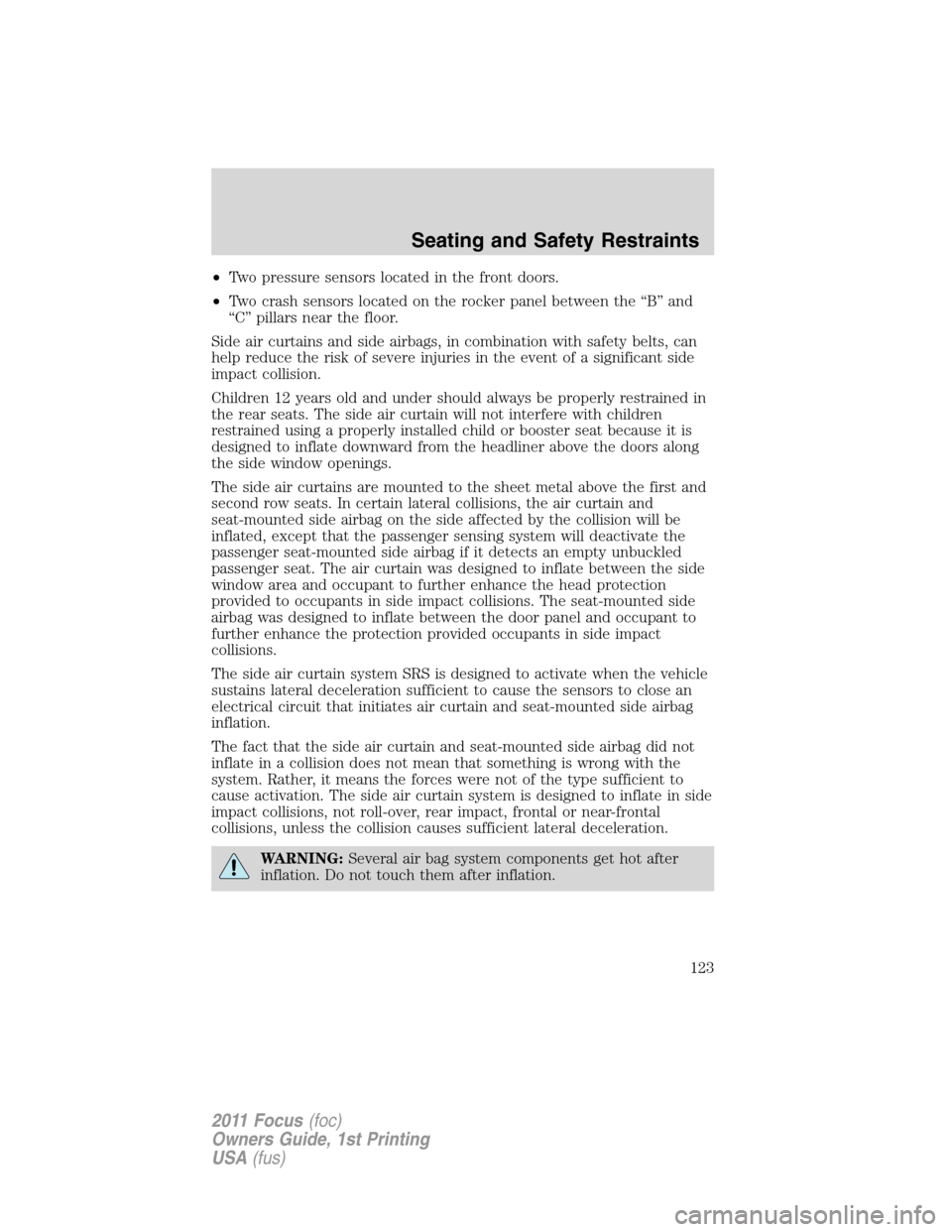

•Two pressure sensors located in the front doors.
•Two crash sensors located on the rocker panel between the “B” and
“C” pillars near the floor.
Side air curtains and side airbags, in combination with safety belts, can
help reduce the risk of severe injuries in the event of a significant side
impact collision.
Children 12 years old and under should always be properly restrained in
the rear seats. The side air curtain will not interfere with children
restrained using a properly installed child or booster seat because it is
designed to inflate downward from the headliner above the doors along
the side window openings.
The side air curtains are mounted to the sheet metal above the first and
second row seats. In certain lateral collisions, the air curtain and
seat-mounted side airbag on the side affected by the collision will be
inflated, except that the passenger sensing system will deactivate the
passenger seat-mounted side airbag if it detects an empty unbuckled
passenger seat. The air curtain was designed to inflate between the side
window area and occupant to further enhance the head protection
provided to occupants in side impact collisions. The seat-mounted side
airbag was designed to inflate between the door panel and occupant to
further enhance the protection provided occupants in side impact
collisions.
The side air curtain system SRS is designed to activate when the vehicle
sustains lateral deceleration sufficient to cause the sensors to close an
electrical circuit that initiates air curtain and seat-mounted side airbag
inflation.
The fact that the side air curtain and seat-mounted side airbag did not
inflate in a collision does not mean that something is wrong with the
system. Rather, it means the forces were not of the type sufficient to
cause activation. The side air curtain system is designed to inflate in side
impact collisions, not roll-over, rear impact, frontal or near-frontal
collisions, unless the collision causes sufficient lateral deceleration.
WARNING:Several air bag system components get hot after
inflation. Do not touch them after inflation.
Seating and Safety Restraints
123
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

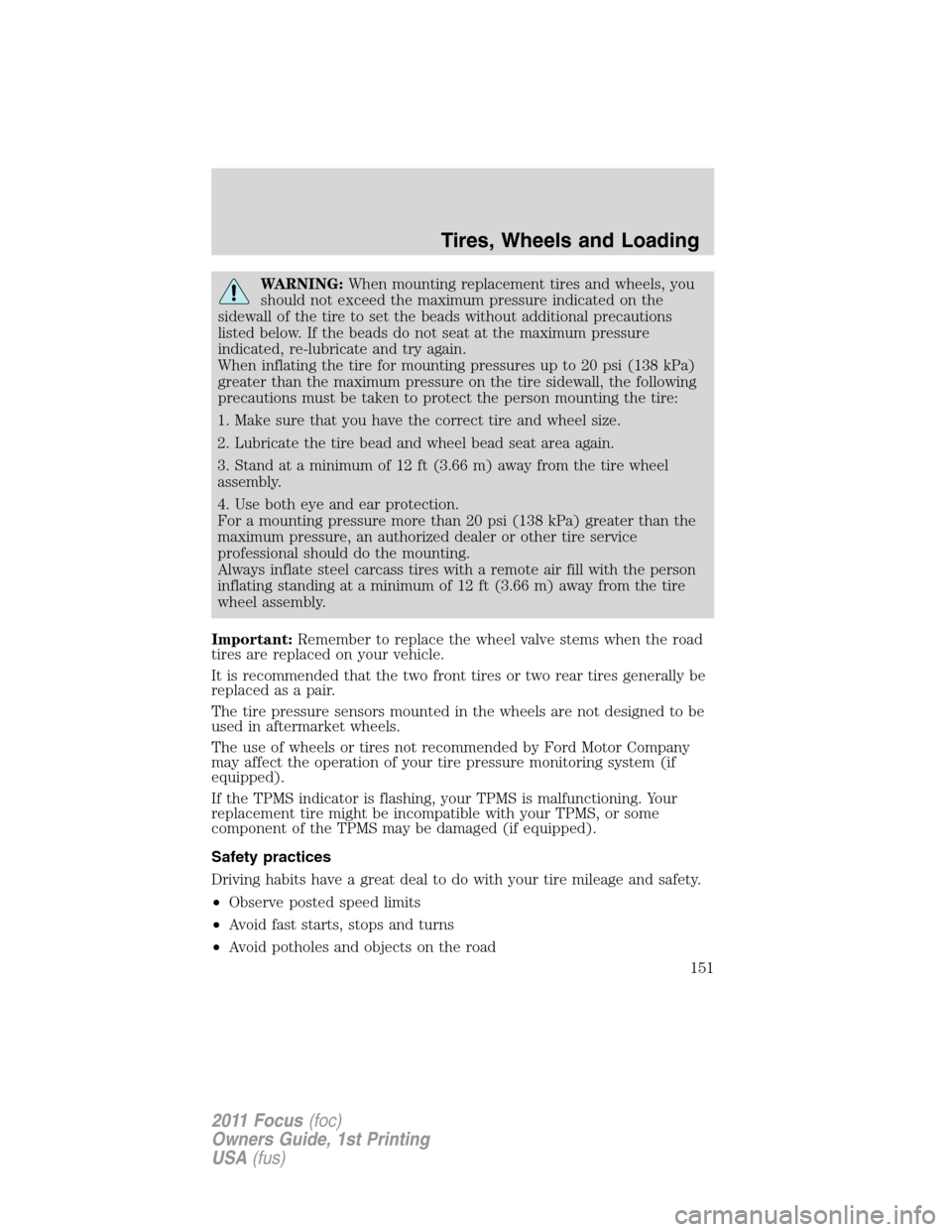

WARNING:When mounting replacement tires and wheels, you
should not exceed the maximum pressure indicated on the
sidewall of the tire to set the beads without additional precautions
listed below. If the beads do not seat at the maximum pressure
indicated, re-lubricate and try again.
When inflating the tire for mounting pressures up to 20 psi (138 kPa)
greater than the maximum pressure on the tire sidewall, the following
precautions must be taken to protect the person mounting the tire:
1. Make sure that you have the correct tire and wheel size.
2. Lubricate the tire bead and wheel bead seat area again.
3. Stand at a minimum of 12 ft (3.66 m) away from the tire wheel
assembly.
4. Use both eye and ear protection.
For a mounting pressure more than 20 psi (138 kPa) greater than the
maximum pressure, an authorized dealer or other tire service
professional should do the mounting.
Always inflate steel carcass tires with a remote air fill with the person
inflating standing at a minimum of 12 ft (3.66 m) away from the tire
wheel assembly.
Important:Remember to replace the wheel valve stems when the road
tires are replaced on your vehicle.
It is recommended that the two front tires or two rear tires generally be
replaced as a pair.
The tire pressure sensors mounted in the wheels are not designed to be
used in aftermarket wheels.
The use of wheels or tires not recommended by Ford Motor Company
may affect the operation of your tire pressure monitoring system (if
equipped).
If the TPMS indicator is flashing, your TPMS is malfunctioning. Your
replacement tire might be incompatible with your TPMS, or some
component of the TPMS may be damaged (if equipped).
Safety practices
Driving habits have a great deal to do with your tire mileage and safety.
•Observe posted speed limits
•Avoid fast starts, stops and turns
•Avoid potholes and objects on the road
Tires, Wheels and Loading
151
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

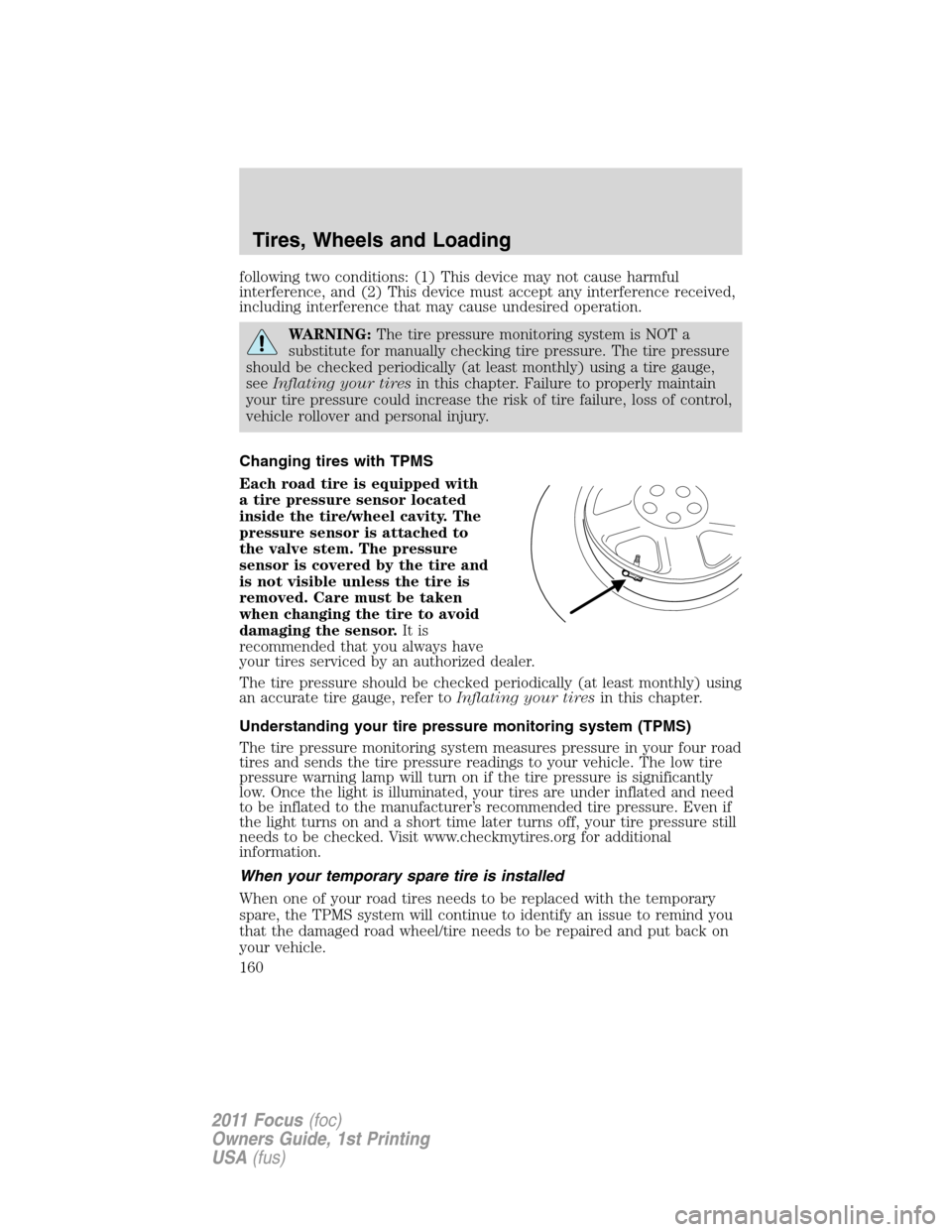

following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
WARNING:The tire pressure monitoring system is NOT a
substitute for manually checking tire pressure. The tire pressure
should be checked periodically (at least monthly) using a tire gauge,
seeInflating your tiresin this chapter. Failure to properly maintain
your tire pressure could increase the risk of tire failure, loss of control,
vehicle rollover and personal injury.
Changing tires with TPMS
Each road tire is equipped with
a tire pressure sensor located
inside the tire/wheel cavity. The
pressure sensor is attached to
the valve stem. The pressure
sensor is covered by the tire and
is not visible unless the tire is
removed. Care must be taken
when changing the tire to avoid
damaging the sensor.It is
recommended that you always have
your tires serviced by an authorized dealer.
The tire pressure should be checked periodically (at least monthly) using
an accurate tire gauge, refer toInflating your tiresin this chapter.
Understanding your tire pressure monitoring system (TPMS)
The tire pressure monitoring system measures pressure in your four road
tires and sends the tire pressure readings to your vehicle. The low tire
pressure warning lamp will turn on if the tire pressure is significantly
low. Once the light is illuminated, your tires are under inflated and need
to be inflated to the manufacturer’s recommended tire pressure. Even if
the light turns on and a short time later turns off, your tire pressure still
needs to be checked. Visit www.checkmytires.org for additional
information.
When your temporary spare tire is installed
When one of your road tires needs to be replaced with the temporary
spare, the TPMS system will continue to identify an issue to remind you
that the damaged road wheel/tire needs to be repaired and put back on
your vehicle.
Tires, Wheels and Loading
160
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

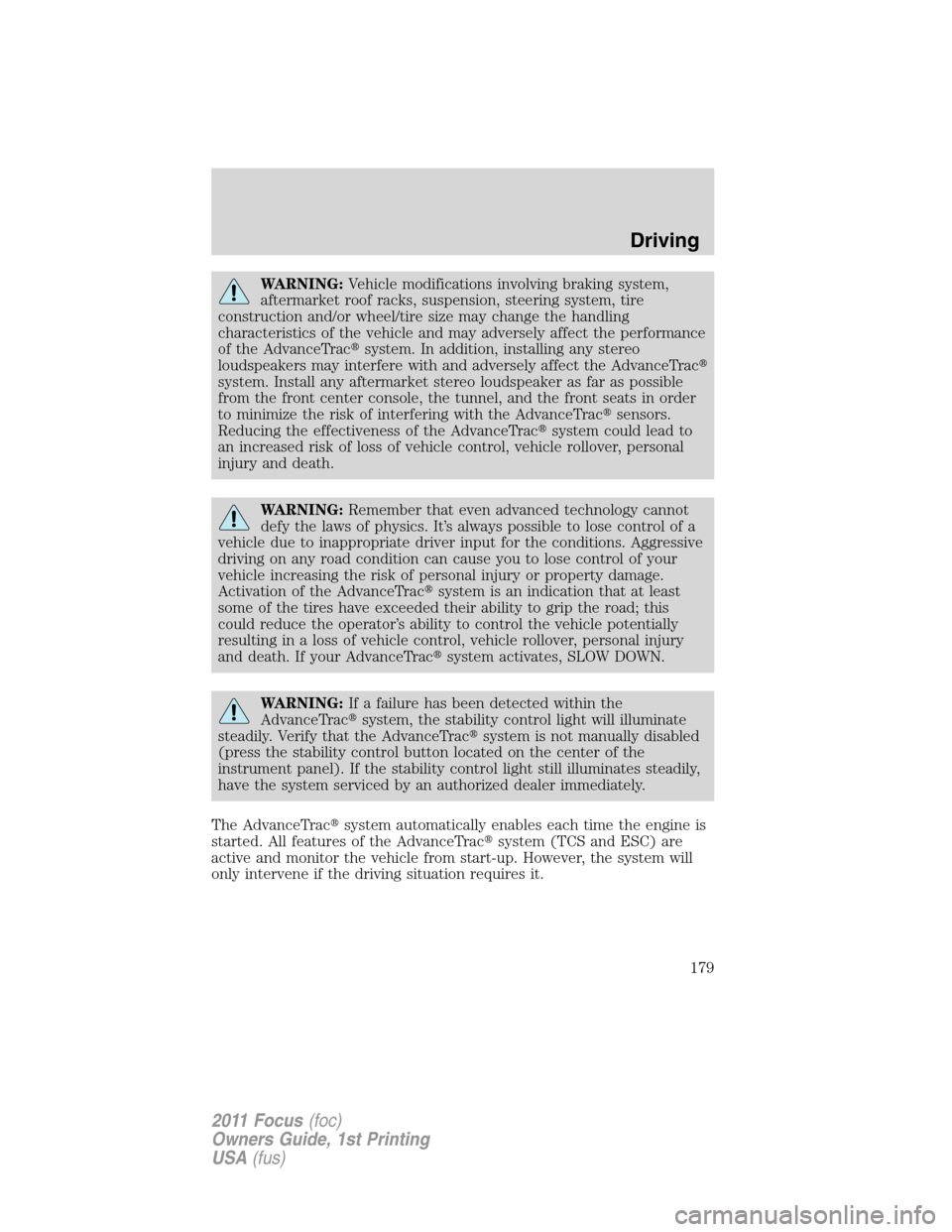

WARNING:Vehicle modifications involving braking system,
aftermarket roof racks, suspension, steering system, tire
construction and/or wheel/tire size may change the handling
characteristics of the vehicle and may adversely affect the performance
of the AdvanceTracsystem. In addition, installing any stereo
loudspeakers may interfere with and adversely affect the AdvanceTrac
system. Install any aftermarket stereo loudspeaker as far as possible
from the front center console, the tunnel, and the front seats in order
to minimize the risk of interfering with the AdvanceTracsensors.
Reducing the effectiveness of the AdvanceTracsystem could lead to
an increased risk of loss of vehicle control, vehicle rollover, personal
injury and death.
WARNING:Remember that even advanced technology cannot
defy the laws of physics. It’s always possible to lose control of a
vehicle due to inappropriate driver input for the conditions. Aggressive
driving on any road condition can cause you to lose control of your
vehicle increasing the risk of personal injury or property damage.
Activation of the AdvanceTracsystem is an indication that at least
some of the tires have exceeded their ability to grip the road; this
could reduce the operator’s ability to control the vehicle potentially
resulting in a loss of vehicle control, vehicle rollover, personal injury
and death. If your AdvanceTracsystem activates, SLOW DOWN.
WARNING:If a failure has been detected within the
AdvanceTracsystem, the stability control light will illuminate
steadily. Verify that the AdvanceTracsystem is not manually disabled
(press the stability control button located on the center of the
instrument panel). If the stability control light still illuminates steadily,
have the system serviced by an authorized dealer immediately.
The AdvanceTracsystem automatically enables each time the engine is
started. All features of the AdvanceTracsystem (TCS and ESC) are
active and monitor the vehicle from start-up. However, the system will
only intervene if the driving situation requires it.
Driving
179
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

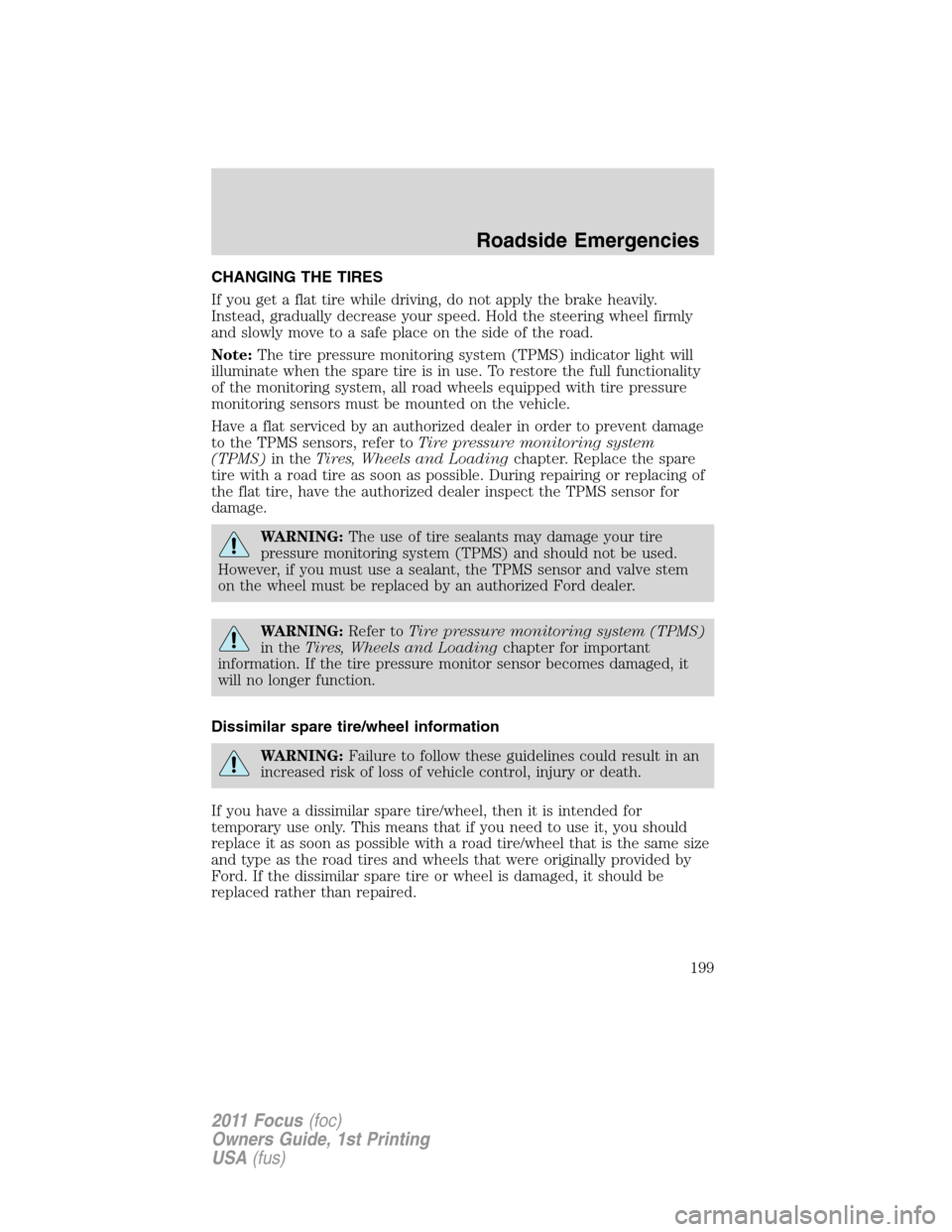

CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors, refer toTire pressure monitoring system
(TPMS)in theTires, Wheels and Loadingchapter. Replace the spare
tire with a road tire as soon as possible. During repairing or replacing of
the flat tire, have the authorized dealer inspect the TPMS sensor for
damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
Roadside Emergencies
199
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

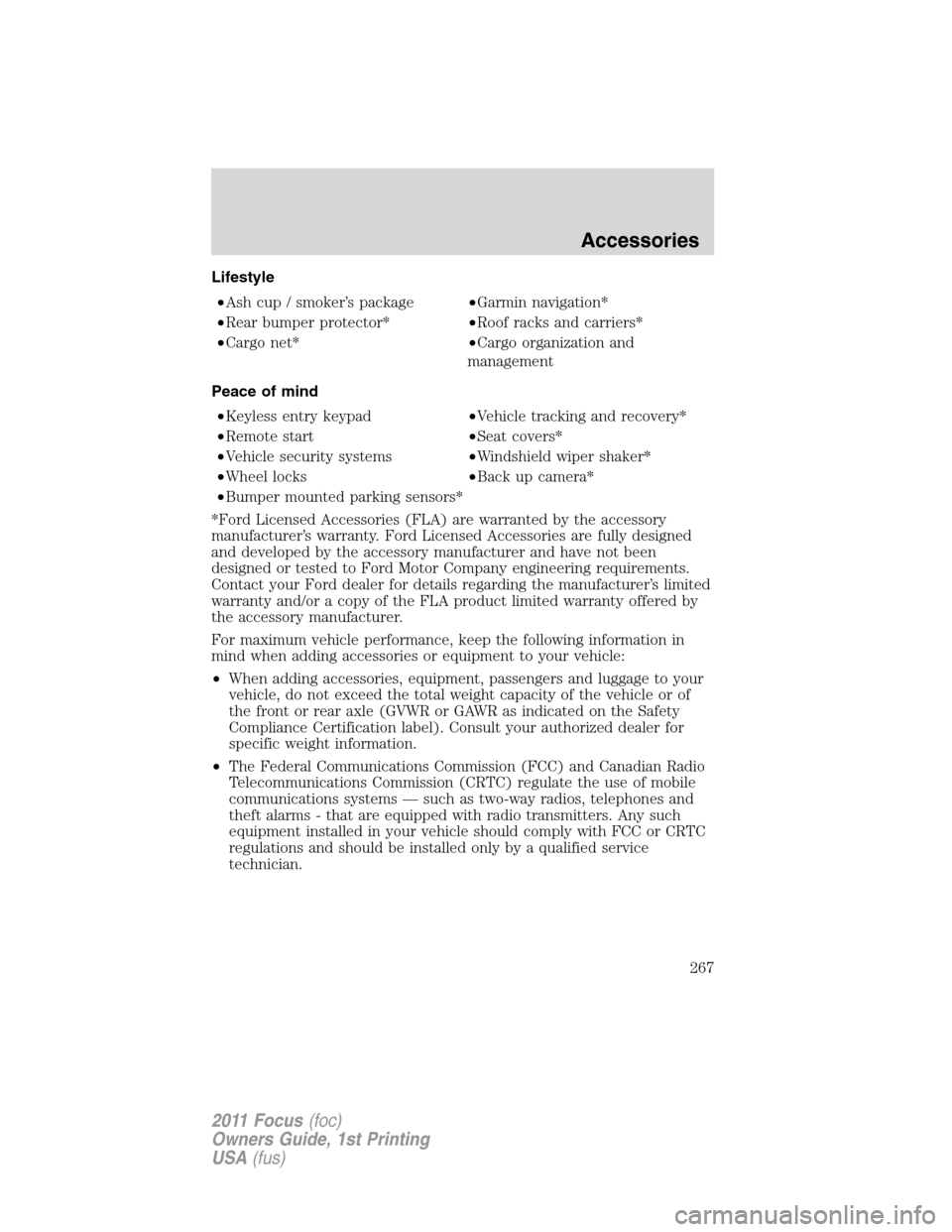

Lifestyle
•Ash cup / smoker’s package•Garmin navigation*
•Rear bumper protector*•Roof racks and carriers*
•Cargo net*•Cargo organization and
management
Peace of mind
•Keyless entry keypad•Vehicle tracking and recovery*
•Remote start•Seat covers*
•Vehicle security systems•Windshield wiper shaker*
•Wheel locks•Back up camera*
•Bumper mounted parking sensors*
*Ford Licensed Accessories (FLA) are warranted by the accessory
manufacturer’s warranty. Ford Licensed Accessories are fully designed
and developed by the accessory manufacturer and have not been
designed or tested to Ford Motor Company engineering requirements.
Contact your Ford dealer for details regarding the manufacturer’s limited
warranty and/or a copy of the FLA product limited warranty offered by
the accessory manufacturer.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
Accessories
267
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

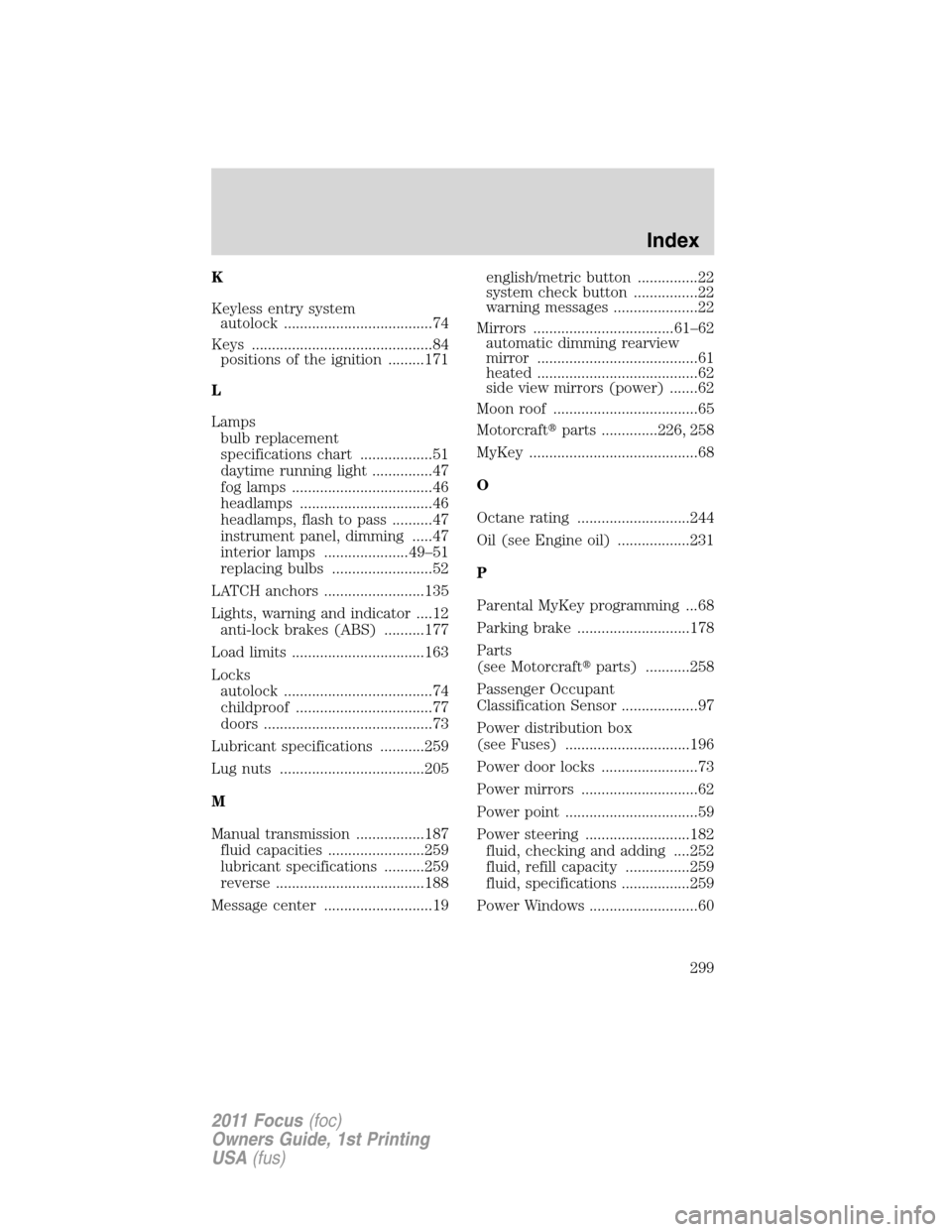

K
Keyless entry system
autolock .....................................74
Keys .............................................84
positions of the ignition .........171
L
Lamps
bulb replacement
specifications chart ..................51
daytime running light ...............47
fog lamps ...................................46
headlamps .................................46
headlamps, flash to pass ..........47
instrument panel, dimming .....47
interior lamps .....................49–51
replacing bulbs .........................52
LATCH anchors .........................135
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........177
Load limits .................................163
Locks
autolock .....................................74
childproof ..................................77
doors ..........................................73
Lubricant specifications ...........259
Lug nuts ....................................205
M
Manual transmission .................187
fluid capacities ........................259
lubricant specifications ..........259
reverse .....................................188
Message center ...........................19english/metric button ...............22
system check button ................22
warning messages .....................22
Mirrors ...................................61–62
automatic dimming rearview
mirror ........................................61
heated ........................................62
side view mirrors (power) .......62
Moon roof ....................................65
Motorcraftparts ..............226, 258
MyKey ..........................................68
O
Octane rating ............................244
Oil (see Engine oil) ..................231
P
Parental MyKey programming ...68
Parking brake ............................178
Parts
(see Motorcraftparts) ...........258
Passenger Occupant
Classification Sensor ...................97
Power distribution box
(see Fuses) ...............................196
Power door locks ........................73
Power mirrors .............................62
Power point .................................59
Power steering ..........................182
fluid, checking and adding ....252
fluid, refill capacity ................259
fluid, specifications .................259
Power Windows ...........................60
Index
299
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)

R
Radio ............................................25
Recommendations for
attaching safety restraints for
children ......................................127
Relays ........................................192
Remote entry system .................79
illuminated entry ................82–83
locking/unlocking doors .....79–80
opening the trunk .....................80
panic alarm ...............................80
replacement/additional
transmitters ...............................81
replacing the batteries .............81
Roadside assistance ..................190
S
Safety belts (see Safety
restraints) ......95, 99–101, 103–104
Safety Canopy ...........................119
Safety defects, reporting ..........218
Safety restraints ...........95, 99–101,
103–105
Belt-Minder...........................106
extension assembly ................105
for adults .................100–101, 103
for children .............................125
Occupant Classification
Sensor ........................................97
warning light and
chime ...............................105–106
Safety restraints - LATCH
anchors ......................................135
Safety seats for children ..........129
Safety Compliance
Certification Label ....................263
Satellite Radio .............................25Satellite Radio Information ........38
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............279
What Maintenance Schedule
Should You Follow? ................275
Seats ............................................88
child safety seats ....................129
cleaning ...................................224
heated ........................................93
SecuriLock passive anti-theft
system ..........................................83
Servicing your vehicle ..............227
Setting the clock .........................25
Side air curtain .........................121
SOS Post Crash Alert ...............124
Spark plugs,
specifications .............258, 262–263
Specification chart,
lubricants ...................................259
Speed control ..............................62
Starting your
vehicle ........................171–172, 174
jump starting ..........................206
Steering wheel
controls ......................................64
tilting .........................................57
Stereo
CD-MP3 .....................................25
SYNC..........................................41
T
Tilt steering wheel ......................57
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....159
Index
300
2011 Focus(foc)
Owners Guide, 1st Printing
USA(fus)
