FORD FOCUS 2018 Owners Manual

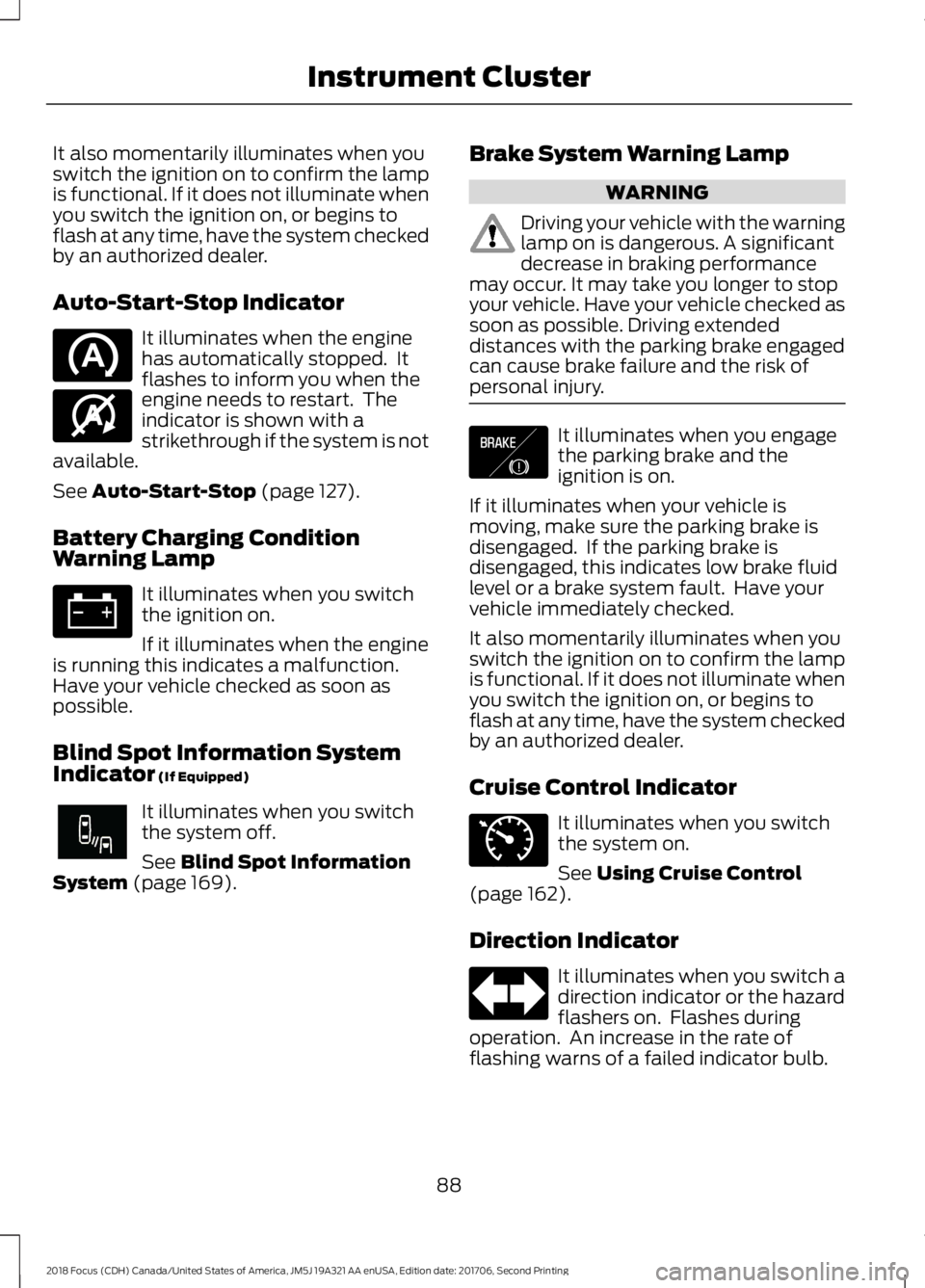

It also momentarily illuminates when youswitch the ignition on to confirm the lampis functional. If it does not illuminate whenyou switch the ignition on, or begins toflash at any time, have the system checkedby an authorized dealer.
Auto-Start-Stop Indicator
It illuminates when the enginehas automatically stopped. Itflashes to inform you when theengine needs to restart. Theindicator is shown with astrikethrough if the system is notavailable.
See Auto-Start-Stop (page 127).
Battery Charging ConditionWarning Lamp
It illuminates when you switchthe ignition on.
If it illuminates when the engineis running this indicates a malfunction.Have your vehicle checked as soon aspossible.
Blind Spot Information SystemIndicator (If Equipped)
It illuminates when you switchthe system off.
See Blind Spot InformationSystem (page 169).
Brake System Warning Lamp
WARNING
Driving your vehicle with the warninglamp on is dangerous. A significantdecrease in braking performancemay occur. It may take you longer to stopyour vehicle. Have your vehicle checked assoon as possible. Driving extendeddistances with the parking brake engagedcan cause brake failure and the risk ofpersonal injury.
It illuminates when you engagethe parking brake and theignition is on.
If it illuminates when your vehicle ismoving, make sure the parking brake isdisengaged. If the parking brake isdisengaged, this indicates low brake fluidlevel or a brake system fault. Have yourvehicle immediately checked.
It also momentarily illuminates when youswitch the ignition on to confirm the lampis functional. If it does not illuminate whenyou switch the ignition on, or begins toflash at any time, have the system checkedby an authorized dealer.
Cruise Control Indicator
It illuminates when you switchthe system on.
See Using Cruise Control(page 162).
Direction Indicator
It illuminates when you switch adirection indicator or the hazardflashers on. Flashes duringoperation. An increase in the rate offlashing warns of a failed indicator bulb.
882018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingInstrument Cluster E146361 E249861E249861 E138644 E71340

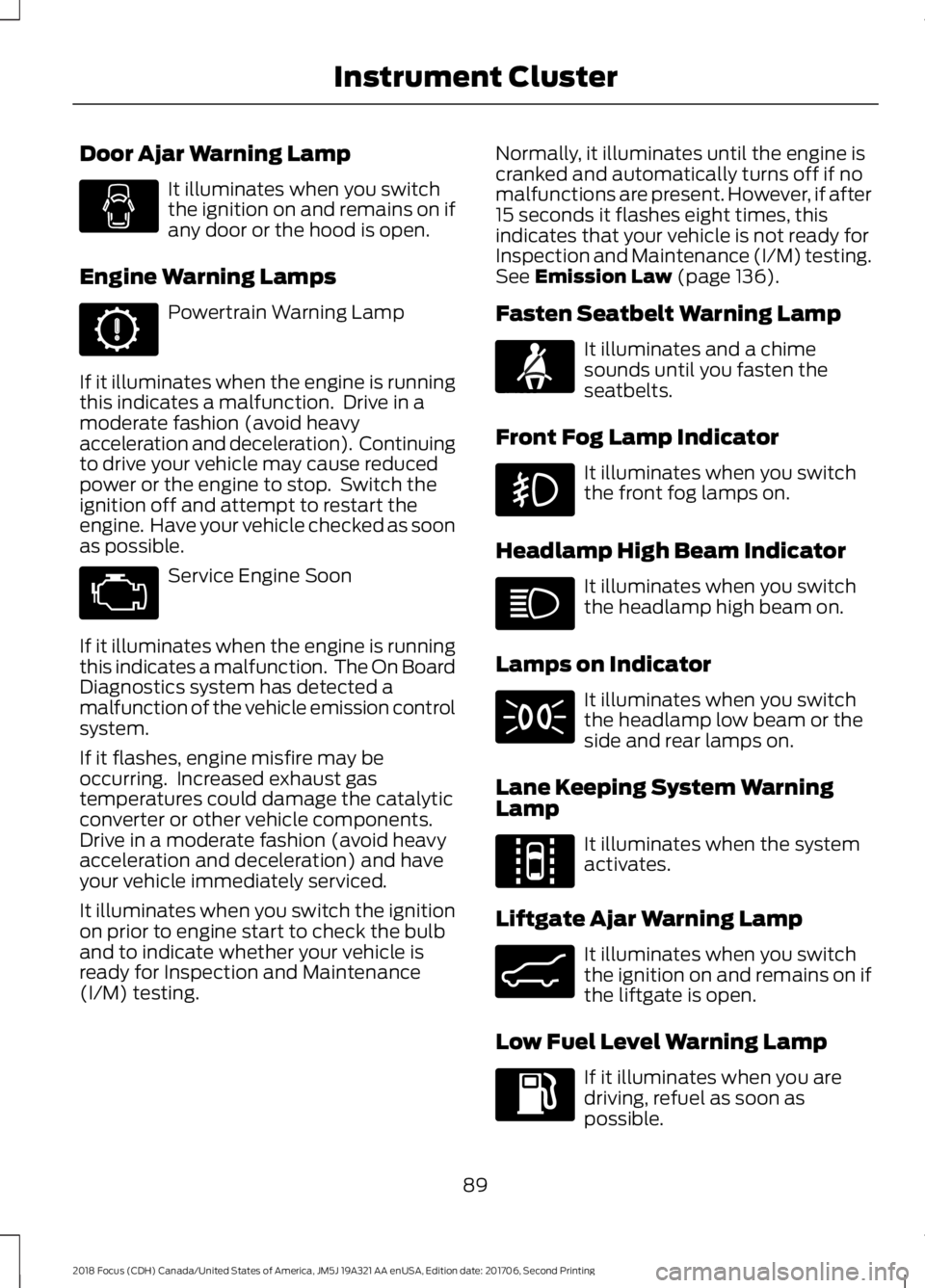

Door Ajar Warning Lamp
It illuminates when you switchthe ignition on and remains on ifany door or the hood is open.
Engine Warning Lamps
Powertrain Warning Lamp
If it illuminates when the engine is runningthis indicates a malfunction. Drive in amoderate fashion (avoid heavyacceleration and deceleration). Continuingto drive your vehicle may cause reducedpower or the engine to stop. Switch theignition off and attempt to restart theengine. Have your vehicle checked as soonas possible.
Service Engine Soon
If it illuminates when the engine is runningthis indicates a malfunction. The On BoardDiagnostics system has detected amalfunction of the vehicle emission controlsystem.
If it flashes, engine misfire may beoccurring. Increased exhaust gastemperatures could damage the catalyticconverter or other vehicle components.Drive in a moderate fashion (avoid heavyacceleration and deceleration) and haveyour vehicle immediately serviced.
It illuminates when you switch the ignitionon prior to engine start to check the bulband to indicate whether your vehicle isready for Inspection and Maintenance(I/M) testing.
Normally, it illuminates until the engine iscranked and automatically turns off if nomalfunctions are present. However, if after15 seconds it flashes eight times, thisindicates that your vehicle is not ready forInspection and Maintenance (I/M) testing.See Emission Law (page 136).
Fasten Seatbelt Warning Lamp
It illuminates and a chimesounds until you fasten theseatbelts.
Front Fog Lamp Indicator
It illuminates when you switchthe front fog lamps on.
Headlamp High Beam Indicator
It illuminates when you switchthe headlamp high beam on.
Lamps on Indicator
It illuminates when you switchthe headlamp low beam or theside and rear lamps on.
Lane Keeping System WarningLamp
It illuminates when the systemactivates.
Liftgate Ajar Warning Lamp
It illuminates when you switchthe ignition on and remains on ifthe liftgate is open.
Low Fuel Level Warning Lamp
If it illuminates when you aredriving, refuel as soon aspossible.
892018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingInstrument Cluster E71880 E144813 E162453

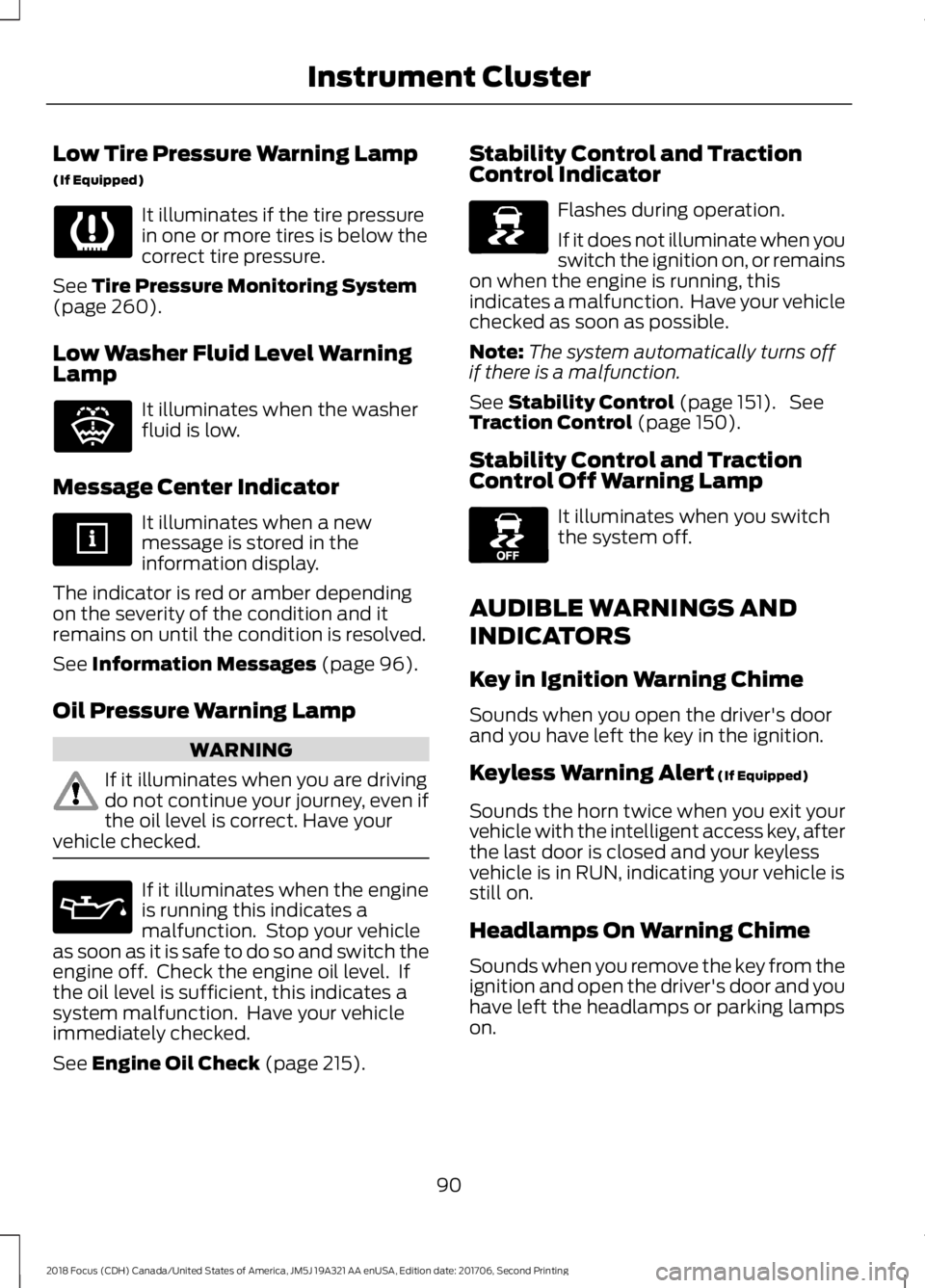

Low Tire Pressure Warning Lamp
(If Equipped)
It illuminates if the tire pressurein one or more tires is below thecorrect tire pressure.
See Tire Pressure Monitoring System(page 260).
Low Washer Fluid Level WarningLamp
It illuminates when the washerfluid is low.
Message Center Indicator
It illuminates when a newmessage is stored in theinformation display.
The indicator is red or amber dependingon the severity of the condition and itremains on until the condition is resolved.
See Information Messages (page 96).
Oil Pressure Warning Lamp
WARNING
If it illuminates when you are drivingdo not continue your journey, even ifthe oil level is correct. Have yourvehicle checked.
If it illuminates when the engineis running this indicates amalfunction. Stop your vehicleas soon as it is safe to do so and switch theengine off. Check the engine oil level. Ifthe oil level is sufficient, this indicates asystem malfunction. Have your vehicleimmediately checked.
See Engine Oil Check (page 215).
Stability Control and TractionControl Indicator
Flashes during operation.
If it does not illuminate when youswitch the ignition on, or remainson when the engine is running, thisindicates a malfunction. Have your vehiclechecked as soon as possible.
Note:The system automatically turns offif there is a malfunction.
See Stability Control (page 151). SeeTraction Control (page 150).
Stability Control and TractionControl Off Warning Lamp
It illuminates when you switchthe system off.
AUDIBLE WARNINGS AND
INDICATORS
Key in Ignition Warning Chime
Sounds when you open the driver's doorand you have left the key in the ignition.
Keyless Warning Alert (If Equipped)
Sounds the horn twice when you exit yourvehicle with the intelligent access key, afterthe last door is closed and your keylessvehicle is in RUN, indicating your vehicle isstill on.
Headlamps On Warning Chime
Sounds when you remove the key from theignition and open the driver's door and youhave left the headlamps or parking lampson.
902018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingInstrument Cluster E132353 E138639 E130458

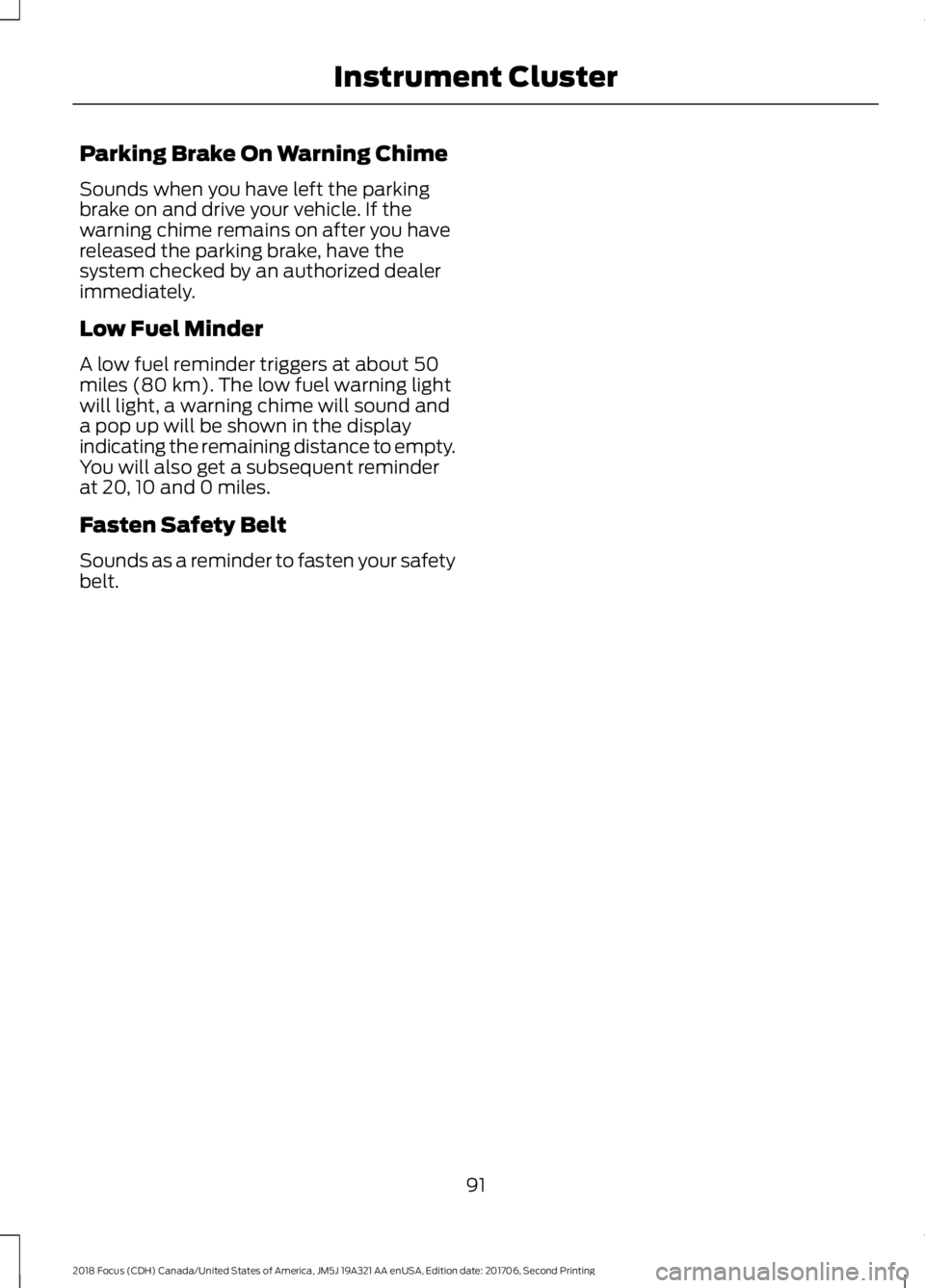

Parking Brake On Warning Chime
Sounds when you have left the parkingbrake on and drive your vehicle. If thewarning chime remains on after you havereleased the parking brake, have thesystem checked by an authorized dealerimmediately.
Low Fuel Minder
A low fuel reminder triggers at about 50miles (80 km). The low fuel warning lightwill light, a warning chime will sound anda pop up will be shown in the displayindicating the remaining distance to empty.You will also get a subsequent reminderat 20, 10 and 0 miles.
Fasten Safety Belt
Sounds as a reminder to fasten your safetybelt.
912018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingInstrument Cluster

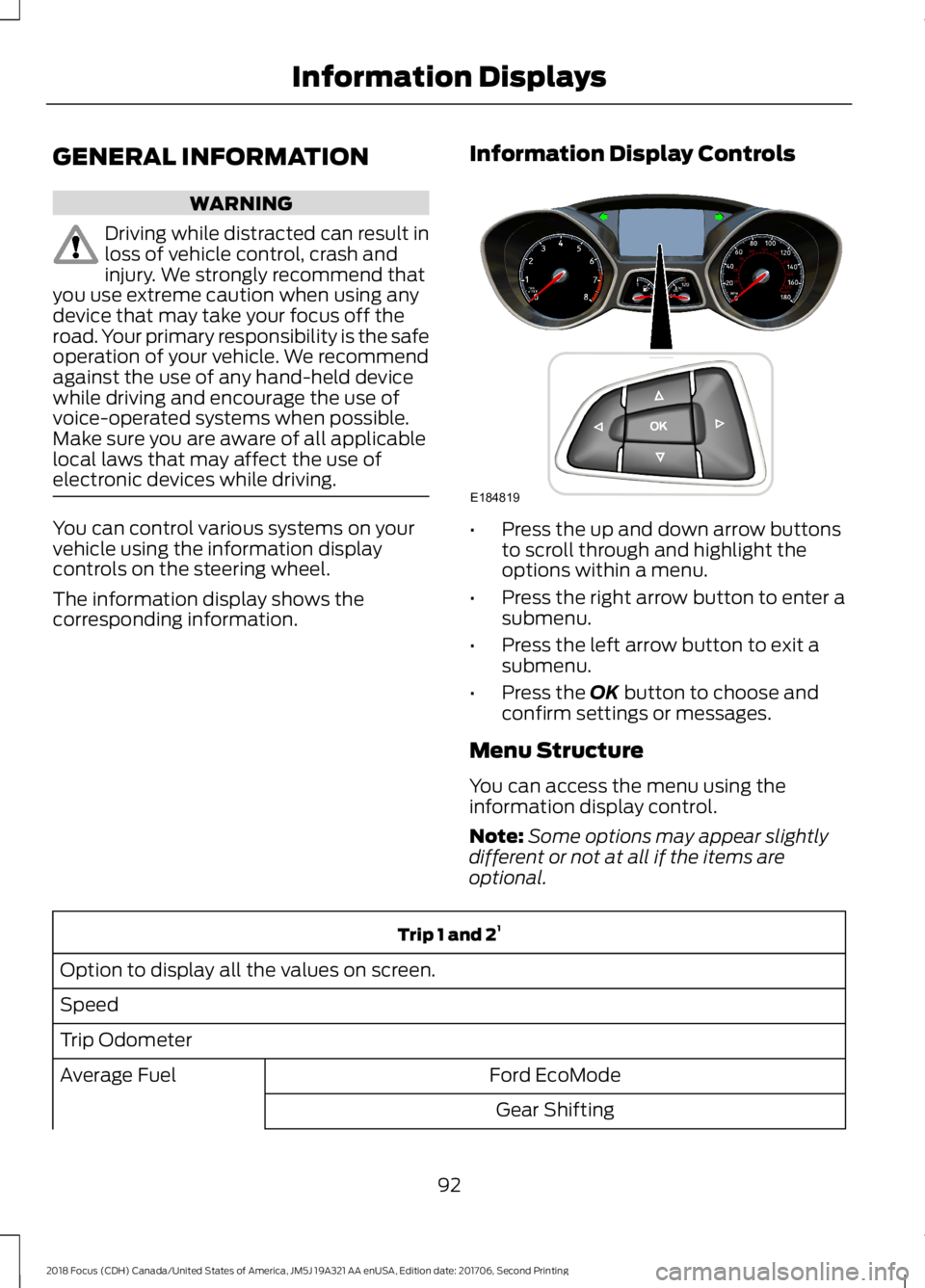

GENERAL INFORMATION
WARNING
Driving while distracted can result inloss of vehicle control, crash andinjury. We strongly recommend thatyou use extreme caution when using anydevice that may take your focus off theroad. Your primary responsibility is the safeoperation of your vehicle. We recommendagainst the use of any hand-held devicewhile driving and encourage the use ofvoice-operated systems when possible.Make sure you are aware of all applicablelocal laws that may affect the use ofelectronic devices while driving.
You can control various systems on yourvehicle using the information displaycontrols on the steering wheel.
The information display shows thecorresponding information.
Information Display Controls
•Press the up and down arrow buttonsto scroll through and highlight theoptions within a menu.
•Press the right arrow button to enter asubmenu.
•Press the left arrow button to exit asubmenu.
•Press the OK button to choose andconfirm settings or messages.
Menu Structure
You can access the menu using theinformation display control.
Note:Some options may appear slightlydifferent or not at all if the items areoptional.
Trip 1 and 21
Option to display all the values on screen.
Speed
Trip Odometer
Ford EcoModeAverage Fuel
Gear Shifting
922018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingInformation DisplaysE184819

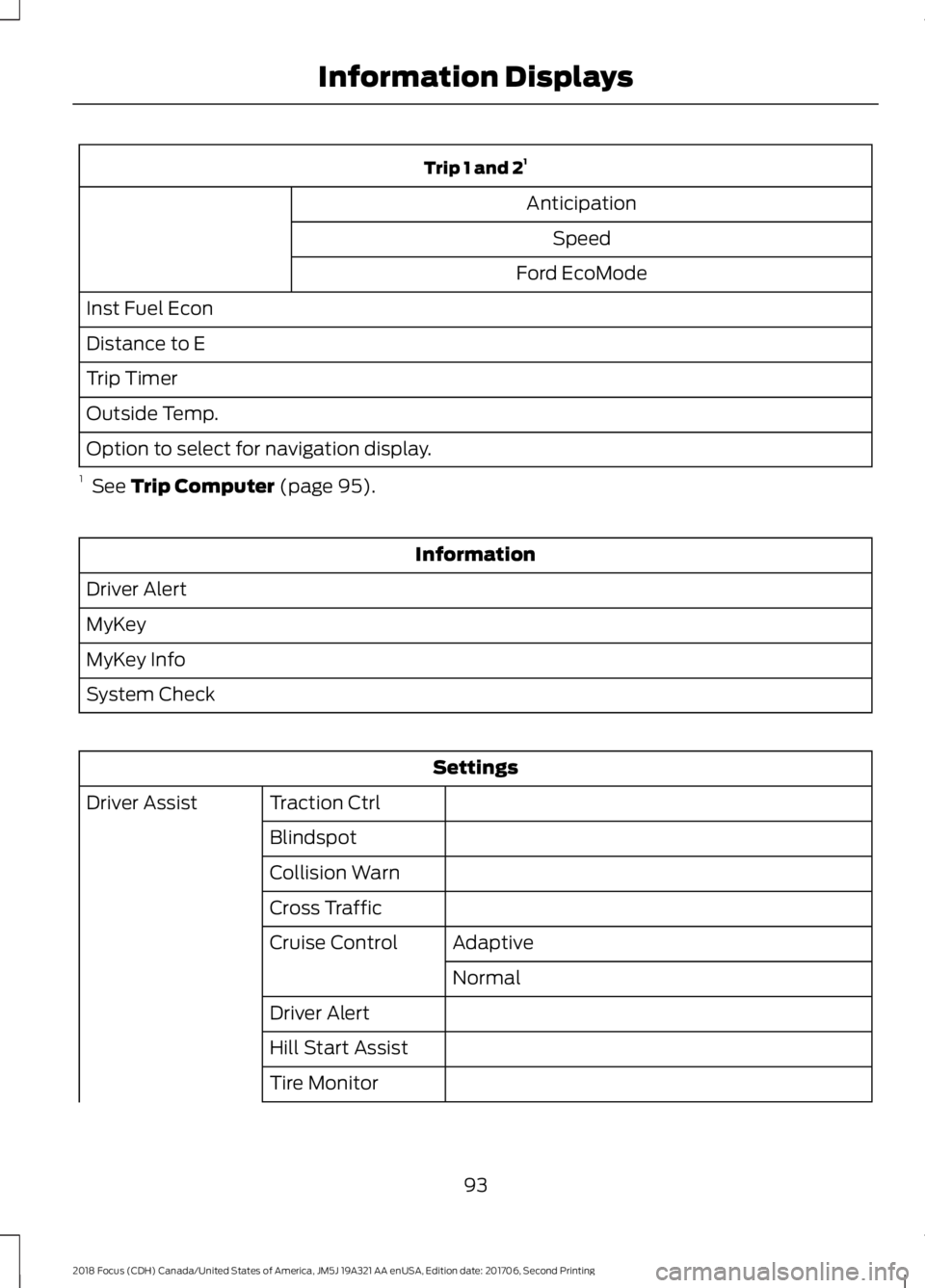

Trip 1 and 21
Anticipation
Speed
Ford EcoMode
Inst Fuel Econ
Distance to E
Trip Timer
Outside Temp.
Option to select for navigation display.
1 See Trip Computer (page 95).
Information
Driver Alert
MyKey
MyKey Info
System Check
Settings
Traction CtrlDriver Assist
Blindspot
Collision Warn
Cross Traffic
AdaptiveCruise Control
Normal
Driver Alert
Hill Start Assist
Tire Monitor
932018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingInformation Displays

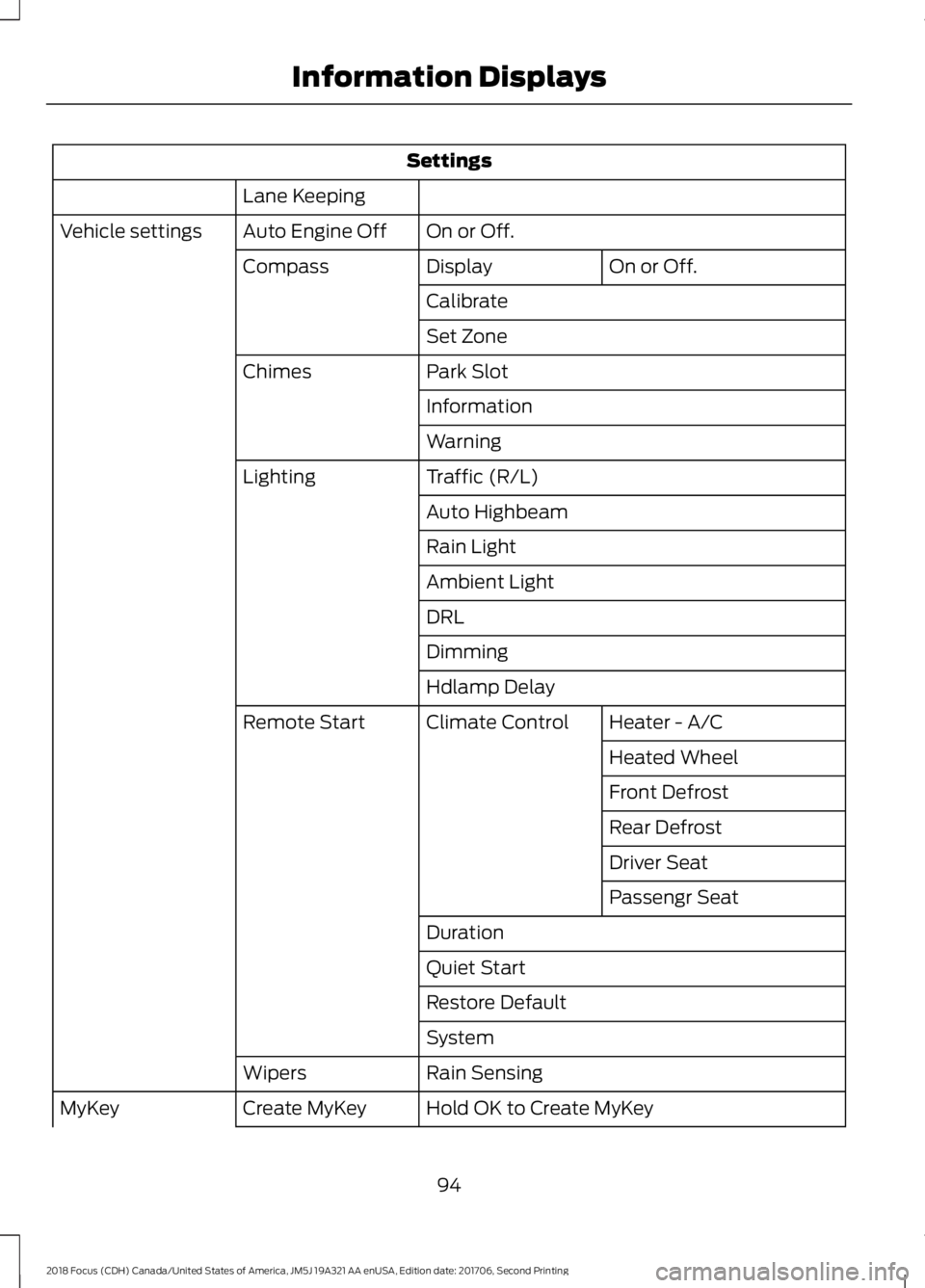

Settings
Lane Keeping
On or Off.Auto Engine OffVehicle settings
On or Off.DisplayCompass
Calibrate
Set Zone
Park SlotChimes
Information
Warning
Traffic (R/L)Lighting
Auto Highbeam
Rain Light
Ambient Light
DRL
Dimming
Hdlamp Delay
Heater - A/CClimate ControlRemote Start
Heated Wheel
Front Defrost
Rear Defrost
Driver Seat
Passengr Seat
Duration
Quiet Start
Restore Default
System
Rain SensingWipers
Hold OK to Create MyKeyCreate MyKeyMyKey
942018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingInformation Displays

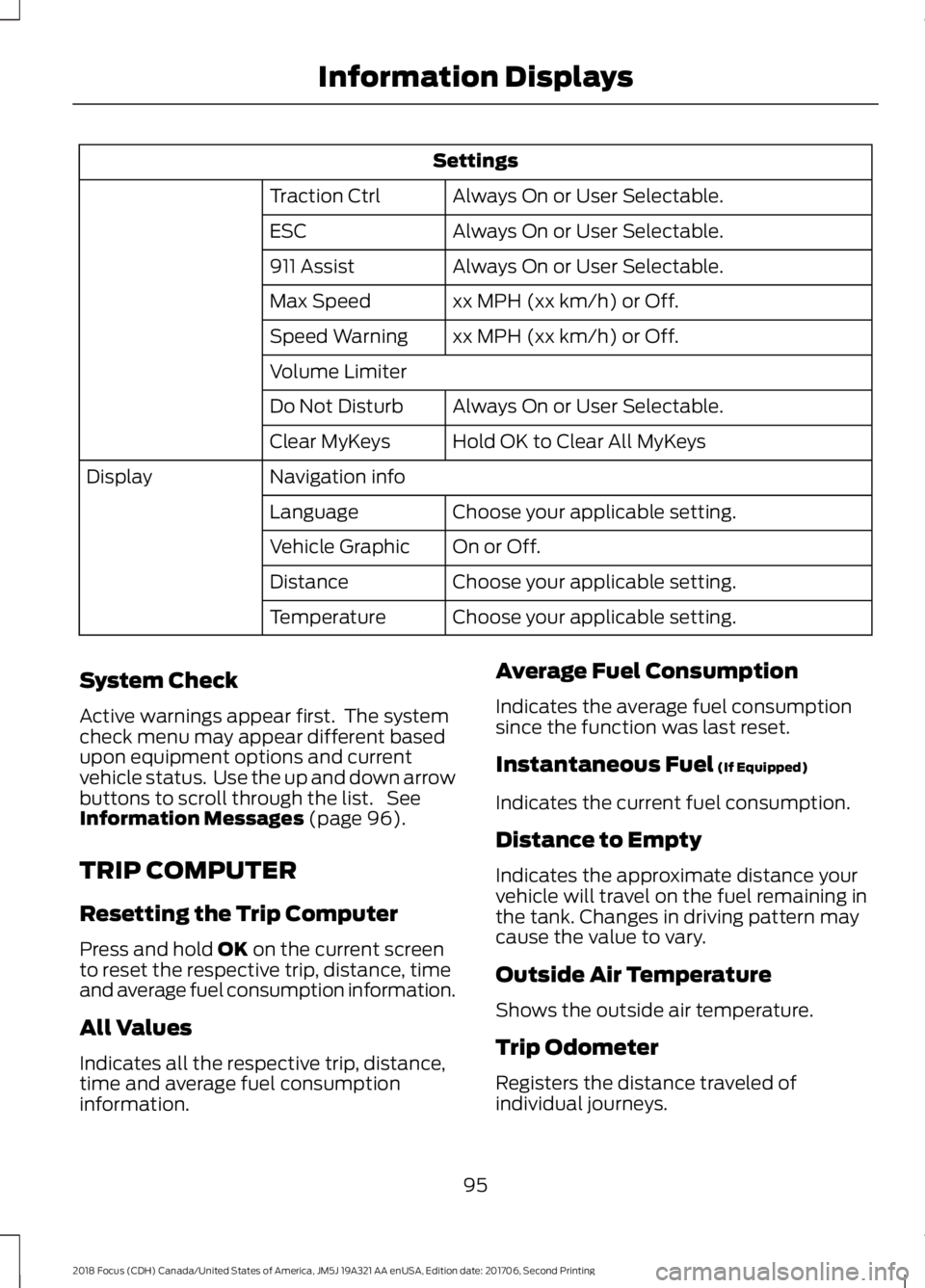

Settings
Always On or User Selectable.Traction Ctrl
Always On or User Selectable.ESC
Always On or User Selectable.911 Assist
xx MPH (xx km/h) or Off.Max Speed
xx MPH (xx km/h) or Off.Speed Warning
Volume Limiter
Always On or User Selectable.Do Not Disturb
Hold OK to Clear All MyKeysClear MyKeys
Navigation infoDisplay
Choose your applicable setting.Language
On or Off.Vehicle Graphic
Choose your applicable setting.Distance
Choose your applicable setting.Temperature
System Check
Active warnings appear first. The systemcheck menu may appear different basedupon equipment options and currentvehicle status. Use the up and down arrowbuttons to scroll through the list. SeeInformation Messages (page 96).
TRIP COMPUTER
Resetting the Trip Computer
Press and hold OK on the current screento reset the respective trip, distance, timeand average fuel consumption information.
All Values
Indicates all the respective trip, distance,time and average fuel consumptioninformation.
Average Fuel Consumption
Indicates the average fuel consumptionsince the function was last reset.
Instantaneous Fuel (If Equipped)
Indicates the current fuel consumption.
Distance to Empty
Indicates the approximate distance yourvehicle will travel on the fuel remaining inthe tank. Changes in driving pattern maycause the value to vary.
Outside Air Temperature
Shows the outside air temperature.
Trip Odometer
Registers the distance traveled ofindividual journeys.
952018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingInformation Displays

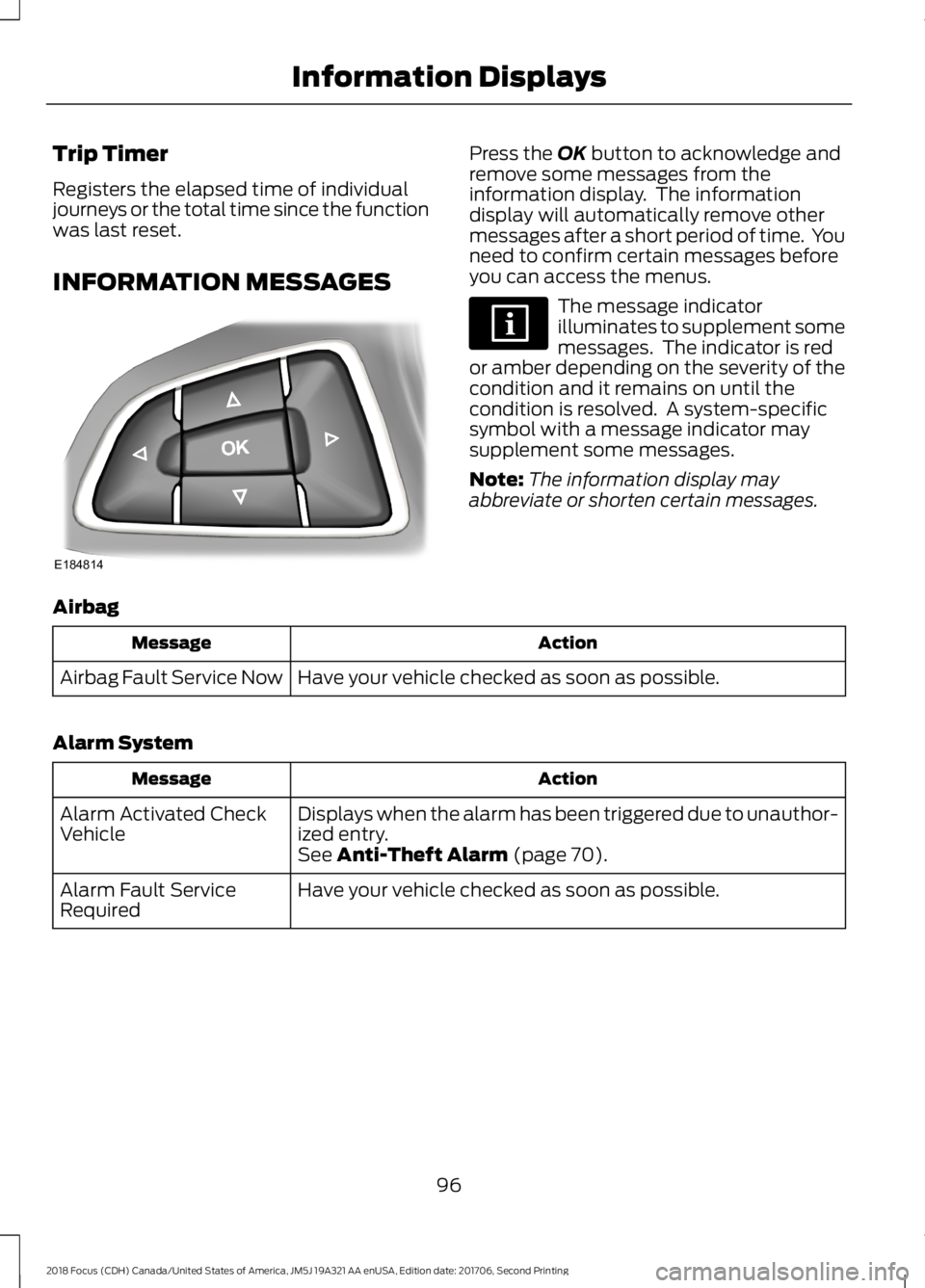

Trip Timer
Registers the elapsed time of individualjourneys or the total time since the functionwas last reset.
INFORMATION MESSAGES
Press the OK button to acknowledge andremove some messages from theinformation display. The informationdisplay will automatically remove othermessages after a short period of time. Youneed to confirm certain messages beforeyou can access the menus.
The message indicatorilluminates to supplement somemessages. The indicator is redor amber depending on the severity of thecondition and it remains on until thecondition is resolved. A system-specificsymbol with a message indicator maysupplement some messages.
Note:The information display mayabbreviate or shorten certain messages.
Airbag
ActionMessage
Have your vehicle checked as soon as possible.Airbag Fault Service Now
Alarm System
ActionMessage
Displays when the alarm has been triggered due to unauthor-ized entry.Alarm Activated CheckVehicleSee Anti-Theft Alarm (page 70).
Have your vehicle checked as soon as possible.Alarm Fault ServiceRequired
962018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingInformation DisplaysE184814

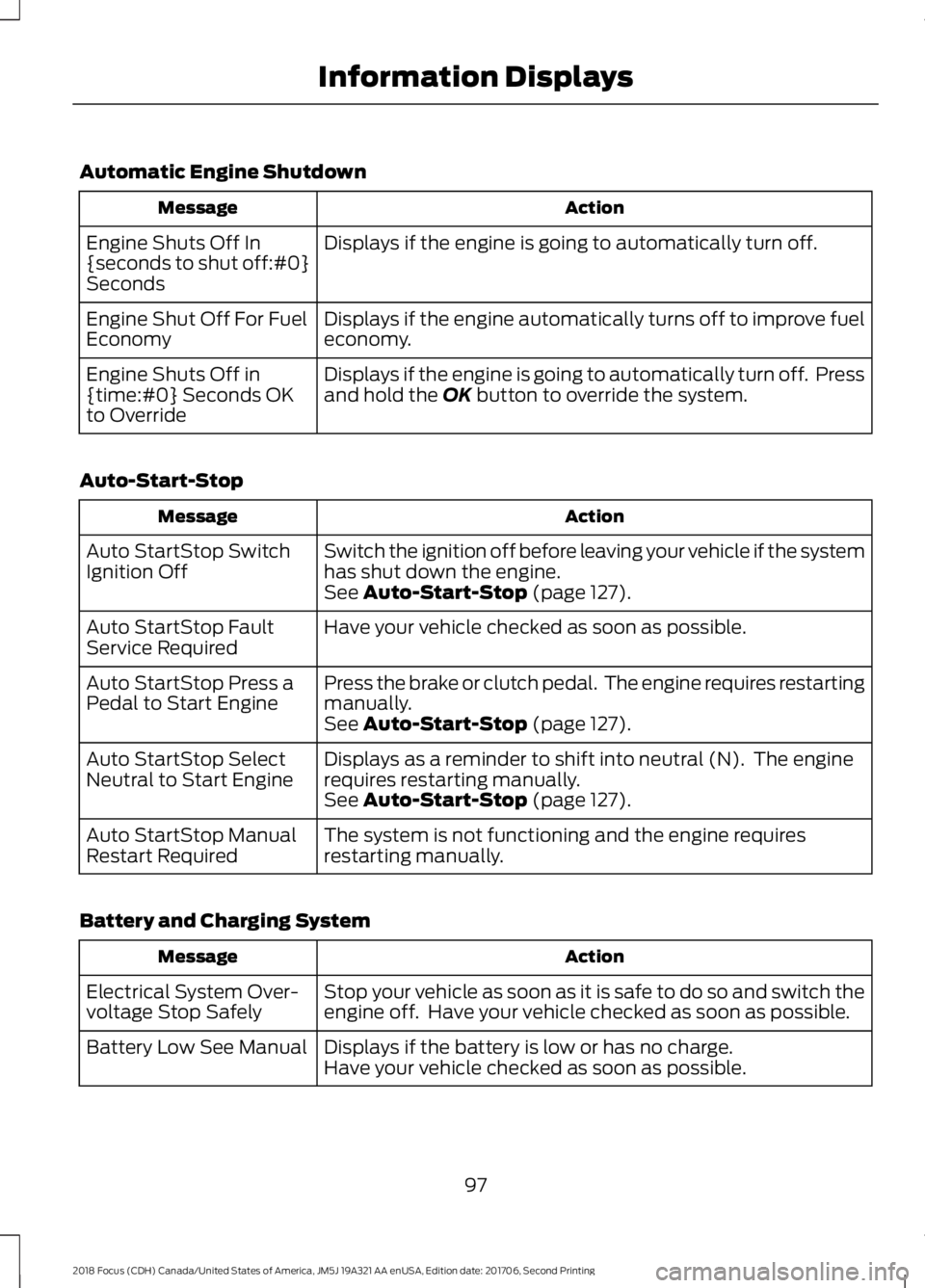

Automatic Engine Shutdown
ActionMessage
Displays if the engine is going to automatically turn off.Engine Shuts Off In{seconds to shut off:#0}Seconds
Displays if the engine automatically turns off to improve fueleconomy.Engine Shut Off For FuelEconomy
Displays if the engine is going to automatically turn off. Pressand hold the OK button to override the system.Engine Shuts Off in{time:#0} Seconds OKto Override
Auto-Start-Stop
ActionMessage
Switch the ignition off before leaving your vehicle if the systemhas shut down the engine.Auto StartStop SwitchIgnition OffSee Auto-Start-Stop (page 127).
Have your vehicle checked as soon as possible.Auto StartStop FaultService Required
Press the brake or clutch pedal. The engine requires restartingmanually.Auto StartStop Press aPedal to Start EngineSee Auto-Start-Stop (page 127).
Displays as a reminder to shift into neutral (N). The enginerequires restarting manually.Auto StartStop SelectNeutral to Start EngineSee Auto-Start-Stop (page 127).
The system is not functioning and the engine requiresrestarting manually.Auto StartStop ManualRestart Required
Battery and Charging System
ActionMessage
Stop your vehicle as soon as it is safe to do so and switch theengine off. Have your vehicle checked as soon as possible.Electrical System Over-voltage Stop Safely
Displays if the battery is low or has no charge.Battery Low See ManualHave your vehicle checked as soon as possible.
972018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingInformation Displays
