Direction of travel.A
Steering wheel rotation.B
If the rear of your vehicle starts to oversteerand slide on snow or icy roads, turn thesteering wheel in the direction of travel asshown above to help regain control.
Note:Excessive tire slippage can causedriveline damage.
Avoid sudden applications of power andquick changes of direction while driving onsnow or icy roads. Apply the acceleratorslowly and steadily when starting from afull stop.
Avoid sudden braking while driving onsnow or icy roads. Although your vehiclemay accelerate better than a two-wheeldrive vehicle on snow and ice, stoppingdistances are not reduced. Make sure youallow sufficient distance for stopping. Driveslower than usual and consider using alower gear. Your vehicle has anti-lockbrakes, therefore apply the brakes steadily.Do not pump the brake pedal.
172018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingAll-Wheel DriveE223901AB

GENERAL INFORMATION
Your vehicle has a braking system designedfor high performance driving and superiorbrake fade resistance. You may noticeoccasional brake noise and elevated levelsof brake dust. This is normal and does notaffect system performance.
182018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingBrakes

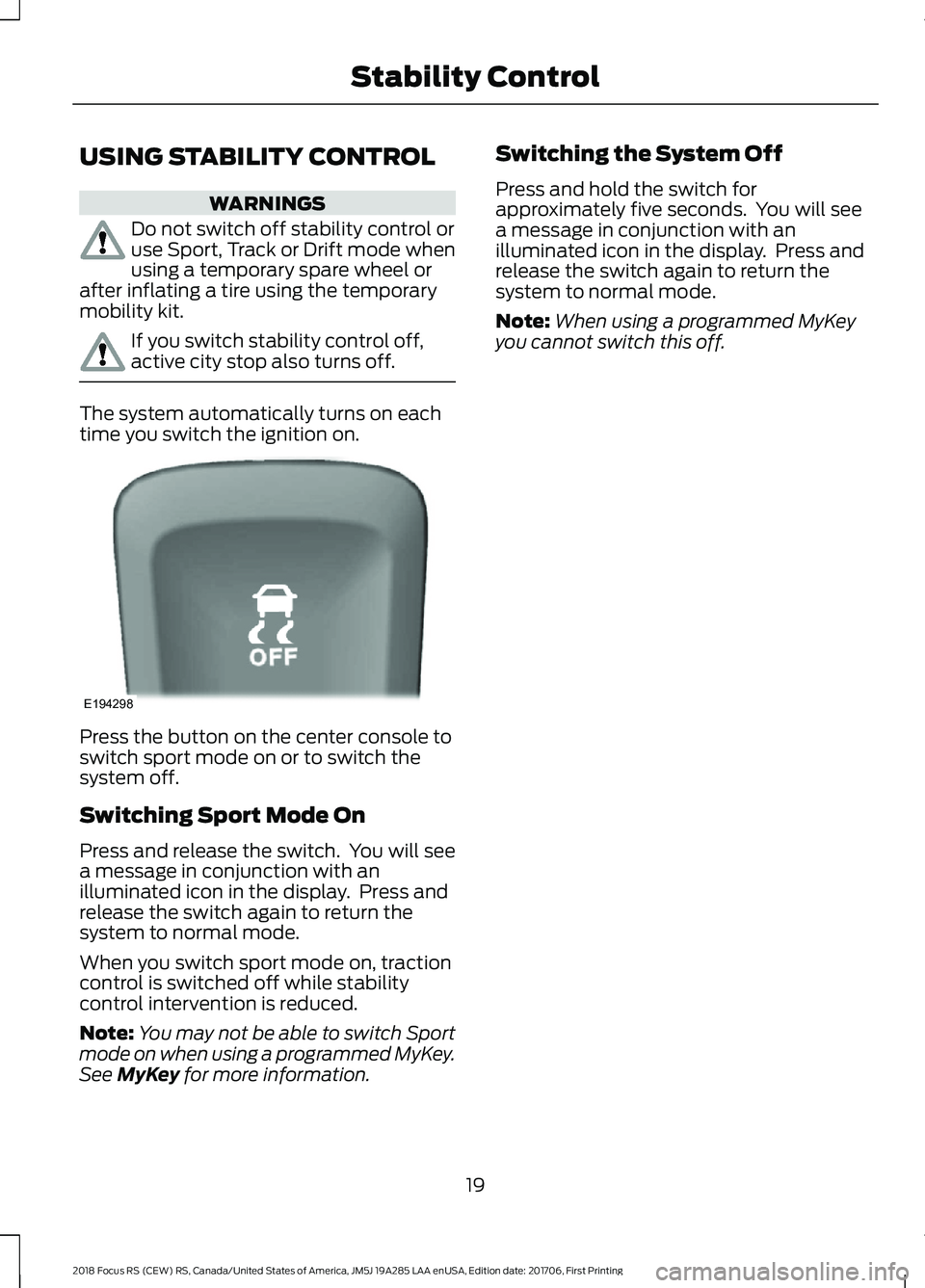

USING STABILITY CONTROL
WARNINGS
Do not switch off stability control oruse Sport, Track or Drift mode whenusing a temporary spare wheel orafter inflating a tire using the temporarymobility kit.
If you switch stability control off,active city stop also turns off.
The system automatically turns on eachtime you switch the ignition on.
Press the button on the center console toswitch sport mode on or to switch thesystem off.
Switching Sport Mode On
Press and release the switch. You will seea message in conjunction with anilluminated icon in the display. Press andrelease the switch again to return thesystem to normal mode.
When you switch sport mode on, tractioncontrol is switched off while stabilitycontrol intervention is reduced.
Note:You may not be able to switch Sportmode on when using a programmed MyKey.See MyKey for more information.
Switching the System Off
Press and hold the switch forapproximately five seconds. You will seea message in conjunction with anilluminated icon in the display. Press andrelease the switch again to return thesystem to normal mode.
Note:When using a programmed MyKeyyou cannot switch this off.
192018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingStability ControlE194298

DRIVE CONTROL
WARNING
Do not use Sport, Track or Drift modewhen using a temporary spare wheelor after inflating a tire using thetemporary mobility kit.
Your vehicle has various drive modes thatcan deliver driving experiences through asuite of sophisticated electronic systems.Each mode has preset vehicle settings tooptimize steering, all-wheel drive, torquevectoring, powertrain response, suspensionand electronic stability control.
Selectable Drive Modes
Press the button.
The available modes appear in theinformation display. Repeatedly press thebutton to scroll through the availablemodes. When your desired mode appearsin the information display, wait for fourseconds while the system sets the selectedmode or press the OK button on thesteering wheel.
Note:You may not be able to choose oneof the selectable drive modes for a shorttime after starting your vehicle in coldambient temperatures.
Selectable Drive Modes
Normal
The system defaults to normalmode when you start thevehicle. Vehicle settings tunedfor street driving.
Electronic stability control and tractioncontrol systems fully enabled.
Note:When using a programmed MyKeyyou cannot switch any other mode on.
Sport
Vehicle settings tuned forperformance street driving.
Electronic stability control and tractioncontrol systems fully enabled.
Note:When using a programmed MyKeyyou cannot switch this on.
Track
This mode is for track use only.Vehicle settings tuned foraggressive driving.
The system reduces brake systemintervention from the stability controlsystem and optimizes the road-holdingability of your vehicle. Electronic stabilitycontrol is set to reduced mode while thetraction control system is disabled apartfrom the electronic limited slip differentialfunction. Engine interventions from thestability control and traction controlsystems are also disabled.
Note:When using a programmed MyKeyyou cannot switch this on.
Drift
This mode is for track use only.Vehicle settings tuned forspirited and aggressive driving.
The system reduces brake systemintervention from the stability controlsystem and increases torque transfer tothe rear axle to allow controlled oversteerdrifts.
Electronic stability control is set to reducedmode while the traction control system isdisabled apart from the electronic limitedslip differential function. Engineinterventions from the stability control andtraction control systems are also disabled.
202018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingDriving Aids

The electronic stability control or all-wheeldrive system may automatically turn offduring extreme drifting maneuvers. If asystem turns off, the electronic stabilitycontrol warning lamp illuminates or acorresponding all-wheel drive messageappears in the information display.Continue to drive and when normal drivingresumes, the systems automatically turnon within a short period. If the electronicstability control warning lamp remainsilluminated or a warning message remainsin the information display, have yourvehicle checked as soon as possible.
Note:When using a programmed MyKeyyou cannot switch this on.
Suspension Damping
Selectable Suspension Damping
Normal
The system defaults to normal mode whenyou start the vehicle. Vehicle suspensiondamping tuned for street driving.
Sport
Vehicle suspension damping tuned forperformance driving on flat roads or fortrack use. Sport mode gives firmersuspension damping characteristics.
To select normal or sport mode, do thefollowing:
1.Press and hold the button for a shortperiod of time. The current settingappears in the information display.Release the button again to change thesetting.
Enhanced Torque VectoringControl
The system consists of two elements:
•Torque vectoring control.Automatically applies brake torque onthe inner wheel in a curve to increasetraction and decrease understeer.
•Cornering understeer control.Automatically controls the tractionresponse of your vehicle when youaccelerate on high and low frictionsurfaces.
Unlike electronic stability control,enhanced torque vectoring control doesnot slow the vehicle. The system limitsexcessive wheel slip giving greatercornering ability.
Note:The system does not disableenhanced torque vectoring control if youswitch the stability control system ortraction control system off.
In addition to enhanced torque vectoringcontrol, your vehicle also has all-wheeldrive with dynamic torque vectoring.
This feature further improves theroad-holding and traction abilities of yourvehicle. See All-Wheel Drive (page 13).
212018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingDriving AidsE219514

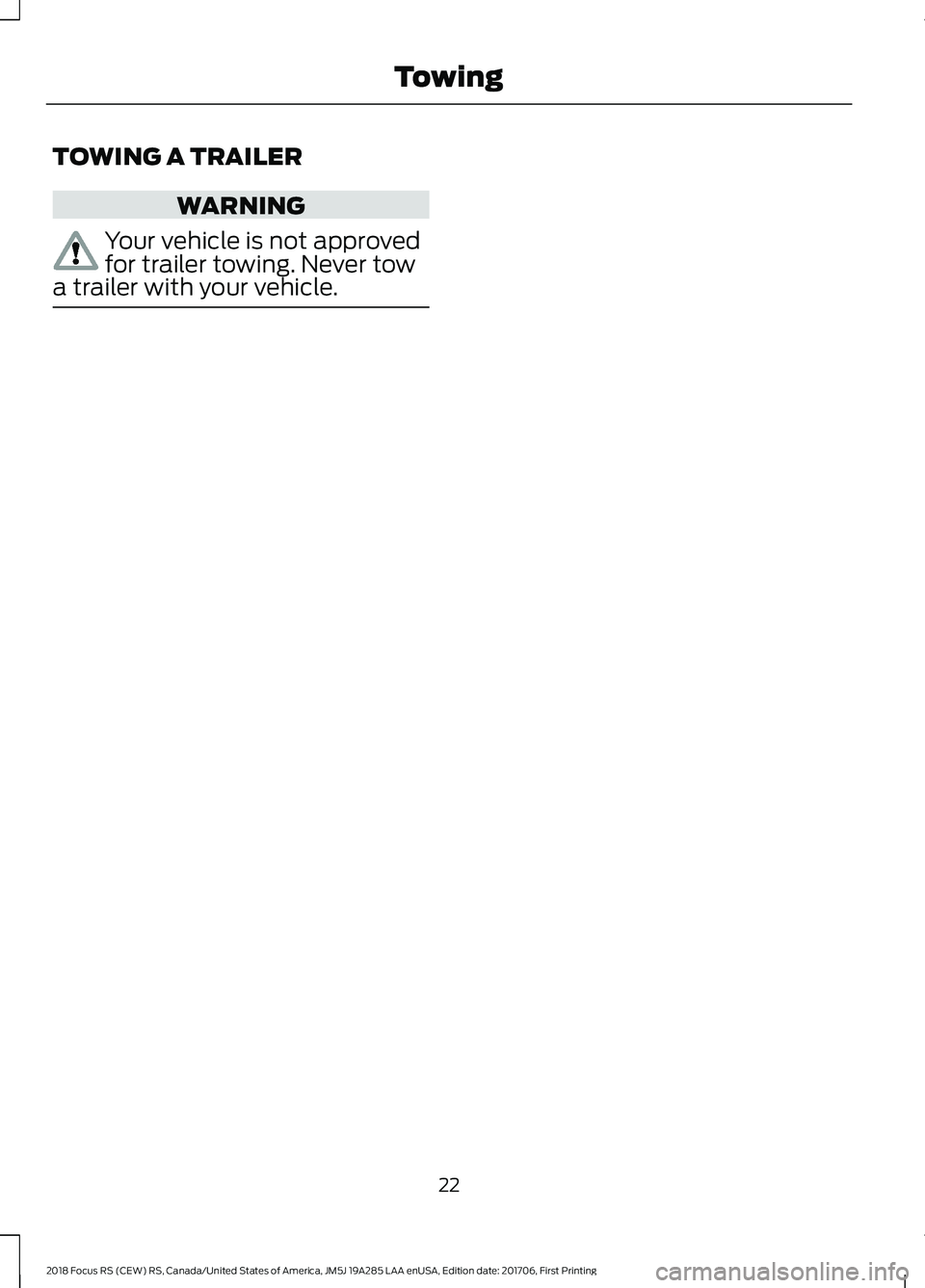

TOWING A TRAILER
WARNING
Your vehicle is not approvedfor trailer towing. Never towa trailer with your vehicle.
222018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingTowing

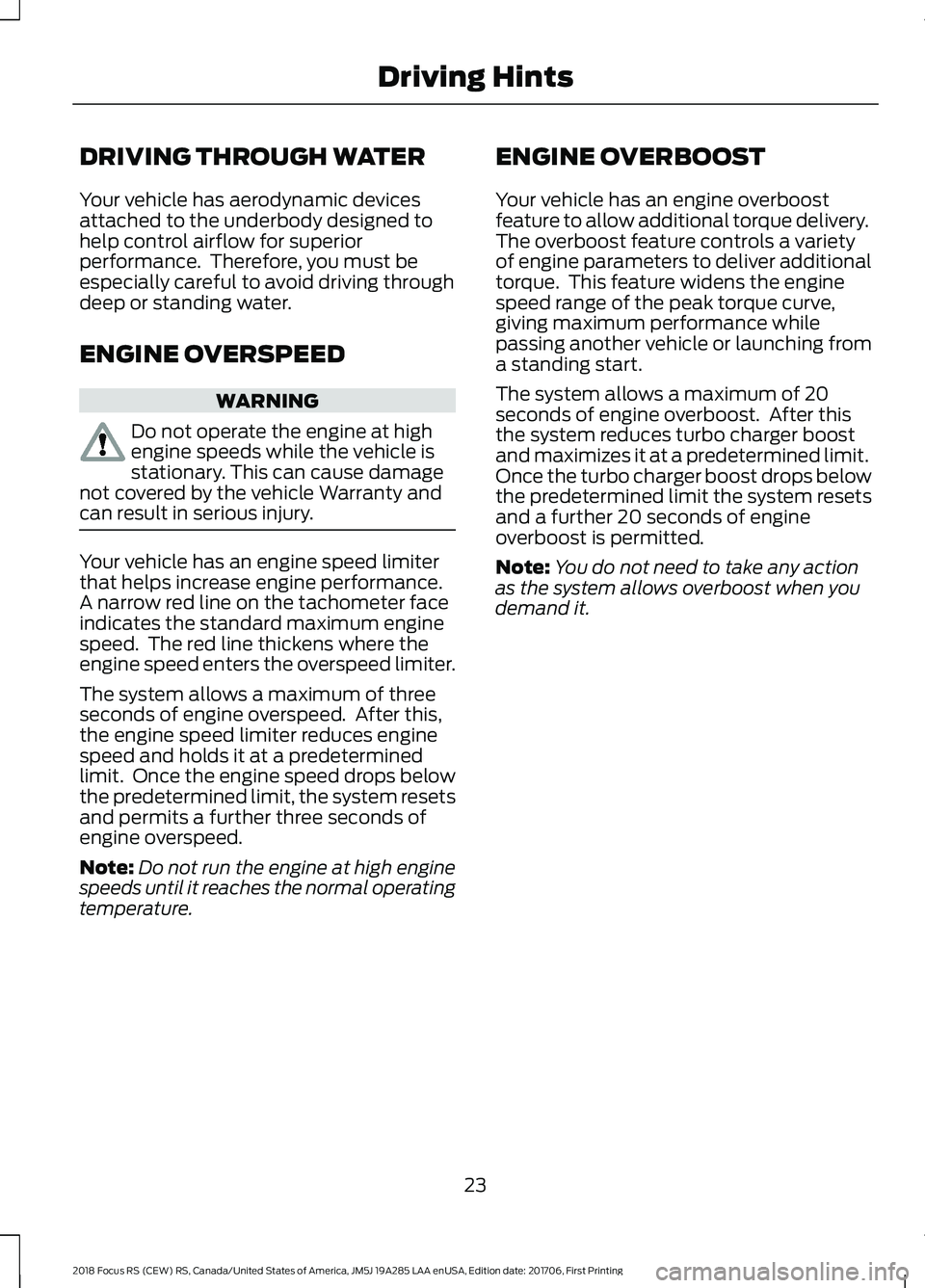

DRIVING THROUGH WATER
Your vehicle has aerodynamic devicesattached to the underbody designed tohelp control airflow for superiorperformance. Therefore, you must beespecially careful to avoid driving throughdeep or standing water.
ENGINE OVERSPEED
WARNING
Do not operate the engine at highengine speeds while the vehicle isstationary. This can cause damagenot covered by the vehicle Warranty andcan result in serious injury.
Your vehicle has an engine speed limiterthat helps increase engine performance.A narrow red line on the tachometer faceindicates the standard maximum enginespeed. The red line thickens where theengine speed enters the overspeed limiter.
The system allows a maximum of threeseconds of engine overspeed. After this,the engine speed limiter reduces enginespeed and holds it at a predeterminedlimit. Once the engine speed drops belowthe predetermined limit, the system resetsand permits a further three seconds ofengine overspeed.
Note:Do not run the engine at high enginespeeds until it reaches the normal operatingtemperature.
ENGINE OVERBOOST
Your vehicle has an engine overboostfeature to allow additional torque delivery.The overboost feature controls a varietyof engine parameters to deliver additionaltorque. This feature widens the enginespeed range of the peak torque curve,giving maximum performance whilepassing another vehicle or launching froma standing start.
The system allows a maximum of 20seconds of engine overboost. After thisthe system reduces turbo charger boostand maximizes it at a predetermined limit.Once the turbo charger boost drops belowthe predetermined limit the system resetsand a further 20 seconds of engineoverboost is permitted.
Note:You do not need to take any actionas the system allows overboost when youdemand it.
232018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingDriving Hints

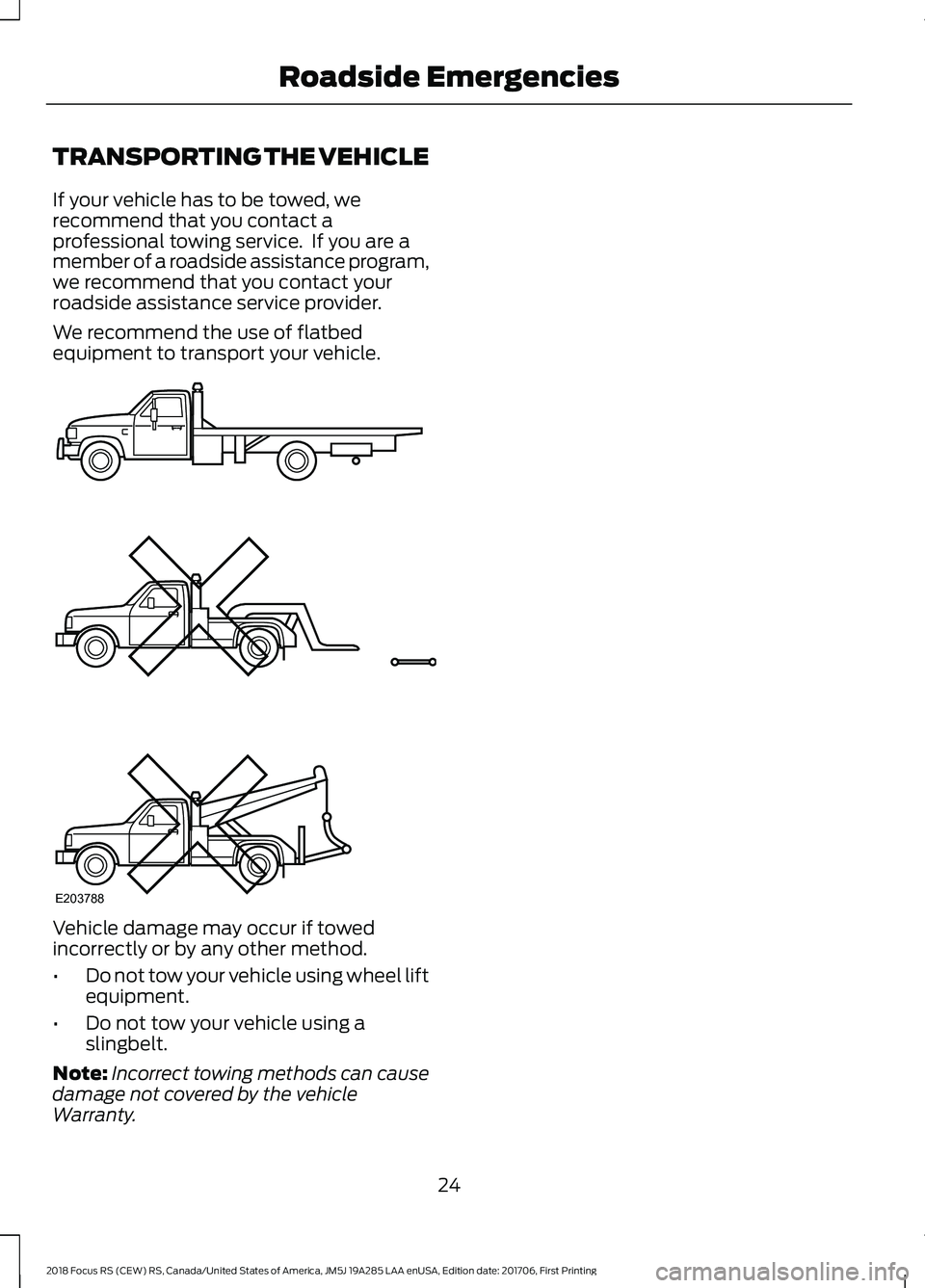

TRANSPORTING THE VEHICLE
If your vehicle has to be towed, werecommend that you contact aprofessional towing service. If you are amember of a roadside assistance program,we recommend that you contact yourroadside assistance service provider.
We recommend the use of flatbedequipment to transport your vehicle.
Vehicle damage may occur if towedincorrectly or by any other method.
•Do not tow your vehicle using wheel liftequipment.
•Do not tow your vehicle using aslingbelt.
Note:Incorrect towing methods can causedamage not covered by the vehicleWarranty.
242018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingRoadside EmergenciesE203788

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
Protected ComponentFuse RatingFuse Location
Rear drive unit control.30 AF17
Fuel pump electronic module 2 feed.20 AF30
Exhaust valve.7.5 AF36
Protected ComponentRelay Number
Fuel pump electronic module 2 feed.R1
Cooling fan control 4.R3
Cooling fan control 5.R5
252018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingFusesE129925

Luggage Compartment Fuse Box
Protected ComponentFuse RatingFuse Location
Fuel control relay.15 AF21Damper control relay.
Not used (spare).10 AF22
Protected ComponentRelay Number
Fuel control module.R4Damper control module.
262018 Focus RS (CEW) RS, Canada/United States of America, JM5J 19A285 LAA enUSA, Edition date: 201706, First PrintingFusesE129927
