audio FORD FREESTYLE 2005 1.G Quick Reference Guide

On/Off/Volume Control
Push to turn ON or OFF. Turn toincrease or decrease volume. Ifthe volume is set above acertain level and the ignition isturned off, the volume will
come back on at a “nominal”level when the ignition switch isturned back on.
Tune/Disc Selector
Press to go up or down theradio frequency band or toselect a desired disc. Also
use in MENU mode to selectvarious settings.
Bass/Treble
Press MENU until Bass/Treblesettings are displayed. Adjustusing the SEEK control.
Balance/Fade
Press MENU until Balance isdisplayed. Press to adjustthe audio between the leftand right speakers using theSEEK control. Press MENU
again to display Fade. Pressto adjust audio between thefront and rear speakersusing the SEEK control.
MP3 Track/Folder Mode
In Track mode, pressingSEEK will scroll through all
tracks on the disc. In Foldermode, pressing SEEK willscroll only through tracks
within a selected folder.
CD
Press to enter CD mode. If a CD is already loaded intothe system, the CD will beginplaying where it last ended.LOADPress LOAD to begin the CD
load sequence. When thedisplay prompts to select aslot, use the desired slot toload the CD. Press and hold
LOAD to autoload up to 6 CDs, one at a time, when thedisplay prompts to load a CD.
AM/FM
Press to select AM or FMfrequency bands.
Setting Memory Presets
To set a station: SelectAM/FM frequency band,tune to a station, then pressand hold a preset buttonuntil the sound returns.
SCAN control
Press for a brief sampling ofradio stations or CD tracks.Press again to stop.
SEEK control
Press to access thenext/previous strong stationor track.
Setting The Clock
Press MENU until SELECTHOUR or SELECT MINS isdisplayed. Use the up/downarrows and SEEK control toadjust the hours/minutes.
Dual Play/Single Play
If the vehicle has a DVD
system, simultaneously presspreset buttons 2 and 4 toswitch between Dual Play and
Single Play. Please consult
your Owner's Guide for DVDsystem operation.
12
11
10
9
8
7
6
5
4
3
2
1
SEATING
Front Passenger Fold Flat Seat Back
The front passenger seat back canbe folded down to a horizontalposition to allow room for a longload. Ensure that the seat is in therearmost position and the headrestraint is fully down, prior to pulling the straplocated on the back of the seat back.
Adjusting 2nd Row Bucket and Bench Seats
Lift the side handle to adjust theseat back. Using the same controlwill fold the seat back flat. Lifting the control (if equipped) locatedunderneath the seat cushion will
adjust the seat forward or backward.
Accessing the 3rd Row Seats
Ensure that the 2nd row seathead restraints are in the fulldown position and no objectssuch as books, purses, orbriefcases are on the floor in frontof the 2nd row seats before folding them down.
Place the front row seat in a forward position to
allow the 2nd row seat to be fully ”tumbled.” Liftthe handle once to fold the seat back flat. Lift the
same handle a second time to “tumble” the seat
forward to allow access to the 3rd row seat.
Stowing the 3rd Row Bench or
Split Bench Seat in Tub
Move the head restraint fully down.
Ensure that the stowage tub isclear of objects prior to cycling.
From the rear of the vehicle, fold
the seat back by pulling andholding the number 1 strap while pushing the seat
back forward. Release the strap after the seat
back starts rotating forward.
Release the cushion latches by pulling the
number 2 strap while pulling on the long straplocated on the seat back, to rotate the seat all the
way into the tub in the floor.
AUDIO SYSTEM
Premium/Audiophile InDash 6CD Sound System (IF EQUIPPED)

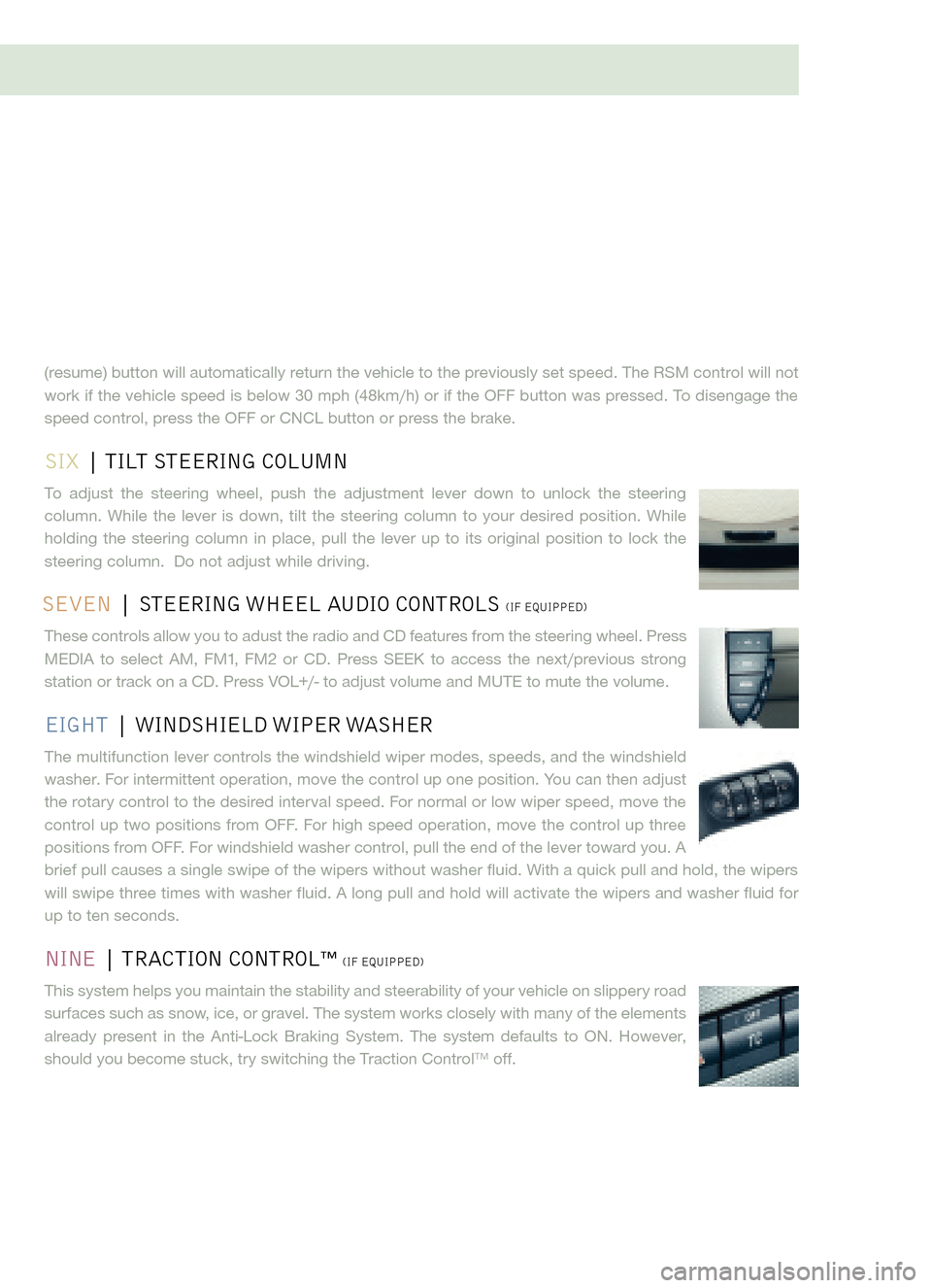

(resume) button will automatically return the vehicle to the previously set speed. The RSM control will not
work if the vehicle speed is below 30 mph (48km/h) or if the OFF button was pressed. To disengage thespeed control, press the OFF or CNCL button or press the brake.
SIX| TILT STEERING COLUMN
To adjust the steering wheel, push the adjustment lever down to unlock the steering
column. While the lever is down, tilt the steering column to your desired position. Whileholding the steering column in place, pull the lever up to its original position to lock thesteering column. Do not adjust while driving.
SEVEN | STEERING WHEEL AUDIO CONTROLS (IF EQUIPPED)
These controls allow you to adust the radio and CD features from the steering wheel. Press
MEDIA to select AM, FM1, FM2 or CD. Press SEEK to access the next/previous strong
station or track on a CD. Press VOL+/ to adjust volume and MUTE to mute the volume.
EIGHT| WINDSHIELD WIPER WASHER
The multifunction lever controls the windshield wiper modes, speeds, and the windshield
washer. For intermittent operation, move the control up one position. You can then adjust
the rotary control to the desired interval speed. For normal or low wiper speed, move the
control up two positions from OFF. For high speed operation, move the control up three
positions from OFF. For windshield washer control, pull the end of the lever toward you. A
brief pull causes a single swipe of the wipers without washer fluid. With a quick pull and hold, the wiperswill swipe three times with washer fluid. A long pull and hold will activate the wipers and washer fluid forup to ten seconds.
NINE| TRACTION CONTROL™(IF EQUIPPED)
This system helps you maintain the stability and steerability of your vehicle on slippery road
surfaces such as snow, ice, or gravel. The system works closely with many of the elements
already present in the AntiLock Braking System. The system defaults to ON. However,
should you become stuck, try switching the Traction Control™ off.
