Page 208 of 288

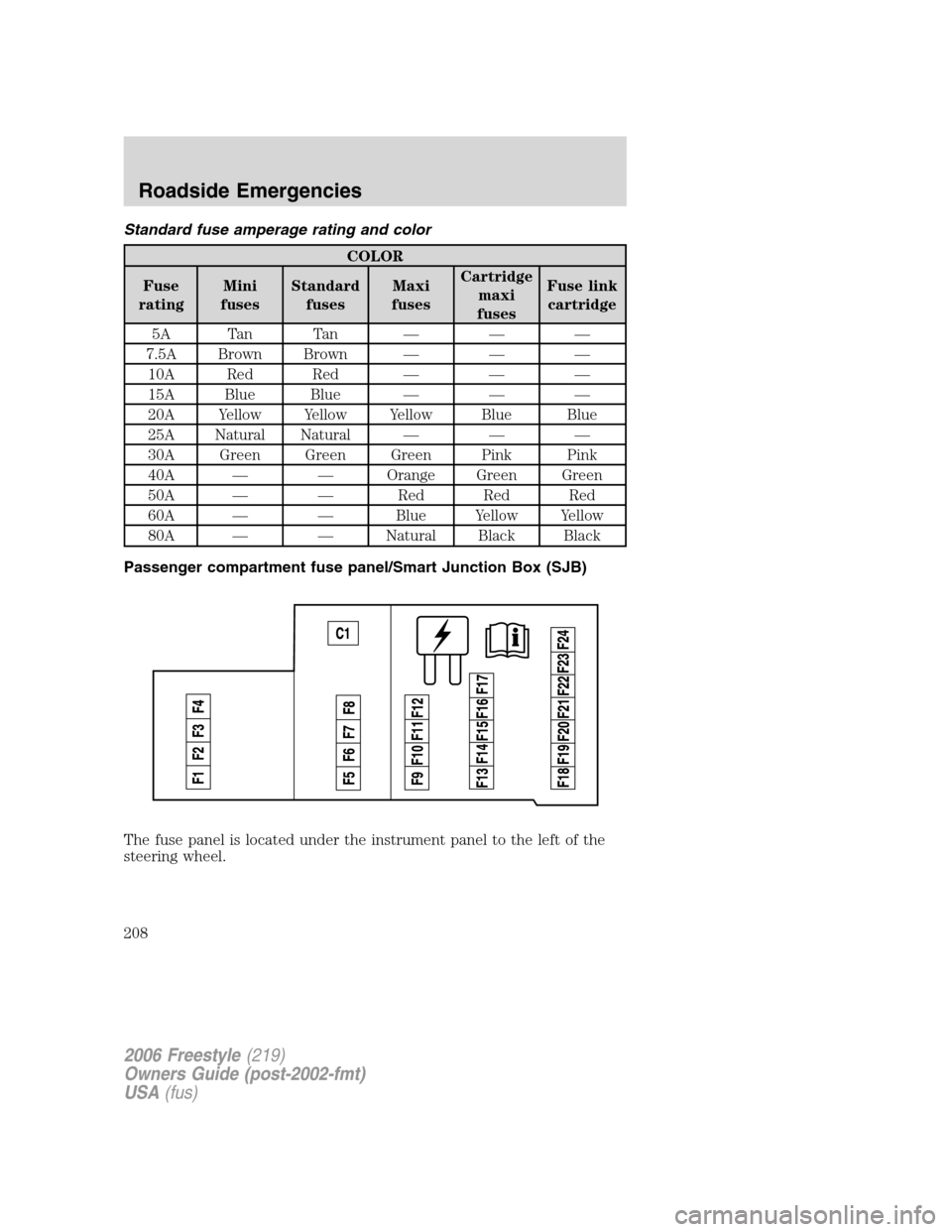

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
5A Tan Tan — — —
7.5A Brown Brown — — —
10A Red Red — — —
15A Blue Blue — — —
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural — — —
30A Green Green Green Pink Pink
40A — — Orange Green Green
50A — — Red Red Red
60A — — Blue Yellow Yellow
80A — — Natural Black Black
Passenger compartment fuse panel/Smart Junction Box (SJB)
The fuse panel is located under the instrument panel to the left of the
steering wheel.
2006 Freestyle(219)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
208
Page 211 of 288

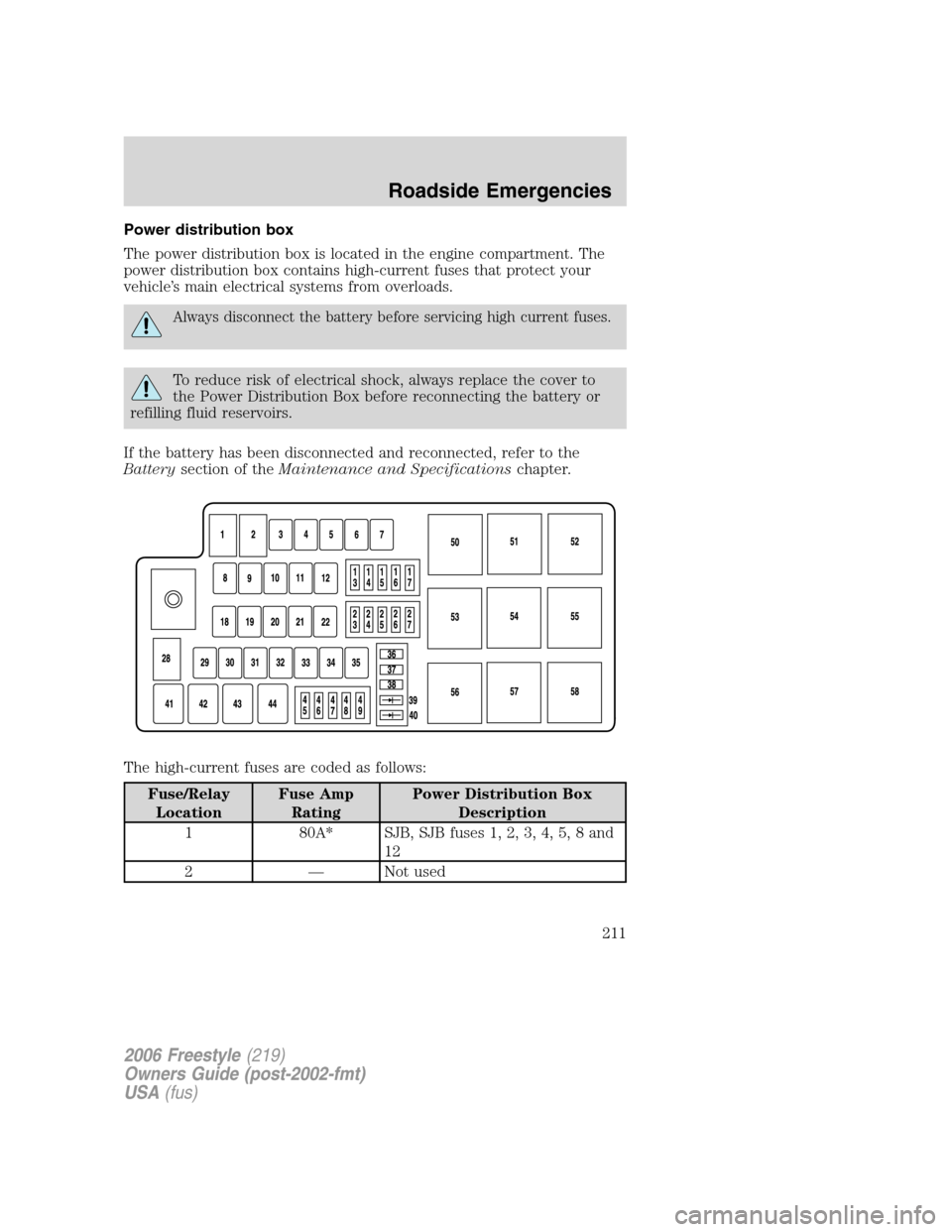

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current fuses.
To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or
refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 80A* SJB, SJB fuses 1, 2, 3, 4, 5, 8 and
12
2 — Not used
2006 Freestyle(219)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
211
Page 212 of 288

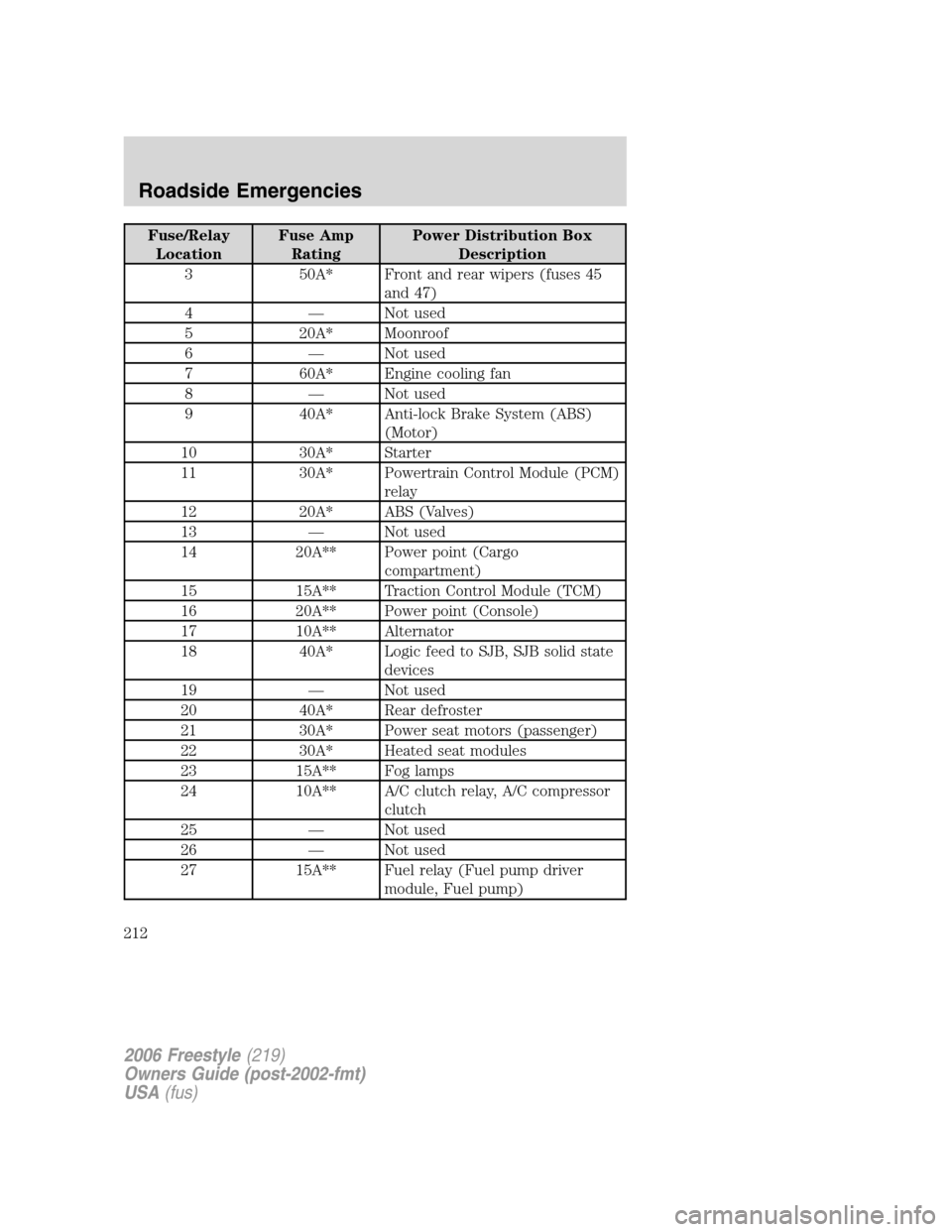

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
3 50A* Front and rear wipers (fuses 45
and 47)
4 — Not used
5 20A* Moonroof
6 — Not used
7 60A* Engine cooling fan
8 — Not used
9 40A* Anti-lock Brake System (ABS)
(Motor)
10 30A* Starter
11 30A* Powertrain Control Module (PCM)
relay
12 20A* ABS (Valves)
13 — Not used
14 20A** Power point (Cargo
compartment)
15 15A** Traction Control Module (TCM)
16 20A** Power point (Console)
17 10A** Alternator
18 40A* Logic feed to SJB, SJB solid state
devices
19 — Not used
20 40A* Rear defroster
21 30A* Power seat motors (passenger)
22 30A* Heated seat modules
23 15A** Fog lamps
24 10A** A/C clutch relay, A/C compressor
clutch
25 — Not used
26 — Not used
27 15A** Fuel relay (Fuel pump driver
module, Fuel pump)
2006 Freestyle(219)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
212
Page 213 of 288

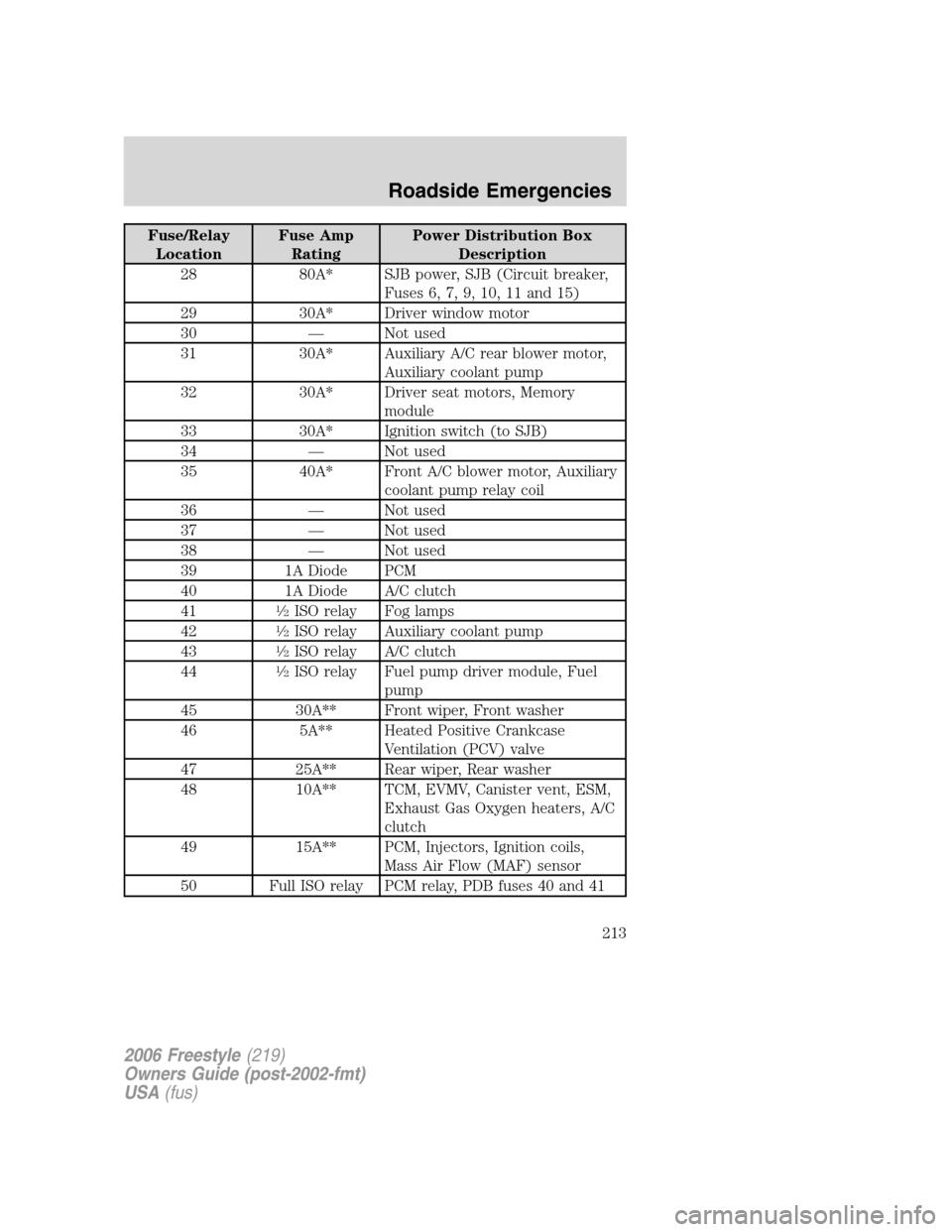

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
28 80A* SJB power, SJB (Circuit breaker,
Fuses 6, 7, 9, 10, 11 and 15)
29 30A* Driver window motor
30 — Not used
31 30A* Auxiliary A/C rear blower motor,
Auxiliary coolant pump
32 30A* Driver seat motors, Memory
module
33 30A* Ignition switch (to SJB)
34 — Not used
35 40A* Front A/C blower motor, Auxiliary
coolant pump relay coil
36 — Not used
37 — Not used
38 — Not used
39 1A Diode PCM
40 1A Diode A/C clutch
41
1 2ISO relay Fog lamps
42
1 2ISO relay Auxiliary coolant pump
43
1 2ISO relay A/C clutch
44
1 2ISO relay Fuel pump driver module, Fuel
pump
45 30A** Front wiper, Front washer
46 5A** Heated Positive Crankcase
Ventilation (PCV) valve
47 25A** Rear wiper, Rear washer
48 10A** TCM, EVMV, Canister vent, ESM,
Exhaust Gas Oxygen heaters, A/C
clutch
49 15A** PCM, Injectors, Ignition coils,
Mass Air Flow (MAF) sensor
50 Full ISO relay PCM relay, PDB fuses 40 and 41
2006 Freestyle(219)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
213
Page 214 of 288

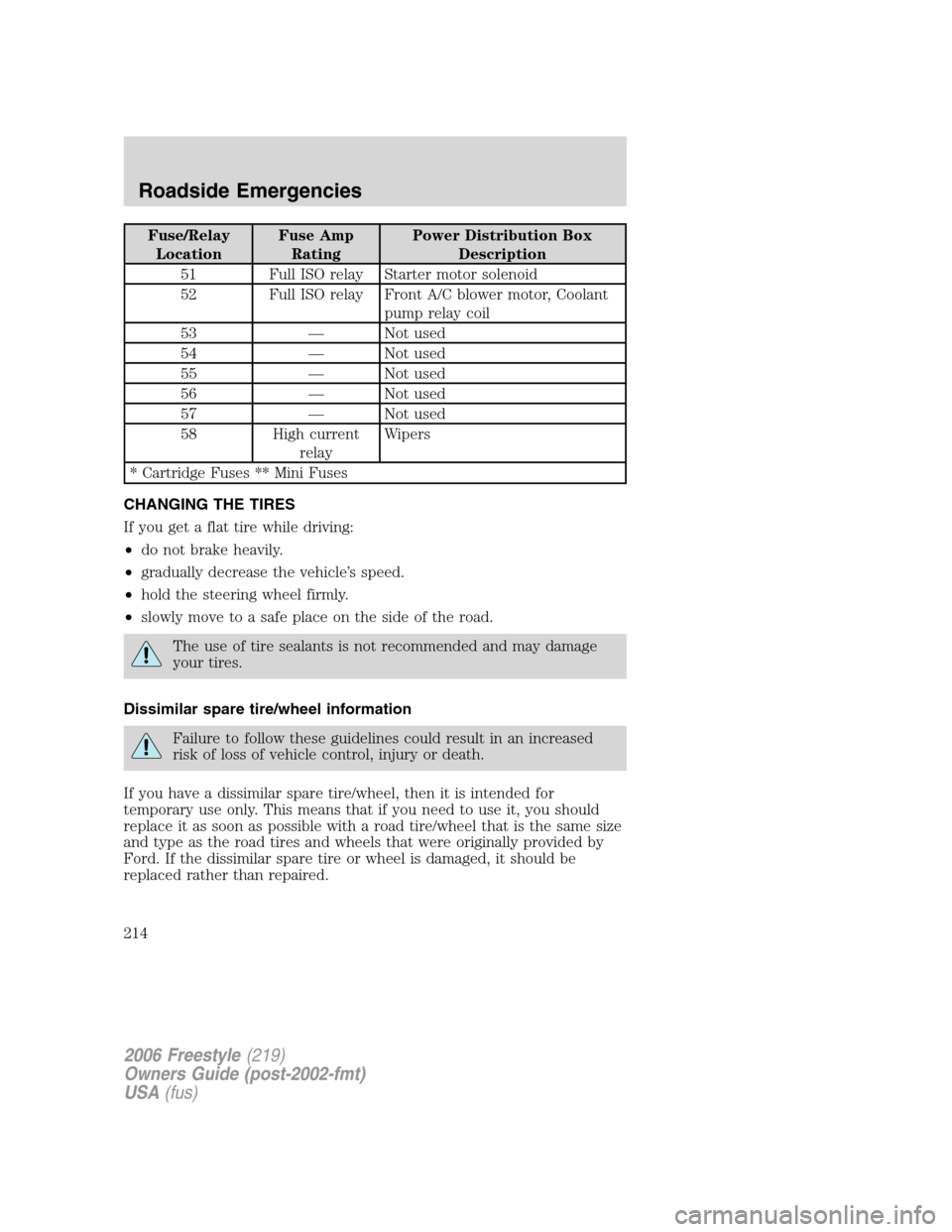

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
51 Full ISO relay Starter motor solenoid
52 Full ISO relay Front A/C blower motor, Coolant
pump relay coil
53 — Not used
54 — Not used
55 — Not used
56 — Not used
57 — Not used
58 High current
relayWipers
* Cartridge Fuses ** Mini Fuses
CHANGING THE TIRES
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
The use of tire sealants is not recommended and may damage
your tires.
Dissimilar spare tire/wheel information
Failure to follow these guidelines could result in an increased
risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
2006 Freestyle(219)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
214
Page 284 of 288

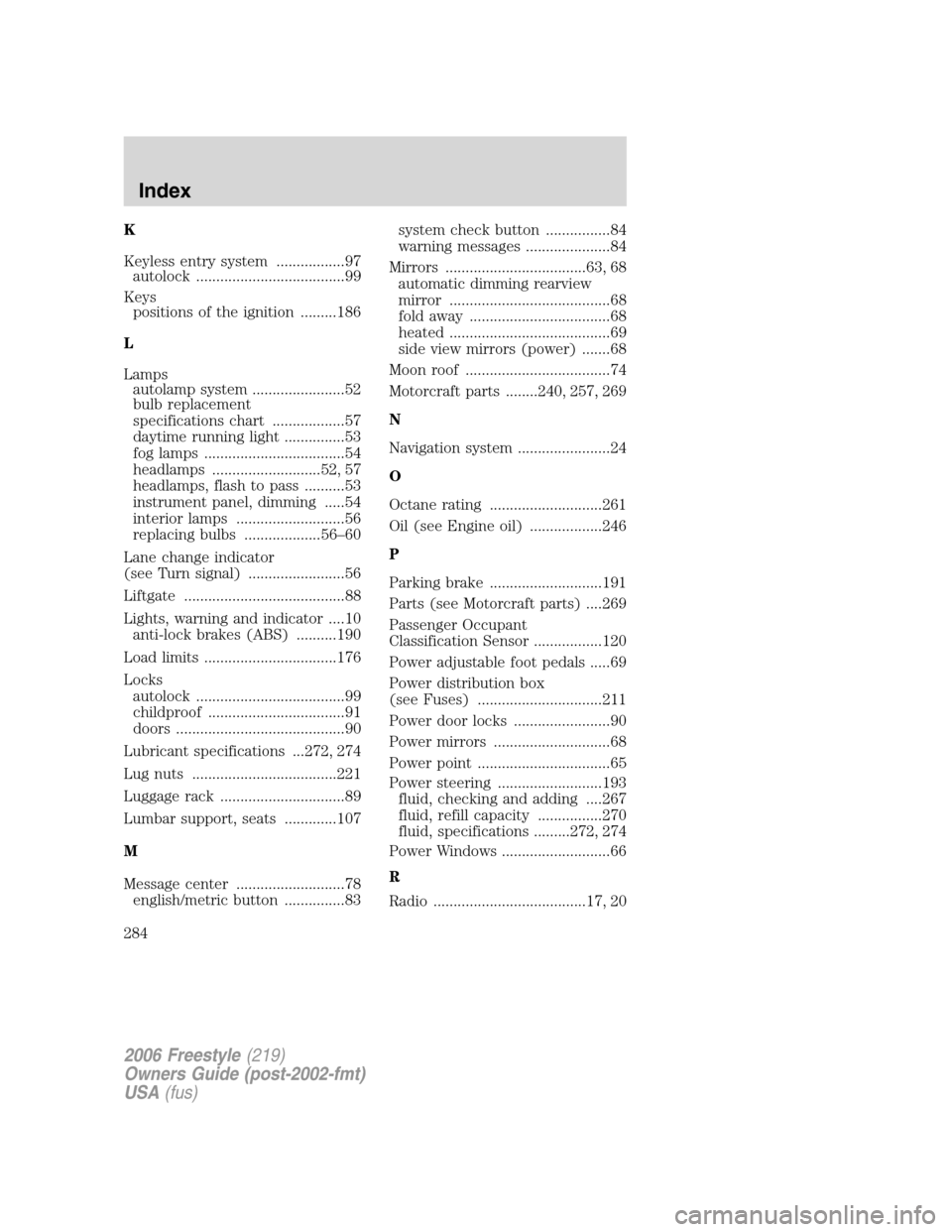

K
Keyless entry system .................97
autolock .....................................99
Keys
positions of the ignition .........186
L
Lamps
autolamp system .......................52
bulb replacement
specifications chart ..................57
daytime running light ...............53
fog lamps ...................................54
headlamps ...........................52, 57
headlamps, flash to pass ..........53
instrument panel, dimming .....54
interior lamps ...........................56
replacing bulbs ...................56–60
Lane change indicator
(see Turn signal) ........................56
Liftgate ........................................88
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........190
Load limits .................................176
Locks
autolock .....................................99
childproof ..................................91
doors ..........................................90
Lubricant specifications ...272, 274
Lug nuts ....................................221
Luggage rack ...............................89
Lumbar support, seats .............107
M
Message center ...........................78
english/metric button ...............83system check button ................84
warning messages .....................84
Mirrors ...................................63, 68
automatic dimming rearview
mirror ........................................68
fold away ...................................68
heated ........................................69
side view mirrors (power) .......68
Moon roof ....................................74
Motorcraft parts ........240, 257, 269
N
Navigation system .......................24
O
Octane rating ............................261
Oil (see Engine oil) ..................246
P
Parking brake ............................191
Parts (see Motorcraft parts) ....269
Passenger Occupant
Classification Sensor .................120
Power adjustable foot pedals .....69
Power distribution box
(see Fuses) ...............................211
Power door locks ........................90
Power mirrors .............................68
Power point .................................65
Power steering ..........................193
fluid, checking and adding ....267
fluid, refill capacity ................270
fluid, specifications .........272, 274
Power Windows ...........................66
R
Radio ......................................17, 20
