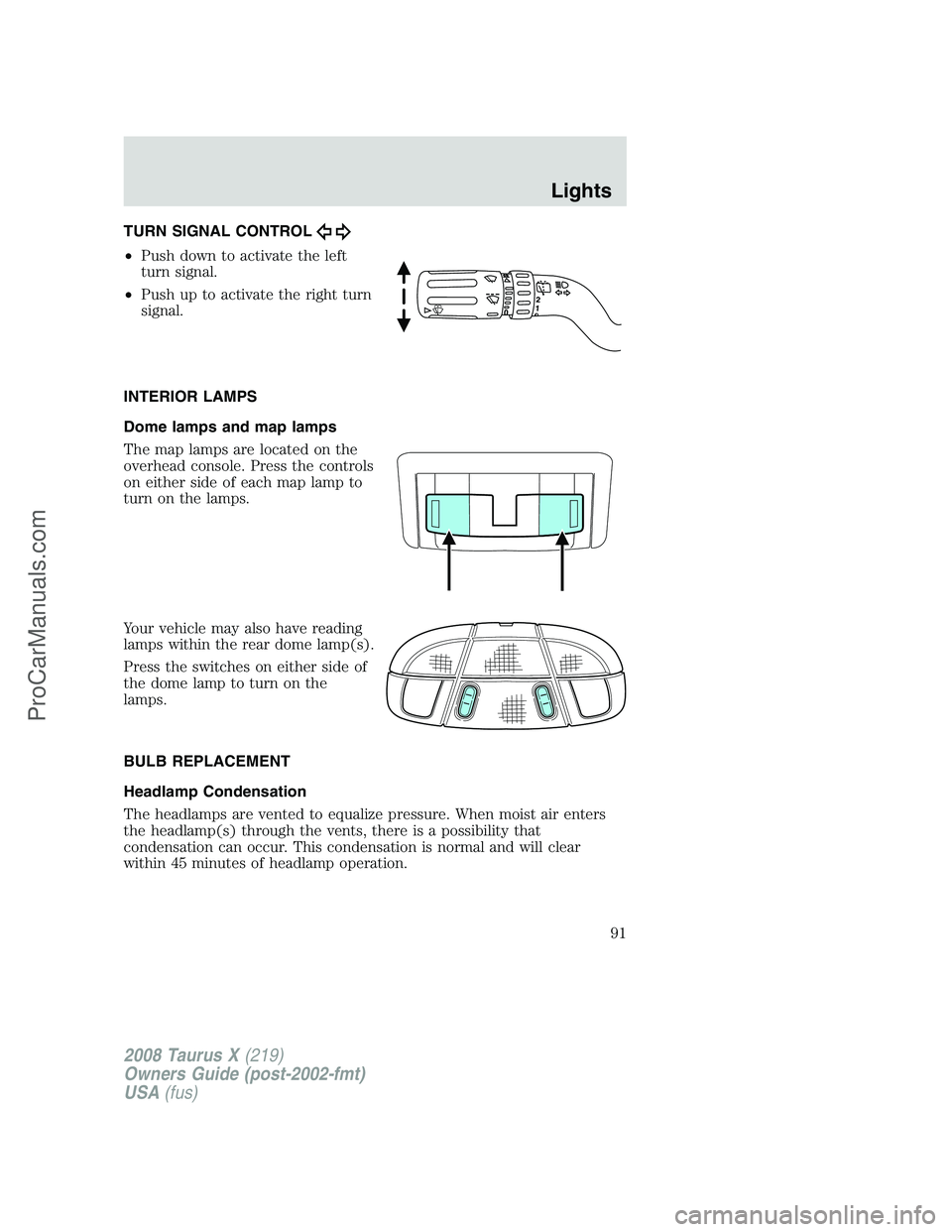

Page 91 of 352

FORD FREESTYLE 2008  Owners Manual TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Dome lamps and map lamps
The map lamps are located on the
overhead conso

Page 92 of 352

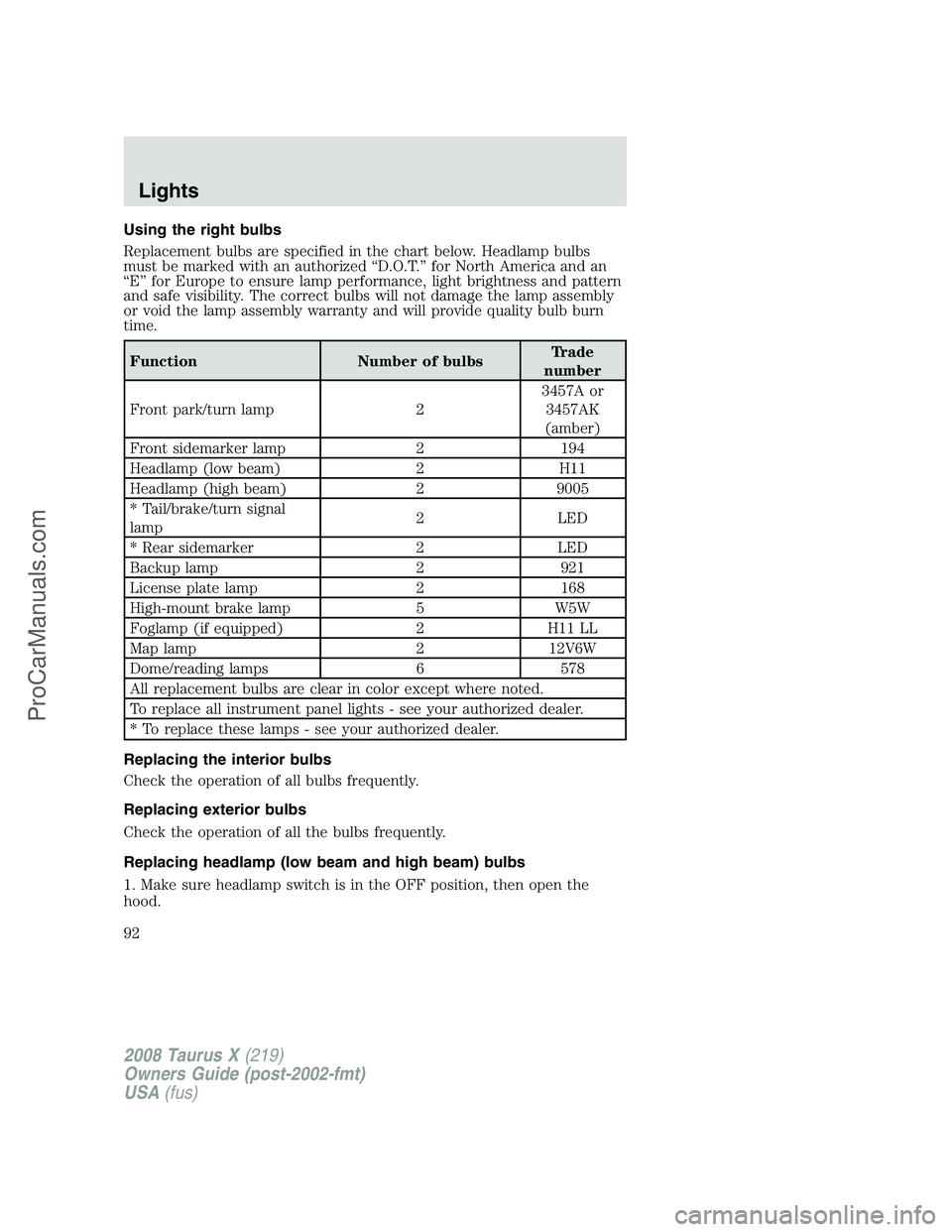

FORD FREESTYLE 2008  Owners Manual Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp perfo

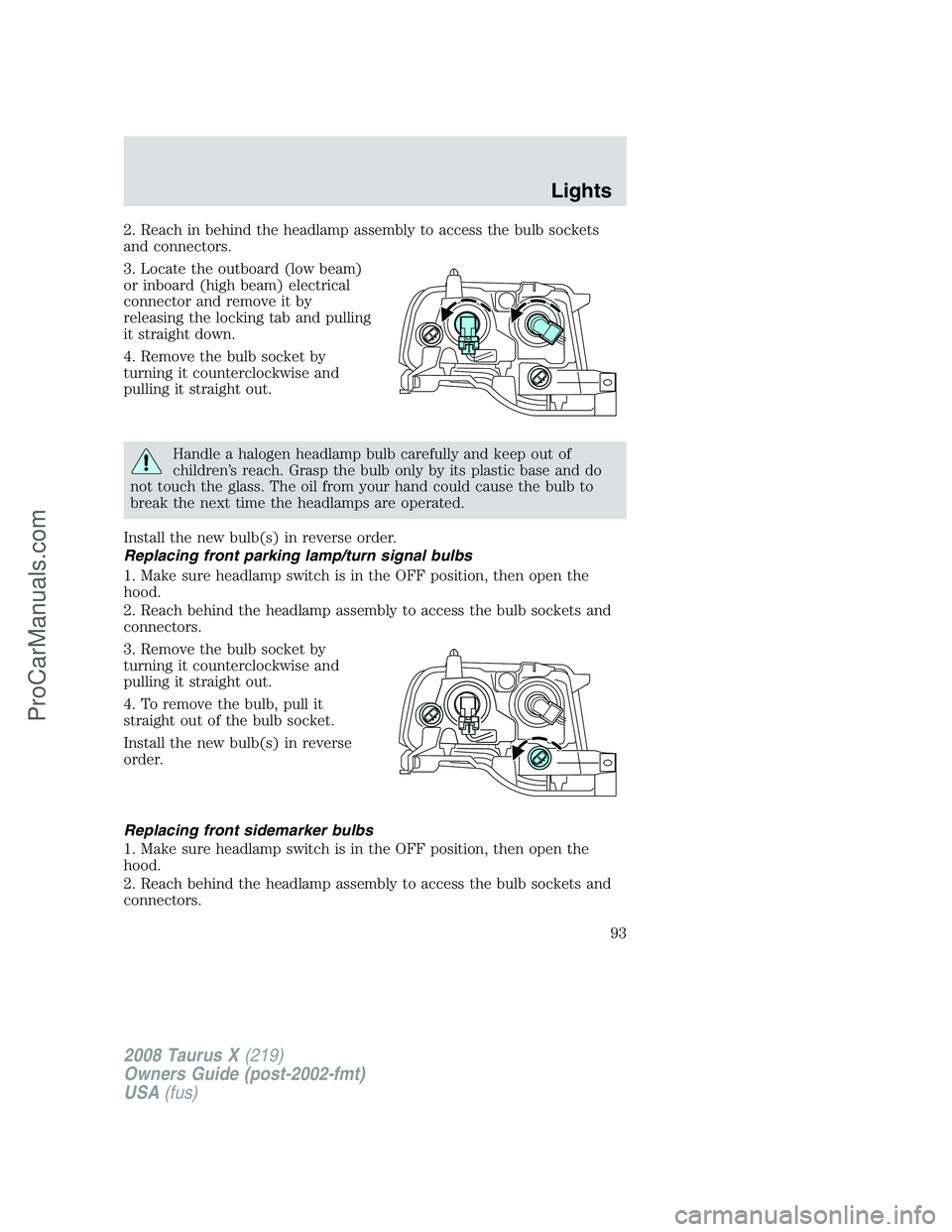

Page 93 of 352

FORD FREESTYLE 2008  Owners Manual 2. Reach in behind the headlamp assembly to access the bulb sockets
and connectors.
3. Locate the outboard (low beam)
or inboard (high beam) electrical
connector and remove it by
releasing the locking

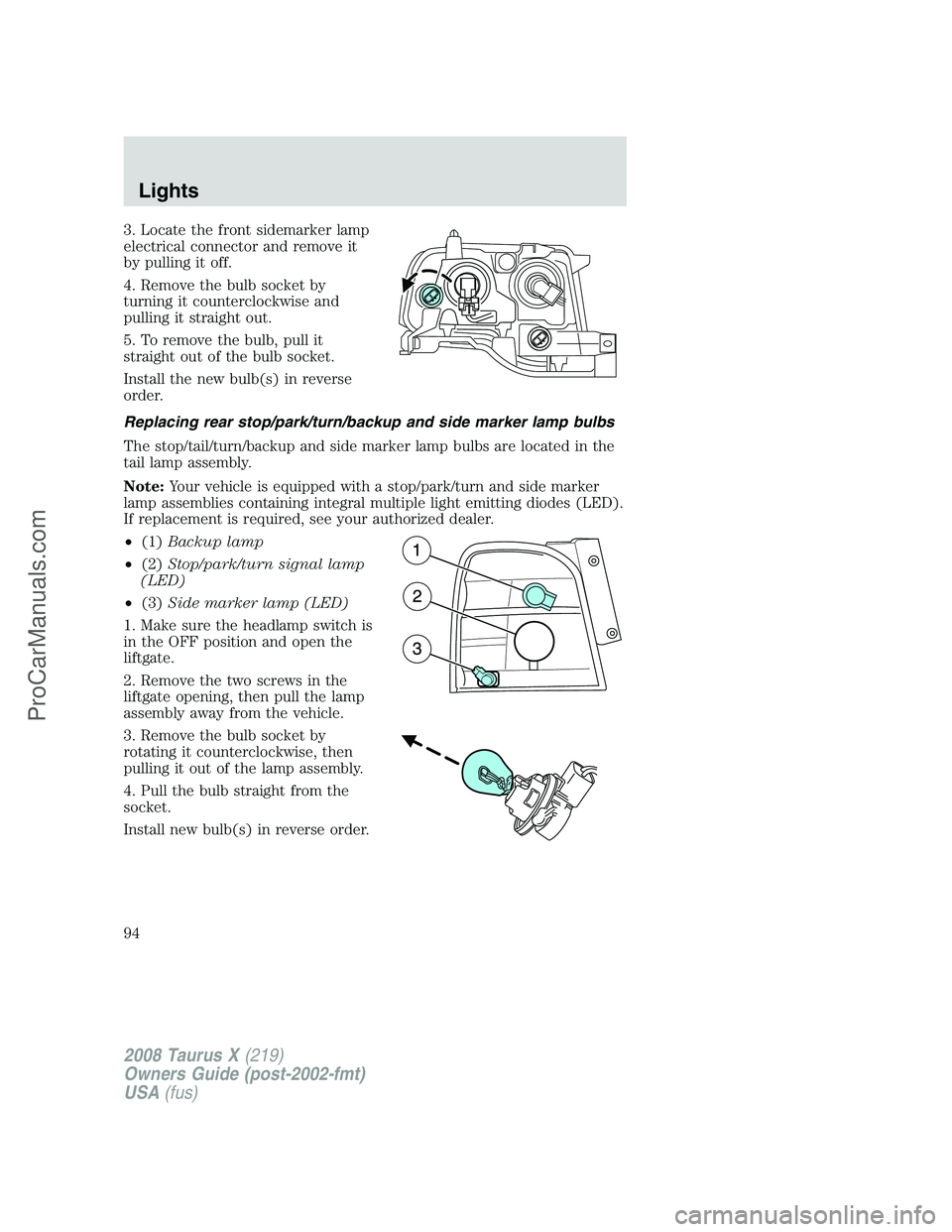

Page 94 of 352

FORD FREESTYLE 2008  Owners Manual 3. Locate the front sidemarker lamp
electrical connector and remove it
by pulling it off.
4. Remove the bulb socket by
turning it counterclockwise and
pulling it straight out.
5. To remove the bulb, p

Page 95 of 352

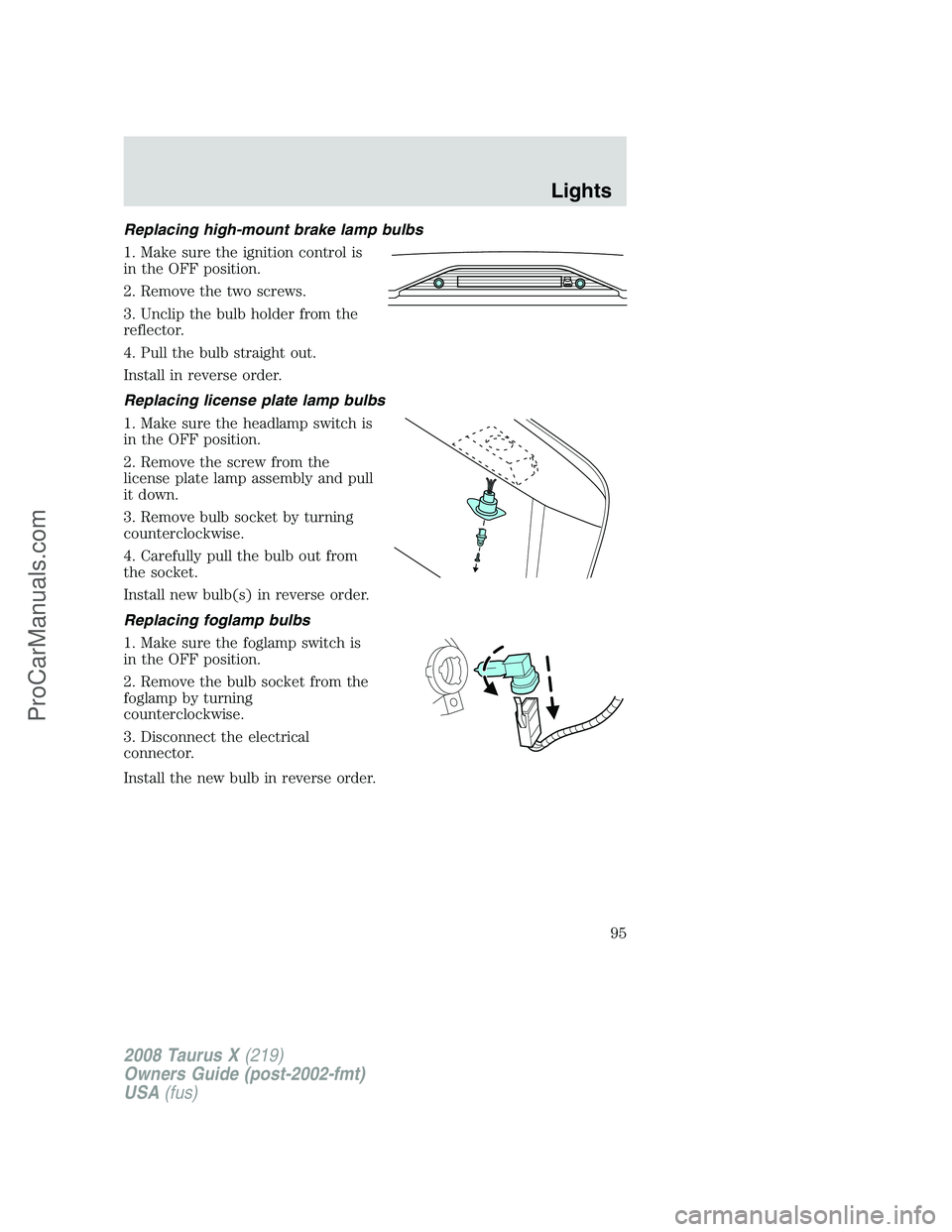

FORD FREESTYLE 2008  Owners Manual Replacing high-mount brake lamp bulbs
1. Make sure the ignition control is
in the OFF position.
2. Remove the two screws.
3. Unclip the bulb holder from the
reflector.
4. Pull the bulb straight out.
I

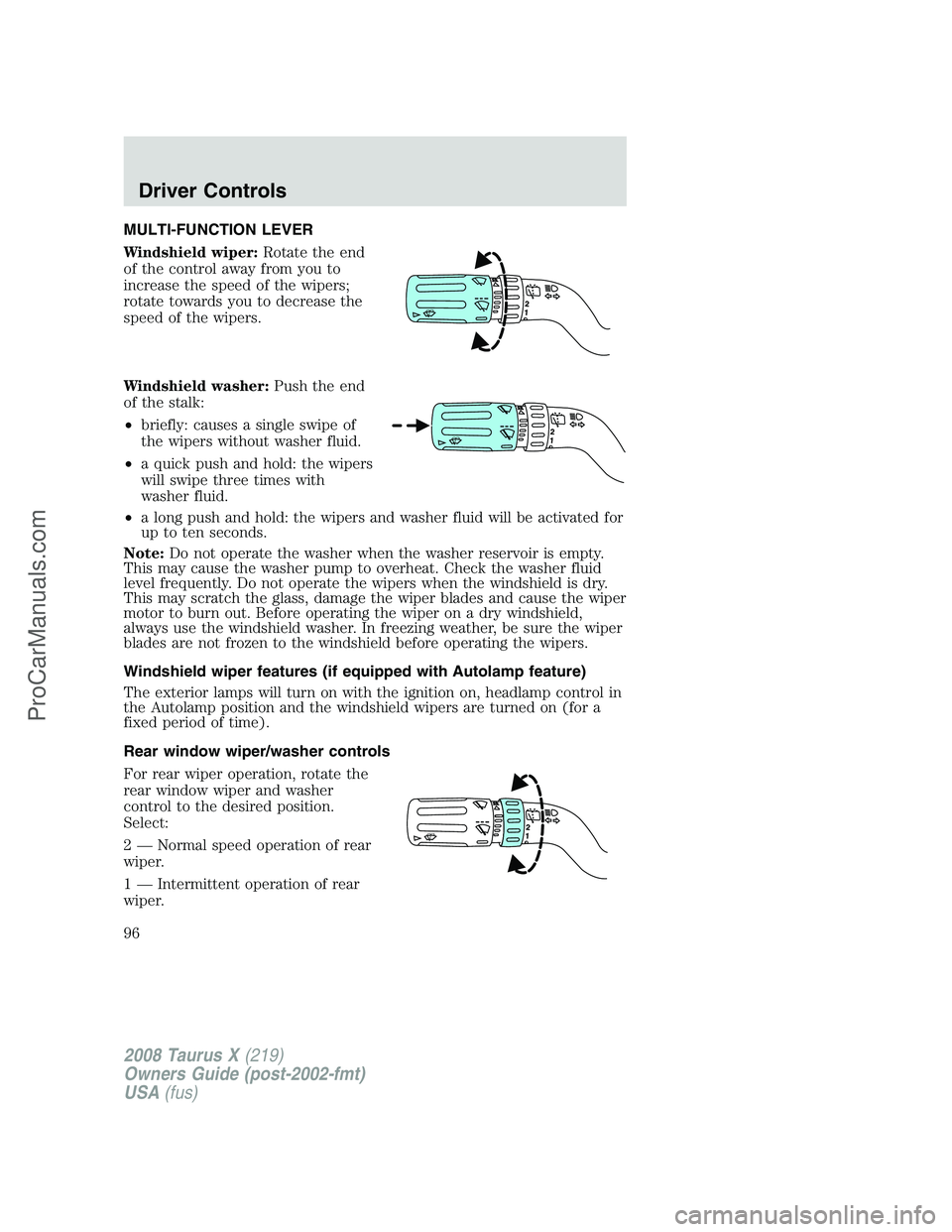

Page 96 of 352

FORD FREESTYLE 2008  Owners Manual MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push th

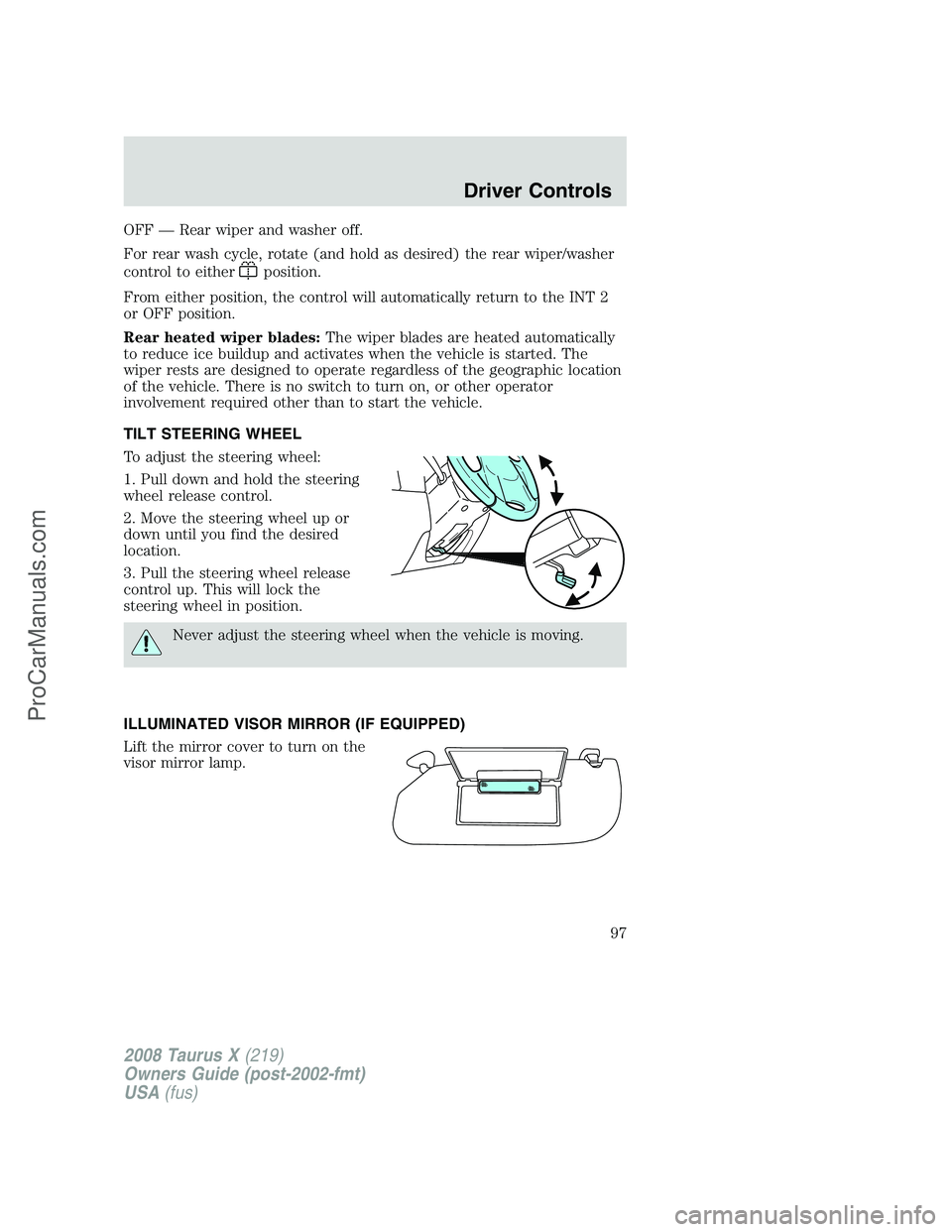

Page 97 of 352

FORD FREESTYLE 2008  Owners Manual OFF — Rear wiper and washer off.
For rear wash cycle, rotate (and hold as desired) the rear wiper/washer
control to either
position.
From either position, the control will automatically return to th

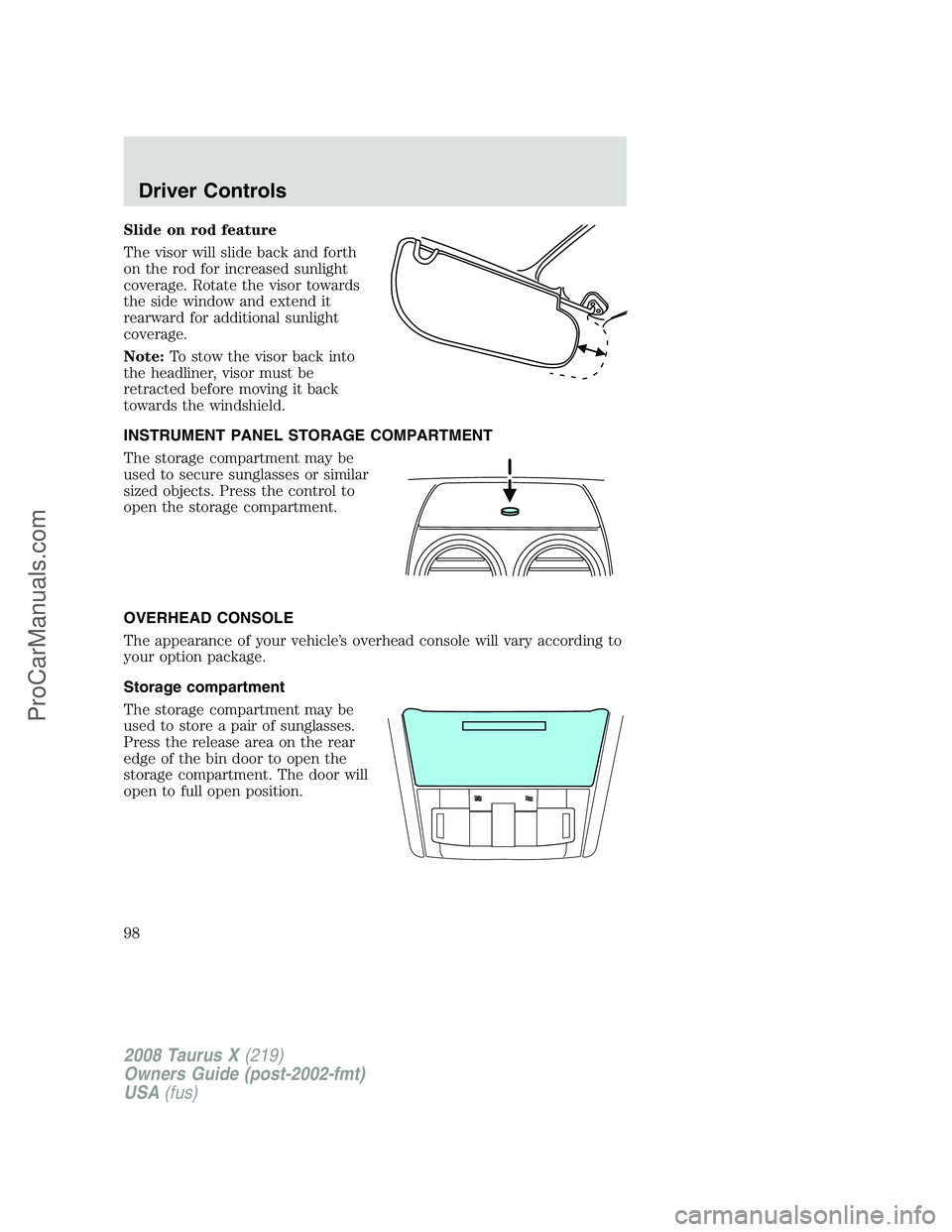

Page 98 of 352

FORD FREESTYLE 2008  Owners Manual Slide on rod feature
The visor will slide back and forth
on the rod for increased sunlight
coverage. Rotate the visor towards
the side window and extend it
rearward for additional sunlight
coverage.
N

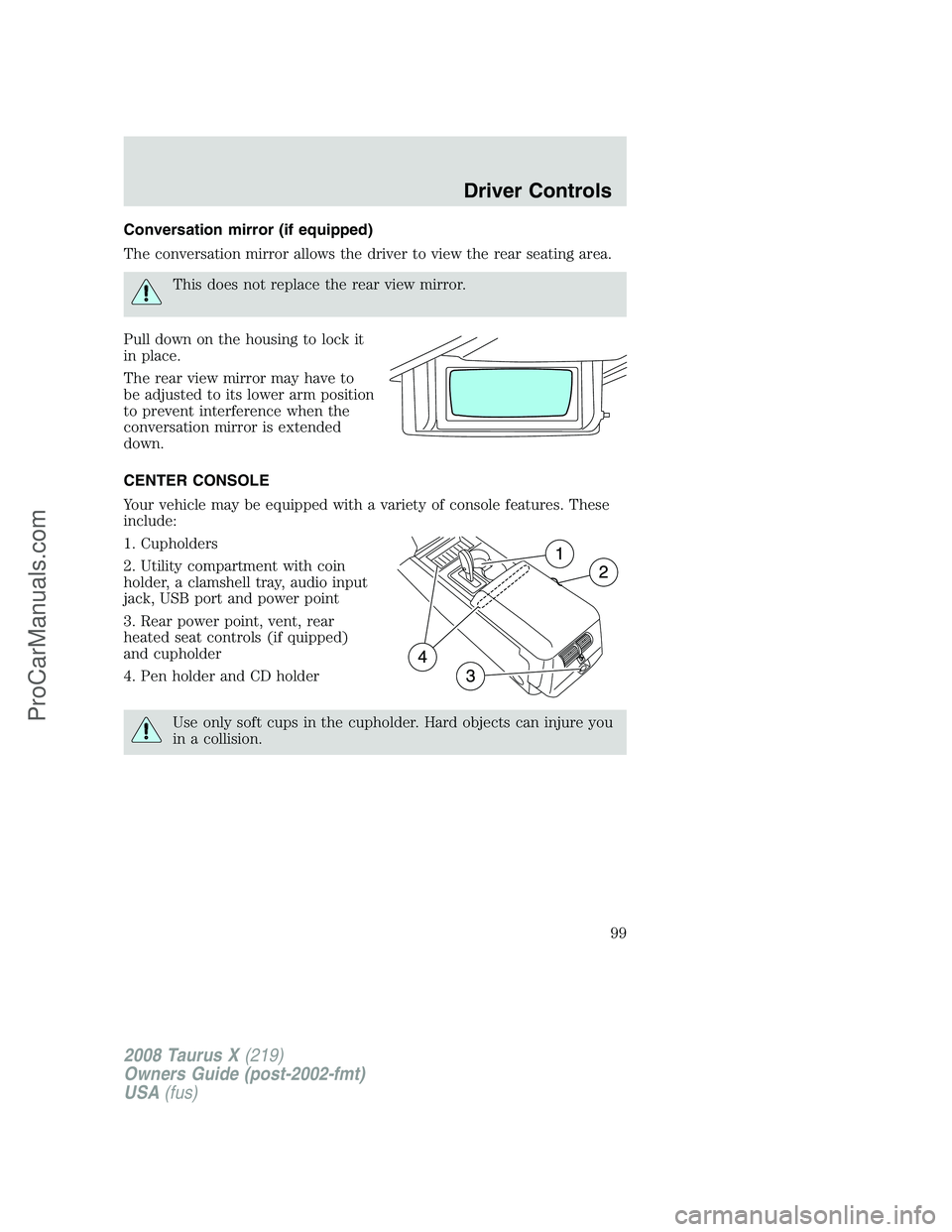

Page 99 of 352

FORD FREESTYLE 2008  Owners Manual Conversation mirror (if equipped)
The conversation mirror allows the driver to view the rear seating area.
This does not replace the rear view mirror.
Pull down on the housing to lock it
in place.
The

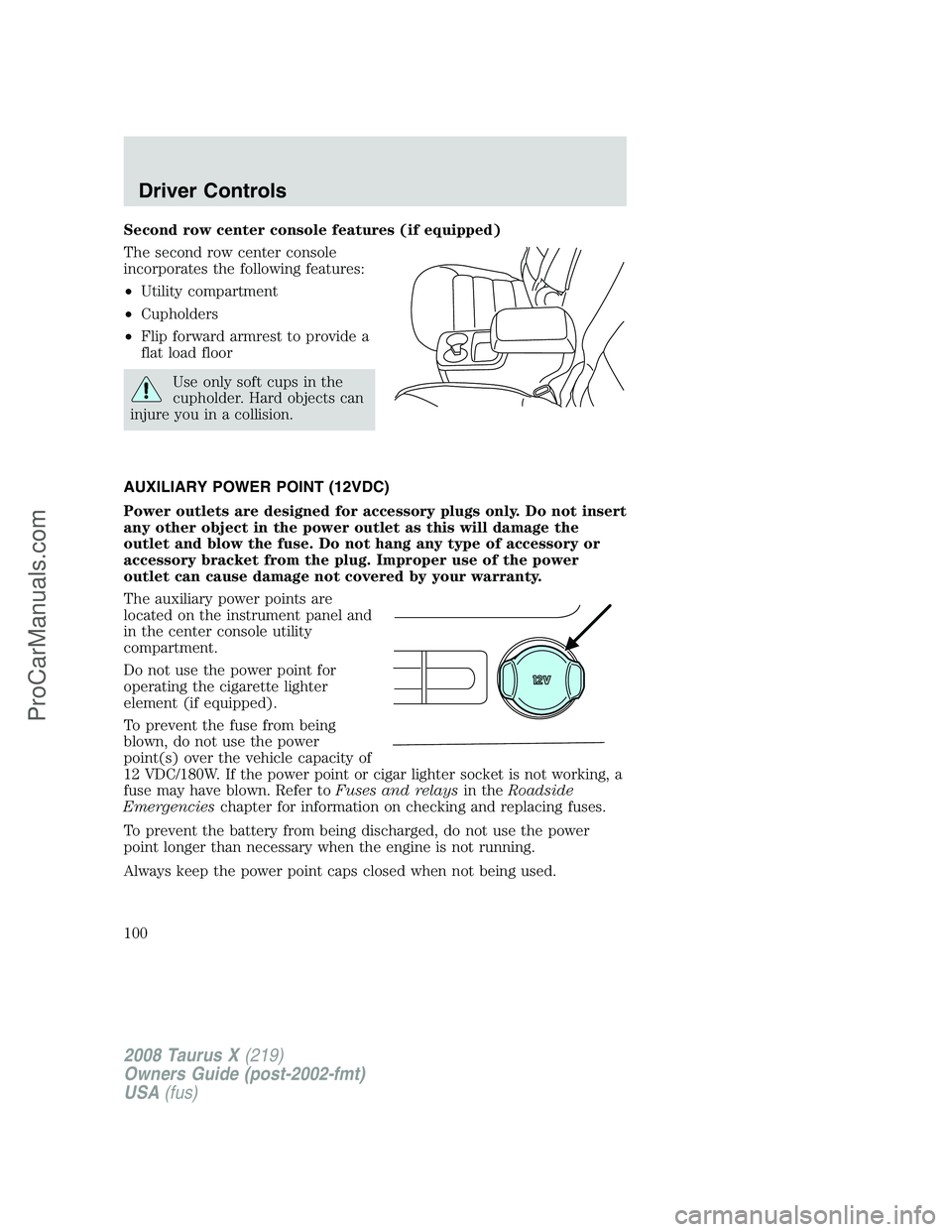

Page 100 of 352

FORD FREESTYLE 2008  Owners Manual Second row center console features (if equipped)
The second row center console
incorporates the following features:
•Utility compartment
•Cupholders
•Flip forward armrest to provide a
flat load
