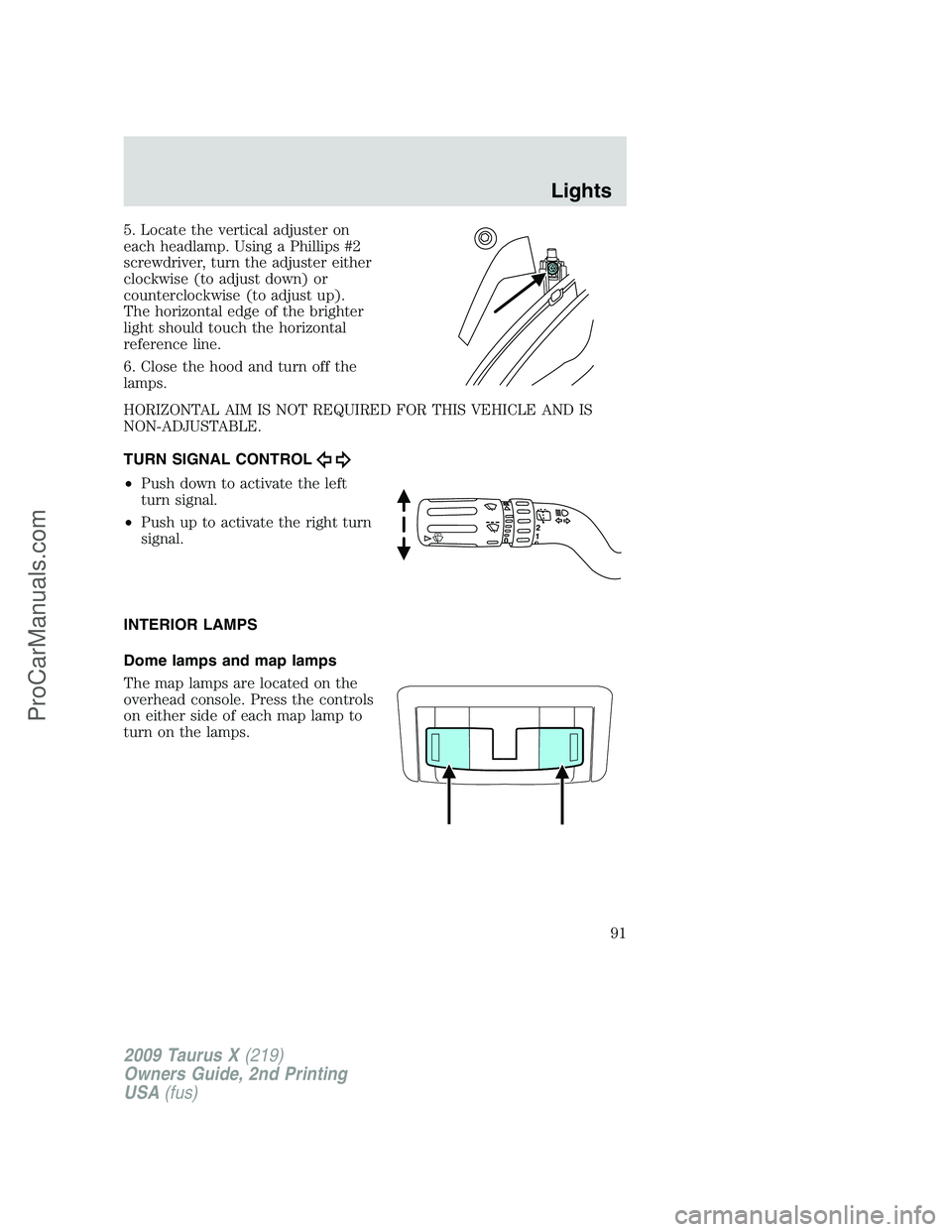

Page 91 of 358

FORD FREESTYLE 2009  Owners Manual 5. Locate the vertical adjuster on
each headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise (to adjust down) or
counterclockwise (to adjust up).
The horizontal edge of the br

Page 92 of 358

FORD FREESTYLE 2009  Owners Manual Your vehicle may also have reading
lamps within the rear dome lamp(s).
Press the switches on either side of
the dome lamp to turn on the
lamps.
BULB REPLACEMENT
Lamp assembly condensation
Exterior lam

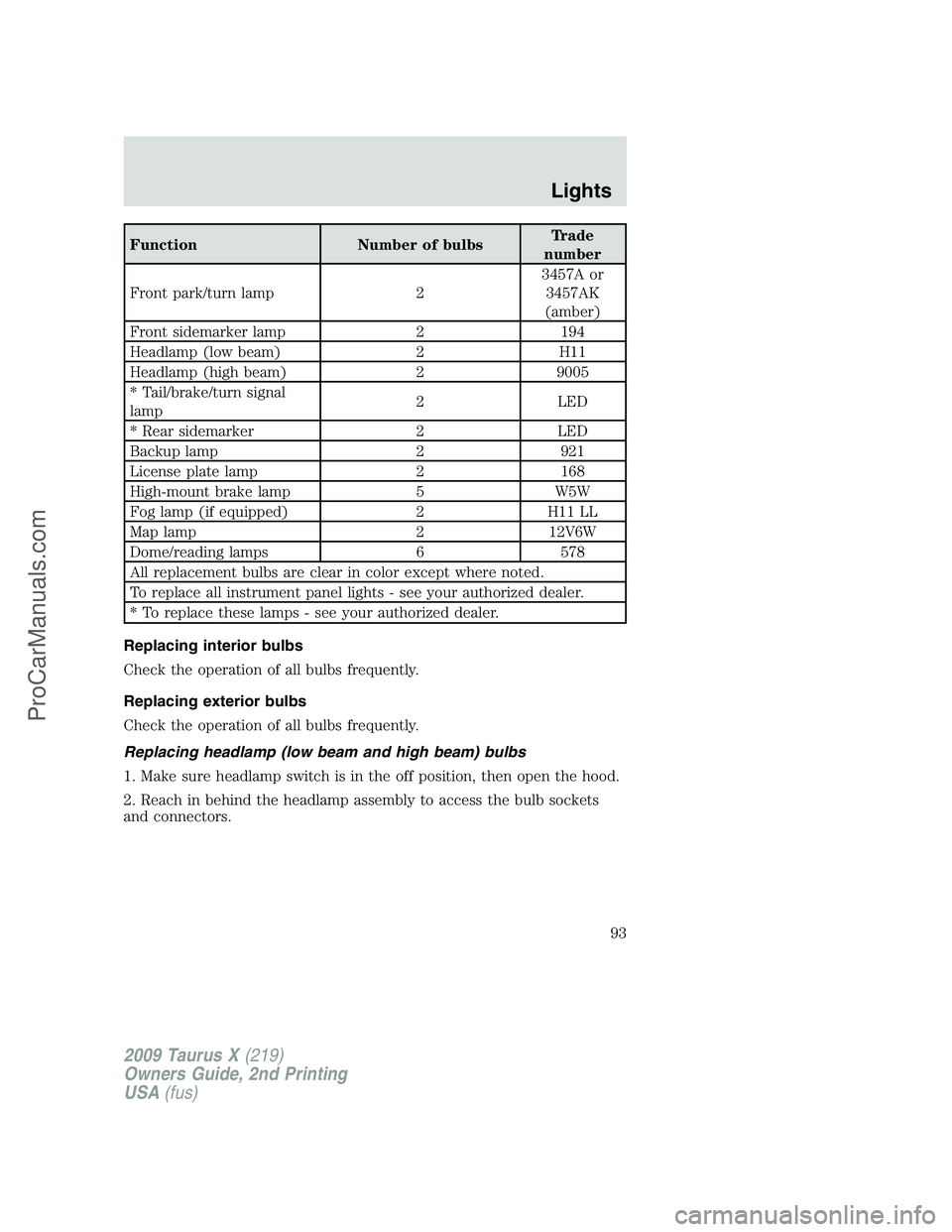

Page 93 of 358

FORD FREESTYLE 2009  Owners Manual Function Number of bulbsTrade
number
Front park/turn lamp 23457A or
3457AK
(amber)
Front sidemarker lamp 2 194
Headlamp (low beam) 2 H11
Headlamp (high beam) 2 9005
* Tail/brake/turn signal
lamp2 LED

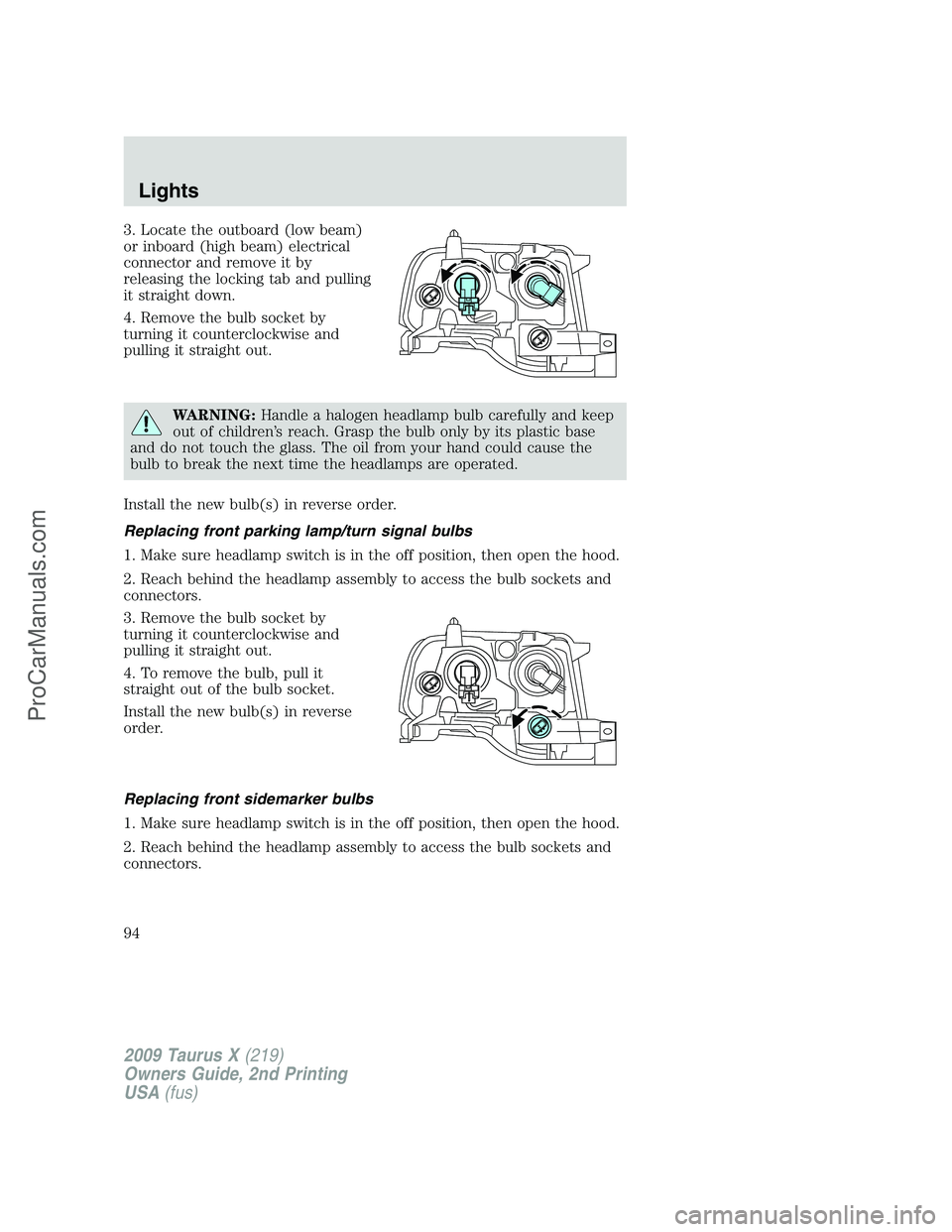

Page 94 of 358

FORD FREESTYLE 2009  Owners Manual 3. Locate the outboard (low beam)
or inboard (high beam) electrical
connector and remove it by
releasing the locking tab and pulling
it straight down.
4. Remove the bulb socket by
turning it countercl

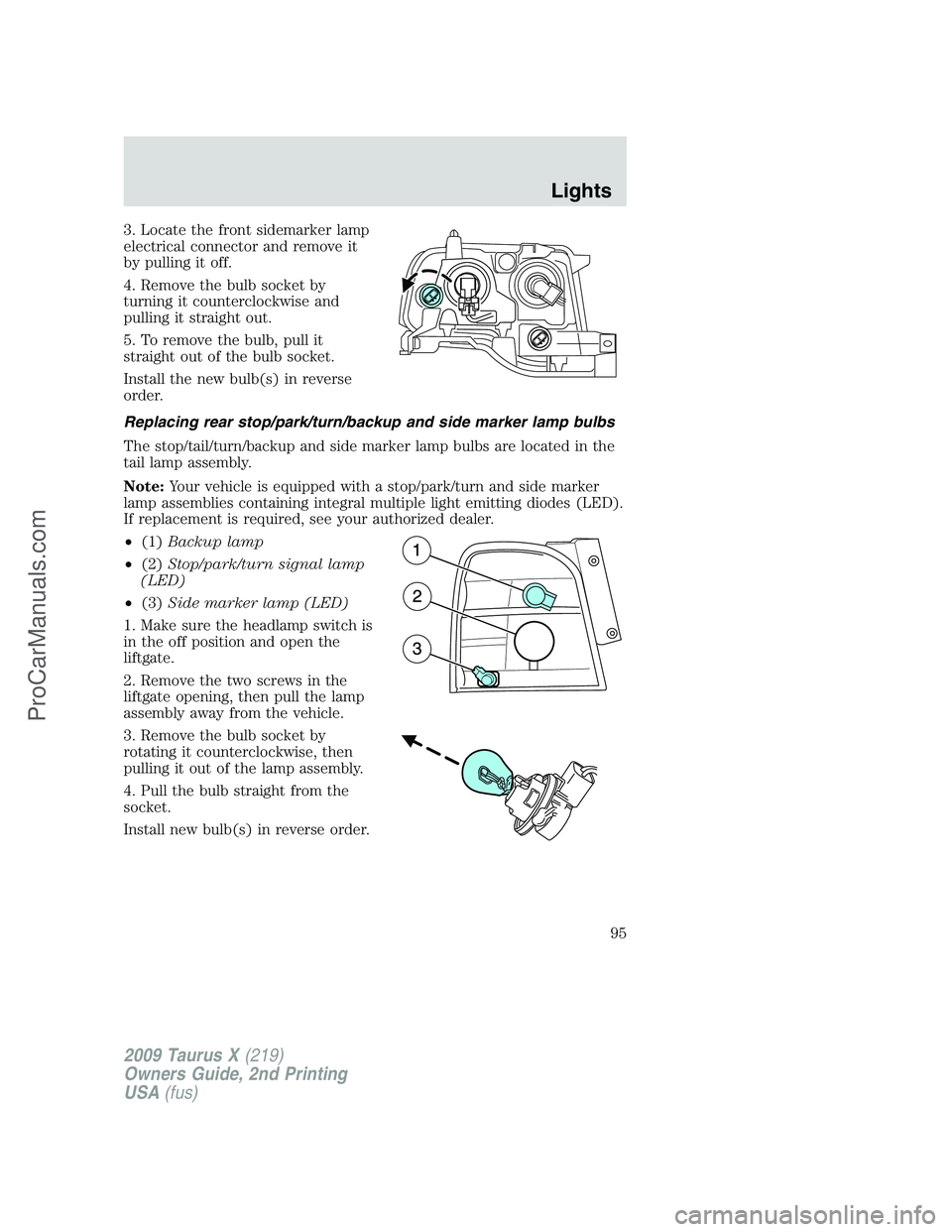

Page 95 of 358

FORD FREESTYLE 2009  Owners Manual 3. Locate the front sidemarker lamp
electrical connector and remove it
by pulling it off.
4. Remove the bulb socket by
turning it counterclockwise and
pulling it straight out.
5. To remove the bulb, p

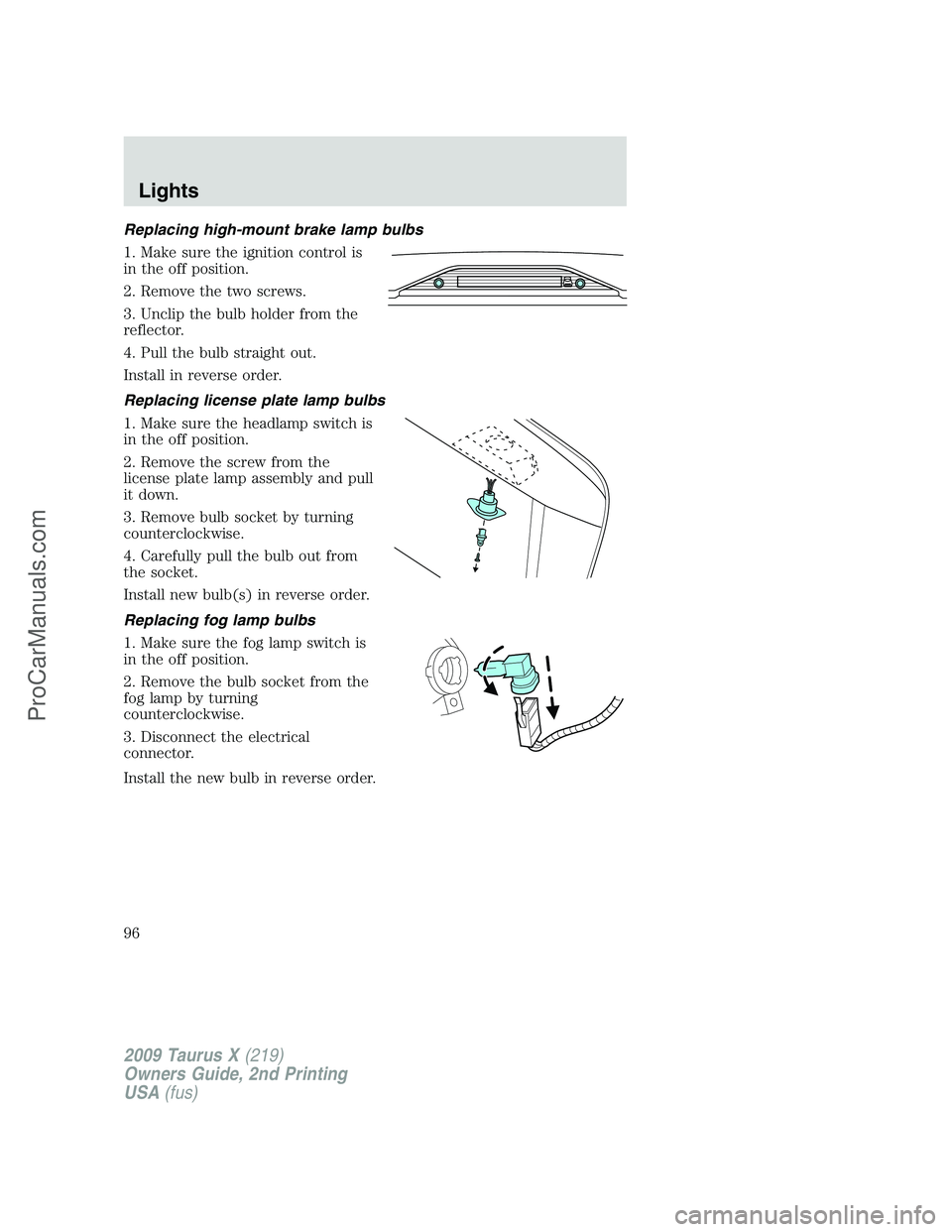

Page 96 of 358

FORD FREESTYLE 2009  Owners Manual Replacing high-mount brake lamp bulbs
1. Make sure the ignition control is
in the off position.
2. Remove the two screws.
3. Unclip the bulb holder from the
reflector.
4. Pull the bulb straight out.
I

Page 97 of 358

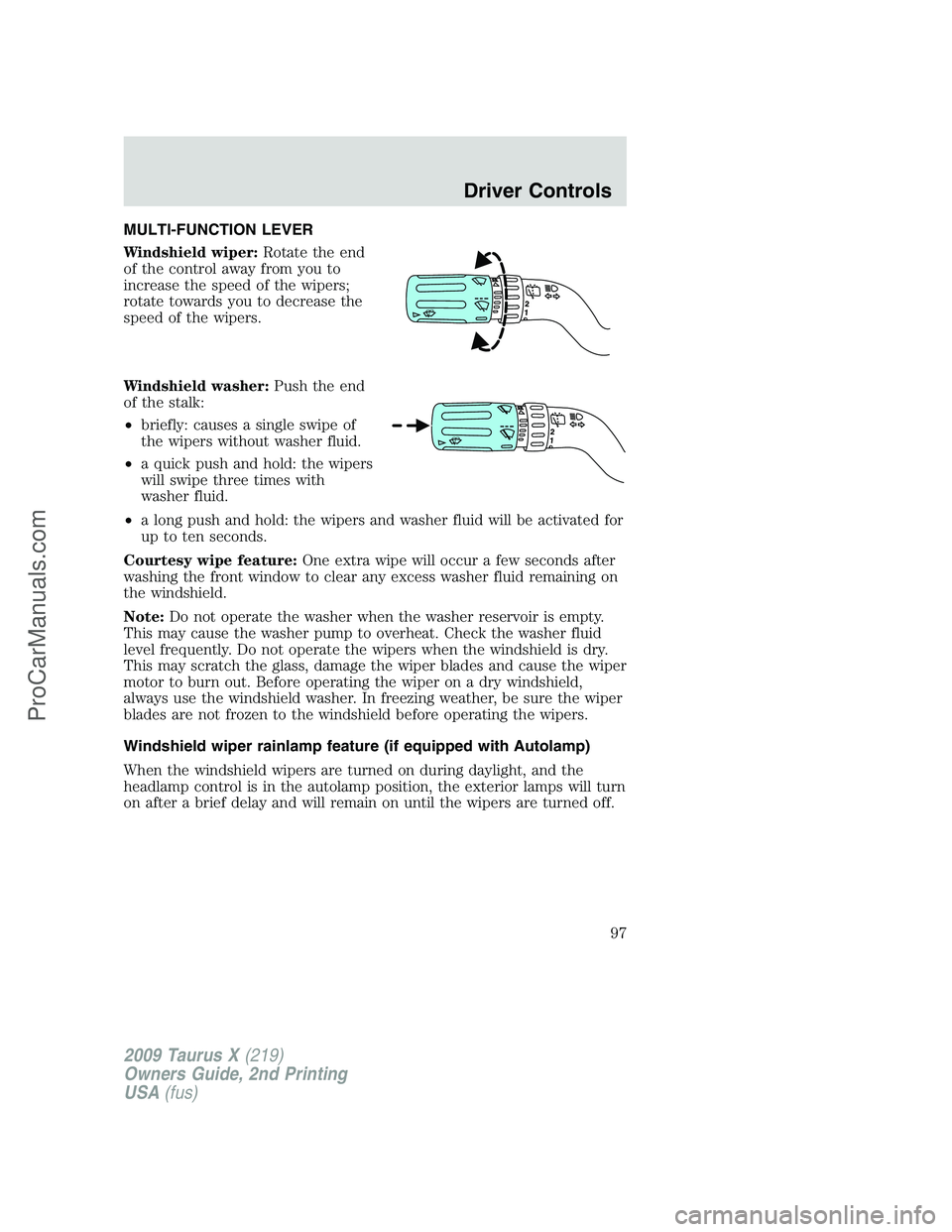

FORD FREESTYLE 2009  Owners Manual MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push th

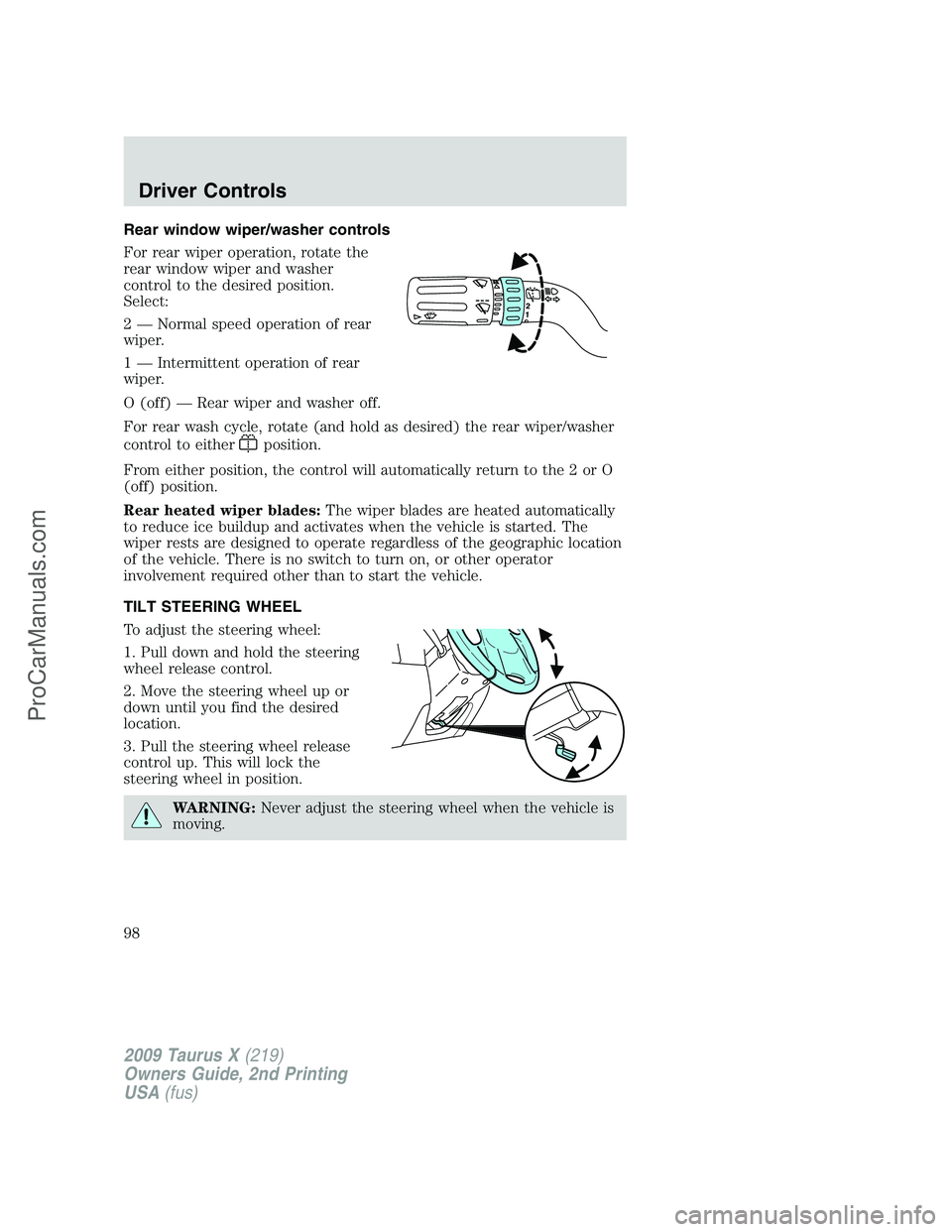

Page 98 of 358

FORD FREESTYLE 2009  Owners Manual Rear window wiper/washer controls
For rear wiper operation, rotate the
rear window wiper and washer
control to the desired position.
Select:
2 — Normal speed operation of rear
wiper.
1 — Intermitt

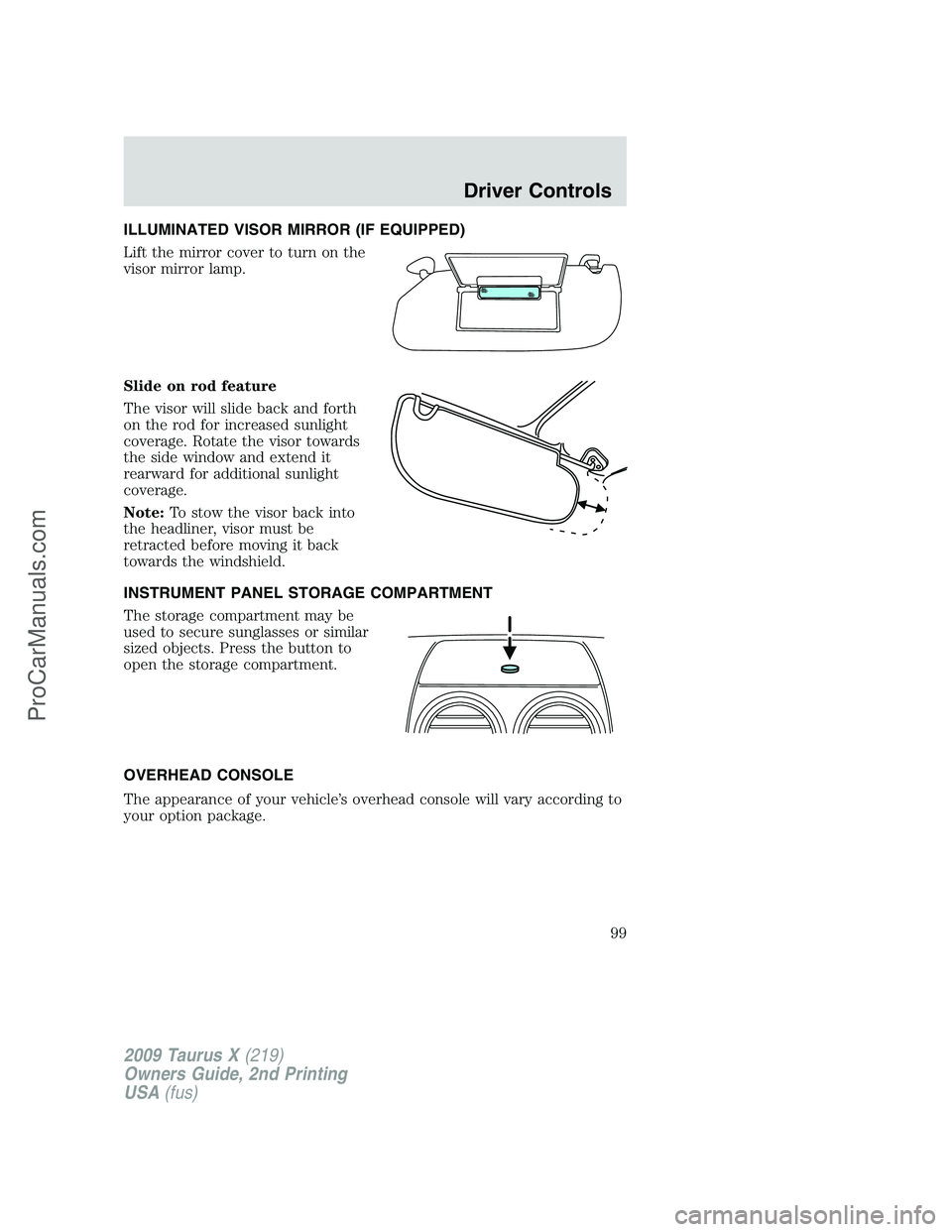

Page 99 of 358

FORD FREESTYLE 2009  Owners Manual ILLUMINATED VISOR MIRROR (IF EQUIPPED)
Lift the mirror cover to turn on the
visor mirror lamp.
Slide on rod feature
The visor will slide back and forth
on the rod for increased sunlight
coverage. Rota

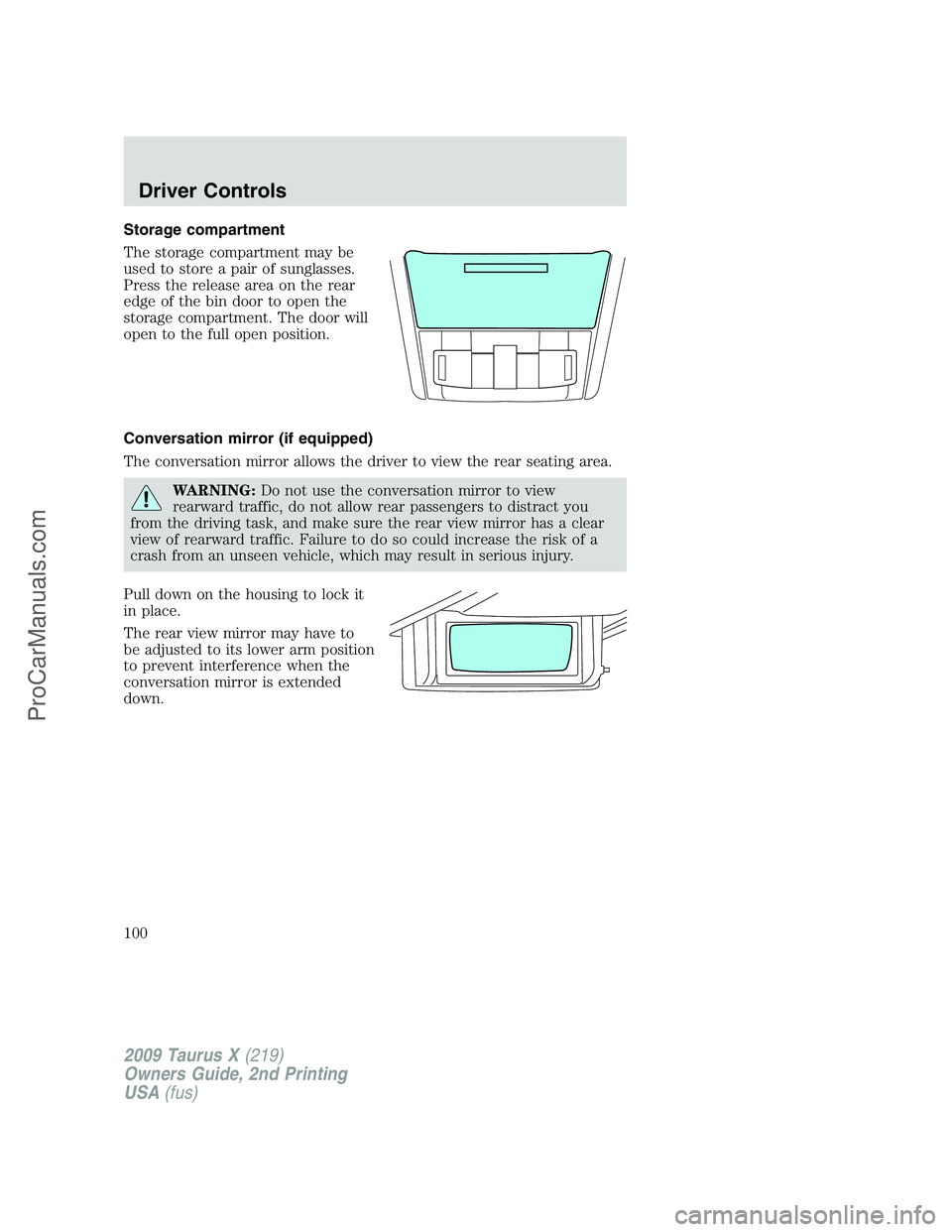

Page 100 of 358

FORD FREESTYLE 2009  Owners Manual Storage compartment
The storage compartment may be
used to store a pair of sunglasses.
Press the release area on the rear
edge of the bin door to open the
storage compartment. The door will
open to th
