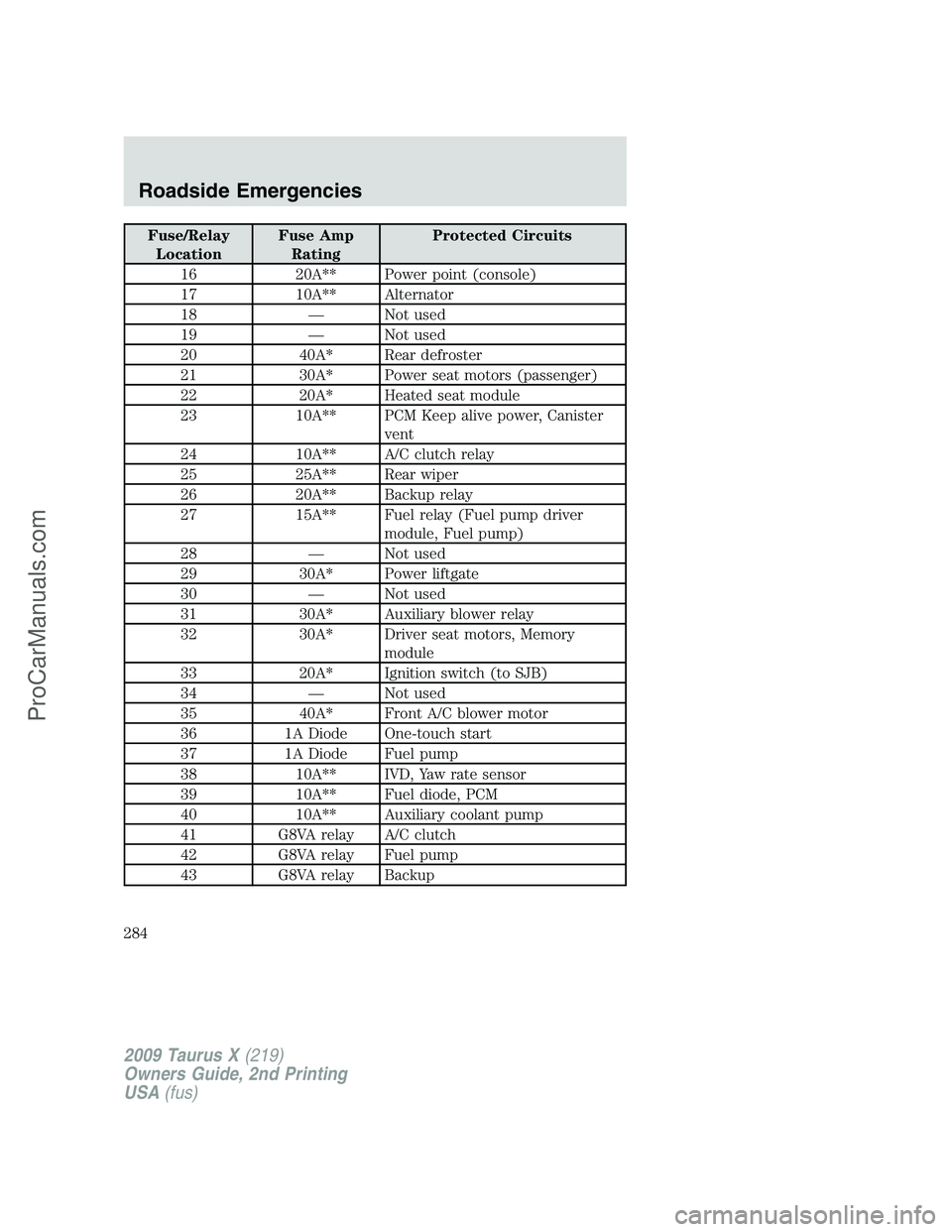

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
16 20A** Power point (console)
17 10A** Alternator
18 — Not used
19 — Not used
20 40A* Rear defroster
21 30A* Power seat motors (passenger)
22 20A* Heated seat module
23 10A** PCM Keep alive power, Canister
vent
24 10A** A/C clutch relay
25 25A** Rear wiper
26 20A** Backup relay
27 15A** Fuel relay (Fuel pump driver
module, Fuel pump)
28 — Not used
29 30A* Power liftgate
30 — Not used
31 30A* Auxiliary blower relay
32 30A* Driver seat motors, Memory
module
33 20A* Ignition switch (to SJB)
34 — Not used
35 40A* Front A/C blower motor
36 1A Diode One-touch start
37 1A Diode Fuel pump
38 10A** IVD, Yaw rate sensor
39 10A** Fuel diode, PCM
40 10A** Auxiliary coolant pump
41 G8VA relay A/C clutch
42 G8VA relay Fuel pump
43 G8VA relay Backup
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Roadside Emergencies
284
ProCarManuals.com

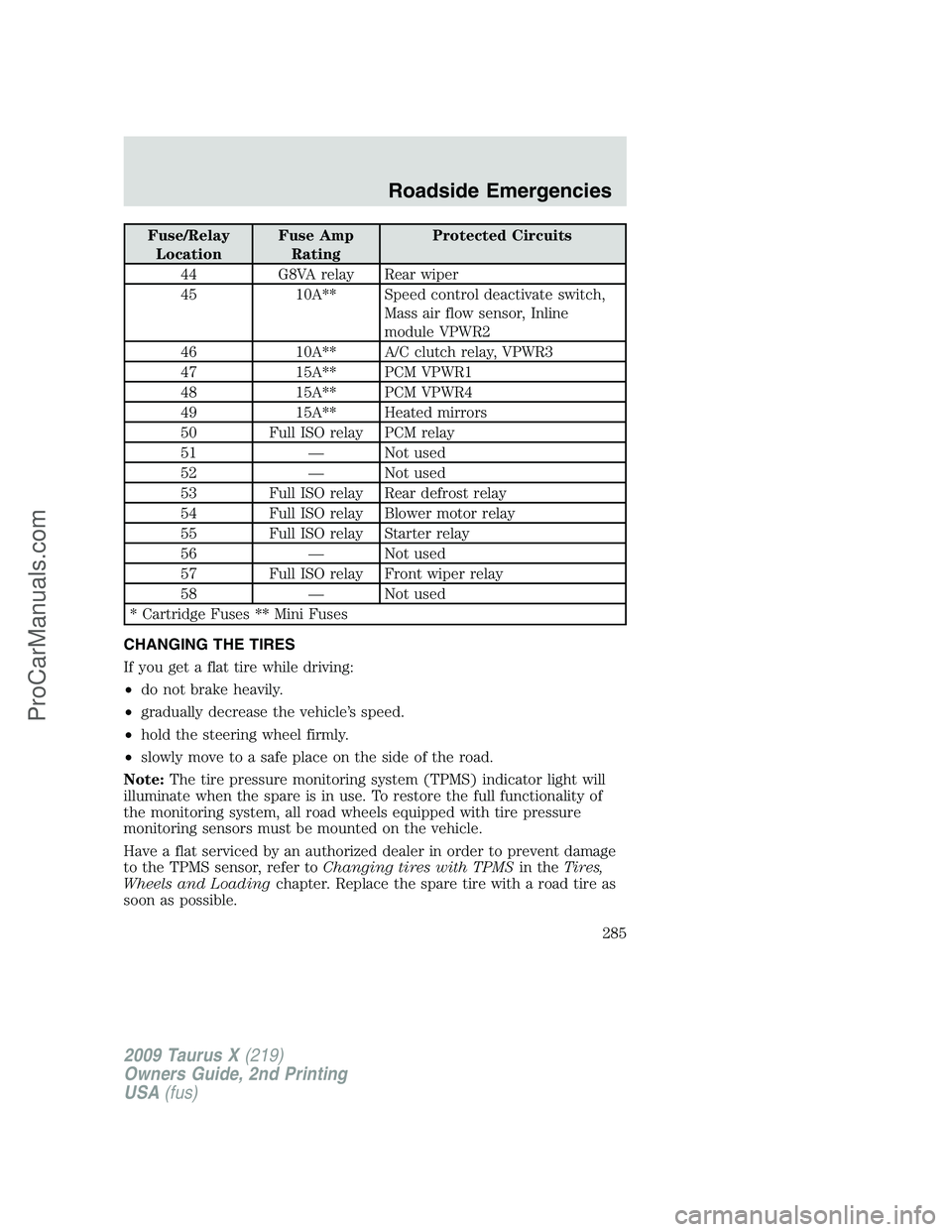

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
44 G8VA relay Rear wiper
45 10A** Speed control deactivate switch,
Mass air flow sensor, Inline
module VPWR2
46 10A** A/C clutch relay, VPWR3
47 15A** PCM VPWR1
48 15A** PCM VPWR4
49 15A** Heated mirrors
50 Full ISO relay PCM relay
51 — Not used
52 — Not used
53 Full ISO relay Rear defrost relay
54 Full ISO relay Blower motor relay
55 Full ISO relay Starter relay
56 — Not used
57 Full ISO relay Front wiper relay
58 — Not used
* Cartridge Fuses ** Mini Fuses
CHANGING THE TIRES
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensor, refer toChanging tires with TPMSin theTires,
Wheels and Loadingchapter. Replace the spare tire with a road tire as
soon as possible.
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Roadside Emergencies
285
ProCarManuals.com

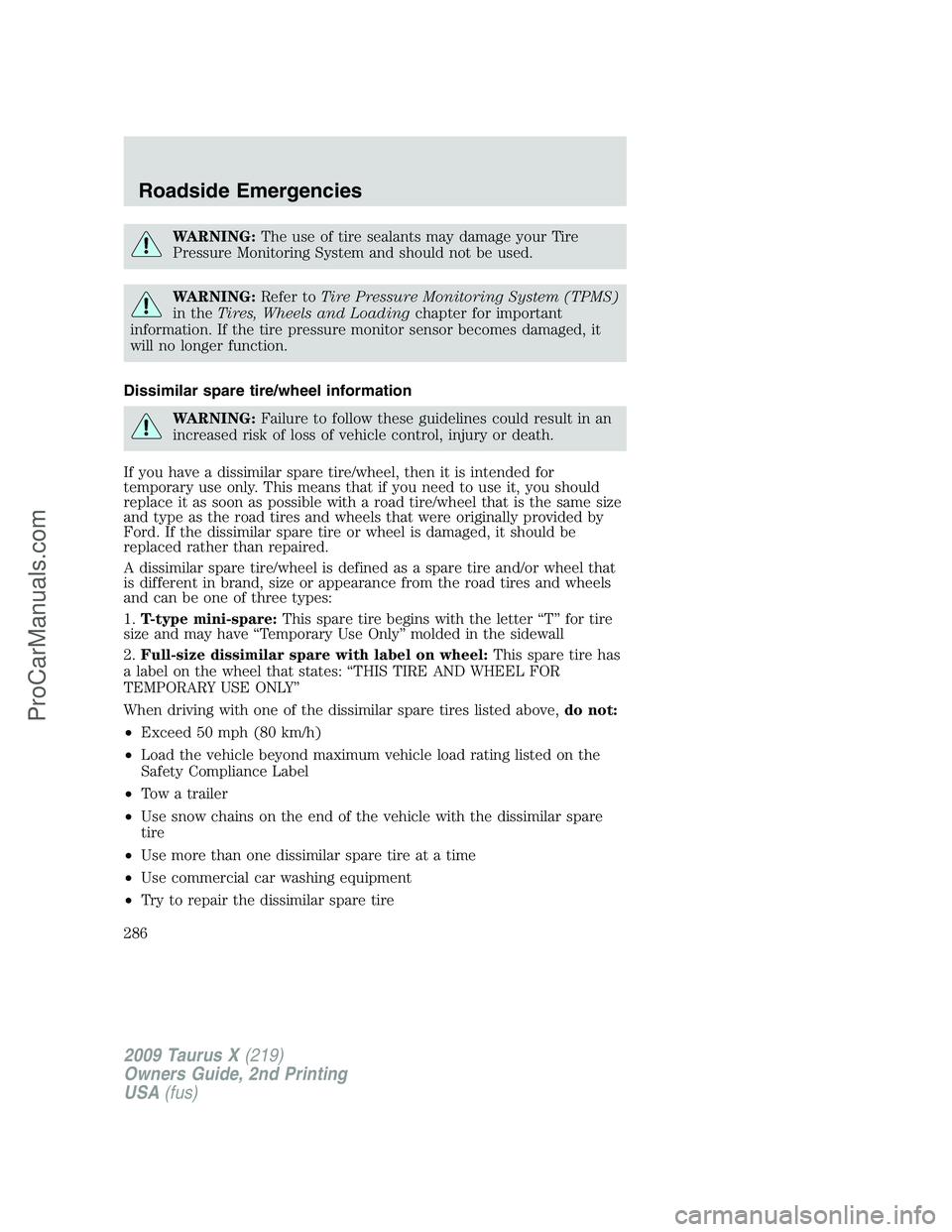

WARNING:The use of tire sealants may damage your Tire
Pressure Monitoring System and should not be used.
WARNING:Refer toTire Pressure Monitoring System (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Roadside Emergencies
286
ProCarManuals.com

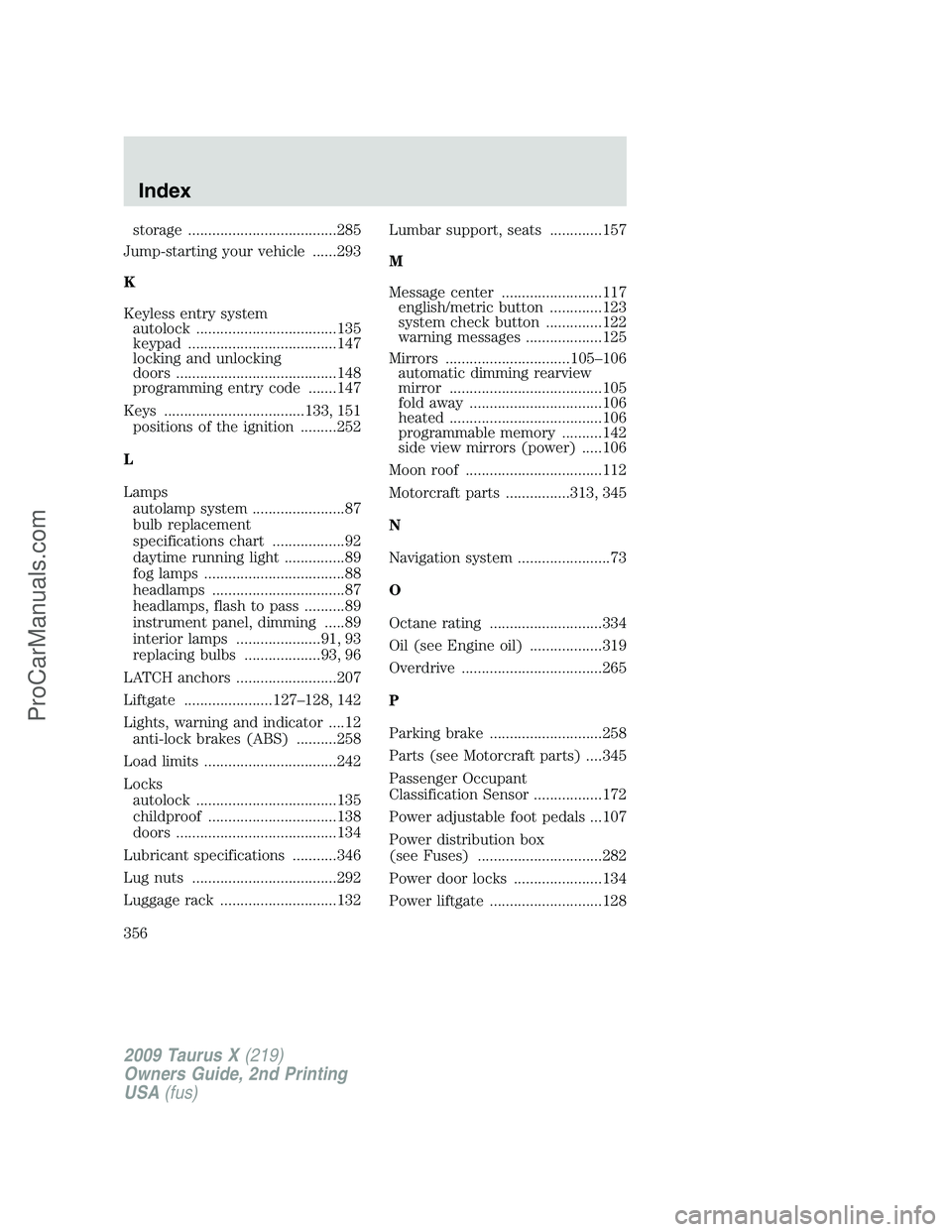

storage .....................................285
Jump-starting your vehicle ......293
K
Keyless entry system
autolock ...................................135
keypad .....................................147
locking and unlocking
doors ........................................148
programming entry code .......147
Keys ...................................133, 151
positions of the ignition .........252
L
Lamps
autolamp system .......................87
bulb replacement
specifications chart ..................92
daytime running light ...............89
fog lamps ...................................88
headlamps .................................87
headlamps, flash to pass ..........89
instrument panel, dimming .....89
interior lamps .....................91, 93
replacing bulbs ...................93, 96
LATCH anchors .........................207
Liftgate ......................127–128, 142
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........258
Load limits .................................242
Locks
autolock ...................................135
childproof ................................138
doors ........................................134
Lubricant specifications ...........346
Lug nuts ....................................292
Luggage rack .............................132Lumbar support, seats .............157
M
Message center .........................117
english/metric button .............123
system check button ..............122
warning messages ...................125
Mirrors ...............................105–106
automatic dimming rearview
mirror ......................................105
fold away .................................106
heated ......................................106
programmable memory ..........142
side view mirrors (power) .....106
Moon roof ..................................112
Motorcraft parts ................313, 345
N
Navigation system .......................73
O
Octane rating ............................334
Oil (see Engine oil) ..................319
Overdrive ...................................265
P
Parking brake ............................258
Parts (see Motorcraft parts) ....345
Passenger Occupant
Classification Sensor .................172
Power adjustable foot pedals ...107
Power distribution box
(see Fuses) ...............................282
Power door locks ......................134
Power liftgate ............................128
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Index
356
ProCarManuals.com

Power mirrors ...........................106
Power point ...............................101
Power steering ..........................263
fluid, checking and adding ....341
fluid, refill capacity ................346
fluid, specifications .................346
Power Windows .........................103
R
Radio ................................18, 22, 29
Rear seat entertainment
system ..........................................45
Recommendations for
attaching safety restraints for
children ......................................201
Relays ........................................279
Remote entry system .......139, 141
illuminated entry ............144, 146
locking/unlocking doors .........141
opening the trunk ...................142
panic alarm .............................141
replacement/additional
transmitters .............................144
replacing the batteries ...........143
Reverse sensing system ...........268
Roadside assistance ..................276
Roof rack ...................................132
S
Safety belts (see Safety
restraints) ..........170, 173, 175–177
Safety Canopy ...................193, 195
Safety defects, reporting ..........306
Safety
restraints ...........170, 173, 175–178
Belt-Minder
...........................179extension assembly ................178
for adults .........................175–177
for children .............................199
Occupant Classification
Sensor ......................................172
warning light and
chime ...............................178–179
Safety restraints - LATCH
anchors ......................................207
Safety seats for children ..........203
Safety Compliance
Certification Label ....................349
Satellite Radio Information ........42
Seats ..........................................155
child safety seats ....................203
front seats .......................155–156
heated ............78, 80, 82, 160, 166
memory seat ...................142, 160
second row seats ............162, 165
third row seats ........165, 167–168
SecuriCode keyless entry
system ........................................147
SecuriLock passive anti-theft
system ........................................149
Servicing your vehicle ..............314
Setting the clock
AM/FM single CD .....................23
AM/FM/In-dash 6 CD ................30
Spare tire (see Changing the
Tire) ...........................................288
Spark plugs,
specifications .....................345, 348
Specification chart,
lubricants ...................................346
Speed control ............................107
Starting your vehicle ........252–254
jump starting ..........................293
2009 Taurus X(219)
Owners Guide, 2nd Printing
USA(fus)
Index
357
ProCarManuals.com
